Music Reactive LED Strip (Modern Workspace)

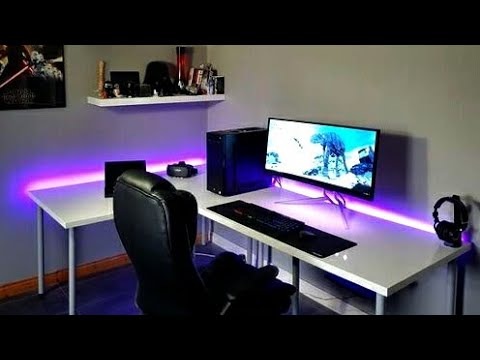

This is a real quick guide of LED lightning on workspaces. On this specific case, you will learn how to install a LED strip that react to the music (low frequency), audio audiorhythmic lights to enjoy your movies, music, and games in an other level.

1-x.1 sound system, it's important that it has subwoofer.

-Some wiring.

1-Wall mountable switch.

1-12v LED strip, (any color works).

Tools:

Soldering iron

Cutter

Screw driver

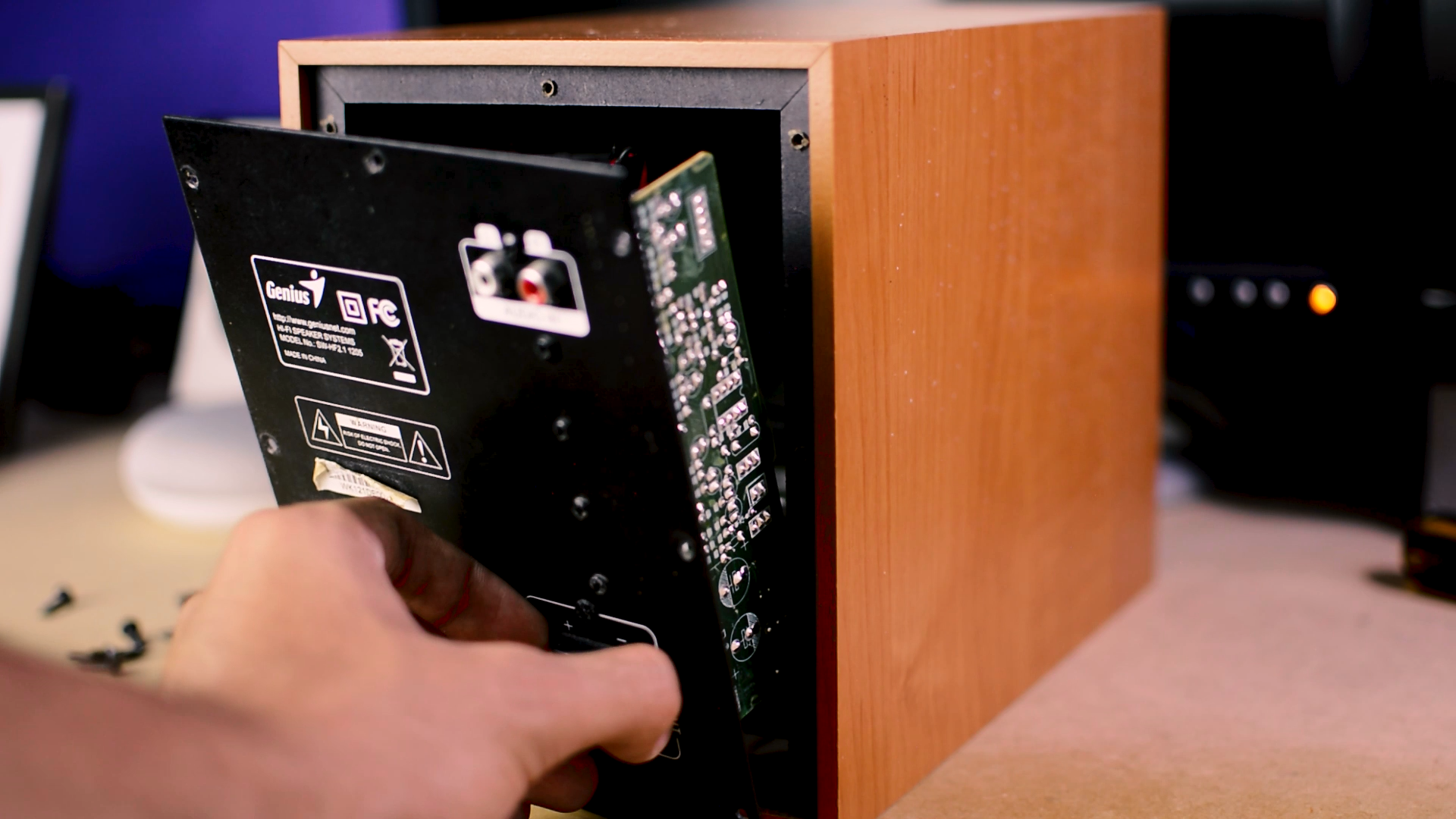

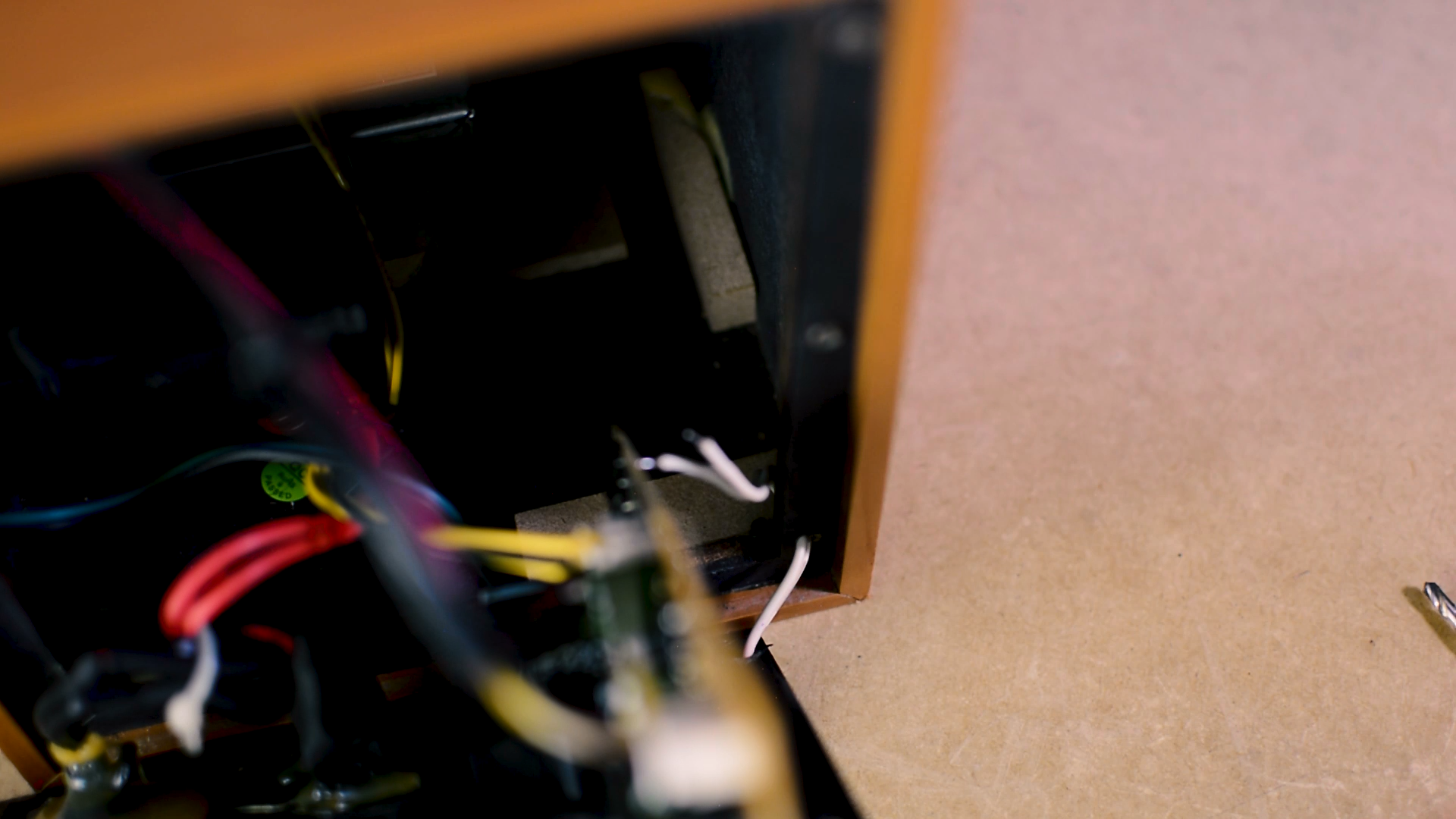

Disarm your subwoofer box, then look for the cables of the bass speaker and see where they are connected on the circuit board and right there you connect the wires that will go to your LED strip (regardless of the polarity).

Reassemble the box, and then test with some music, before mounting the LED strips wherever you want your Light system.

Measure and cut the strips, and then paste them.

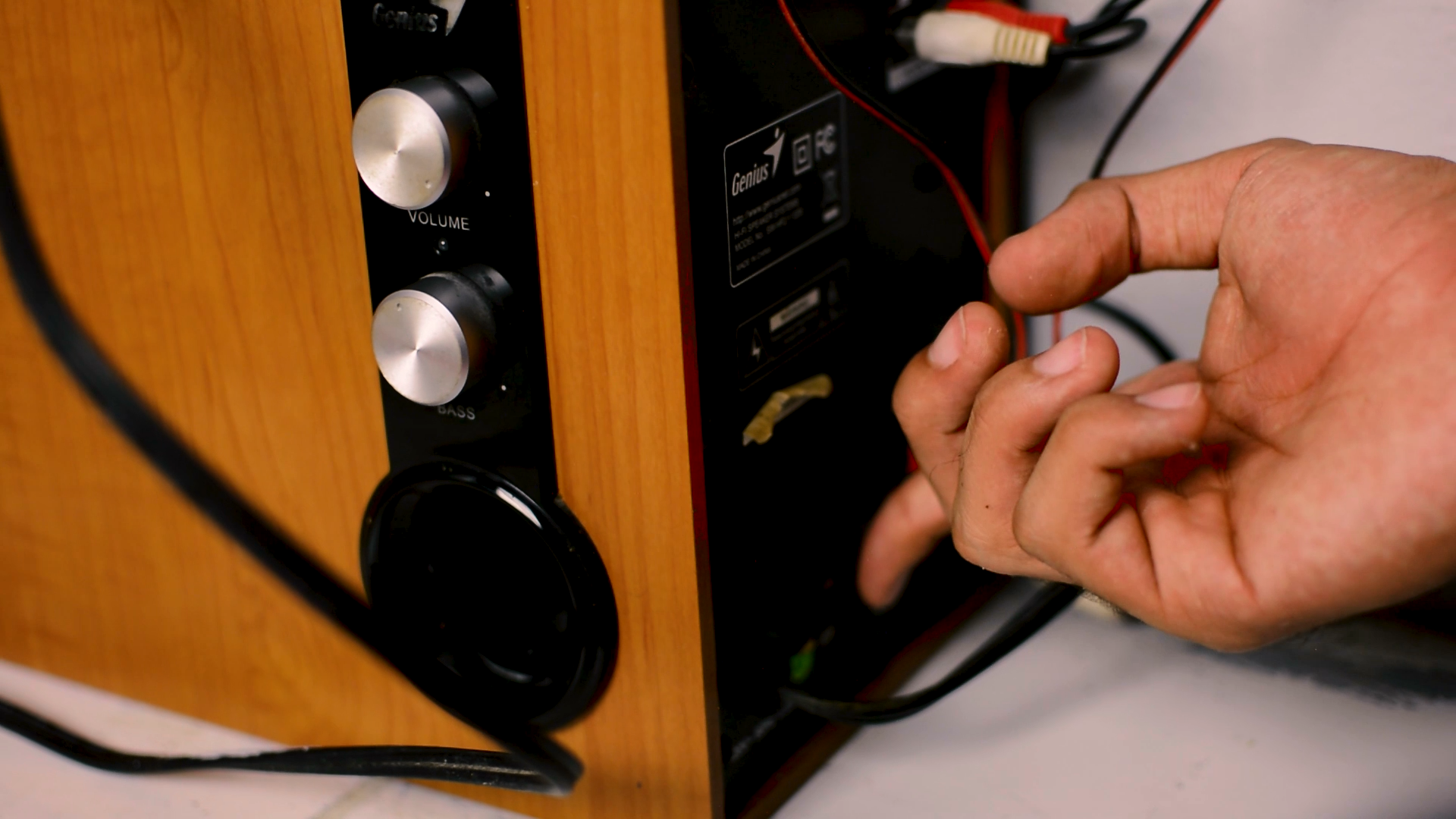

Connect your sound system voice speakers, then connect the LED strip (in my case i used a connector, but you can solder the LED strip directly to the board), and lets play some music and test.
