Multiple RGB Led Chaser Using Arduino Uno
by sparkbuzzer in Circuits > Arduino
3088 Views, 15 Favorites, 0 Comments
Multiple RGB Led Chaser Using Arduino Uno

In This Blog I have shown you how to build LED chaser using arduino uno
Full Steps in Video

Youtube Video
Watch This Video And Find More Arduino Projects at Sparkbuzzer.com
Components

- RGB Leds
- Jumper Wires
- Breadboard
- Arduino Uno
- USB Cable for Arduino

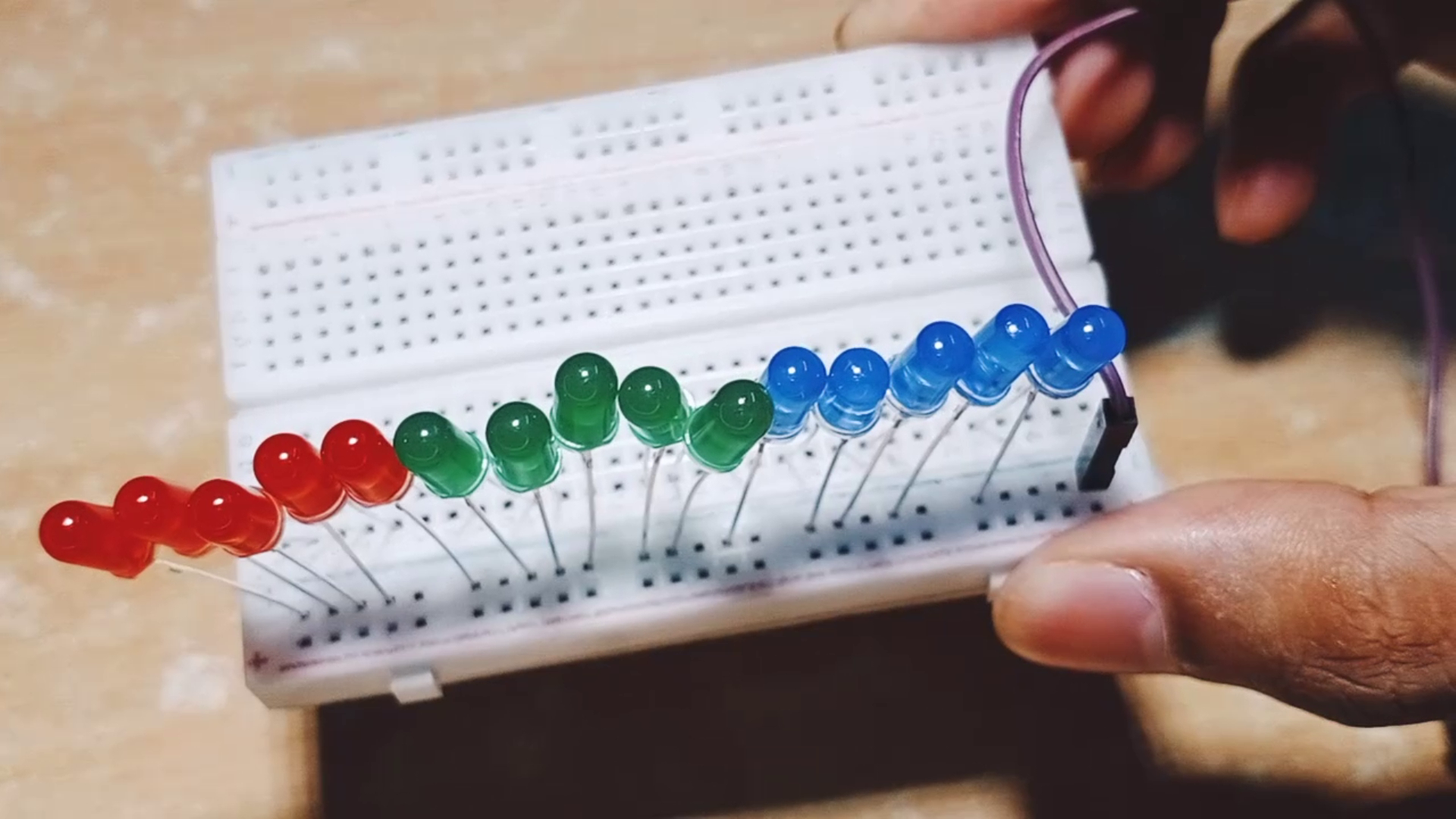

Led Mount on Breadboard


Connect cathod pins to Gnd
and
andode pins to arduino pins 3 to 12

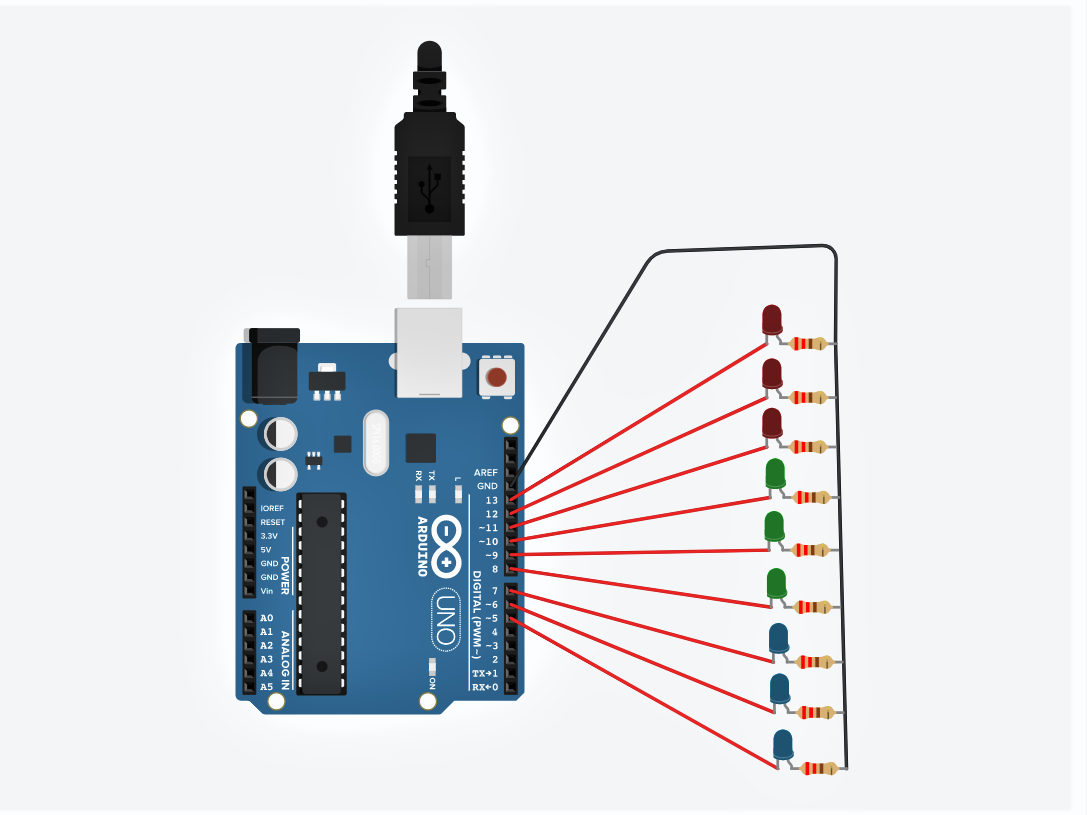

Wire Connection


Code
RGB Led Chaser Code
Here is the code
int ledpin; int pot = A0; void setup() { for(ledpin=2;ledpin<=8;ledpin++){ pinMode(ledpin,OUTPUT); } } void loop() { for(ledpin=2;ledpin<=8;ledpin++){ int value = analogRead(pot); digitalWrite(ledpin,HIGH); delay(value); } for(ledpin=2;ledpin<=8;ledpin++){ int value = analogRead(pot); digitalWrite(ledpin,LOW); delay(value); } }
Code Screenshot

Here is the code screenshot
Video and Pics



Pls Support us On Youtube, Subscribe Here #sparkbuzzer
