MultiMeter Arduino NANO and OLED I2c 0.96″

by ForbiddenBit_com in Circuits > Arduino

2048 Views, 4 Favorites, 0 Comments

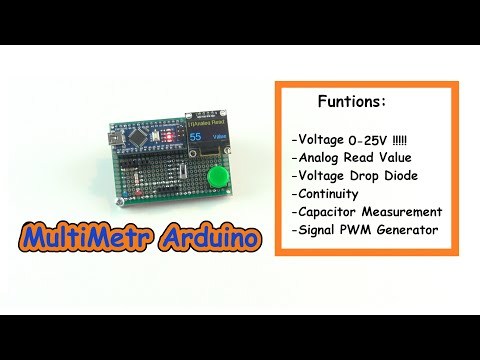

MultiMeter Arduino NANO and OLED I2c 0.96″

How to Make MultiMeter Arduino nano and Display i2c OLED 0.96"

Hi, every electronics needs a multimeter, you can buy it or make it
yourself at home. Today I will show you how to make a multimeter with arduino nano and an oled display at home.

Functions:

  • Voltmeter 0 to 25 Volt!!!!!
  • Analog Read Value
  • Voltage Drop Diode
  • Continuity circuit
  • Capacitor Measurement
  • Signal PWM Generator

Voltmeter 0 to 25 Volt!!!!!

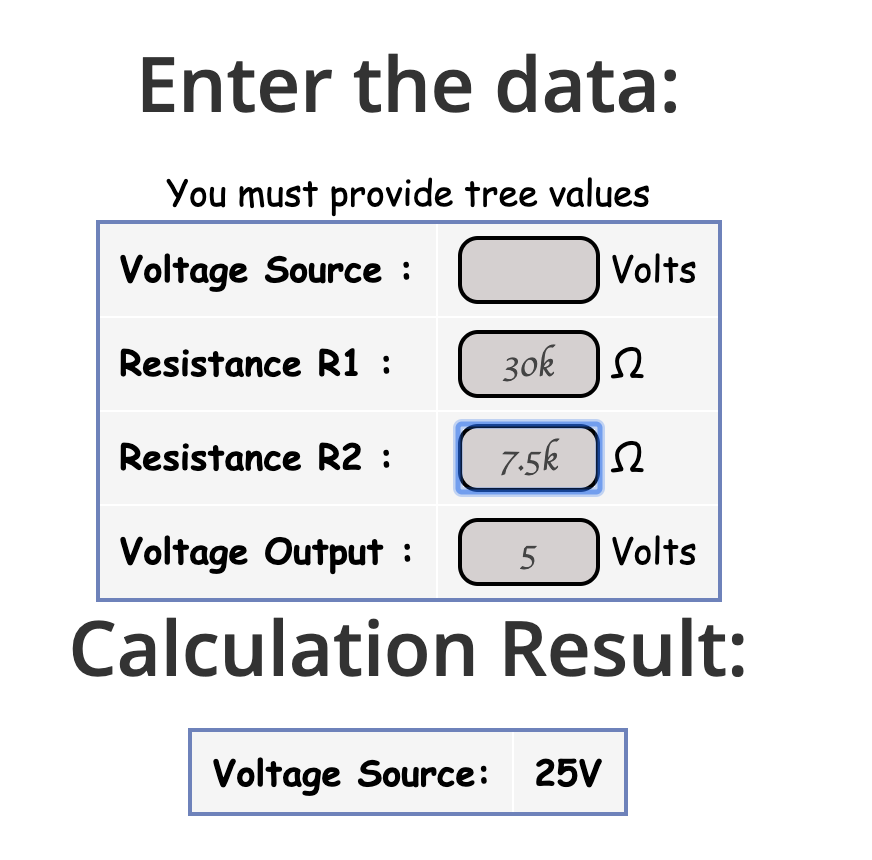

Analog pins can measure a voltage not exceeding the supply voltage, but
you can increase the measured voltage by using a voltage divider. I used 7.5K and 30K ohms resistors, With a 5 volt microcontroller supply voltage (NOT ARDUINO, Arduino has a voltage stabilizer connected to the Vin pin) maximum voltage we can connect 25 volts. LINK TO CALCULATOR VOLTAGE DIVIDER

Diagram


Sketch

Sketch download HERE
