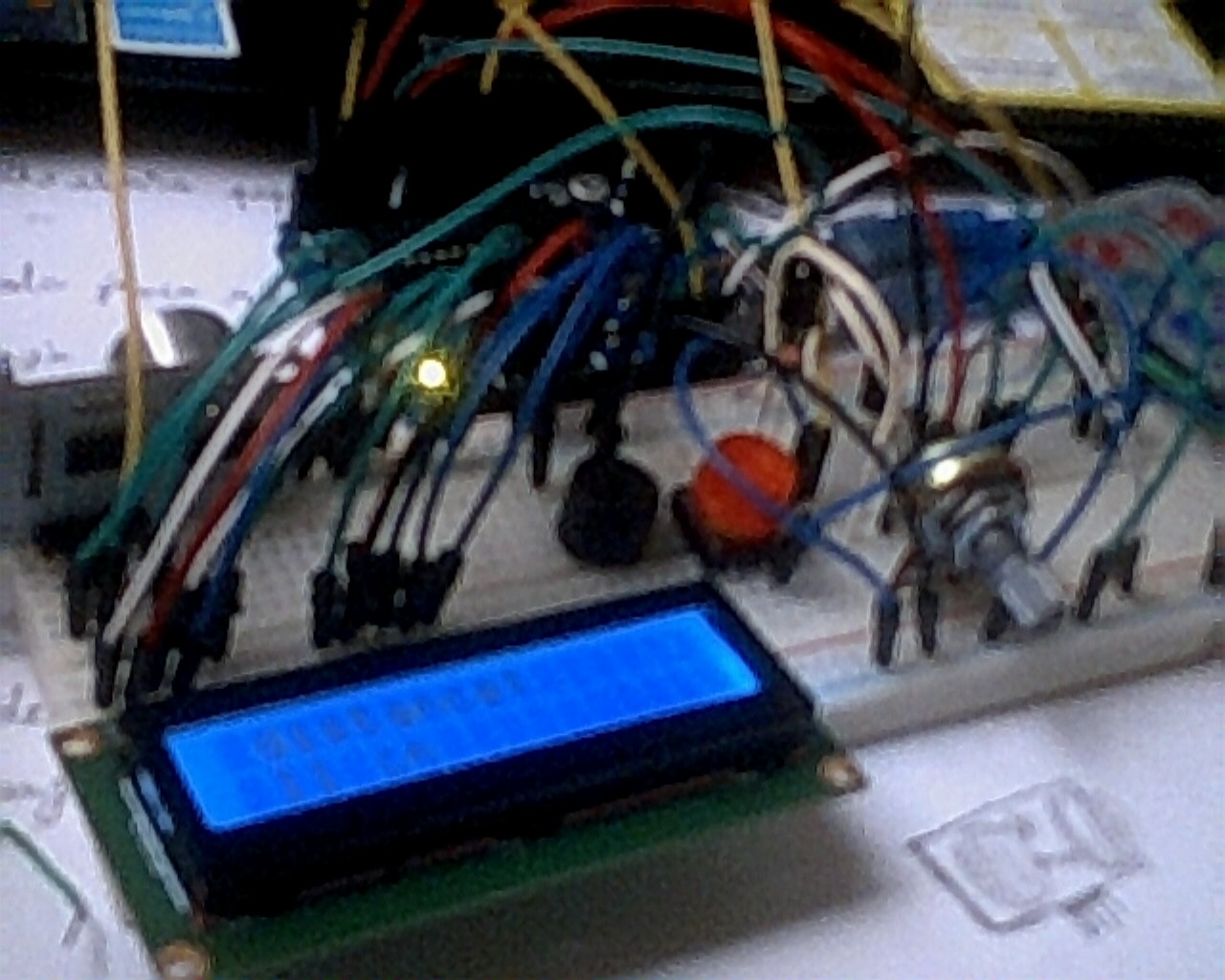

Multi Funcional Sensors Play Ground With Arduino


This is a multi-funcional project .

It can be mesure :distances,temperature in degrees Celcios,flame , light and tilt ,it is like a swiss knife ..no because it is eletroni and haven't knife ,how ever it is very use full very projects in just one .Amazing!!

Supplies

  1. HC-SR05(ultra-sonic sensor).
  2. Arduino UNO R3
  3. Piezo Buzzer.
  4. Flame Sensor
  5. tilt switch
  6. LDR
  7. LM35(temperature sensor)
  8. 10k potenciometer
  9. LCD 16x2
  10. Breadboard (large)

Mode's:


You can change the mode when you want ,you just have to turn the potenciometer to chose the mode.

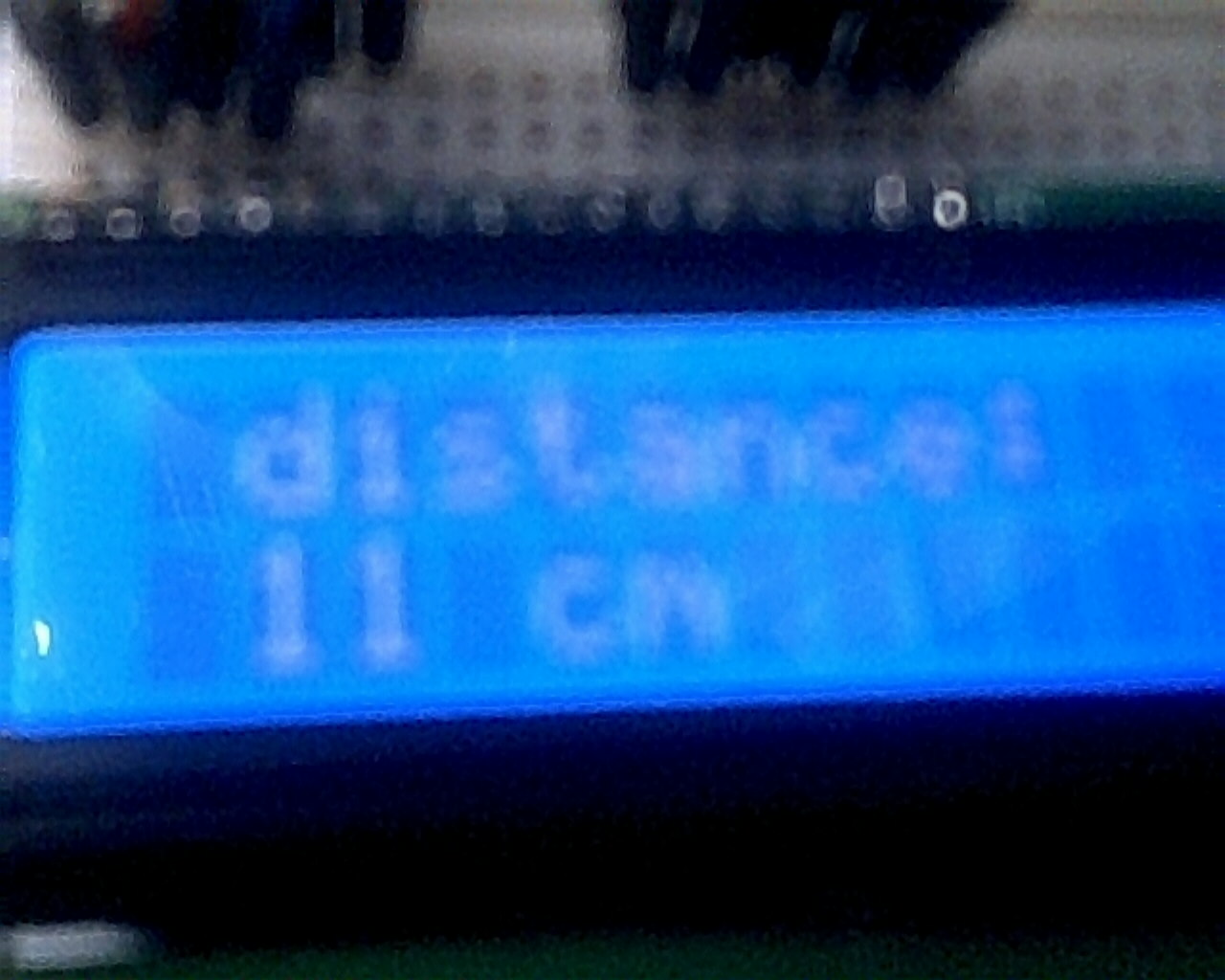

1st Mode:Distance meter:

In this mode you can mesure distances between 0cm and 1000cm(or 10 meters if you want ), in "cm"(centimeters)unit.

2nd Mode :Fire Alarm:

If you have something burns it produce a noise(200Hz and 400Hz).

3rd Mode:Tilt alarm:

the same thing that the name exposes.

4th Mode:Light meter:

This mode mesure the light in "%".

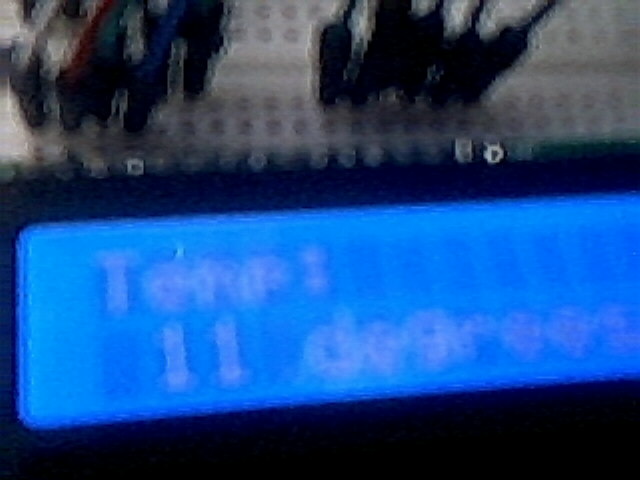

5th Mode:Thermometer :

This thermometer isn't very precised put give us a real approximated read.

Wiring Sequence:

LCD:

* vss,GND * vdd,+5V * vo ,GND * rs,2 * rw,GND * e,3 * d4,4 * d5,5 * d6,6 * d7,7 * A,+5V * K,GND * ultra -sonic(HC-SR05): * vcc.+5V * echo,12 * trig,13 * output ,____ * GND,GND * BUZZER: * pin1,GND * pin2,9(PWM~) * potenciometer: * pin1,GND * Cursor,A4 * pin2,+5V * flame sensor * GND,GND * VCC,A3 * tilt swtch: * pin1,GND * pin2,A2 * LDR: * pin1,GND * pin2,A1 * LM35: * vcc,+5v * vood,A0 * GND,GND *

Code:

/*
 * Creted by Simao Pinto Correia.
 * created in portugal , on Wednesday ,26th ,Jun,2019
 * All rights reserved.
 */
//+++++++++++++++++++++++++++++++++++++++++++++++++++++++++WIRING SEQUENCE+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
/*
 * LCD:
 * vss,GND
 * vdd,+5V
 * vo ,GND
 * rs,2
 * rw,GND
 * e,3
 * d4,4
 * d5,5
 * d6,6
 * d7,7
 * A,+5V
 * K,GND
 * ultra -sonic(HC-SR05):
 * vcc.+5V
 * echo,12
 * trig,13
 * output ,____
 * GND,GND
 * BUZZER:
 * pin1,GND
 * pin2,9(PWM~)
 * potenciometer:
 * pin1,GND
 * Cursor,A4
 * pin2,+5V
 * flame sensor
 * GND,GND
 * VCC,A3
 * tilt swtch:
 * pin1,GND
 * pin2,A2
 * LDR:
 * pin1,GND
 * pin2,A1
 * LM35:
 * vcc,+5v
 * vood,A0
 * GND,GND
 */
#include <LiquidCrystal.h>

LiquidCrystal lcd(2,3,4,5,6,7);
#define ECHO_PIN 12
#define TRIG_PIN 13
#define MELODY_PIN 9
#define FLAME_PIN A3
#define TILT_PIN A2
#define LDR_PIN A1
#define TEMP_PIN A0
//setup mode button:
#define MODE_PIN A4
int faseButtom;
void setup() {
  // put your setup code here, to run once:
pinMode(MELODY_PIN,OUTPUT);
pinMode(ECHO_PIN,INPUT);
pinMode(TRIG_PIN,OUTPUT);
pinMode(FLAME_PIN,INPUT);
pinMode(TILT_PIN,INPUT);
pinMode(LDR_PIN,INPUT);
pinMode(TEMP_PIN,INPUT);
pinMode(MODE_PIN,INPUT);
lcd.begin(16,2);
}
void loop() {
  // put your main code here, to run repeatedly:
if ((analogRead (MODE_PIN)<200)&&(analogRead(MODE_PIN)>0)){
  faseButtom=1;
}
if ((analogRead (MODE_PIN)<400)&&(analogRead(MODE_PIN)>200)){
  faseButtom=2;
}
if ((analogRead (MODE_PIN)<600)&&(analogRead(MODE_PIN)>400)){
  faseButtom=3;
}
if ((analogRead (MODE_PIN)<800)&&(analogRead(MODE_PIN)>600)){
  faseButtom=4;
}
if ((analogRead (MODE_PIN)<1023)&&(analogRead(MODE_PIN)>800)){
  faseButtom=5;
}
if (faseButtom==1){
 noTone(MELODY_PIN);
 long duration,distance;
  digitalWrite(TRIG_PIN,LOW);
  delayMicroseconds(2);
  digitalWrite(TRIG_PIN,HIGH);
  delayMicroseconds(10);
  digitalWrite(TRIG_PIN,LOW);
  duration = pulseIn(ECHO_PIN,HIGH);
  distance = (duration/2) / 29.1;
  //lcd print the results.
  lcd.clear();
  lcd.setCursor(1,0);
  lcd.print("distance:");
  lcd.setCursor(1,1);
  lcd.print(distance);
  lcd.write(' ');
  lcd.print("cm");
}
if (faseButtom==2){
  noTone(MELODY_PIN);
  if (analogRead(FLAME_PIN)<200){


  lcd.clear();
  lcd.print("fire?");
  }
  else{
    lcd.clear();
    lcd.print("FIRE!");
    tone(MELODY_PIN,200);
    lcd.display();
    delay(500);
    tone(MELODY_PIN,400);
    lcd.noDisplay();

    delay(500);
  }

}
if(faseButtom==3){
  noTone(MELODY_PIN);
  lcd.clear();
  lcd.print("Tylt Mode");
  if(digitalRead(TILT_PIN)==HIGH){
   noTone(MELODY_PIN);
    lcd.clear();
    lcd.setCursor(1,1);
    lcd.print("no Tylt");

  }
  else{
    lcd.clear();
    lcd.setCursor(1,1);
    lcd.print("Tylting...");
    tone(MELODY_PIN,200);
    delay(500);
    tone(MELODY_PIN,400);
    delay(400);
    tone(MELODY_PIN,600);
    delay(500);
}
}
if(faseButtom==4){
  noTone(MELODY_PIN);
  long READ;
  READ=analogRead(LDR_PIN)*100/1023;
  lcd.clear();
  lcd.print("light");
  lcd.setCursor(1,1);
  lcd.print(READ);
  lcd.write(' ');
  lcd.write('%');
}
if (faseButtom==5){
 noTone(MELODY_PIN);
 long temperature;
 temperature = analogRead(TEMP_PIN)*500/1023;
  lcd.clear();
  lcd.print("Temp:");
  lcd.setCursor(1,1);
  lcd.print(temperature);
  lcd.print(" degrees C");
  delay(1000);
}
delay(200);
}

If you downlod this sketch to use ,download thi .ino version.

if you want this sketch to use some day that you don't no when , download the .zip file no1.

If you want to put this in a e-mail download .txt file.

if you want all these download fileNo2.zip that contains every thing.

Downloads

esta_ao_multi_fun__es_para_o_arduino.ino
C&oacute;pia de esta_ao_multi_fun__es_para_o_arduino.zip
esta_ao_multi_fun__es_para_o_arduino.txt
fileNo2.zip

2nd Revision.

I realise about some errors on the code and on the components .

Problems:

  1. HC-SR05 ultrasónic sensor is rare on the market
  2. The fire mode don't work very well.
  3. the temperature mode have bad mesures.

Solutions:

  1. Change the sensor to HC-SR04.
  2. Repair the fire mode.
  3. Repair the temperature mesure mode.

So ,I correct the code and change this one.

2nd Revision Code:

/*
 * Creted by Simao Pinto Correia.
 * created in portugal , on Wednesday ,26th ,Jun,2019
modefied on Ago 21st '19
 * All rights reserved.
 */
//+++++++++++++++++++++++++++++++++++++++++++++++++++++++++WIRING SEQUENCE+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
/*
 * LCD:
 * vss,GND
 * vdd,+5V
 * vo ,GND
 * rs,2
 * rw,GND
 * e,3
 * d4,4
 * d5,5
 * d6,6
 * d7,7
 * A,+5V
 * K,GND
 *
 * ultra -sonic(HC-SR04):
 * vcc.+5V
 * echo,12
 * trig,13
 * GND,GND
 *
 * BUZZER:
 * pin1,GND
 * pin2,9(PWM~)
 *
 * potenciometer:
 * pin1,GND
 * Cursor,A4
 * pin2,+5V
 *
 * flame sensor
 * GND,GND
 * VCC,A3
 *
 * tilt swtch:
 * pin1,GND
 * pin2,A2
 *
 * LDR:
 * pin1,GND
 * pin2,A1
 *
 * LM35:
 * vcc,+5v
 * Vout,A0
 * GND,GND
 */
#include <LiquidCrystal.h>

LiquidCrystal lcd(2,3,4,5,6,7);
#define ECHO_PIN 12
#define TRIG_PIN 13
#define MELODY_PIN 9
#define FLAME_PIN A3
#define TILT_PIN A2
#define LDR_PIN A1
#define TEMP_PIN A0
//setup mode button:
#define MODE_PIN A4
int faseButtom;
void setup() {
  // put your setup code here, to run once:
pinMode(MELODY_PIN,OUTPUT);
pinMode(ECHO_PIN,INPUT);
pinMode(TRIG_PIN,OUTPUT);
pinMode(FLAME_PIN,INPUT);
pinMode(TILT_PIN,INPUT);
pinMode(LDR_PIN,INPUT);
pinMode(TEMP_PIN,INPUT);
pinMode(MODE_PIN,INPUT);
lcd.begin(16,2);
lcd.clear();
lcd.print("REV 2");
delay(2000);
lcd.clear();
lcd.print("Created By");
lcd.setCursor(0,1);
lcd.print("simaopintocorreia");
lcd.scrollDisplayLeft();
delay(200);
lcd.clear();
}
void loop() {
  // put your main code here, to run repeatedly:
if ((analogRead (MODE_PIN)<200)&&(analogRead(MODE_PIN)>0)){
  faseButtom=1;
}
if ((analogRead (MODE_PIN)<400)&&(analogRead(MODE_PIN)>200)){
  faseButtom=2;
}
if ((analogRead (MODE_PIN)<600)&&(analogRead(MODE_PIN)>400)){
  faseButtom=3;
}
if ((analogRead (MODE_PIN)<800)&&(analogRead(MODE_PIN)>600)){
  faseButtom=4;
}
if ((analogRead (MODE_PIN)<1023)&&(analogRead(MODE_PIN)>800)){
  faseButtom=5;
}
if (faseButtom==1){
 noTone(MELODY_PIN);
 long duration,distance;
  digitalWrite(TRIG_PIN,LOW);
  delayMicroseconds(2);
  digitalWrite(TRIG_PIN,HIGH);
  delayMicroseconds(10);
  digitalWrite(TRIG_PIN,LOW);
  duration = pulseIn(ECHO_PIN,HIGH);
  distance = duration*0.034/2;
  //lcd print the results.
  lcd.clear();
  lcd.setCursor(1,0);
  lcd.print("distance:");
  lcd.setCursor(1,1);
  lcd.print(distance);
  lcd.write(' ');
  lcd.print("cm");
}
if (faseButtom==2){
  noTone(MELODY_PIN);
  if (analogRead(FLAME_PIN)<200){


  lcd.clear();
  lcd.print("fire?");
  } else{
    lcd.clear();
    lcd.print("FIRE!");
    tone(MELODY_PIN,200);
    lcd.noDisplay();
    delay(500);
    tone(MELODY_PIN,400);
    lcd.display();

    delay(500);
  }

}
if(faseButtom==3){
  noTone(MELODY_PIN);
  lcd.clear();
  lcd.print("Tylt Mode");
  if(digitalRead(TILT_PIN)==HIGH){
   noTone(MELODY_PIN);
    lcd.clear();
    lcd.setCursor(1,1);
    lcd.print("no Tylt");

  } else{
    lcd.clear();
    lcd.setCursor(1,1);
    lcd.print("Tylting...");
    tone(MELODY_PIN,200);
    delay(500);
    tone(MELODY_PIN,400);
    delay(400);
    tone(MELODY_PIN,600);
    delay(500);
}
}
if(faseButtom==4){
  noTone(MELODY_PIN);
  long READ;
  READ=analogRead(LDR_PIN)*100/1023;
  lcd.clear();
  lcd.print("light");
  lcd.setCursor(1,1);
  lcd.print(READ);
  lcd.write(' ');
  lcd.write('%');
}
if (faseButtom==5){
 noTone(MELODY_PIN);
 long temperature,temp2;
  map(temperature,0,1023,0,500);
  lcd.clear();
  lcd.print("Temp:");
  lcd.setCursor(1,1);
  lcd.print(temperature);
  lcd.print(" degrees C");
  delay(1000);
}
delay(200);
}

Downloads

rev2_emmca.ino
