Much Improved Bike Hoist
by wongman2001 in Workshop > Organizing
1175 Views, 10 Favorites, 0 Comments
Much Improved Bike Hoist
![C1075E37-D458-48DB-B403-45EFEFEB7A05_4_5005_c.jpeg](/proxy/?url=https://content.instructables.com/FEL/CEFK/LND6TV92/FELCEFKLND6TV92.jpg&filename=C1075E37-D458-48DB-B403-45EFEFEB7A05_4_5005_c.jpeg)
![6AE3196A-20D6-43A9-8D06-50524AAA4918_1_105_c.jpeg](/proxy/?url=https://content.instructables.com/FAY/2AKJ/LND6TV9H/FAY2AKJLND6TV9H.jpg&filename=6AE3196A-20D6-43A9-8D06-50524AAA4918_1_105_c.jpeg)

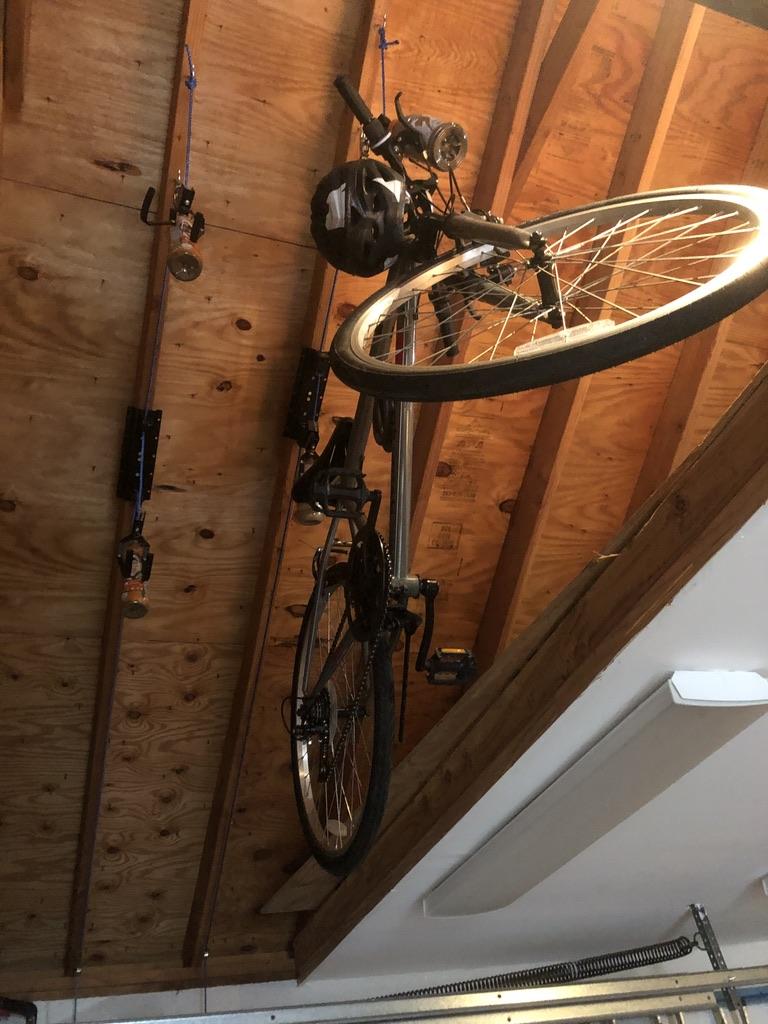

My bike hoist was installed on a 2 level garage loft. Many's the time when the pulley get jammed, or the hooks are too just light to be lowered empty. This is a simple hack to fix both.
I should've done this during initial installation. :)
Supplies
![Screenshot 2023-10-10 at 4.33.54 PM.png](/proxy/?url=https://content.instructables.com/FZ8/UUQS/LNKC1ZRC/FZ8UUQSLNKC1ZRC.png&filename=Screenshot 2023-10-10 at 4.33.54 PM.png)
- Sand
- 1 qtr juice bottles of any type with lid
- 14 AWS wires
- Various hand tools
- 2 pairs of pulley guides STL attached
https://www.tinkercad.com/things/1g6ZY17p2UX
Downloads
Add Some Wieghts
![280E345B-F2BF-4845-8756-9077B5E870E3_1_105_c.jpeg](/proxy/?url=https://content.instructables.com/FJ3/46GB/LND6TV96/FJ346GBLND6TV96.jpg&filename=280E345B-F2BF-4845-8756-9077B5E870E3_1_105_c.jpeg)
![EBC74D65-4B88-48E4-AB6B-7E2C7C275A20_1_105_c.jpeg](/proxy/?url=https://content.instructables.com/FVH/O78U/LND6TV94/FVHO78ULND6TV94.jpg&filename=EBC74D65-4B88-48E4-AB6B-7E2C7C275A20_1_105_c.jpeg)
![5C2BAD6A-E776-4ED2-B7D7-2D046F207F24_1_105_c.jpeg](/proxy/?url=https://content.instructables.com/FD6/K7NK/LND6TV9G/FD6K7NKLND6TV9G.jpg&filename=5C2BAD6A-E776-4ED2-B7D7-2D046F207F24_1_105_c.jpeg)
![A9EEE90F-9796-4535-8223-2EBBBA4330A3_1_105_c.jpeg](/proxy/?url=https://content.instructables.com/F49/O2MF/LND6TV95/F49O2MFLND6TV95.jpg&filename=A9EEE90F-9796-4535-8223-2EBBBA4330A3_1_105_c.jpeg)
![996EAFF6-7CAF-47A4-B1E6-13025C844BEE_1_105_c.jpeg](/proxy/?url=https://content.instructables.com/F3M/O14G/LND6TV97/F3MO14GLND6TV97.jpg&filename=996EAFF6-7CAF-47A4-B1E6-13025C844BEE_1_105_c.jpeg)

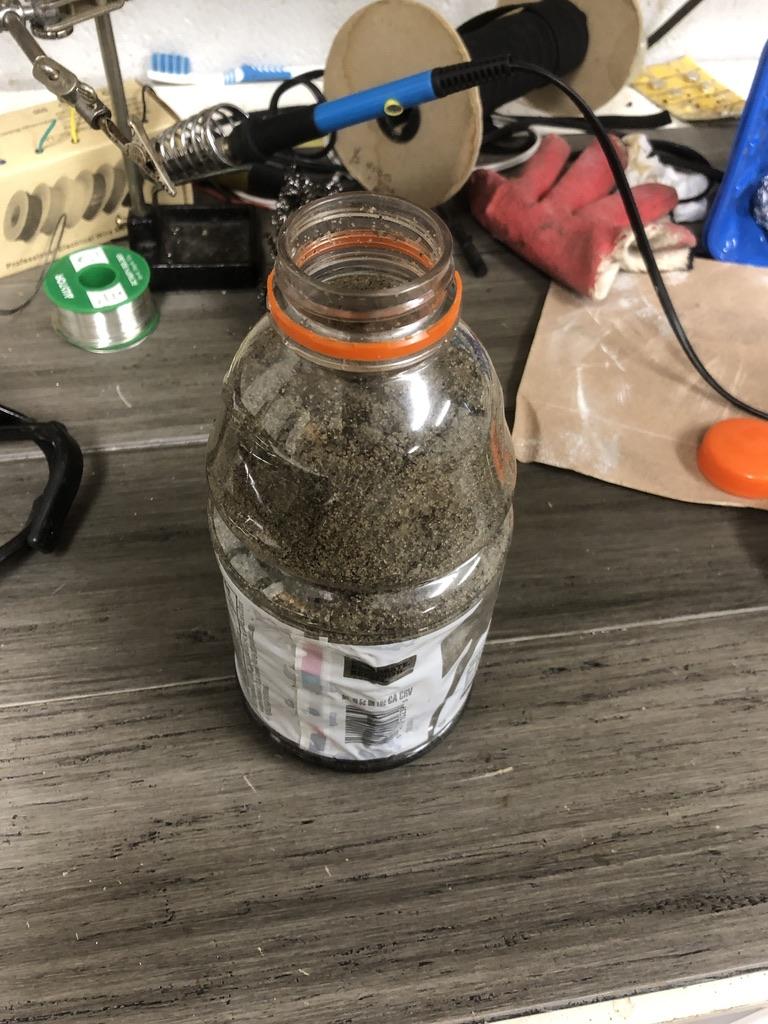

This step is simple: Remove hooks from pulley assembly. Fill in the water bottles with sand to about 2 lbs each. Use wires to tie onto bike hooks
Testing Sleeve Guard
![6F387E5F-5BE1-4409-A848-7CB6DA48E874_1_105_c.jpeg](/proxy/?url=https://content.instructables.com/FAQ/HFUY/LND6TV99/FAQHFUYLND6TV99.jpg&filename=6F387E5F-5BE1-4409-A848-7CB6DA48E874_1_105_c.jpeg)
![B9D3A0B3-ECA6-4407-B76C-A435AD918574_1_105_c.jpeg](/proxy/?url=https://content.instructables.com/FQS/22QR/LND6TV98/FQS22QRLND6TV98.jpg&filename=B9D3A0B3-ECA6-4407-B76C-A435AD918574_1_105_c.jpeg)
![809E3D9E-D6CC-40A5-AA6F-CF39FE51B362_1_105_c.jpeg](/proxy/?url=https://content.instructables.com/FXD/OWZB/LND6TV9A/FXDOWZBLND6TV9A.jpg&filename=809E3D9E-D6CC-40A5-AA6F-CF39FE51B362_1_105_c.jpeg)

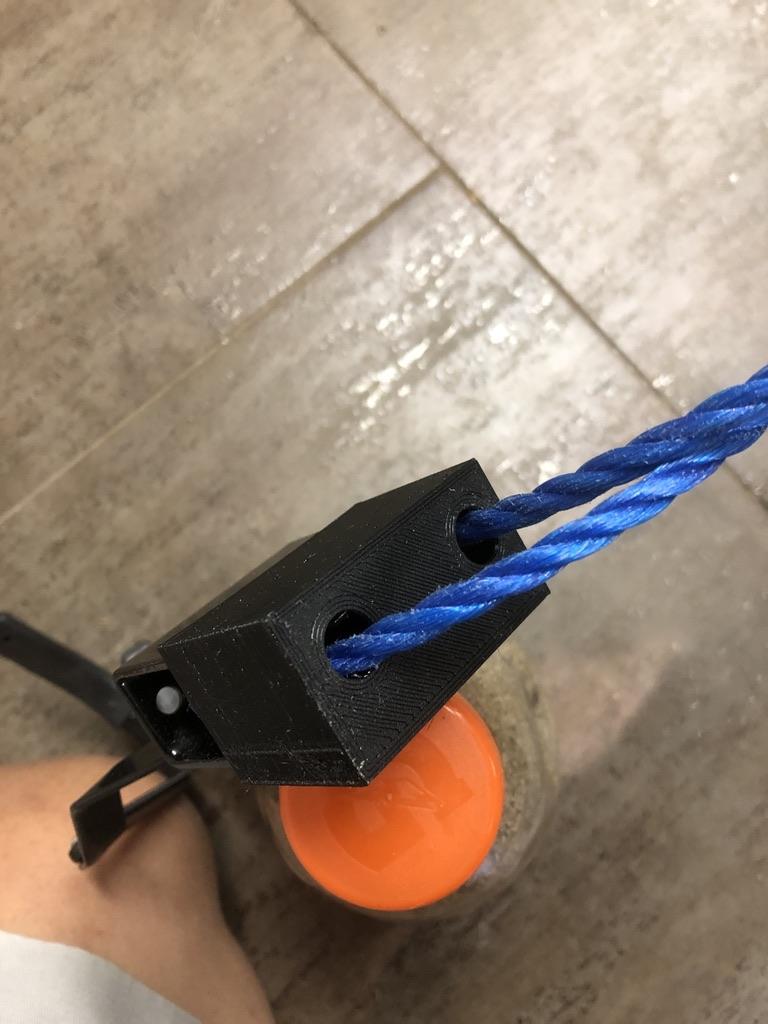

The whole problem is there's about 1/4" free play on the wheel axels. I CAD designed a test sleeve to stop wheels from sliding one the axel. Took one off to test fitting, and it works very nicely
Install and Reattach Everything
![B3903905-7F5F-447D-94F0-4916BC3C7A6E_1_105_c.jpeg](/proxy/?url=https://content.instructables.com/FUR/P0W0/LND6TV9B/FURP0W0LND6TV9B.jpg&filename=B3903905-7F5F-447D-94F0-4916BC3C7A6E_1_105_c.jpeg)
![106C7512-DB1E-47E6-A638-6A2B2681BC2F_1_105_c.jpeg](/proxy/?url=https://content.instructables.com/FWG/T099/LND6TV9F/FWGT099LND6TV9F.jpg&filename=106C7512-DB1E-47E6-A638-6A2B2681BC2F_1_105_c.jpeg)
![BEC3174B-8E1C-472C-9A5D-4366B0E778C7_1_105_c.jpeg](/proxy/?url=https://content.instructables.com/FFH/IUDW/LND6TV9C/FFHIUDWLND6TV9C.jpg&filename=BEC3174B-8E1C-472C-9A5D-4366B0E778C7_1_105_c.jpeg)
![4CE6AEAA-B866-4C3E-92D9-4085128D7FC3_1_105_c.jpeg](/proxy/?url=https://content.instructables.com/FL5/AY1L/LND6TV9E/FL5AY1LLND6TV9E.jpg&filename=4CE6AEAA-B866-4C3E-92D9-4085128D7FC3_1_105_c.jpeg)
I was very happy & printed 6 for every pulley needed. I needed to rotate the hooks 90º so weight bottles does hit bike frame
That's it. Nice and simple hack.
