Mr.Philips,a Joule Thief Robot

Joule Thief (1).jpg
I have started building a series of robots which have simple circuits in them.

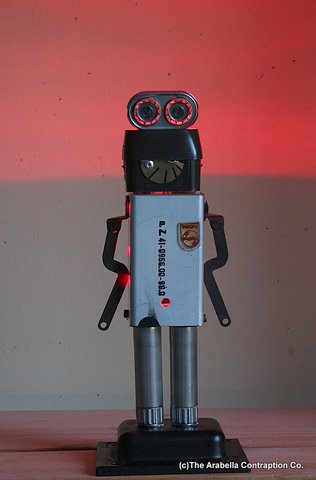

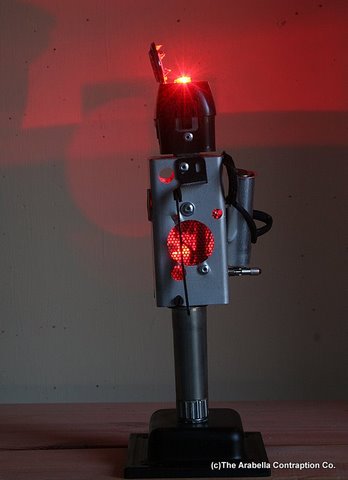

This one,Mr.Philips,has a Joule Thief circuit with 3 red LEDs.The head comes from an old Philishave
shaver,the body is an aluminium housing out of a vintage radio.
