Mqtt Comunication(arduino - Raspberry)

by ΒαγγέληςΑ1 in Circuits > Arduino

597 Views, 0 Favorites, 0 Comments

Mqtt Comunication(arduino - Raspberry)

Χωρίς τίτλο.jpg

Ι Will try to make a simple home automation using MQTT protocol to communicate between Arduino and Raspberry.

The MQTT broker is install on a raspberry Pi Zero. Pi Zero using to make samething like a server which use same topics that we use to communicate with Arduino.

Architecture of Smart Home.

I use a router with Wi-Fi but I don not connect it in the internet. I make a local LAN network. No one from the outside can have access in the smart home, me nether. I make this project to handle if I am in the house, from my computer or my phone or tablet..

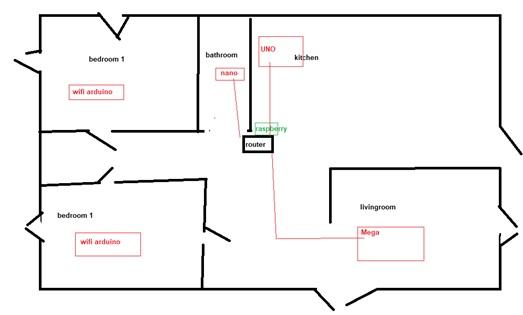

Schema of home is in images

We use in every scenario two LEDs to simulate the open close light or relay or everything want someone control in the room.


Supplies

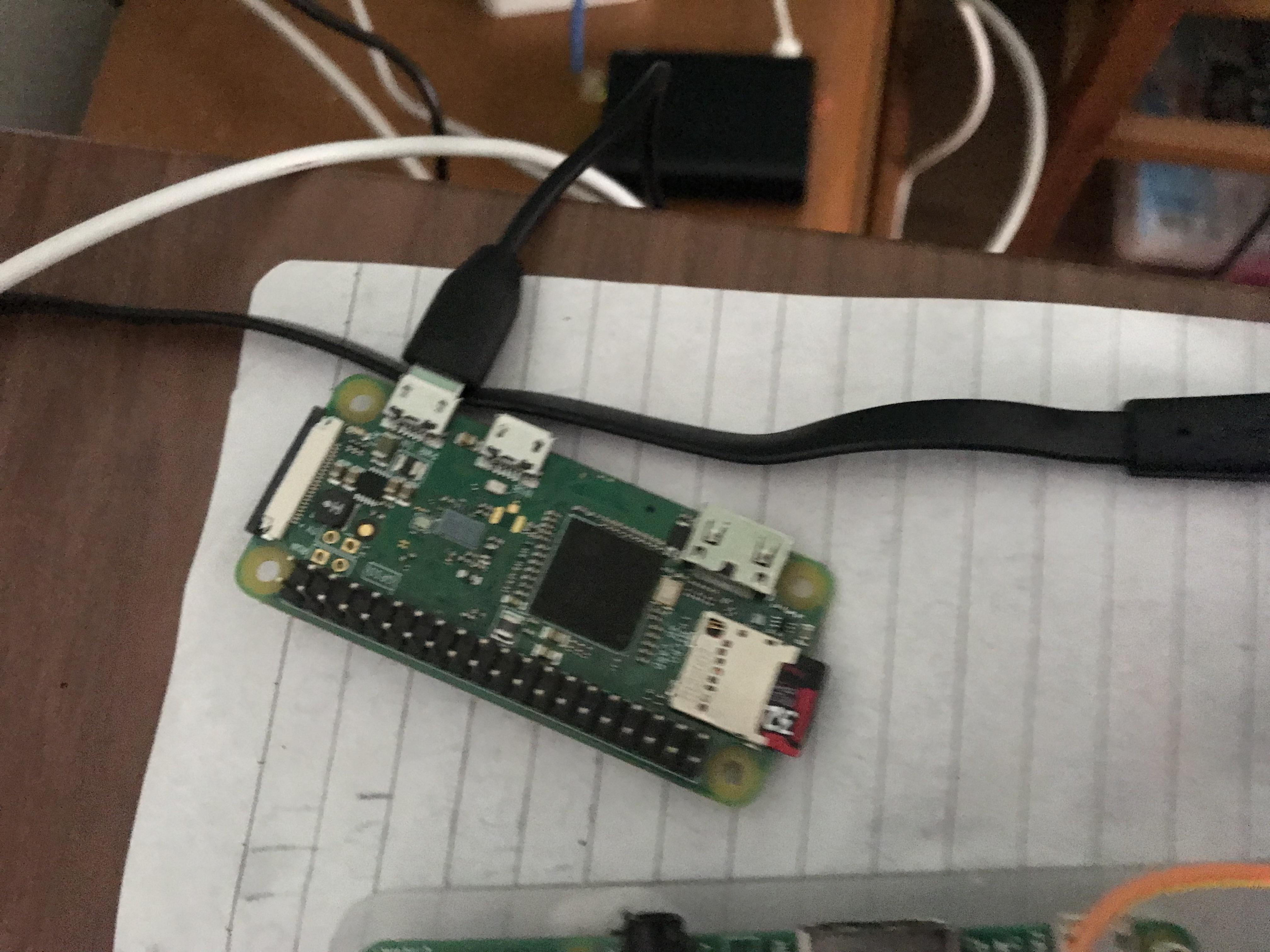

I use one raspberry zero witch run the mqtt server

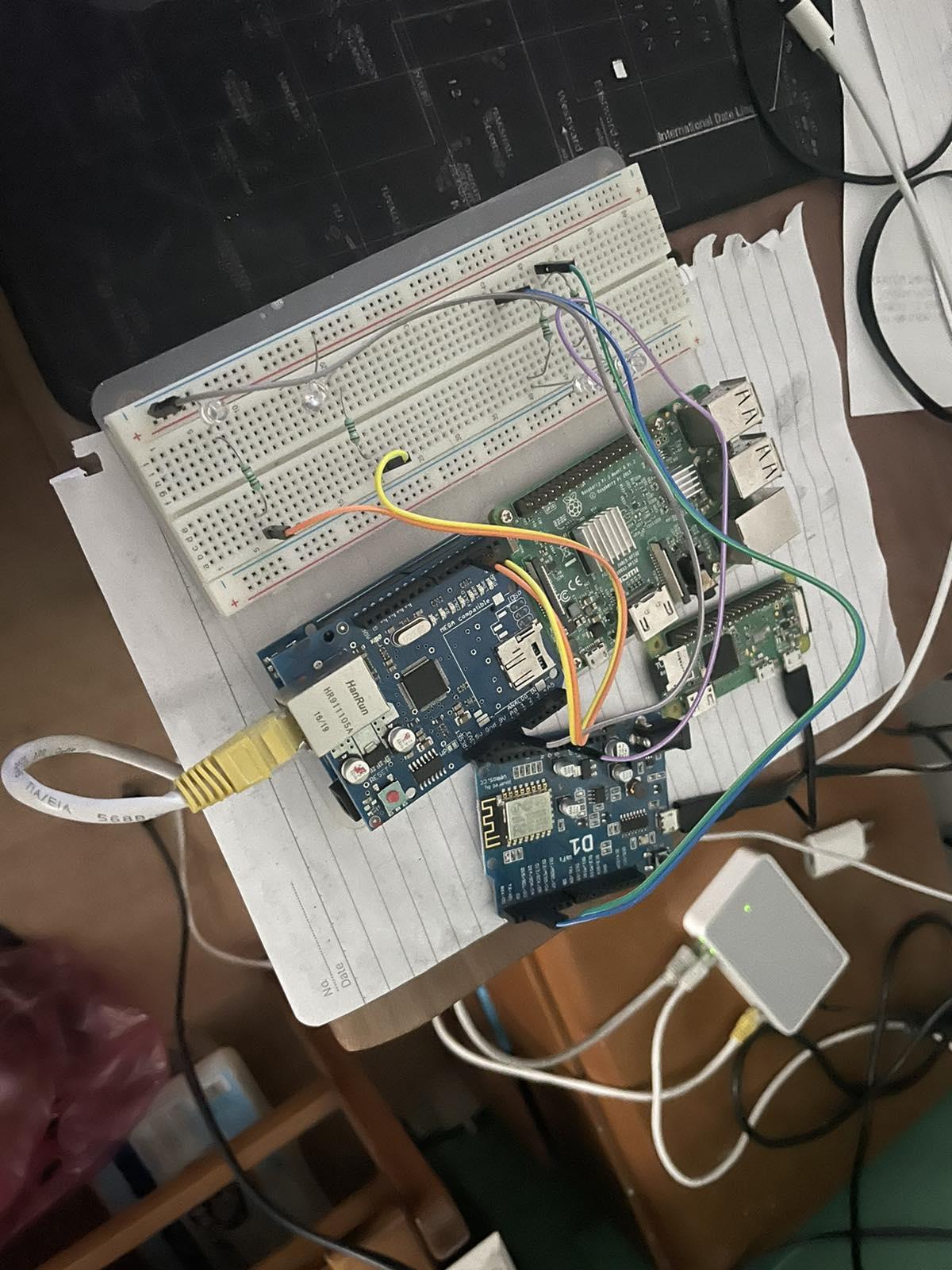

I use an Arduino uno with ethernet shield and a wifi wemos D1

I use a Wi-Fi Arduino

I use a modem-router

I use same LEDs and sensor to simulate home rooms.

Prepeare SD Card


First, insert the microSD card into your computer.

Now you need to install the right Raspberry Pi Imager for windows operating system. You can do this with the following link:

Once this is done, start the Imager and open the “CHOOSE OS” menu.

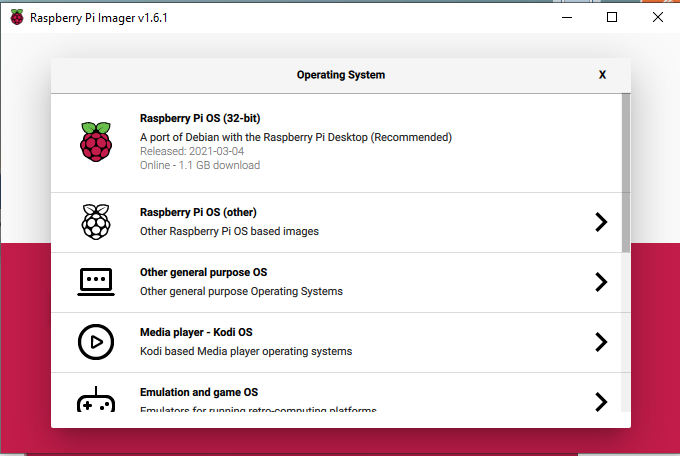

Scroll down the menu click “Other general-purpose OS”.

Here you you can select Ubuntu and see a list of download options.

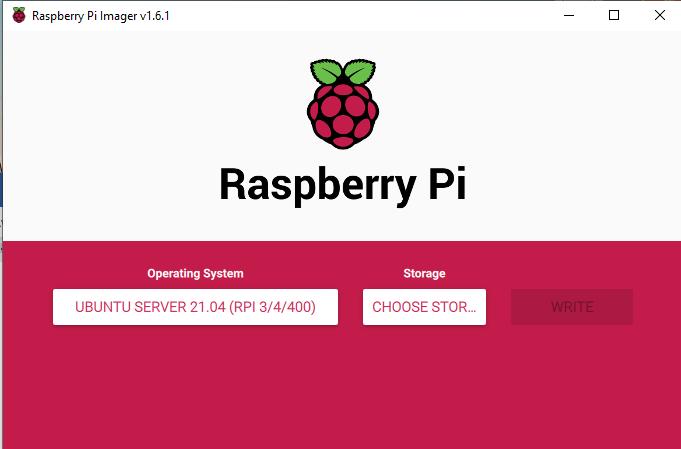

For this project we use you select the Ubuntu Server 21.04. As indicated in the imager this will work for the Raspberry Pi 2,3, 3+ and any of the 4’s.

Open the “SD Card” menu. Select the microSD card you have inserted.

Finally, click “WRITE” and wait for the magic to happen… (This magic might take a few minutes)

If everything done write you se this window

Do not remove the sd card yet

Set up Wifi conf and Static IP

Getting setup with Wi-Fi

With the SD card still inserted in your laptop, open a file manager and locate the “system-boot” partition on the card. It contains initial configuration files that load during the first boot process.

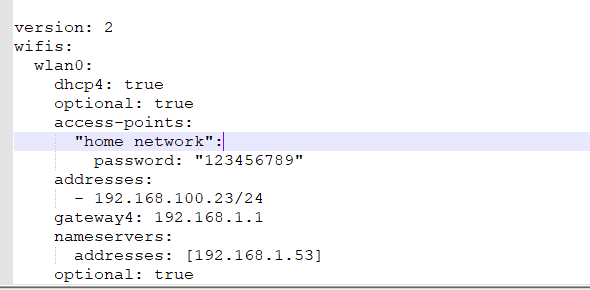

Edit the network-config file to add your Wi-Fi credentials. An example is already included in the file, you can simply adapt it.

To do so, uncomment (remove the “#” at the beginning) and edit the following lines:



wifis:

 wlan0:

   dhcp4: true

   optional: true

   access-points:

     <wifi network name>:

       password: "<wifi password>"

For example:



wifis:

 wlan0:

   dhcp4: true

   optional: true

   access-points:

     "home network":

       password: "123456789"

Note: network name must be enclosed in quotation marks.



Save the file and extract the card from your laptop.

Note ⓘ: During the first boot, your Raspberry Pi will try to connect to this network. It will fail the first time around. Simply reboot sudo reboot and it will work.

Set a static IP

To set a static IP you need to replace the

dhcp4: true

line in the network-config file with lines that specify the intended IP address as well as its default gateway and DNS server. You can do this for either the eth0 or wlan0 interface (or both). It is important that you get the indenting right for this work correctly

For example, if you were planning to give the pi the address 192.100.1.23 in the 192.100.1.0/24 subnet with a default gateway of 192.100.1.1 and a DNS server of 192.100.1.53 then the following text would work. The same structure works for both the eth0 or wlan0 sections in the file:

ethernets:

 eth0:

   addresses:

     - 192.100.101.23/24

   gateway4: 192.100.1.1

   nameservers:

     addresses: [192.100.1.53]

   optional: true

To enable SSH

Simple make a file SSH with out extension and add it in sd card.

Install Config MQTT


Connect the rasbery in power

And type in your windows terminal

arp -a | findstr b8-27-eb

Know use a client ssh I use MobaXterm

The password is ubuntu but after the first connection ask you to change the password

After change it is reboot automatically now give the new password to log in

Install mqtt

First we update the ubuntu

1.  sudo apt-get update

2.  sudo apt-get install

Here are the steps I used on Ubuntu.

  • sudo apt-add-repository ppa:mosquitto-dev/mosquitto-ppa
  • sudo apt-get update
  • sudo apt-get install mosquitto
  • sudo apt-get install mosquitto-clients
  • sudo apt clean

Test open to terminal in the first one type

in the second send the message

in first terminal know you can see the message

Configuration topic and Password and acl file

Let’s configure Mosquitto to use passwords. First go to  /etc/mosquitto/passwd. There an example of password file the pwfile you can open to see. The file contain key value rows key is the name and value is the hash md5 from passwords.

Mosquitto includes a utility to generate a special password file called mosquitto_passwd. This command will prompt you to enter a password for the specified username, and place the results in /etc/mosquitto/passwd

sudo mosquitto_passwd -c /etc/mosquitto/passwd homeautomation

Ask for a password

Now require to activate logins for all connections:

sudo nano /etc/mosquitto/conf.d/default.conf

Now need to make the default.conf

sudo nano default.conf

Paste in the following:

per_listener_settings true

allow_anonymous false

password_file /etc/mosquitto/passwd

 allow_anonymous false will disable all non-authenticated connections, and the password_file line tells Mosquitto where to look for user and password information. Save and exit the file.

Now we need to restart Mosquitto and test our changes.

sudo systemctl restart mosquitto

Try to publish a message without a password:

mosquitto_pub -h localhost -t home -m "hello world"

The message should be rejected:

Before we try again with the password, switch to your second terminal window again, and subscribe to the ‘test’ topic, using the username and password this time:

mosquitto_sub -h localhost -t test -u "homeautomation" -P "home"

Now publish a message with your other terminal, again using the username and password:

mosquitto_pub -h localhost -t home  -m "hello world" -u "homeautomation" -P "home"

Topic restrictions are configured on the Broker, and there is nothing to configure on the client.

Topic restriction is done in an access control list ( ACL ) file.

To enable topic restrictions you need to edit the mosquitto.conf file to use it.

Note: You should create a copy of the default file as a backup before you edit it.

You will find the setting in the Default authentication and topic access control section:

acl_file /etc/mosquito

A default file ( aclfile.example ) is provided with the installation.

Make a copy of file as acl

Open and make the changes

Because we need to have topic for every room we make two deferent topic one for bedroom and other for kitchen and add a new user allow publish message is the bedroom

Follow images

 I forget the password of homeautomation in first after I make test and user but the password is not authenticated and in the end I make a new one the bedroom tha can use for authentication for all topics tha I use in home

Arduino

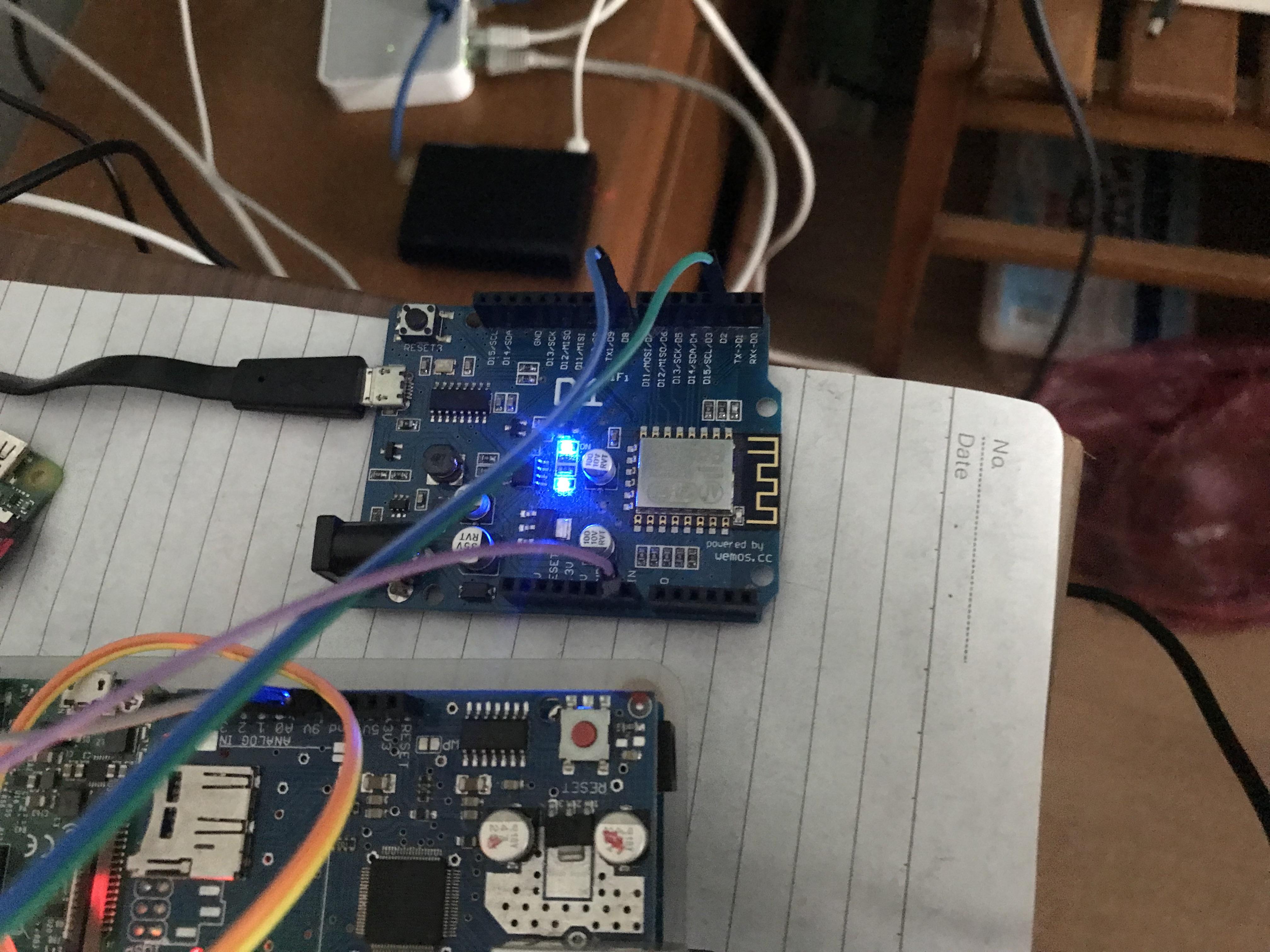

Set up WiFi wemos D1 bedroom1

code

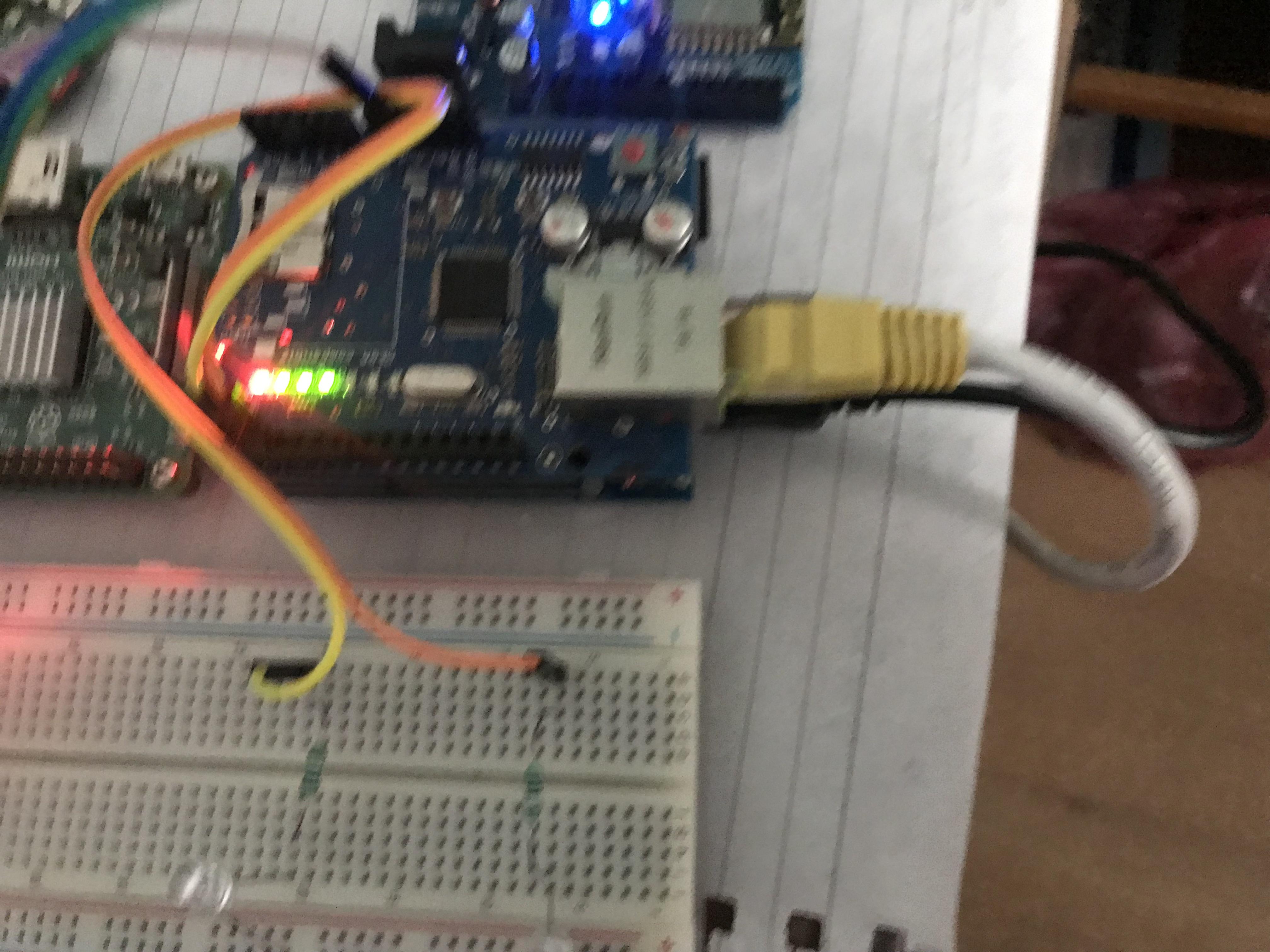

Set up uno with ethernet shield kitchen

code

Final Test

Final result you can see in video. Sorry for the video

I have give the best i could video editing but is the first time i try to synchronize two videos in one.
