Moving Eye Painting (I Didn’t Copy It Is the Other Guy Just in Another Account)


Behold a painting with moving eyes! This is a very simple project specially for beginners you don’t need any fancy stu􏰀 (The videos taken are before I added a new code and the new code moves the eyes more. It is the other guy it didn’t let me enter to a contest

Supplies


Yo need a servo motor a small one works fine ( I am using a 5 volts mini servo motor )

hot glue.


a black red and yellow wire all male to male.


some cardboard and scissors.



an arduino uno.


a rubber band


a painting


paper


and some string

Downloads

The Cardboard and the Paper


Place the cardboard in place and cut the eyes and place the paper on top with 2 big dots

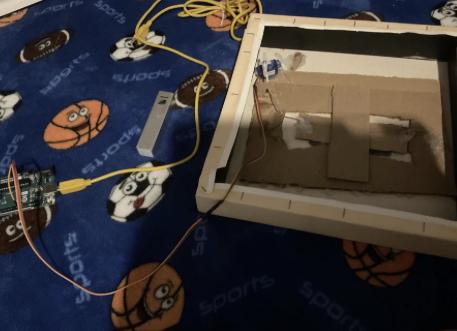

Final Step


Add the servo motor and a bunch of hot glue under it.

add the rubber band and the string and paste them with hot glue

The Cables Placement


The yellow cable goes into 9

the black cable goes into ground

the red cable goes into 5 volts

The Code

#include <Servo.h>


Servo myservo;


int pos = 9;


void setup() {

 myservo.attach(9);

}


void loop() {

 for (pos = 10; pos <= 60; pos+= 1) {


  myservo.write(pos);

  delay(30);

 }

 for (pos = 10; pos >= 60; pos -= 1) {

  myservo.write(pos);

  delay(30);

 }


}
