Mount a DIP As a SMD on PCB
![diptosmd_17.png](/proxy/?url=https://content.instructables.com/F2H/Z78T/IN4TSAP5/F2HZ78TIN4TSAP5.png&filename=diptosmd_17.png)
I don't like drilling the PCB.
So, I always mount a DIP chip as a SMD chip with arranged IC socket.
![diptosmd_01.png](/proxy/?url=https://content.instructables.com/F10/5POO/IN4TSAPE/F105POOIN4TSAPE.png&filename=diptosmd_01.png)

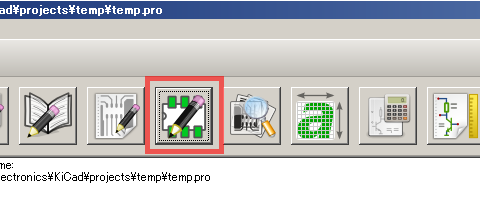

I use KiCad to make arranged footpattern.
![diptosmd_02.png](/proxy/?url=https://content.instructables.com/FWD/I6T7/IN4TSAQU/FWDI6T7IN4TSAQU.png&filename=diptosmd_02.png)

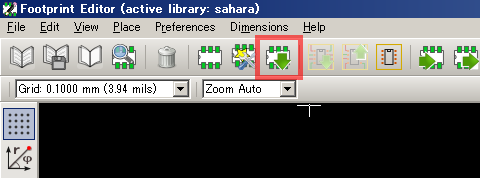

Load footprint.
![diptosmd_03.png](/proxy/?url=https://content.instructables.com/F6N/L8GP/IN4TSARS/F6NL8GPIN4TSARS.png&filename=diptosmd_03.png)
In this Instructable, I select DIP-16.
![diptosmd_04.png](/proxy/?url=https://content.instructables.com/F4W/6BU4/IN4TSART/F4W6BU4IN4TSART.png&filename=diptosmd_04.png)
Normal DIP-16 footpattern is like this.
![diptosmd_05.png](/proxy/?url=https://content.instructables.com/FGP/J9J8/IN4TSAS3/FGPJ9J8IN4TSAS3.png&filename=diptosmd_05.png)
Select my own library for arranged footpatterns.
![diptosmd_06.png](/proxy/?url=https://content.instructables.com/F4Y/5HIK/IN4TSASC/F4Y5HIKIN4TSASC.png&filename=diptosmd_06.png)
I named my library 'sahara'.
![diptosmd_07.png](/proxy/?url=https://content.instructables.com/FGN/XZY5/IN4TSASM/FGNXZY5IN4TSASM.png&filename=diptosmd_07.png)

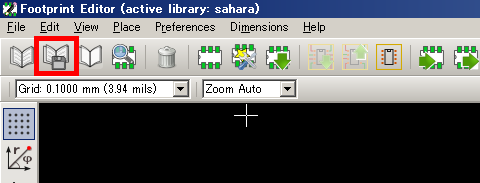

Save footpattern.
![diptosmd_08.png](/proxy/?url=https://content.instructables.com/F3X/DXIJ/IN4TSASV/F3XDXIJIN4TSASV.png&filename=diptosmd_08.png)
Change the name.
Add 'SMD' to the new name is better.
I named 'DIP-16_DIP_to_SMD_socket" then file name is 'DIP-16_DIP_to_SMD_socket.kicad_mod.kicad_mod'.
![diptosmd_09.png](/proxy/?url=https://content.instructables.com/FT2/OW11/IN4TSAT7/FT2OW11IN4TSAT7.png&filename=diptosmd_09.png)

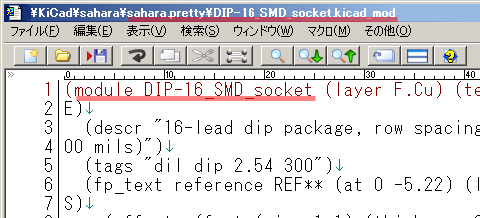

Close KiCad and open the 'your_footpattern.kicad_mod' in text editor.
In my case I open 'DIP-16_DIP_to_SMD_socket.kicad_mod'.
And replace strings as follows.
'thru_hole oval' --> 'smd rect'
'size 1.6 1.6' --> 'size 3 1.2'
'(drill 0.8)' --> ''
'layers *.Cu *.Mask F.SilkS' --> 'layers F.Cu F.Paste F.Mask'
'at 7.62' --> 'at 9.12'
'at 0' --> 'at -1.5'
![diptosmd_10.png](/proxy/?url=https://content.instructables.com/FTQ/ATU4/IN4TSALC/FTQATU4IN4TSALC.png&filename=diptosmd_10.png)
Open the footpattern in KiCad.
Then you will see this.
![diptosmd_11.png](/proxy/?url=https://content.instructables.com/F17/RATE/IN4TSALR/F17RATEIN4TSALR.png&filename=diptosmd_11.png)

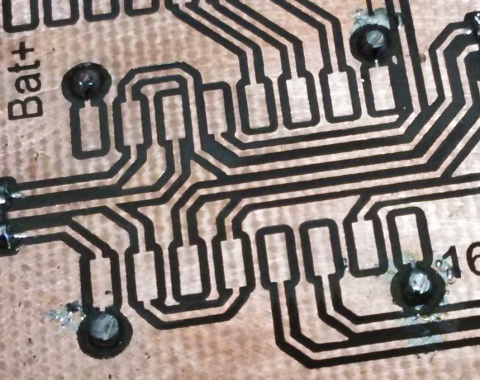

PCB will be this.
![diptosmd_12.png](/proxy/?url=https://content.instructables.com/FV3/8UHL/IN4TSAME/FV38UHLIN4TSAME.png&filename=diptosmd_12.png)

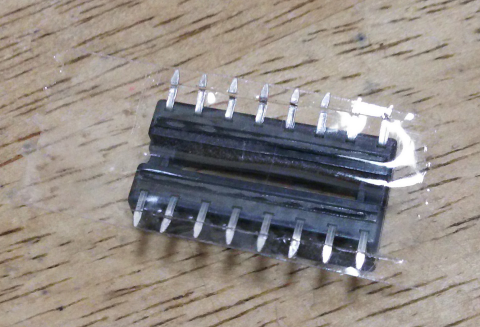

I need to arrange a IC socket.
![diptosmd_14.png](/proxy/?url=https://content.instructables.com/FHU/NLYE/IN4TSAN2/FHUNLYEIN4TSAN2.png&filename=diptosmd_14.png)
Cut the pins if they are too long.
![diptosmd_15.png](/proxy/?url=https://content.instructables.com/F13/FFDR/IN4TSANZ/F13FFDRIN4TSANZ.png&filename=diptosmd_15.png)
![diptosmd_16.png](/proxy/?url=https://content.instructables.com/FZ7/MC2B/IN4TSAOH/FZ7MC2BIN4TSAOH.png&filename=diptosmd_16.png)
To use adhesive tape is my favorite way.
![diptosmd_17.png](/proxy/?url=https://content.instructables.com/F7J/LCE7/IN4TSFDL/F7JLCE7IN4TSFDL.png&filename=diptosmd_17.png)

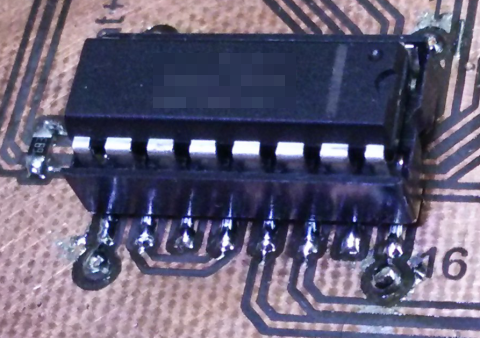

It's all done.
