You are going to learn how to make compound gear train using Fusion 360 3D modelling software and learn the principle of motor and generator. We are making a fan using the power of motor. Lets get started!

JLC3D Capabilities

JLCPCB SLA part 1.png
JLCPCB SLA part 2.png
JLCPCB SLA part 3.png
JLCPCB MJF.png
JLCPCB SLM.png
JLCPCB FDM.png
JLCPCB SLS.png

JLCPCB offers all the above materials at the starting prices per piece in USD. The materials are accurate as of 11 July 2022.

There is 54 USD new user coupon for purchase of 3D prints.

Please get your 3D prints at https://jlcpcb.com/3d-printing/CSS

Fusion 360 GF Gear Generator

Fusion360 gear generator.png

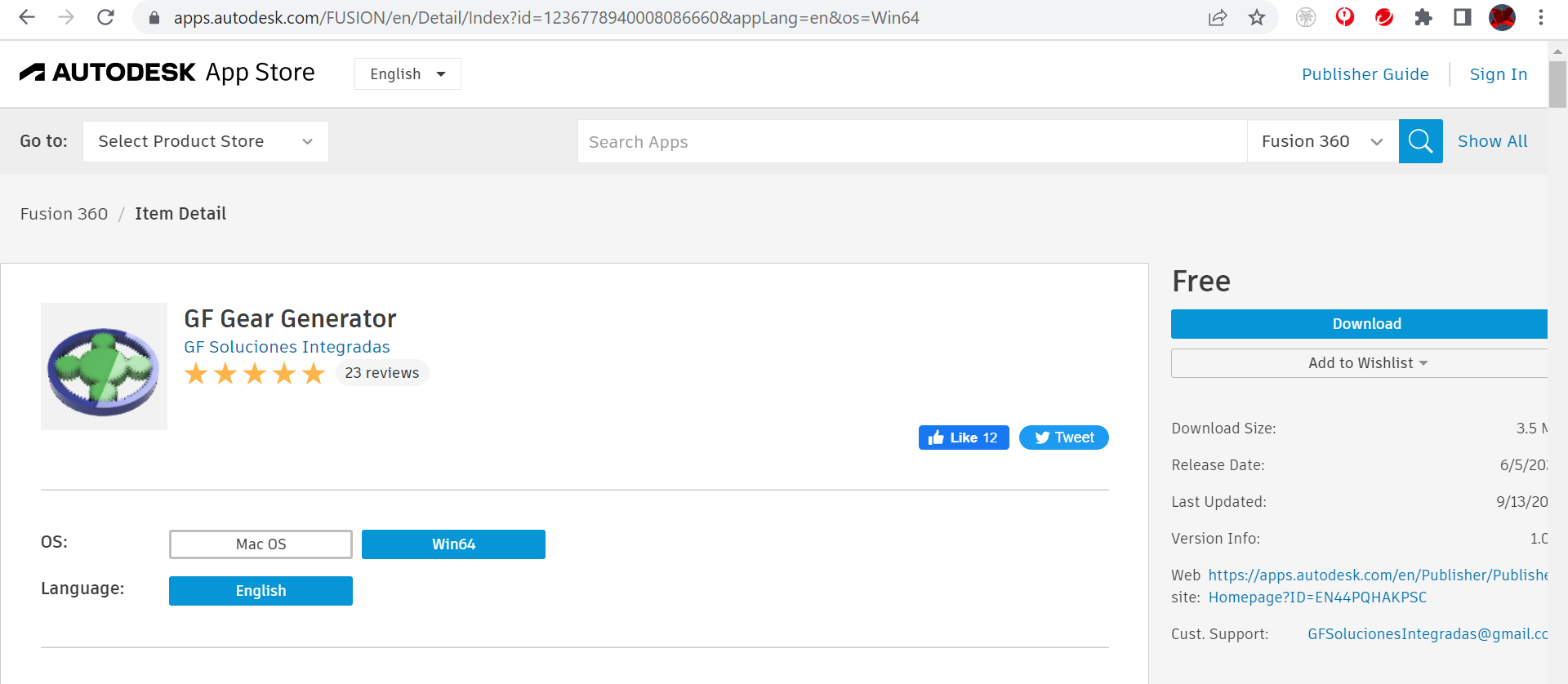

Download the Fusion 360 GF Gear Generator extension for Fusion 360 application from the browser.

Fusion 360 Gear Generator in Fusion 360

Gear Generator extension.png

Open Fusion 360 application. Click on Utilities on the top of the Fusion 360 application. Select Spur Gear to make spur gears.

Spur Gear Building

Gear Generator extension spur gear.png

Select module = 1mm, Number of teeth = 29, Gear height = 3mm, Pressure angle = 20mm.

Pitch diameter (d) = Module (m) x Number of teeth (z)

29mm = 1mm x 29

Putting All Parts Together

Motor compound gears.png
Propeller motor.png
JGA25-370 motor.png
JGA25-370 motor dimensions.png
Motor shaft adaptor.png

We will need the following 3D prints:

4 x Compound gear

1 x Compound gear base

1 x Compound gear top

1 x Propeller motor

We specifically need two 12 Volts JGA25-370 motors at 1200 rpm which means 20 rotations per minute.

We need 50mm long M3 screws and nuts. We can cut and file the screws to their required lengths.

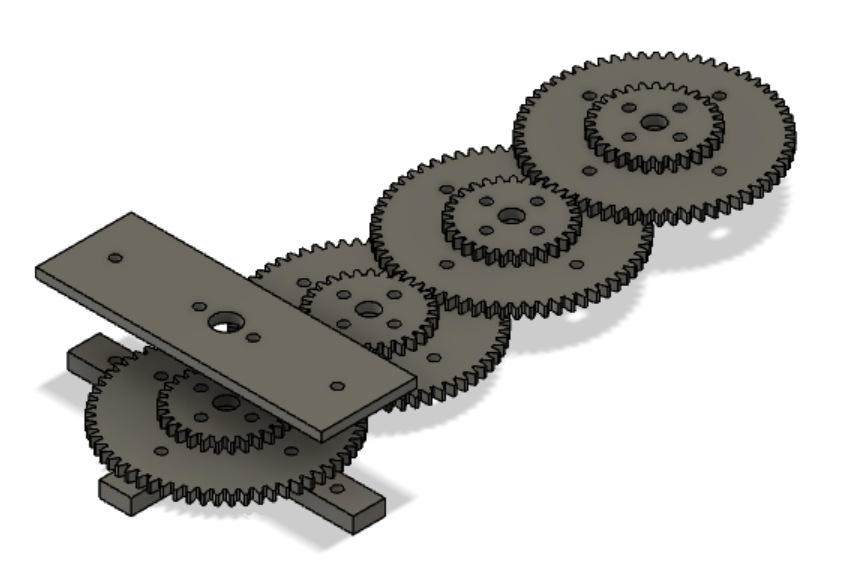

The compound gears have 29 teeth for small gear and 61 teeth for big gear. The overall gear ratio is (61/29)^3 = 9.31.

This means that if we spin 1 rotation per second, the motor shaft will spin 9 rotations per second.

To ensure that we do not burn the motors, we should not spin more than two rotations per second.

The motors are electrically connected positive wire to positive wire, negative wire to negative wire. This gives the motor and generator effect.

There is no preference for propeller.

This project requires two motor shaft adaptors, please get them at

https://www.aliexpress.com/item/33057929198.html?spm=a2g0o.search0304.0.0.48eb5b3ckifcM8&algo_pvid=466137c1-5a14-41d3-ae25-d7a9042d9e1d&aem_p4p_detail=20220702071014415908105269600036251287&algo_exp_id=466137c1-5a14-41d3-ae25-d7a9042d9e1d-0&pdp_ext_f=%7B%22sku_id%22%3A%2267598064217%22%7D&pdp_npi=2%40dis%21SGD%21%211.96%21%21%21%21%21%402101d8f416567710147606447ea8d0%2167598064217%21sea

JLCPCB Prints

Motor and gear train.jpg

JLCPCB provides very good products. The gears are very accurate and smooth. Thank you JLCPCB. Please order your 3D prints at https://jlcpcb.com/3d-printing/CSS

To view the moving prototype, https://youtu.be/_kZdTBmrZKU
