Motion Sensor Security Alarm

by munir03125344286 in Circuits > Arduino

230 Views, 4 Favorites, 0 Comments

Motion Sensor Security Alarm

pir sensor.jpg

Hello friends, in this project, we will learn, how to make security alarm by using Pir sensor and Arduino nano. I set 10 second time delay when system turn ON. After 10 second motion sensor detects motion, it sent signal to arduino nano and arduino nano turn ON the alarm for three seconds. You can change this time from code.

Supplies

Connect BD139 Transistor to Arduino


Connect Voltage Regulator 7809 to Arduino Board


Connect PIR Sensor to Arduino Nano


Code Upload to Arduino

Code:- https://drive.google.com/file/d/1eVdTJuSq9cKHfD0YzX2Jbh9f4h2SDbcN/view?usp=sharing

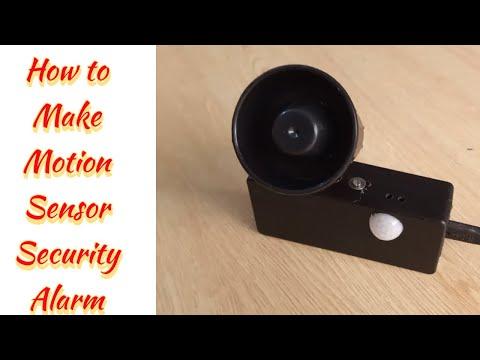

Motion Sensor Security Alarm | How To Safe Your Shop From Theft | PIR Motion Sensor with Arduino
