Motion Galaxy Lamp

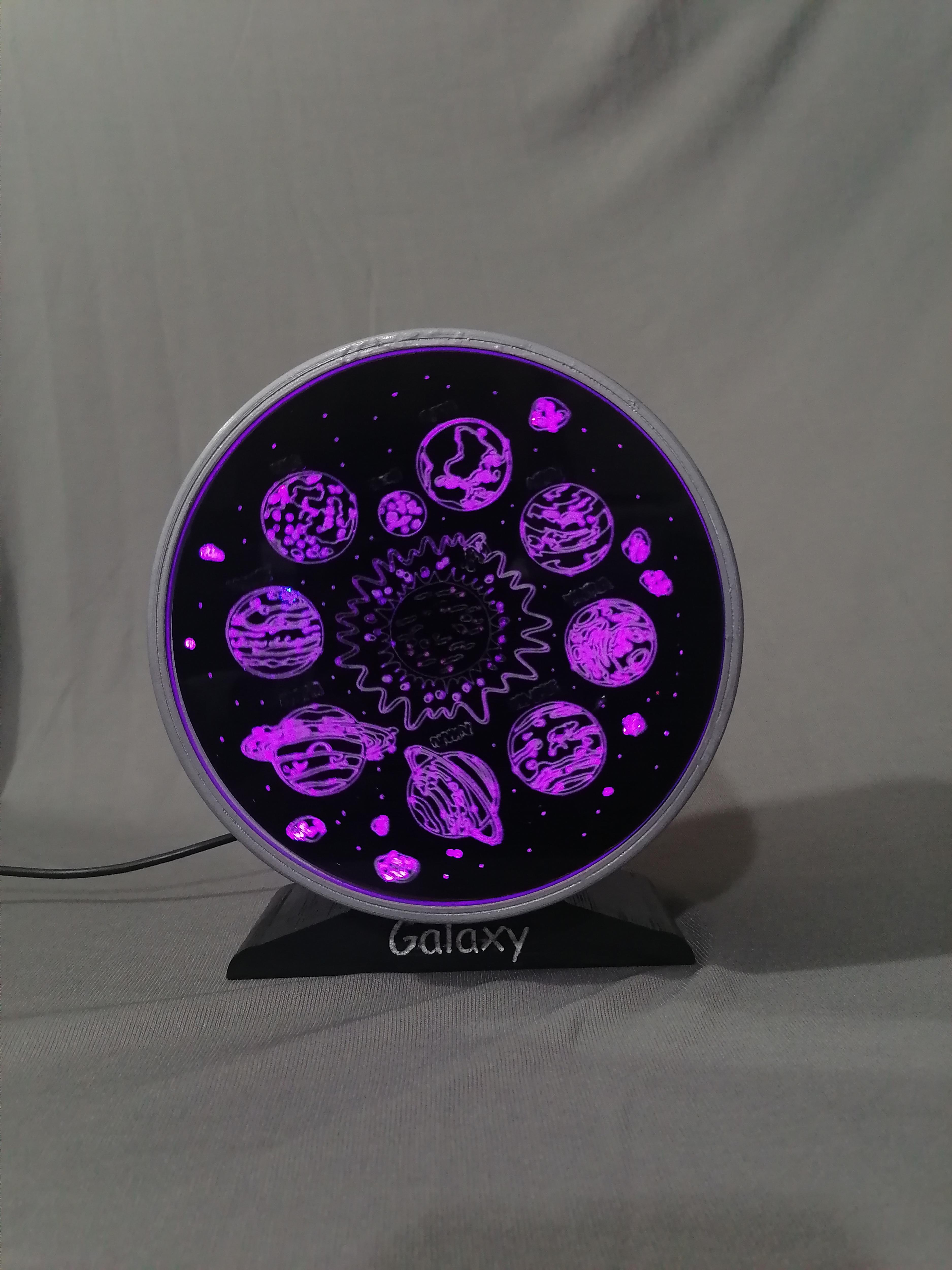

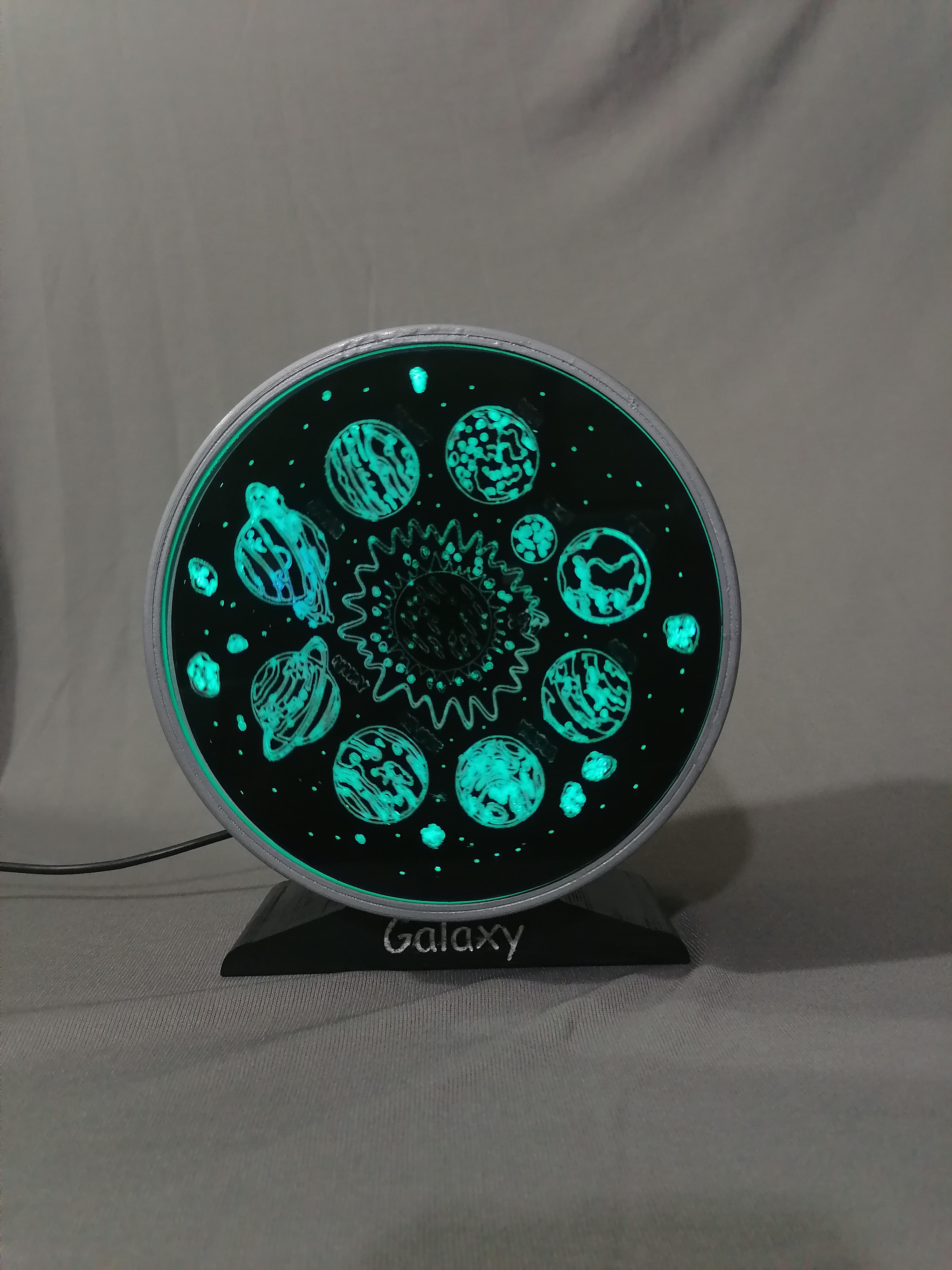

Galaxy Lamp one of the better choices for a grand piece on your Desk, in Living Room or in Bedroom. In Night it looks more attractive when LED glow. The front face rotates and look like planets are moving . This Lamp adds a nice look and texture in your Room and makes it stand out instantly. It is equipped with innovative features such as Wi-Fi Compatibility, Colour Tones and Animations effects for every mood so that you get to enjoy life king-size.

Also it has inbuilt speaker, you can play songs or play clam song, meditation music.

1. Addressable LED Strip ( near 1 meter).
2. Power Adapter 5volt 2A (According to your LED strip Voltage) (nos.- 1).
3. DC to DC step Module XL6009 (nos.-1). (optional)
4. N20-12V-60 RPM Micro Metal Gear-box DC Motor with holder (nos.-1).
5. Female DC Jack (nos.- 1).

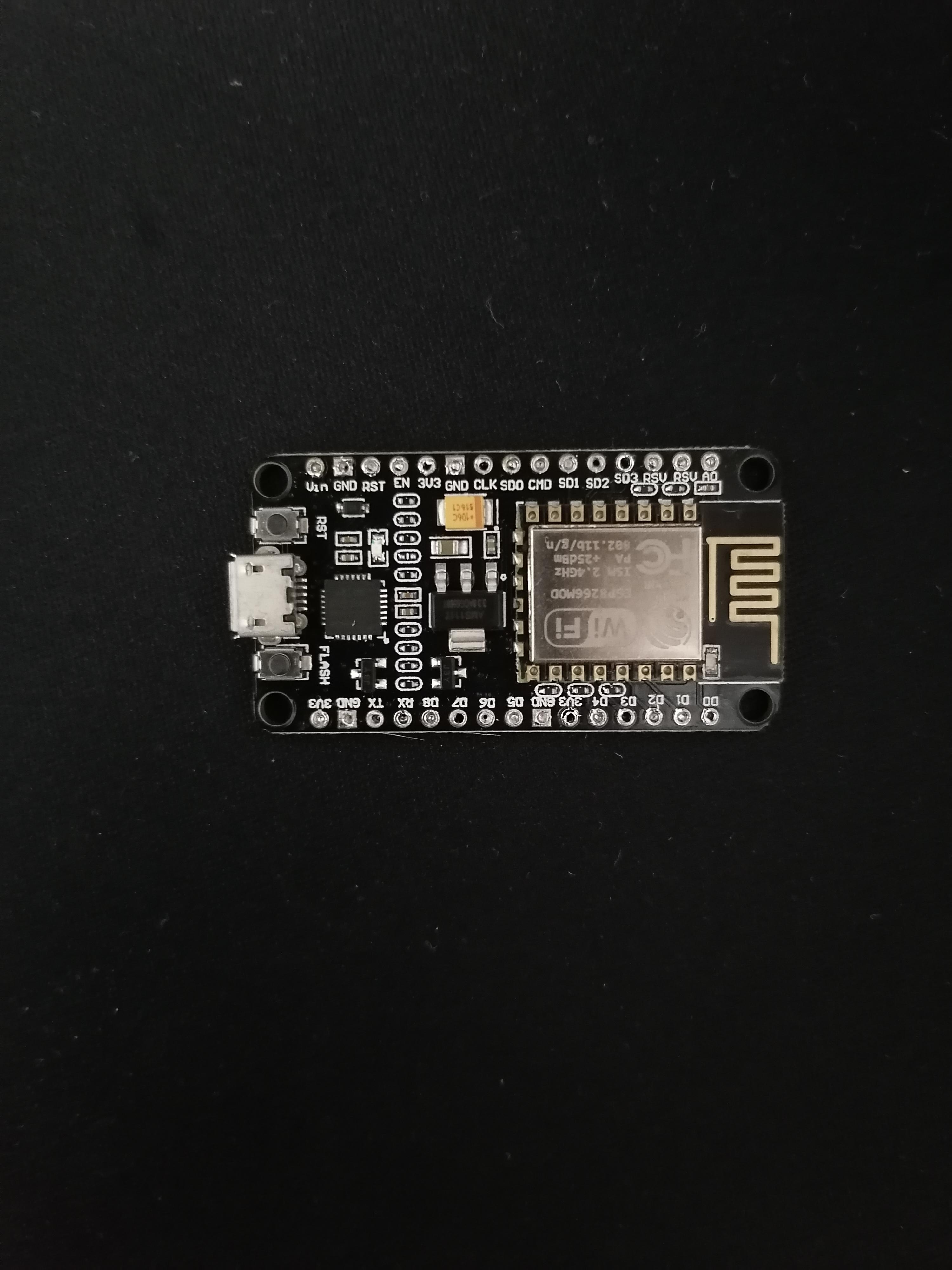

6. ESP8266 (nos.- 1).
7. Bluetooth Circuit Module (nos.- 1)
8. Speaker 4watt with diameter 50mm (nos.- 1)
9. Acrylic Circular Plate Clear Transparent with 3mm thick and 6 inch diameter (must be 6 inch only).
10. Black colour (coloring acrylic plate).
11. Wires.

Noted: "There is no Hardware Limitations". You can use any type of LED Strip Light, LED Controller or Music Bluetooth Module. Here I use WS2811 LED Strip (already in my workshop so not buy new) which works on 12volt that's why I use XL6009 module for step up voltage. My project works on two different voltages i.e. 5volt for ESP8266 and 12volt for LED strip and Bluetooth module. If you have LED Strip that works on 5volt and Bluetooth module also on 5volt then you don't you use XL6009 module, if you want different voltage then use XL6009 module.

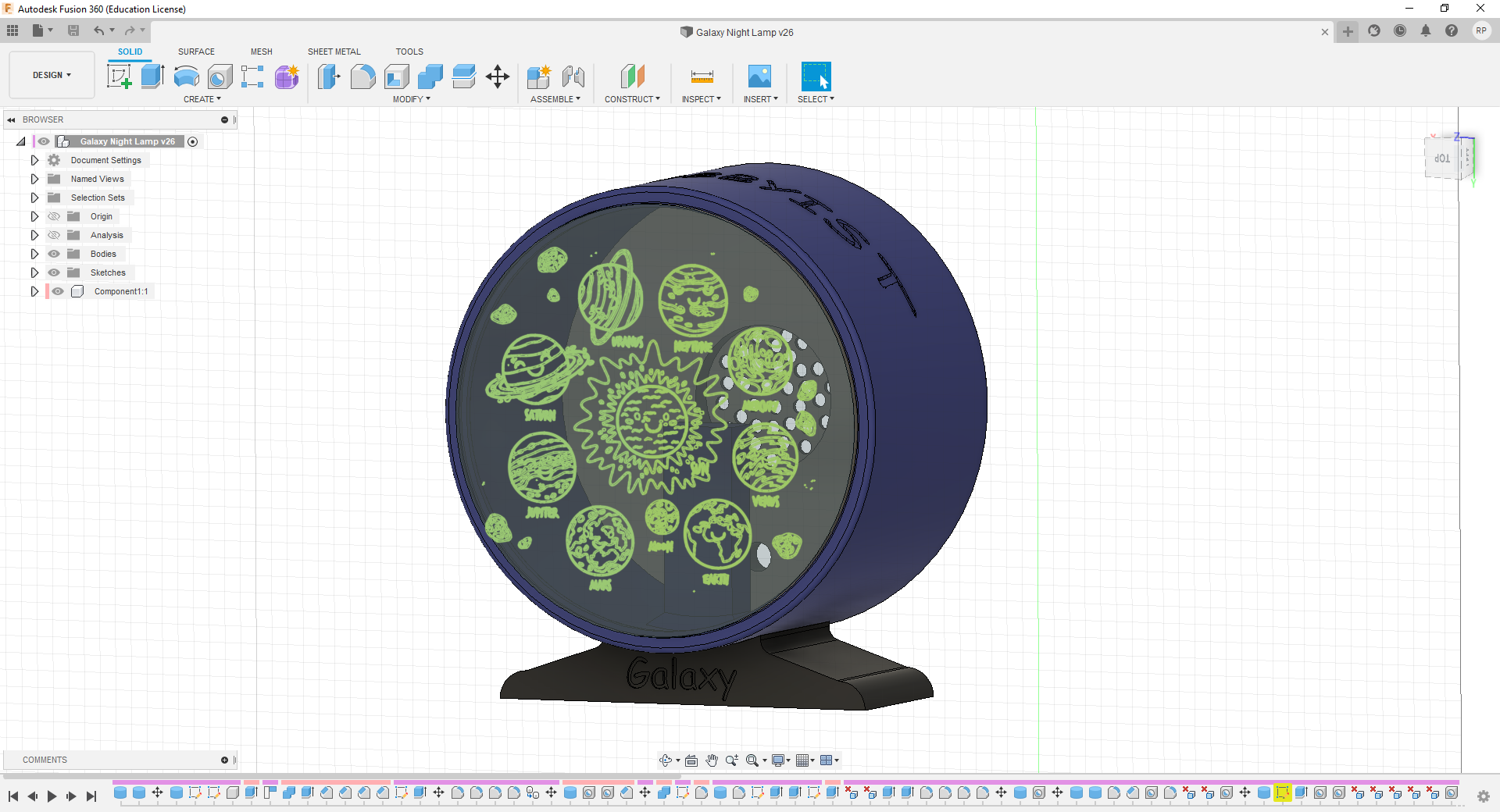

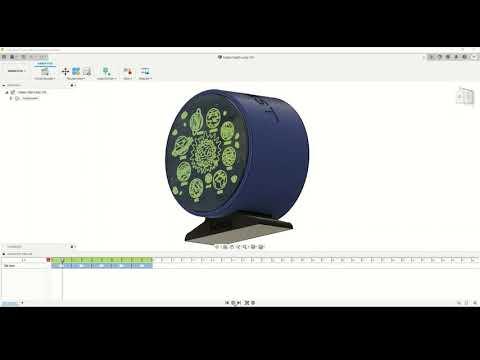

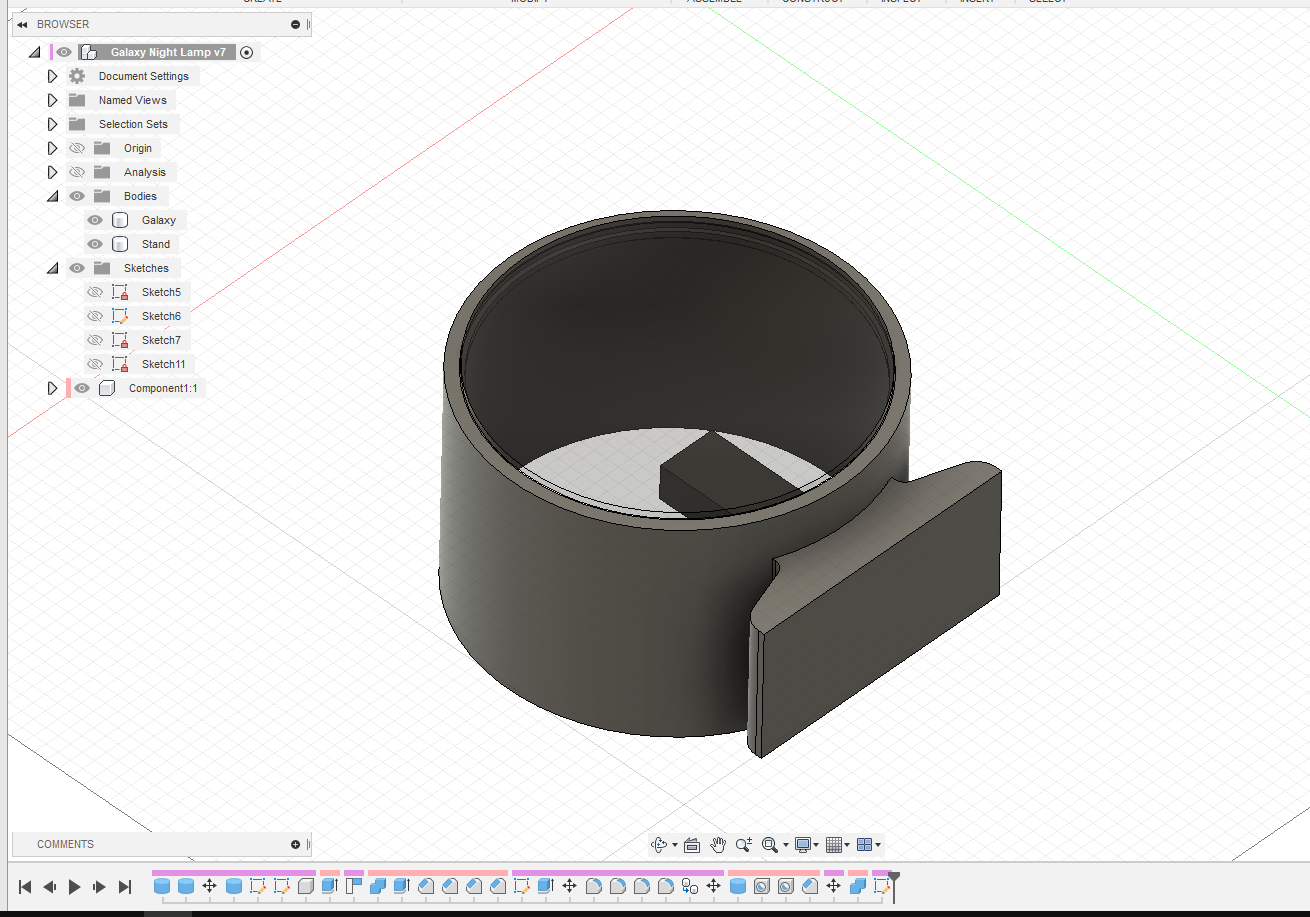

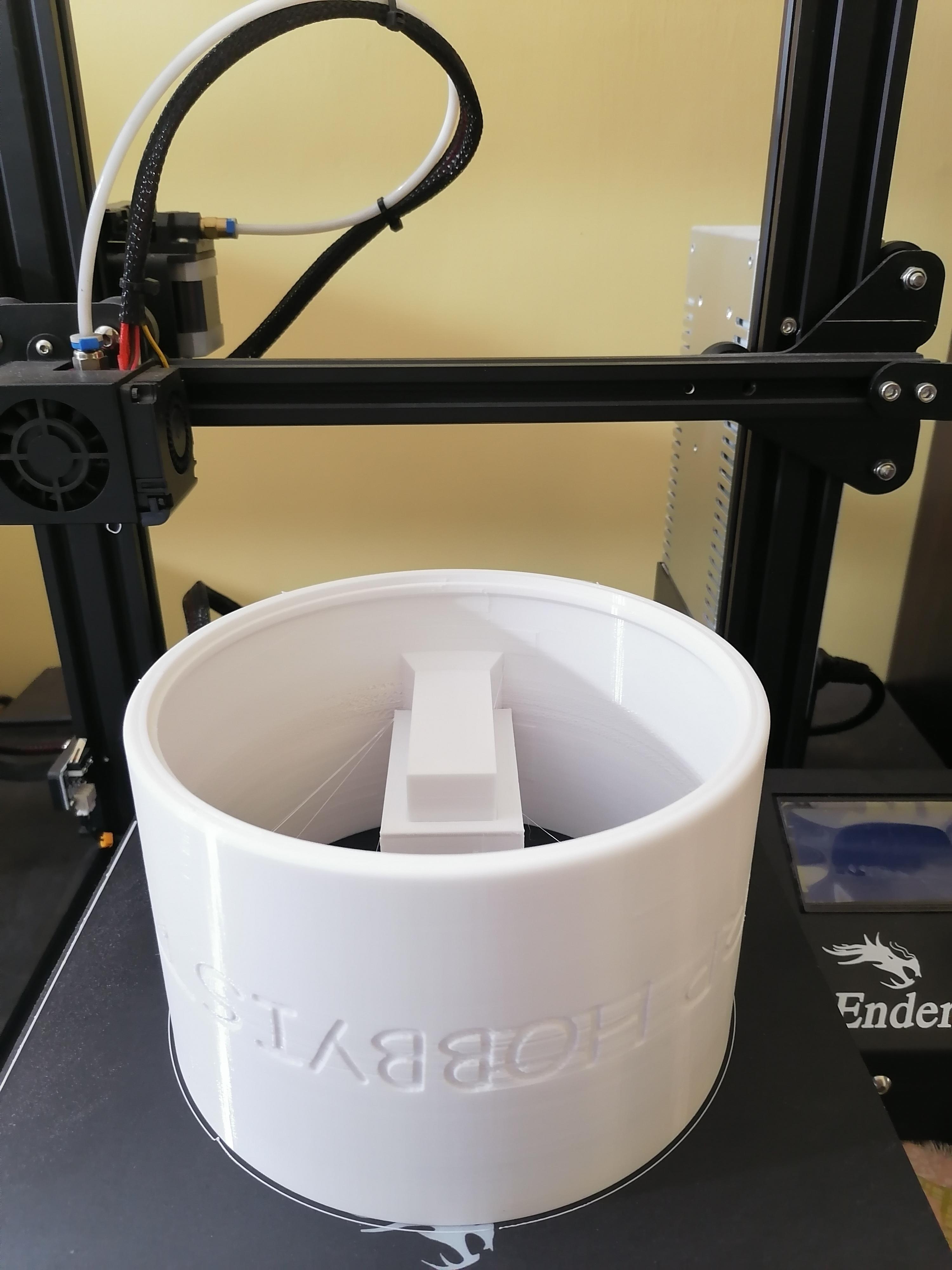

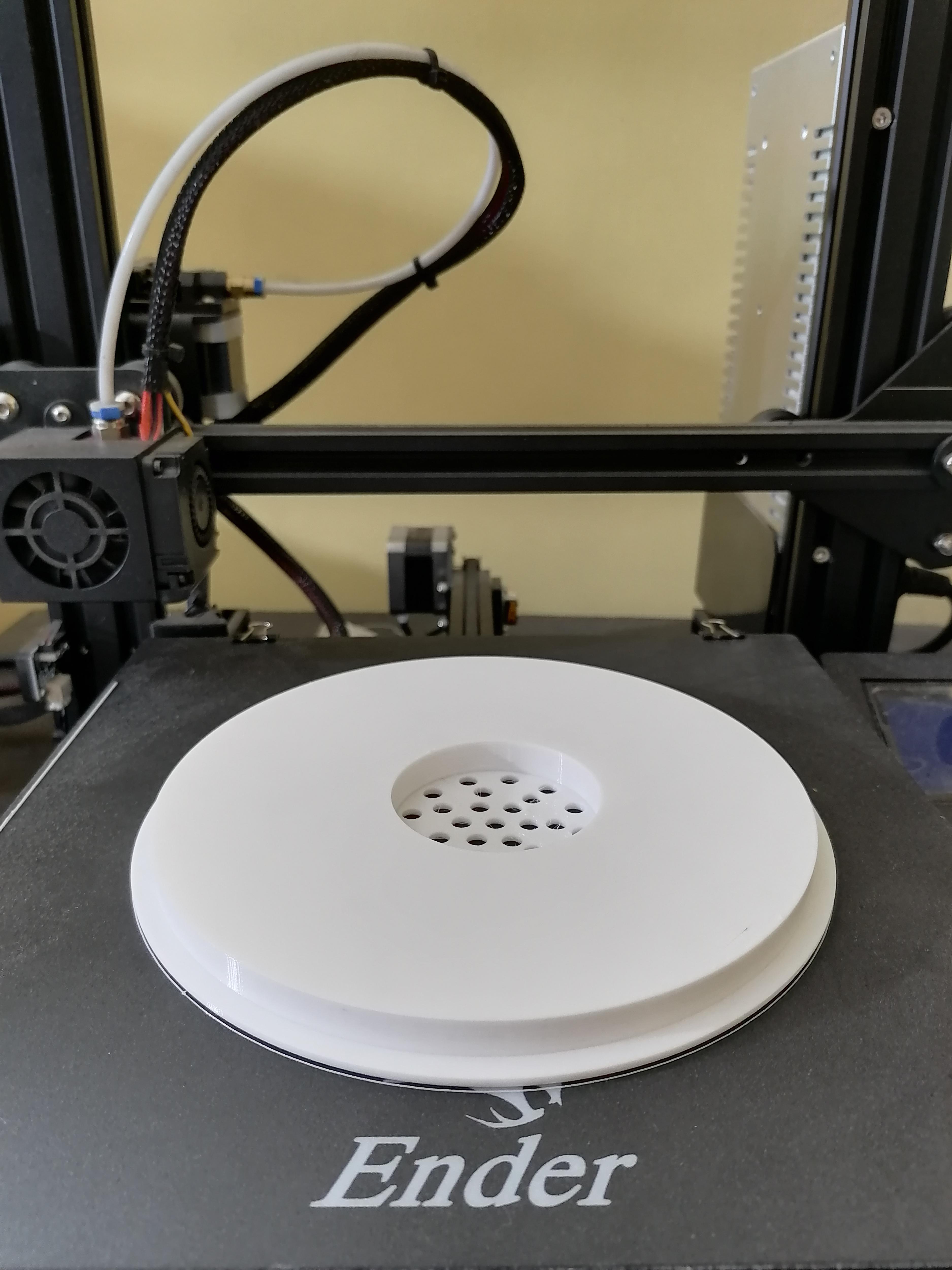

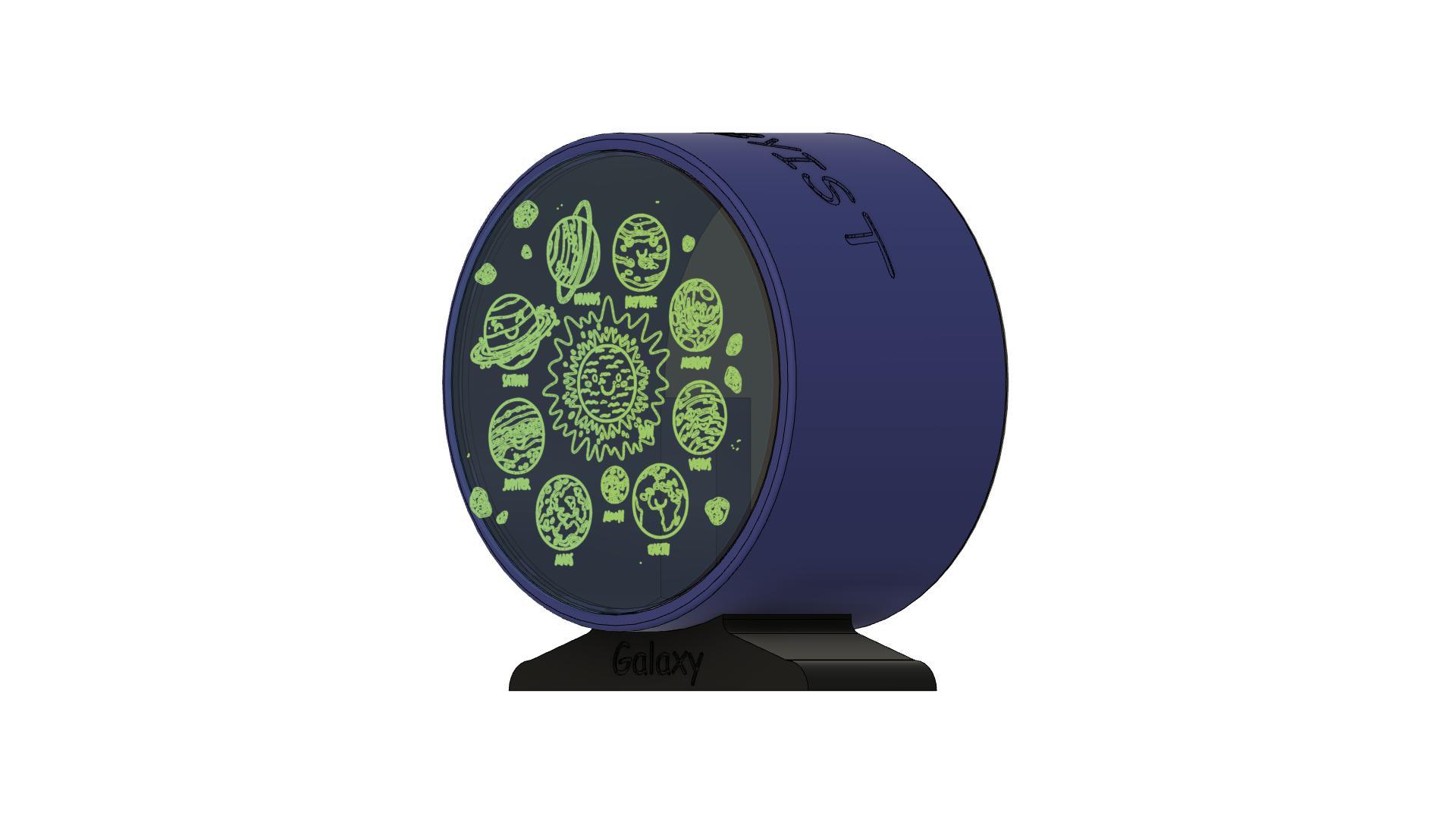

Galaxy Lamp is Design in Fusion360 Software.

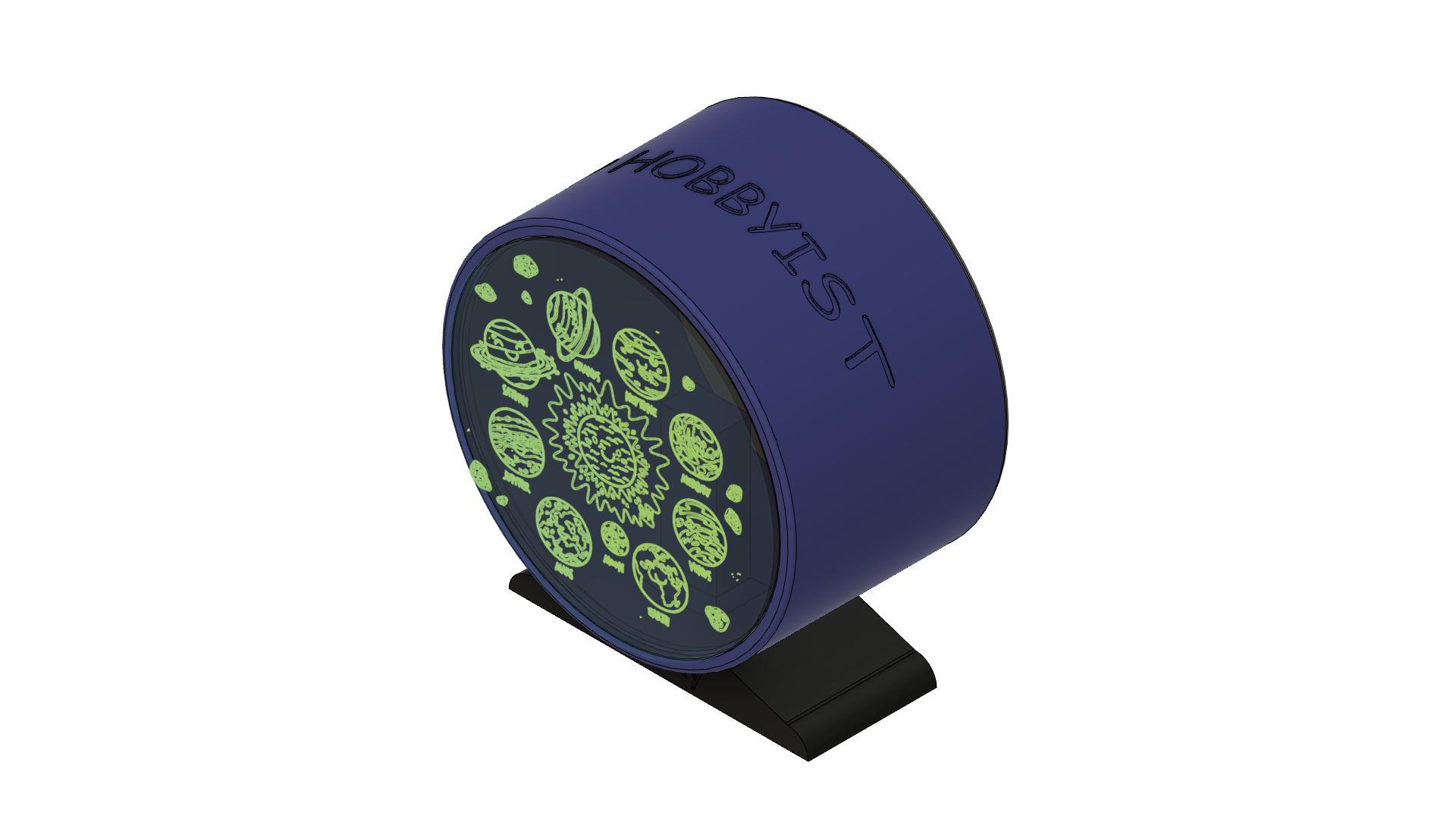

Yes!! Result came out really Awesome.

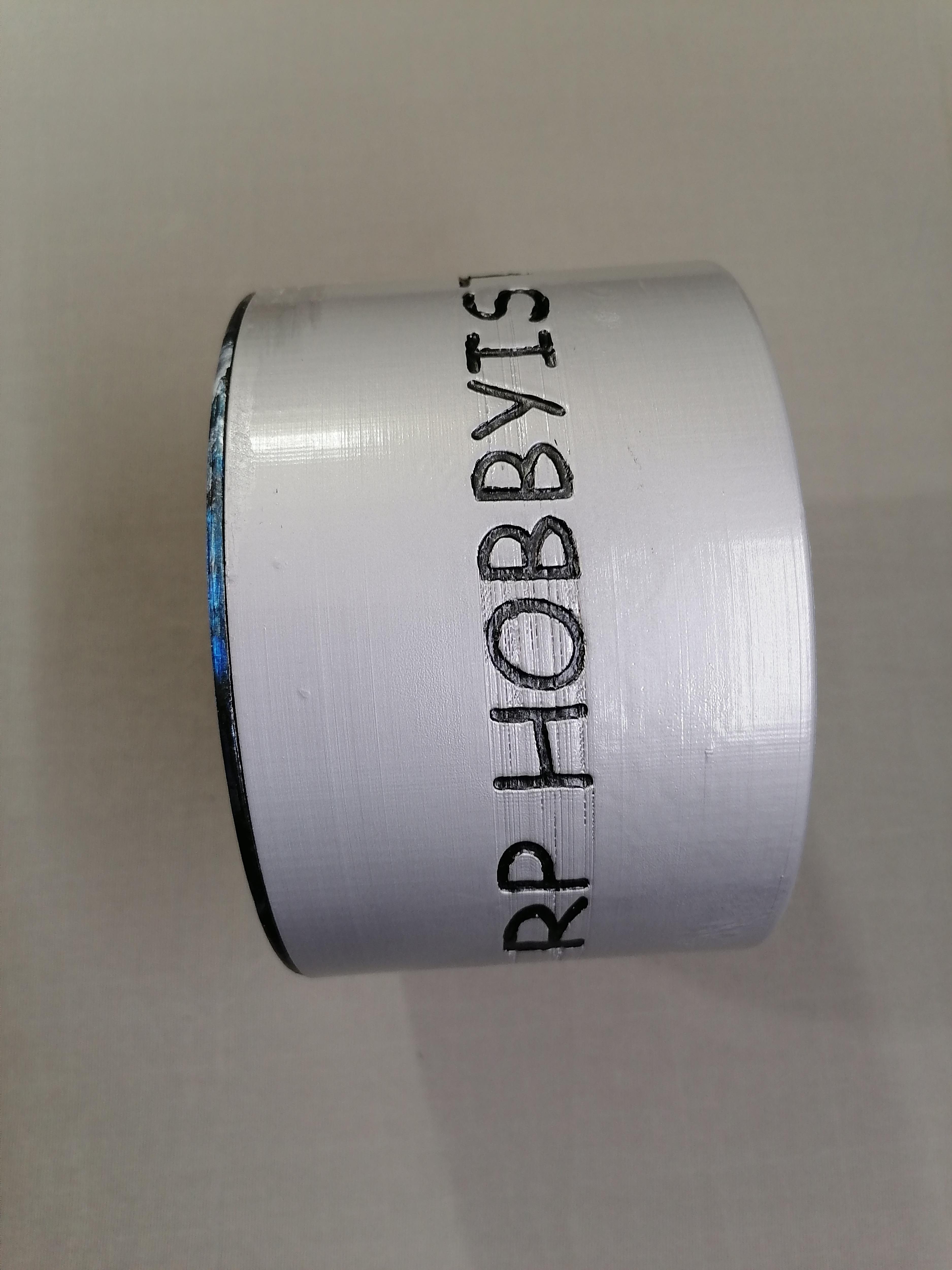

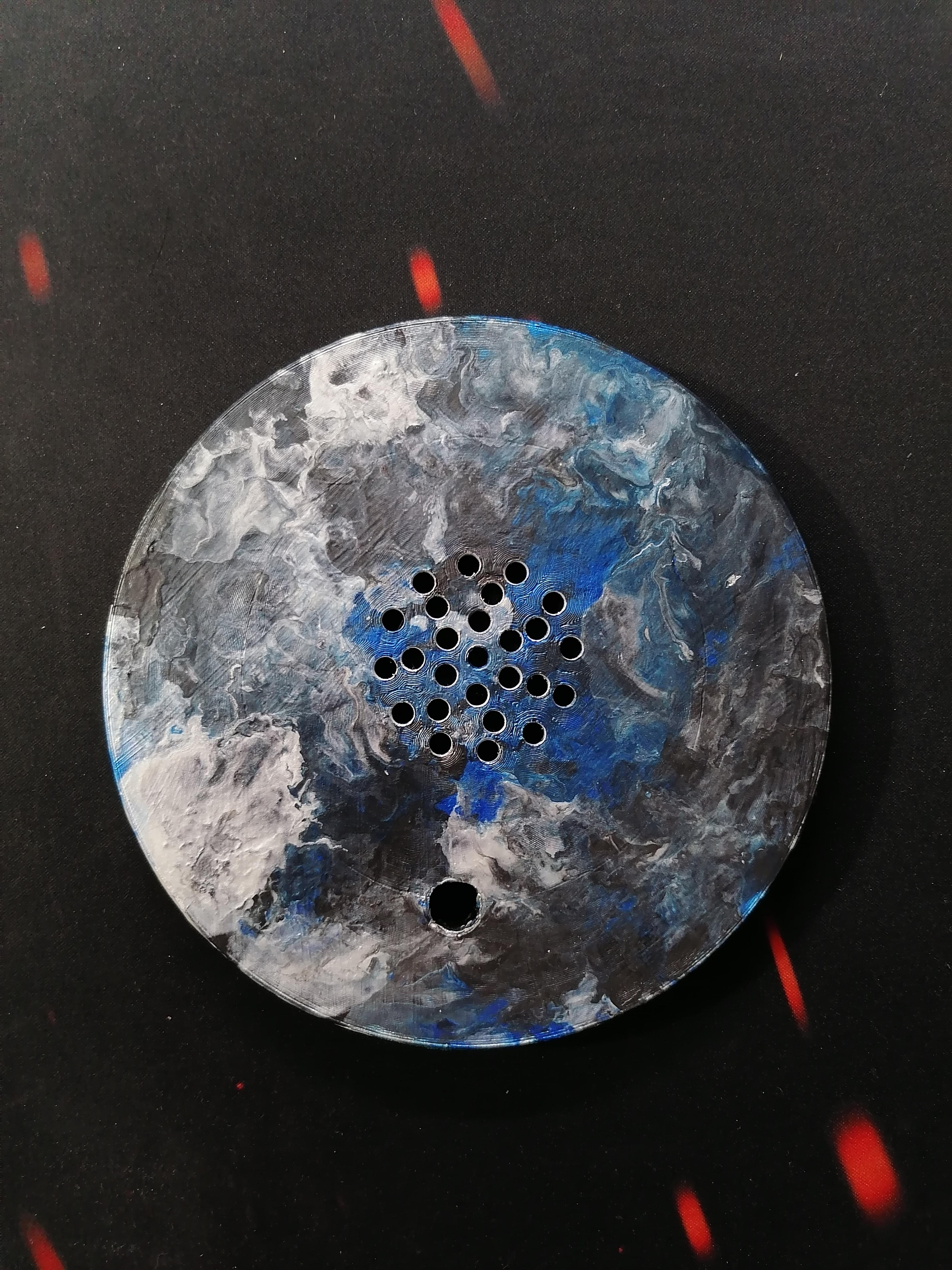

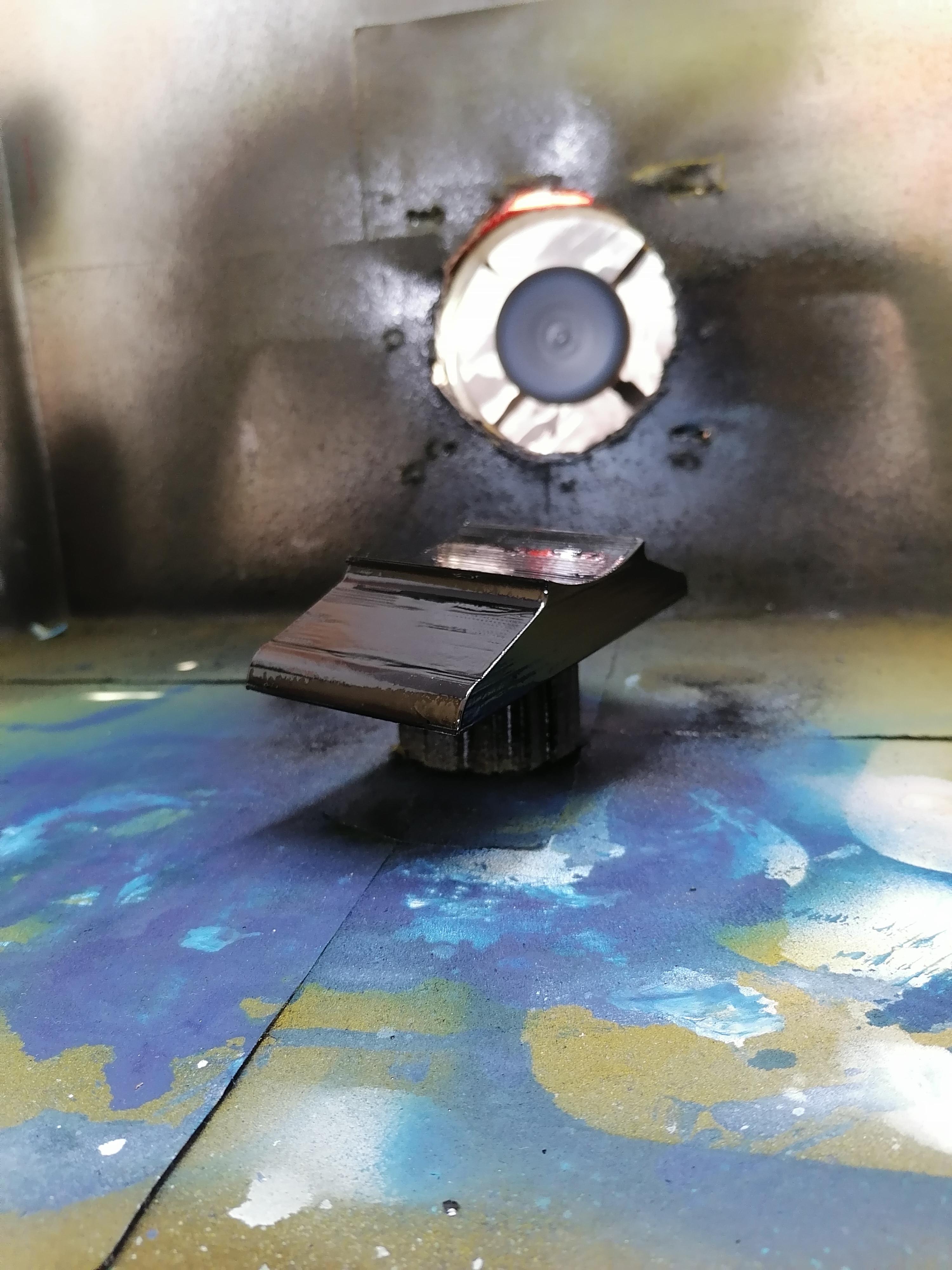

Optional - paint it as you want.

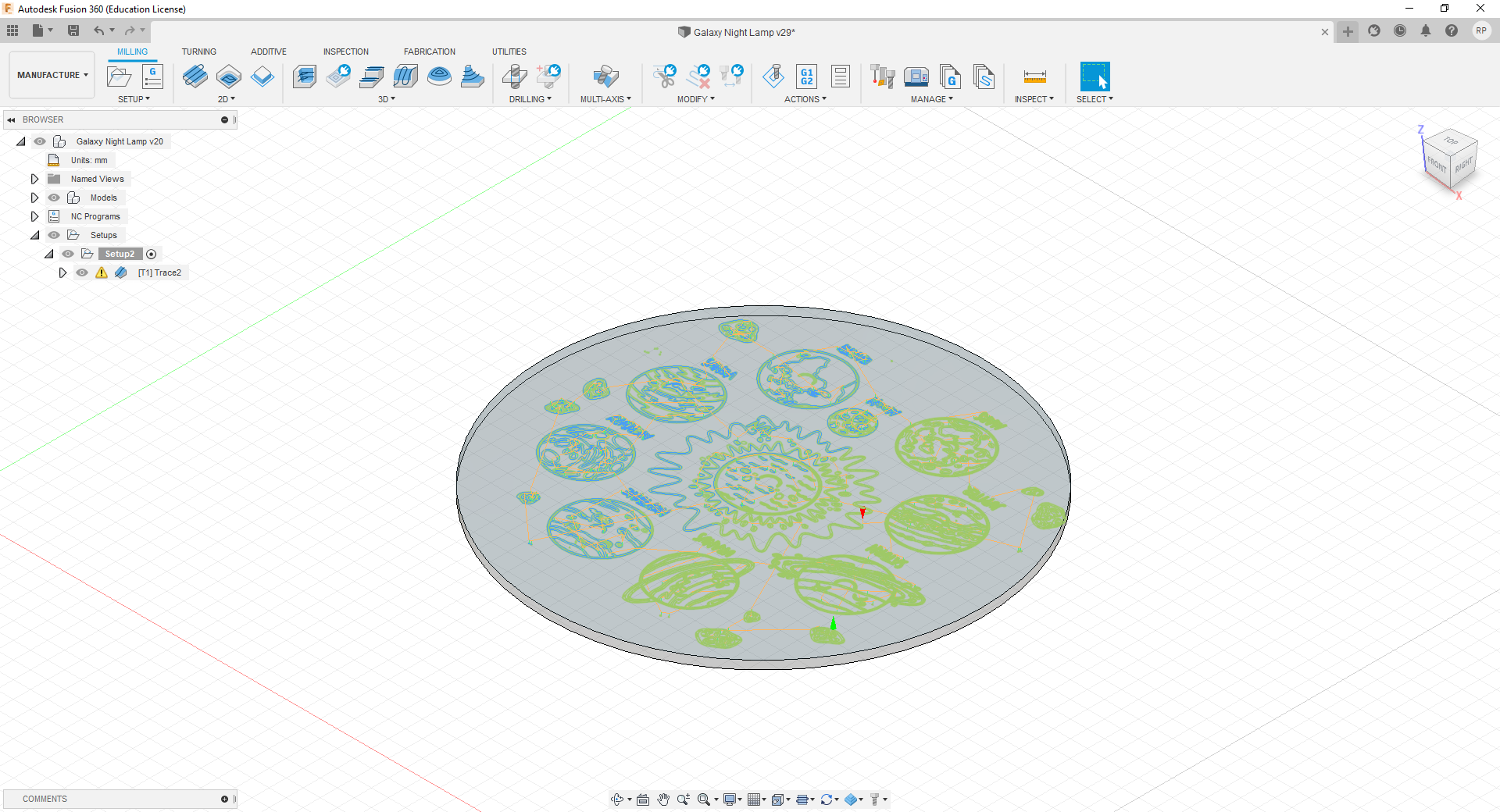

Download provided SVG file for Same Image want.

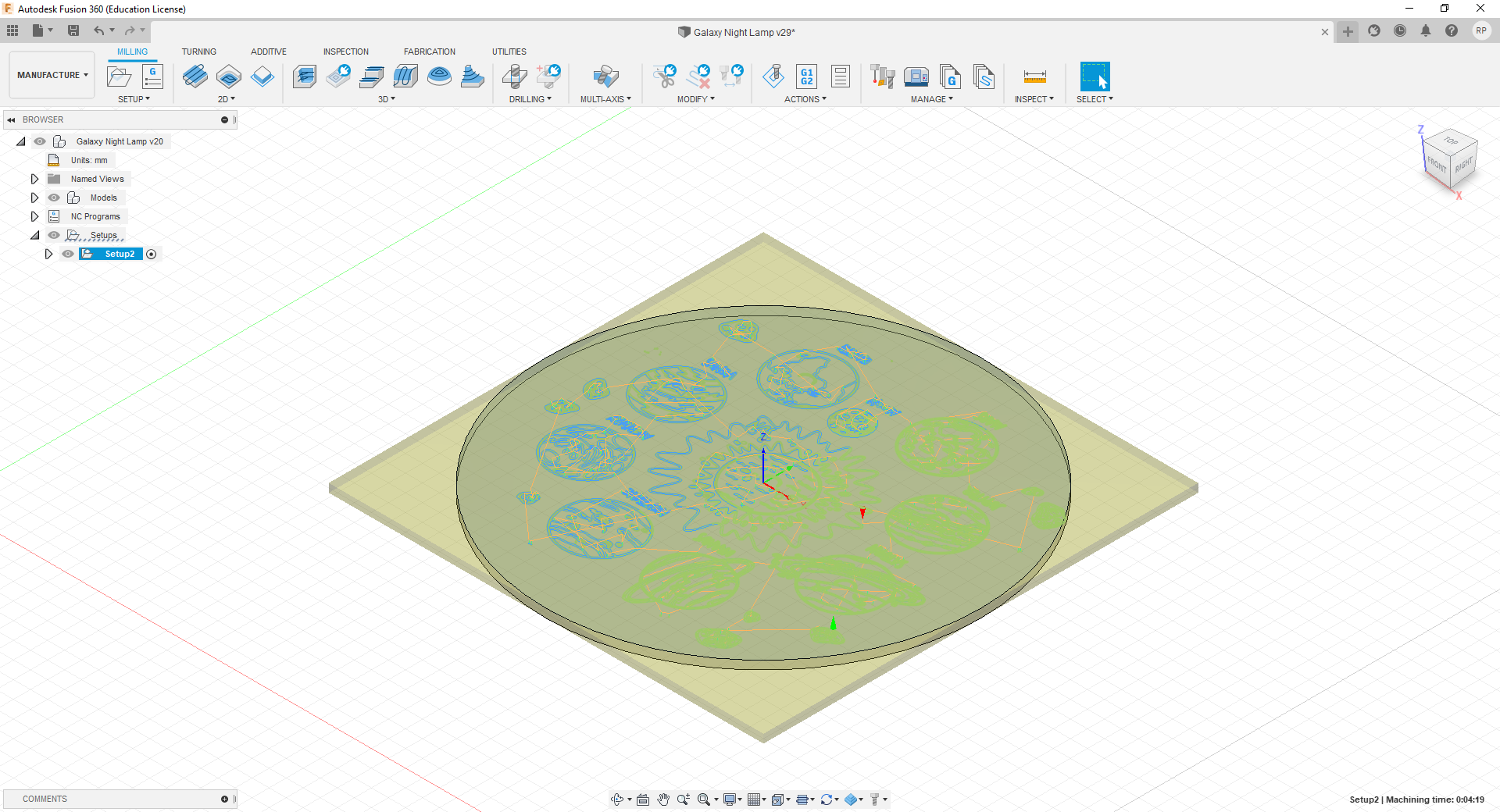

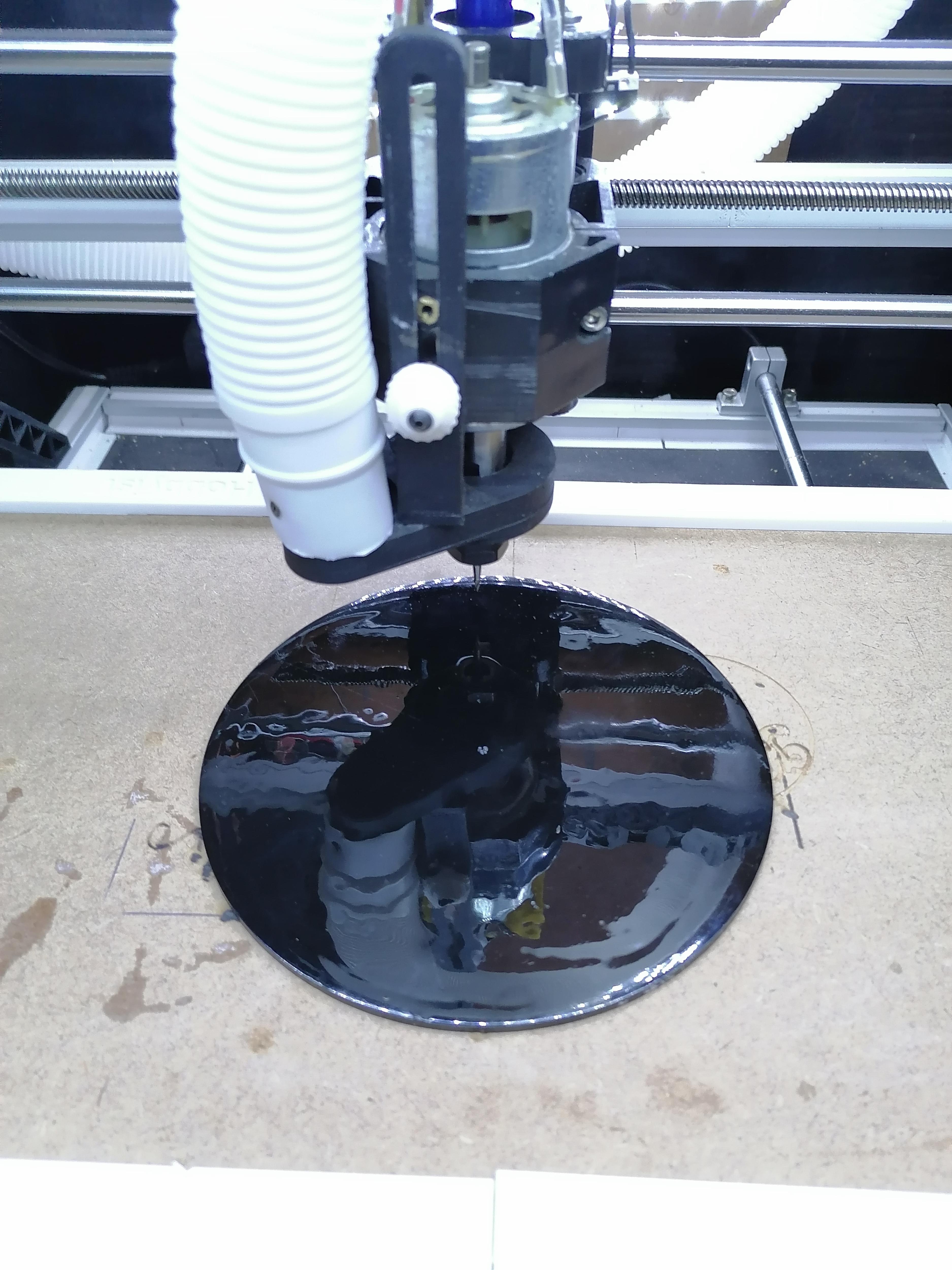

Engrave on colour side on acrylic plate.

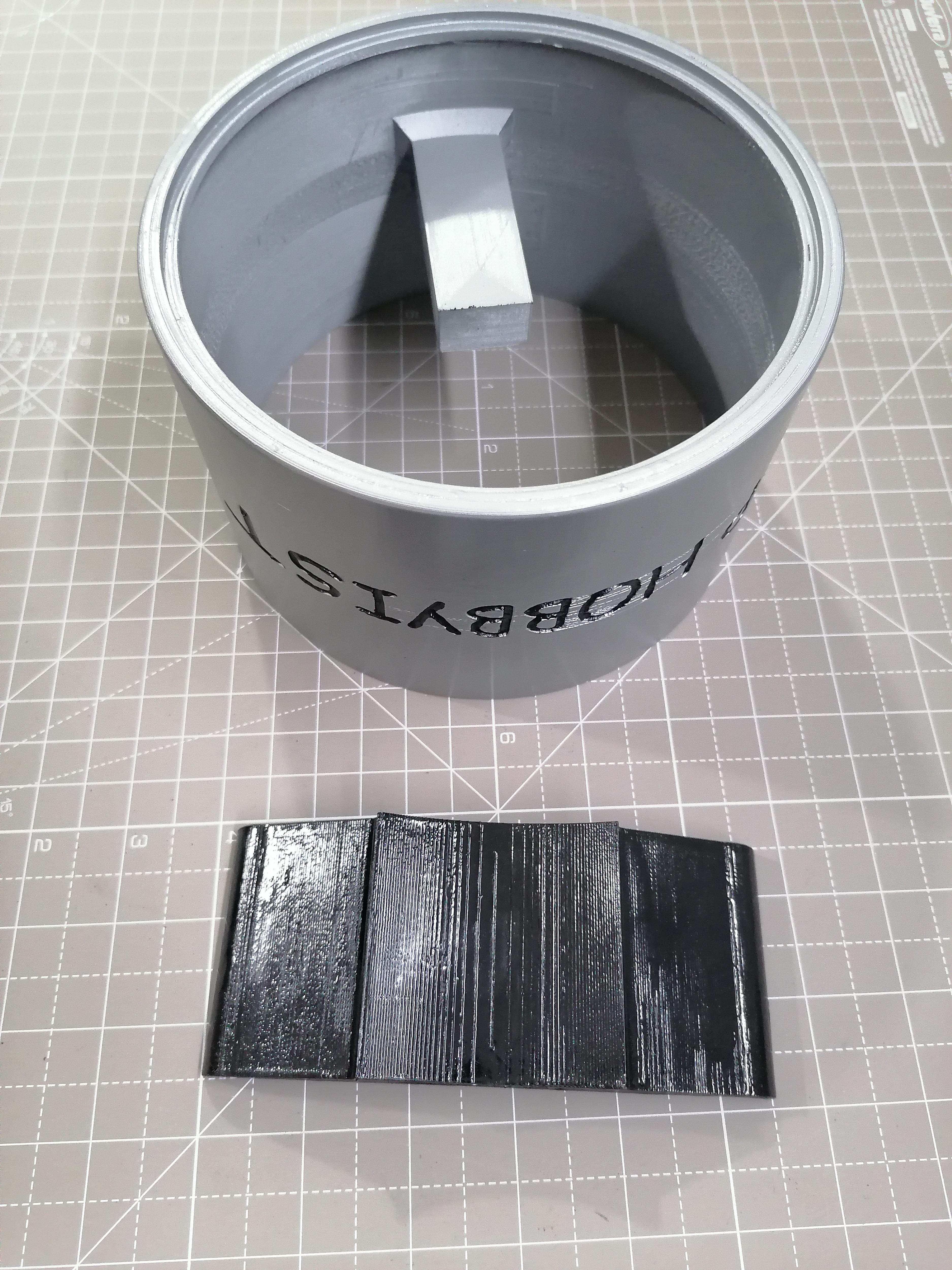

Noted: There is small pocket to place stand in given to Lamp Body. See that both Lamp Body and Stand are facing front side while you are gluing it.

Use super glue to mount it.

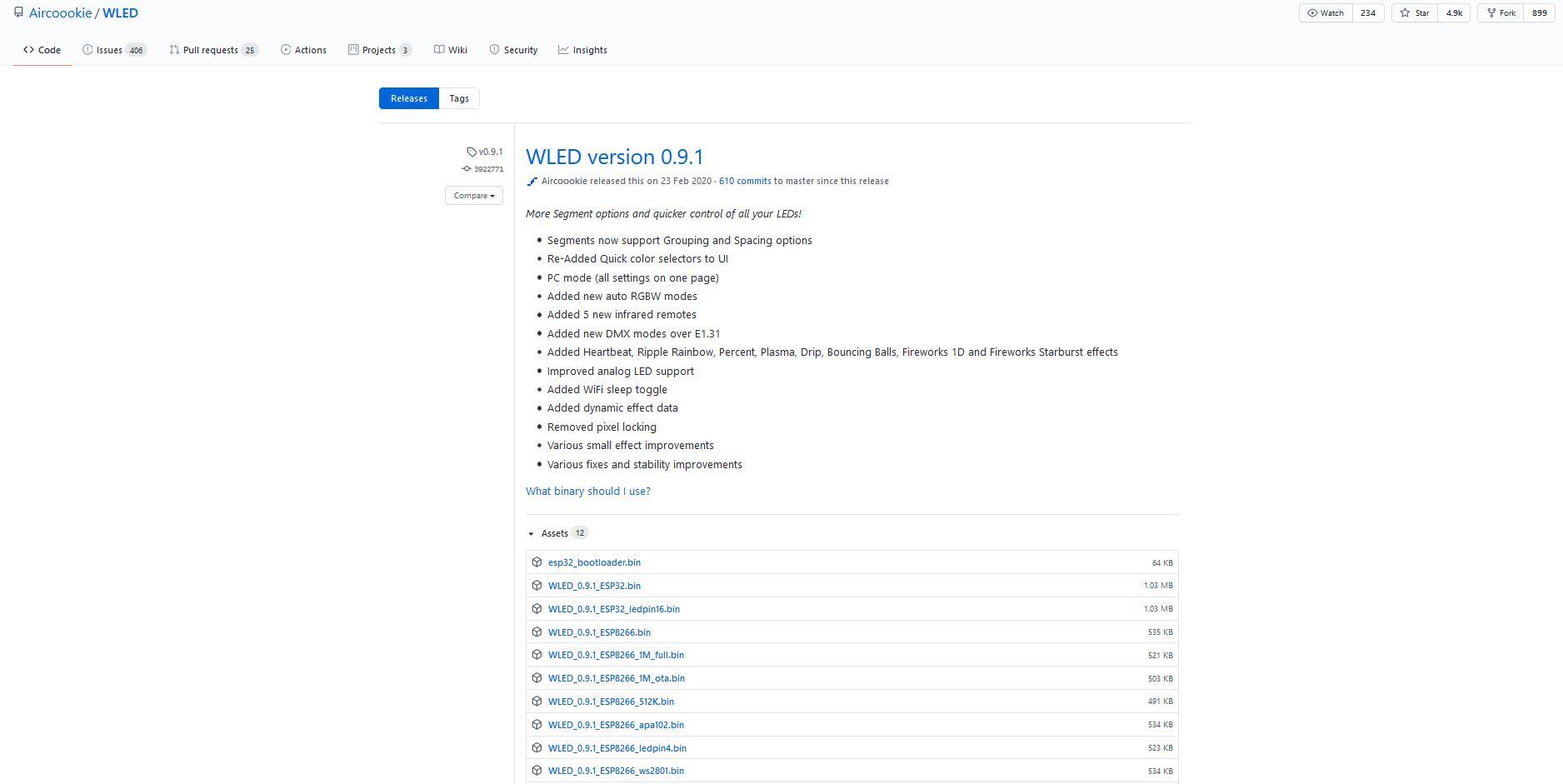

Follow steps from my Previous Project "Monitor ScreenBar LED Light"

Please kindly look at above images, half of wring need to done outside only.

Note1: Don't connect motor wiring and DC Jack to Circuit till to this step.

Note 2: Do Wire Harness according to your circuit. Copy same if you using same circuit of my.

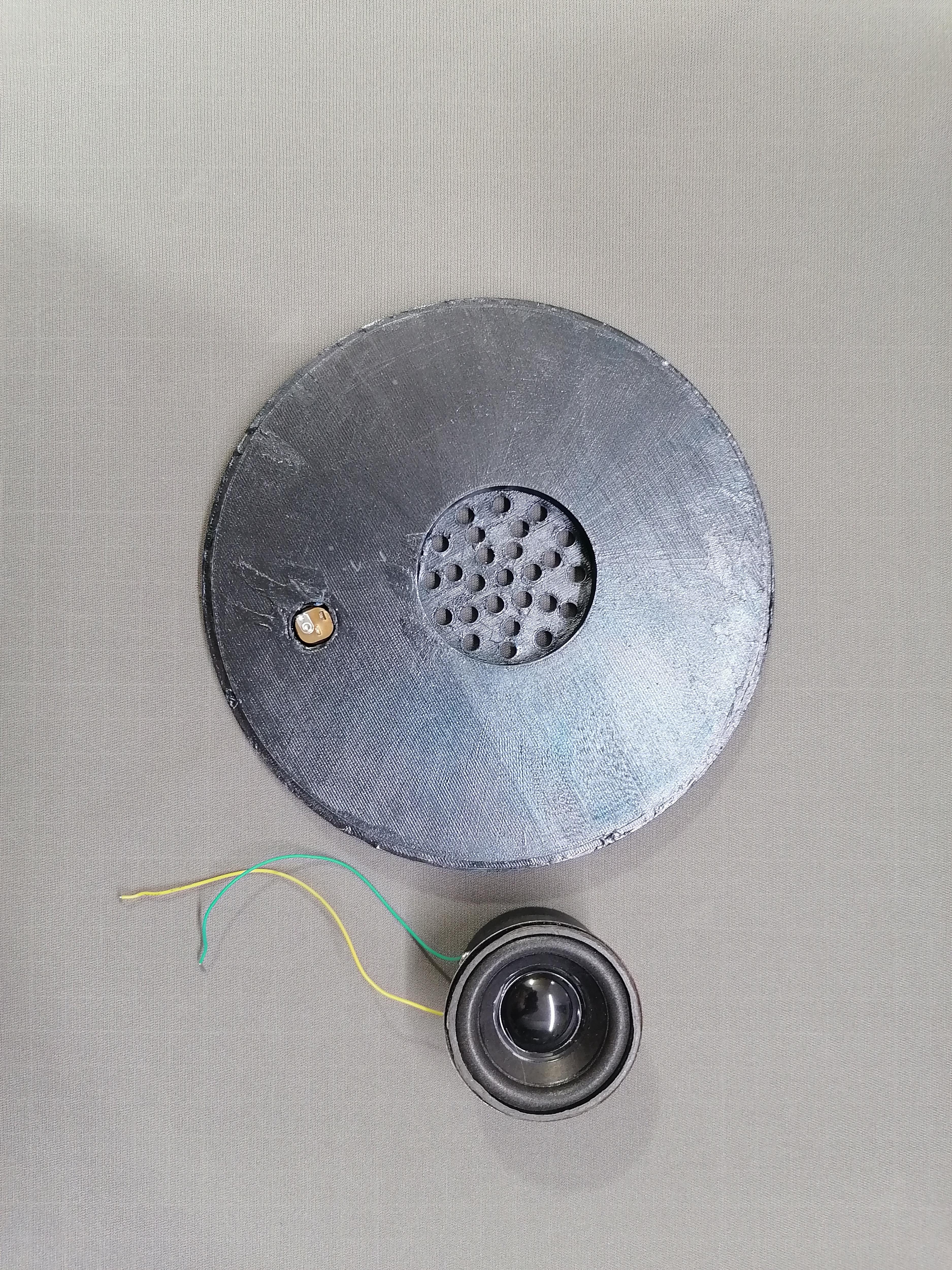

After inserting, Solder Both wires to it.

Use some glue to hold it in place it.

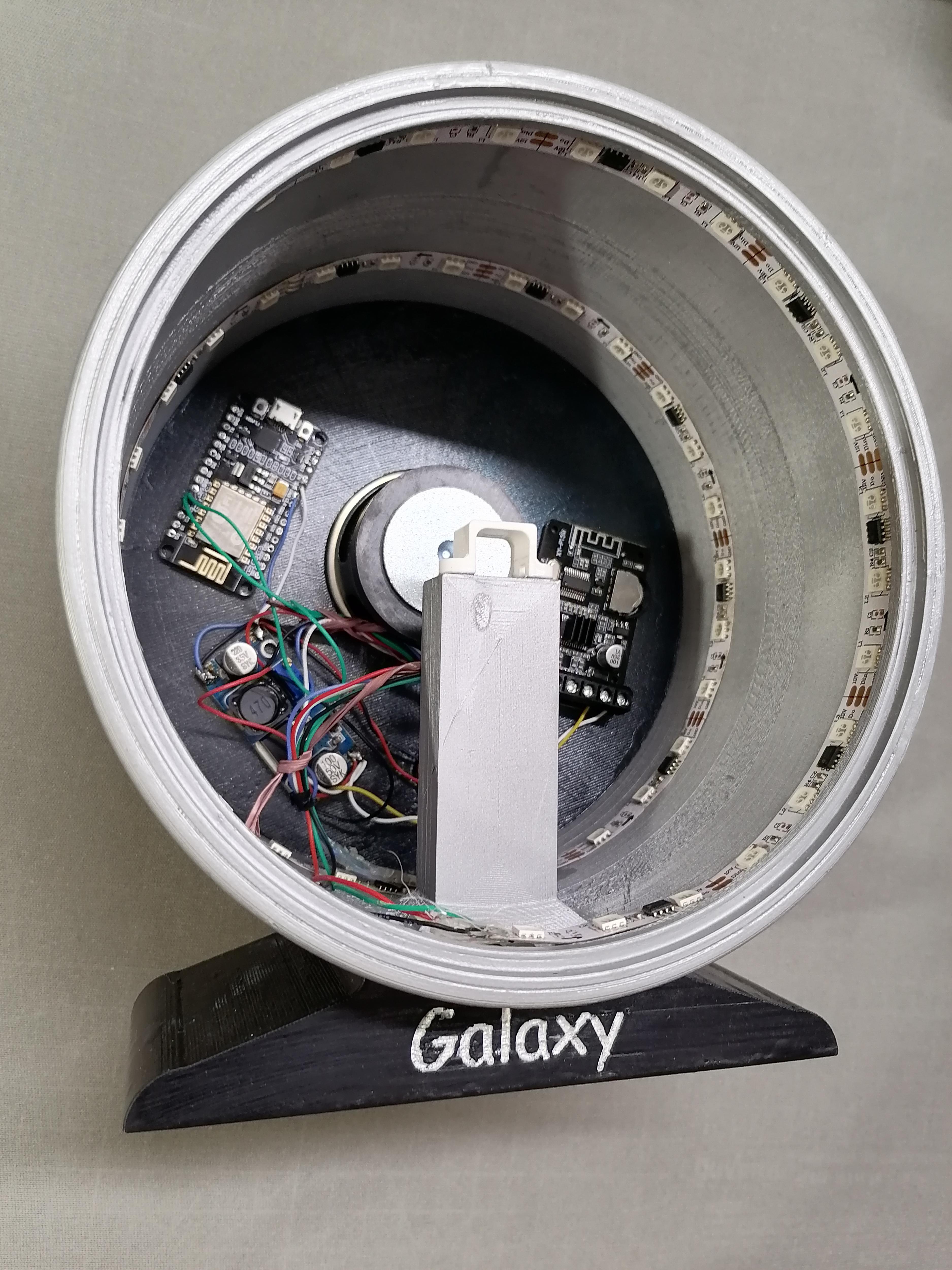

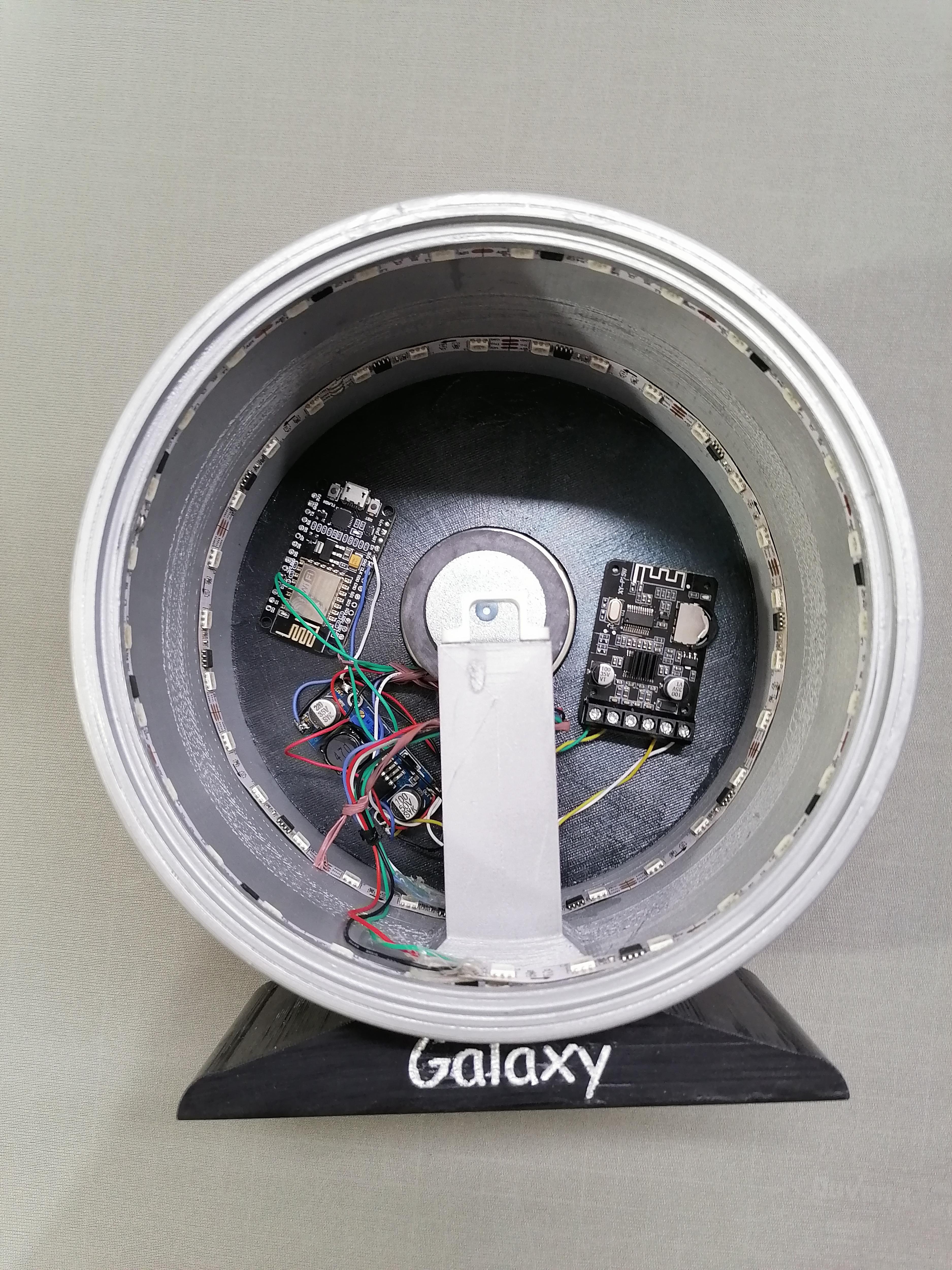

Refer to above images for placing circuit modules on back lid.

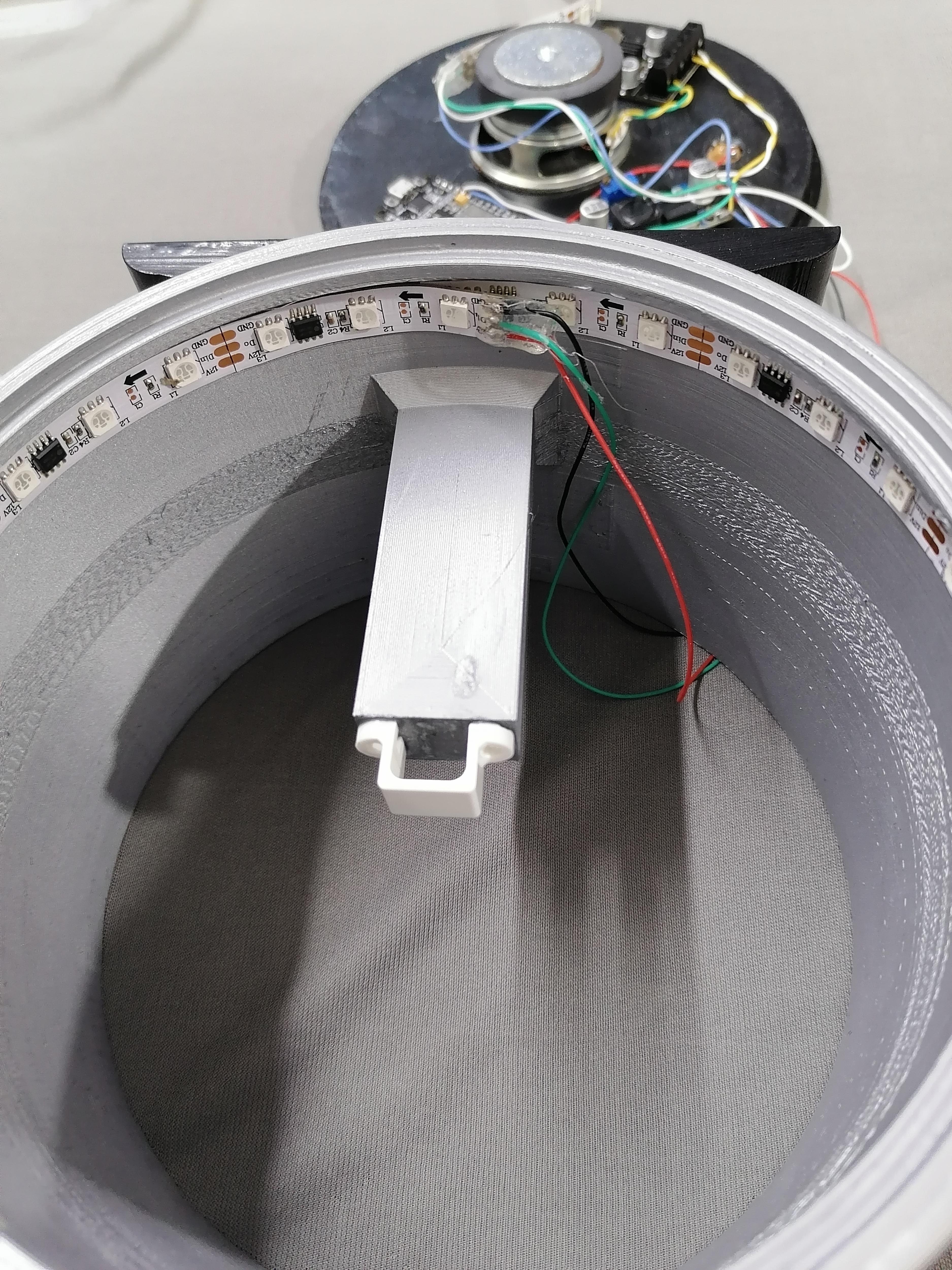

Refer above images, how to arrange LED Strip in Lamp. Do proper wring and tie up all wires.

Add resistor of 150 ohm resistor.

Use Superglue to stick acrylic plate and coupler.

"Hope you Enjoy to make this project" If you like this project please let now in comment.....

If any question about this project just let me know in comment box!!
