Motion Activated Automatic Room Light Using Mini PIR Sensor and Arduino Nano
by Technoesolution2020 in Circuits > Arduino
1728 Views, 16 Favorites, 0 Comments
Motion Activated Automatic Room Light Using Mini PIR Sensor and Arduino Nano
Hello Friends welcome back to Techno-E-Solution, In this Video I'll show you how to make Room Light Automatic, The room light get automatically turn on when you someone enters in the room & get turn off after 15 sec when nobuddy in the room. so for making this project I'm going to use Mini PIR sensor also you can use PIR sensor. To Control AC Load I'm using a single channel relay module. I provide the complete details of the project like circuit diagram & Arduino code with demonstration Video.
Follow me on :-
Facebook :- https://www.facebook.com/TechnoShubham
Instagram :- https://www.instagram.com/technoesolution2020/?hl...
Instructables :- https://www.instructables.com/member/Technoesolut...
Dailymotion :- https://www.dailymotion.com/technoesolution
Youtube :- https://www.instagram.com/technoesolution2020/?hl...
If you like this project subscribe us on Youtube, So without wasting time Let's get started..............
MATERIAL REQUIRED
For making this project we need some components :-
CIRCUIT DIAGRAM

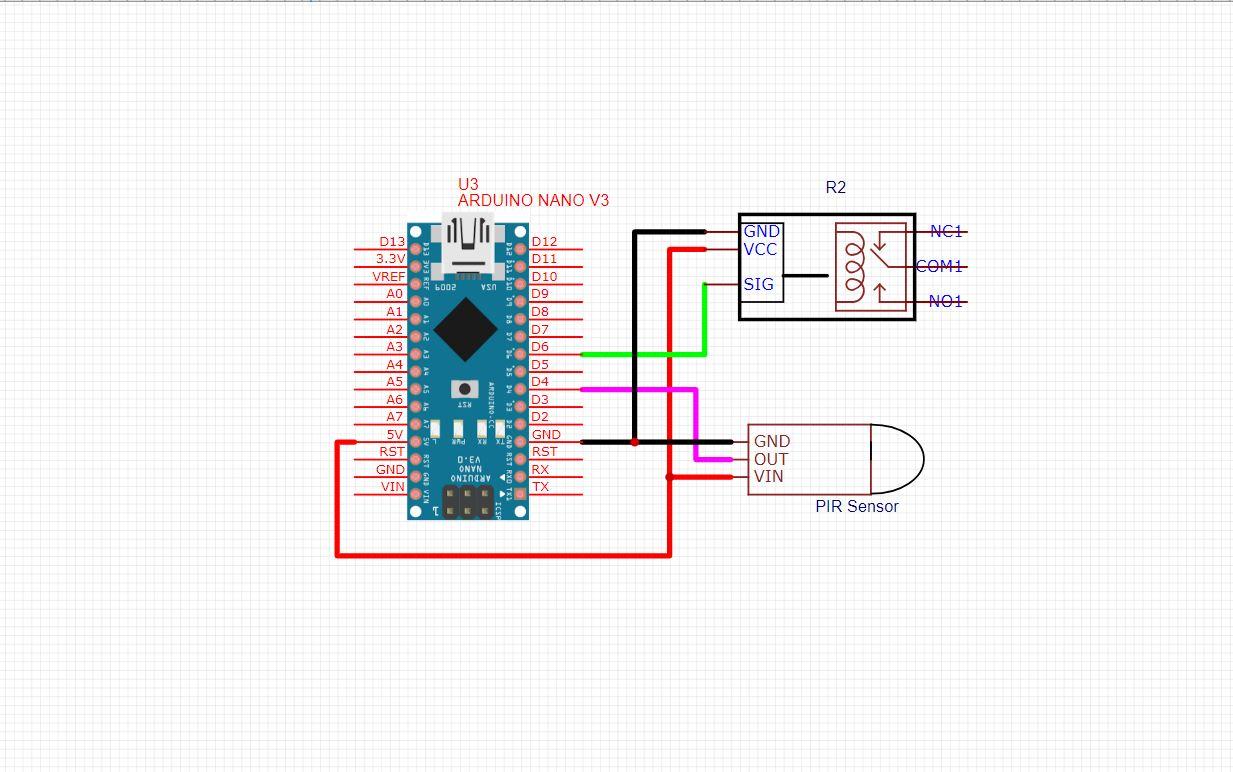

Follow the circuit diagram for making a connection. I make this circuit in Easy EDA software.
Note:- Take the help of electrition to connect AC Load (Bulb), because it should be dangerous.
Next PCB
NextPCB is a high-quality PCB Manufacturer. With professional PCB manufacturing capabilities, our PCB engineers with more than 10 years of experience will double-check your engineering files.
NextPCB is certified by IATF16949, ISO9001, ISO14001, UL, CQC, RoHS and REACH; more importantly, we handle the whole process including the PCB prototype, PCB manufacturing, PCB assembly, testing, and final shipment. We are capable of assembling BGA, Micro-BGA, QFN, and other leadless package parts. We also have an online parts shop, you can choose any parts you need.
If you want a Printed circuit board go through the NEXT PCB
ARDUINO CODE

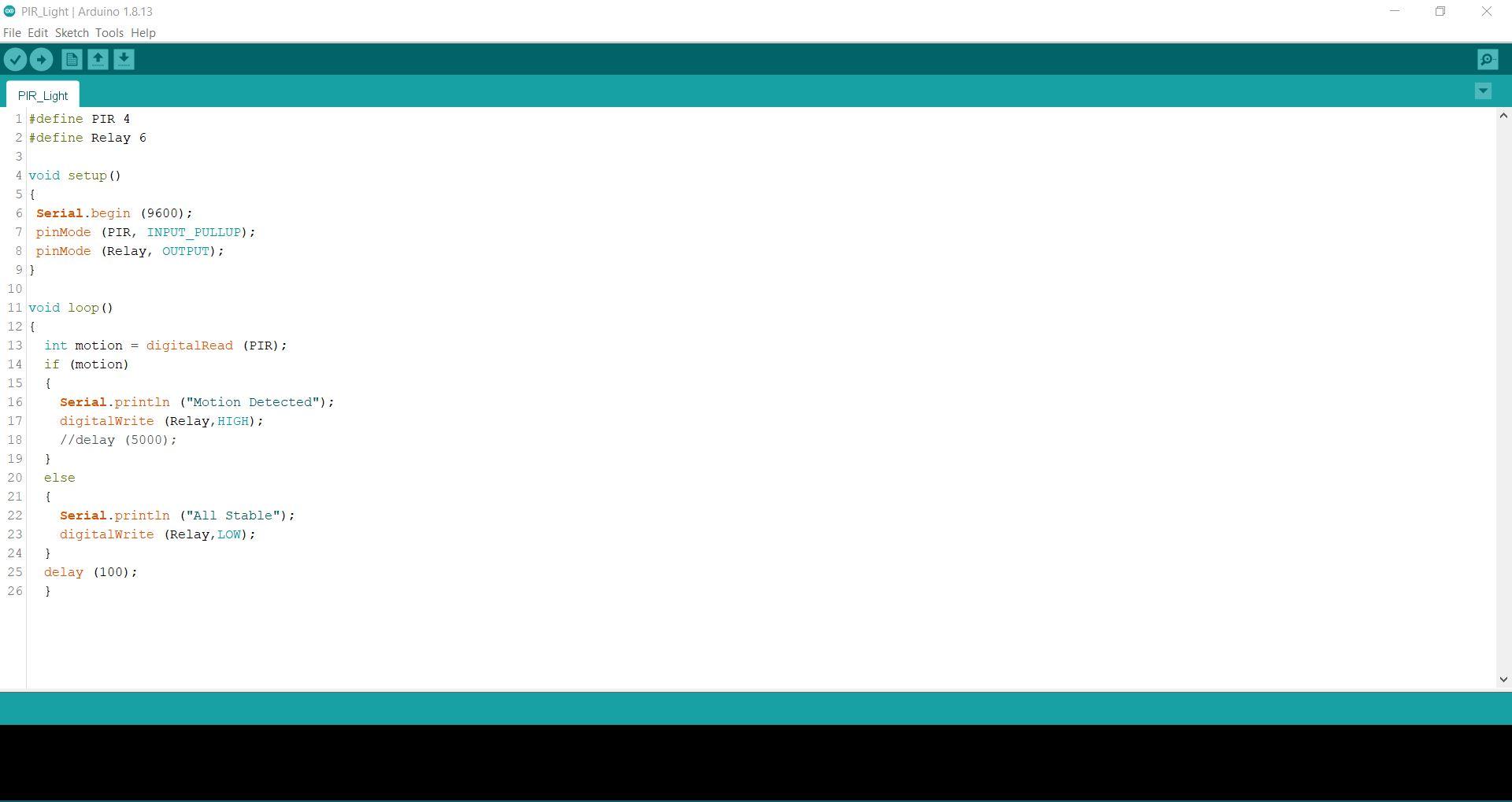

Simply Copy the following code & upload in your Arduino IDE software.
/* * Hello Friends Welcome To Techno-E-Solution * Here is the Code For Automatic Room Light Using Arduino */ #define PIR 4 #define Relay 6 void setup() { Serial.begin (9600); pinMode (PIR, INPUT_PULLUP); pinMode (Relay, OUTPUT); } void loop() { int motion = digitalRead (PIR); if (motion) { Serial.println ("Motion Detected"); digitalWrite (Relay,HIGH); } else { Serial.println ("All Stable"); digitalWrite (Relay,LOW); } delay (100); }<br>
