Morse Code


This project is similar to the Prank Handshake, with
the addition of a fork and LED (light emitting diode), using LittleBits technology.

Morse Code

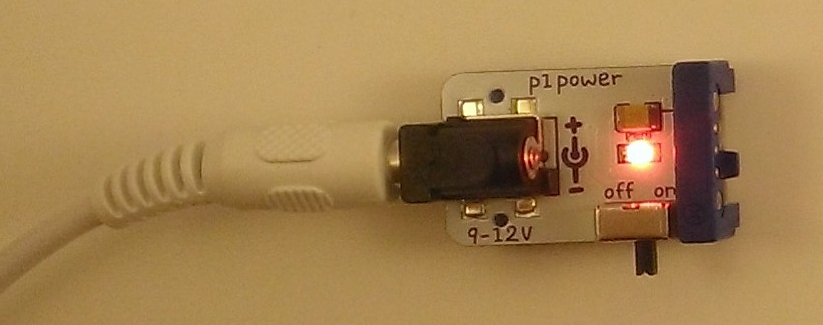

Start with your power module.

Morse Code


Connect a button to the power module.

Morse Code


Connect a fork to the button.

Morse Code


Attach an LED to one of the fork outputs.

Morse Code

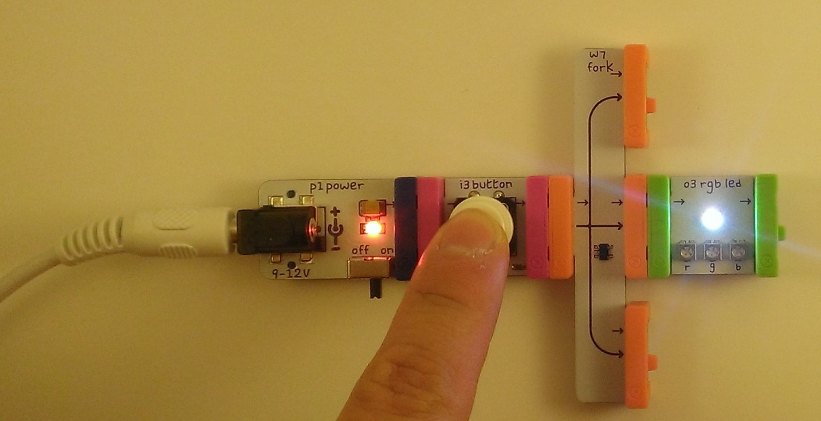

Press the button to see the LED light up.

Morse Code


Attach a buzzer to another fork output.

Morse Code


Press the button to tap Morse Code.

Each letter or number is represented by a
pattern of dots and dashes.

See the table from Wikipedia below (Source:
http://en.wikipedia.org/wiki/Morse_code).

Tap the button briefly for a dot; hold the
button longer for a dash.

See and hear Morse Code at the same time!
