Moon Station Powered Moon Lamp
![IMG_6103.jpg](/proxy/?url=https://content.instructables.com/FMU/QG59/JSCG3C8P/FMUQG59JSCG3C8P.jpg&filename=IMG_6103.jpg)
![4” Moon Lamp with screw lamp base](/proxy/?url=https://content.instructables.com/F2F/G302/JSCG3BX9/F2FG302JSCG3BX9.jpg&filename=4” Moon Lamp with screw lamp base)
![IMG_6097.jpg](/proxy/?url=https://content.instructables.com/FAL/0899/JSCG3BQA/FAL0899JSCG3BQA.jpg&filename=IMG_6097.jpg)
![IMG_6101.jpg](/proxy/?url=https://content.instructables.com/FSH/X3S3/JSCG3C8N/FSHX3S3JSCG3C8N.jpg&filename=IMG_6101.jpg)

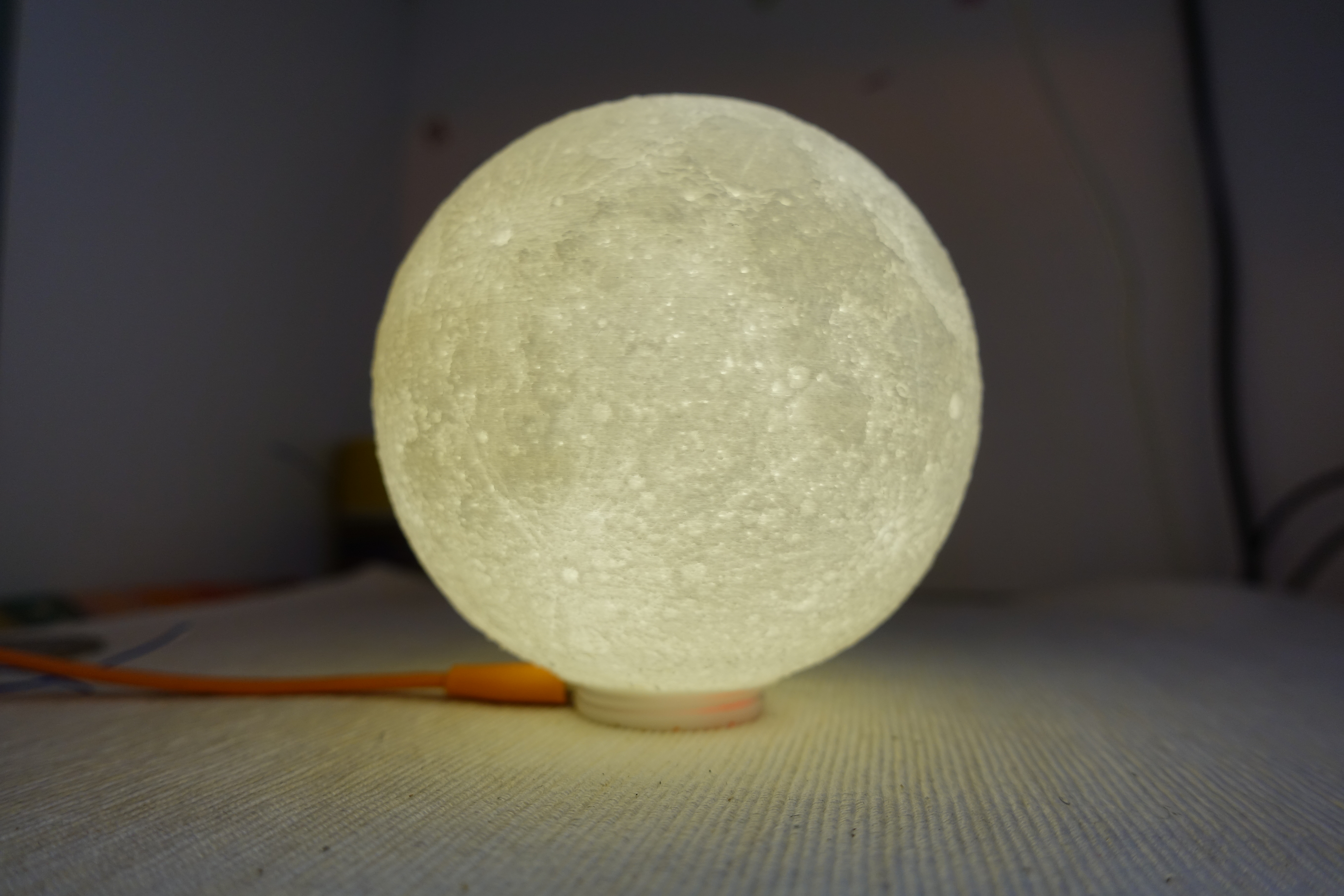

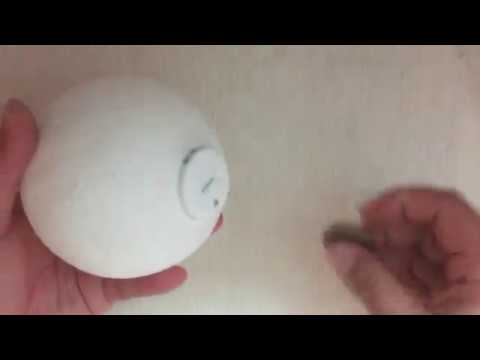

This instructables show how to add a rechargeable Moon station light source to make a portable Progressive Detail Moon Lamp.
Why Moon Station?
![IMG_6063.jpg](/proxy/?url=https://content.instructables.com/FYF/3AB7/JSCG3BNT/FYF3AB7JSCG3BNT.jpg&filename=IMG_6063.jpg)
A portable Moon Lamp require a light source; And the light source require a power switch and recharge plug socket.
The switch and socket make the Moon surface not perfect. How about make it look like a Moon station? It can explain why part of the Moon become unnatural :P
3D Printing
![IMG_6087.jpg](/proxy/?url=https://content.instructables.com/F3B/UTVQ/JSCG3BO7/F3BUTVQJSCG3BO7.jpg&filename=IMG_6087.jpg)
![IMG_6088.jpg](/proxy/?url=https://content.instructables.com/FXL/WN25/JSCG3BOC/FXLWN25JSCG3BOC.jpg&filename=IMG_6088.jpg)
![IMG_6089.jpg](/proxy/?url=https://content.instructables.com/FTB/6GZ4/JSCG3BP5/FTB6GZ4JSCG3BP5.jpg&filename=IMG_6089.jpg)
Download and unpack the STL file from thingiverse:
https://www.thingiverse.com/thing:3444020

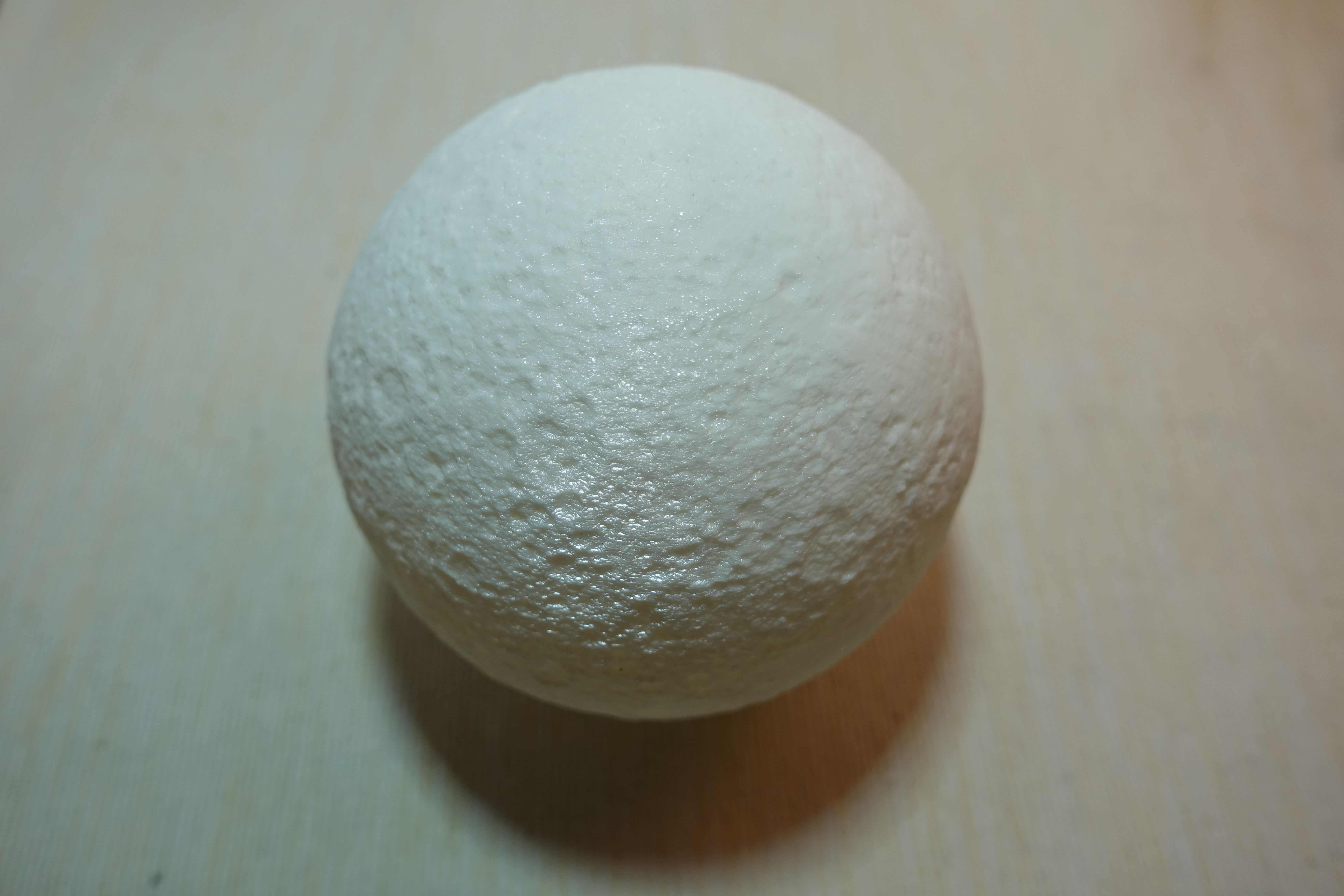

3D print the model with white filament. I am print it with 0.1 mm layer height, no support required.
Light Source
![IMG_6084.jpg](/proxy/?url=https://content.instructables.com/FB7/A5K3/JSCG3BO0/FB7A5K3JSCG3BO0.jpg&filename=IMG_6084.jpg)
![IMG_6085.jpg](/proxy/?url=https://content.instructables.com/FY1/KWX2/JSCG3BO1/FY1KWX2JSCG3BO1.jpg&filename=IMG_6085.jpg)
![IMG_6086.jpg](/proxy/?url=https://content.instructables.com/FZZ/IVY9/JSCG3BO6/FZZIVY9JSCG3BO6.jpg&filename=IMG_6086.jpg)
![IMG_6090.jpg](/proxy/?url=https://content.instructables.com/FTE/84QH/JSCG3BP7/FTE84QHJSCG3BP7.jpg&filename=IMG_6090.jpg)
The interior of the Moon station is 28 mm in diameter and reserved a micro USB port window.

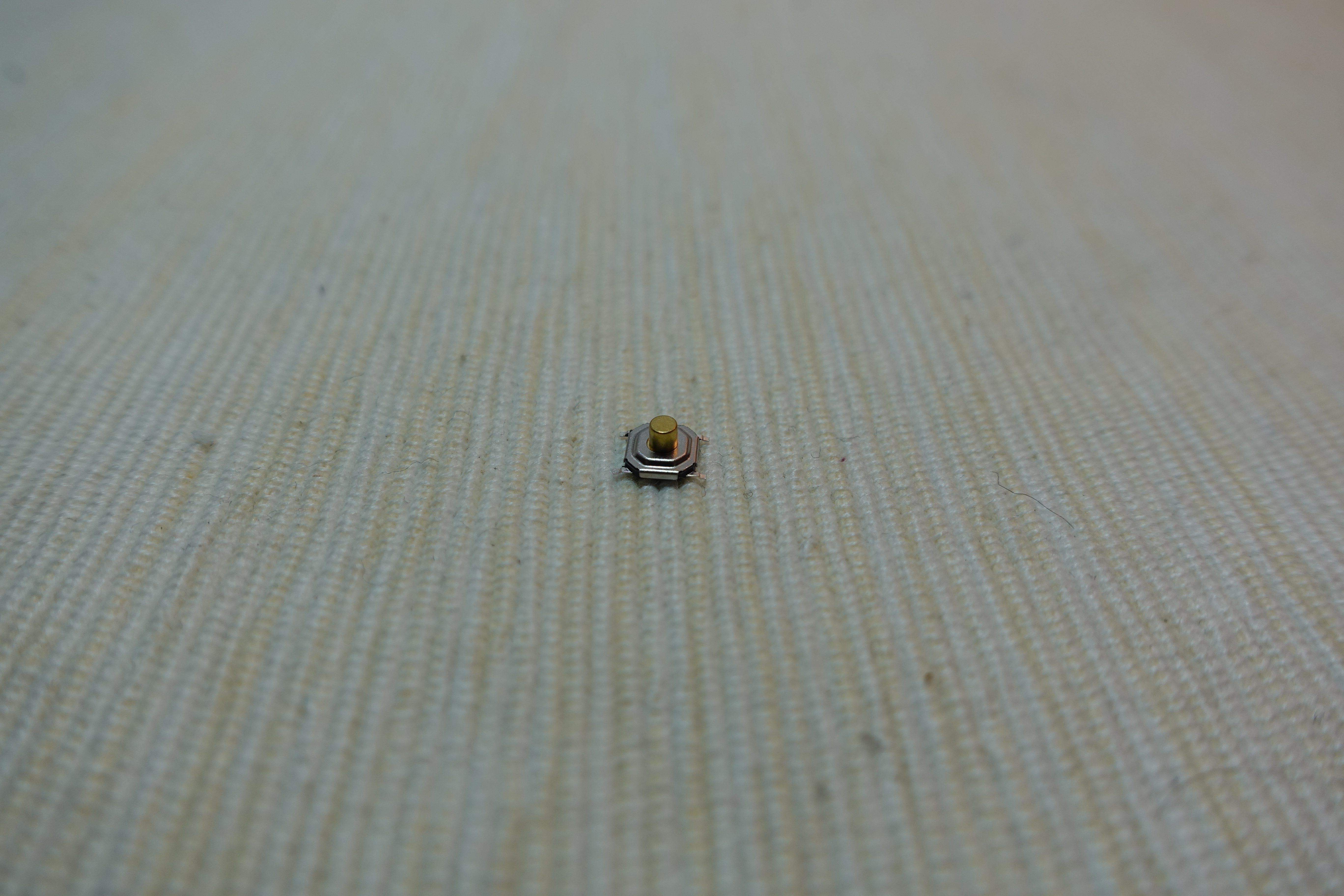

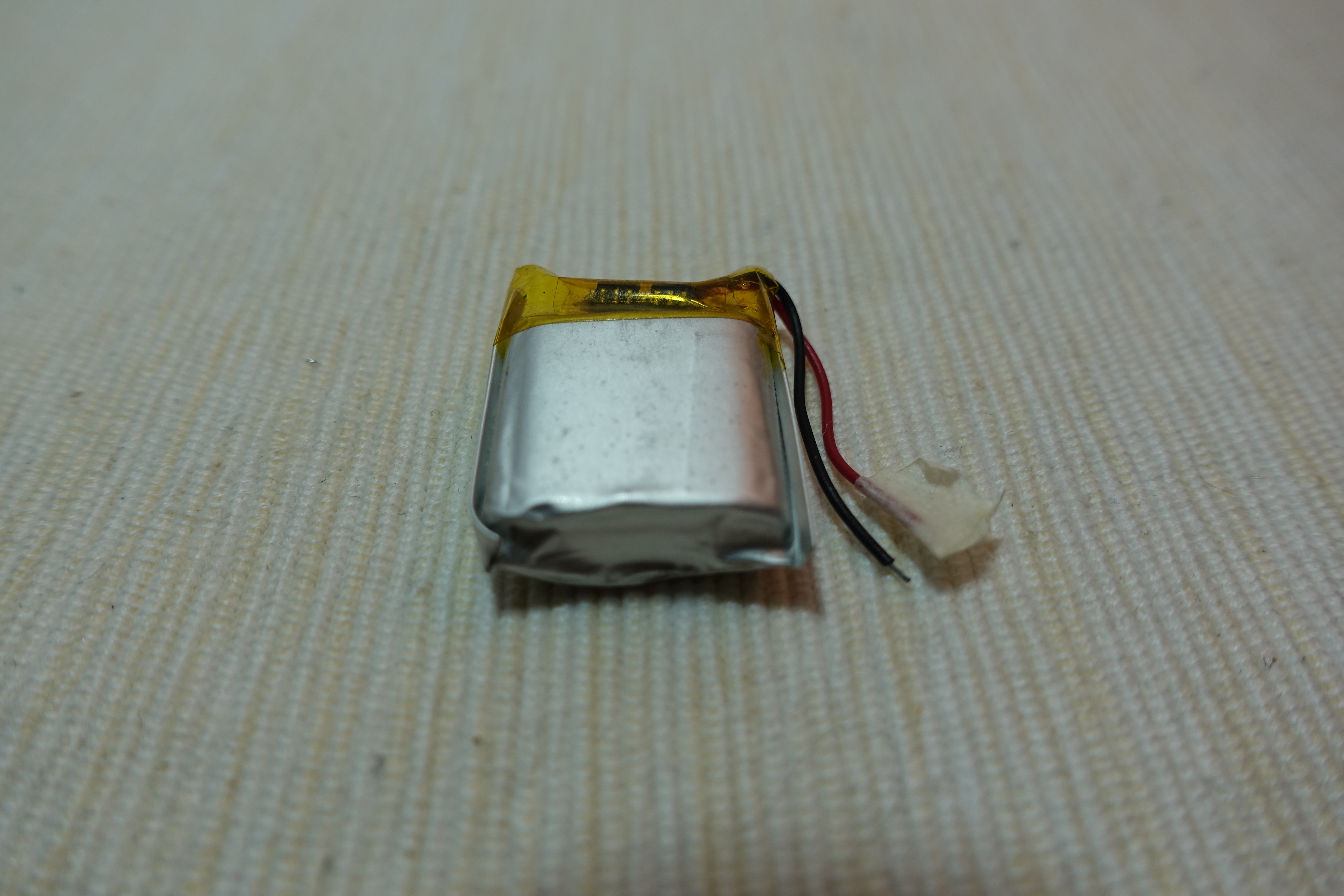

This time, I am using a tiny LED drive board with charging circuit. It originally designed for 18650 LED flashlight, you can use any similar light source in hand.
Soldering Work
![IMG_6091.jpg](/proxy/?url=https://content.instructables.com/FY4/ENCV/JSCG3BP8/FY4ENCVJSCG3BP8.jpg&filename=IMG_6091.jpg)
![IMG_6092.jpg](/proxy/?url=https://content.instructables.com/FQE/SSC7/JSCG3BPH/FQESSC7JSCG3BPH.jpg&filename=IMG_6092.jpg)

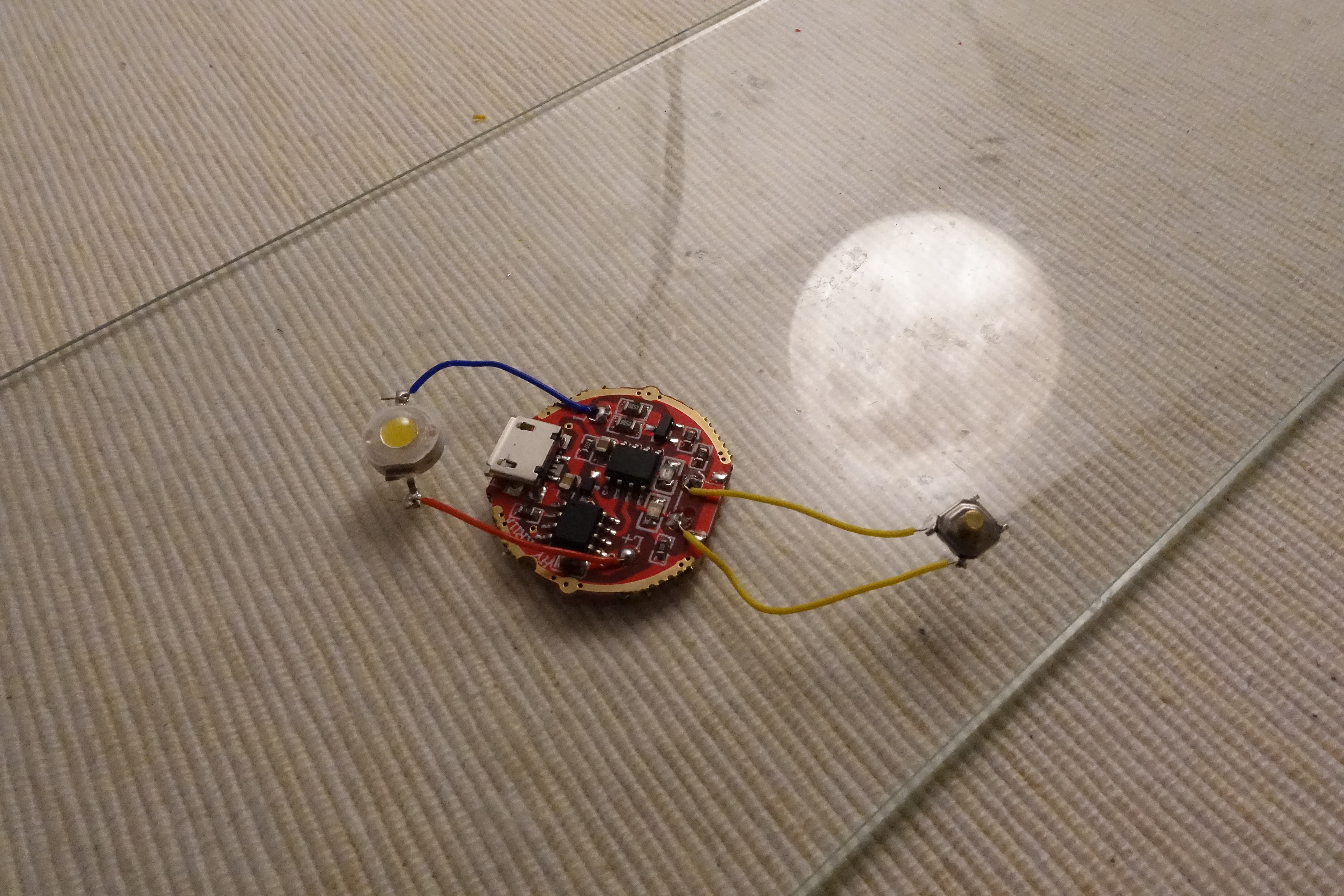

Connect power switch, LED drive board, Lipo battery and LED altogether.
Hot Glue Work
![IMG_6093.jpg](/proxy/?url=https://content.instructables.com/FMN/QR2C/JSCG3BPO/FMNQR2CJSCG3BPO.jpg&filename=IMG_6093.jpg)
![IMG_6094.jpg](/proxy/?url=https://content.instructables.com/FYL/EMMT/JSCG3BPR/FYLEMMTJSCG3BPR.jpg&filename=IMG_6094.jpg)
![IMG_6095.jpg](/proxy/?url=https://content.instructables.com/FS3/5JB1/JSCG3BPU/FS35JB1JSCG3BPU.jpg&filename=IMG_6095.jpg)
![IMG_6096.jpg](/proxy/?url=https://content.instructables.com/F9F/XQBE/JSCG3BQ3/F9FXQBEJSCG3BQ3.jpg&filename=IMG_6096.jpg)

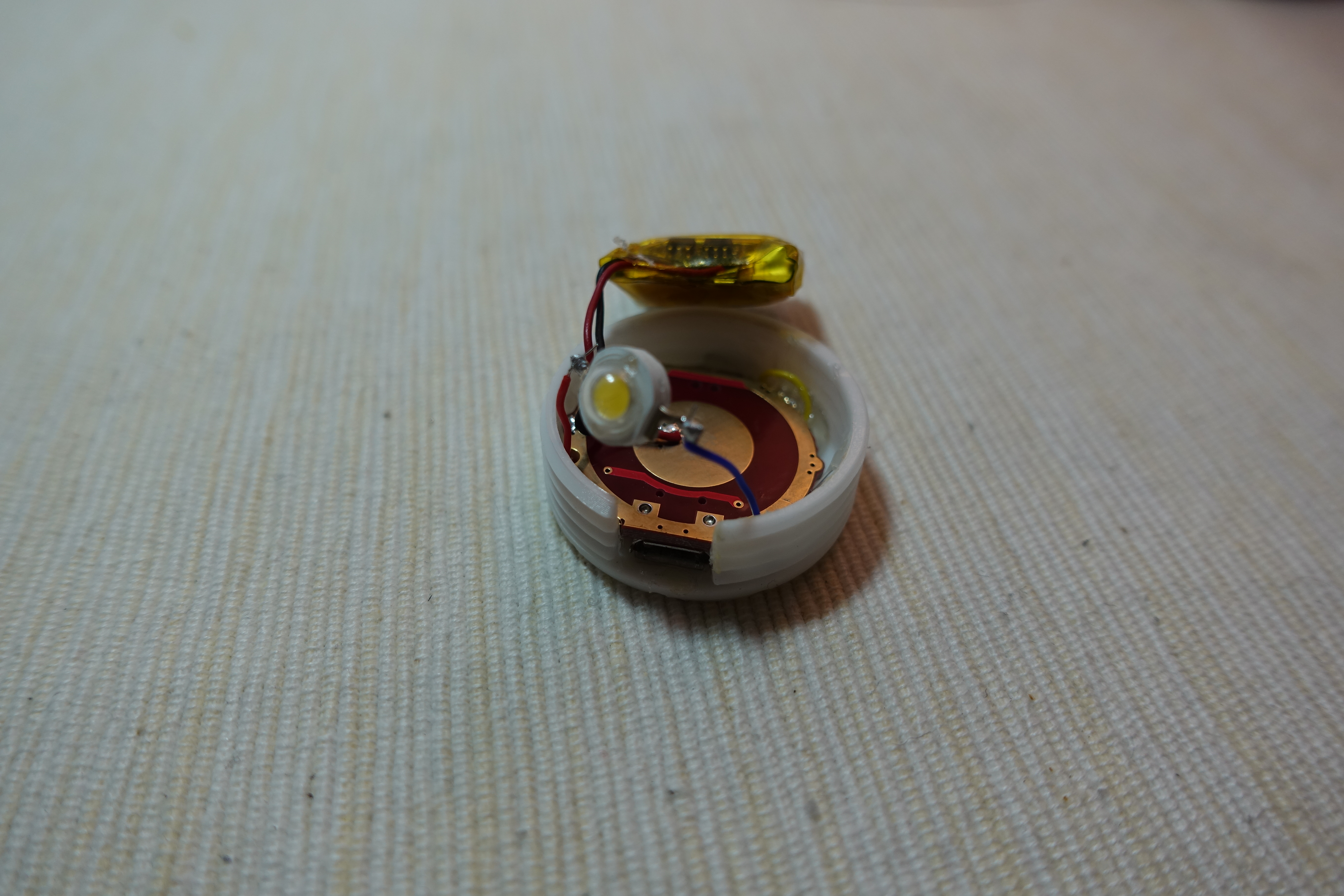

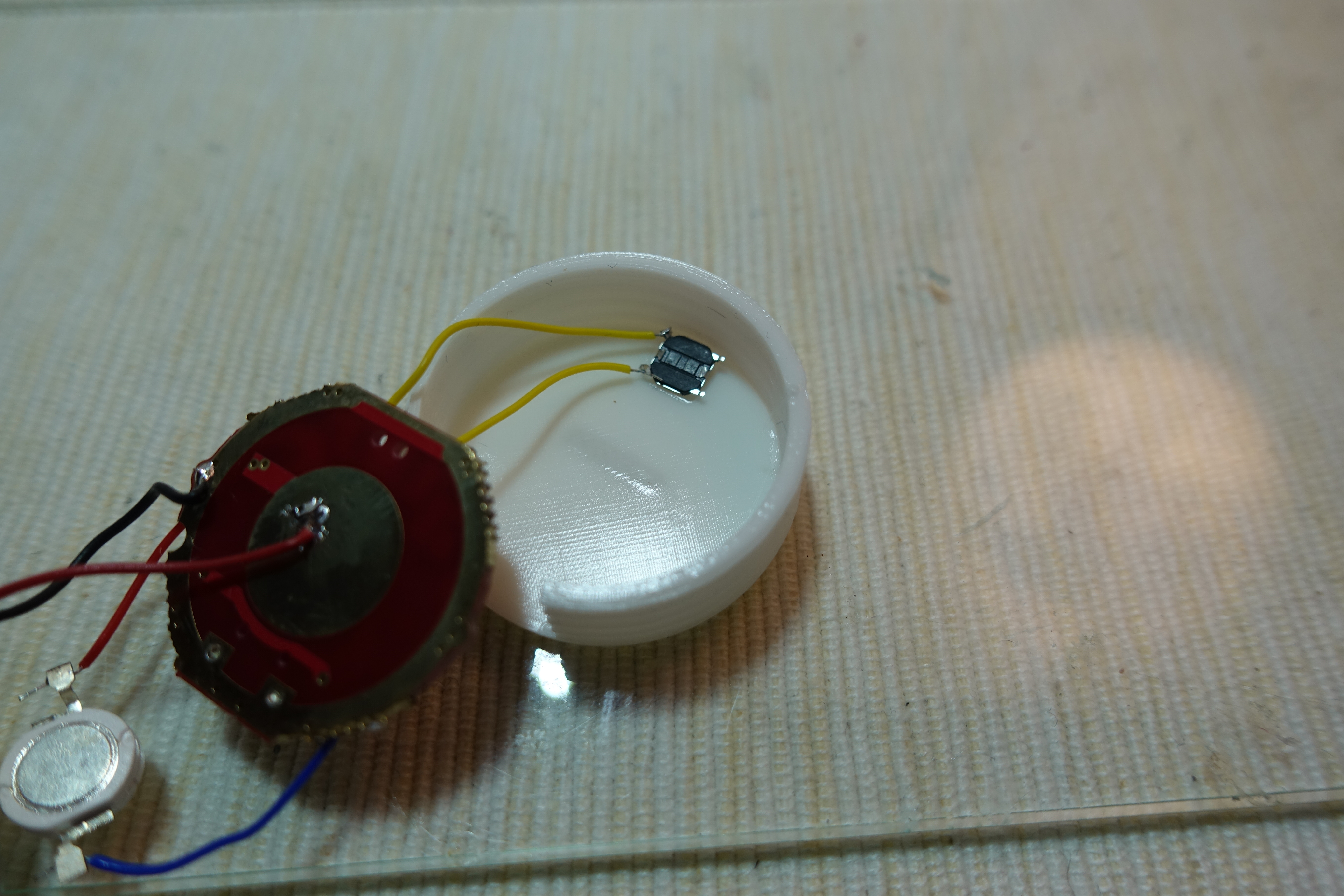

Since soldered circuit not in perfect shape, simply use hot glue fix it into the Moon station. I recommend fix the switch first then align the LED drive board to the USB port window.
Install Moon Station
![IMG_6098.jpg](/proxy/?url=https://content.instructables.com/F60/SB8B/JSCG3BQL/F60SB8BJSCG3BQL.jpg&filename=IMG_6098.jpg)
Use a coin screw the Moon station into the Moon.
Charging
![IMG_6100.jpg](/proxy/?url=https://content.instructables.com/F2Q/6KKD/JSCG3BQW/F2Q6KKDJSCG3BQW.jpg&filename=IMG_6100.jpg)
![IMG_6099.jpg](/proxy/?url=https://content.instructables.com/FTQ/H08A/JSCG3BQR/FTQH08AJSCG3BQR.jpg&filename=IMG_6099.jpg)
The USB port window designed at the side but not the bottom, so that you can screw up the Moon station a little bit and plug the USB power for charging. At the same time, you can treat it as a decent decoration on your desk.
Happy Night!
![IMG_6102.jpg](/proxy/?url=https://content.instructables.com/FFZ/YH2V/JSCG3C8O/FFZYH2VJSCG3C8O.jpg&filename=IMG_6102.jpg)

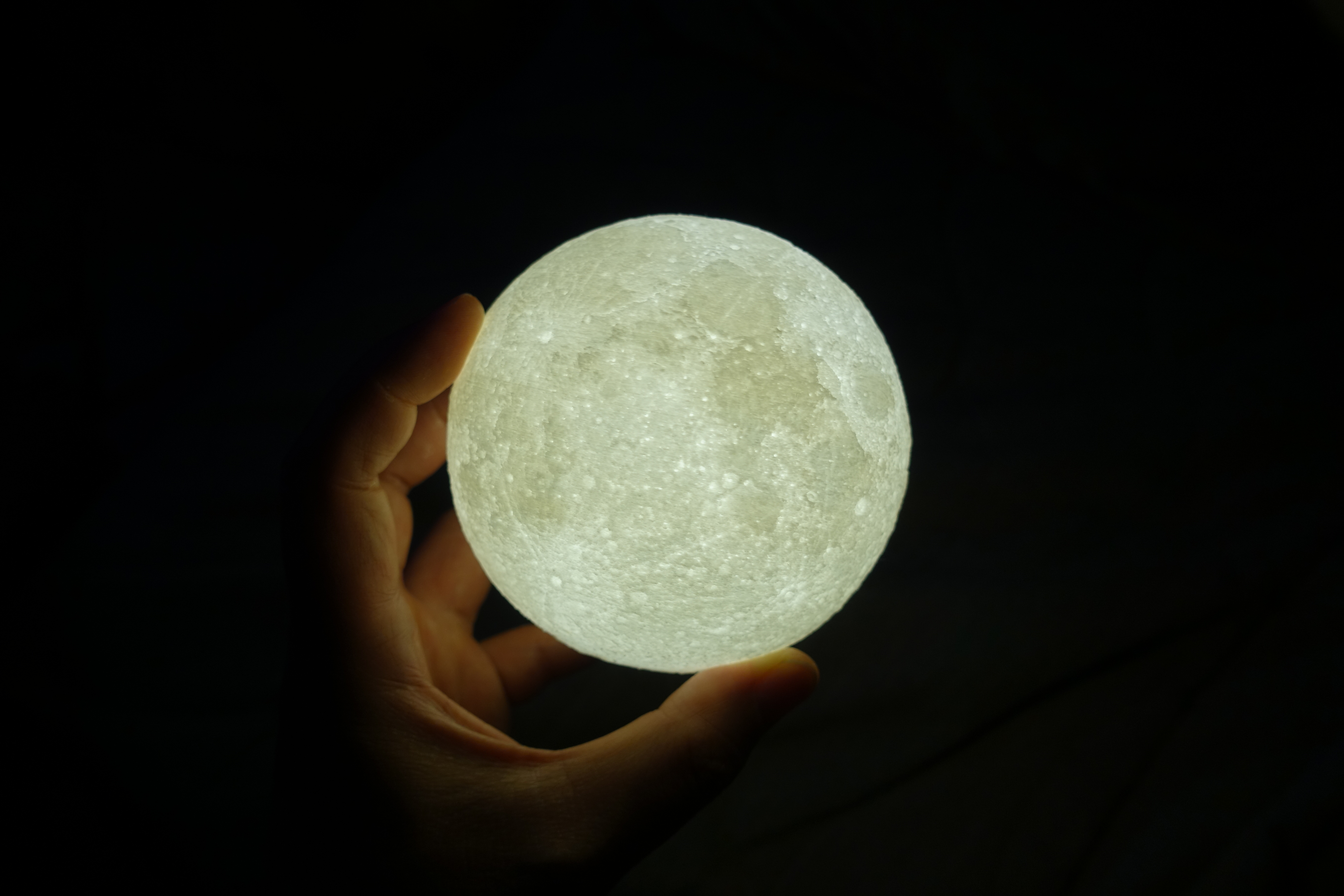

It's time to show what you have done with friends at night!
