Moodstat

In cooperation with keiningenieur ♥

Live Demo

Haptic mood tracker that shows your current mood and statistics on a website. To give your friends subtle hints on when to bother you.

• ESP Lolin V3
• Ultrasonic Distance Sensor
• LED Strip
• Wooden Box
• Anet A8 Heatbed Spring (6mm x 25mm)

3D Print the thumbs, button brackets, power jack holder and sensor cover.

• 👍 and 👎
• 🖕
• Button brackets
• Power jack mount
• Mount
• Sensor cover

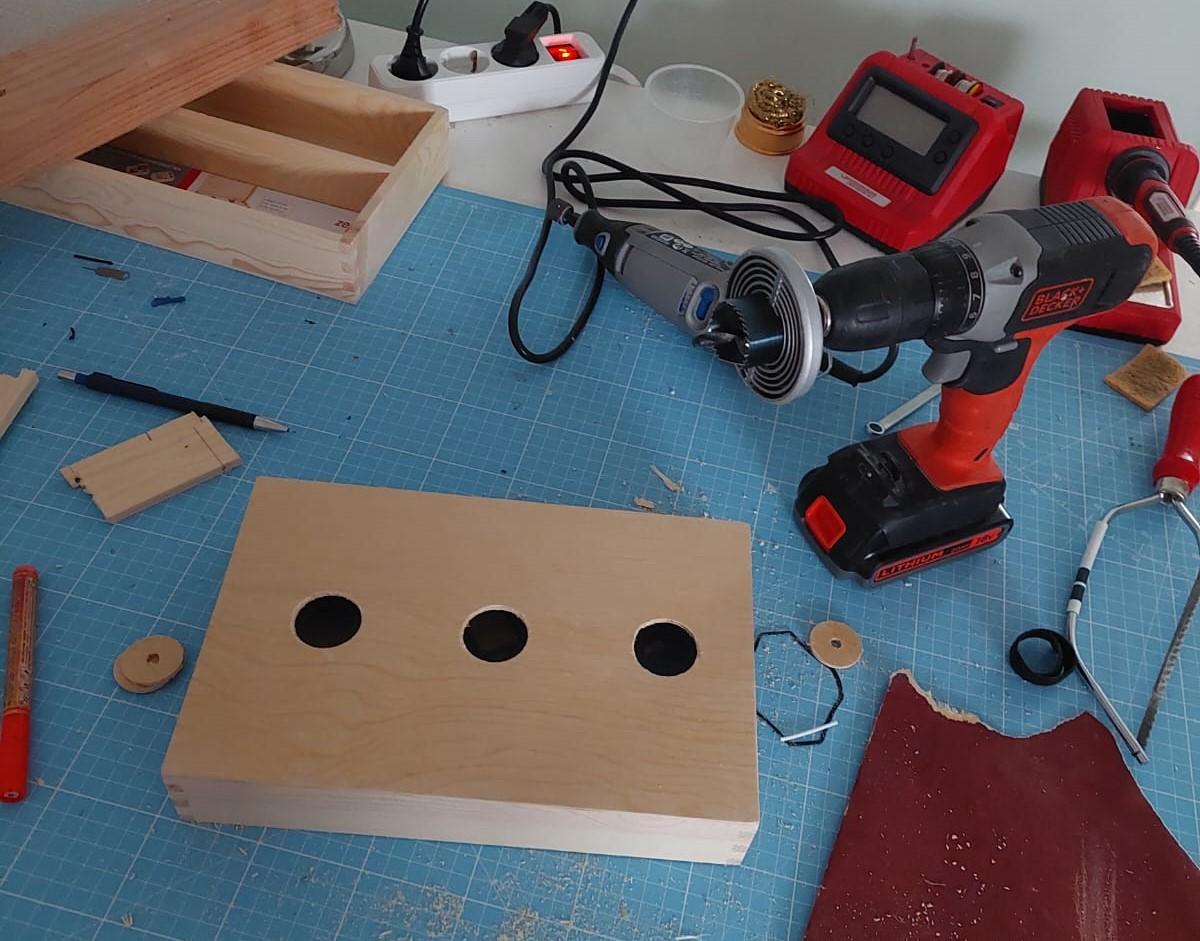

Cut 3 holes with a diameter of 32 mm into the wooden box and an opening for the distance sensor.

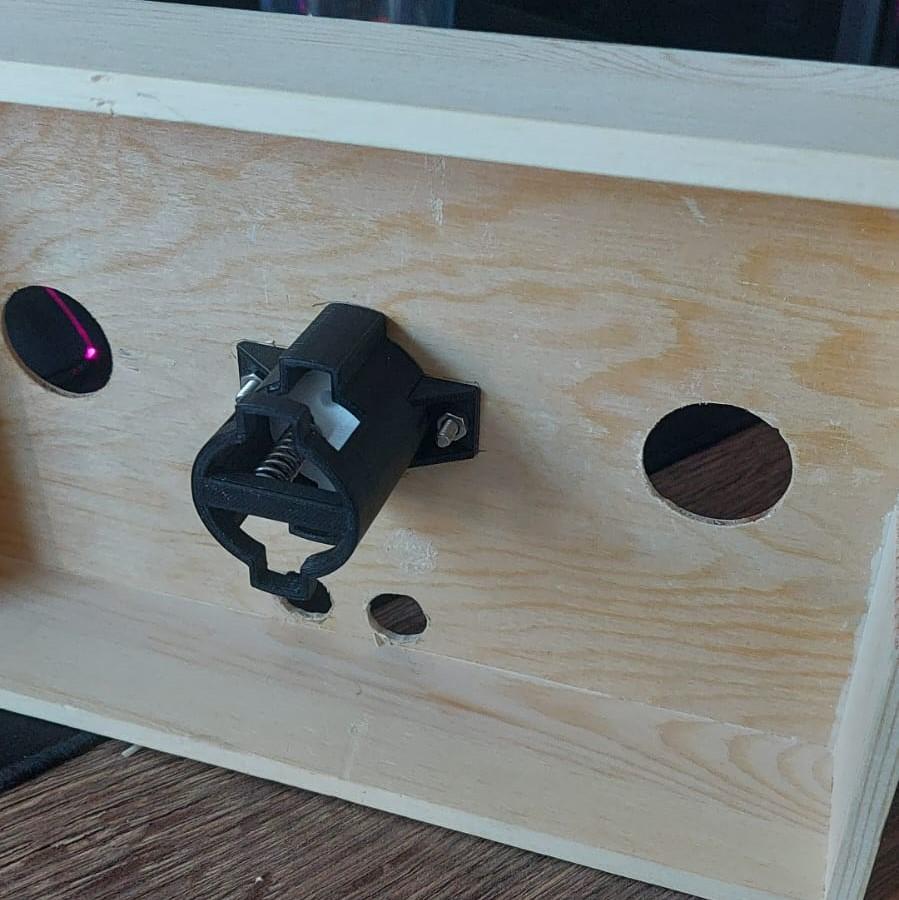

Screw the button holders into place and insert the springs.

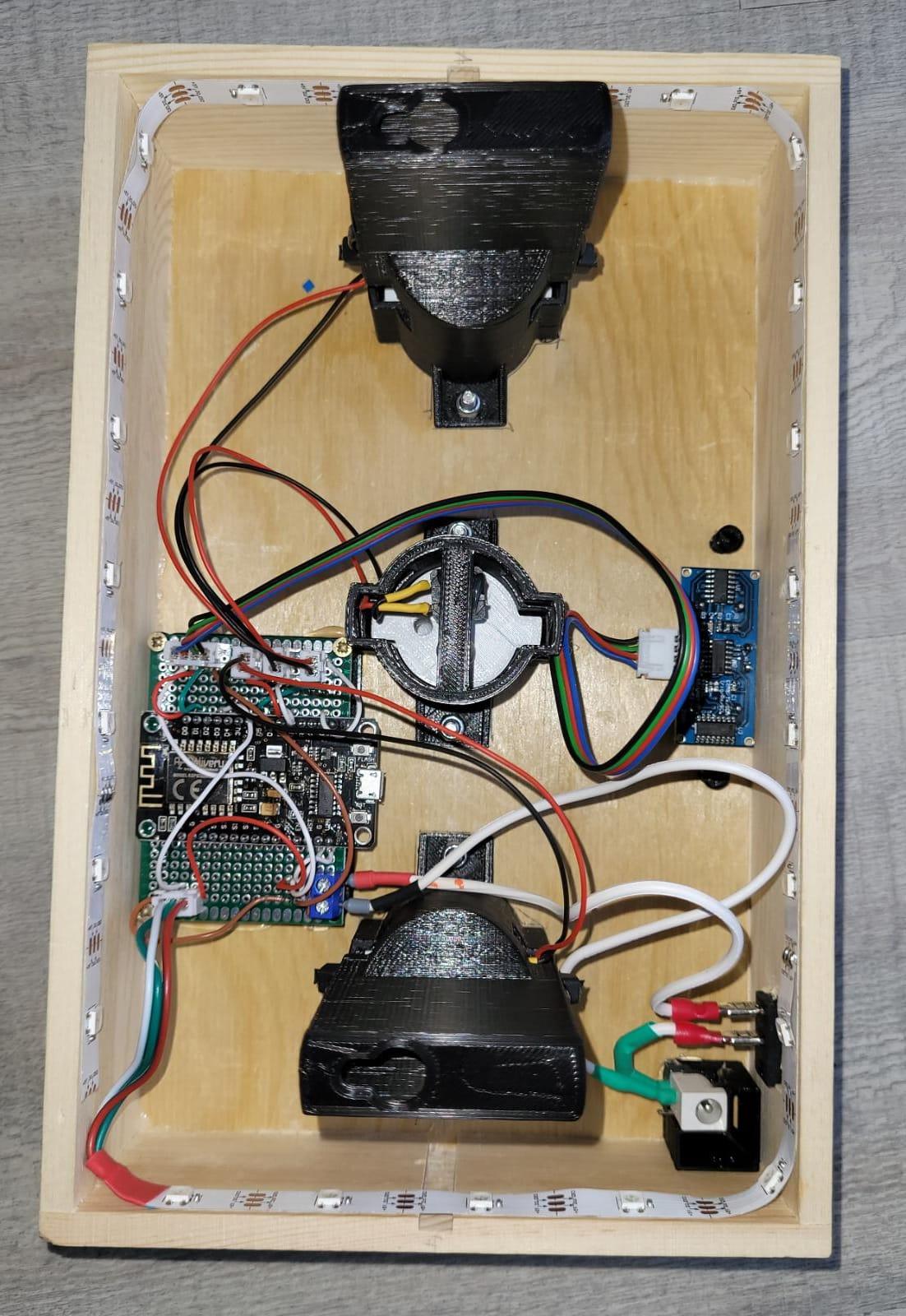

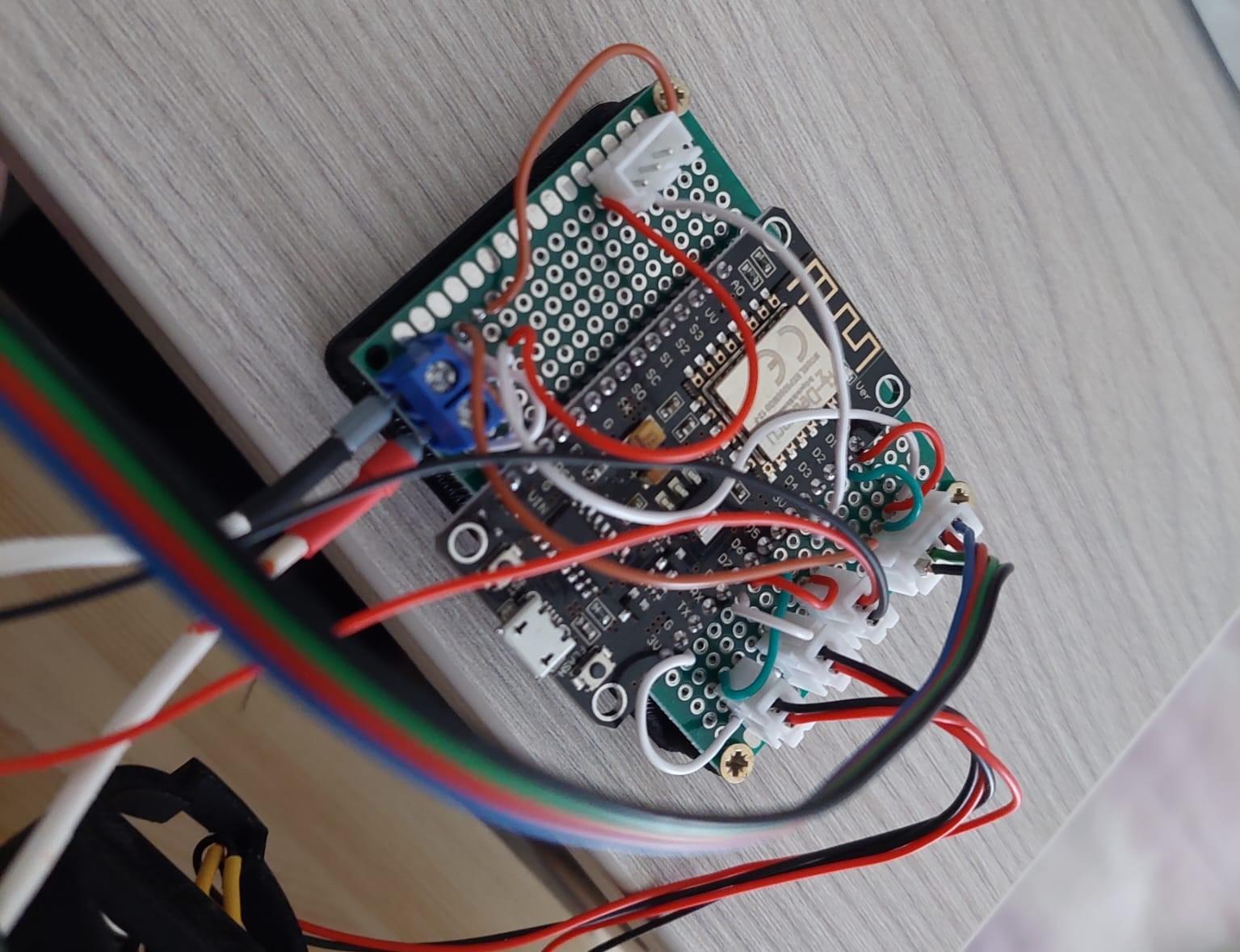

Assemble the electronic as shown.

Glue everything in place.

Insert your WiFi name and password, as well as a custom session ID and the fingerprint of your website. Upload the ESP Code.

#include <FastLED.h>
#include <ESP8266HTTPClient.h>
#include <WiFiClientSecure.h>
#include <ESP8266WiFi.h>

// Distance
#define TRIG_PIN 16
#define ECHO_PIN 5

// Led
#define LED_BACK 0
#define NUM_LEDS 20

// Button
#define BUTTON_GOOD 14
#define BUTTON_MED 13
#define BUTTON_BAD 12

// Variables
float duration_us, distance_cm;
CRGB leds[NUM_LEDS];
const char* ssid = "";
const char* password = "";
const char* fingerprint = "";

void setup() {
  Serial.begin (9600);

  // Distance
  pinMode(TRIG_PIN, OUTPUT);
  pinMode(ECHO_PIN, INPUT);

  // Led
  pinMode(LED_BACK, OUTPUT);
  FastLED.addLeds<WS2812, LED_BACK, GRB>(leds, NUM_LEDS);

  // Button
  pinMode(BUTTON_GOOD, INPUT_PULLUP);
  pinMode(BUTTON_MED, INPUT_PULLUP);
  pinMode(BUTTON_BAD, INPUT_PULLUP);

  // WiFi
  delay(4000);
  WiFi.mode(WIFI_STA);
  WiFi.begin(ssid, password);

  // Wait till WiFi is connected
  Serial.println("Connecting WLAN");
  while (WiFi.status() != WL_CONNECTED) {
    delay(1000);
    Serial.print(".");
  }

  Serial.println("Connected WLAN");
}

void sendData(String moodData) {
  // Check if Wifi is still connected
  if (WiFi.status() == WL_CONNECTED) {

    HTTPClient https;

    BearSSL::WiFiClientSecure testclient;
    testclient.setInsecure();

    https.begin(testclient, "https://moodstat.0xffd700.com/esppost.php");
    https.addHeader("Content-Type", "application/x-www-form-urlencoded");

    String mood = "mood=" + moodData + "&ids=<session id>";

    int httpResponseCode = https.POST(mood);

    // Get POST return
    if (httpResponseCode > 0) {
      String response = https.getString();
      Serial.println("HTTP code:");
      Serial.println(httpResponseCode);
      Serial.println("Answer:");
      Serial.println(response);
    } else {
      Serial.print("Error: ");
      Serial.println(httpResponseCode);
    }

    https.end();

  } else {
    Serial.println("Disconnected WLAN");
  }
}

void loop() {
  // Trigger puls for Distance
  digitalWrite(TRIG_PIN, HIGH);
  delayMicroseconds(10);
  digitalWrite(TRIG_PIN, LOW);

  duration_us = pulseIn(ECHO_PIN, HIGH);

  distance_cm = 0.017 * duration_us;

  Serial.print("distance: ");
  Serial.print(distance_cm);
  Serial.println(" cm");

  // if a person stands close to Moodstat
  if (distance_cm < 25) {

    Serial.print("Background Led an\n");

    for (int i = 0; i < NUM_LEDS; i++) {
      leds[i] = CRGB(255, 255, 255);
      FastLED.show();
    }
  } else {
    Serial.print("Background Led aus\n");

    for (int i = 0; i < NUM_LEDS; i++) {
      leds[i] = CRGB(0, 0, 0);
      FastLED.show();
    }
  }

  // waits for button to be pressed
  // GOOD
  if (digitalRead(BUTTON_GOOD) == LOW) {
    Serial.print("GOOD");
    for (int i = 0; i < NUM_LEDS; i++) {
      leds[i] = CRGB(0, 255, 0);
      FastLED.show();
    }
    sendData("2");
    delay(10000);
  }   // MEDIUM
  else if (digitalRead(BUTTON_MED) == LOW) {
    Serial.print("MED");
    for (int i = 0; i < NUM_LEDS; i++) {
      leds[i] = CRGB(255, 128, 0);
      FastLED.show();
    }
    sendData("1");
    delay(10000);
  }   // BAD
  else if (digitalRead(BUTTON_BAD) == LOW) {
    Serial.print("BAD");
    for (int i = 0; i < NUM_LEDS; i++) {
      leds[i] = CRGB(255, 0, 0);
      FastLED.show();
    }
    sendData("0");
    delay(10000);
  }

  delay(500);
}

Change the session ID in esppost.php and upload it and the Moodweb files to your web server.

<?php

// Filters out GET requests
if ($_SERVER['REQUEST_METHOD'] === 'POST') {

    // Mood parameter
    $mood = $_POST["mood"];
    $ids = $_POST["ids"];

    // Validate SessionId
    if ($ids == <session id>) {

        //Get date
        date_default_timezone_set('Europe/Berlin');
        $Date = date("Y-m-d");
        $Time = date("h:i");
        $File = date("Y").".csv";

        //Validate Userinput
        if ($mood === "0" || $mood === "1" || $mood === "2") {

            //Date,Time,Mood
            $stringData = $Date.",".$Time.",".$mood.PHP_EOL;

            //Append to File
            $fp = fopen($File, 'a') or die("can't open file");
            fwrite($fp, $stringData);
            fclose($fp);

        } else {

            echo "Wrong Input";
        }
    }
}

?>
