Monopoly Bank Accounting on TV A/V

Hi every one

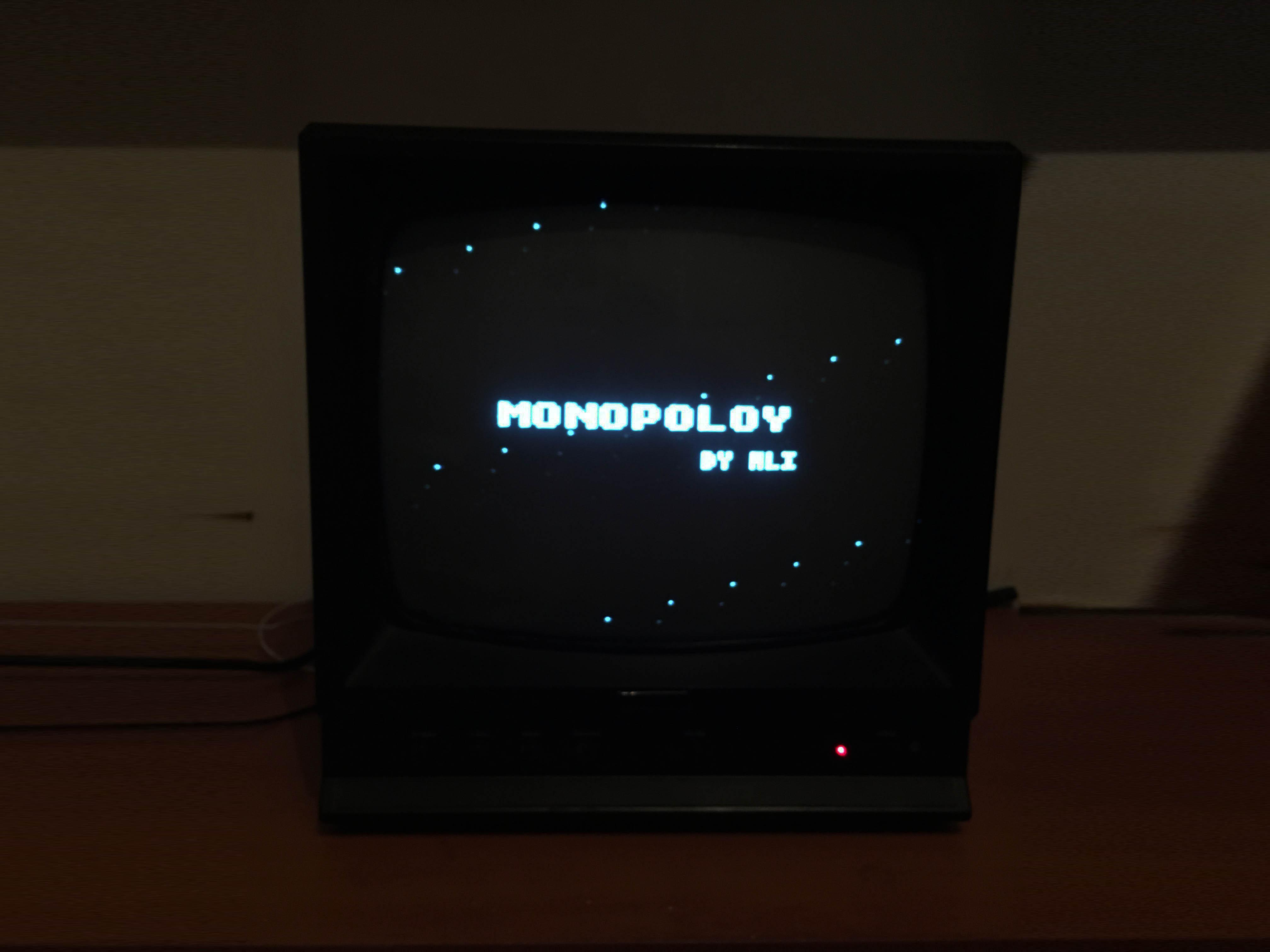

In this project, we will create a Monopoly accounting system on TV.

This project allows you to play any monopoly game without dice or paper money.

Also, you will never see players cheating :D.

2-6 Players support

• Arduino Nano/Uno/Compatible board x1
• PS/2 Keyboard x1
• 220-ohm resistor x1

Assemble the circuit like the picture

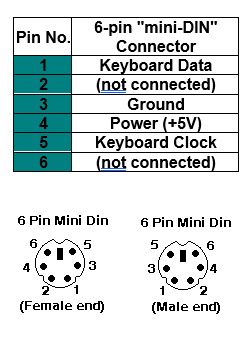

 (Keyboard pin) data => digital pin 0 (Arduino pin)

 (Keyboard pin) clock => digital pin 4 (Arduino pin)

 (Keyboard pin) ground => Ground (Arduino pin)

 (Keyboard pin) 5V => 5V

digital pin 9 (Arduino pin) => pin 2 ( resistor )

digital pin 7 (Arduino pin) => pin 1 ( resistor )

main pin (video out) => pin 2 ( resistor )

GND pin (video out) => Ground (Arduino pin)

main pin (audio out) => digital pin 11 (Arduino pin)

GND pin (video out) => Ground (Arduino pin)

use Arduino IDE to import code

I put it in link below

connect plugs

connect video out of system => Video in of TV

connect audio out of system => Audio in of TV

connect ps2 keyboard

turn on Arduino

after initialing the number of users and users name

in the user's list menu, these keys work:

1. left arrow key => dices page
2. right arrow-key => transfer page
3. down arrow-key => user list menu

enjoyyyy :) !!
