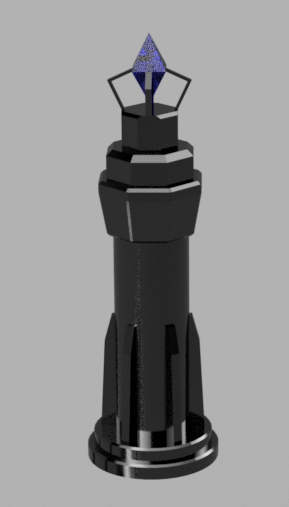

How to make a monolithic style chess board using fusion 360.
Supplies
![Fusion360_Logo.png](/proxy/?url=https://content.instructables.com/FCY/7OUZ/LEH47BIR/FCY7OUZLEH47BIR.png&filename=Fusion360_Logo.png)
Fusion 360
![Screenshot_20230223_111443.png](/proxy/?url=https://content.instructables.com/FKY/Y239/LEH47BLR/FKYY239LEH47BLR.png&filename=Screenshot_20230223_111443.png)

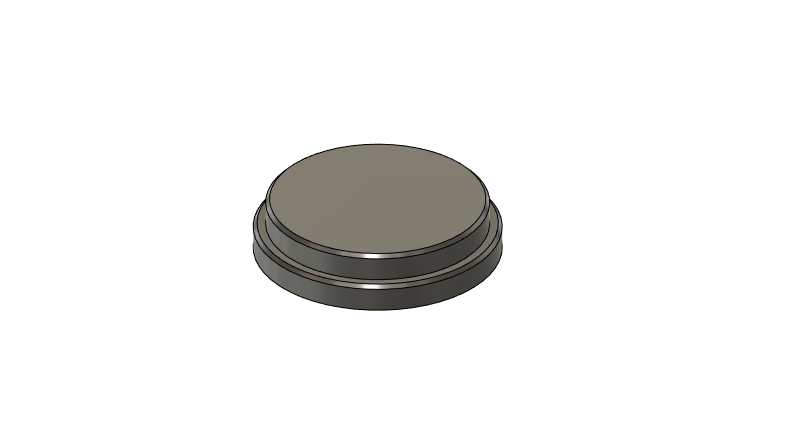

Start by making the base of the chess piece.
Make a circle and then another slightly smaller circle on top of it and chamfer or fillet the edges.
![Screenshot_20230223_111732.png](/proxy/?url=https://content.instructables.com/FKQ/ZS6D/LEH47BPG/FKQZS6DLEH47BPG.png&filename=Screenshot_20230223_111732.png)
Make a starting shape "cube like" and extrude it kind of like monolith.
![Screenshot_20230223_111929.png](/proxy/?url=https://content.instructables.com/FGV/5LB4/LEH47BPN/FGV5LB4LEH47BPN.png&filename=Screenshot_20230223_111929.png)
Add some shapes around the middle one to spice it up.
![Screenshot_20230223_112039.png](/proxy/?url=https://content.instructables.com/F5Q/8Z9S/LEH47BRT/F5Q8Z9SLEH47BRT.png&filename=Screenshot_20230223_112039.png)
Try to make your piece go to a point at the top to hold your top, in my case gem.
![Screenshot_20230223_112300.png](/proxy/?url=https://content.instructables.com/FYF/DVWV/LEH47BYC/FYFDVWVLEH47BYC.png&filename=Screenshot_20230223_112300.png)
Once you make it to your liking put your top piece on top.
IMPORTANT chamfer and fillet a lot to make your piece look nice.
Repeat for other pieces roughly following the shape of a traditional chess piece.
And remember be creative make it your own.
If anyone wants to attempt to CNC this here's the file.
