Monkey Pee Bot Wifi RC Toys

A lot of things sometimes I haven't thought of to fill my free time with an interesting activity. Until I feel that sleeping is a tedious activity except to channel the desire to make a rather strange toy.Now, a crazy idea pops up. I want to make a monkey toy that can pee with a wifi remote control. Let's just get started.

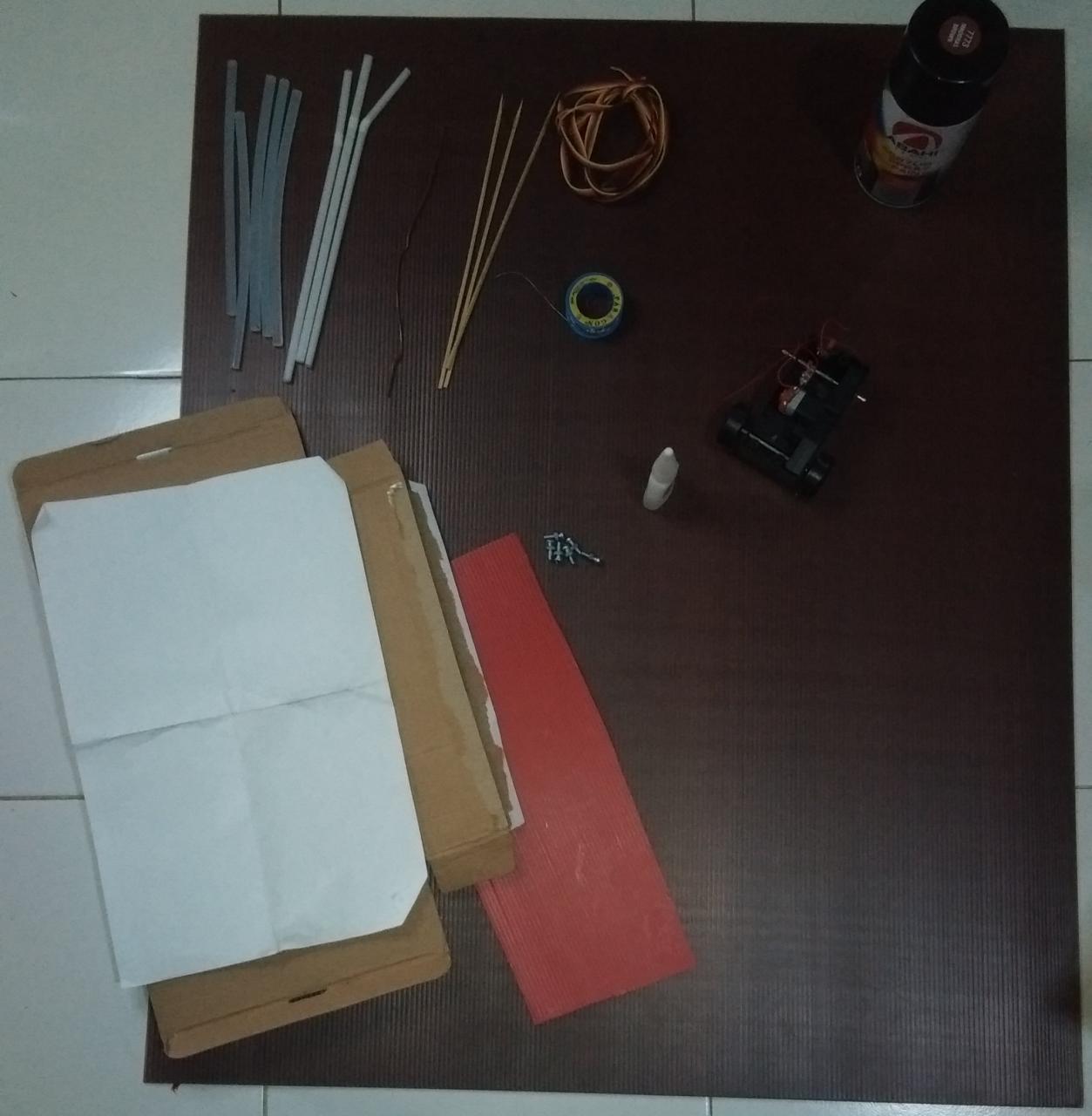

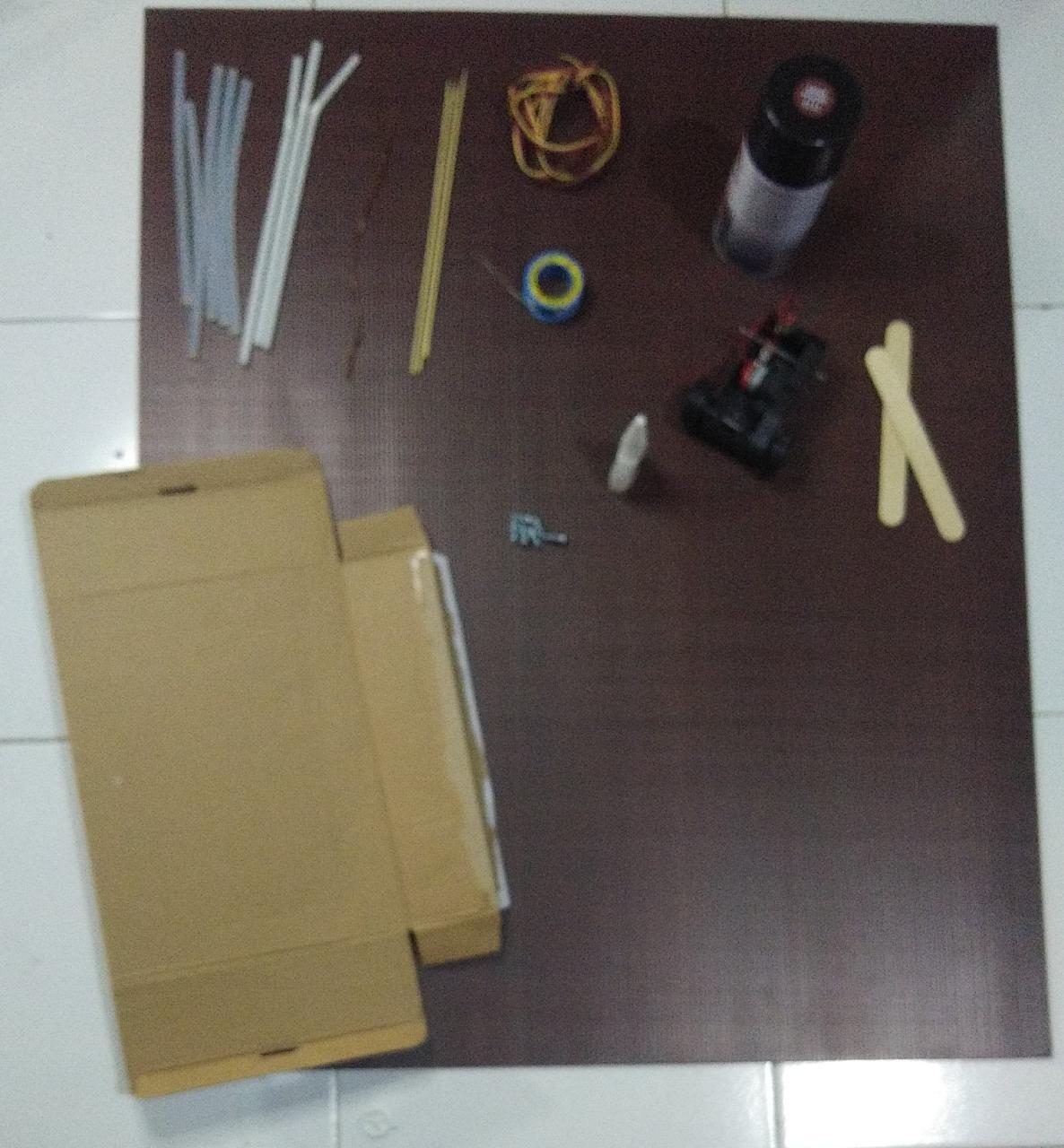

Materials needed :

Brown Impraboard

Red impraboard

2 large ice cream sticks

Glue gun

soldering tin

2 pieces of aluminum plate

color wire

2 pieces gearbox dynamo

1 pc wifi rc module 3 channel

1 mini water pump dc 3-5 volts

1 piece motor driver module

Skewers

Straw

6 bolt nuts

Used markers

Cardboard box

2 rechargable batteries 1.2 volt 2600mah

Required tools:

Small grinder

Electric soldering iron

Glue gun

Scissors

Ruler

Cutting pliers

screwdriver set

pencil

1. Draw the parts of the monkey to be pasted onto the brown and red alpaboard to cut out. As in the attached picture.

This is to avoid design failure if it is directly on top of the alpaboard. And the top of the alpaboard is not all light colored.

2. After the parts are pasted then cut the parts well.

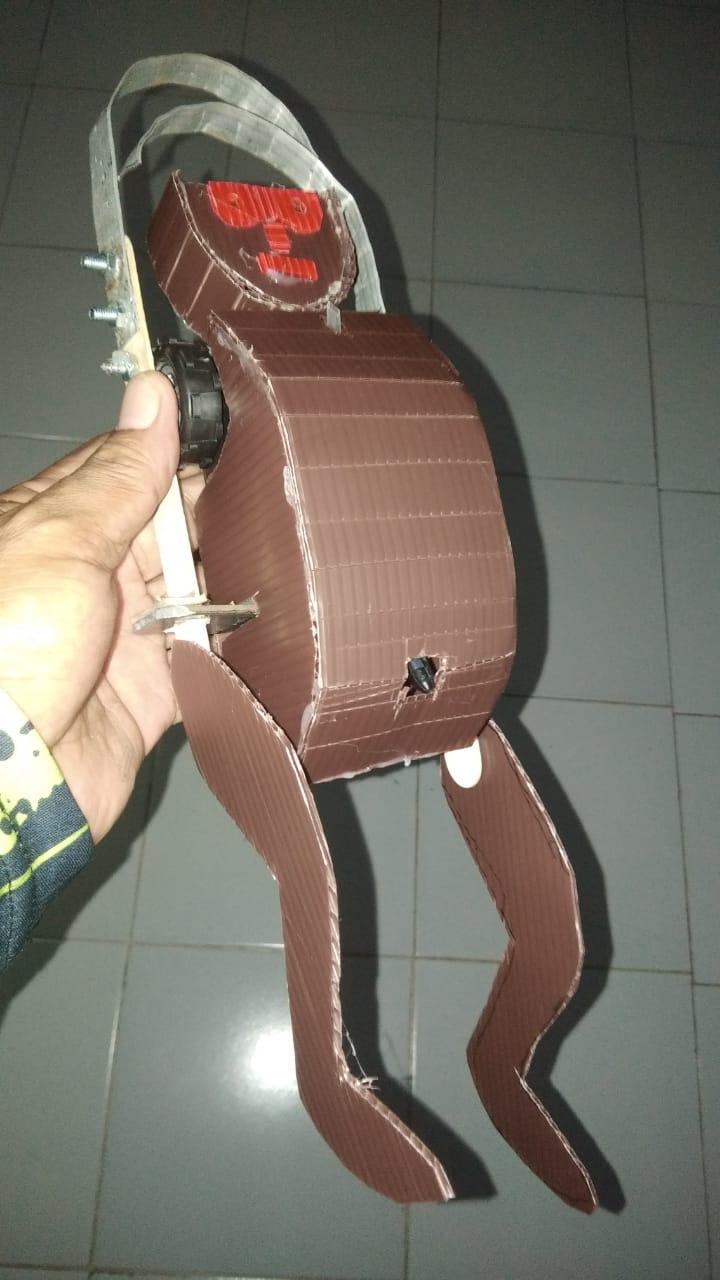

3. Assemble the parts well until they all become a monkey.

4. Assemble the pieces of alpaboard on the dynamo gearbox

5. Glue the small water pump module to the lower front part of the monkey robot

6. Install the water inlet pipe section

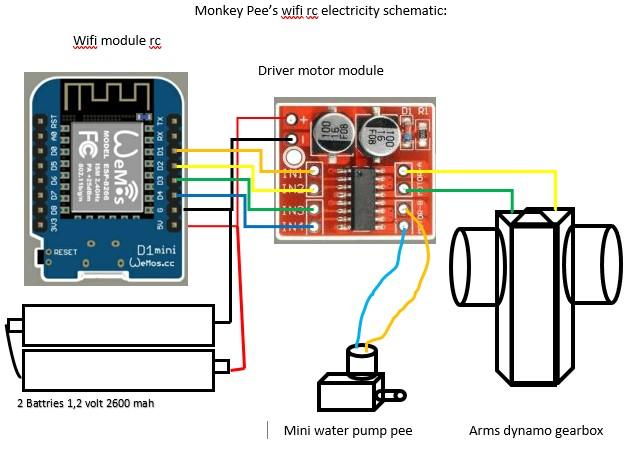

7. Assemble the electrical schematic as shown in the picture

8. Insert the electrical circuit into the monkey's body neatly

9. Remove the two monkey robot arms then paint the two monkey arms with light brown paint and then attach them back to the body

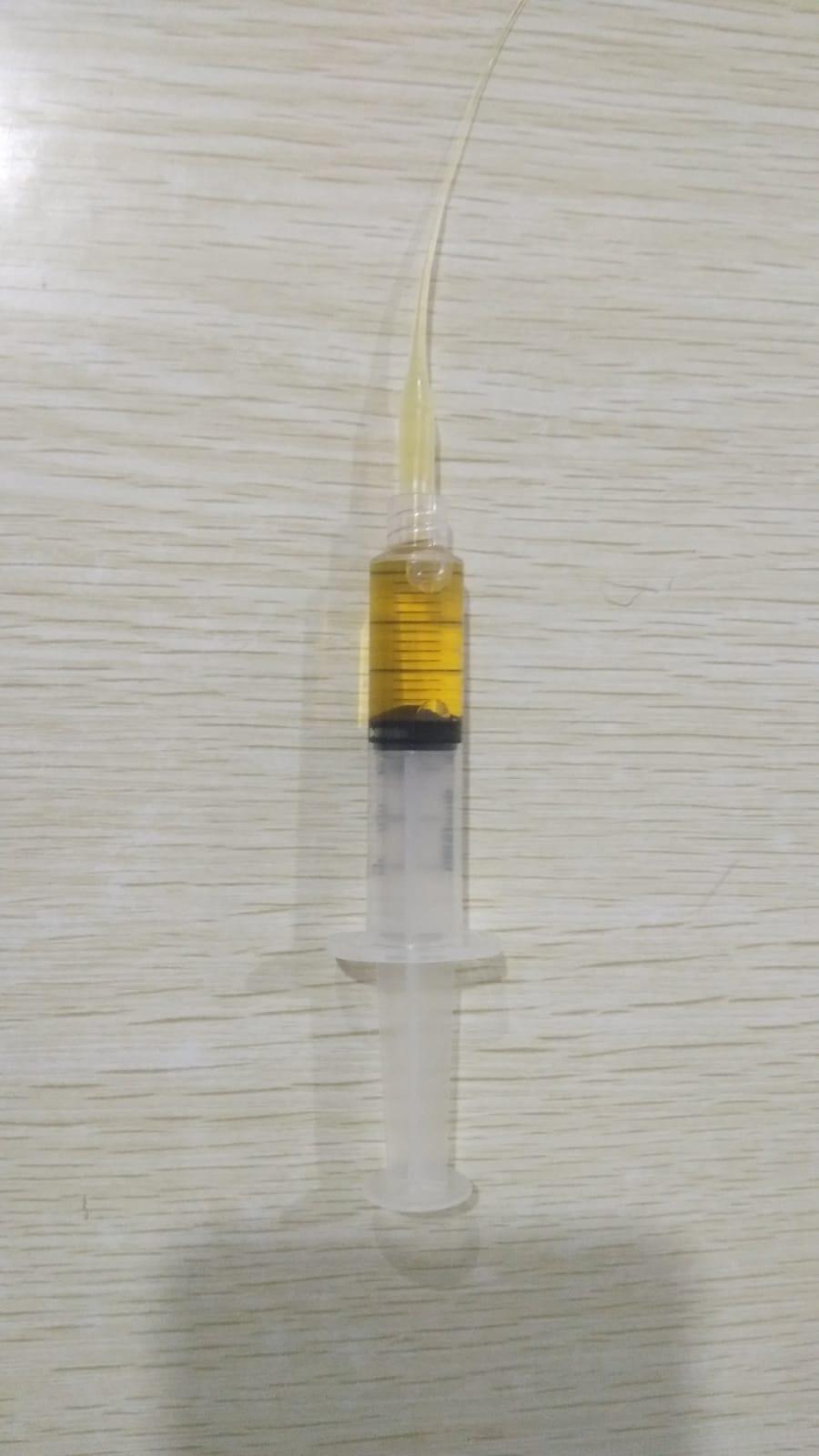

10. Fill the water into the monkey pee through the water inlet with spuit

11. After installing 2 1.2 volt 2600 mah batteries into the battery compartment, download the XY remote application

12. Set the 2 rc channel for 2 motors

13. Turn on the wifi on the phone, connect it to the monkey pee robot and run it then press the pee button

14. Enjoy the fun monkey pee wifi rc toy.

15. This pee wifi rc monkey toy was assembled by achmad choiruman and his two students,

 Alif and Thabit, both of whom are still in grade 3 of elementary school.
