Molding Bismuth for a Levitator

Bismuth is a brittle metal with a white, silver-pink hue, often with an iridescent oxide tarnish showing many colors from yellow to blue. The spiral, stair-stepped structure of bismuth crystals is the result of a higher growth rate around the outside edges than on the inside edges. No other metal is verified to be more naturally diamagnetic than bismuth. (Are repelled by magnetic fields.)

This makes them ideal for a non-supper magnet levitator.

I have wanted to build a levitator for some time, to build a levitator the two key ingredients you need are bismuth and strong magnets like neodymium rare earth magnets. Bismuth isn’t the easiest metal to machine it is heavy and brittle, if you try to bend bismuth, it breaks. However it melts at a relatively low temperature and molds quite easily. So I am going to mold the two disks of my levitator.

Bismuth I got a one kilogram ingot.

Propane Torch

Graphite Molds

Tongs

Safety glasses

Crucible; although most people use a stainless steel crucible, I used a Silica Crucible mainly because it retains heat and gives me time to mold the metal.

One safety precaution is you should wear cotton or wool clothing and slip on leather shoes. It takes a moment to be burned by molten metal, with cotton or wool the metal burns through the material and doesn’t stick to the skin. With synthetics the hot melted material sticks to the skin and burns. The same thing happens with the slip on leather shoes, the molten metal beads off the leather and if any gets in the shoe you can just kick off the shoe.

I have worked with steel, aluminum, cast iron, graphite, and ceramic molds. In all these metal molds you can get cold shuts no matter the metal you are molding, or what material the mold is made of. A Cold Shut is an unfilled section of the mold: some section of the mold cavity are not completely filled by the flowing metal, they can manifest as bubbles, cracks or lines, or unfilled sections in the metal.

The causes of this defect are; improper design of the mold, the mold is cold, or the molten metal is not hot enough to flow freely into the fine details of the mold.

Bismuth melting point 271.4⁰ C or 520.52⁰ F

Bismuth boiling point 1,564⁰ C or 2,847⁰ F

The best molding temperature is about mid-way from melting point and boiling point.

An old trick from bullet molding; was to dip the corner of the mold in the molten lead, and when the led didn’t solidify on the mold, the mold is hot enough.

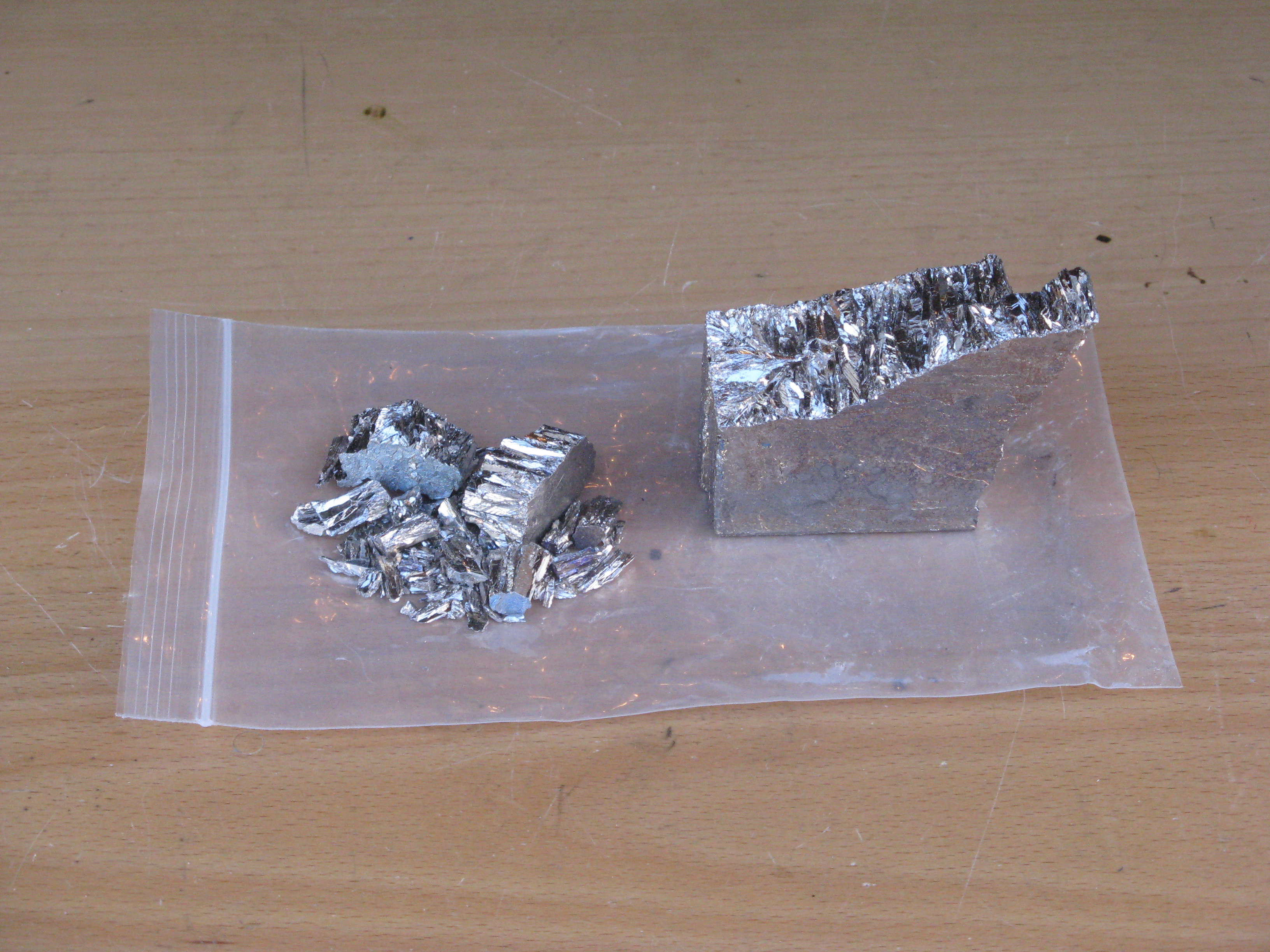

Measuring out equal amounts of bismuth for the disks.

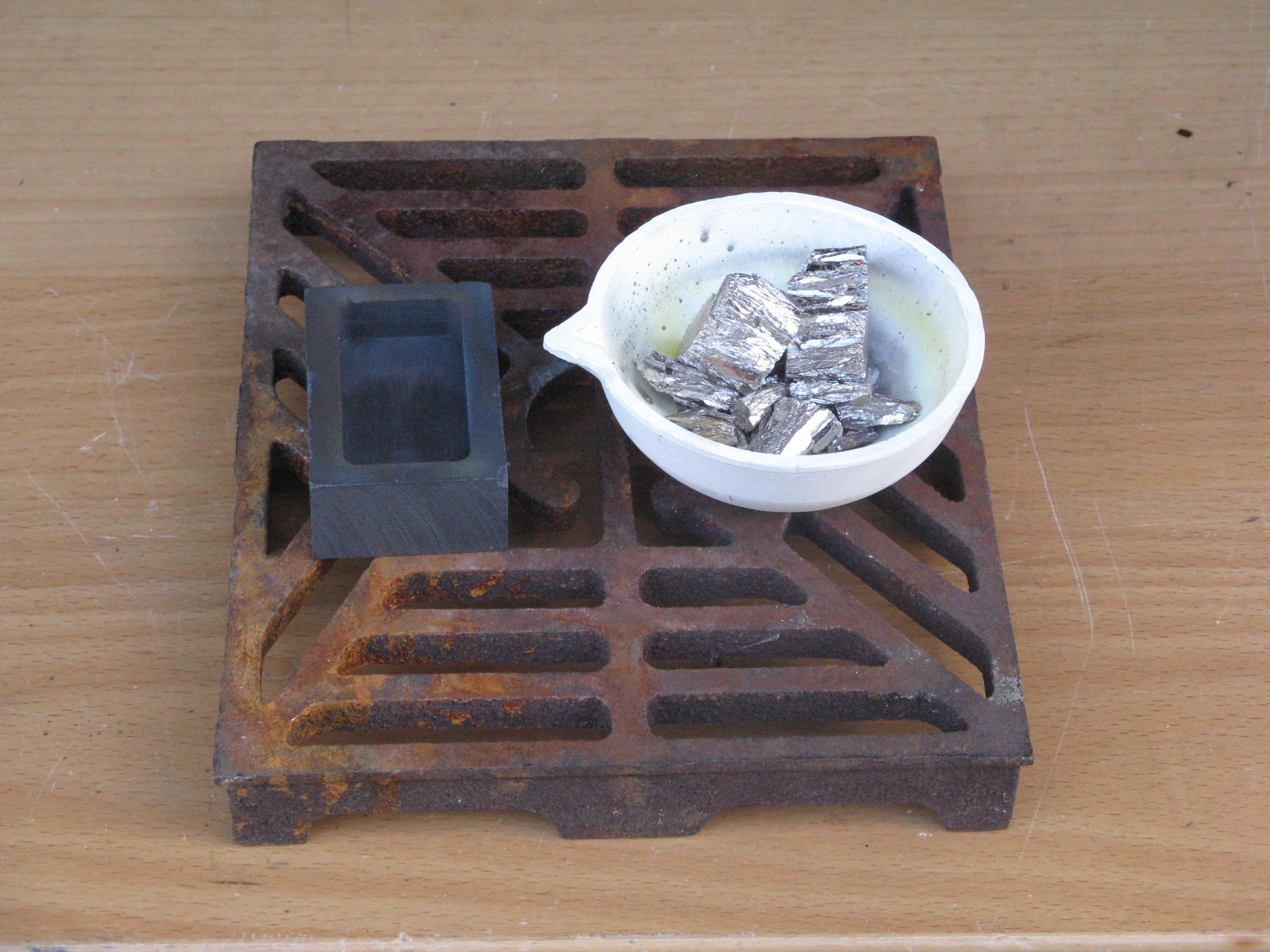

I placed the loose bits of bismuth in the silica crucible and melted the bismuth with a propane torch.

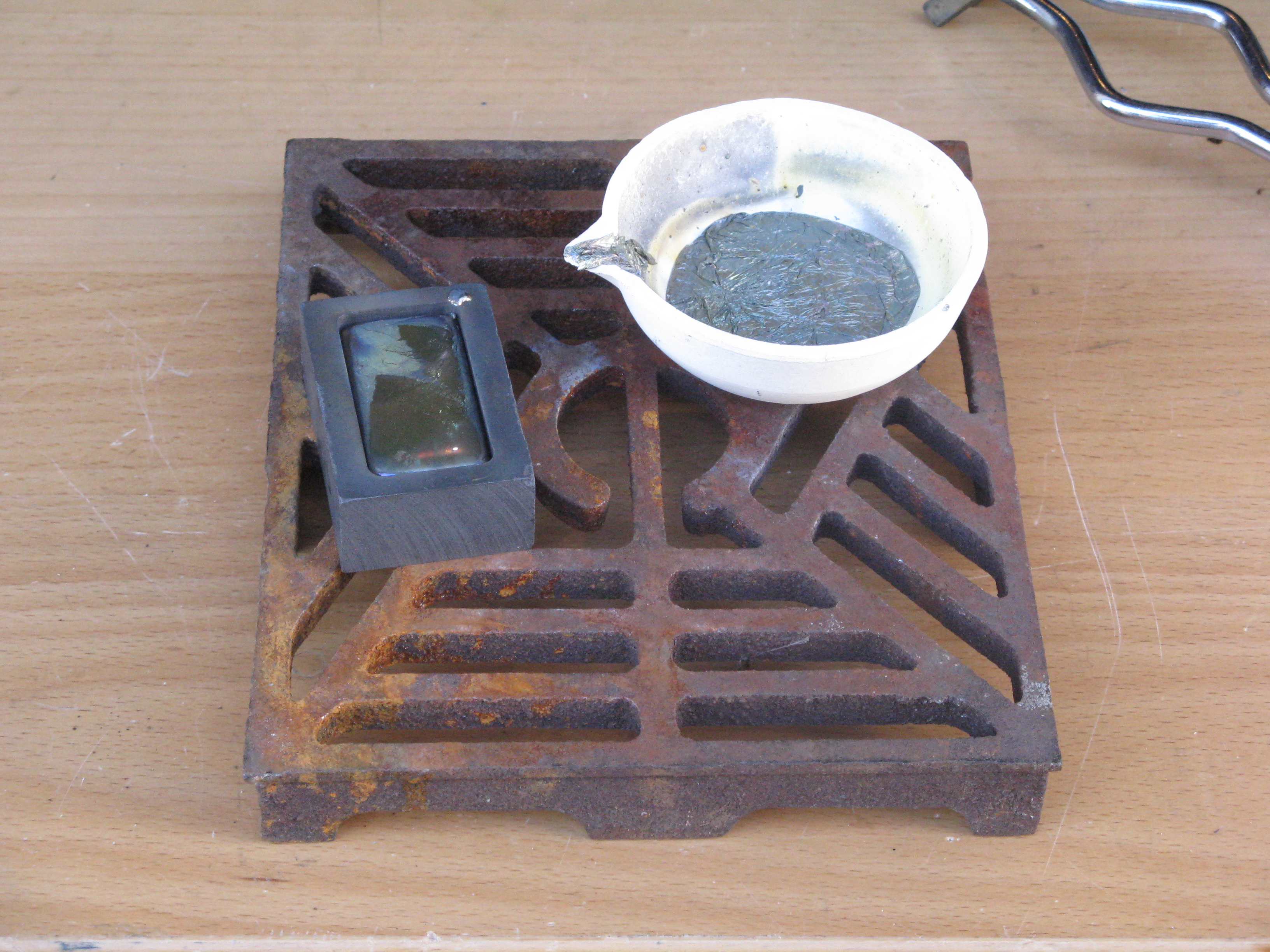

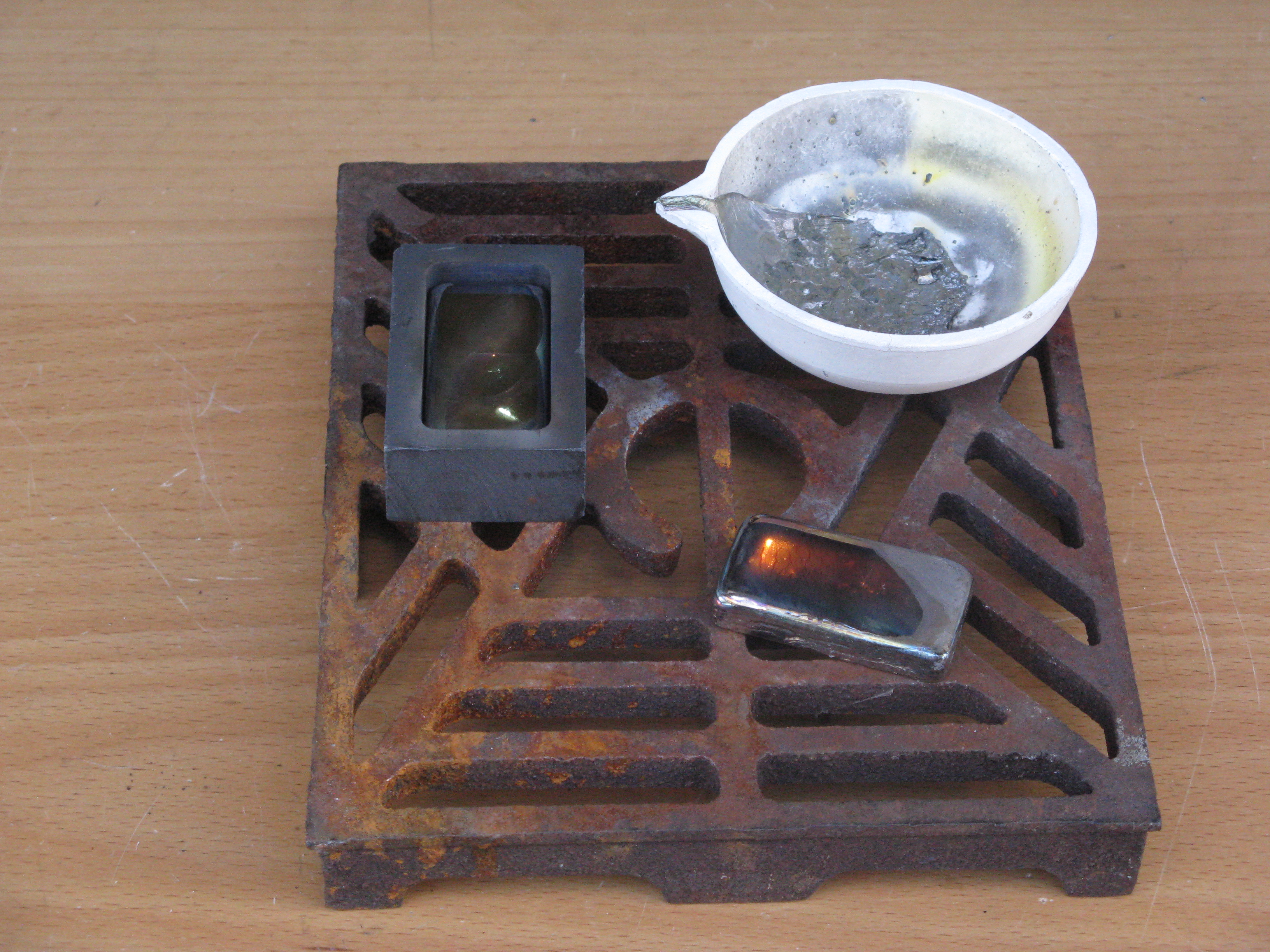

Once the bismuth was liquefied I heated up the square graphite mold and pored the bismuth into the mold until the mold was full.

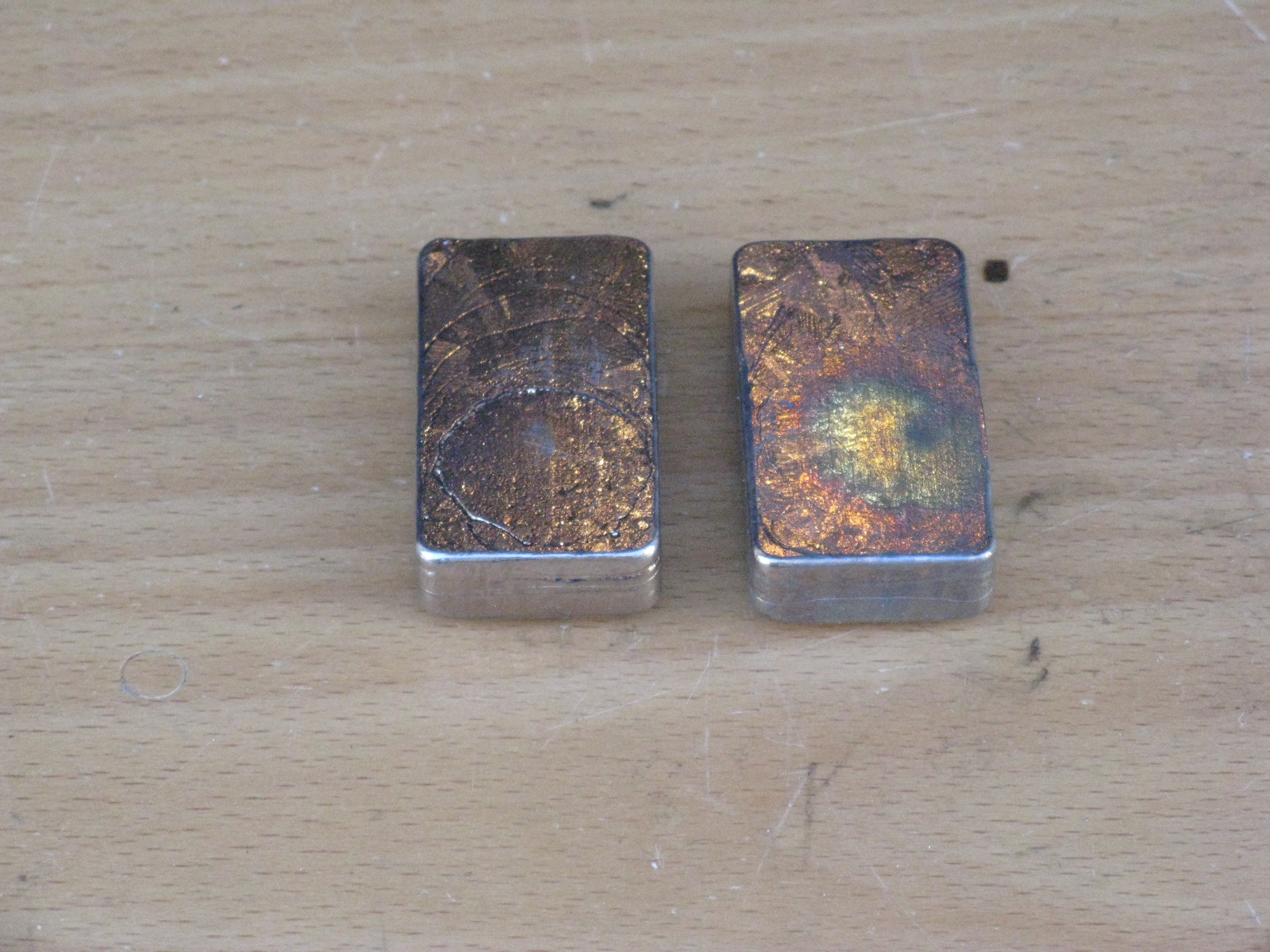

When the mold cooled enough to solidify the bismuth I dumped out the small square ingot and repeat the process for the second ingot.

Taking one ingot at a time I heated up the bismuth in the mold until it melted filling the bottom of the mold.

Once the bismuth cooled enough to solidify I repeated the process with the second ingot.

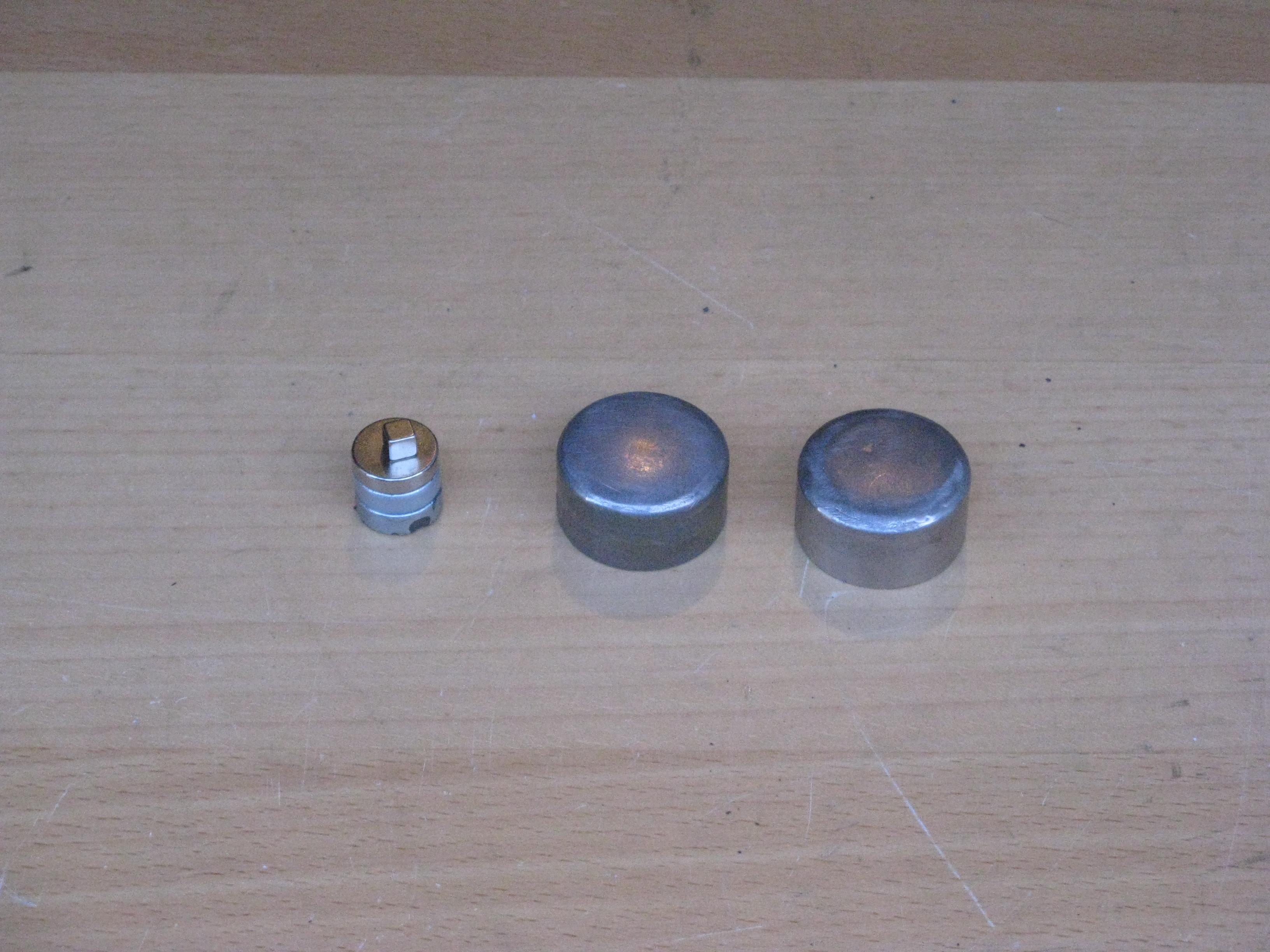

And there you have it Large ingot to small measured ingot to disk for the levitator.

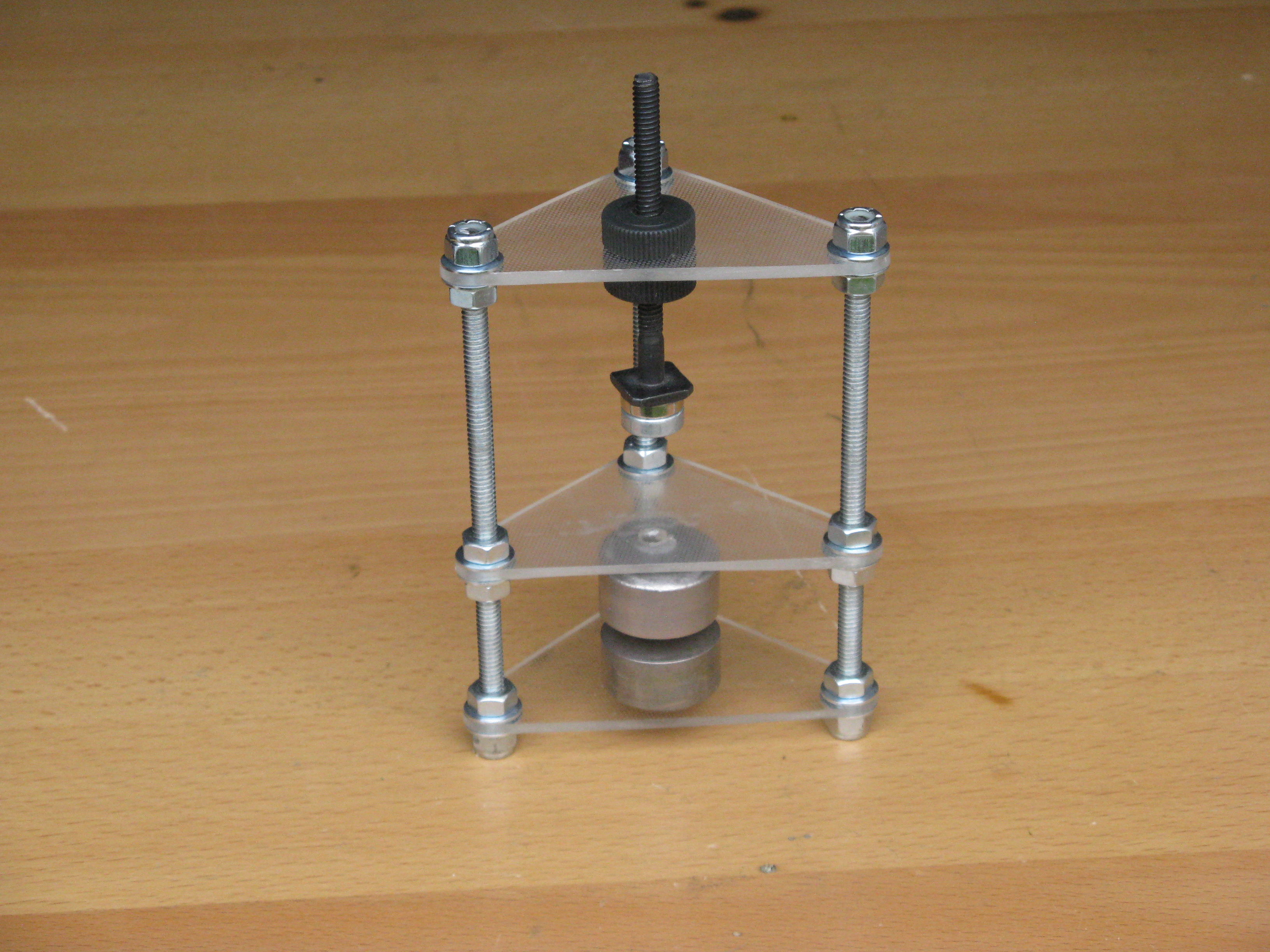

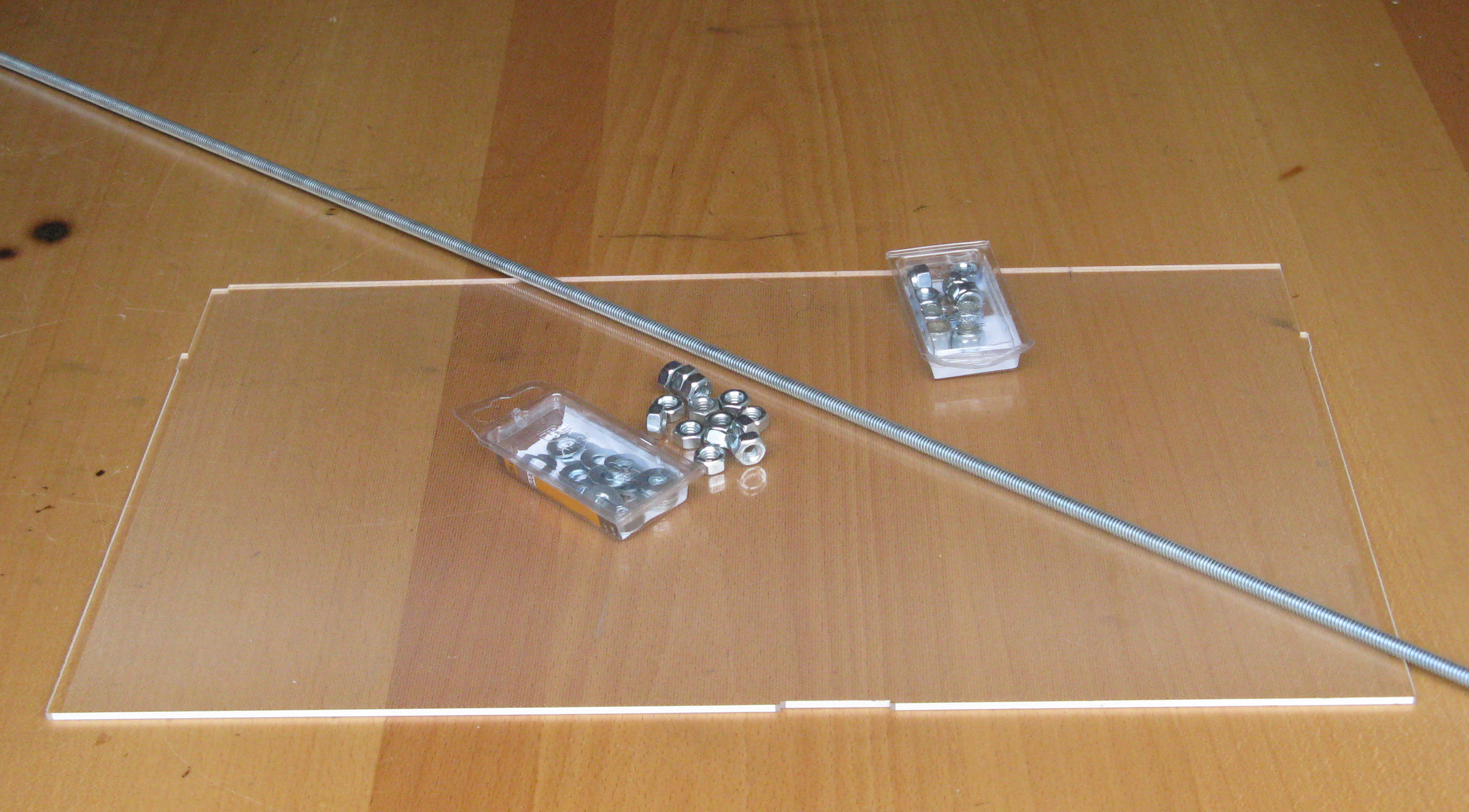

The stand looks more complicated than it is simple; it has 3 legs 3 plastic shelves and adjusting screw so plan it first to make things simple.

Neodymium Magnets

3. 6mm x 14 cm threaded rod

6. 11 mm locking nuts

12. 11 mm nuts

Plastic I salvaged from a computer LED flat screen.

Alinement bolt salvaged from an old tool.

Standard screwdriver modified to scratch deep lines in plastic.

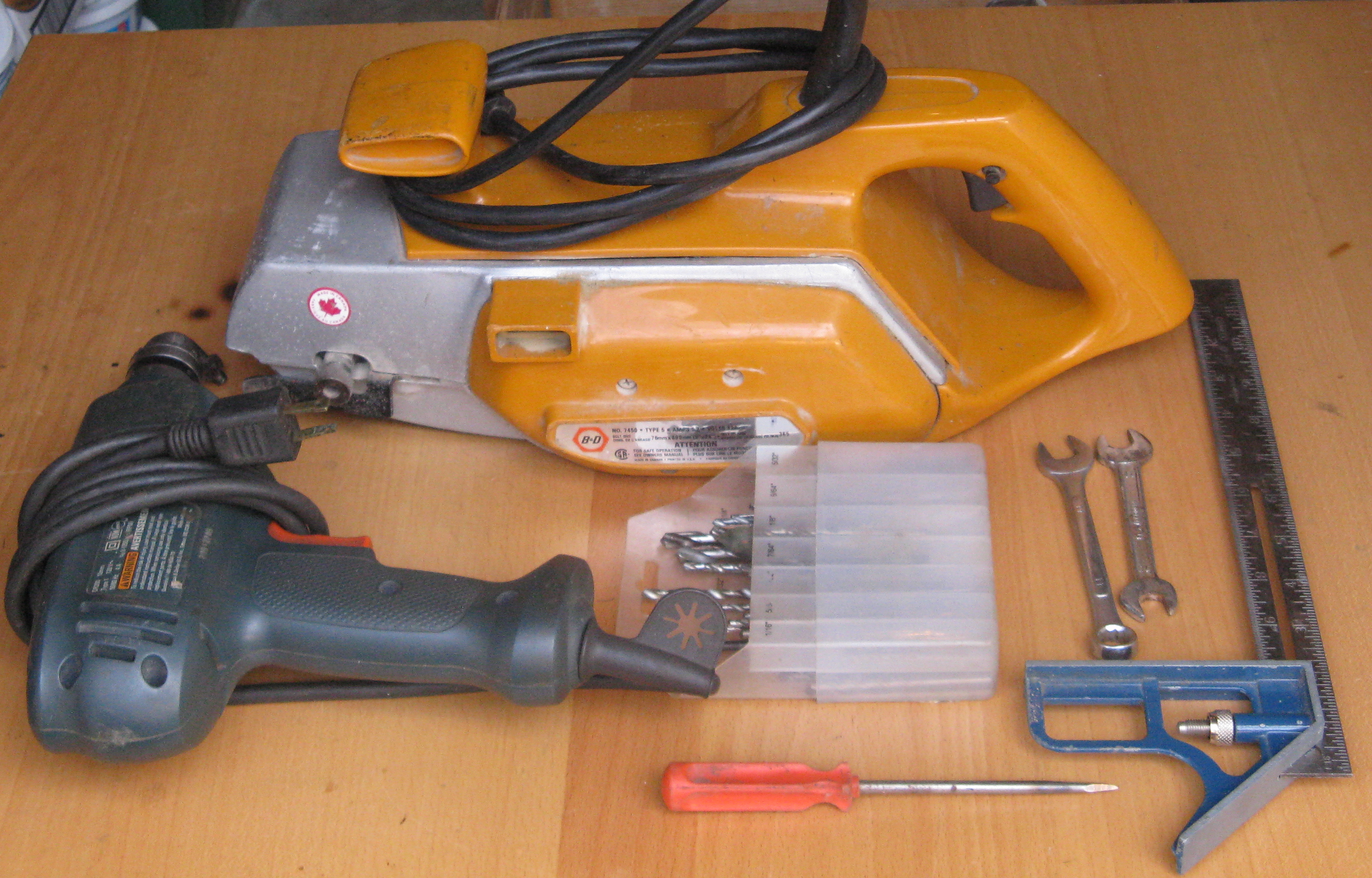

Drill

6 mm Drill Bit

Belt Sander

Square

11 mm wrench

Etching tool

3 short 6 mm bolts

Clamp

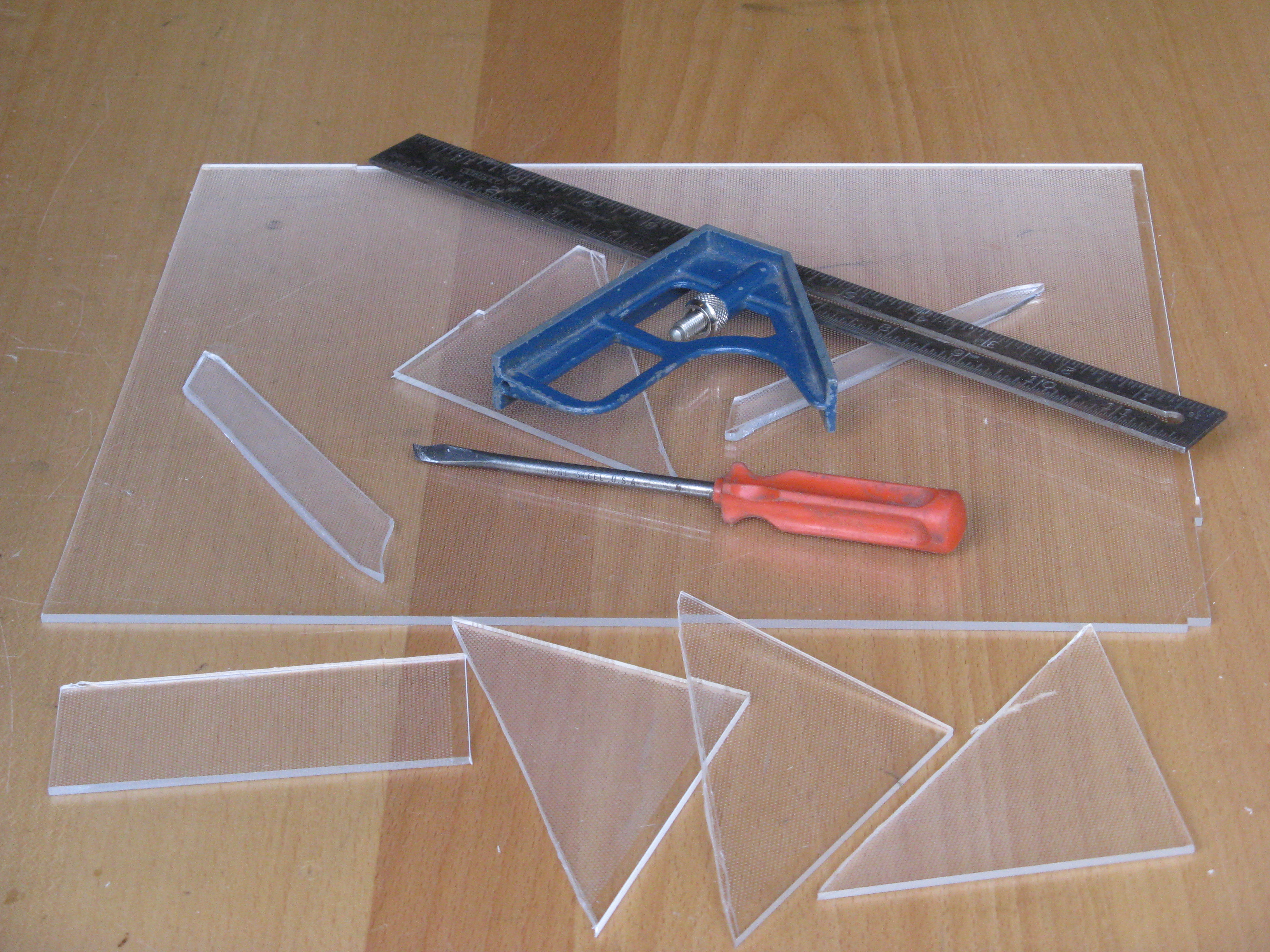

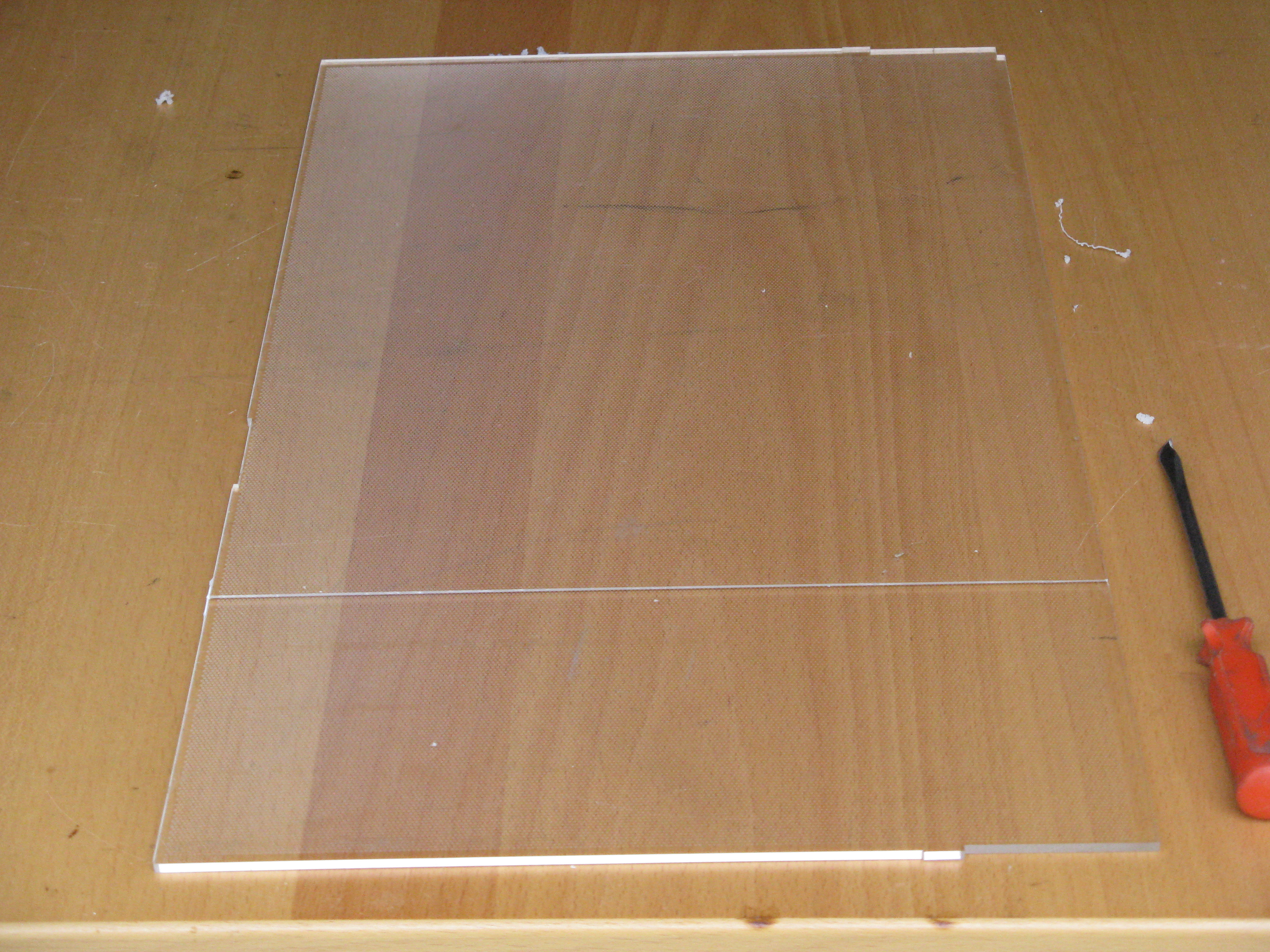

I cut sheet plastic the same way I cut glass; etch one side, and bend at the etching until it breaks along the etch.

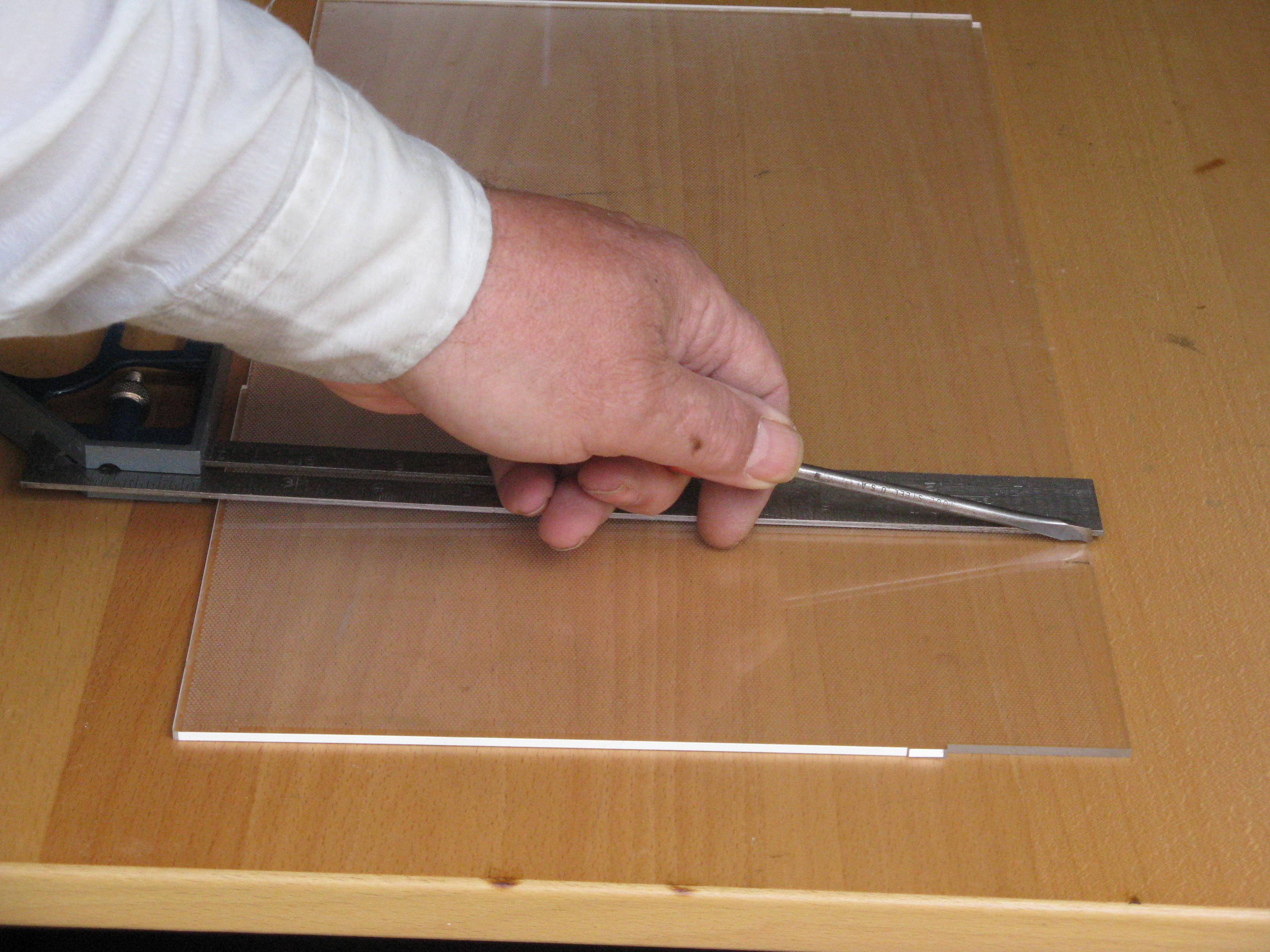

Using the square etch a 10 cm strip on one side.

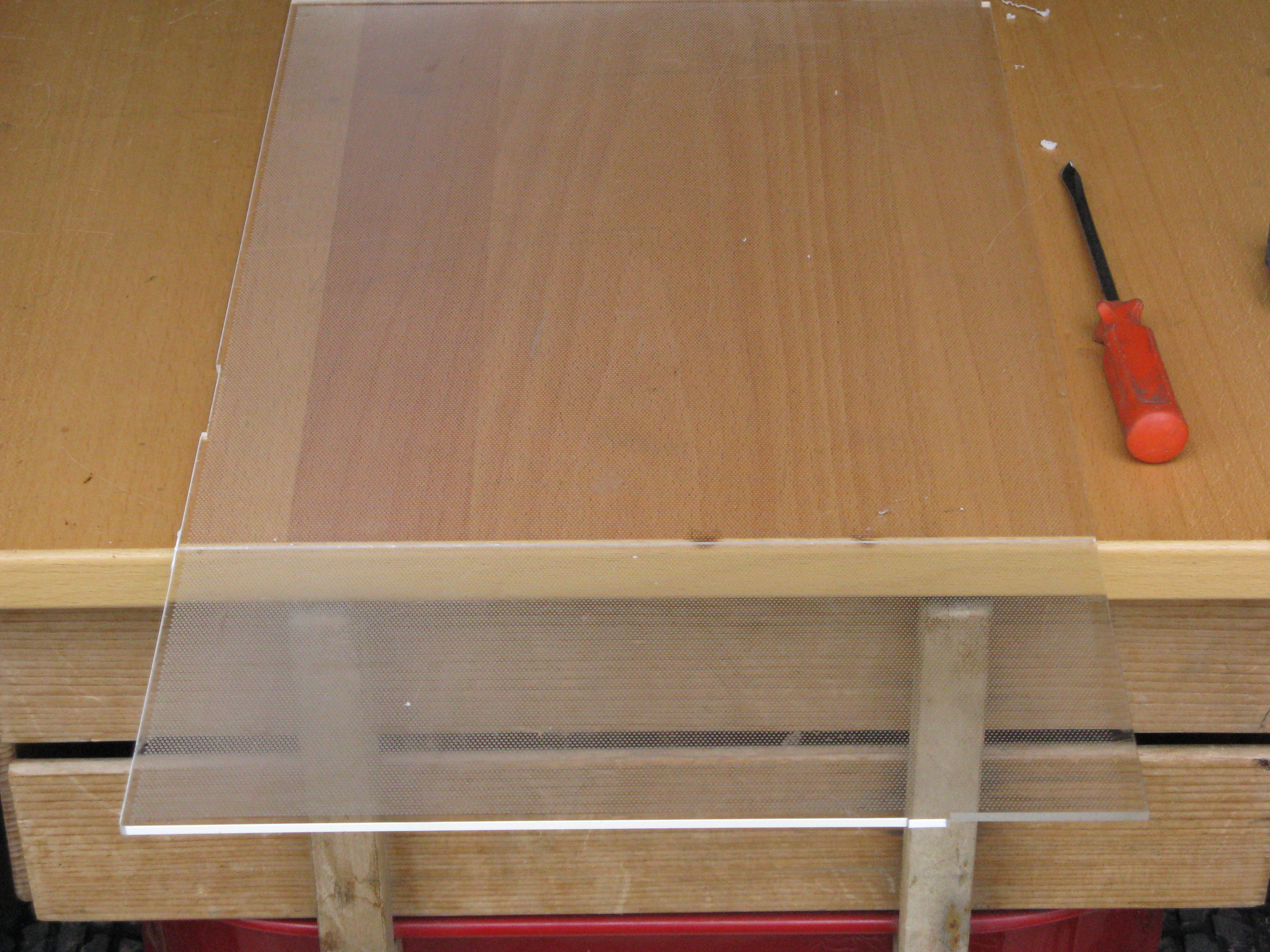

Move the etch to the edge of the work table and press on the edge.

The sheet of plastic should snap along the etching.

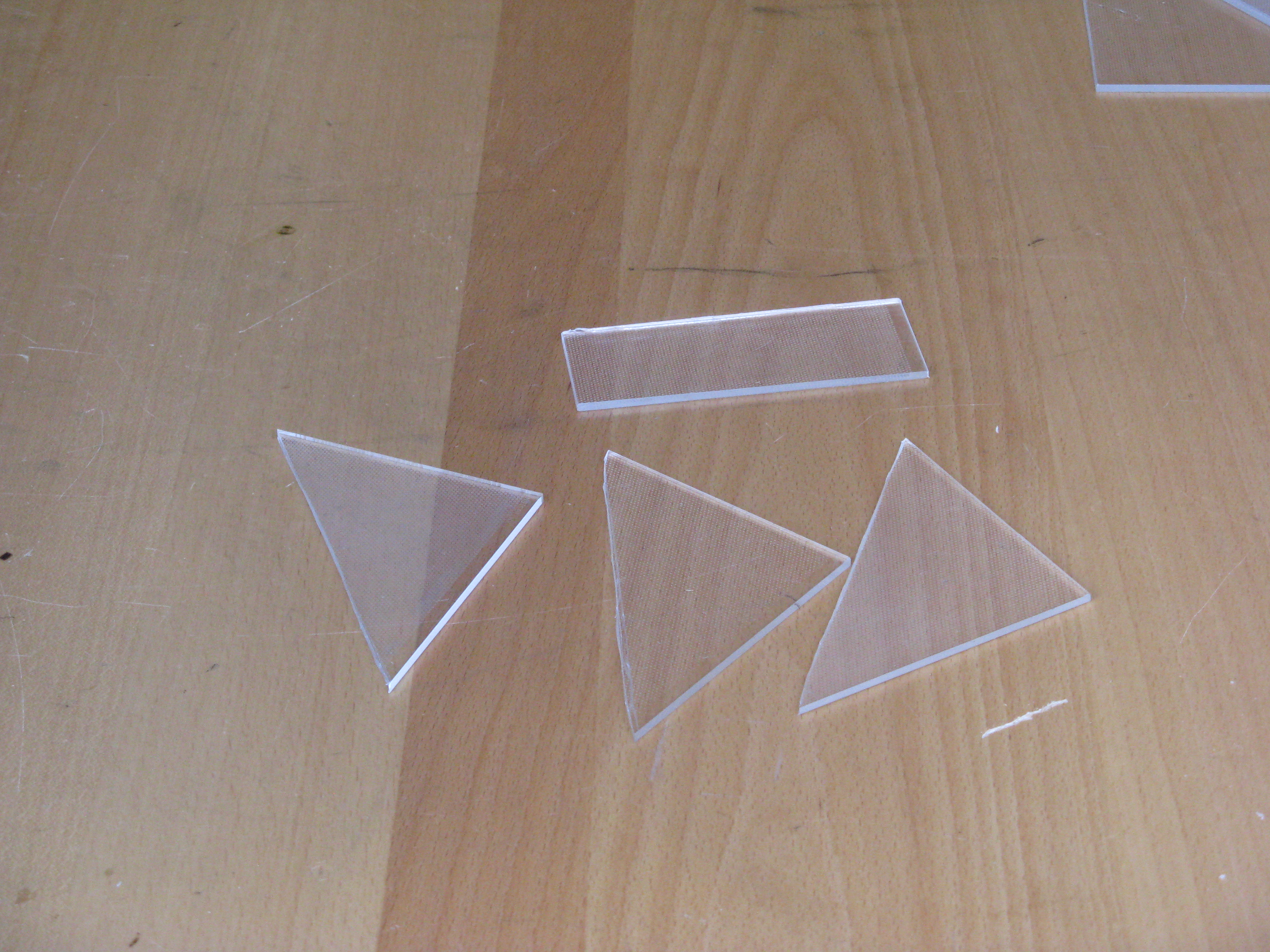

Repeat for squares 10 cm a side, then corner to corner for triangles.

The drill bit should just fit inside the washer.

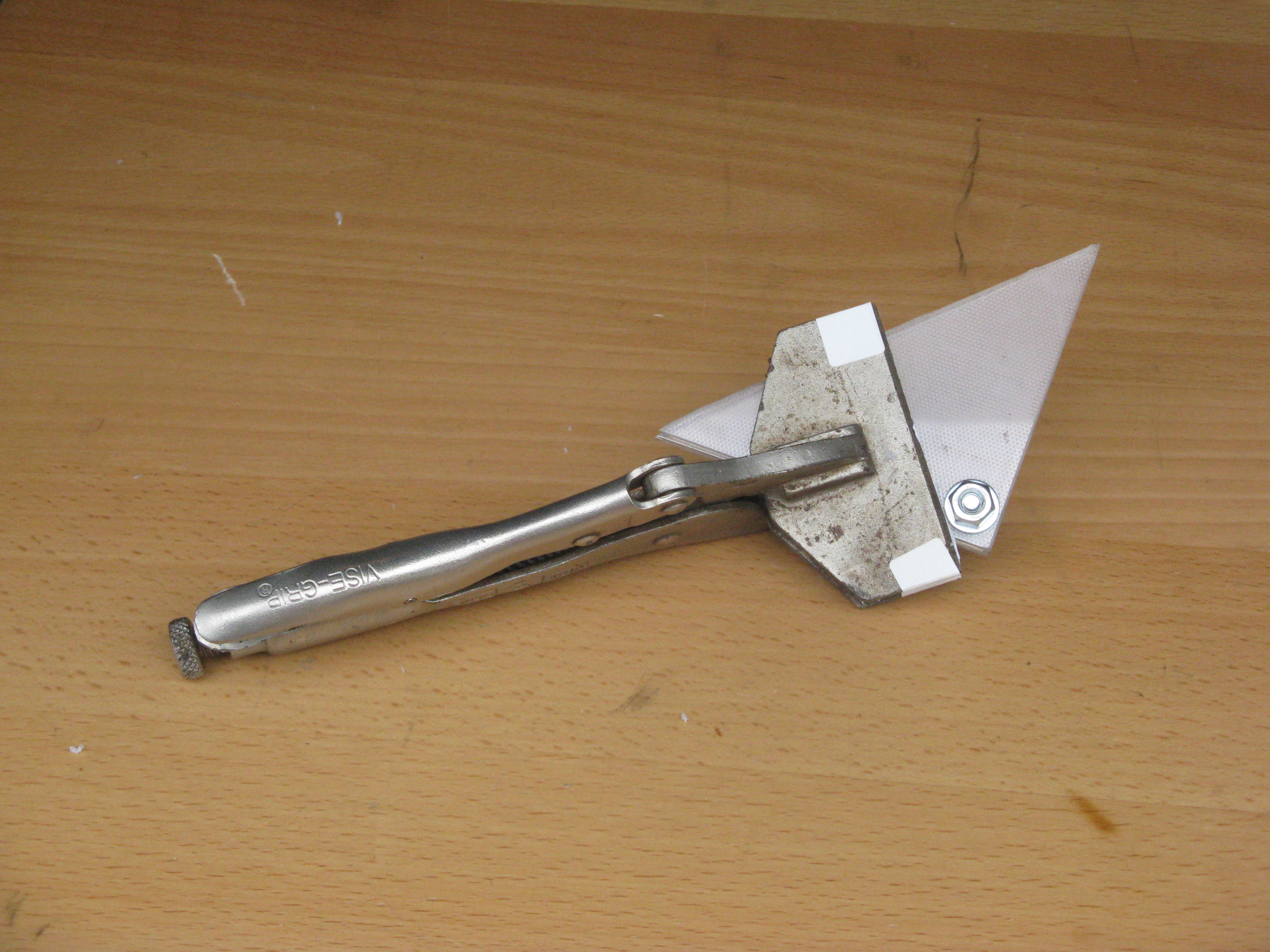

Clamp the three triangles together.

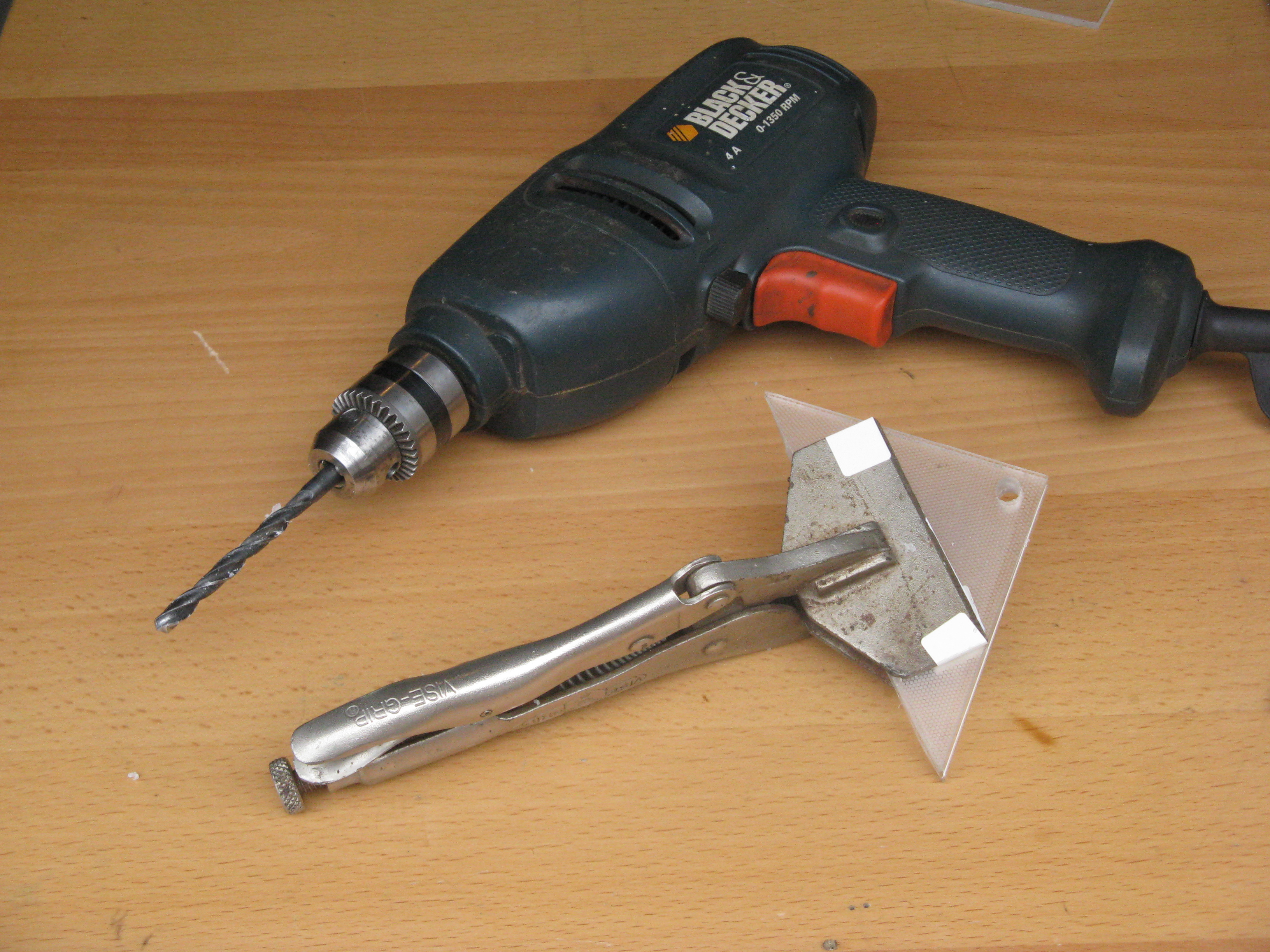

Drill a hole inside the point of the triangle.

Bolt the three parts together and drill the next hole in one of the points of the triangle.

Bolt the second hole and move on to the third point and do the same.

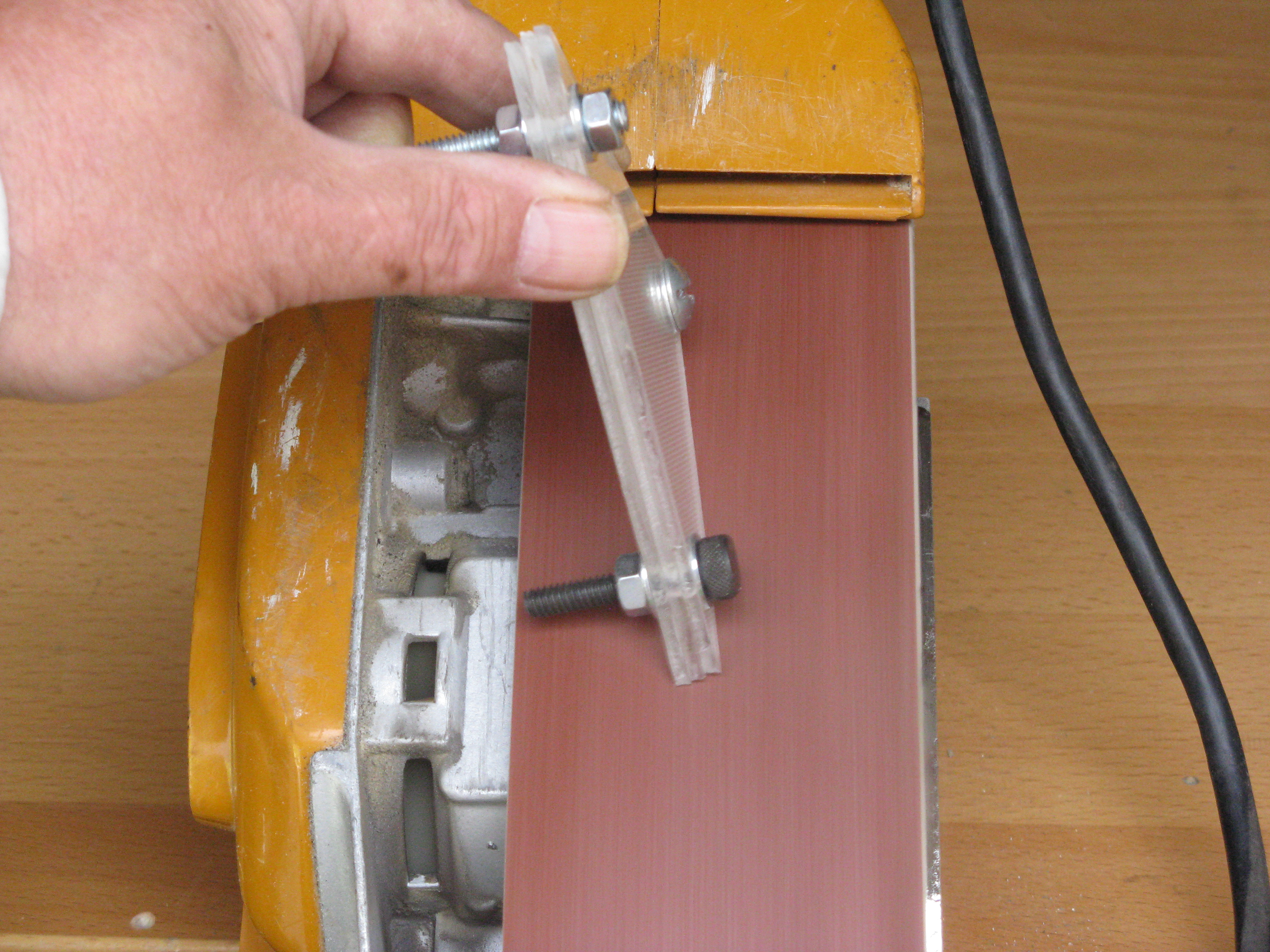

With the three triangles bolted together sand any defects off the edges of the plastic and round the points of the plastic triangles.

Then drill the last hole in the long side of the plastic triangles about half the distance in as the diameter of the bismuth slugs.

Remove the bolts holding the triangles together.

Making sure to keep track of the same side of the triangles separate them.

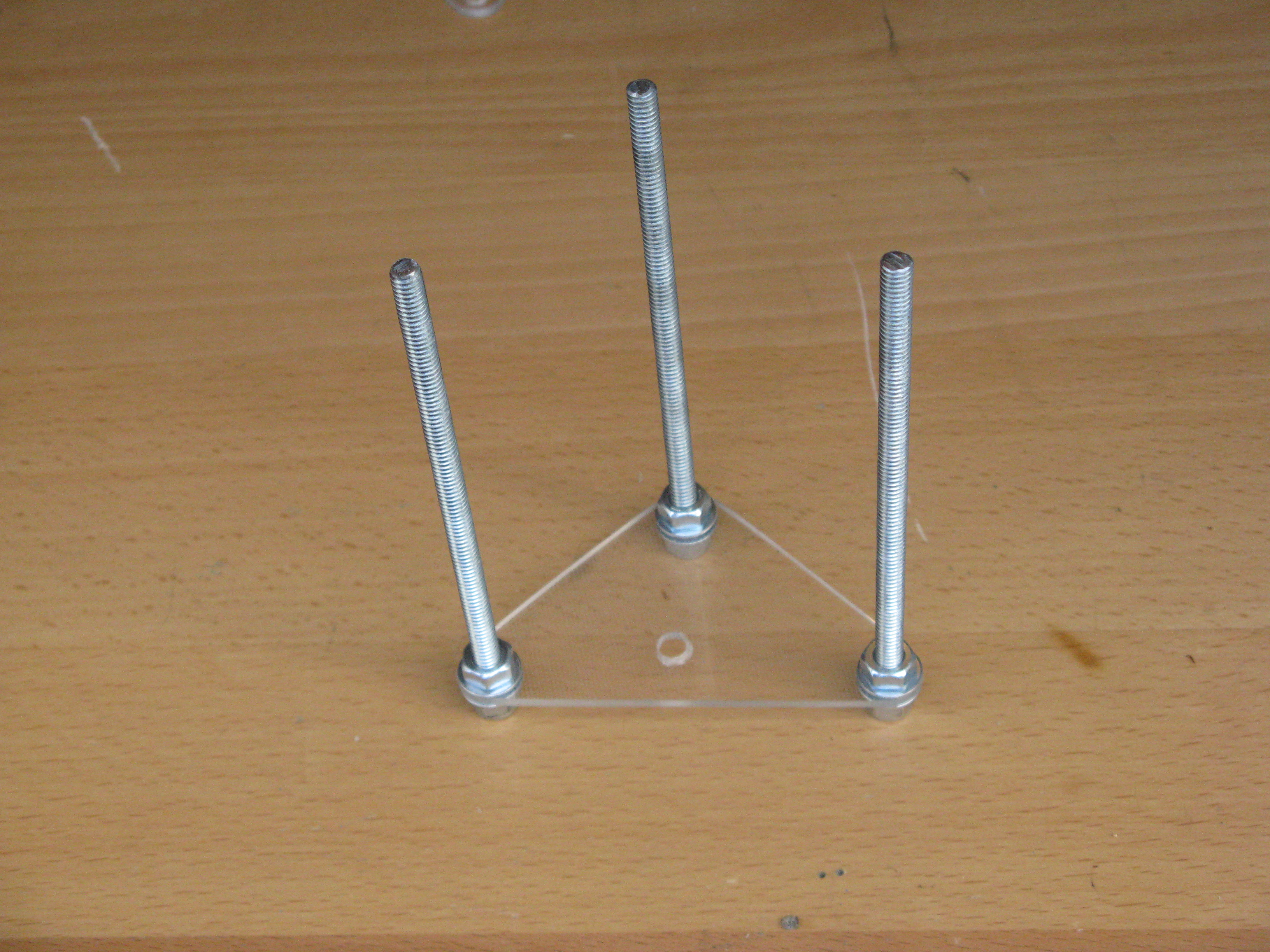

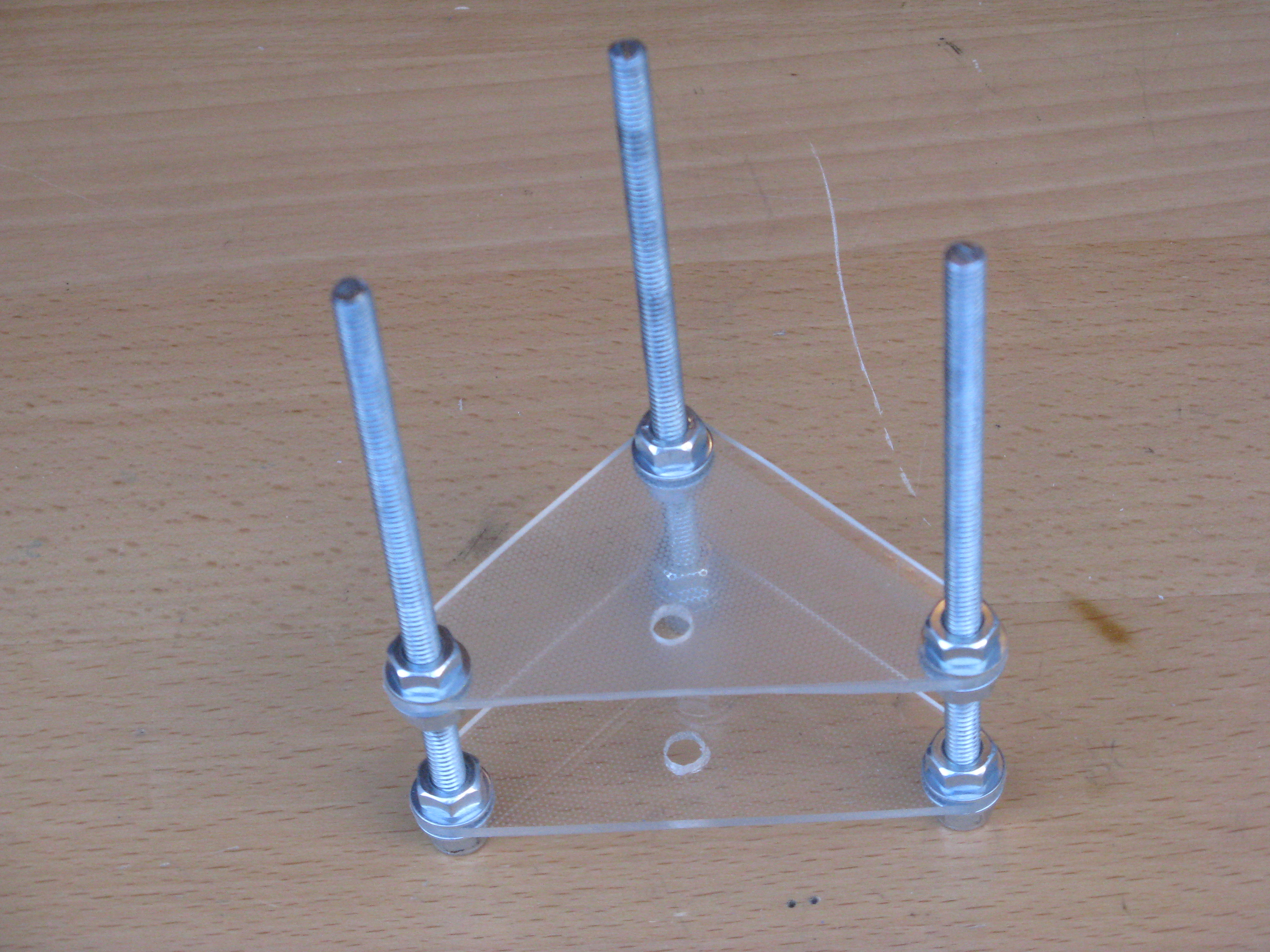

Thread a nut onto one of the threaded rods about 1 cm and add a washer.

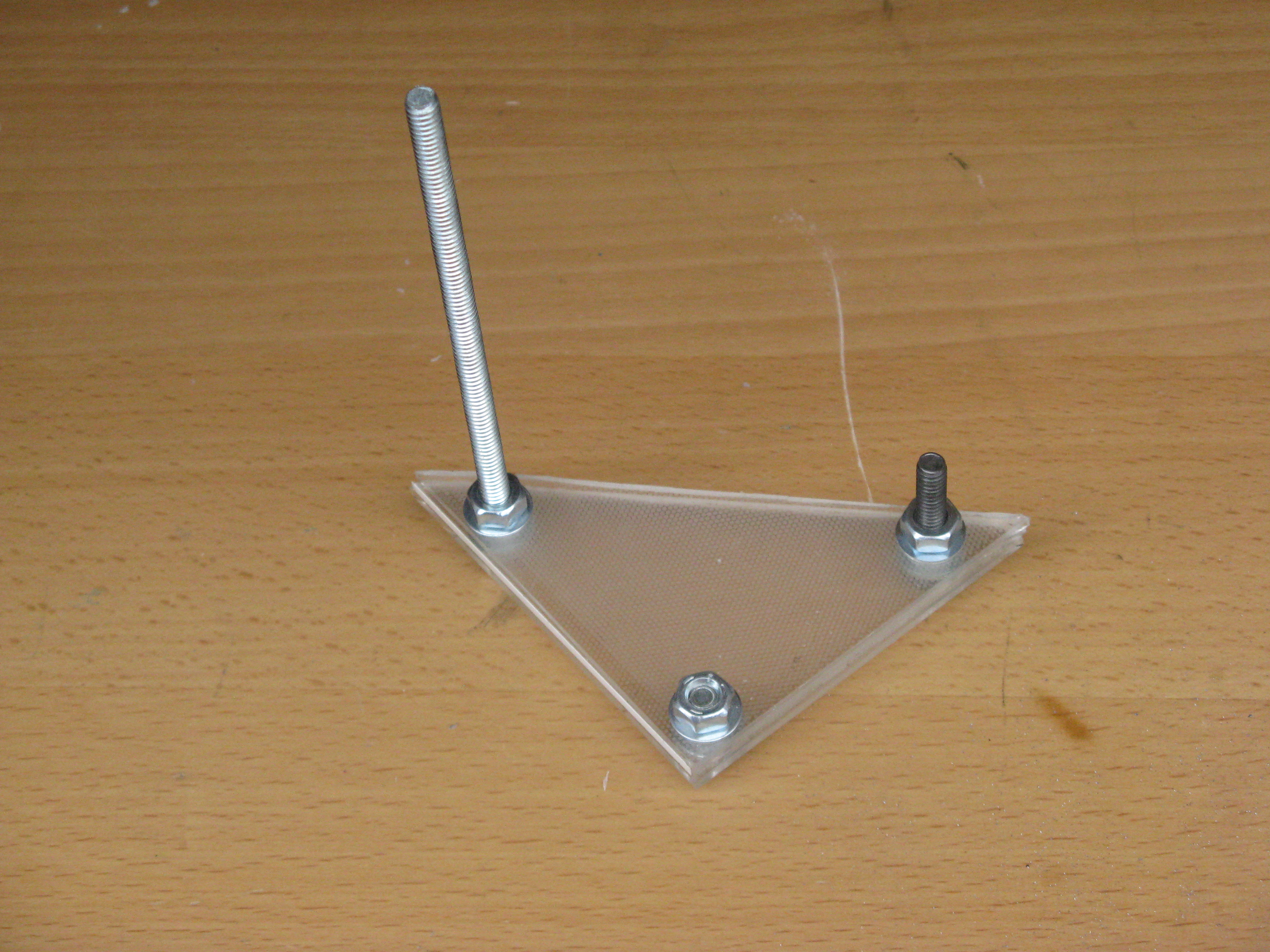

Place the threaded rod into one of the point holes of the triangle and add another washer and the locking nut to the other side of the triangle. Tighten the nuts to the plastic making sure the threaded rod doesn’t pass through the locking nut.

Repeat this for the other two points.

Add 3 nuts and 3 washers to the threaded rod; thread the nuts onto the threaded rod until they are about 4 cm above the first shelf.

Add the second shelf and adjust it to the 3 nuts and washers.

Add 3 more washers and 3 nuts and tighten to the second shelf.

Add the two bismuth disks between the two shelves centered over the holes in the long side if the shelves and glue them in place.

Add 3 nuts and 3 washers to the threaded rod; thread the nuts onto the threaded rod until they are about 1 cm from the end of the threaded rod.

Add the third shelf and add another washer and the locking nut to the other side of the triangle. Tighten the nuts to the plastic making sure the threaded rod doesn’t pass through the locking nut.

Remove one of the adjusting nuts from the alinement bolt and put it in the hole in the top shelf.

Replace the adjusting nut and add the magnets to the levitator.

Make sure the levitator is on a level and flat surface. If it is not level it will mess with you

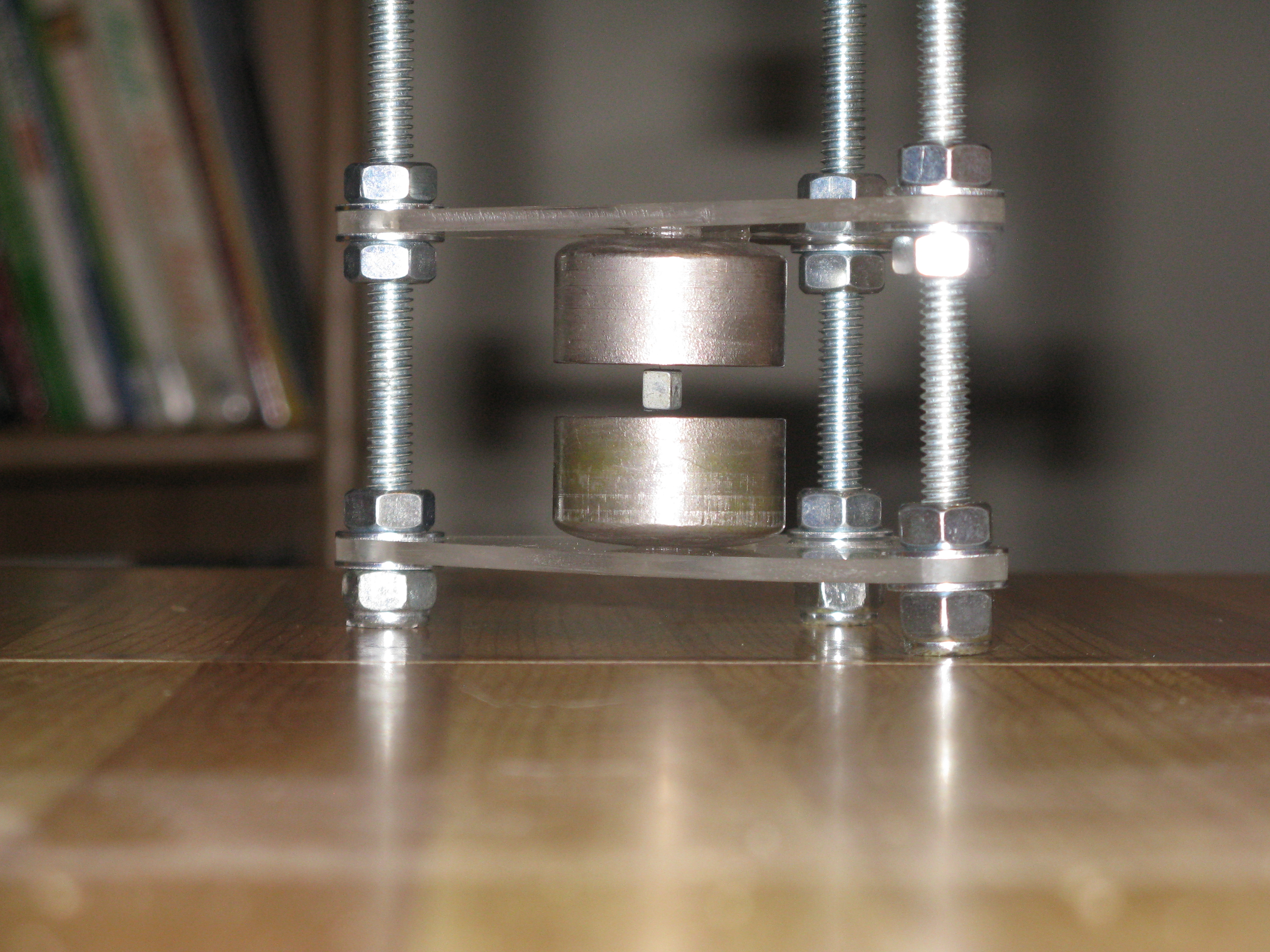

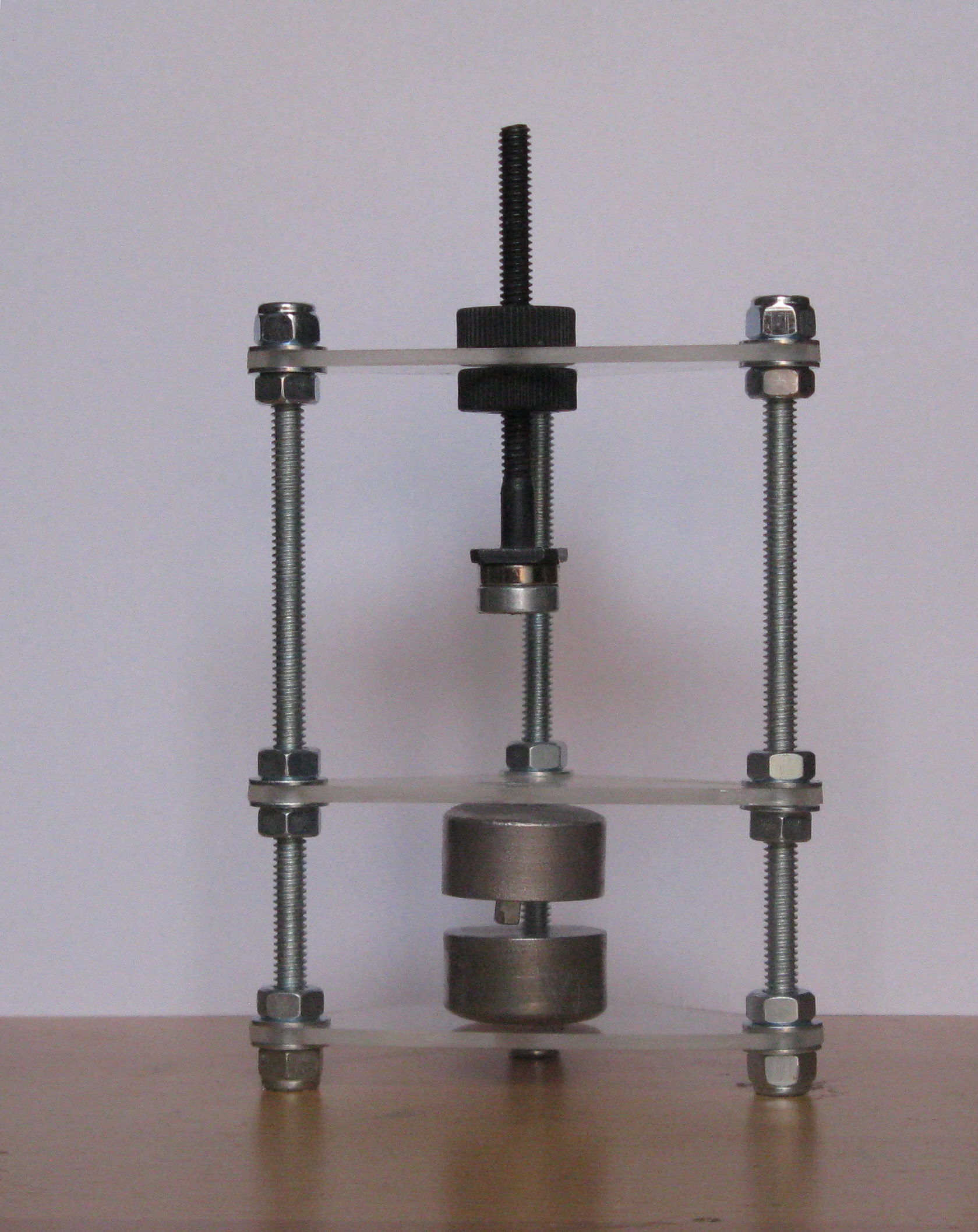

Then adjust the magnets on the alinement bolt up and down until the square magnet between the bismuth disks float this may take some time until you get the hang of it.
