Modular Table to Passenger/Driver Seat of a Ford Transit Camper Van Conversion.

729 Views, 3 Favorites, 0 Comments

Modular Table to Passenger/Driver Seat of a Ford Transit Camper Van Conversion.

How To Install Lagun Table Ford Transit B-Pillar.JPG

I am making a campervan conversion out of my Ford Transit, and I needed to add a modular table to the passenger & driver seat. I was going for a "clean" install, something that doesn't look too sloppy.

Supplies

B-Pillar Mount Plate for Ford Transit.
Lagun Table System (with Sliver bracket option).
Bamboo Table Top (amzn.to/3IU79iu).
M8 screws to attach the tabletop to the Lagun plate.

Install the Mount Plate to the Transit B-Pillar

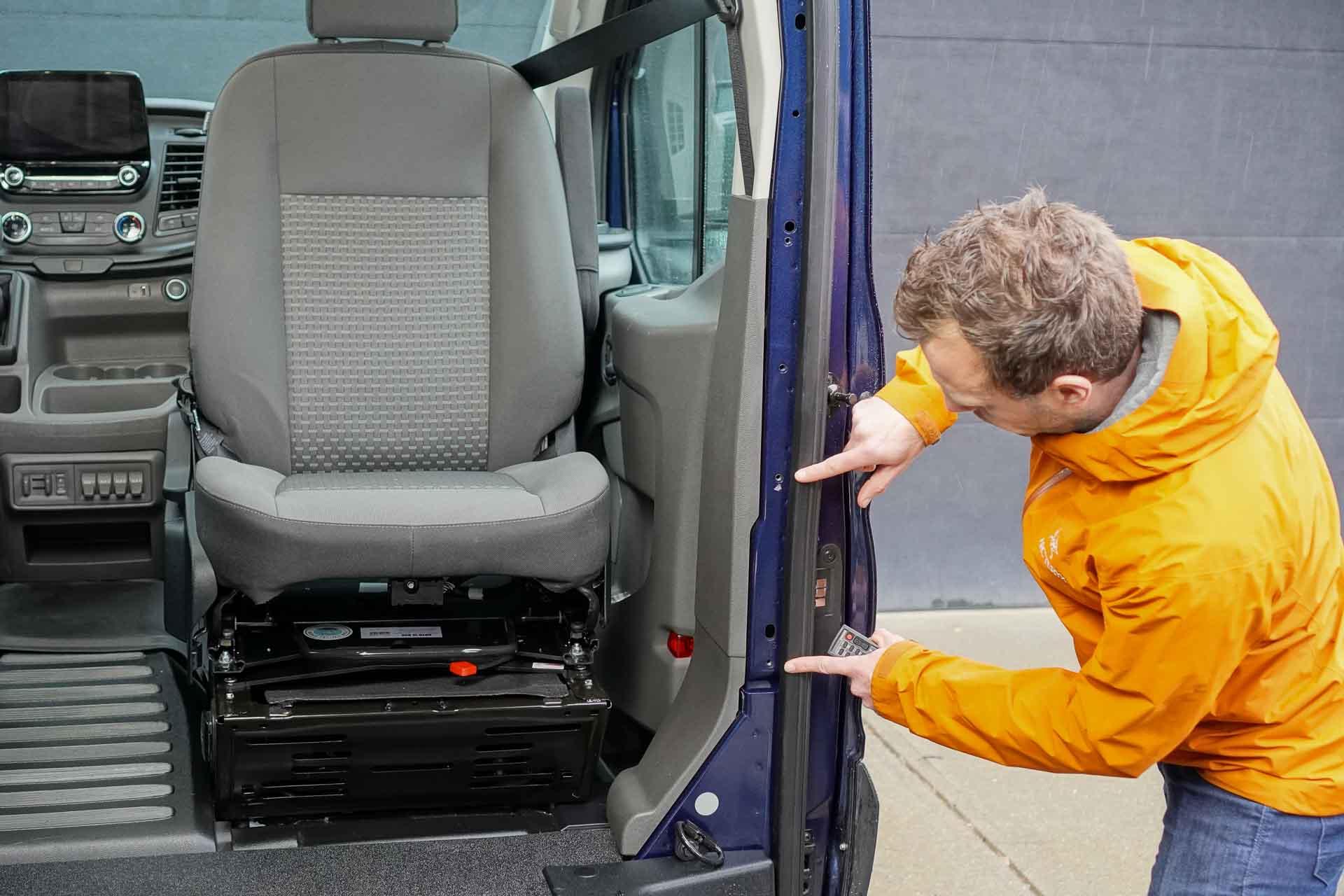

Lagun Table Installation into Ford Transit B-Pillar-1 (Threaded Factory Holes).JPG

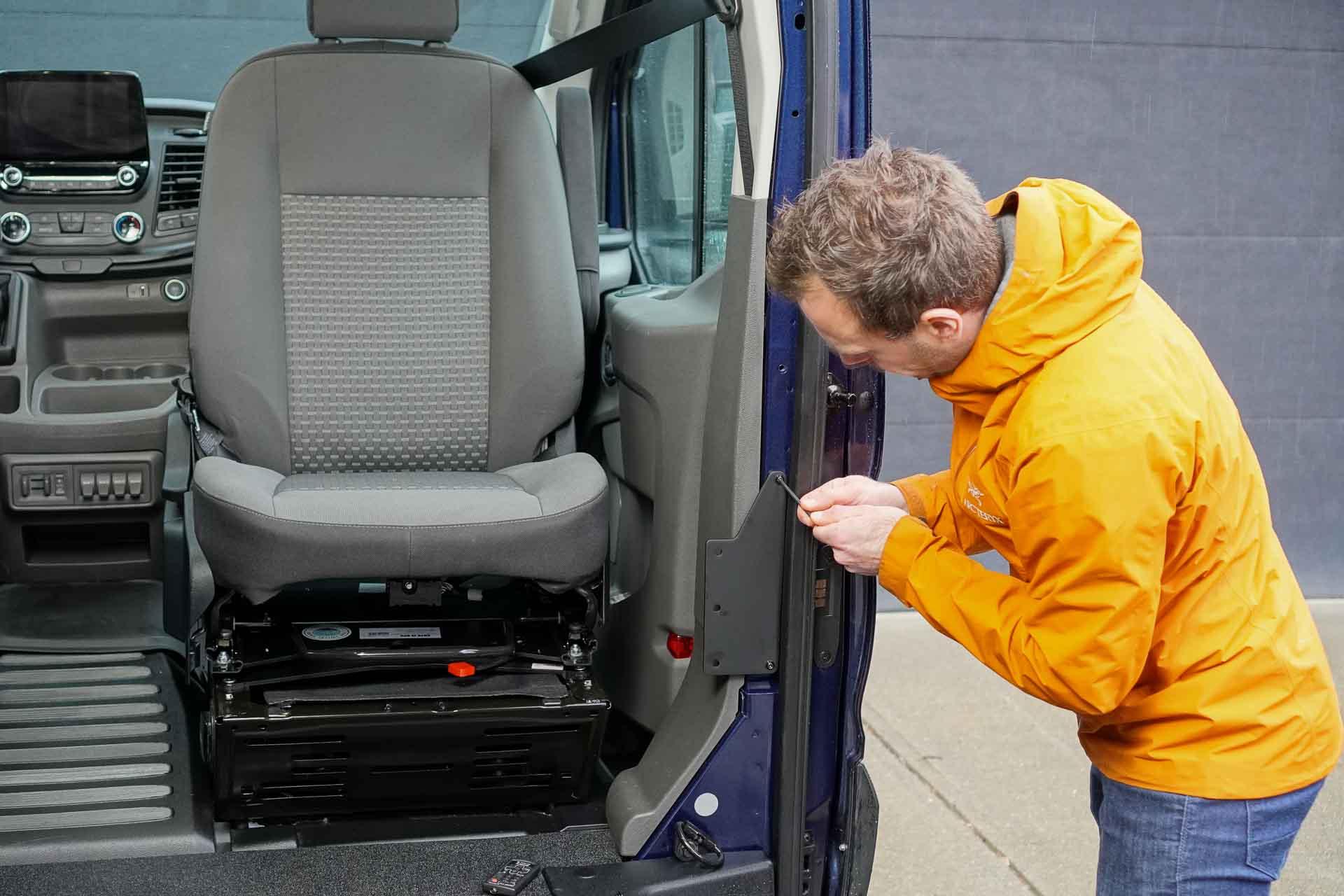

Lagun Table Installation into Ford Transit B-Pillar-2 (M6 screws).JPG

These factory holes are threaded (M6). Screws provided with the mount plate.

Install the Sliver Bracket to the Mount Plate

Lagun Table Installation into Ford Transit B-Pillar-3 (Sliver Bracket).JPG

The three M8 screws are provided with the Lagun Table System.

Install the Lagun Table System and Tabletop

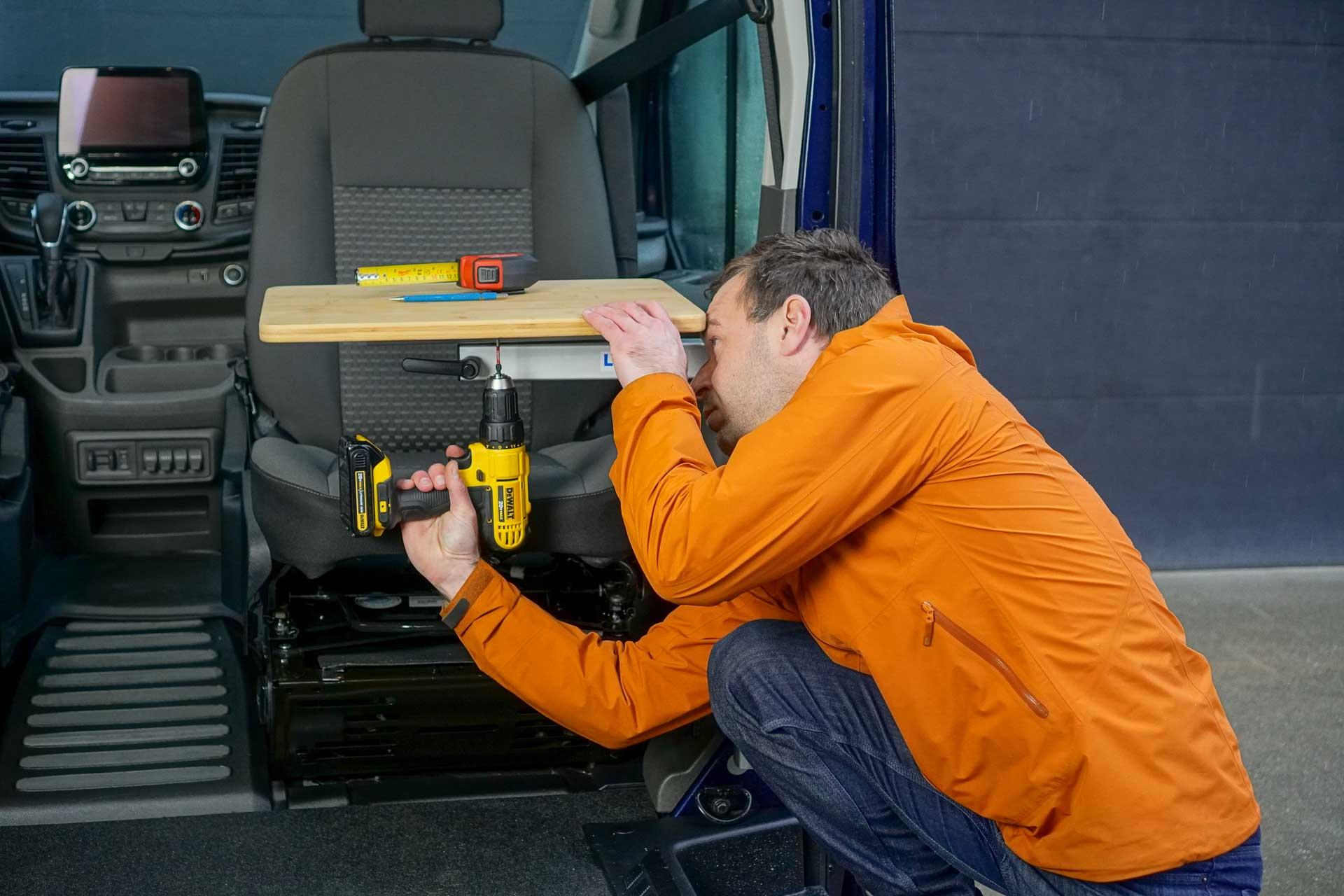

Lagun Table Installation into Ford Transit B-Pillar-4 (Table Top).JPG

The Lagun leg slides into the Sliver bracket (installed previous step). The tabletop is installed with six M8 screws.

That's It!

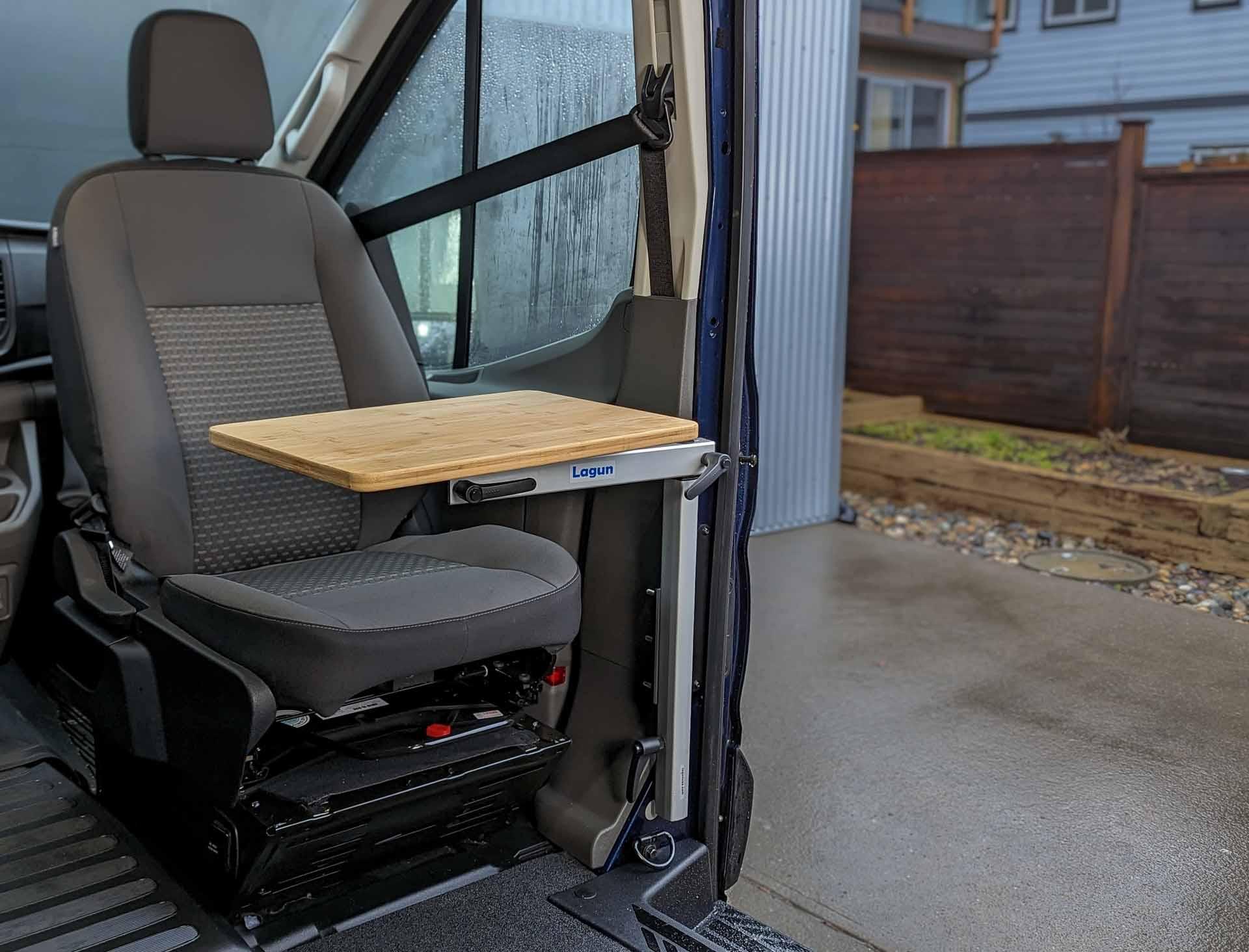

Lagun Table Installation into Ford Transit B-Pillar-6 (Over Seat).JPG

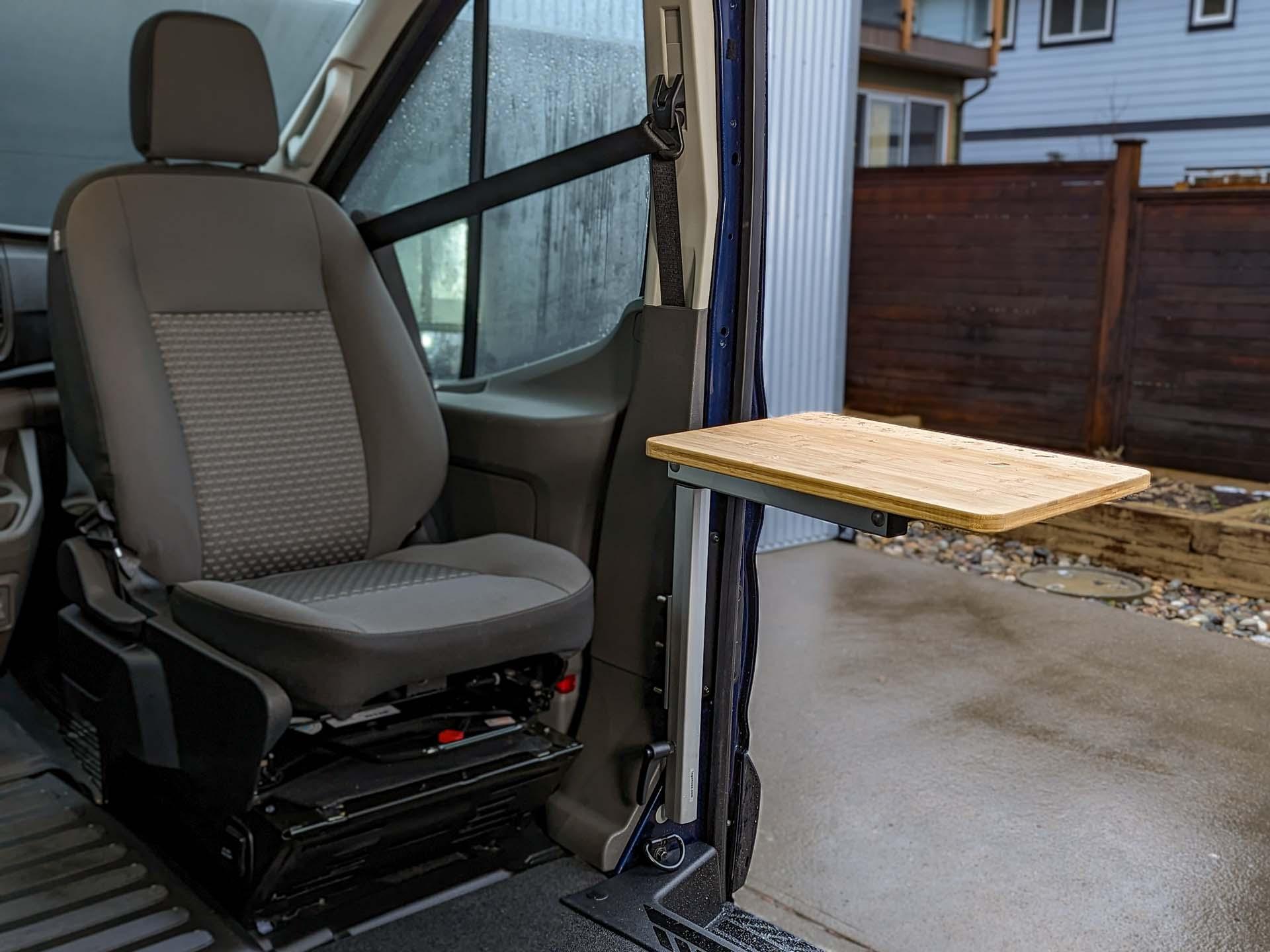

Lagun Table Installation into Ford Transit B-Pillar-5 (Sliding Door).JPG

The arm & tabletop can be removed in seconds (thanks to the built-in handles) and stowed away (against a wall or something).
