Modify Battery-powered LED Light Magnifier

by nestoralan78 in Circuits > LEDs

156 Views, 0 Favorites, 0 Comments

Modify Battery-powered LED Light Magnifier


Some time ago I bought a magnifying glass with light in a supermarket to assemble some SMD kits. After a few hours of use the batteries began to discharge and under the light

Disassembly

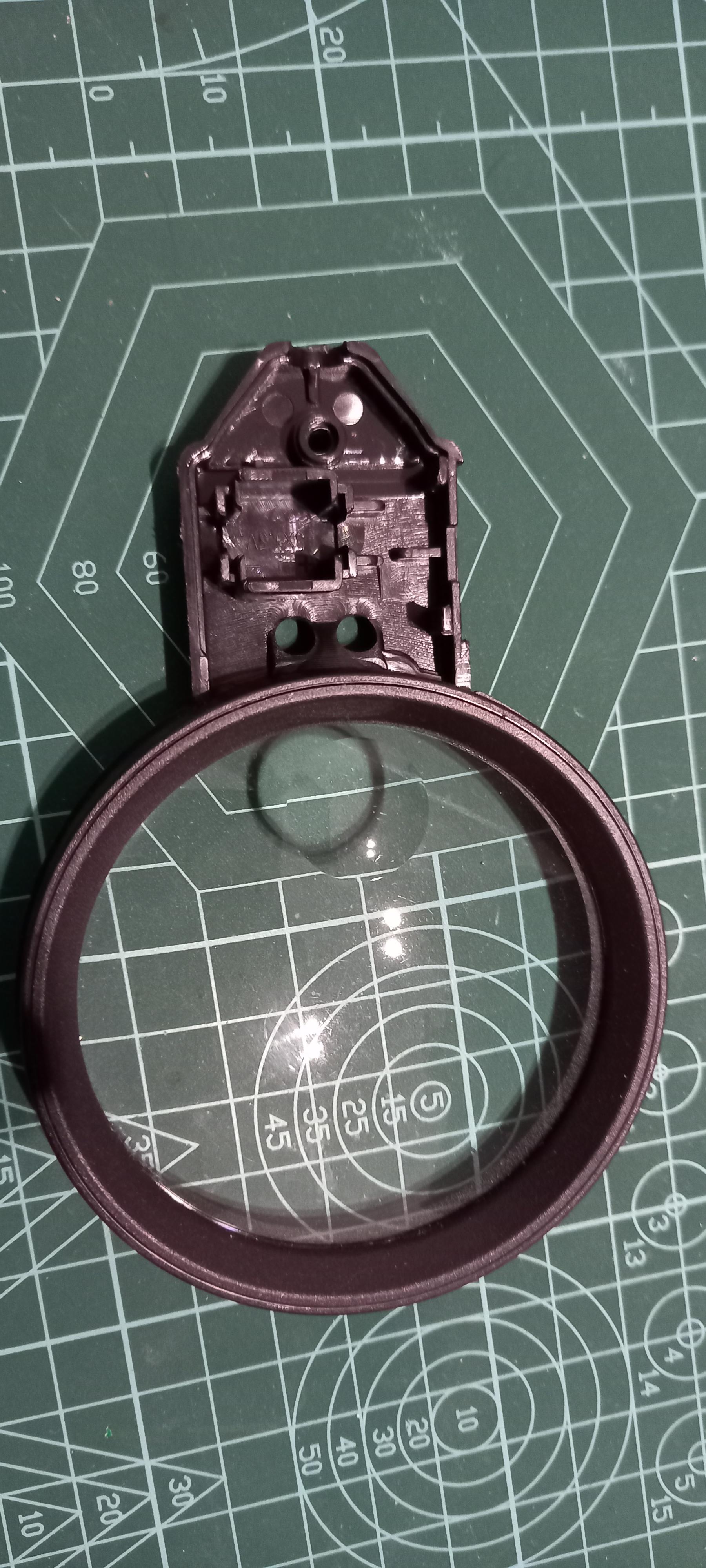

First we disassemble the magnifying glass

Adapting the Connector

lupa 2.jpg
lupa 4.jpg

Remove everything that bothers us to put the connector in and cut the plastic from the battery holder

Install the Connector


We make a hole to house the connector, glue it with hot glue

We Make the Connections

We make the connections just like the picture

This is my first instructable, if you have any questions, ask in the comments, I hope you like it
