Modern Nightstand W/ Concrete Top

by darbinorvar in Workshop > Woodworking

5566 Views, 90 Favorites, 0 Comments

Modern Nightstand W/ Concrete Top

Modern Nightstand w/ Concrete Top

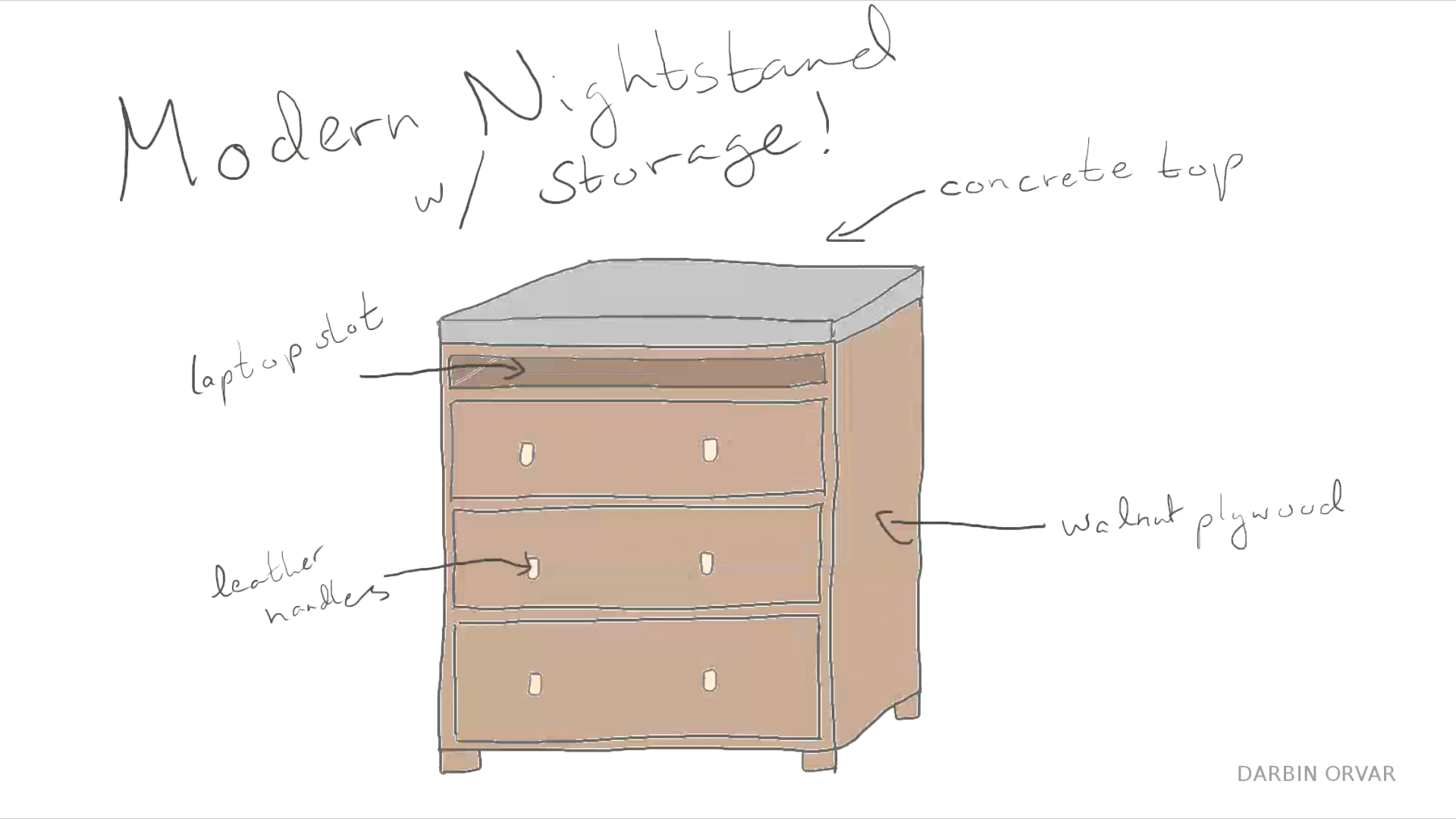

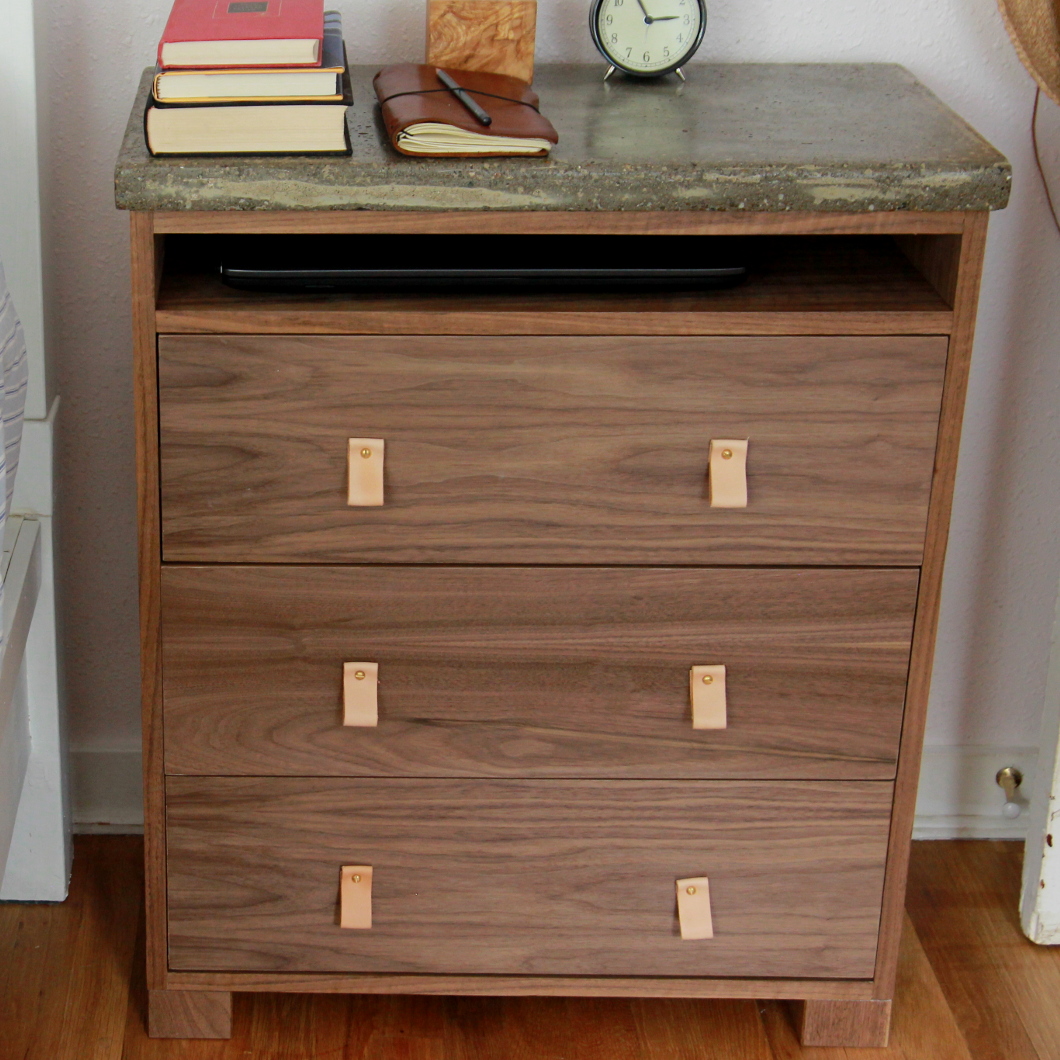

I wanted to build a modern nightstand that has a lot of the functions of a traditional dresser, as well as a storage shelf for a laptop. I know many people, just like me have limited space in their homes, so you really want to maximize your furniture, which is why I wanted to make a nightstand that has several drawers in it. In terms of design, I went with walnut plywood, and to contrast that I decided to go for a concrete top, and leather pulls.

Cut Up the Plywood

Screenshot (262).png
Screenshot (263).png

The first step was to cut the plywood to size.

Assemble Frame

Screenshot (264).png
Screenshot (265).png
Screenshot (266).png
Screenshot (267).png
Screenshot (269).png
Screenshot (271).png
Screenshot (273).png

I put together the main frame of the dresser using pocket screws, and to make sure all the pieces were square and lined up I used corner clamps. Once I had the main box, I attached the shelf for the laptop, and also laid down the drawer fronts to make sure all the cuts were right.to size, for this project I'm using both 3/4 inch and 1/2 inch plywood.

Concrete Top

Screenshot (274).png
Screenshot (275).png
Screenshot (277).png
Screenshot (278).png
Screenshot (279).png
Screenshot (280).png
Screenshot (283).png
Screenshot (284).png

For the top, I was thinking concrete would be cool, especially in contrast with the walnut, plus I haven't done much concrete work, so I thought it would be fun. I think the look of concrete, particularly next to wood, adds a really cool and modern touch.

For the frame I used laminate panels that I cut to the size I wanted the counter and assembled with screws. I added a bead of silicon caulk around the edges. Then I mixed some concrete in a bucket and filled the form.

Screenshot (285).png
Screenshot (287).png
Screenshot (288).png
Screenshot (289).png
Screenshot (290).png
Screenshot (292).png

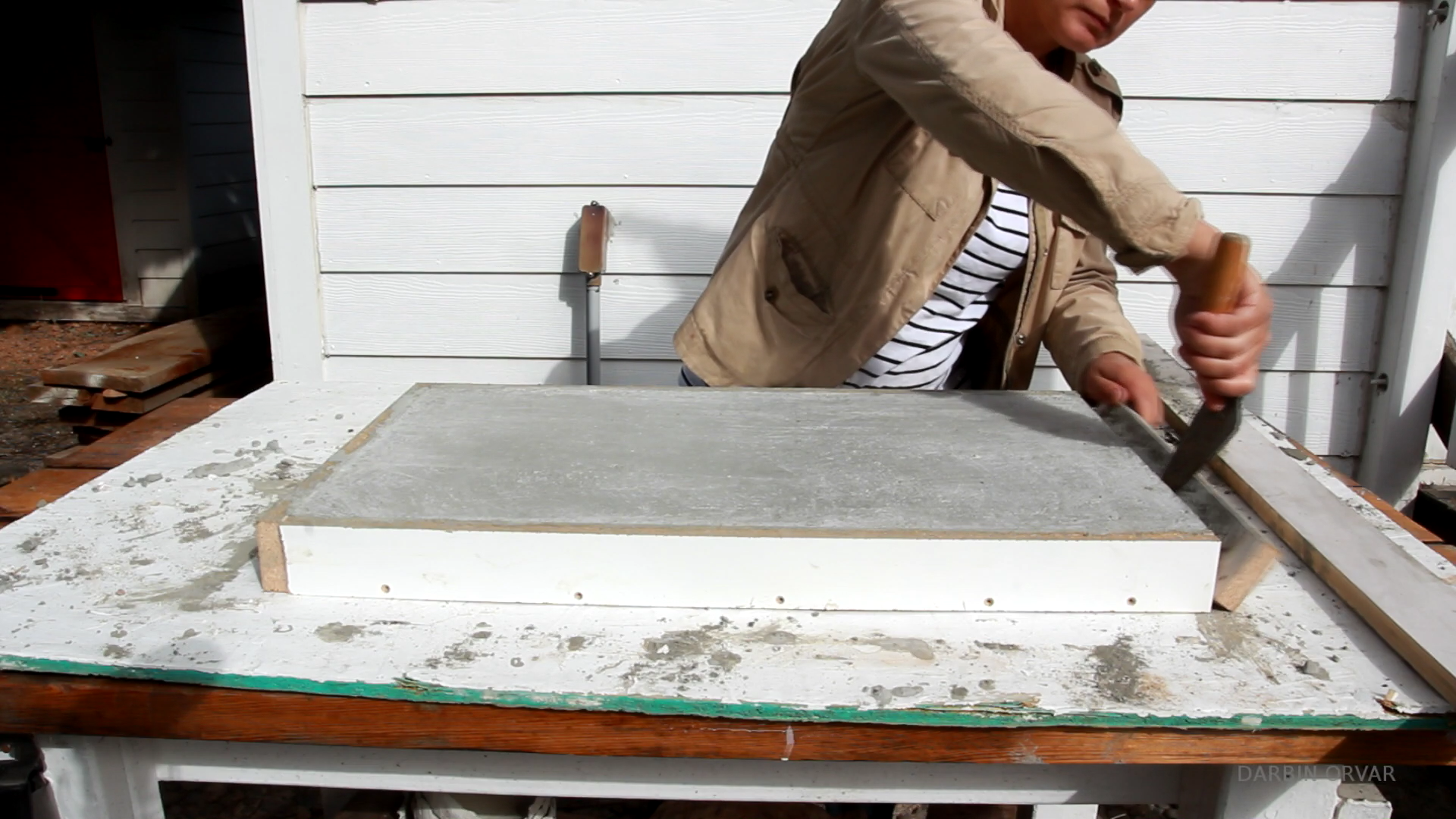

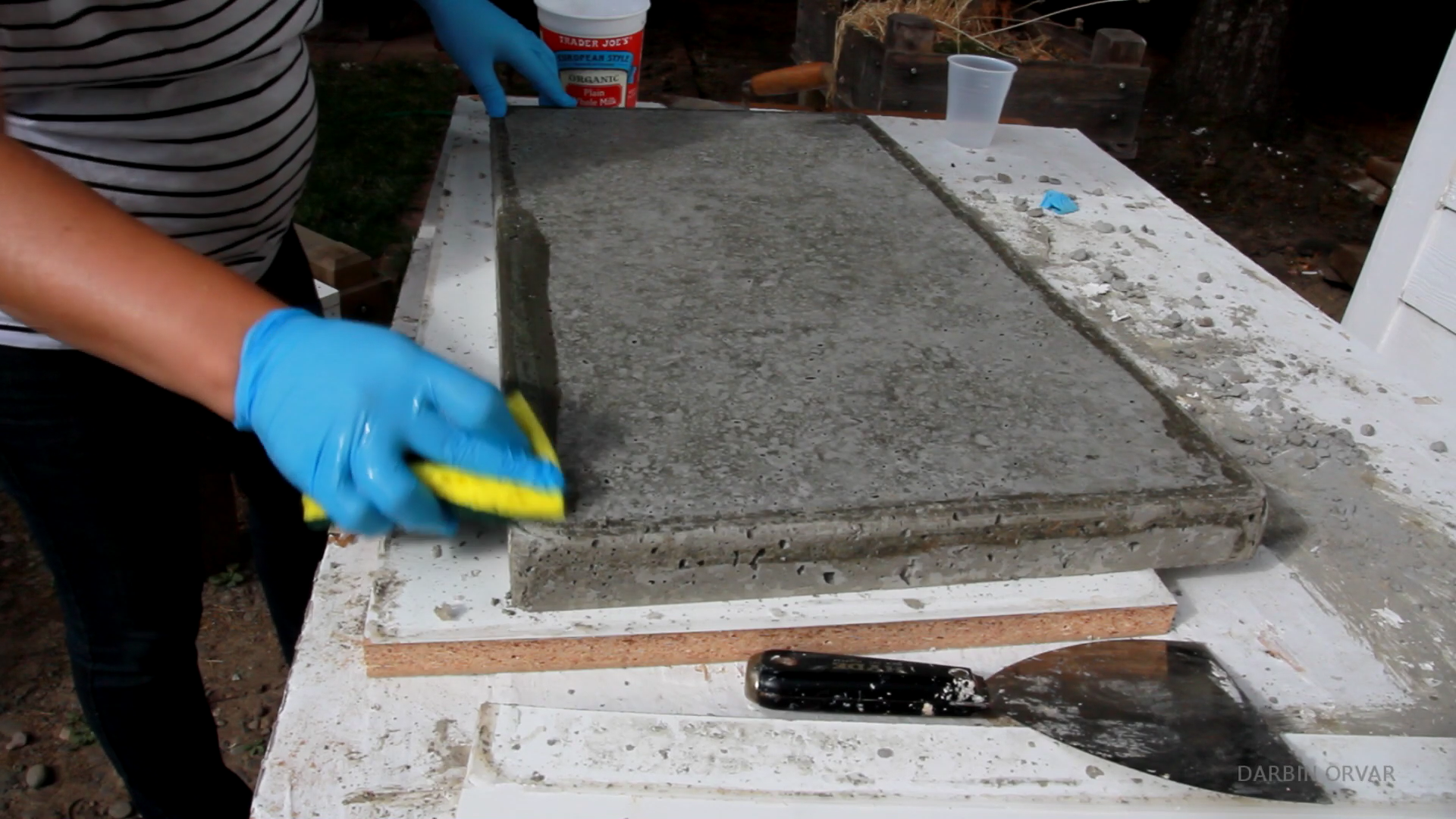

To minimize air pockets I used a sander without the paper on it around the sides. Then I let it cure and removed the mold the next day. I cleaned up some left over silicon with a wet sponge, and then made a mortar slurry to add a slightly lighter color and fill in some of the air holes.

Feet

Screenshot (294).png
Screenshot (296).png

For feet I cut up some squares out of walnut block, and I attached them with screws to the base of the frame.

Drawers

Screenshot (298).png
Screenshot (301).png
Screenshot (303).png

For the drawers I used some nice maple wood which was cut to size. For assemble I decided to go with box joints, so I used my table saw jig. To provide space for the bottoms of the drawers (1/4 inch plywood), grooves were routed on the router.

Drawer Assembly

Screenshot (304).png
Screenshot (306).png
Screenshot (307).png

At this point I was ready to assemble the drawers which I did with glue and clamps.

Drawer Slides

Screenshot (308).png
Screenshot (311).png
Screenshot (312).png

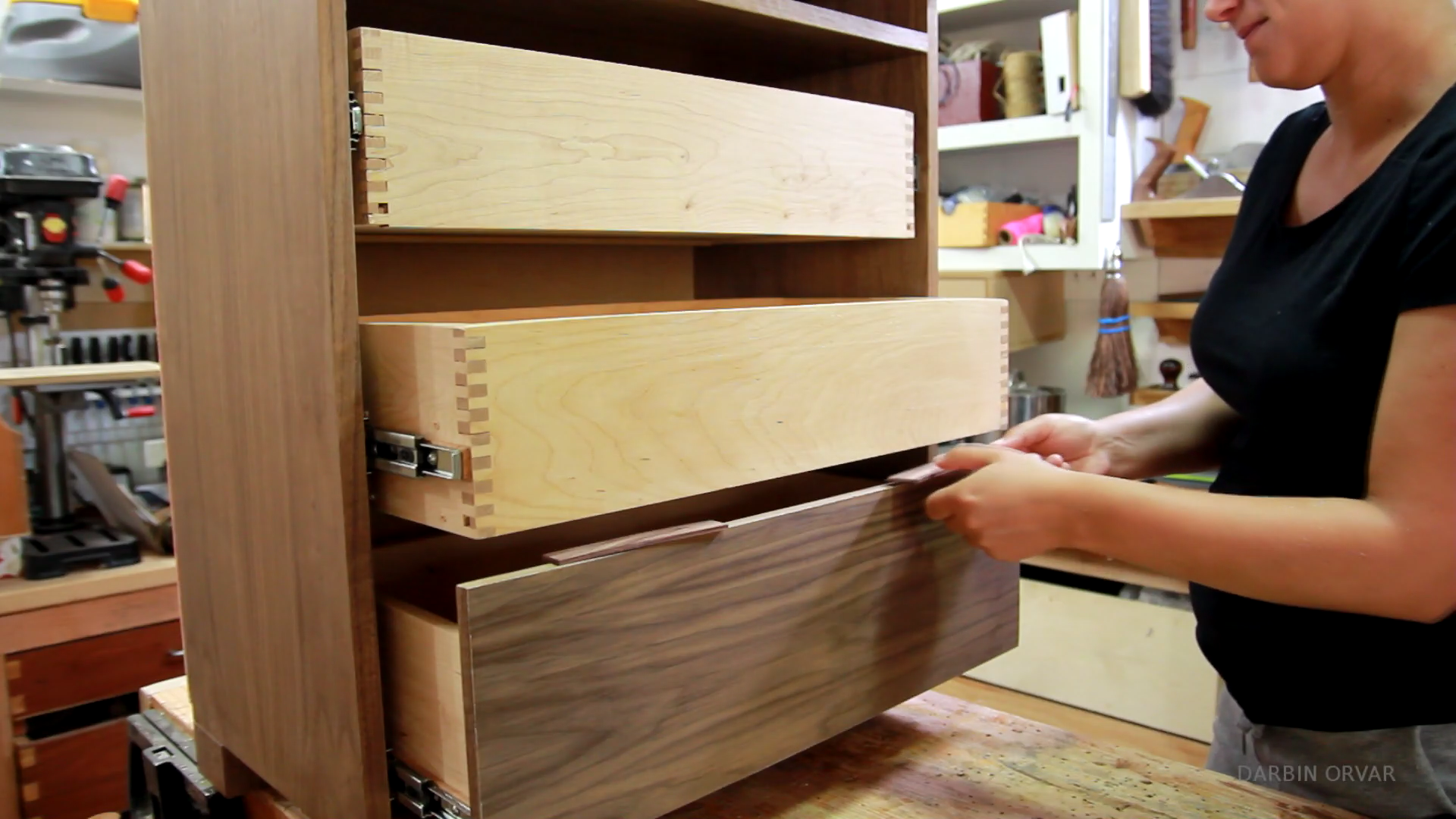

I decided to use metal drawer slides which I attached with the help of a jig on the insides of the cabinet.

Finishing

Screenshot (313).png
Screenshot (314).png
Screenshot (316).png

I ironed on walnut edge banding on all visible edges. Then I sanded the cabinet and lightly with 320 sandpaper, and applied a waterbased polyurethane to protect it.

The concrete counter was sanded and then finished with three coats of shellac for a slightly glossy and smooth finish.

Attaching the Drawers

Screenshot (317).png
Screenshot (319).png
Screenshot (320).png
Screenshot (322).png
Screenshot (323).png

At this point I positioned the drawer fronts using some spacers and some clamps to get them to align correctly. Then I attached them with screws from inside the drawers.

Leather Pulls

Screenshot (325).png
Screenshot (326).png
Screenshot (327).png
Screenshot (328).png
Screenshot (330).png
Screenshot (332).png
Screenshot (333).png
Screenshot (334).png

For pulls, I decided to create some out of veg tanned leather. It's a really simple concept where you cut up a few strips of leather and fold each one around. Then clamp down the leather to a board and drill a hole in each. Put a nice bolt through each, and after you drill a hole in the drawer, secure the bolt with a nut on the other side.

Secure the Concrete Top

Screenshot (336).png
Screenshot (337).png

To secure the concrete top I used polyurethane glue.

Conclusion - Watch the Video

Modern Nightstand w/ Concrete Top

For a much better perspective, make sure to watch the video of all the steps of the build.
