Mobile BASS Speaker !

Here is the INSTRUCTABLE to make awesome quality mobile speaker on the go !

This is so small to carry + usefull in outside the country.

3W output. Ya it's really loud enough !!

1. 2" speaker

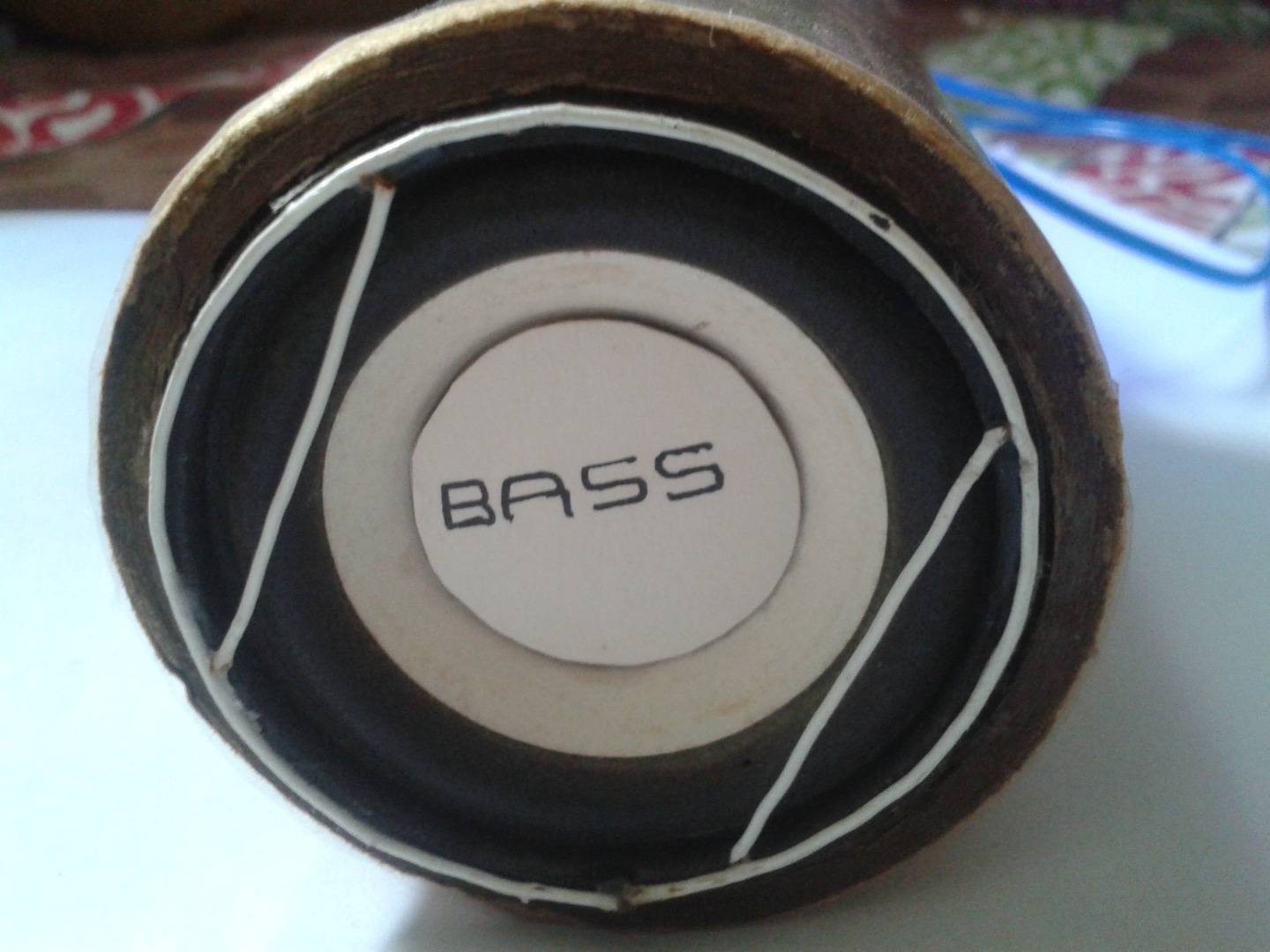

2. round wooden container (For better bass levels)

3. Audio amplifier circuit (I am providing two options)

4. LED indicator (Just power on notifier)

5. Auxiliary cable

6. any small battery (3V to 6V)

THATS IT !!

here i have been used amp ic from my old speakers --CKE2009

the datasheet is attached. But one can refer only circuit diagram.

OR refer next step.

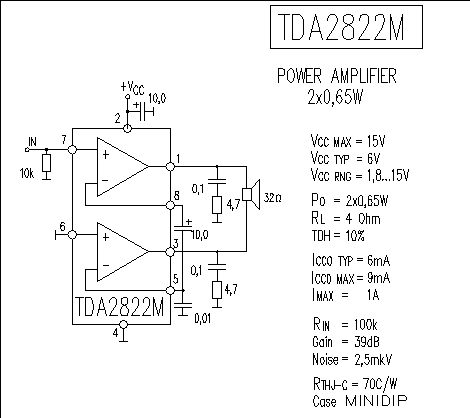

This amplifier made with most commonly available IC TDA2822

is 2.5W amplifier.

DONE !!!!!!!!!
