Miniature Bat Signal, Mk. I

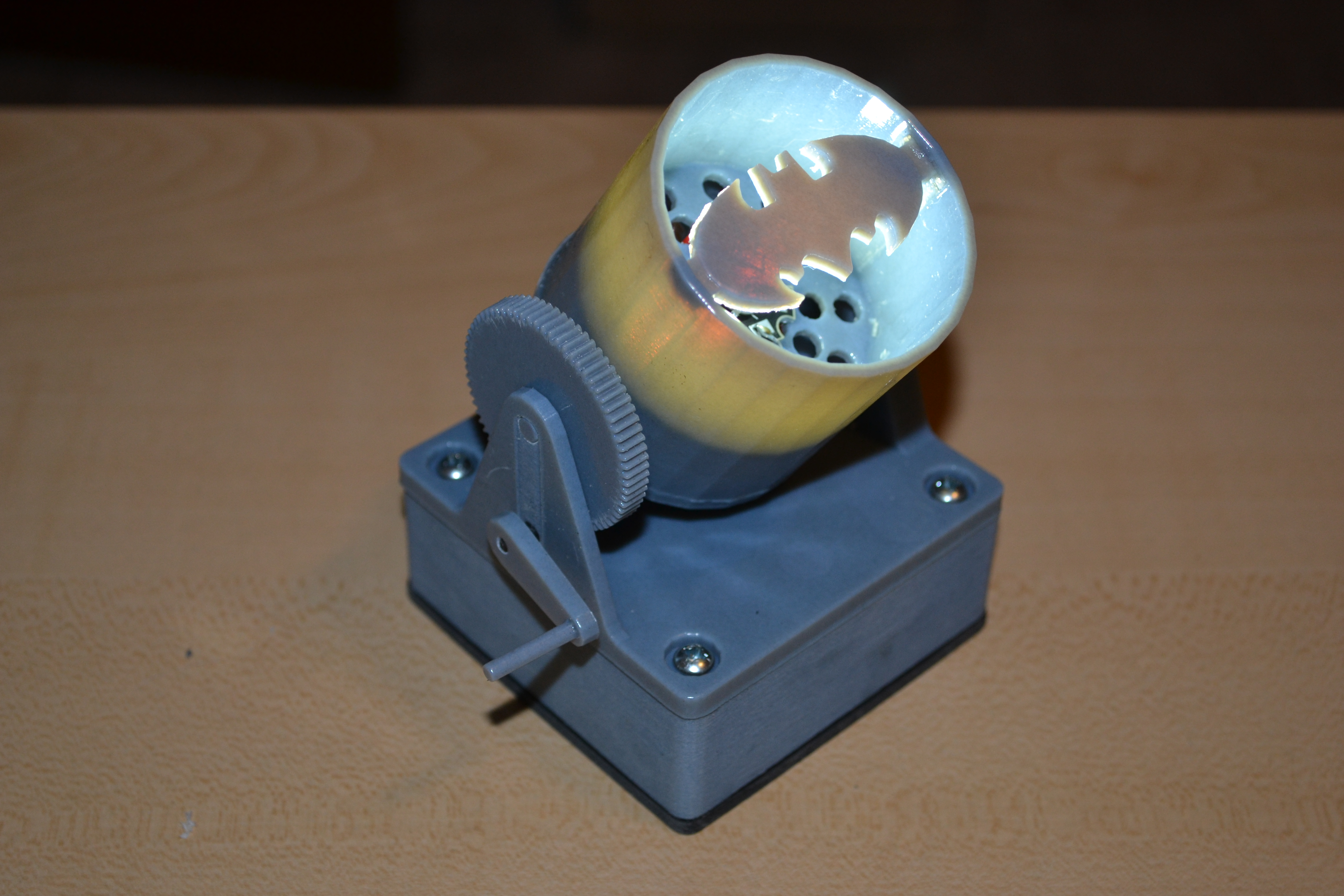

The power to summon the Dark Knight in the palm of your hand! Ok, not really of course but it's still fun to pretend.
This is the assembly instructions and circuit construction for the Pocket Bat Signal Design I posted previous to this. If you haven't seen the design walk-through here's a brief intro as to what this project is.

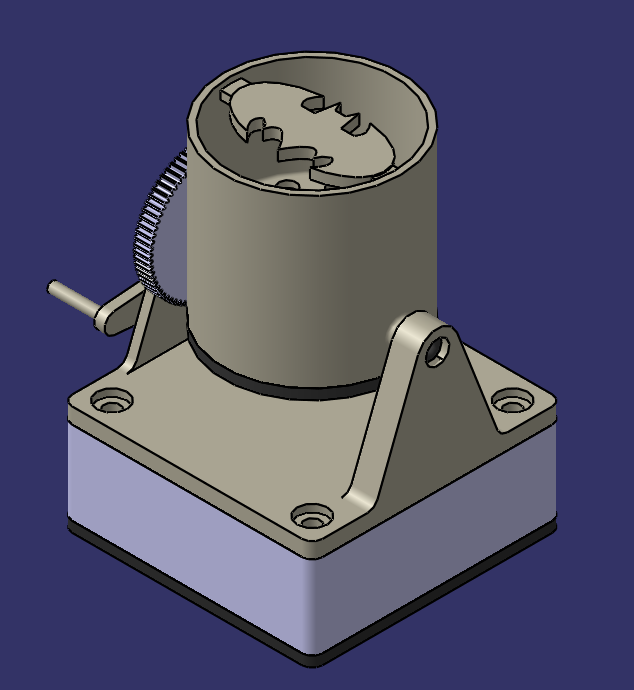

Designed for the 3D Design Contest (10/2012) it is a miniature (roughly 3"x3"x4") bat signal that can be 3D printed. It is designed in such a way that all the parts, excluding the circuit of course, can be acquired with two free prints from Instructables (if and when that program runs again) so that anyone can build their own, even if you don't own a 3D printer. It has a crank to change the angle of the barrel and is fully prepped for a LED circuit. More details can be found at the link above.

EDIT LOG
2/6/13: New .stl files with smooth curves on Step 1.

Materials

• Printed Pieces - The files are attached below. You need Smooth_Print_Block, which is everything but the barrel, and one of either Smooth_Print_OldSchool_Barrel or Smooth_Print_DarkKnight_Barrel, which are respectively the classic logo barrel and the current era logo barrel. The only difference between the two barrels is the logo. The file For Print.zip are the CATPart files of the two barrels and stacked parts.
• Super Glue or Model Glue
• 1 power LED - You can of course use any color LED you choose but white or yellow fit the theme best.
• SPDT Center Off Switch - I went with a toggle because that's what I had, and toggles are cool. The SPCO switch allows for a circuit that can switch between battery and mains power. If you only want one of these then use a SPST.
• 9 V Battery Clip
• 9 V Battery
• 4x #8-32 1/2" Screws
• Wire
• Power LED Driver Circuit- I use Dan's Constant Current Driver. You will need:
  • 1x ~100k-Ohm 1/4 watt resistor
  • 1x 1+ watt resistor - The value of this resistor is set by (.5/LED Current). Mine is 1 Ohm, 1 watt.
  • 1x TO-220 NFET - A heat sink is optional but recommended if available.
  • 1x TO-92 NPN transistor
• DC Wall Transformer (Optional) - Minimum current = LED current and must meet NFET or LED array voltage requirements.
• Prototype Board (Optional) -  Can help organize your LED array or driver circuit.

Tools

• Soldering Equipment
• Screwdriver
• Q-tip or Small Brush - This helps apply glue to tough to reach surfaces.
• Fine Sandpaper
• File - Round for reaming holes and standard for general clean up
• Toothpick

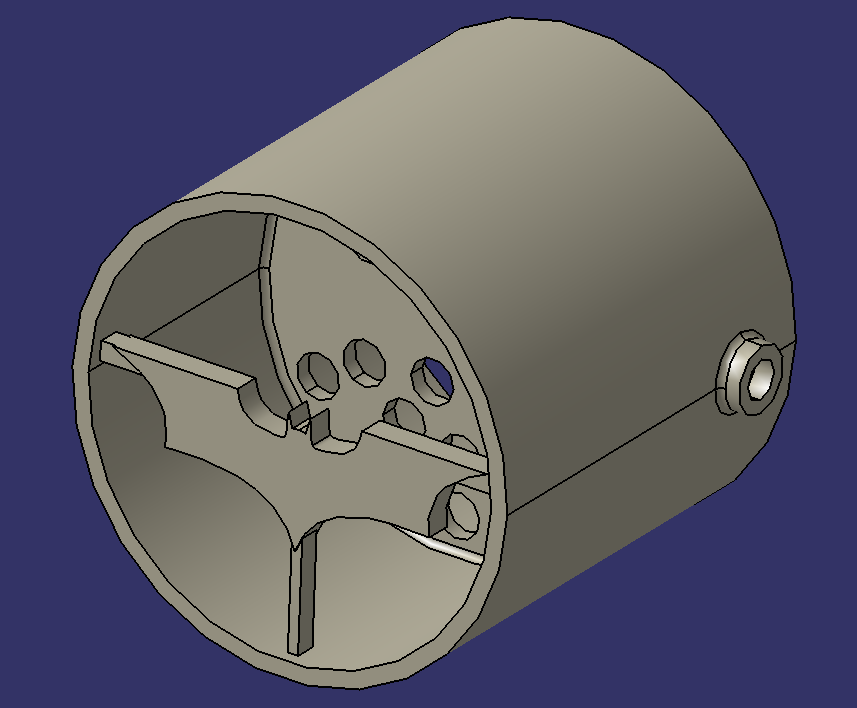

Note: The original design was made for either a single power LED or 24 standard 5mm LEDs. This is why there are holes in the divider in the barrel. The single power LED is the only one discussed here because using multiple light sources prevents the projection from working. Using a power LED is not as daunting as it might seem but if you choose you can still use the standard LEDs.

EDIT (2/6/13): The old .stl files have been replaced with new ones that have smoother curves. Now the barrel's and various radii will be smooth rather than the segmented prints you see in my pictures.

Before we start working on the circuit there are a couple of things we can put together, but before that all the parts should be washed in warm water to remove dust and excess support material. A toothpick works well to clean holes and crevices. Use sandpaper and files to make sure all the pieces fit together and that parts that are supposed to move spin relatively freely.

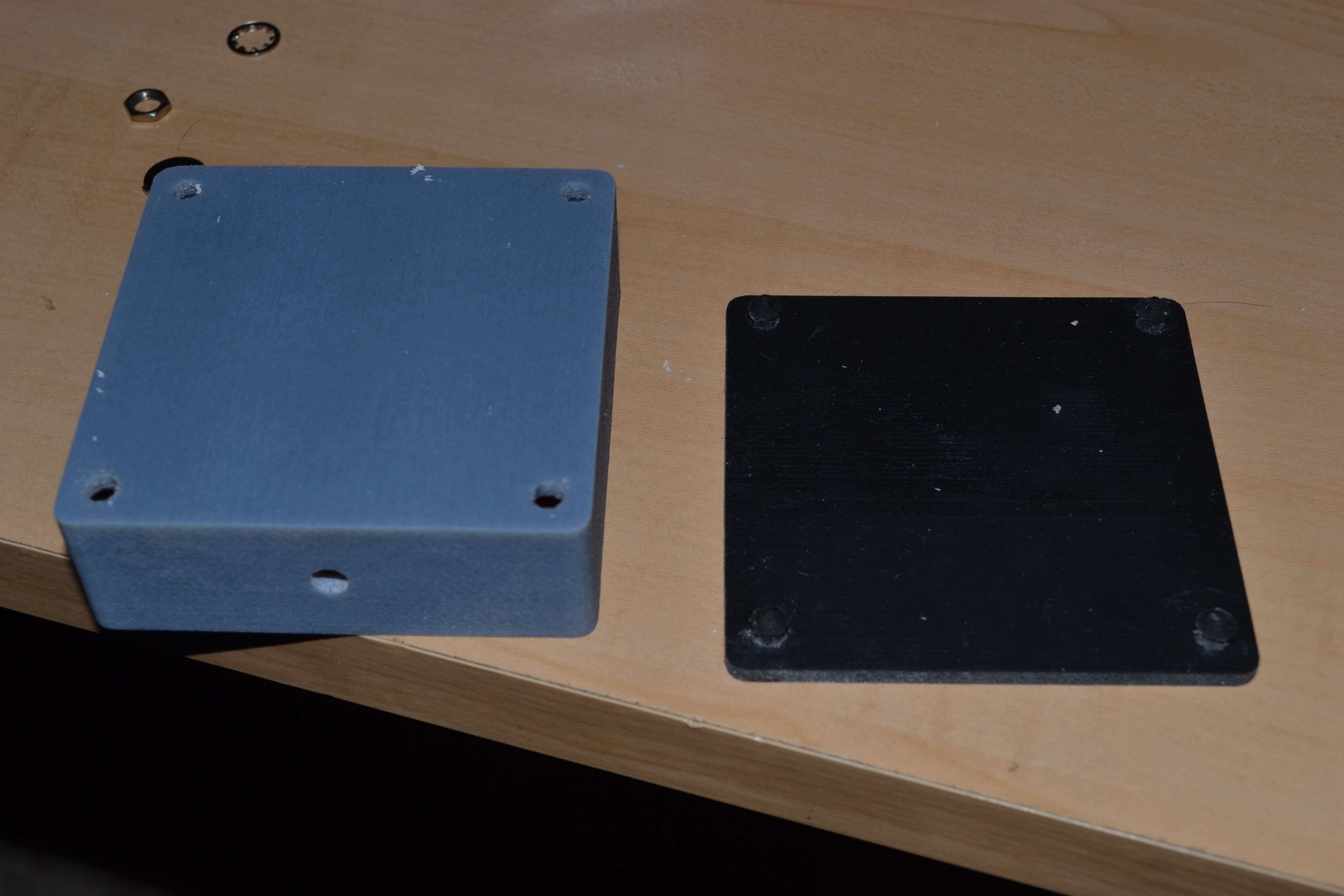

Start by taking the rubber mat and snapping the four posts into the holes in the base, this assembly will now be referred to as the base. If the mat was not specified as a flexible material or your printer doesn't have flexible materials you may need to file down the posts and glue it in place.

Next push the small axle through the hole in the thicker tab on the cover, from the outside.

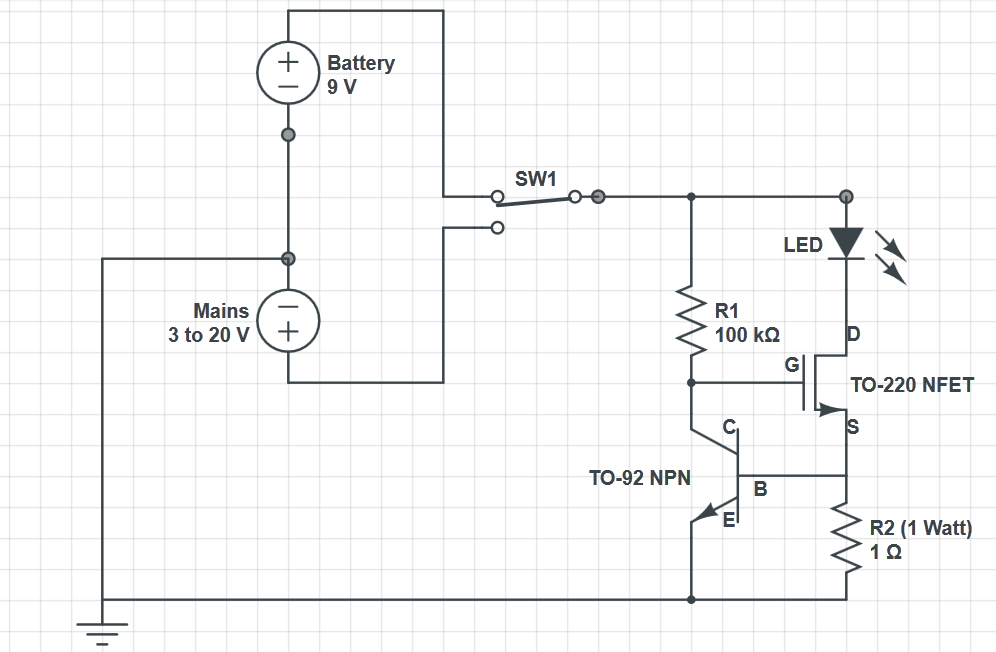

The circuit I used is a basic constant current driver. I learned it from dan's great LED driver instructable, you can read all the details there as well as find a few other circuits that may suit your needs better if you're going off book.

In the context of this project there are a couple of steps we have to take while building the circuit to make everything go together.

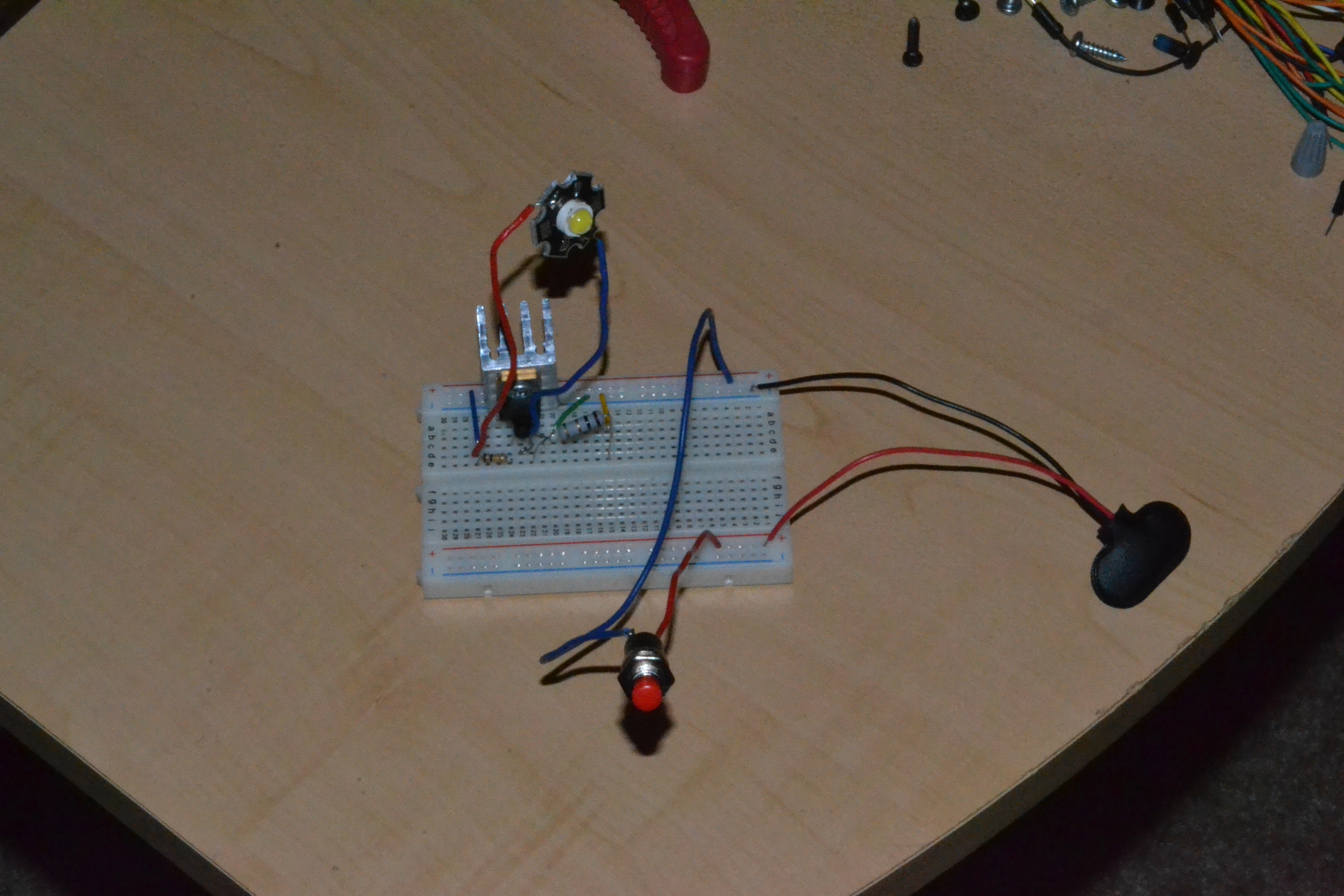

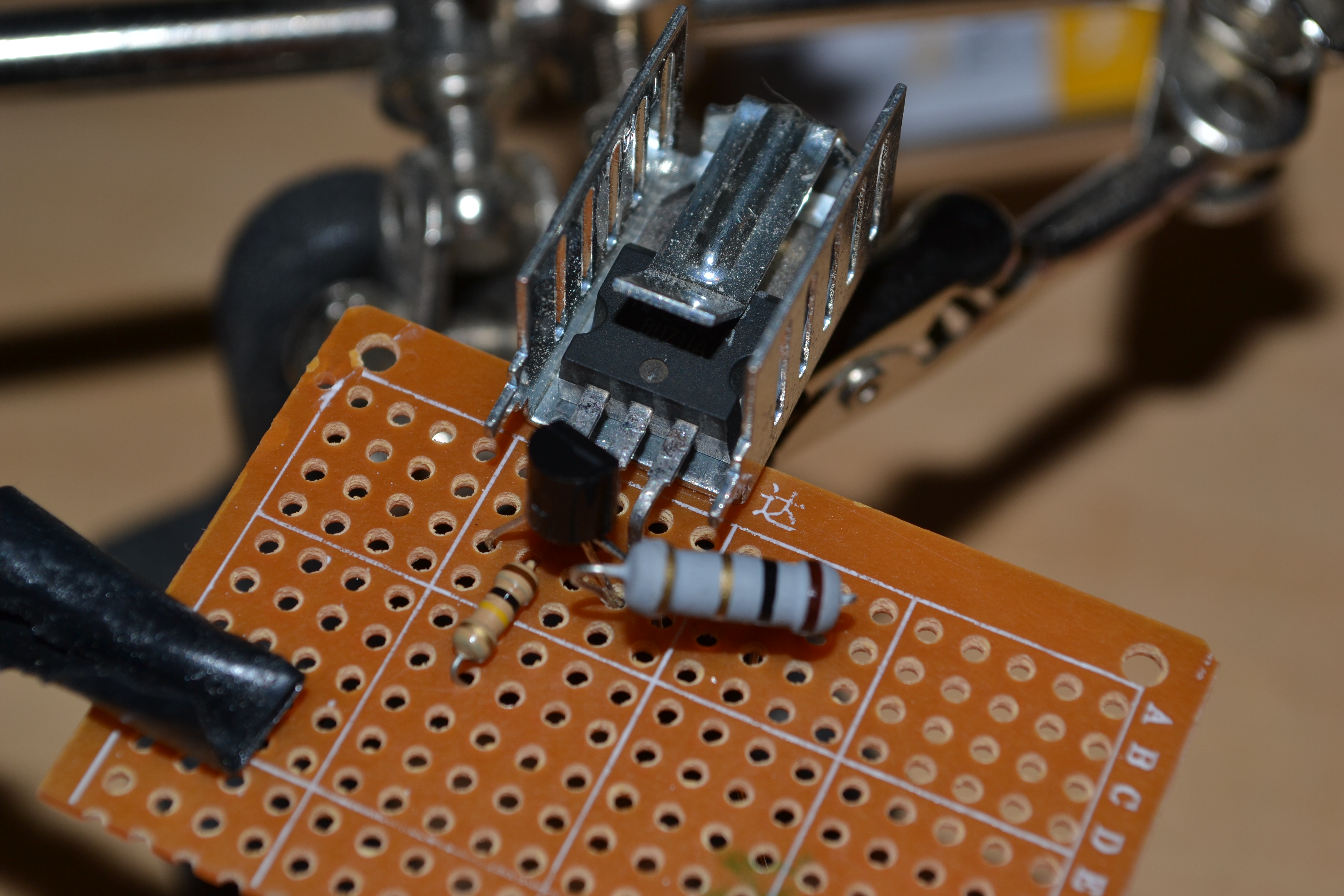

I would recommend building a test version of the circuit on a breadboard just to make sure you have the right set of components. Once you understand the construction of the circuit you can start to build it onto the PCB.

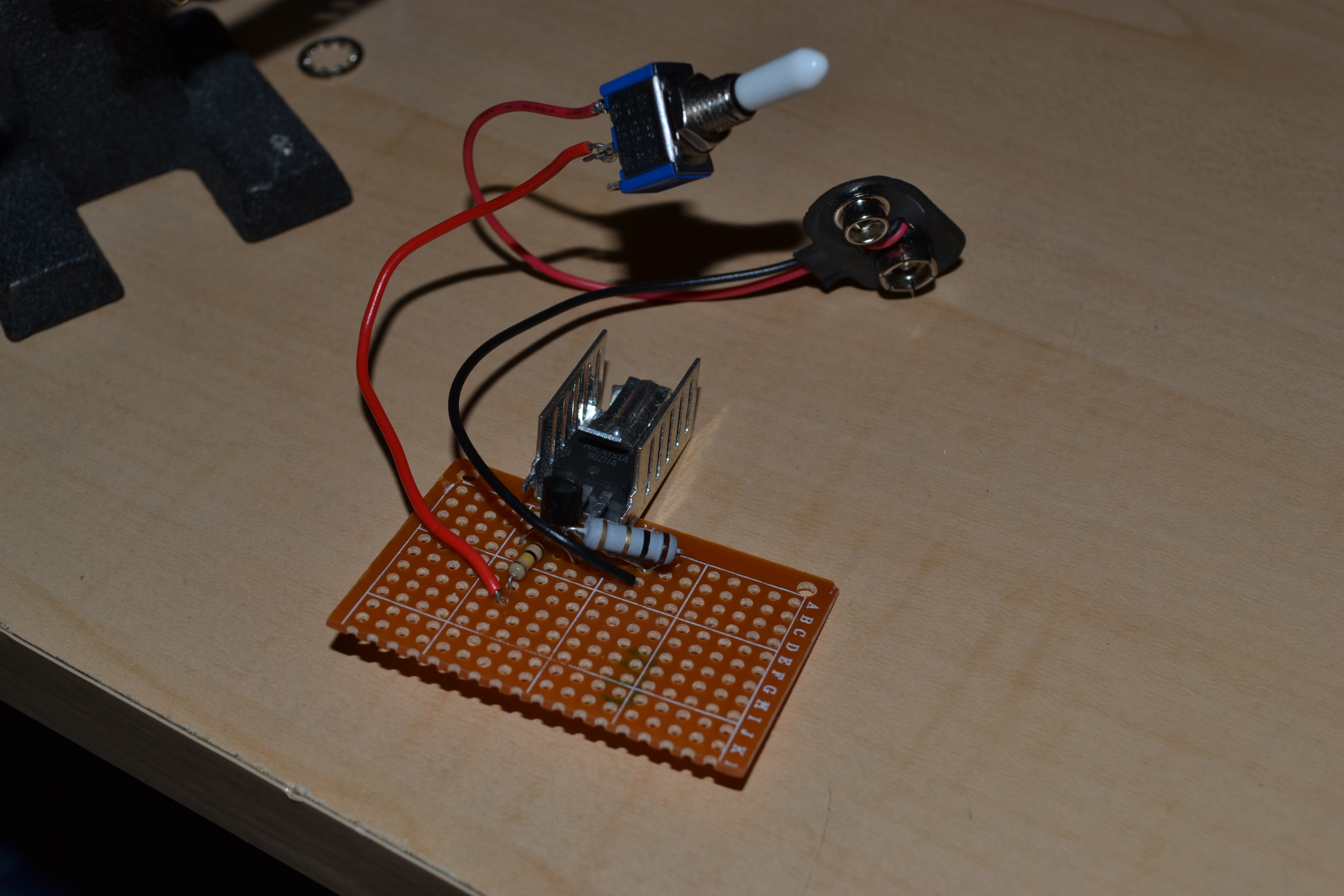

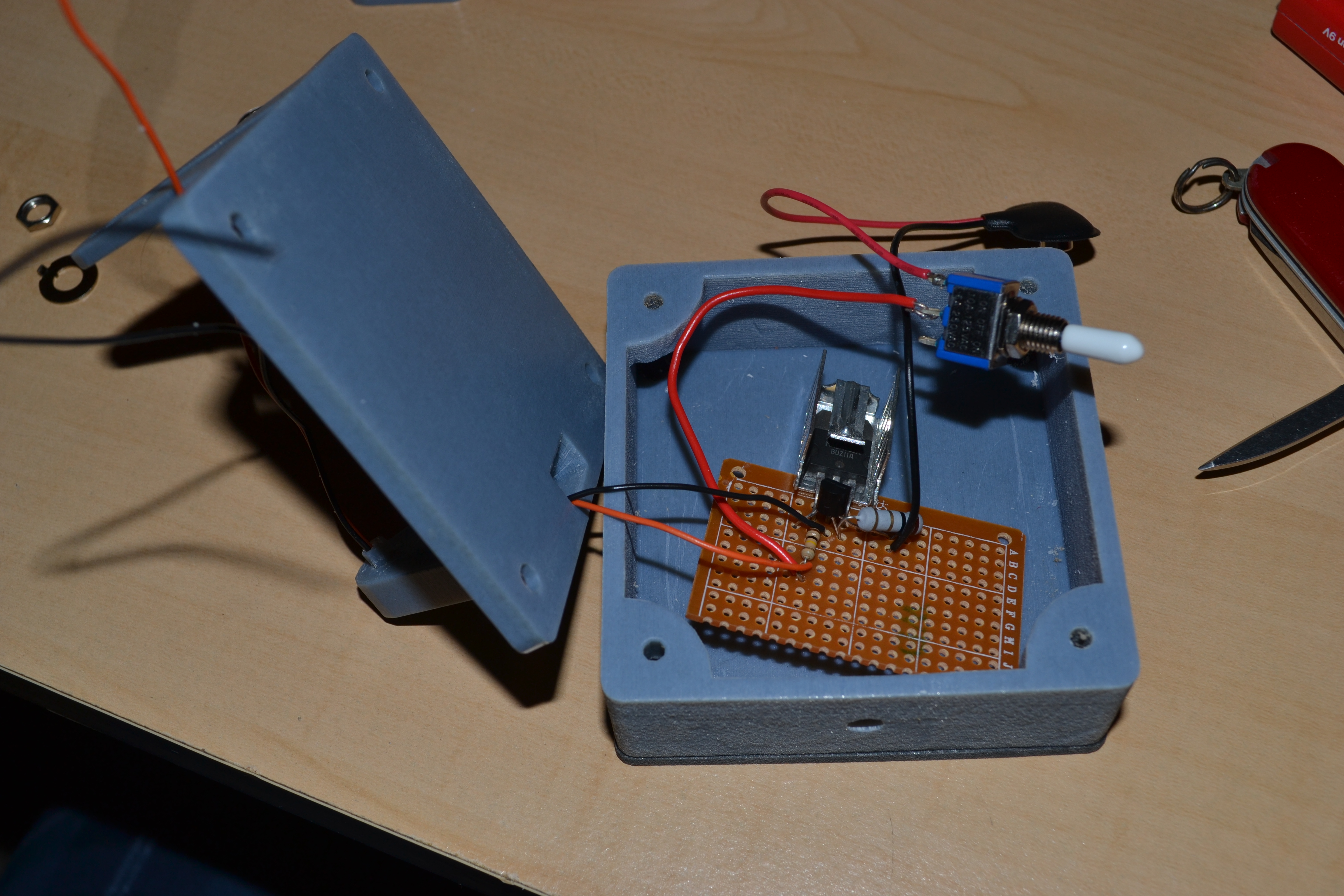

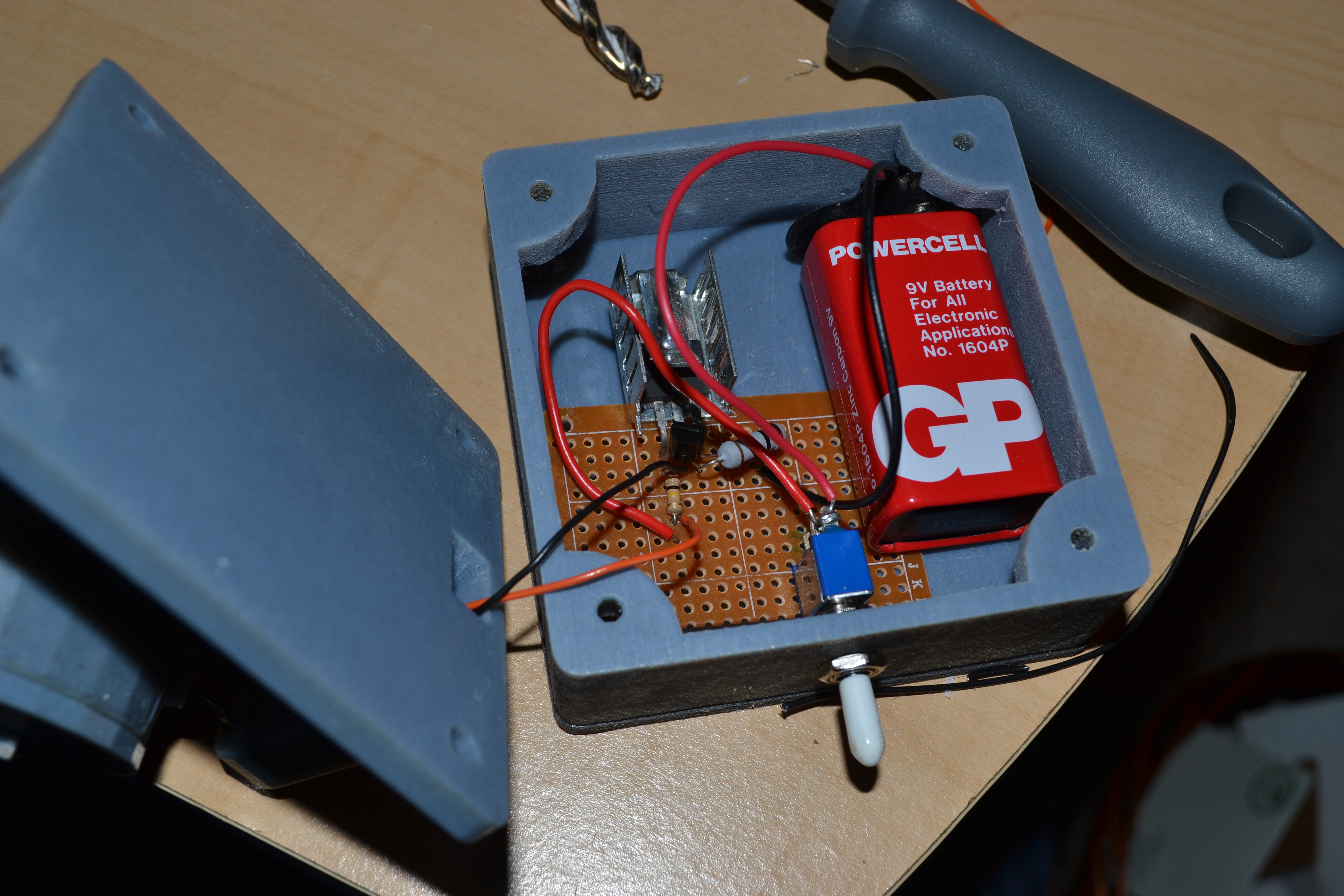

At this point you can attach everything but the LED. In this version I did not add a plug for a transformer but because of the switch used it is as simple as drilling a hole in the base and soldering the plug to the switch and V+ node in the circuit.

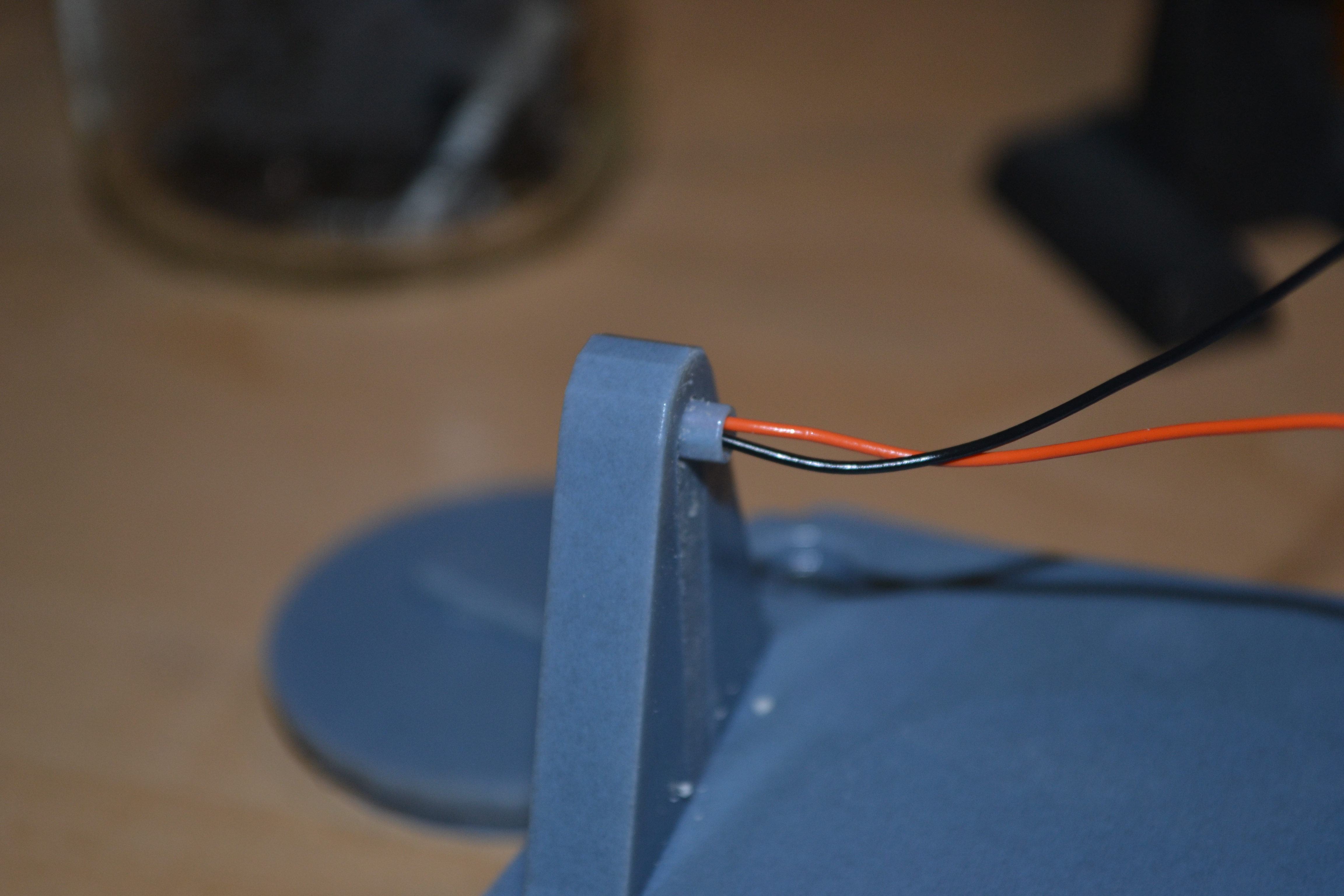

With the rest of the circuit ready, place the LED into the barrel and feed it's wires through a couple of holes, giving them a twist on the backside to keep everything in place. Feed small gauge extension wires through the cover, small axle, and side of the barrel. Solder the extension wires into the proper places in the circuit. I used some splice clips I got a while back to make the final connection between the LED and extensions but any form of inline splice will work.

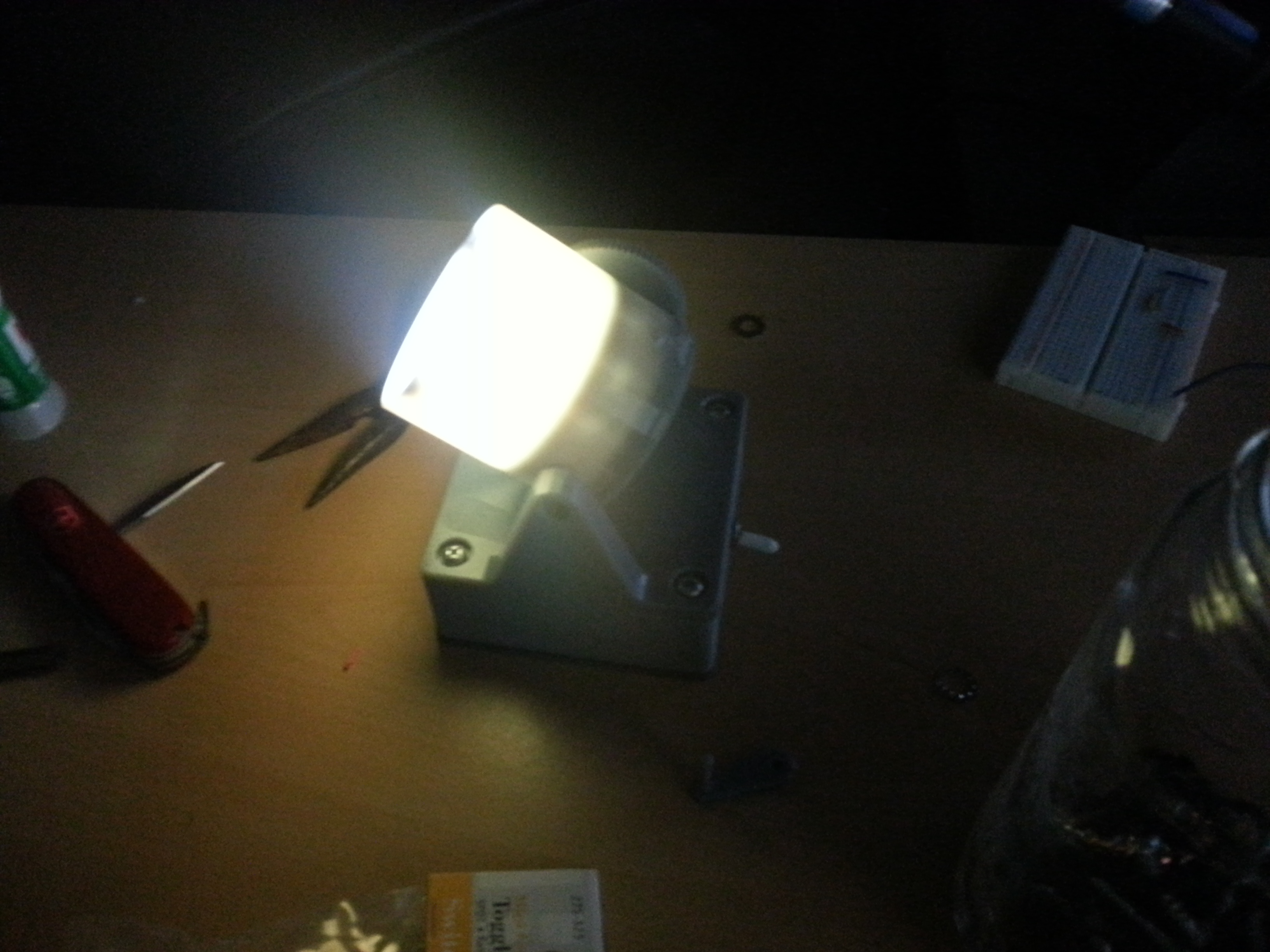

Test, test, test. If everything is working properly it's time to button it all up.

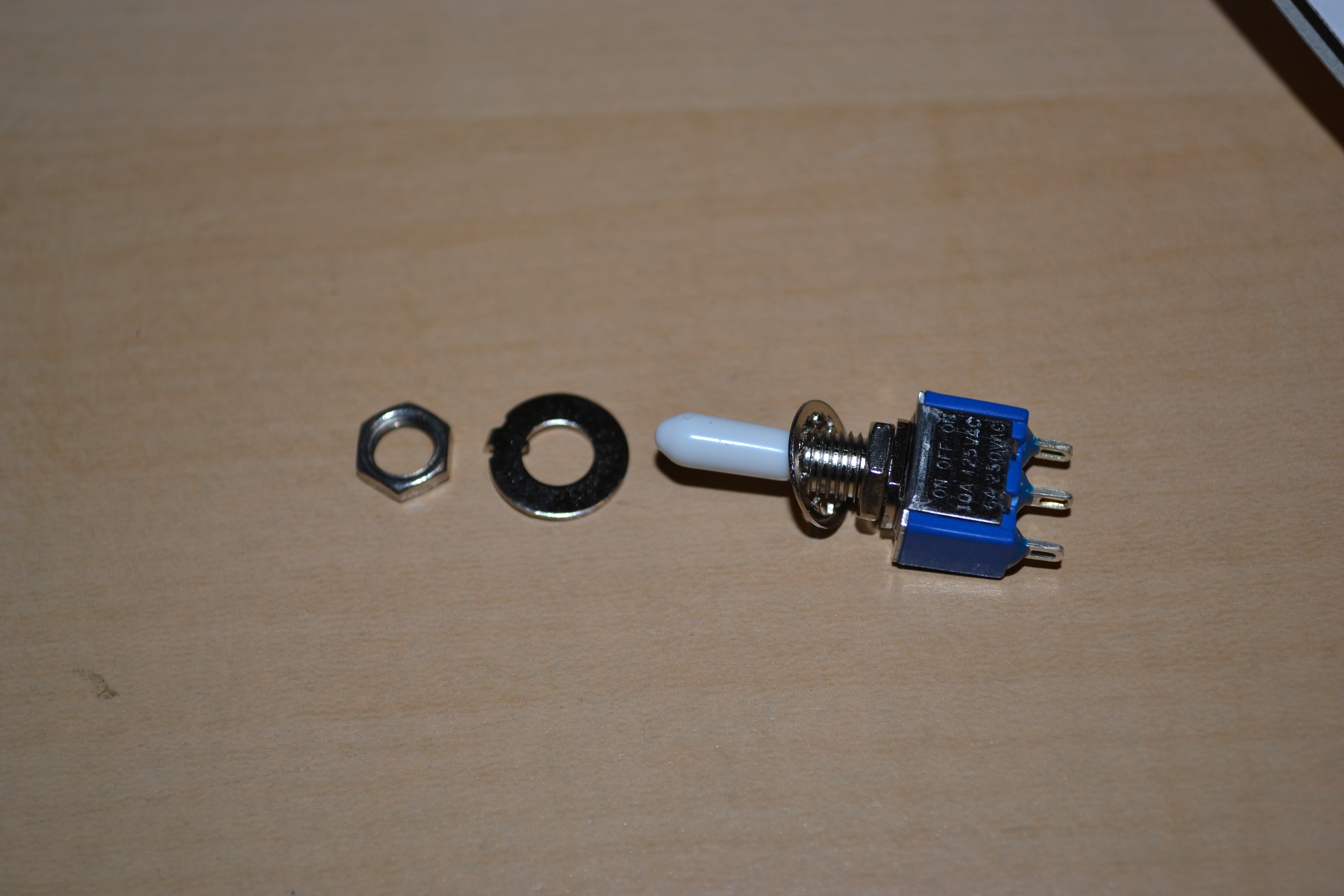

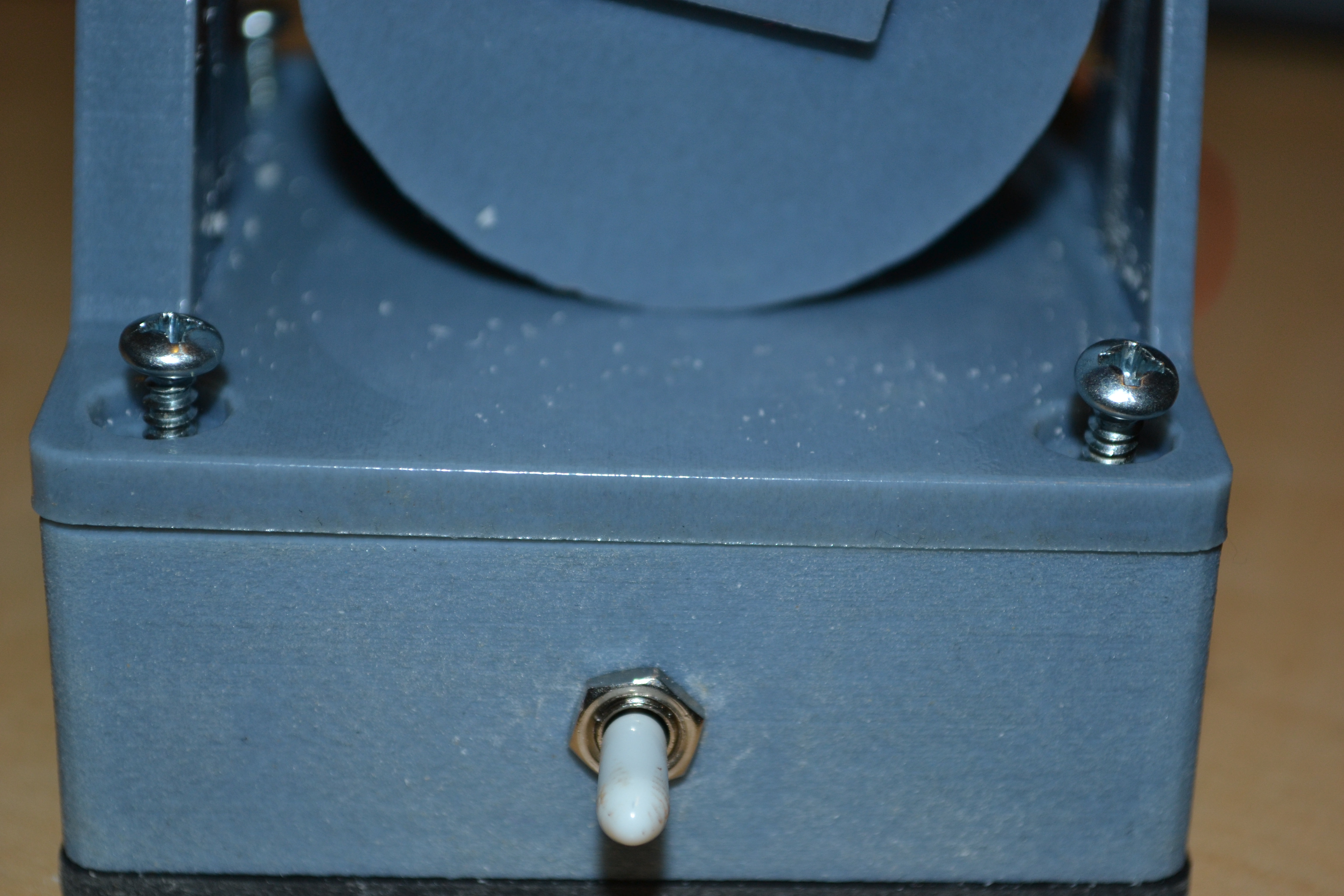

Close up the barrel by sliding and twisting the cap into place. Feed the switch through the hole in the base and use the provided panel nut to lock it in place. The cover will attach to the base in any orientation so think about where you want the switch in relation to the logo when it's in an upright position. I placed the switch in the back but the other positions are just as valid. Use screws to secure the cover.
The big gear will be fixed to the barrel and spin free in the cover tab. Use glue to secure the large axle on the gear into the large receiver on the barrel. To get the the barrel and gear into place between the tabs you will have to put the small axle in place in the barrel and then bend the thin tab back until the large gear fits into the upper hole on the thin tab. Allow the glue to dry before moving on.

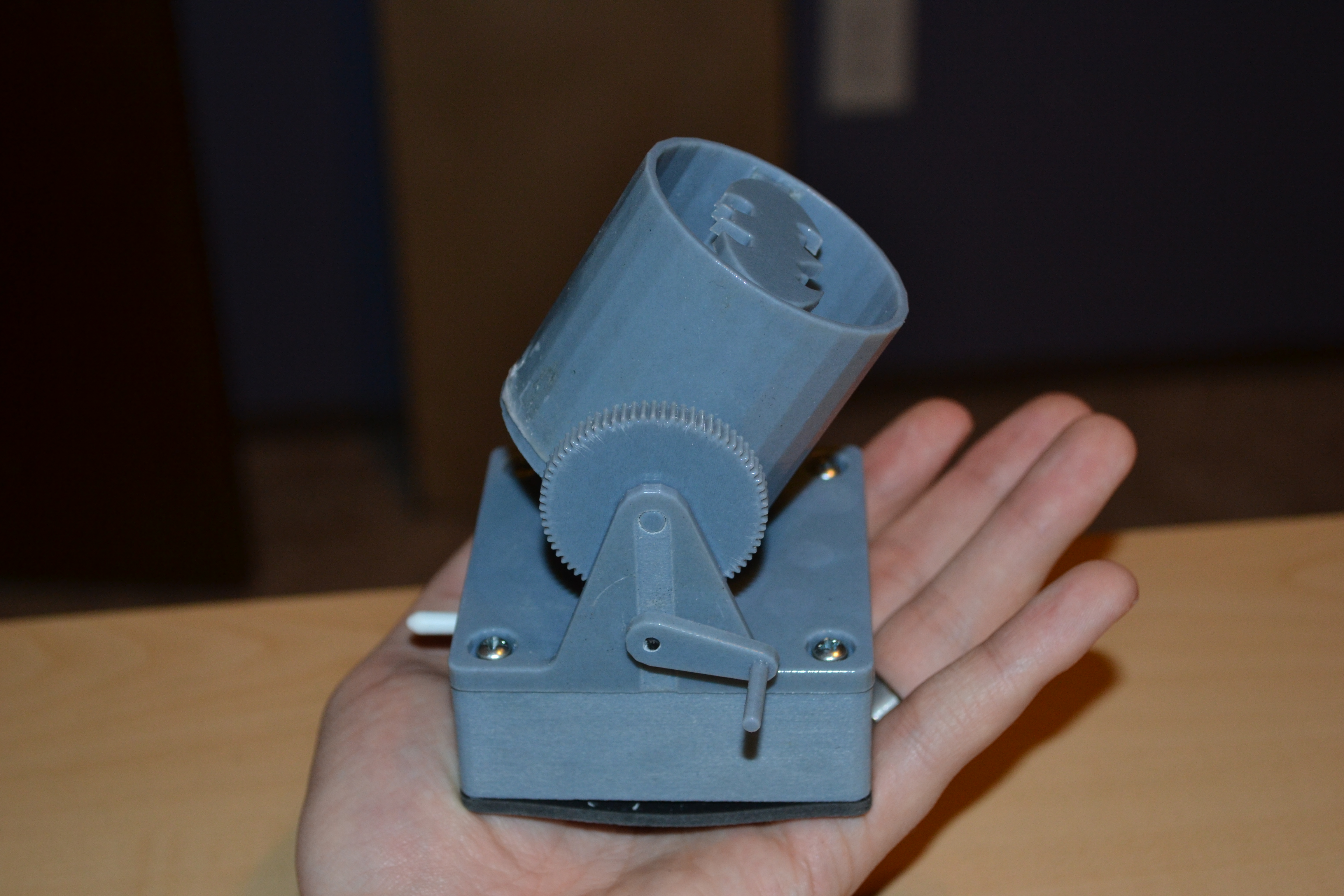

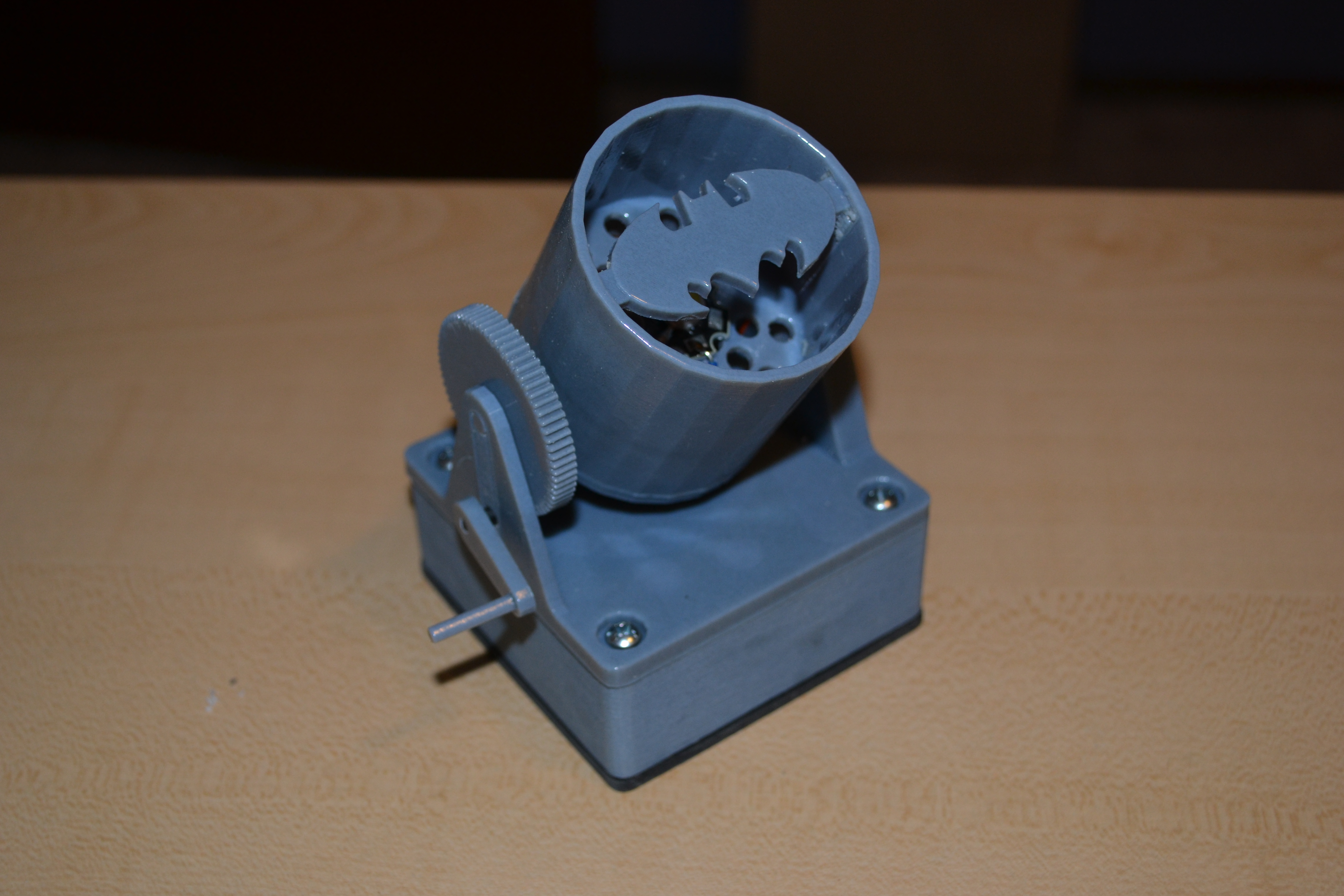

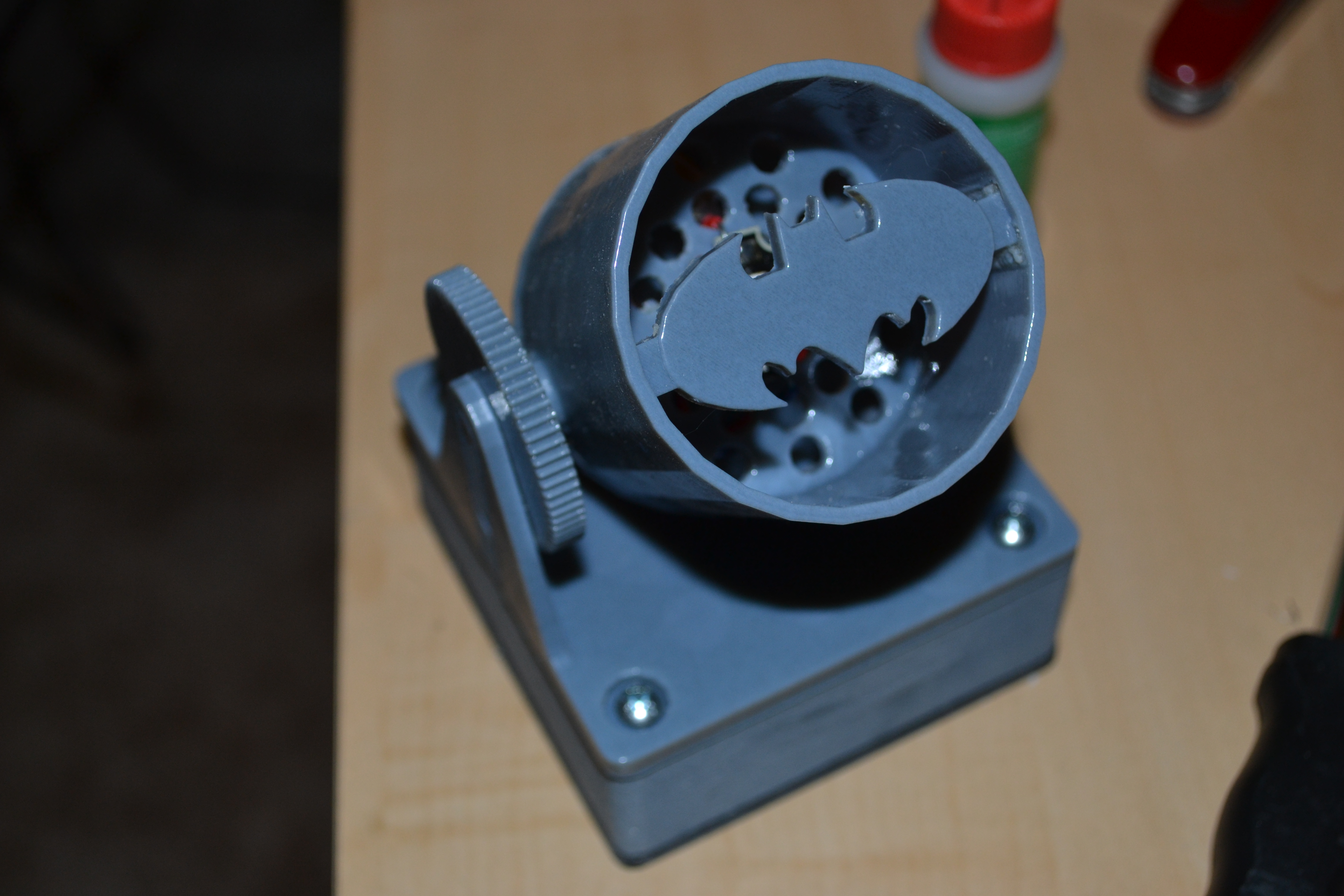

Slide the small gear into place below the large gear and engage the teeth. Tilt the barrel and make sure the small gear turns. If everything is functioning glue the crank onto the shaft of the small gear.

This is hopefully the first of, at least, a few iterations of this project. Below are some items I'm currently trying hard to work into the Mk. II, although it is likely that some of it will be pushed to a third, or higher, revision.

• Swappable Logos - Slide in different printed logos.
• Build your own logo - An extension of above but with clips that hold a cardboard logo you make yourself.
• Z-axis rotation
• Lens - The focal length of this barrel is pretty short. A lens will help extend that. Adjustable focus can come after a working lens.
• Mains power - The current circuit is ready for this but new versions will integrate it into the base as well.
• Automation - This is a ways down the road but using Arduino, or an Arduino compatible dev board, to add motorized motion and smartphone control is the ultimate goal.
• Heat Control -  Power LEDs generate a lot of heat. Having provisions for heat dissipation will improve longevity and allow for longer up-times.
• General Improvements - Easier assembly, better model tolerancing, better print file quality, etc.

A lot of this hinges on finding a good supplier for quick, cheap, 3D prints. If you've used a printing service that you can recommend please do so in the comments and thanks for reading!
