Mini Drill Press for Free.

mini drill press (7).JPG
 Hi guys, i was moving around bits and bobs of stuff i've gathered a long the years, most parts where from printers, scanners, and fax machines, i got two rails, 3 nylon sliders, add a dremel, some zip ties, i got some wood from an old cupboard that broke, and some springs also found in printers, et voilá, a free mini drill press!

Materials/tools

mini drill press.JPG
mini drill press (4).JPG
 You will need:

- two steel rails/rods
- some nylon sliders(some printers use copper sliders, it's fine)
- a few zip ties(more zip ties = sturdier)
- a bit of wood, for the base
- springs, the same diameter as the steel sliders(optional, but IMO it looks and performs better with them)
- A dremel tool

- A drill, I used a cordless one...
- Hammer.



Drill Your Piece of Wood

mini drill press (5).JPG
 Use a drill bit slightly smaller in diameter than your steel rod.

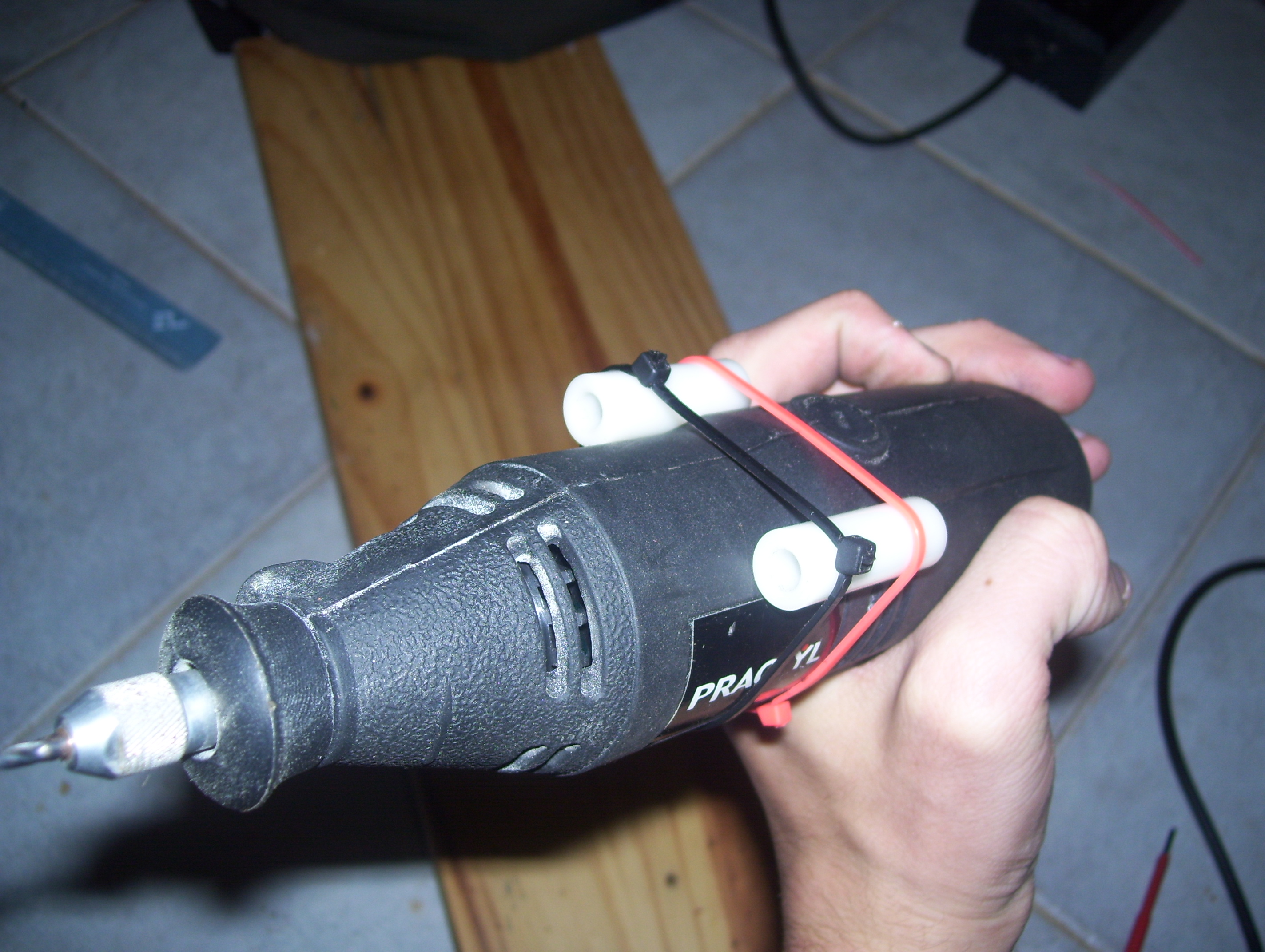

Add the Nylon Sliders to Your Dremel Tool

mini drill press (3).JPG
 Mine had a nice ridge to hold it snuggly.

Insert Your Steel Rail

mini drill press (6).JPG
 With a hammer

Make Another Hole for Your Second Steel Rod and Fit It in There!

mini drill press (2).JPG
 Then add the springs, and spacers, some may need more, and some may need less spacers, depending on how long/short your dremel is, and the dremel drill bit you're using.

Tadaa, You're Done

mini drill press (7).JPG
 It may not be very sturdy, but so far it's been better than no drill press, this is the first version, i'll make another version wich will be sturdier, and better.
