Mini Pocket Size 5V Regulated Power Supply
by TechMartian in Circuits > Electronics
1839 Views, 22 Favorites, 0 Comments
Mini Pocket Size 5V Regulated Power Supply
![IMG_2458.jpg](/proxy/?url=https://content.instructables.com/F3G/1YL7/J6WGEHLD/F3G1YL7J6WGEHLD.jpg&filename=IMG_2458.jpg)
This is very useful for your tiny projects or if you just want to test out the electronics on a store to see if they actually work.
Prototype
![IMG_2466.jpg](/proxy/?url=https://content.instructables.com/FH7/F4MR/J6WGEIEE/FH7F4MRJ6WGEIEE.jpg&filename=IMG_2466.jpg)
![IMG_2467.jpg](/proxy/?url=https://content.instructables.com/FP0/FZOB/J6WGEII8/FP0FZOBJ6WGEII8.jpg&filename=IMG_2467.jpg)
![IMG_2468.jpg](/proxy/?url=https://content.instructables.com/FUW/DM70/J6WGEIM3/FUWDM70J6WGEIM3.jpg&filename=IMG_2468.jpg)
We want to test out our circuit first before we solder it.
Follow the connections on the table below.
Voltage regulator pin# | Connection |
---|---|
1 | Battery Anode |
2 | Battery Cathode and Multimeter Negative Probe |
3 | Multimeter Positive Proble |
Measure it with a multimeter probe and make sure it gives out 5V.
Solder
![IMG_2459.jpg](/proxy/?url=https://content.instructables.com/F4K/5P7J/J6WGEHOA/F4K5P7JJ6WGEHOA.jpg&filename=IMG_2459.jpg)
![IMG_2461.jpg](/proxy/?url=https://content.instructables.com/FPM/W44O/J6WGEHX1/FPMW44OJ6WGEHX1.jpg&filename=IMG_2461.jpg)
![IMG_2462.jpg](/proxy/?url=https://content.instructables.com/FX1/YFFK/J6WGEI6Q/FX1YFFKJ6WGEI6Q.jpg&filename=IMG_2462.jpg)
Solder the circuit onto a perf board.

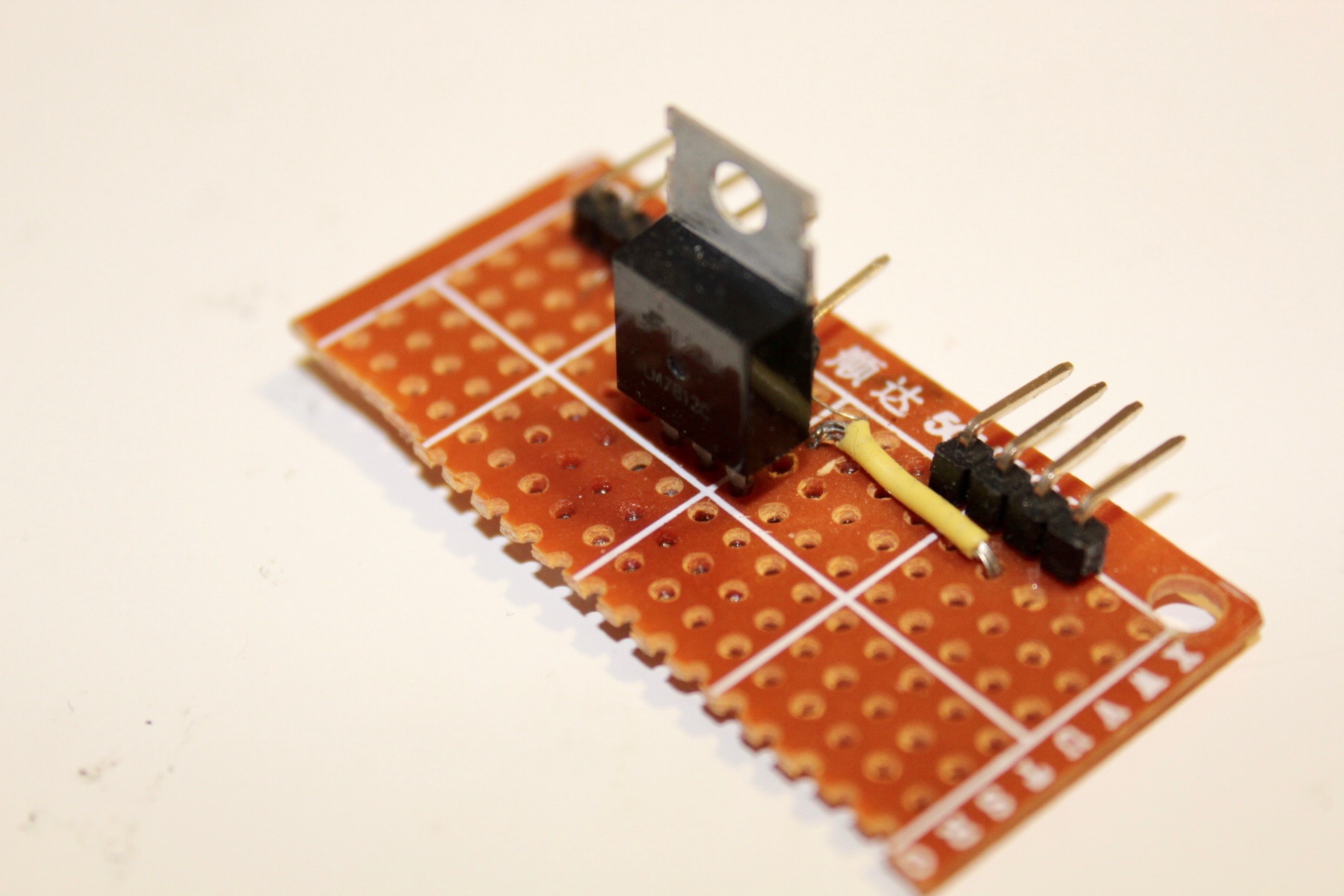

First, insert all your components through the holes -- the Voltage Regulator and 90 Degree Header Pins. Tape them onto the perf board so they don't come off.

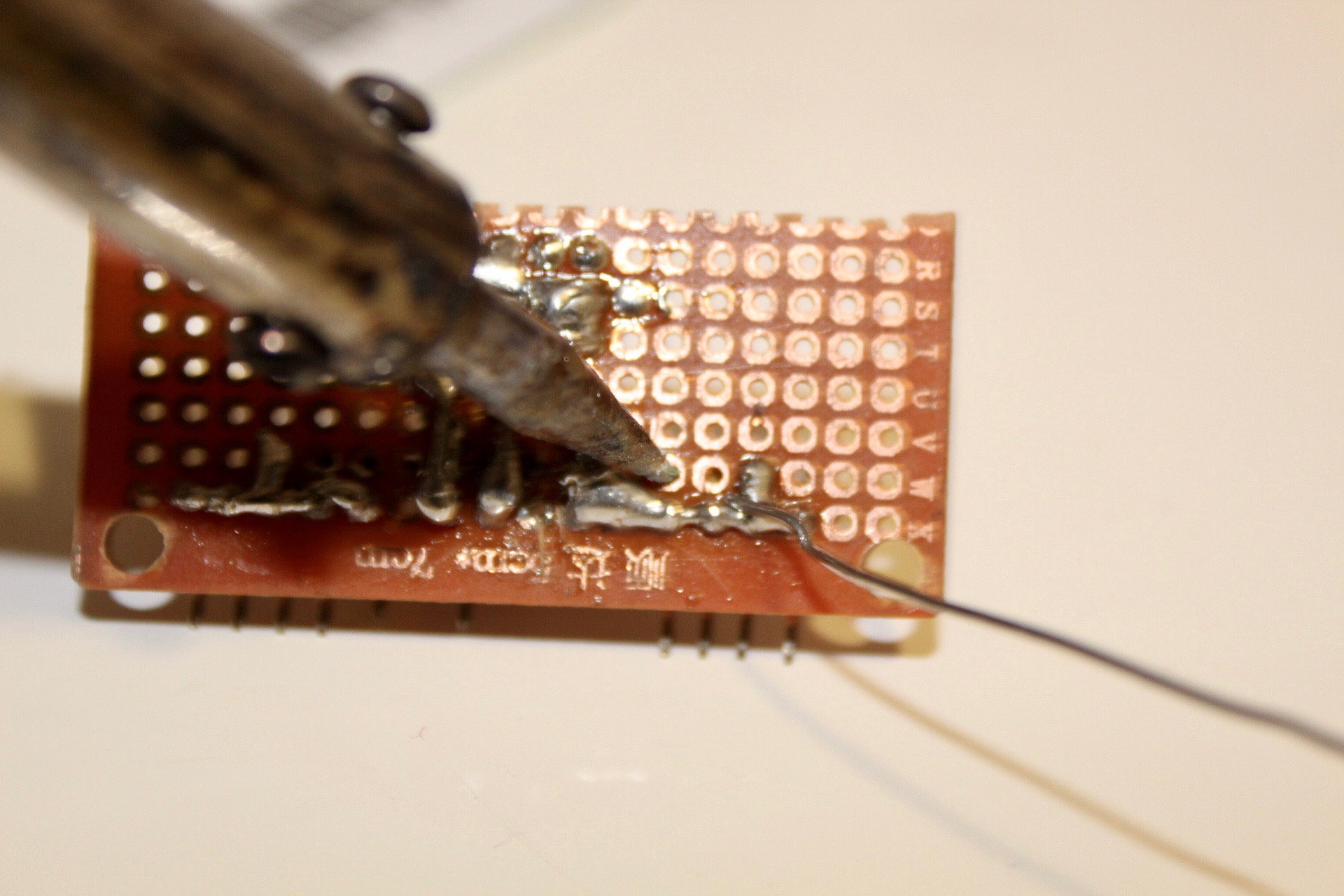

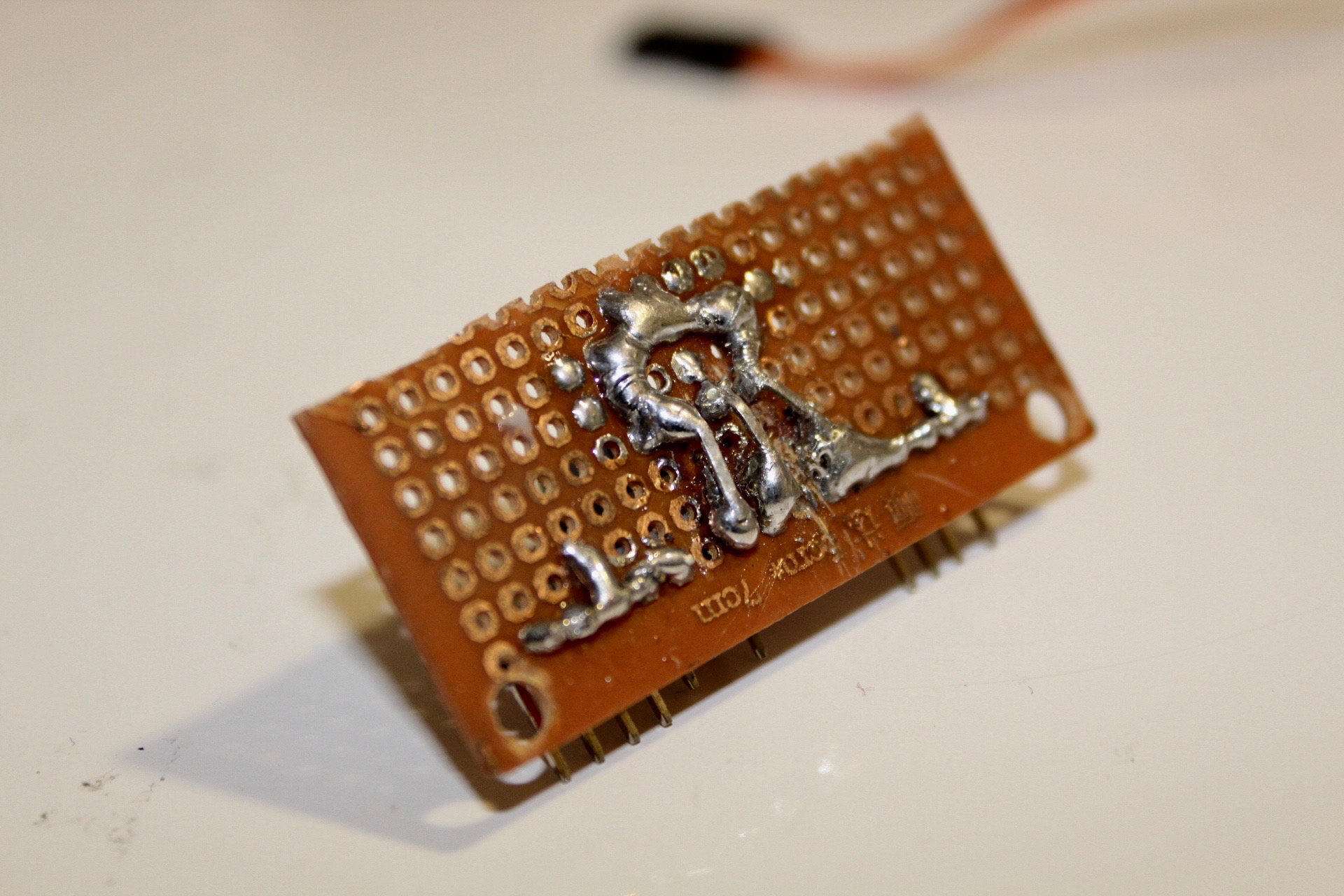

Flip it upside down and solder all the components into place. Also bridge all the header pins on the left and right side, respectively.
Solder the rest of the connections that we made in the previous step on a protoboard. I've provided a summary below:
Voltage regulator pin# | Description | Connection |
---|---|---|
1 | Input | Middle Header |
2 | GND | Header Set Right |
3 | Output | Header Set Left |
Test and Enjoy!
![IMG_2456.jpg](/proxy/?url=https://content.instructables.com/FM8/DJE9/J6WGEHIG/FM8DJE9J6WGEHIG.jpg&filename=IMG_2456.jpg)
![IMG_2469.jpg](/proxy/?url=https://content.instructables.com/F5K/484W/J6WGEIQX/F5K484WJ6WGEIQX.jpg&filename=IMG_2469.jpg)
Now test the output again with a multimeter using the DC Voltage setting at "20." The output should be 5V or very close to 5V, as shown in the picture.
