Mini-Nuclear Power Plant - Make a Urethane Mold to Cast Concrete​

This instructable will show you how I made a Urethane 3 Part Mold that I later used to cast concrete.

I"m going to split up the process into 2 steps.

Urethane Mold:

• 2 of Smooth-On PMC-746, 1.5 Quart set
• 3D Printer to print model
• Laser cutter + acrylic
• Hot Glue Gun
• Buckets
• Universal Mold release
• Gloves (disposable)

Casting Concrete:

• Duracal gypsum mix
• Water
• Buckets
• Mixing stick
• Universal Mold Release
• Plywood scrap
• Gloves (disposable)

Design Concept:

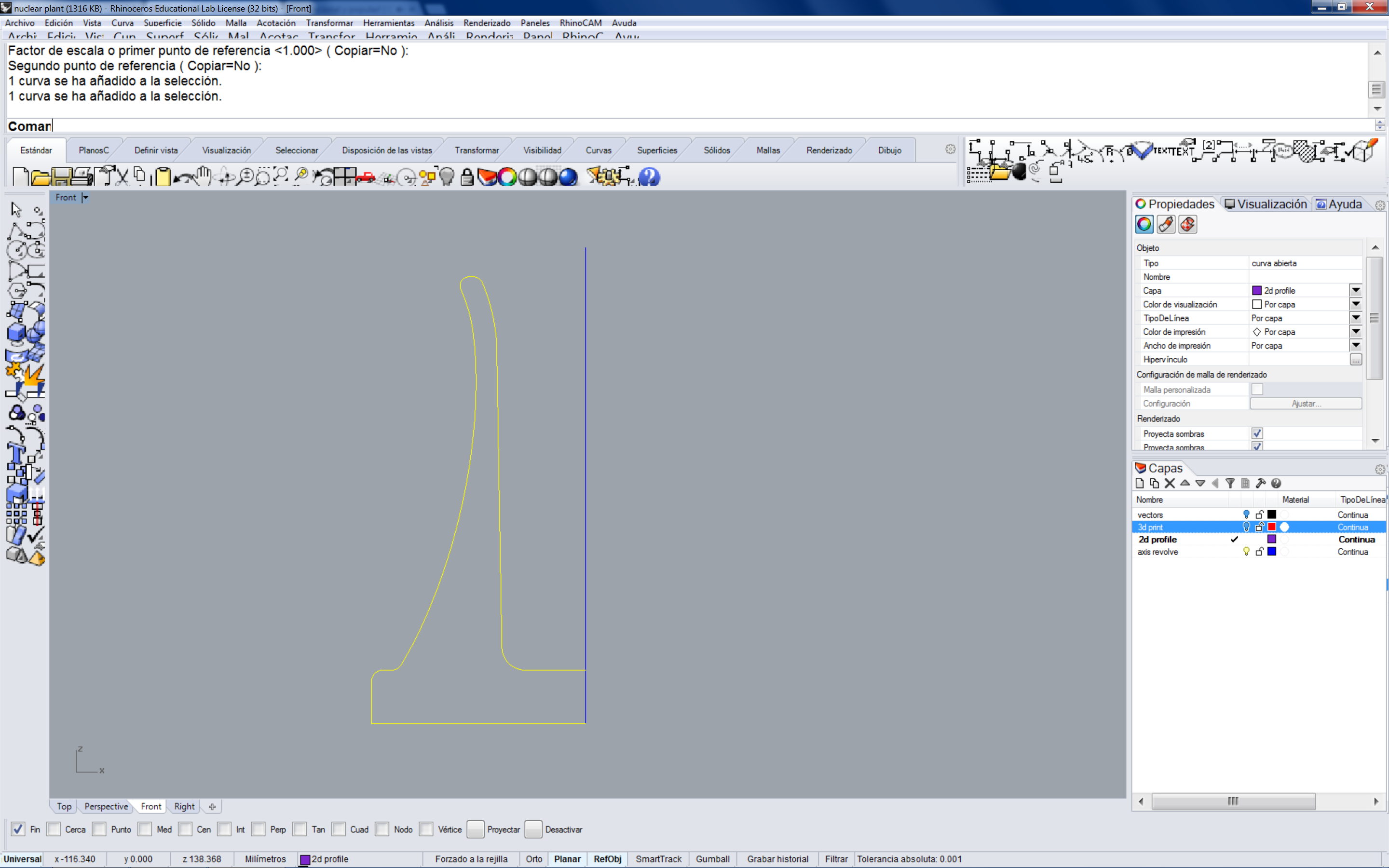

I really wanted to create a mini-nuclear power plant to use as a pencil-holder for my desk. That I found interesting about the shape was that I would have to make a 3 PART mold to actually cast concrete. I went ahead and designed it using Rhinoceros, a 3D software that I feel really comfortable using. I won't go over the details about the design in this instructable but since the shape of the nuclear plant is by revolution, the main operation we will use in Rhino is REVOLVE. You first decide a 2D line of the profile and then revolve it. I'm including the STL file of the Mini Nuclear Plant.

Once you have the design ready, I went to the 3D Printer and printed it.

Making a box:

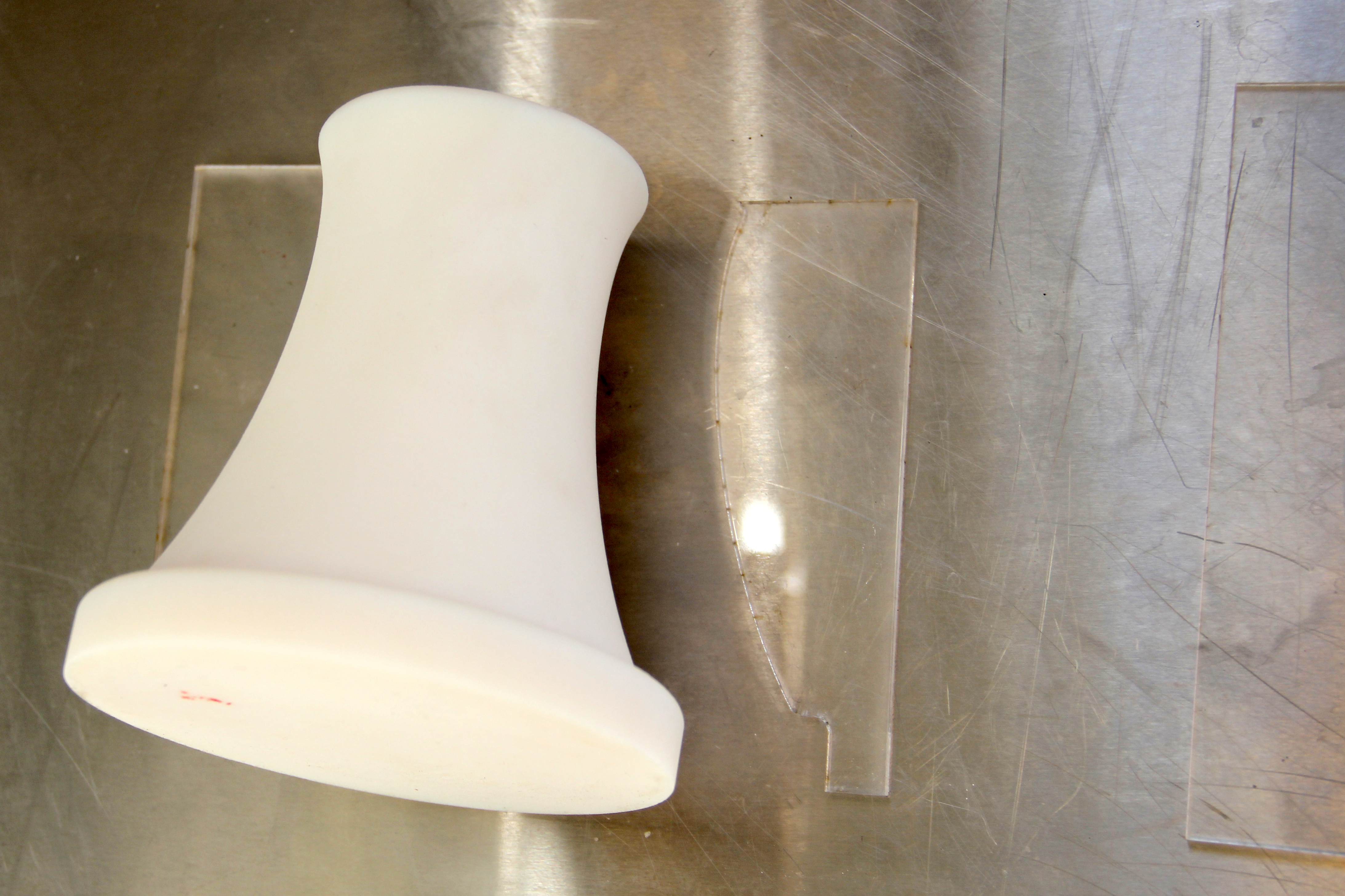

While you are printing your mini-nuclear power plant you can start by making an acrylic box where we will pour our urethane. I also included the 2 profiles that will be our parting line in the middle of the object.

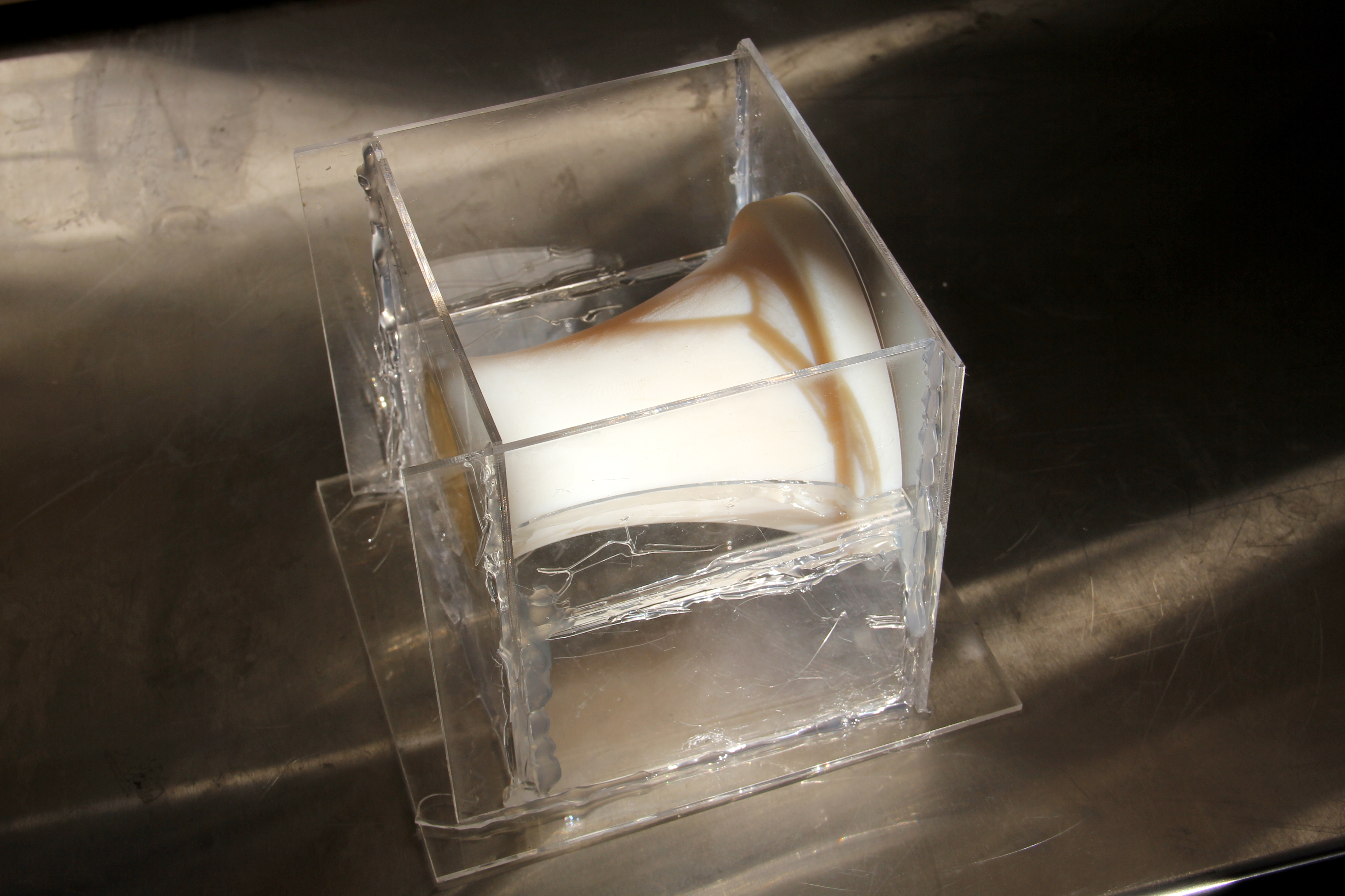

Once you have your 3D printed model and acrylic ready you need to use a hot glue and glue the base of the model to the bottom of your box. Also, join glue the 2 profiles to the center line of the model.

Continue gluing a square base to the top and then follow doing the 3 sides leaving 1 open to pour, as shown on the 2nd photo.

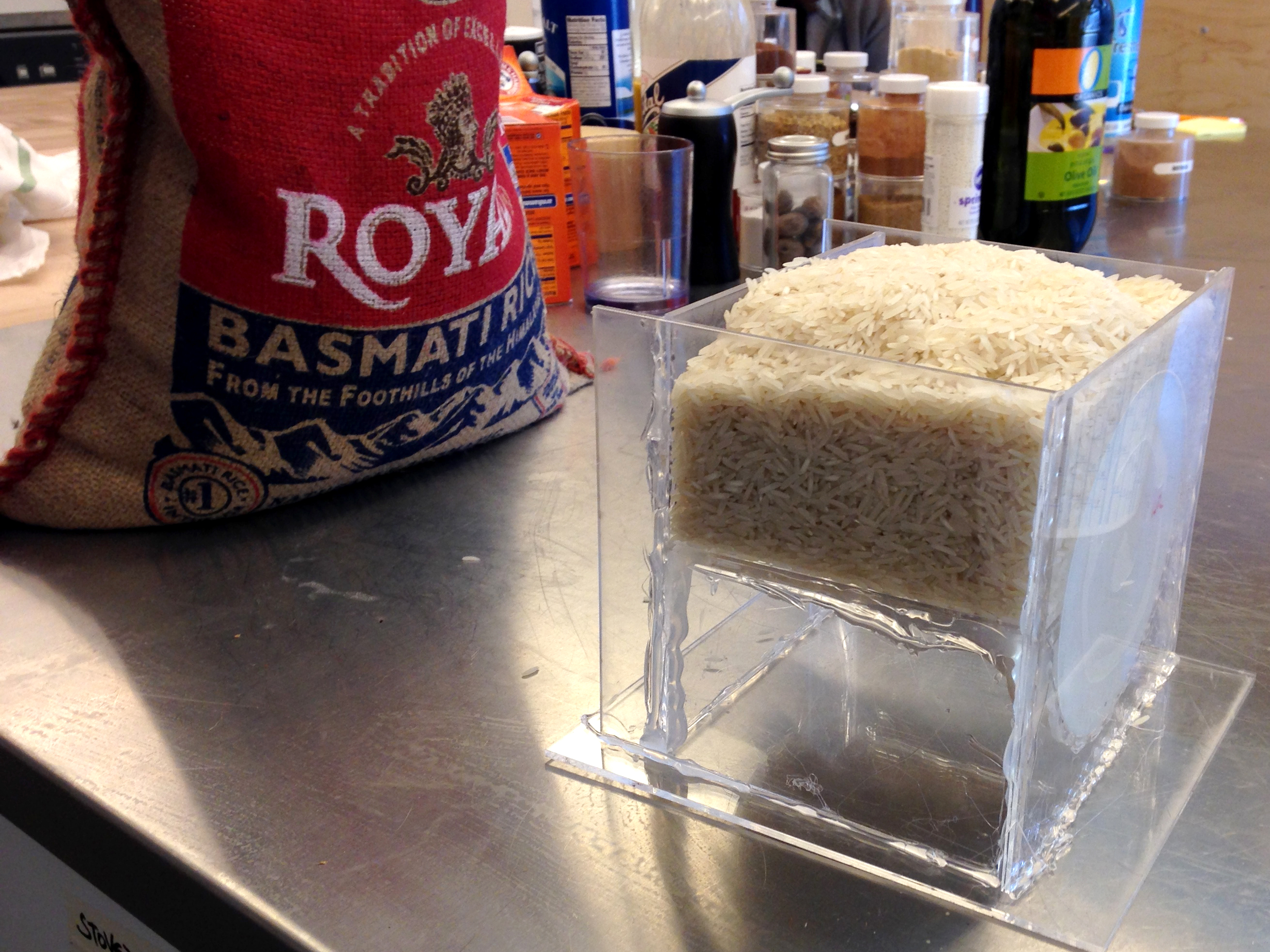

Before you start guessing how much volume you need to use to fill the open side of the mold it is a good idea to measure the volume. A good and easy method that I recommend is by using RICE. Pour as much rice need to fill the open side and then use a measuring device and take note of how much was used (800 ml).

Now spray the mold release to your model and box making sure you cover all of the surface that will be in contact with the urethane. If you don't do this it will be really hard (impossible) to remove the urethane from the box.

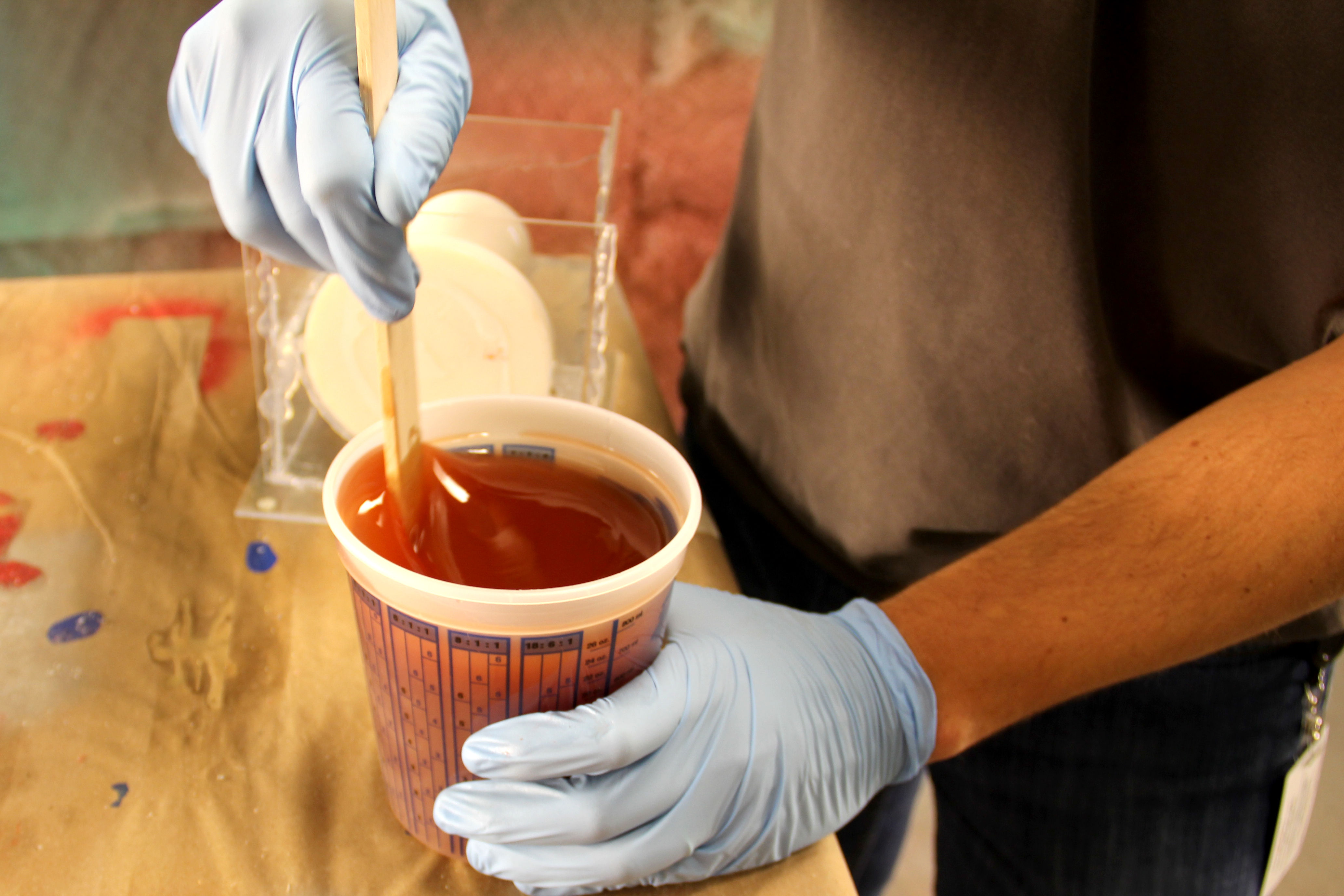

The Urethane I used for this project was the Smooth-On PMC-746. It is a 2 part mix so we divide 800ml by 3 which gives us roughly 270 ml for 1 component and 540 ml for the 2nd componen5 of the mix. Use a stick to stir well and pour as shown on the video. Try and select the lowest point of the mold and pour all of it at the same location to prevent air traps (bubbles). The urethane will spread slowly across the mold. Wait for it to dry for 24 hours and brake apart the acrylic box.

Now it is time to make the other half of your 1st mold. For this you need to make a box out of melamine with the same dimensions for the mold to and 3d printed model fit snug.

Spray Mold release to the inside of the melamine box, 3d printed model and over the urethane mold.

Mix the same amount of urethane from the previous step and pour it over. Wait for 24 hours and remove the 2 molds and model.

Now that you have 2 molds you need to measure the inside volume to make the 3rd mold. Use rice to fill the inside of the model. You also need to add some volume. I ended up using the same amount of volume as in the 1st and 2nd mold (270 ml and 540 ml.)

Now grab 5 pieces of melamine and create a small box where the 2 molds + the urethane fit snug. Use hot glue to join the melamine pieces together as well as sealing the seams (1st photo).

Spray the Universal Mold Release over the 2 molds, 3d printed model and inside melamine walls.

Mix the 2 part urethane in 270 ml and 540 ml amounts. Stir with a mixing stick for 2 minutes and then pour inside the box. Try to pour it first inside the hole of the nuclear power plant (the lowest point of the mold) (photo 2).

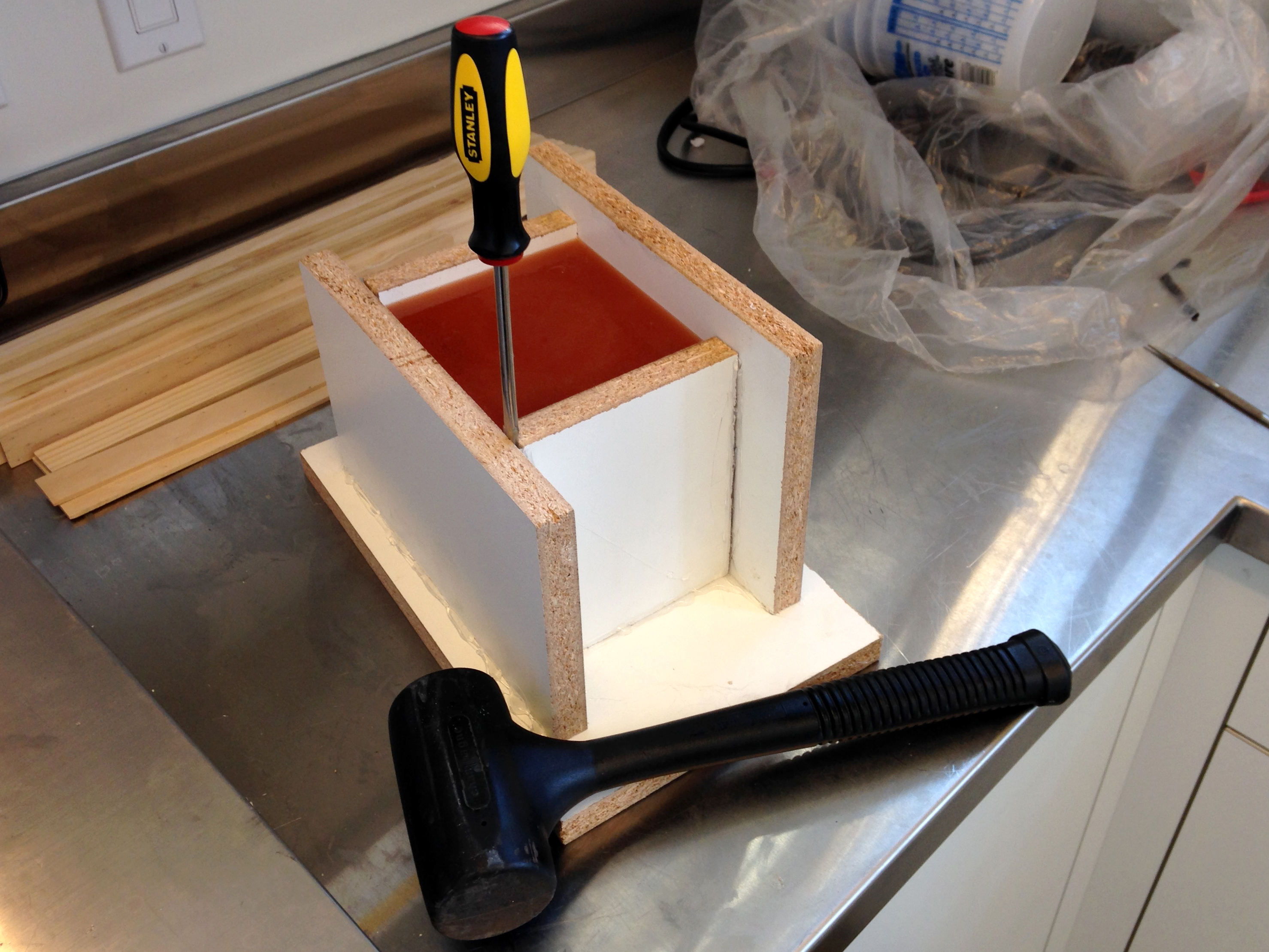

Let it sit for a day and then grab a screwdriver and mallet to break apart the mold (photo 3) and remove the 3rd piece of your mold.

OK, you now have your 3 part mold that might be a little dirty with mold release so it might be a good idea to clean it with soap and water.

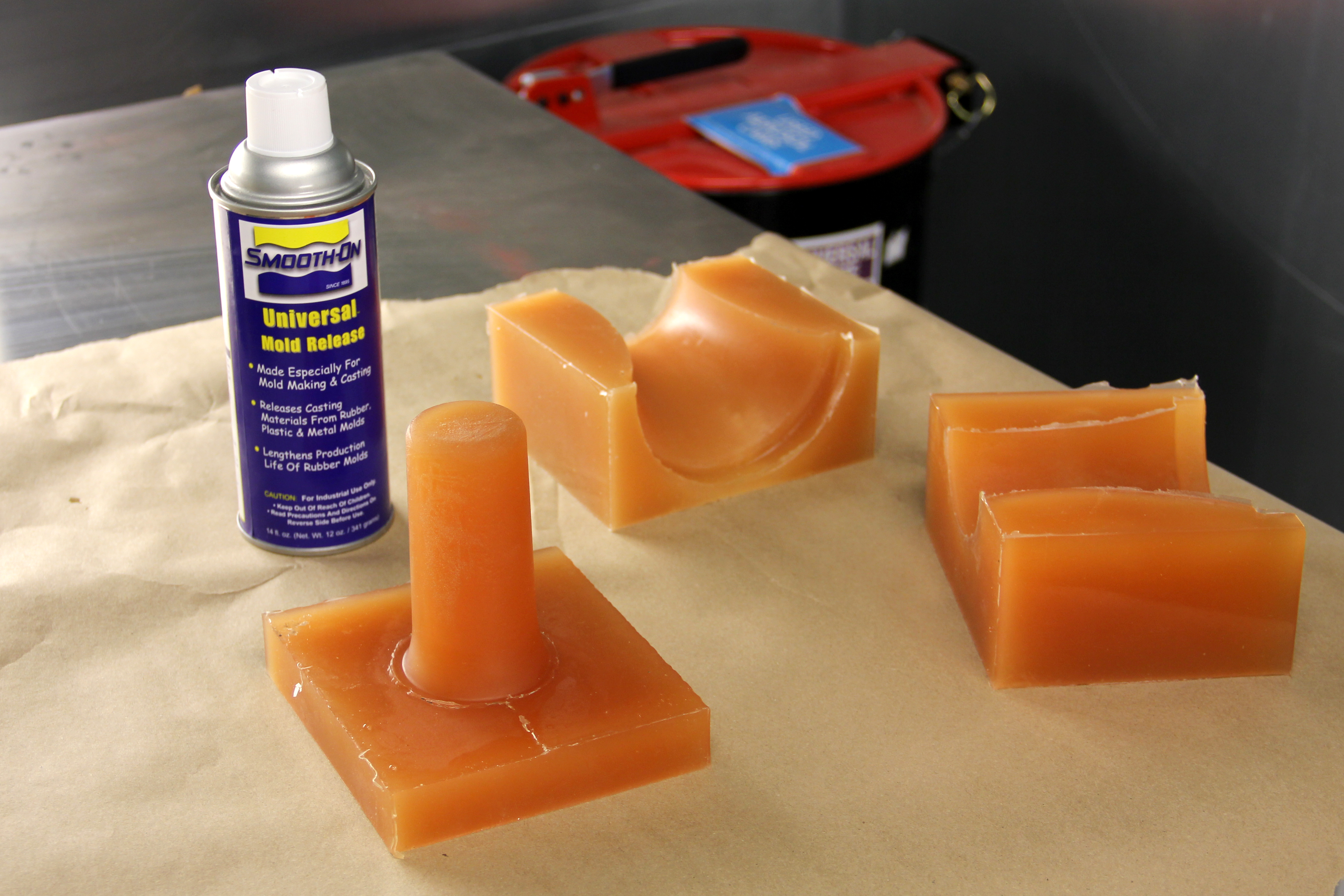

After they are dry, separate them as in the 2nd photo and spray a little of the Universal Spray Release so it is a little easier to un-mold the concrete although it is not super necessary.

Then grab a few pieces of scrap plywood and create 2 "L" shaped pieces and clamp them together so you can have a more rigid body around the urethane mold .

Now you are ready to cast concrete.

Grab a big bucket fill it with water and put in the 3d printed model. Mark the total volume, then remove the model and mark the water level again (photo 1). Do the math and you will have the volume of your 3d printed model.

The concrete I'm using is called Duracal and it is a 4:1 cement-water weight mix ratio. I ended up using 480 grams of Duracal and 120 grams of water (I really recommend using something like 560 g of Duracal and 140 of water) so you have a little extra.

Pour the water over the Duracal and mix non-stopping for 30 seconds with a stick. It is important to get a good and even mix.

Now pour it smoothly over the mold and let it sit for 2 hours.

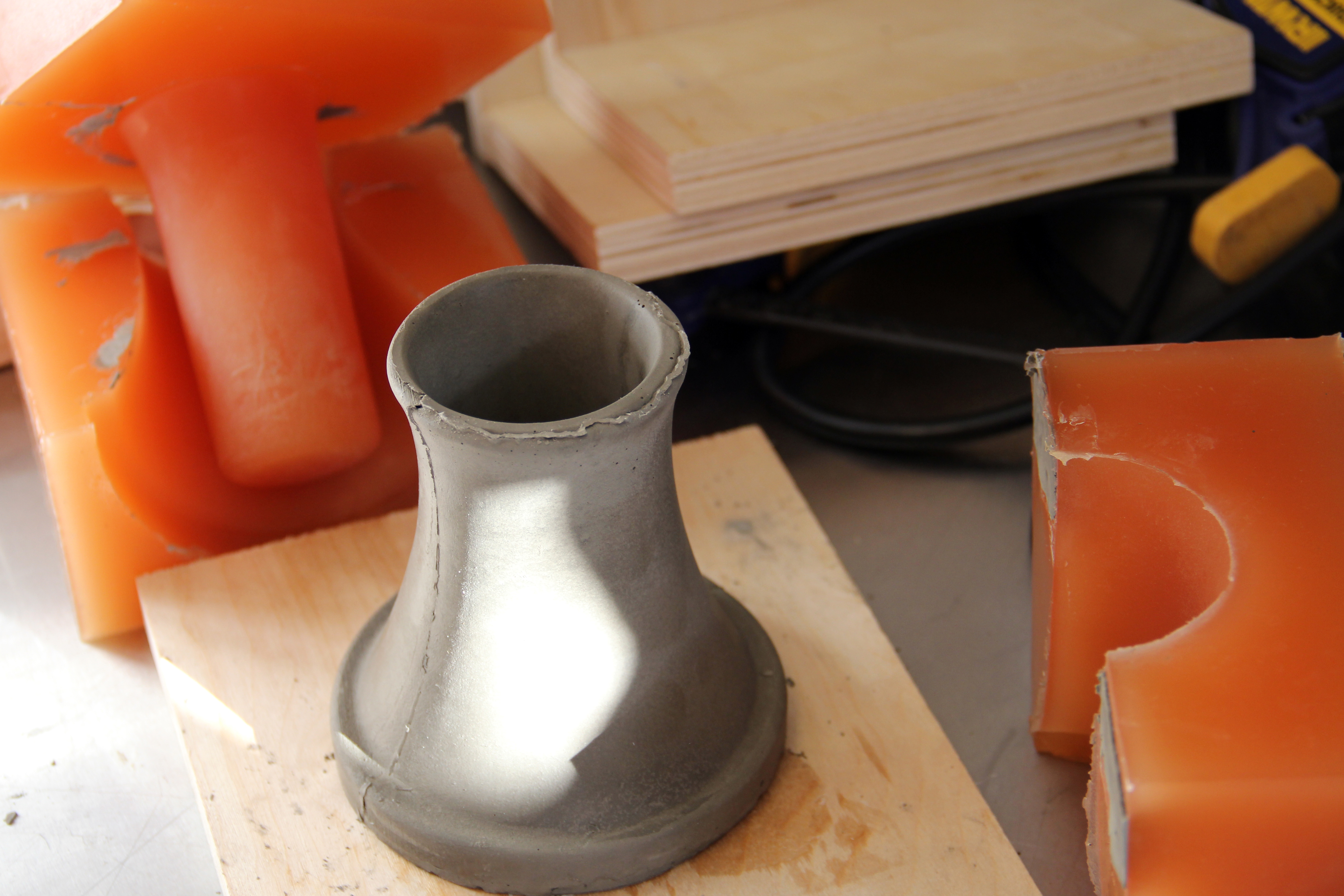

After 1 or 2 hours the concrete should be cured enough to grab and take it off the mold. I recommend waiting 24 hours for it to be fully cured.

Your mold is ready to reuse and cast multiple power plants.

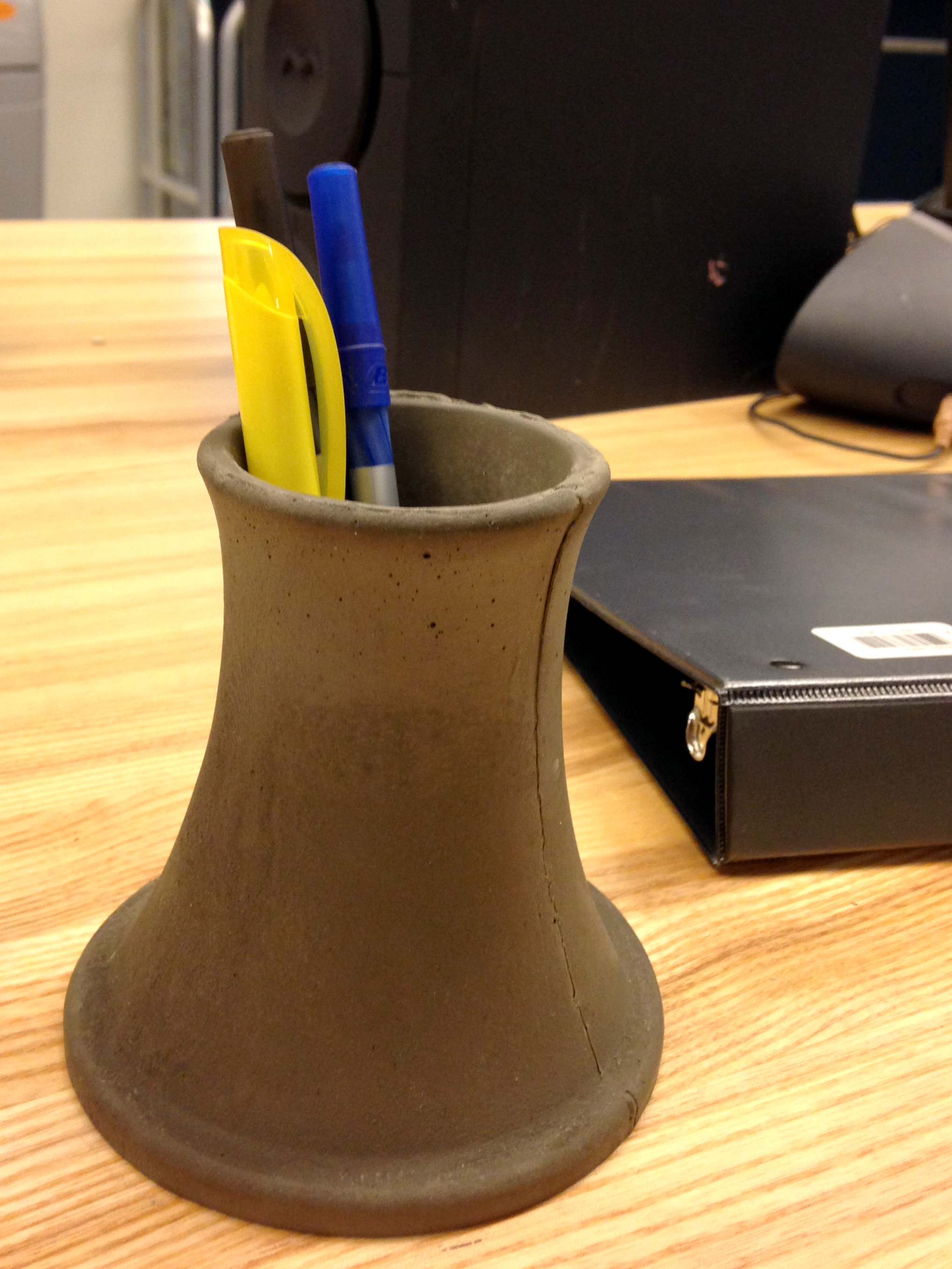

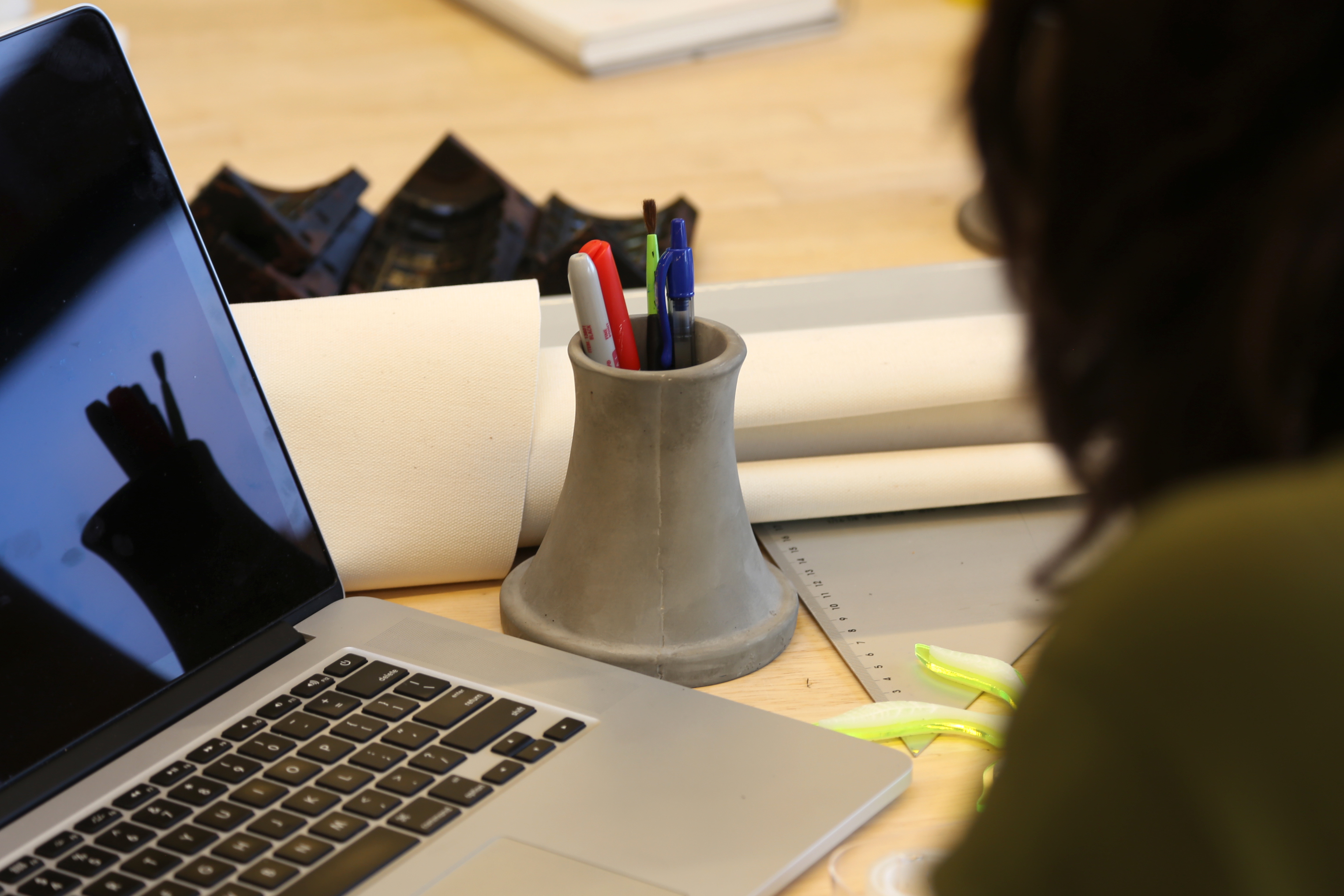

Awesome! You made a cool mini nuclear power plant! Fill it with some pencils and use it by your desk.
