Mini Maglev Train

This intractable is based on maglev train using magnets and battery

Working Principal :

Electrifying the propulsion loops generates magnetic fields that both pull the train forward from the front and push it forward from behind.

I am making this project in 3 easy steps. Everybody can make this and enjoy.

There is very basic materials required for this maglev train.

1) AAA Batery

2) Bare Copper wire

3) Magnets

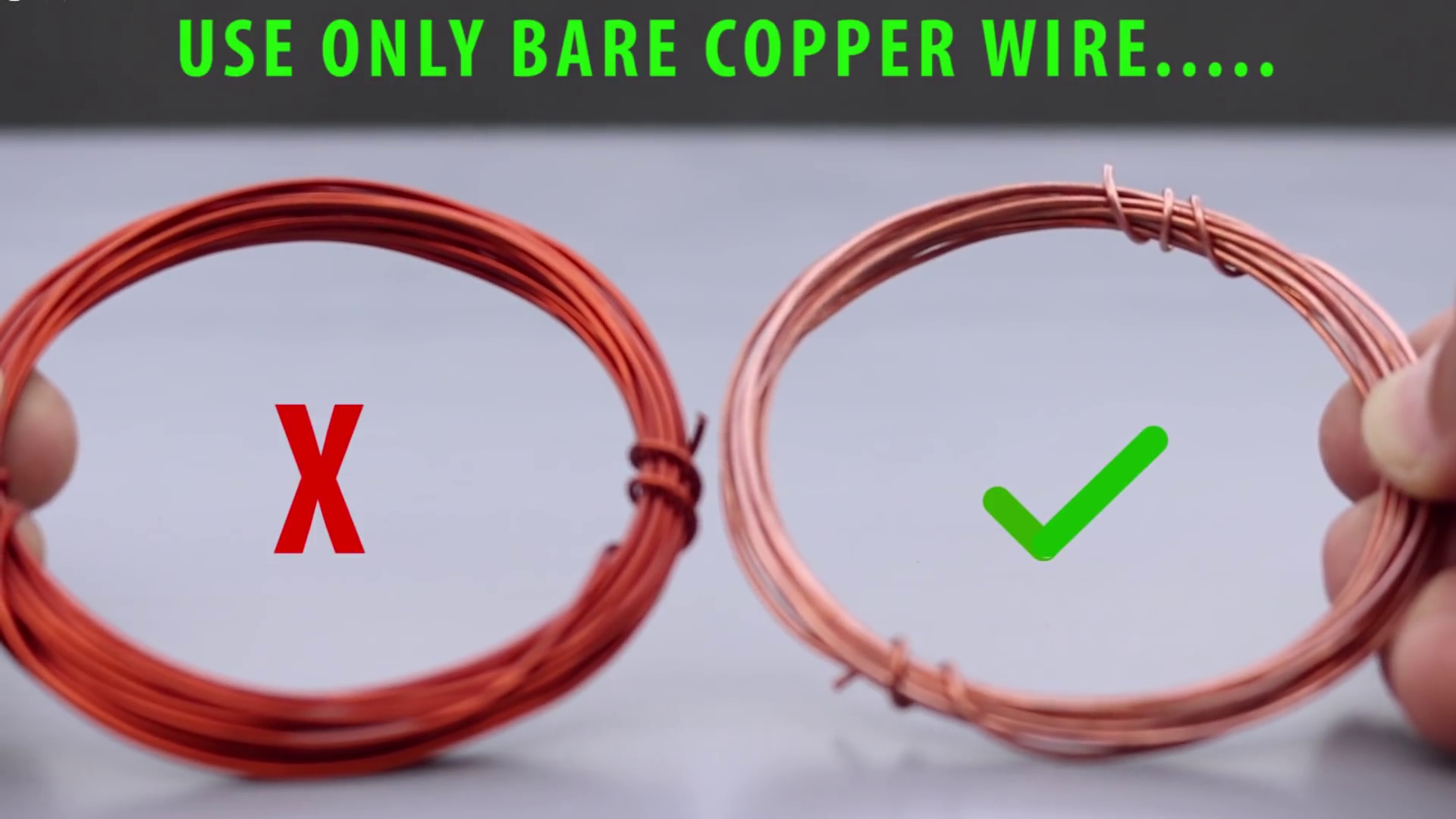

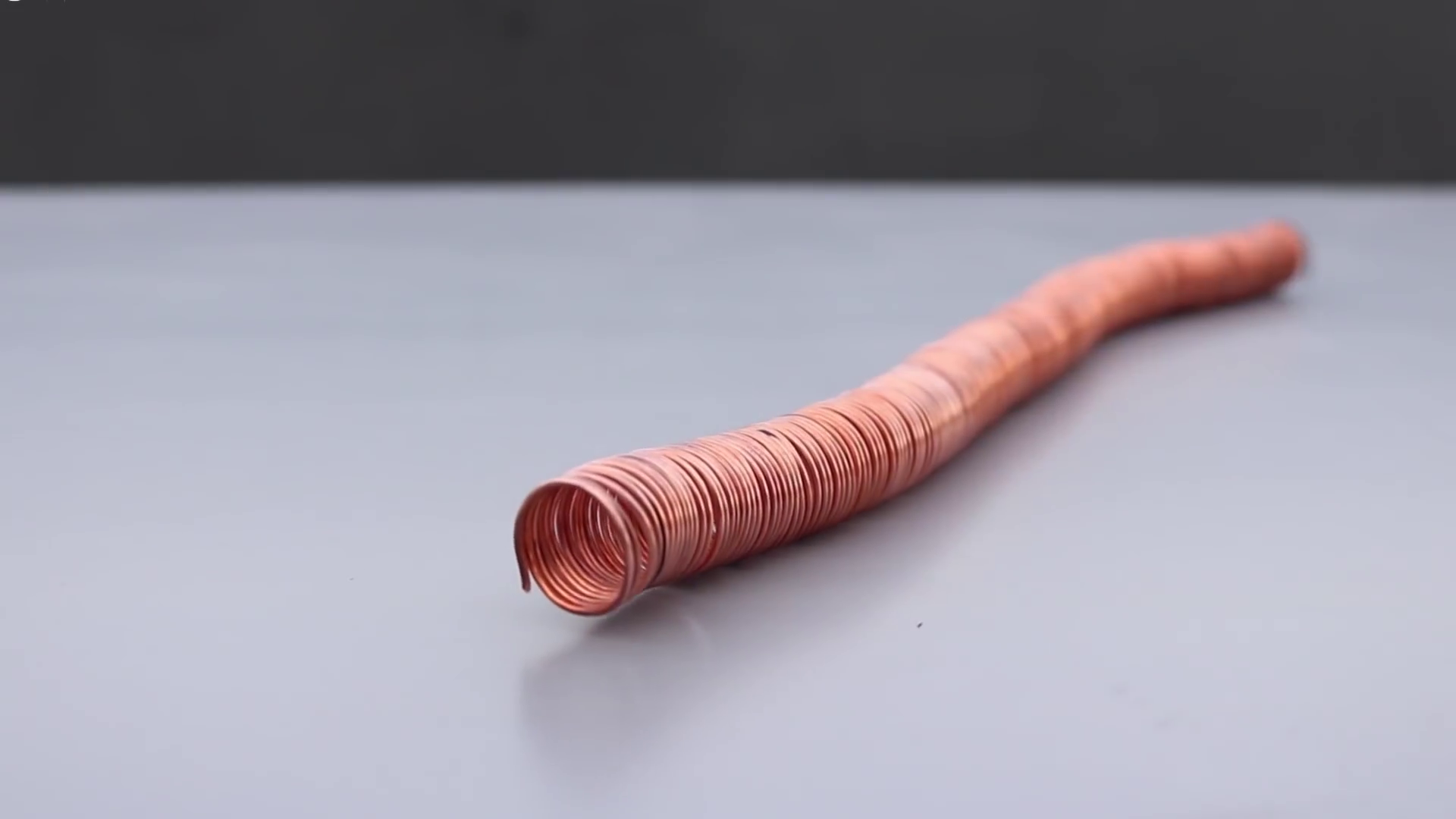

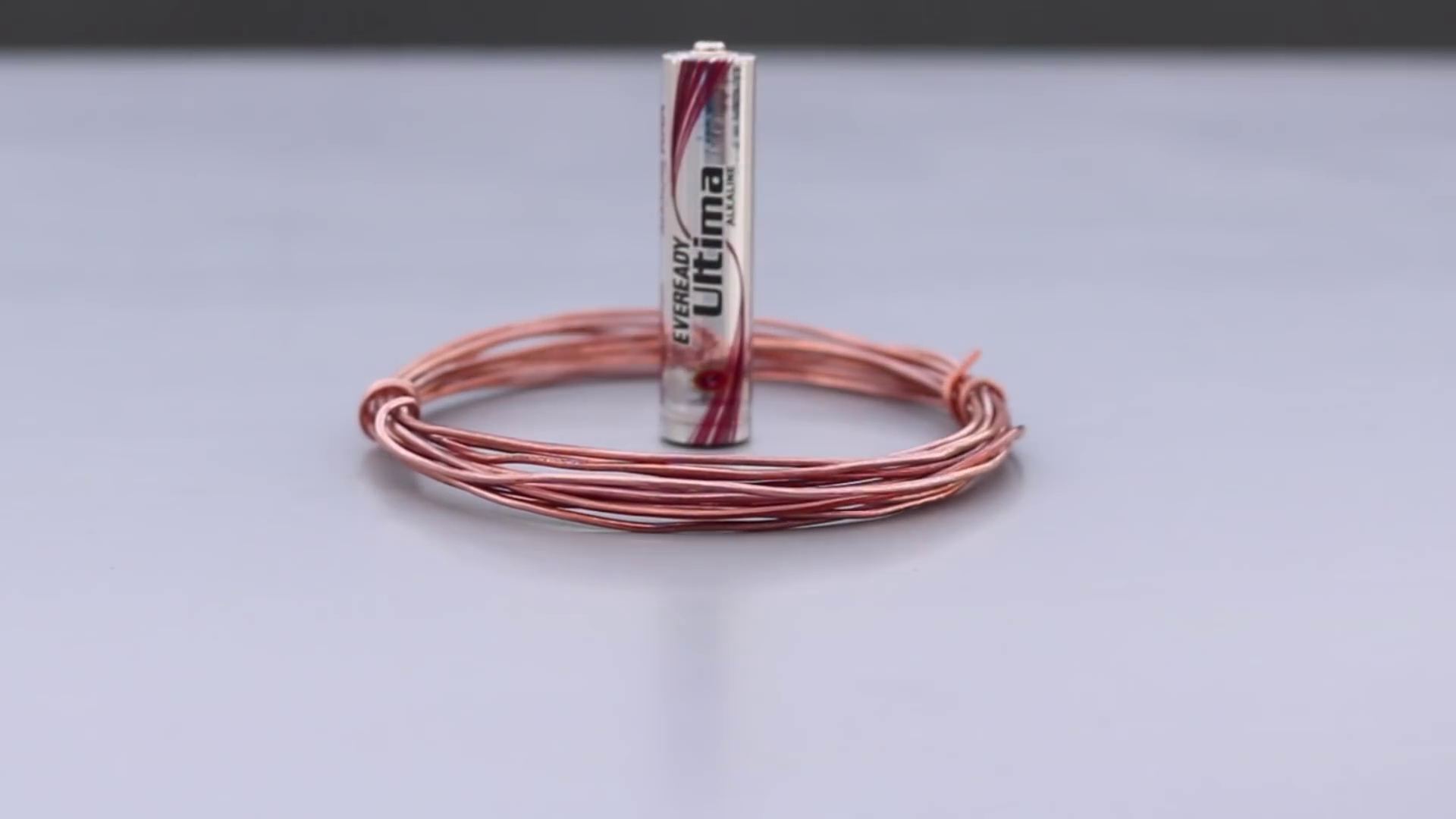

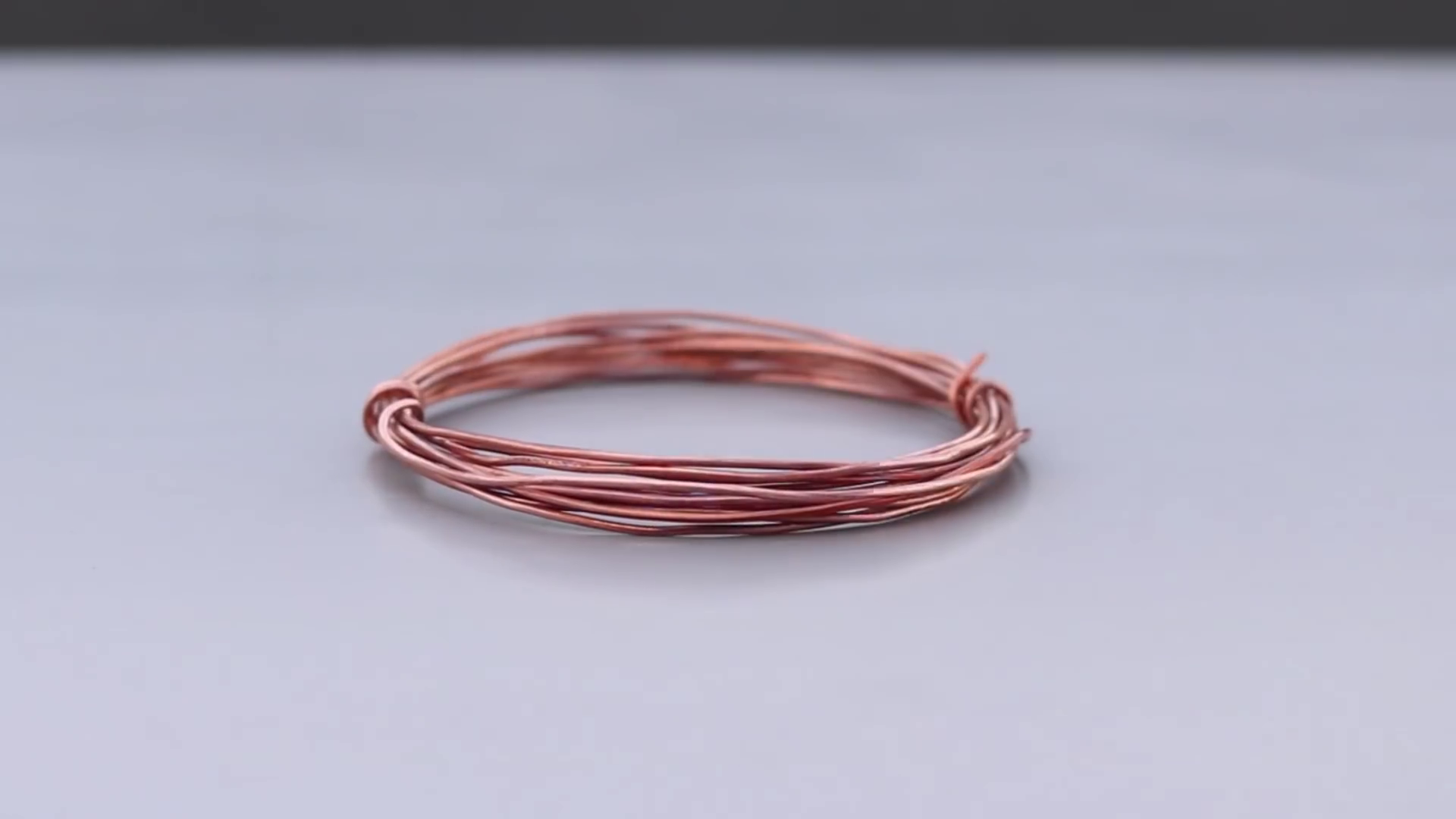

Take 12 AWG bare copper winding wire first. Bare copper wire is a copper wire with no coating.Take a circular marker pen or something similar that is just a little bit larger than a AAA battery. Make the coil of the copper carefully using a marker pen, as shown. You can create longer coils of copper as needed. Remove the marker pen from this coil after it is finished. This coil can serve as our train's track.

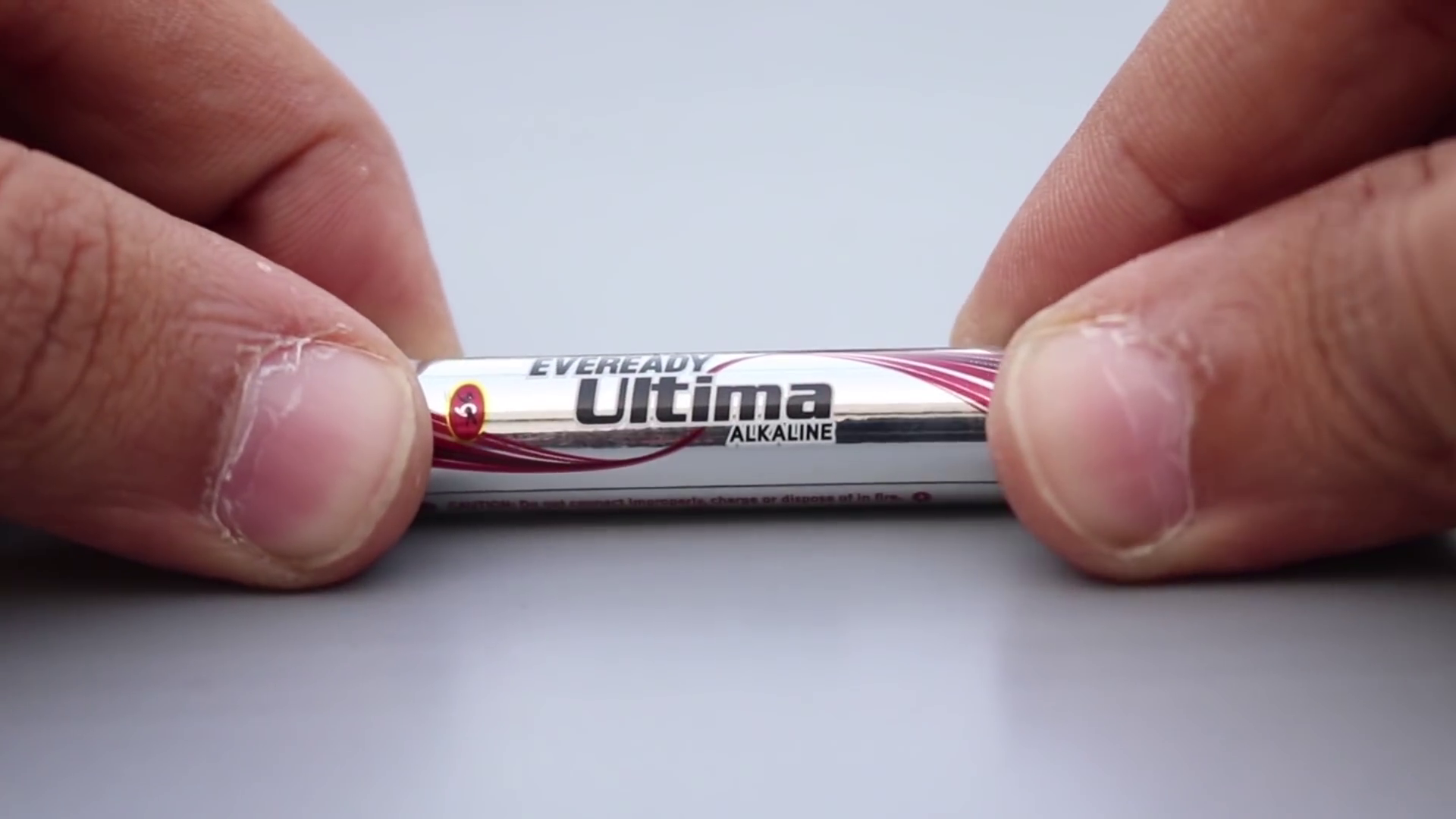

6 magnets (2 mm X 10 mm) and AAA batteries are required to create a train engine. Put 3 magnets in your right hand and 3 in your left. Bring your left and right hands closer; if the magnets cancel each other out, the theory is correct. If two magnets pull together, then the poles are different. In the image, similar poles repel one another. Next, align both magnets on the positive and negative terminals as shown in the diagram.

Now, train engine is completed.

The maglev train test run is now ready to begin.

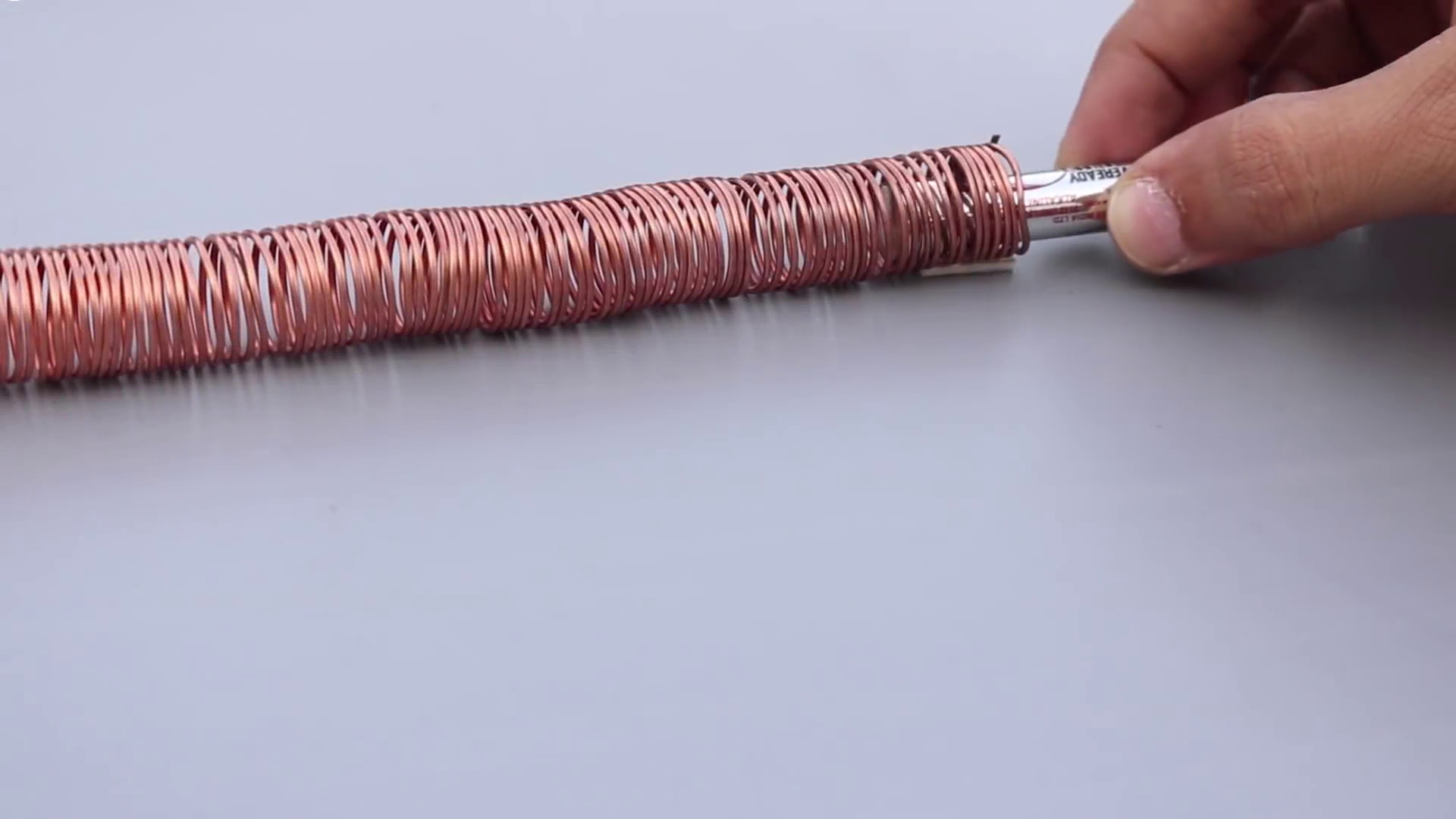

Release your finger as you pass the railway engine at the copper coil's one end. Battery is seen flowing smoothly through the coil to the other end.
