Mini Lighthouse Lamp 2
![IMG_20190418_161719.jpg](/proxy/?url=https://content.instructables.com/FQ5/ANNF/JVH3G9ZA/FQ5ANNFJVH3G9ZA.jpg&filename=IMG_20190418_161719.jpg)
Hi All,
Few months back I had made my first version for Mini Lighthouse Lamp, I faced few challenges, and wanted to improved my design and making process by
- Using PVA glue, It takes more time, but the bond is better
- Using small Glass jar, so no more cutting
- Enhance pebbles texture painting
- Recycle items that are easily avaliable at home
In this instructables, I have improved all of the above... Hope you like it
What Do We Need ?
![IMG_20190414_112213.jpg](/proxy/?url=https://content.instructables.com/FR5/8SEH/JVH3GBFC/FR58SEHJVH3GBFC.jpg&filename=IMG_20190414_112213.jpg)
![IMG_20190414_224733.jpg](/proxy/?url=https://content.instructables.com/FKR/N6B9/JVH3GB2T/FKRN6B9JVH3GB2T.jpg&filename=IMG_20190414_224733.jpg)
![IMG_20190510_175553.jpg](/proxy/?url=https://content.instructables.com/FZN/M4IU/JVH3GAEB/FZNM4IUJVH3GAEB.jpg&filename=IMG_20190510_175553.jpg)

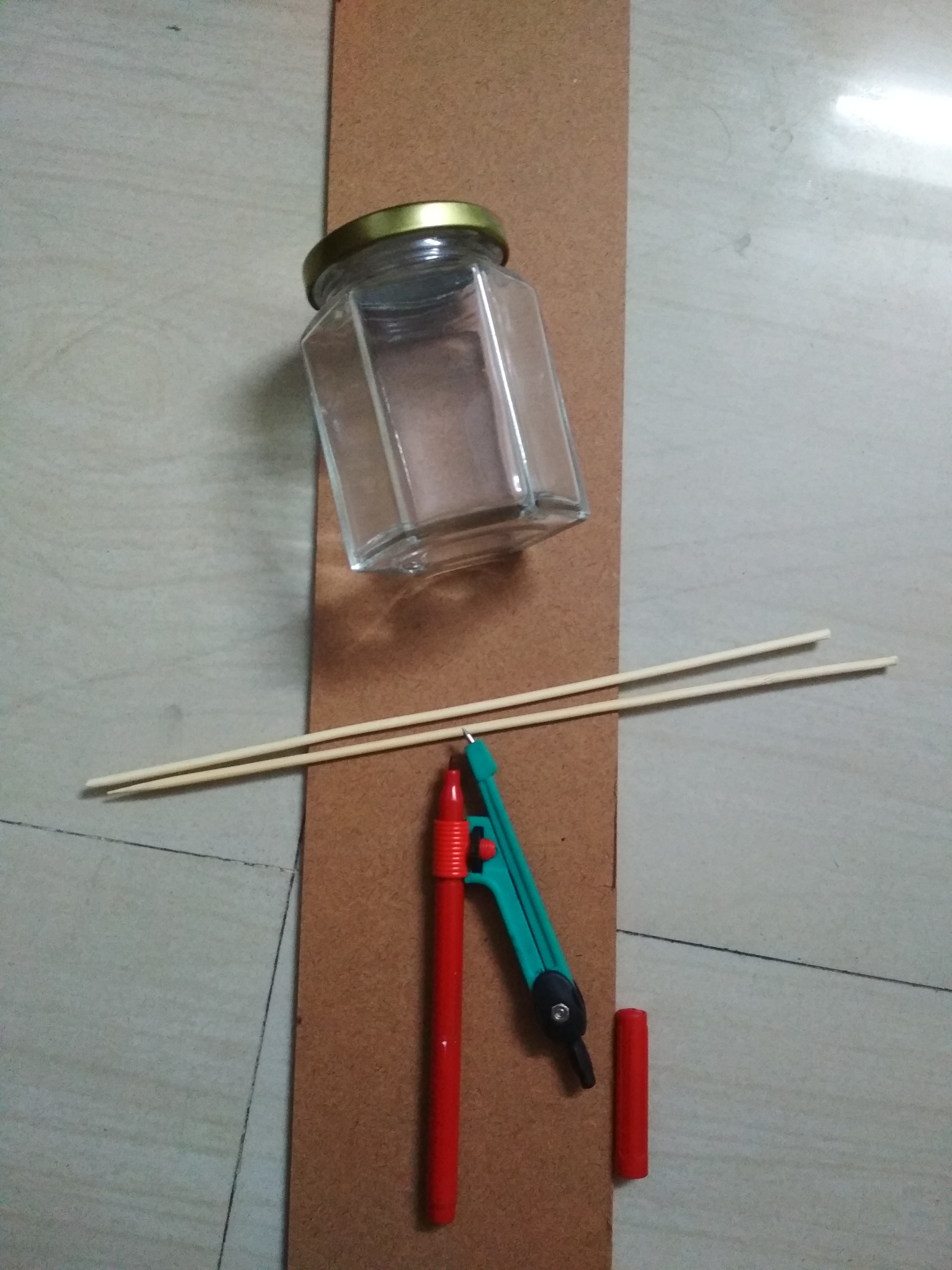

Material
- Pringle box (Empty it, if full)
- Small Hexagonal Glass Jar
- 4 mm MDF Sheet
- Bamboo Skewers

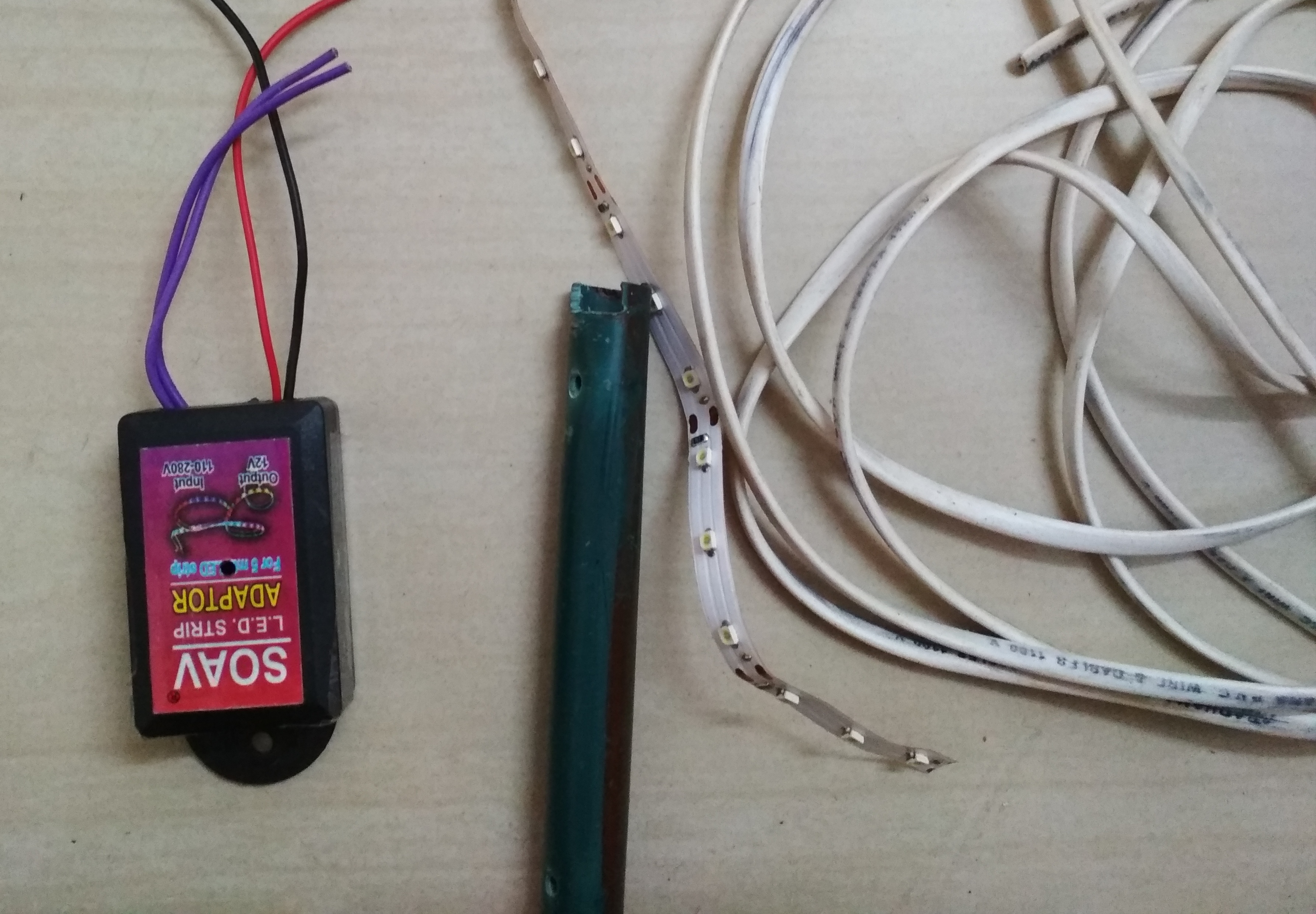

- LED Strip
- LED Driver
- Wires
- PVA Glue / Fevicol
- Pebbles
- Acrylic Paint and brush
- Popsicle stick
Tools
- Dremel
- JigSaw
- Sandpaper
Prepare
![IMG_20190510_174917.jpg](/proxy/?url=https://content.instructables.com/F9W/6A1Y/JVH3GBEQ/F9W6A1YJVH3GBEQ.jpg&filename=IMG_20190510_174917.jpg)
![IMG_20190510_174939.jpg](/proxy/?url=https://content.instructables.com/FOI/WZOV/JVH3GBC5/FOIWZOVJVH3GBC5.jpg&filename=IMG_20190510_174939.jpg)
- Before we start, we need to sort pebbles
- I have sorted into 3 stacks :
- Flat and thin upto 2 mm thickness
- Long, Flat and Thin upto 3 or 4 MM thickness
- Rest
- We will use flat and thin pebbles as bricks
- And Long pebbles as frames for doors and windows

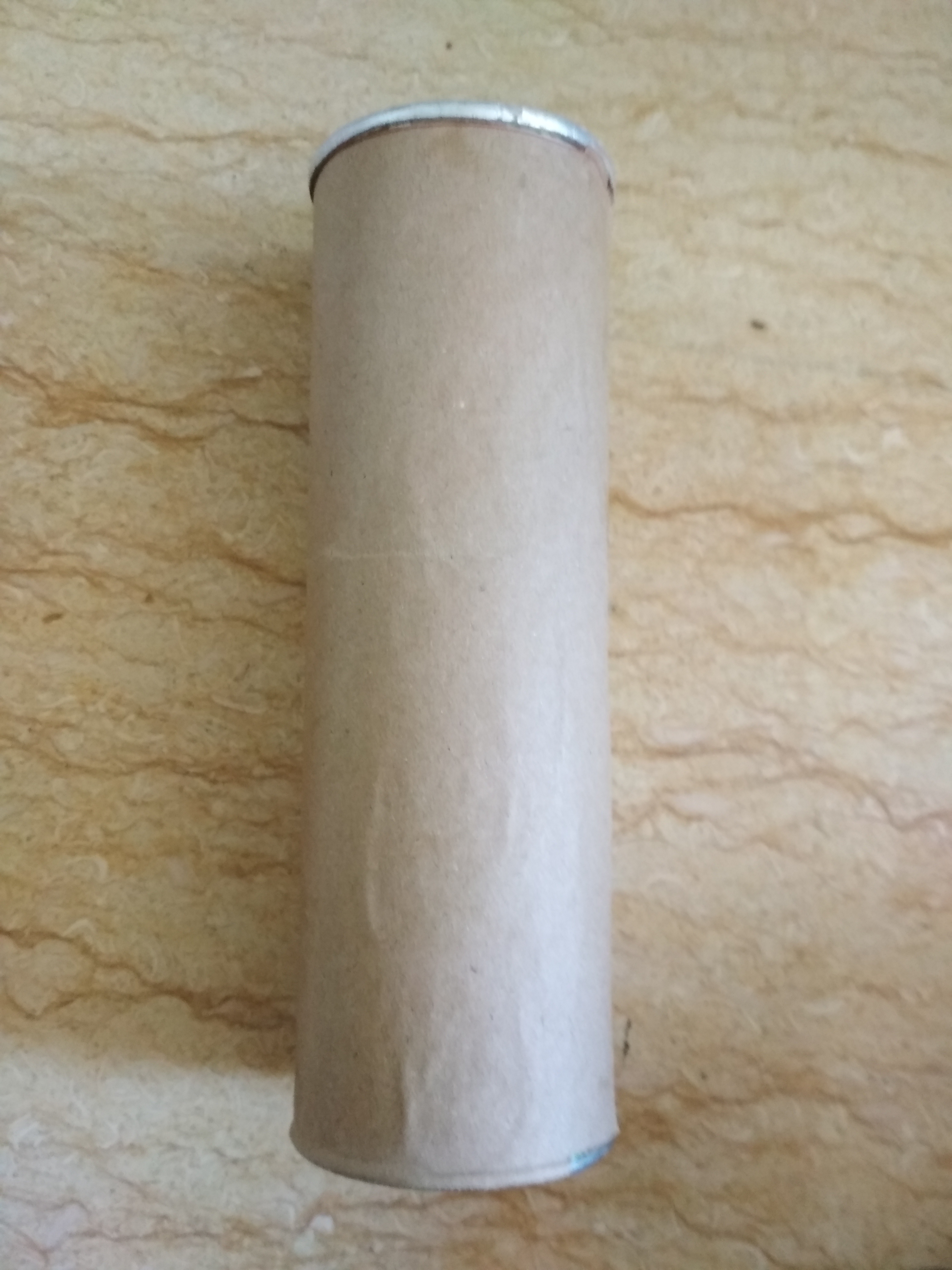

- Cover the pringle box with a brown paper or any other color of your choice
- Let it dry for 30 minutes
Tower
![IMG_20190510_175057.jpg](/proxy/?url=https://content.instructables.com/FCO/HC10/JVH3GBAX/FCOHC10JVH3GBAX.jpg&filename=IMG_20190510_175057.jpg)
![IMG_20190414_115838.jpg](/proxy/?url=https://content.instructables.com/FF2/QTRO/JVH3GBAB/FF2QTROJVH3GBAB.jpg&filename=IMG_20190414_115838.jpg)
![IMG_20190414_154423.jpg](/proxy/?url=https://content.instructables.com/FEQ/0T92/JVH3GB7U/FEQ0T92JVH3GB7U.jpg&filename=IMG_20190414_154423.jpg)
![IMG_20190510_175158.jpg](/proxy/?url=https://content.instructables.com/FDJ/UY9H/JVH3GB5B/FDJUY9HJVH3GB5B.jpg&filename=IMG_20190510_175158.jpg)

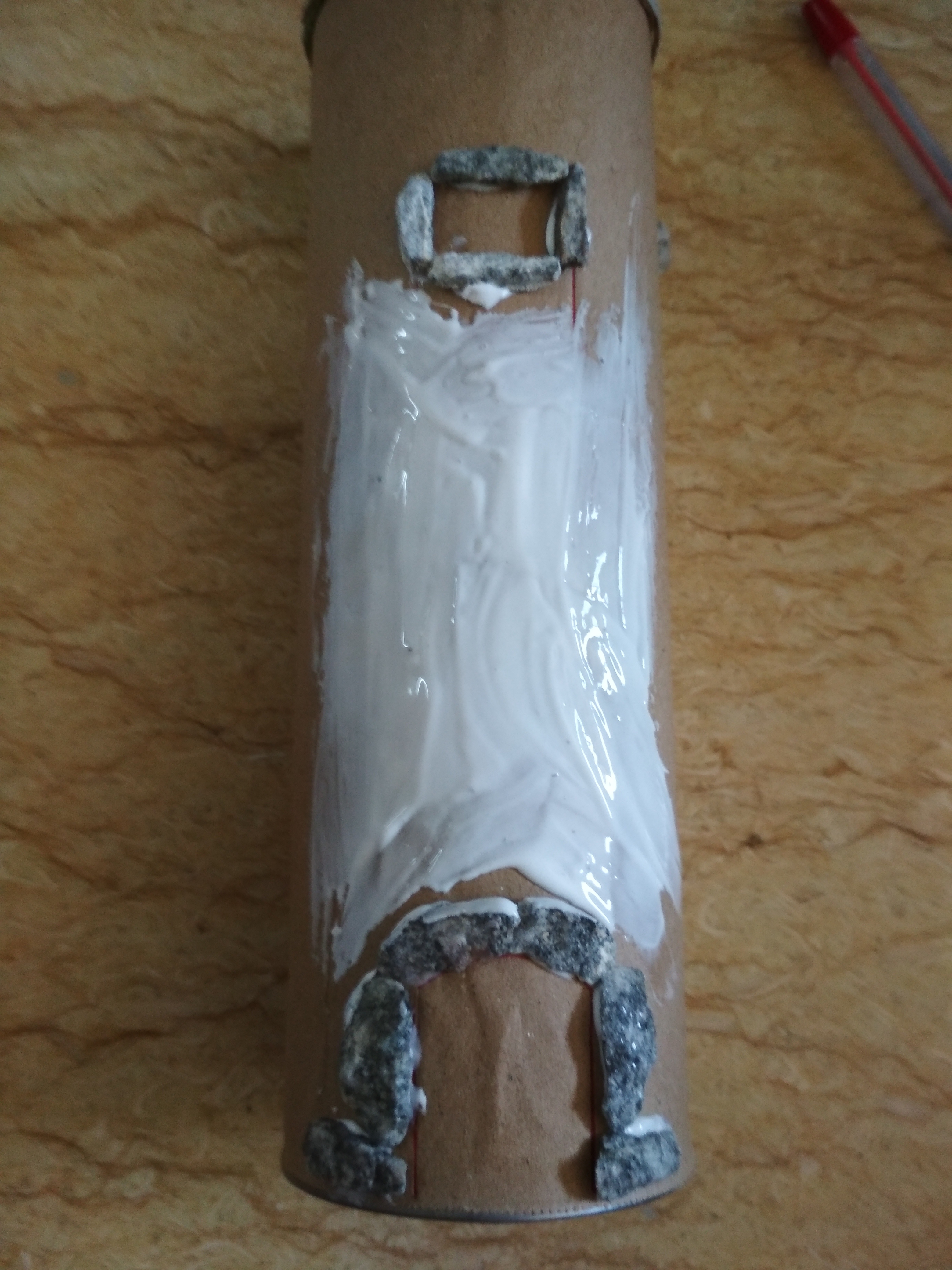

- To build the tower, start with doors and windows frame

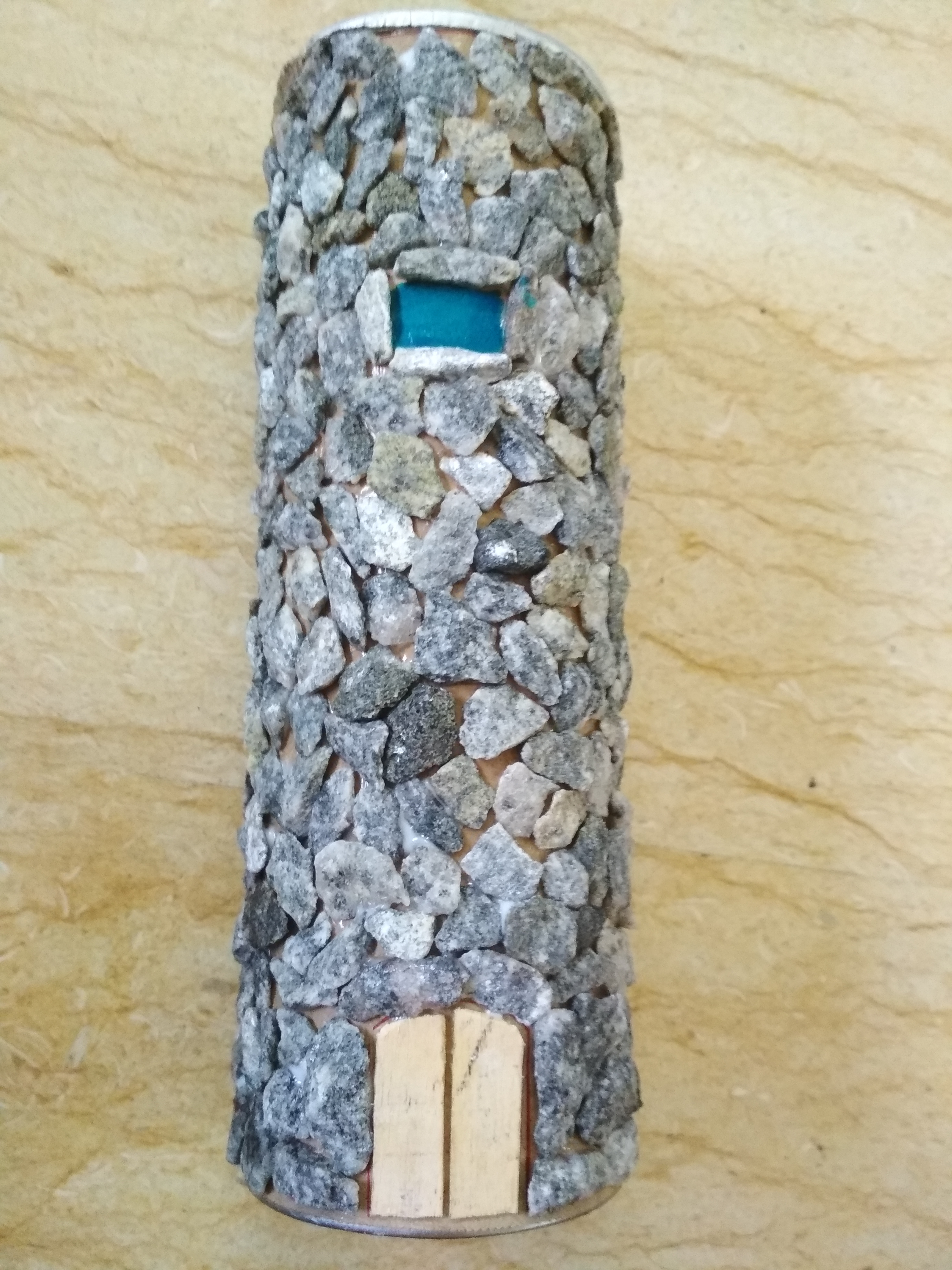

- Then fill the space in between using flat and thin pebbles
- Once the whole box is done, leave it to dry for 5 to 6 hours
- Add doors using popsicle stick
Base Roof
![IMG_20190414_225033.jpg](/proxy/?url=https://content.instructables.com/FGY/VTUO/JVH3GB2D/FGYVTUOJVH3GB2D.jpg&filename=IMG_20190414_225033.jpg)
![IMG_20190510_175342.jpg](/proxy/?url=https://content.instructables.com/FJ4/S4VG/JVH3GB20/FJ4S4VGJVH3GB20.jpg&filename=IMG_20190510_175342.jpg)
![IMG_20190418_002727.jpg](/proxy/?url=https://content.instructables.com/FHB/PBX0/JVH3GAZN/FHBPBX0JVH3GAZN.jpg&filename=IMG_20190418_002727.jpg)
![IMG_20190510_175531.jpg](/proxy/?url=https://content.instructables.com/FW4/6NTO/JVH3GAGK/FW46NTOJVH3GAGK.jpg&filename=IMG_20190510_175531.jpg)
![IMG_20190510_175706.jpg](/proxy/?url=https://content.instructables.com/FLJ/TFBB/JVH3GA1M/FLJTFBBJVH3GA1M.jpg&filename=IMG_20190510_175706.jpg)

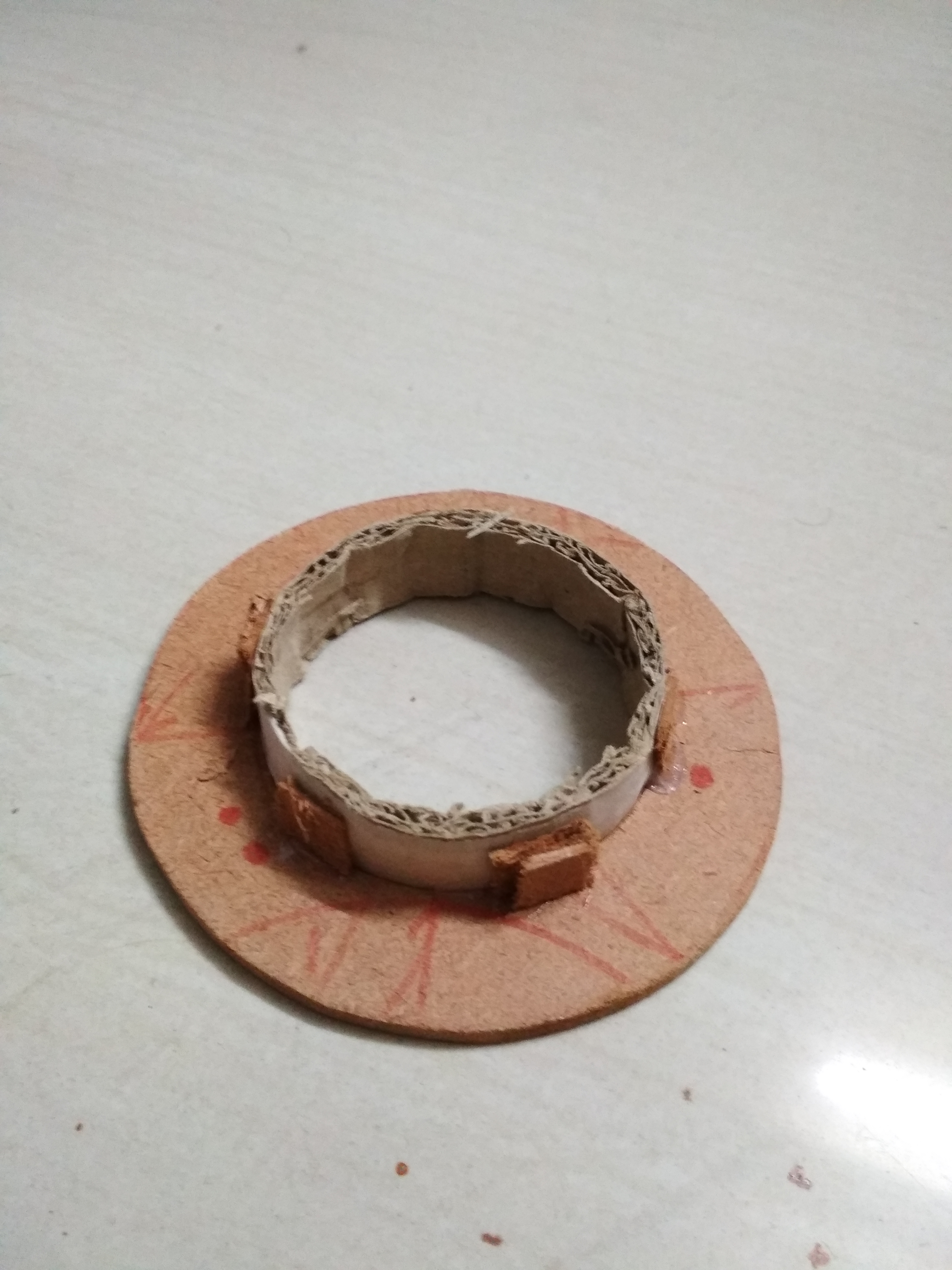

- Measure the outer diameter of the glass rar (neck) and pringle box with pebbles
- We want to cut a ring from MDF, with inner diameter same as glass jar's neck and outer diameter little more than the pringle box
- Add cardboard at the inner diameter and cover it with the another ring of mdf sheet
- Add 6 skewers as shown
Roof
![IMG_20190510_175436.jpg](/proxy/?url=https://content.instructables.com/FP3/AK5M/JVH3GASE/FP3AK5MJVH3GASE.jpg&filename=IMG_20190510_175436.jpg)
![IMG_20190510_175504.jpg](/proxy/?url=https://content.instructables.com/FV5/DUVI/JVH3GAIS/FV5DUVIJVH3GAIS.jpg&filename=IMG_20190510_175504.jpg)
- I have used a hexagonal glass jar, so added 10mm to the length of one side
- Then made ad hexagonal prism as shown
- I secured the edges with paper tape and glued the roof from inside
- Let it dry for 1 hr and then remove paper tape
Electric Work
![IMG_20190510_175627.jpg](/proxy/?url=https://content.instructables.com/F0V/YET6/JVH3GA6X/F0VYET6JVH3GA6X.jpg&filename=IMG_20190510_175627.jpg)
![IMG_20190418_143603_1.jpg](/proxy/?url=https://content.instructables.com/FA5/GECK/JVH3GA1H/FA5GECKJVH3GA1H.jpg&filename=IMG_20190418_143603_1.jpg)
- Since I am using a small glass Jar that fits on a pringle box, i cannot fit a regular size bulb,
- I must make my own mini LED bulb.

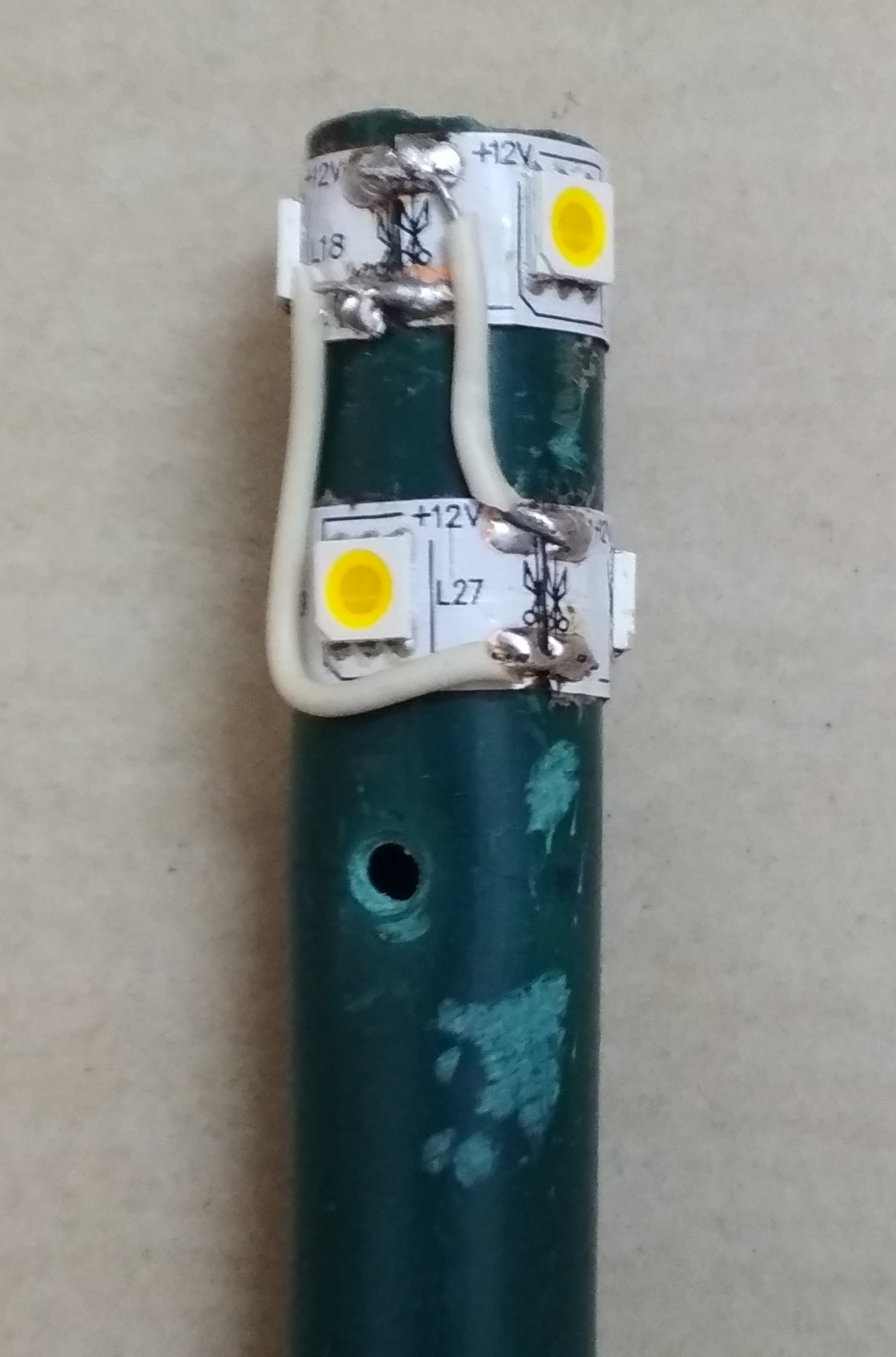

- I am using 2 LED strip / elements that I have stuck on a 15 mm PVC pipe
- Each element has 3 LEDs and a register
- These LED elements are connected to a led driver circuit (12V)
- Test the circuit before final assembly
Paint Job
![IMG_20190418_161756.jpg](/proxy/?url=https://content.instructables.com/FYA/UDUN/JVH3G9Z7/FYAUDUNJVH3G9Z7.jpg&filename=IMG_20190418_161756.jpg)
- Tower
- Based coat with black acrylic paint, and let it dry for 1 hour
- Mix 3 parts of white ad 1 part black on a pallet, do not add water
- using a sponge cover all pebbles, Note that we want the gaps to remain black and pebbles as grey
- Once done let it dry for 1 hr
- After drying make a black watery wash and cover the whole tower
- Leave to to dry
- Base / Roof
- Paint everything brown or a shade of light brown, to simulate wood colo
Admire
![IMG_20190418_161719.jpg](/proxy/?url=https://content.instructables.com/FQ5/ANNF/JVH3G9ZA/FQ5ANNFJVH3G9ZA.jpg&filename=IMG_20190418_161719.jpg)
- Once done, Set the lamp in the corner and light it up
- Admire great work done
Please share comments and suggestions
