Mini Hydrogen Generator

by spaktashabit in Workshop > Energy

61152 Views, 1030 Favorites, 0 Comments

Mini Hydrogen Generator

15, 3:05 PM.jpg

This instructables is for a friend, showing him how to make a small low cost hydrogen generator. I made this for under 25$ and it puts out about 1 1/2 c a min. After reading many comments on how I could make this better I did.

Materials

15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg

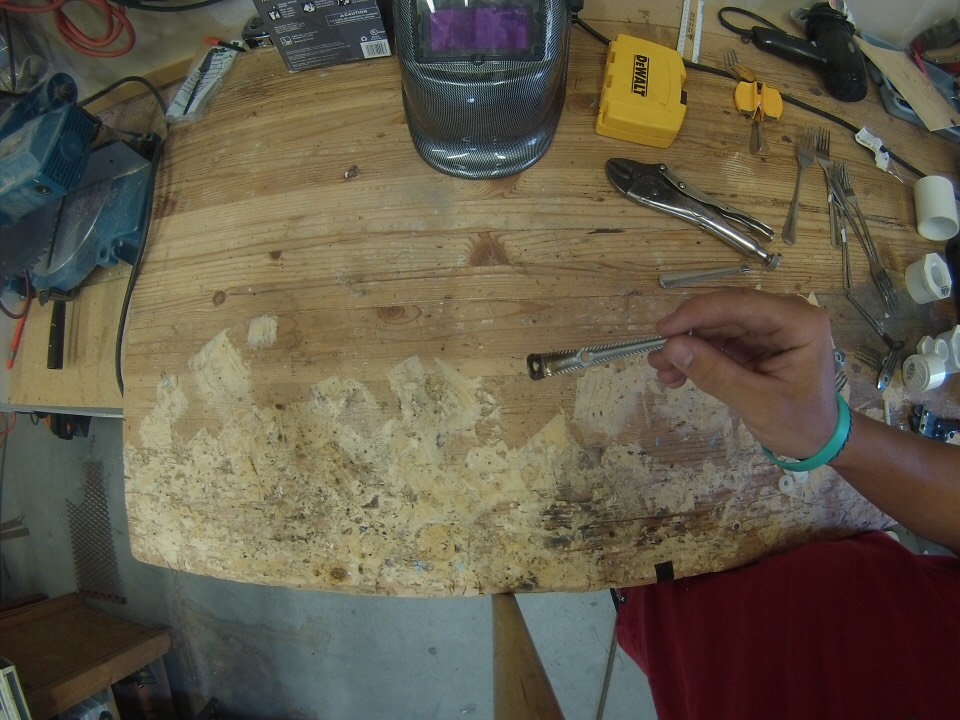

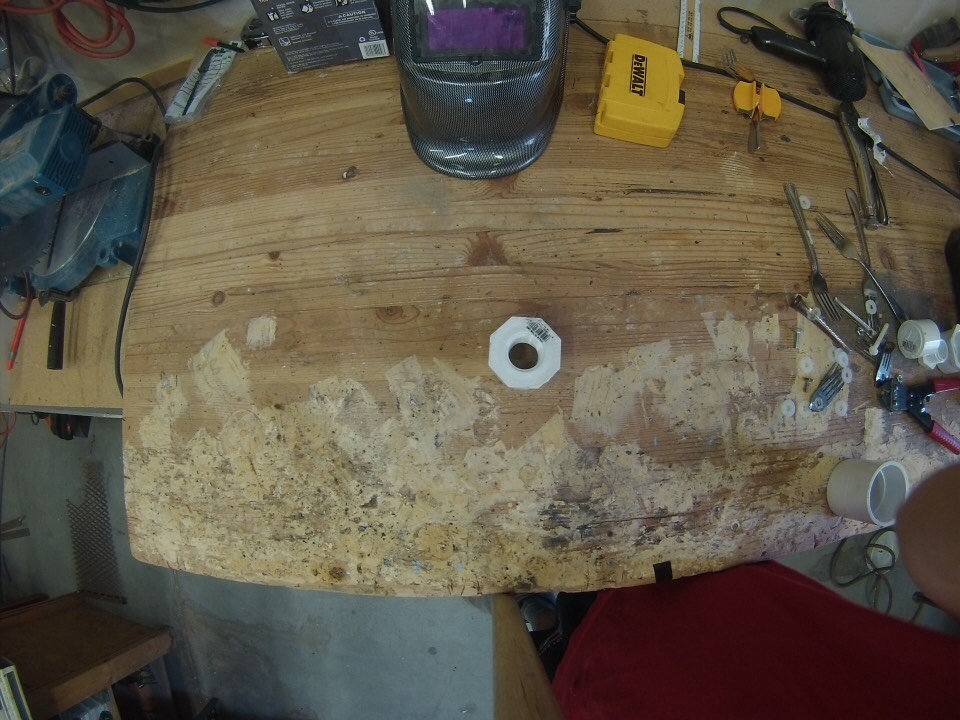

2" coupling
2" to 1and1/2 inch reducer
2" to 1" threaded reducer
1" threaded end cap
1and1/2" end cap

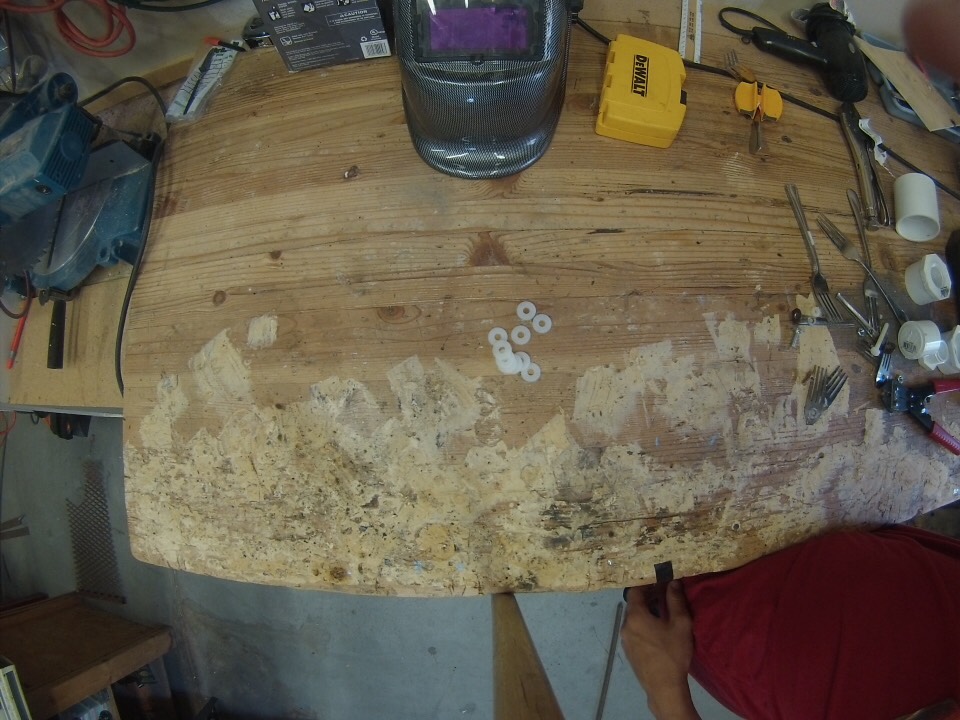

10 nylon washers
1 nylon bolt with nut

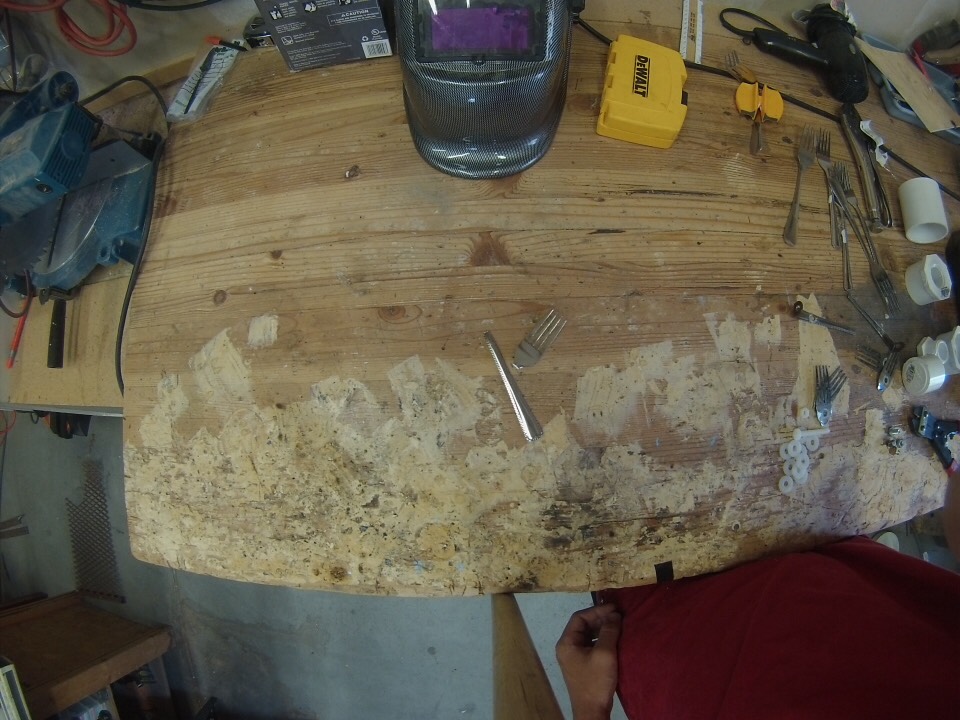

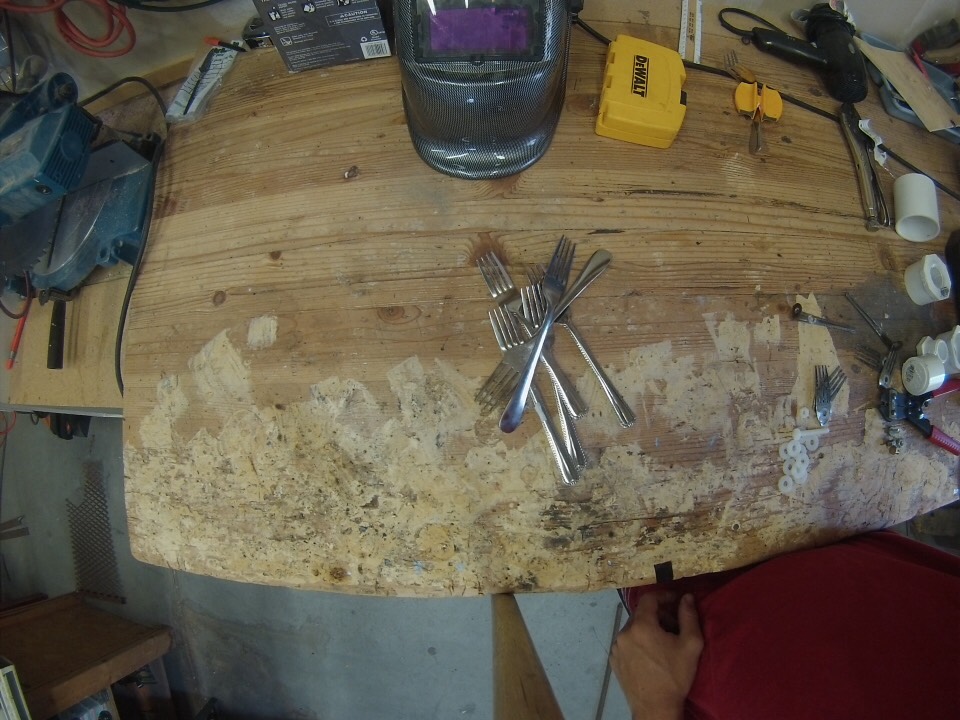

6 stainless steel forks
Poly tubing
Pvc glue and the tools you normally use (drill drill bits etc)
2 stainless steel bolts
2 1/2" end caps
1/2" pvc

Next Step

15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg

Cut the fork heads off and smash them flat. Discard the all but two o the handles. Drill holes in the fork heads, also in the handles. Bend the ends of the handles and drill holes in the end. Drill holes in the 1and1/2" cap. Put the fork heads on in the order of handle, washer, fork, washer, ect. Bolt them tight then bolt the finished generator plates into the pvc cap. Then drill a hole for the poly tubing.

Next Next Step

15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 3:05 PM.jpg

Glue it together should be self explanatory. Make sure the generator plates fit. (you sort of need them to)

The Next Next Next Step

15, 3:05 PM.jpg
15, 3:05 PM.jpg
15, 7:27 PM.jpg

Poor about a tablespoon of baking powder or soda (whatever it says on the box) then add water and screw the lid on. Connect 12v battery (I use a 12v car battery charger you can pick one up from any hardware or auto store). NEVER LIGHT THE END OF THE TUBE. It will cause a flashback and the generator will explode. Submerging the tube in water with. Little soap will work.

The Next Next Next Next Step/ Modification to Original Design

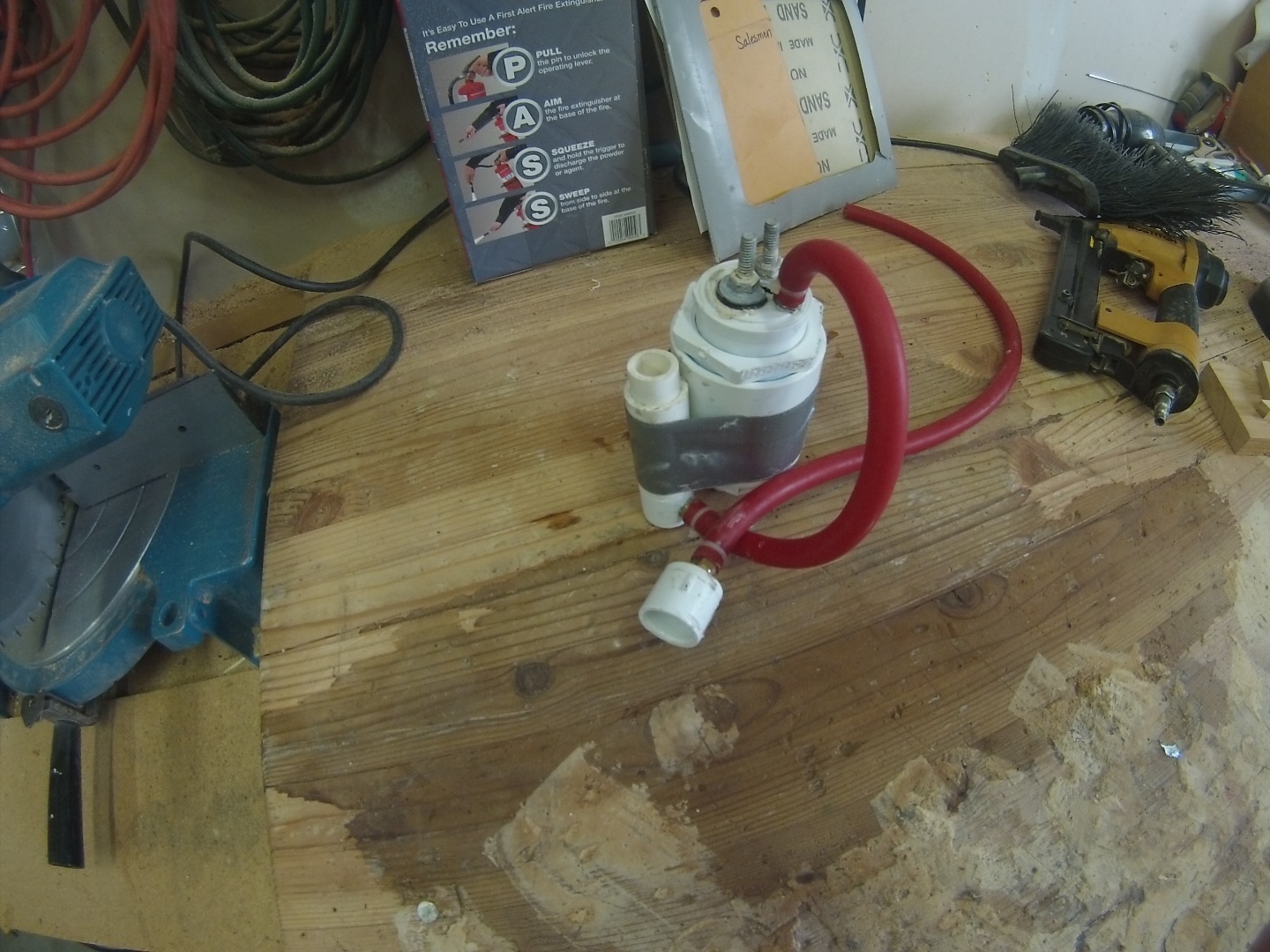

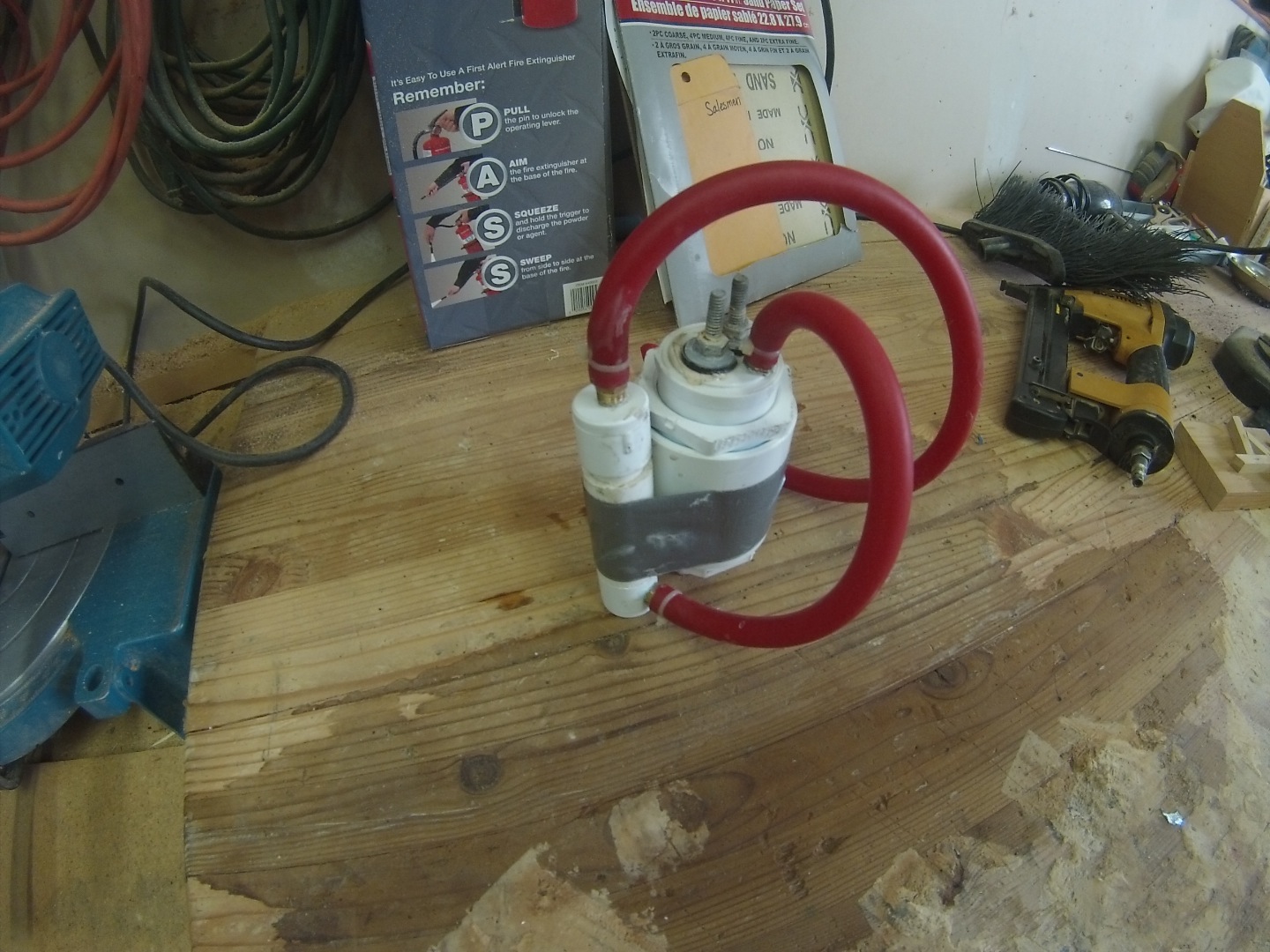

After reading what all y'all wrote about how it was dangerous not to have a bubbler. I feel that so I added some easy modifications. First, all the neutral plates in the middle are gone. by bending the fork tips to the outside you can get rid of the neutral plates and make more hho. Second, I added a bubbler onto the generator so that I would be able to add a torch onto it someday. I don't know if you can watch the video but it is just an example of the hho gas in action. NO its not me screaming in the background. Its my mom she didn't know how loud it would be.
