Mini Cornhole Game Using Fusion 360

I made a mini cornhole game that can be played on either a table or on the floor. I am a student a Wachusett Regional Highschool and making this game was one of my assignments. I created this game using Fusion 360.

I used Fusion 360 to create and design this game.

1. Design sketch of the base of board and extrude it out

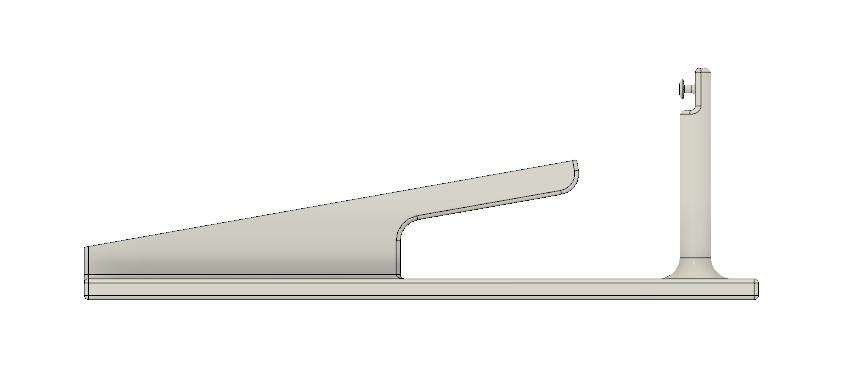

2. Sketch angle, thickness, and support for board and extrude it out
3. Now that you have the base and the board you need to design the posts for the rubber band and launcher
4. Sketch two circles equidistant from the center of the board and extrude them up

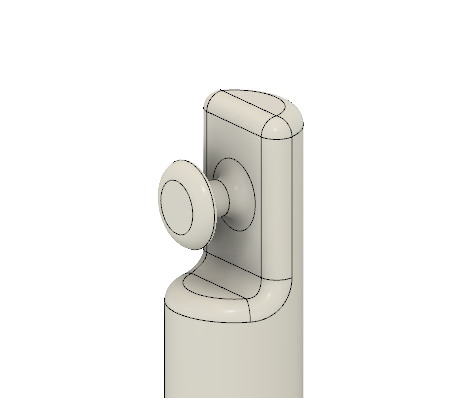

5. Sketch two nubs where you will put the rubber band around and extrude them out
6. Add fillets to make board look better

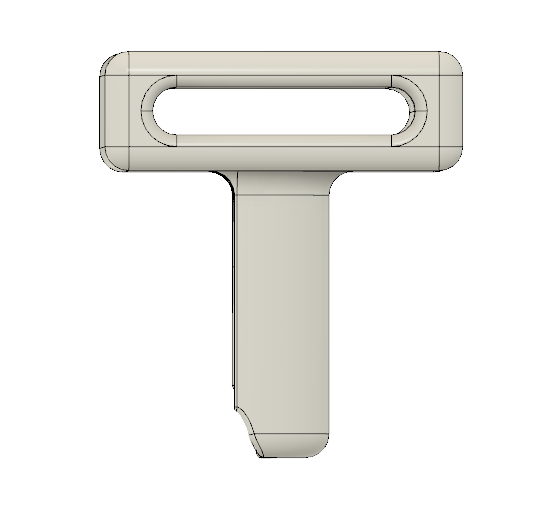

1. Sketch a rectangle with a oval in it and extrude to make the main piece

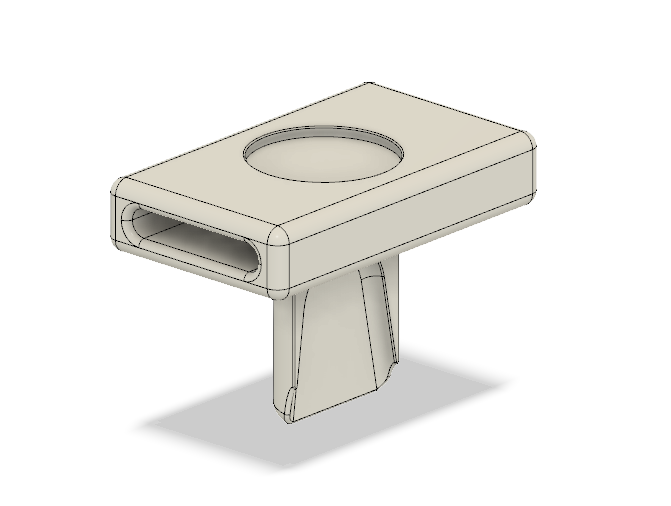

2. Sketch a quarter sized hole on top and extrude down to create a spot for the quarter
3. Sketch a rectangle on the bottom and extrude it out to create the pull tab
4. Add fillets to improve quality and improve look
