Mini Cardboard USB Blade-less Fan

by guy coop72 in Circuits > USB

32924 Views, 49 Favorites, 0 Comments

Mini Cardboard USB Blade-less Fan

2011-07-15 21-25-30.748.jpg
i decided to make this mini blade-less fan as part of a couple of competitions that are going on at the moment, the green living and the USB competition, so if you like it, please vote

watch the video here

Parts

2011-07-15 20-14-18.725.jpg
you will need:
A small DC motor
Any kind of Fan blade, in this case i used a laptop heat sink fan
A cardboard tube
2 sheets of A4 paper or card

Make Your Internal Fan

2011-07-15 20-21-43.241.jpg
Simply attach your blade to your motor using hot glue

Cutting

2011-07-15 20-49-45.681.jpg
2011-07-15 20-52-23.020.jpg

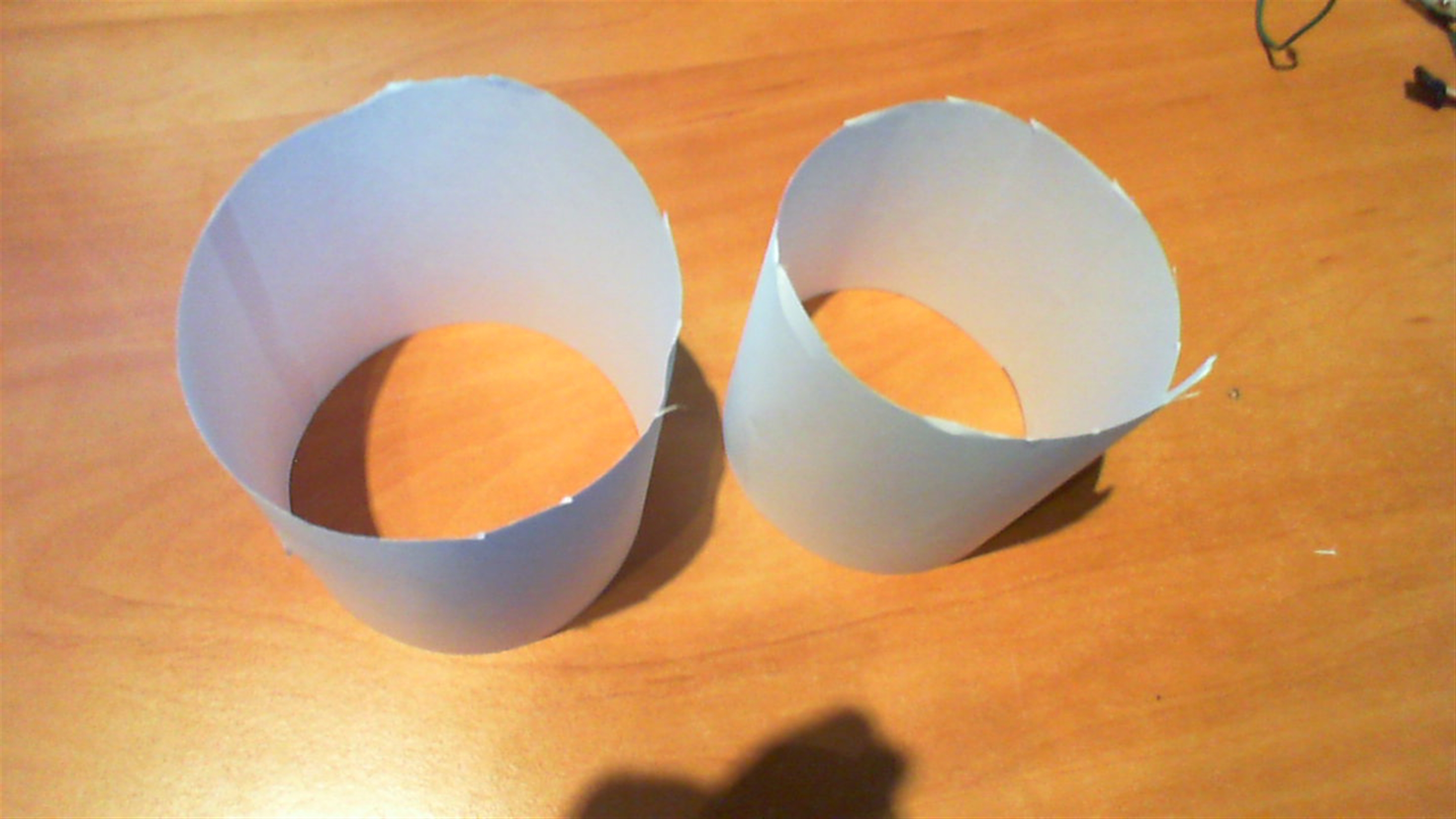

make two large circles by rolling the paper, and then they must be able to fit one inside the other, then trim them to size, ensure that they are both longer that the diameter of your tube
next, cut a hole in your larger tube that is the size of cardboard tube

Fit the Tube

2011-07-15 20-53-32.542.jpg
2011-07-15 20-54-06.020.jpg
splay one end of your cardboard tube, then fit through the hole and secure it, ensure that it is not covered in any way

Insert the Fan and Secure It to the Base

2011-07-15 21-07-54.974.jpg
I used cocktail sticks that were glues to the fan, and then attached them to the base on the cardboard tube, i then attached the whole rig onto my breadboard, because it was the only thing i could find that would work, and it made it easy to connect to my power supply, feel free to use your inntiative for this step.

Connect to the Power

2011-07-15 21-25-30.748.jpg

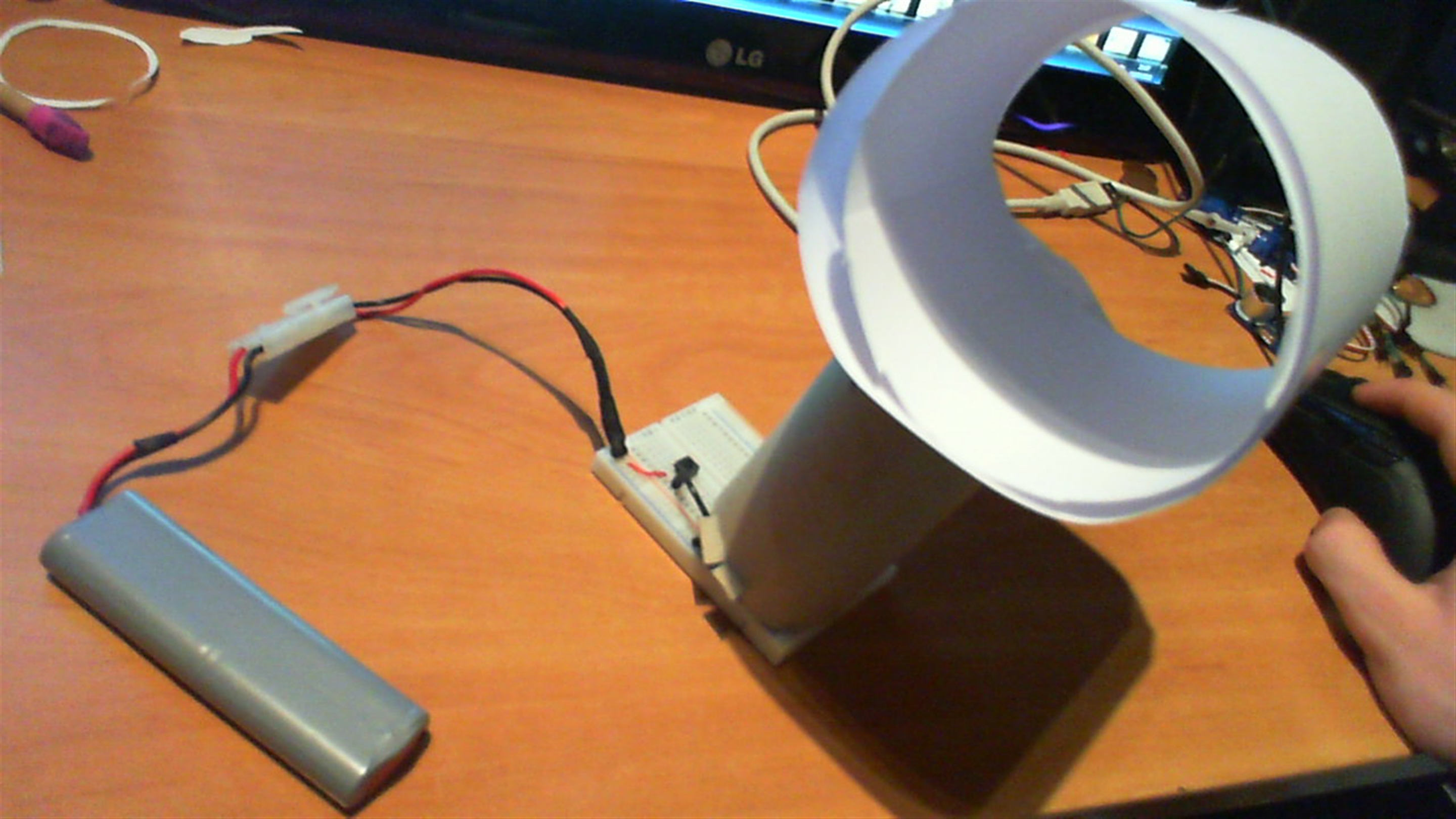

Connect it to your power supply, either battery or USB cable and feel free to add a switch or something, to activate and deactivate it, thanks for viewing my instructable, have fun.
