Mini Cardboard Remote Control Car
by prabeenraj01 in Circuits > Electronics
771 Views, 0 Favorites, 0 Comments
Mini Cardboard Remote Control Car

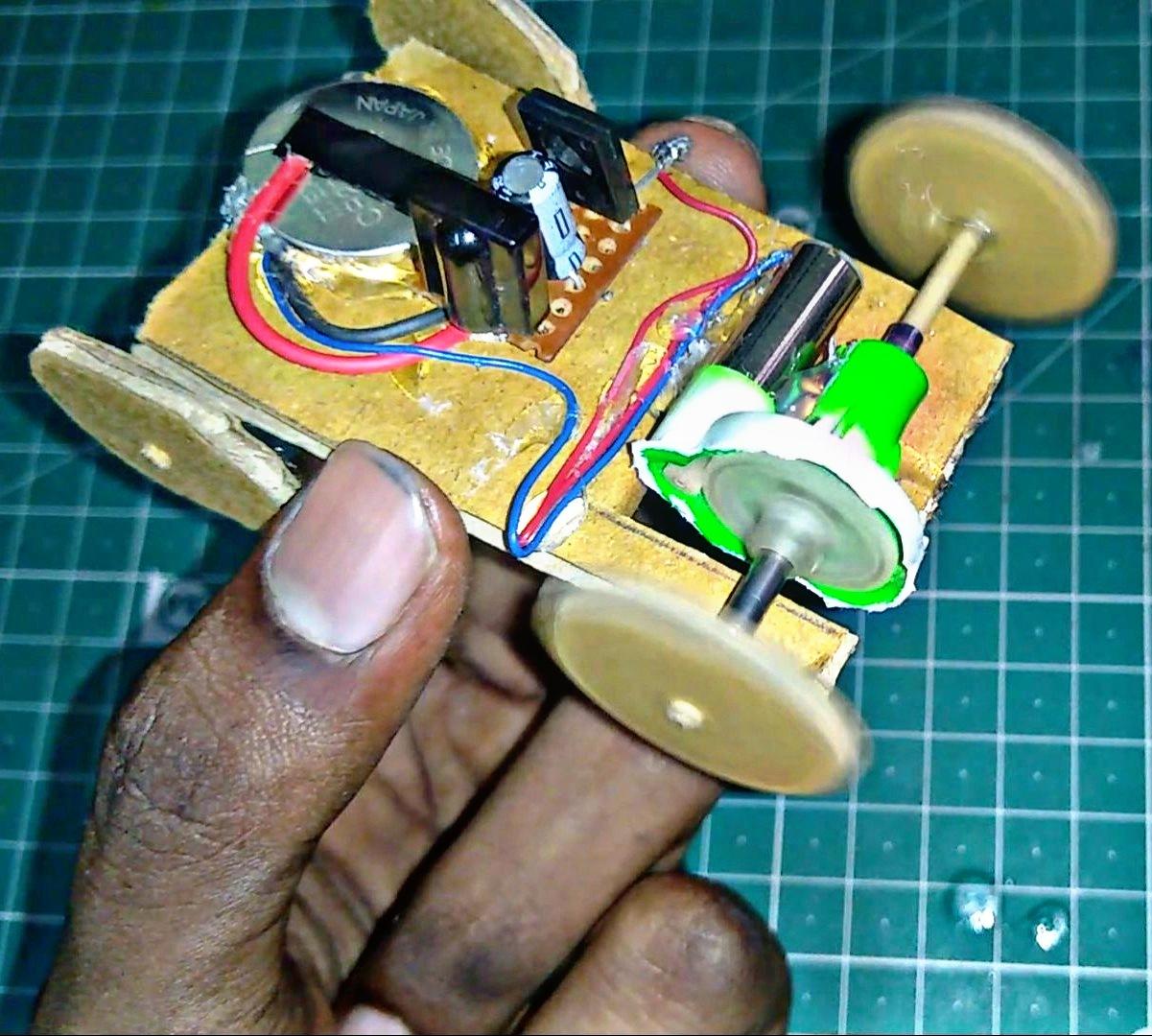

In This Instructables Session We are going to see How to make Simple Remote ControL Car
Components Required:








For Making mini Cardboard RC Car
1) 1 Cardboard Rectangle Shape Piece (3.5*6.5)cm
2) 4 Cardboard Wheels (2cm Diameter) In Compass take 1 cm To make this circle
3) Mini Gear ( I took from old low expensive Made Drone)
4) Mini Brushed Motor ( I took From same Old Drone)
5) Mini Reciever Circuit (I designed using tinker cad and made it simple Circuit ( TSOP 1738 IR Reciever ), (45uF Capacitor You can 10uF to 100uF Capacitor) and (BD140 PNP Transistor))
6) Tooth Pick
7) 9 V battery (First is used mini 3 V Battery Which is not enough to pull the car . Then I used 9 Volt battery)
Designing



I Made simple model By Using Tinker Cad
Connect Gear With CardBoard
.jpg)
.jpg)

1) First Motor With Mini Gear
2) Cut a small portion of cardboard to fix the motor gear
3) Apply Some Hot glue on cardboard and attach the motor gear
IR Reciever
.jpg)


1) I made a simple circuit By Using TSOP 1708 IR Reciever and 45uF Capacitor and a BD150 PNP Transistor . and Tested By tinker Cad Stimulation ( Check The circuit Before making into circuit For That I Used TinkerCad)
2) Then I made Small Circuit
3) And Connect Battery and motor with the circuit
Connecting Wheel
.jpg)





Connect 4 Wheel To Remote Control car

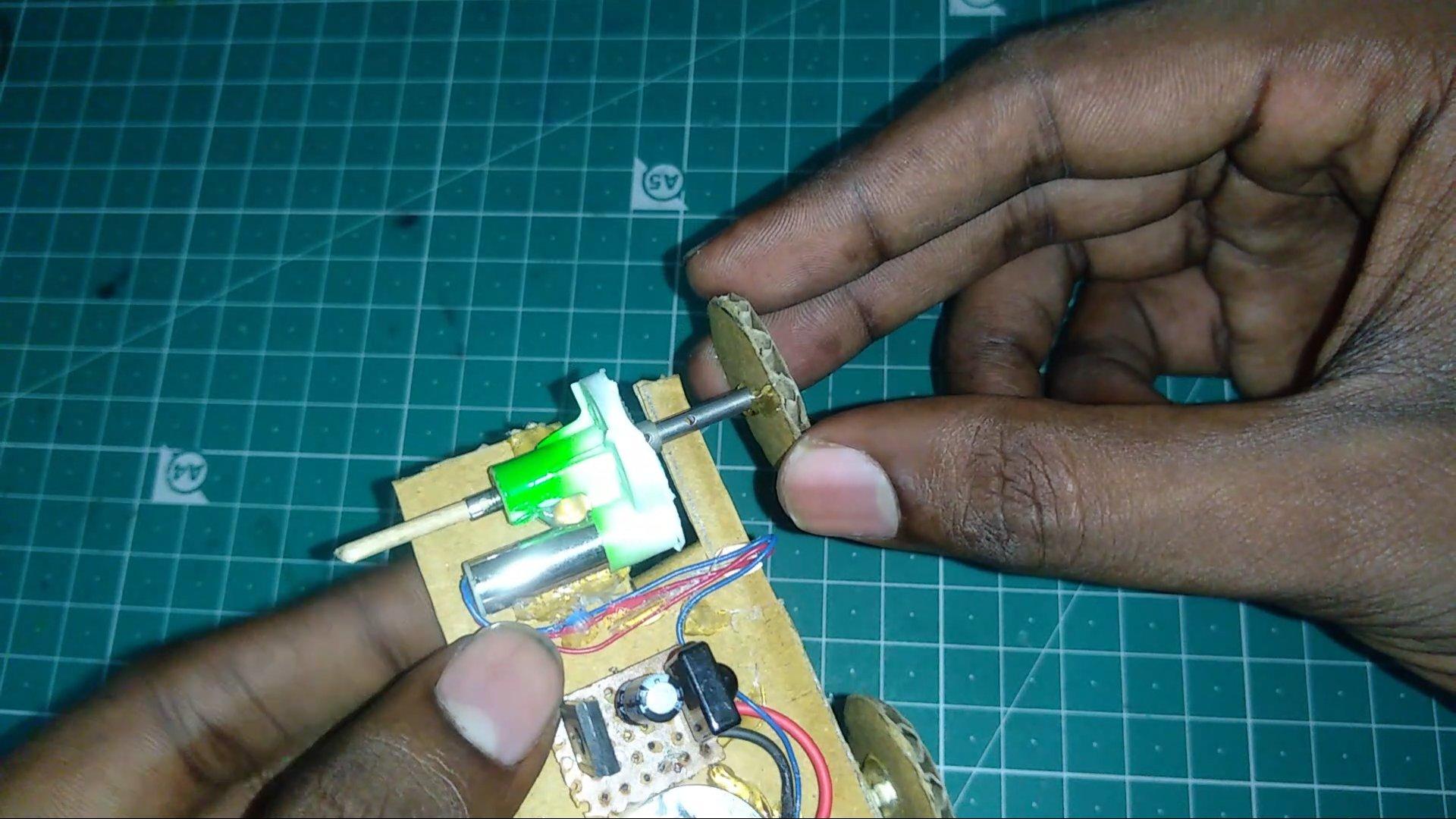

I Connected two wheel To Motor Gear

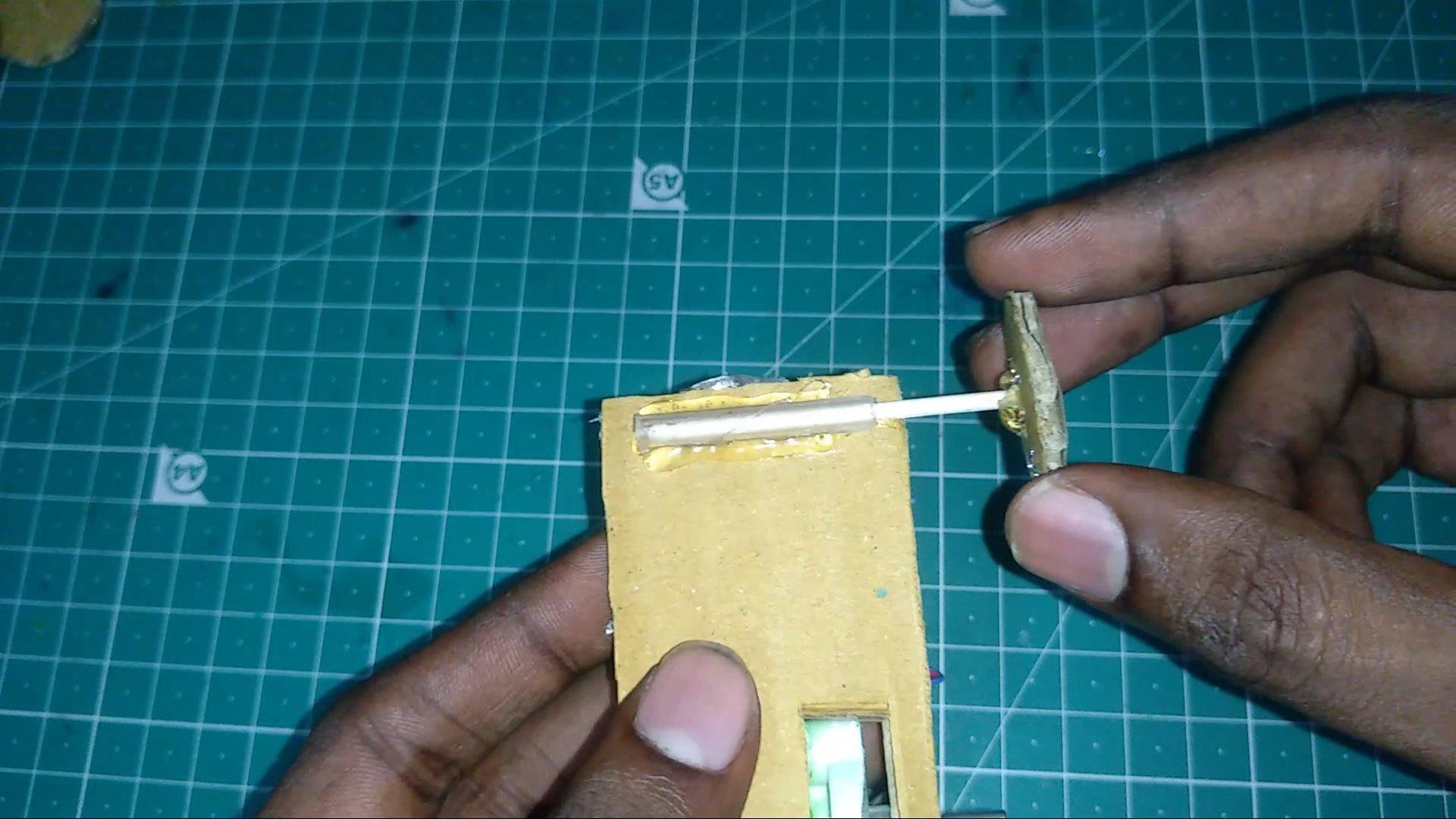

And other two wheels I connected using 1 tooth pick
