Mini BoomBox

Hey there

well , another boombox on the way
and this time i decided to make it the smallest that i can , real miniature - so that i can carry it freely to the beach without grumbling on the weight issue.

hope you enjoy!

so , for this Instructable i decided to build something modest , small , and yet COOL.

i bought a used Center speaker
new Sealed Lead 12volt 5amp Battery
A variety of bolts and nuts
a few angles
small LEPAI amp from eBay
Plexiglas - had at home a piece of 1x1 meter


The tools needed are :
Saw
drill bit + drill
Tin snips
solder + tin
Screwdrivers and/or electric screwdriver

that`s it in general

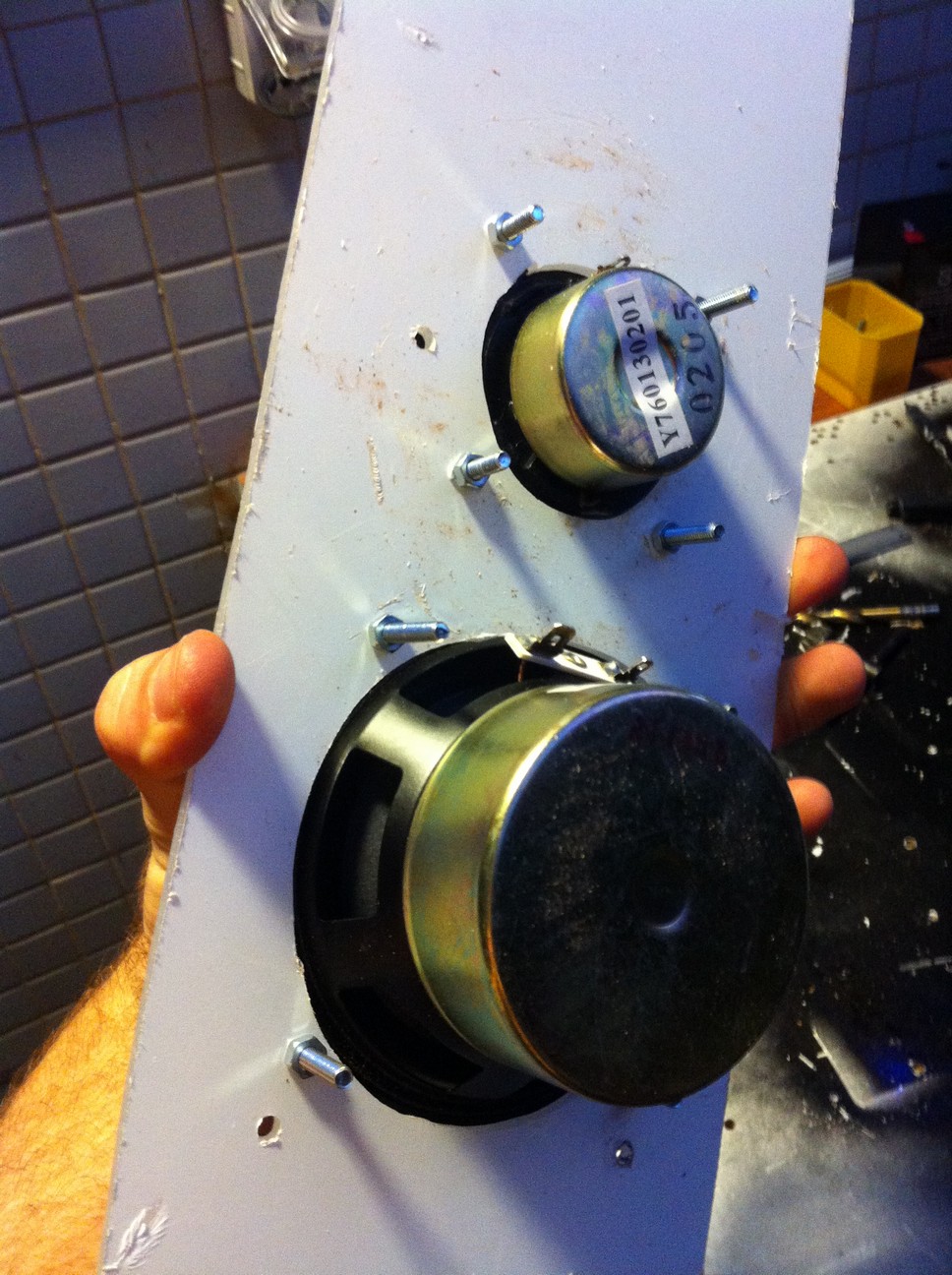

Measure the diameter of the speakers

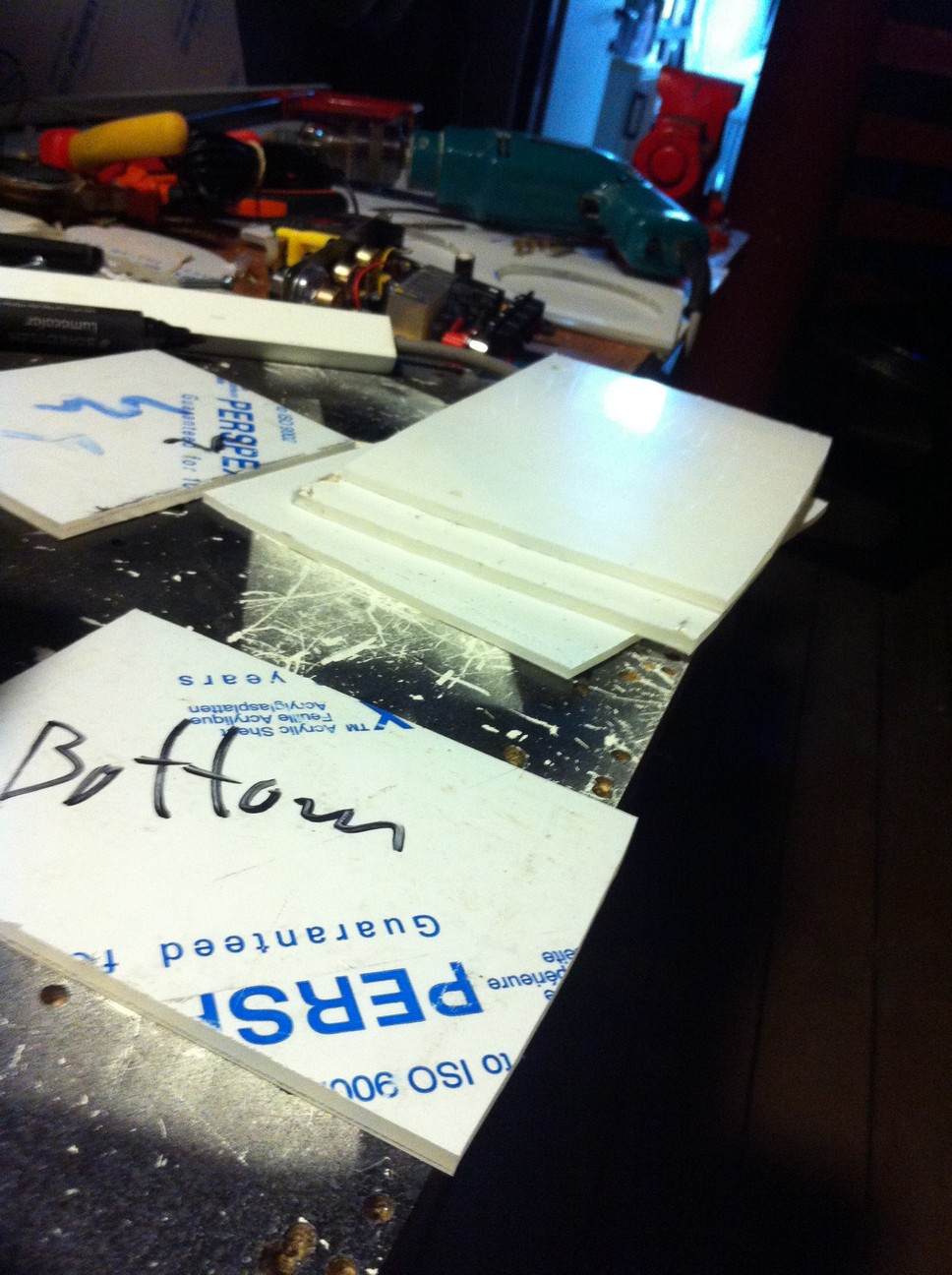

 start cutting the Plexiglas according to the measures

measure the size of the desired BOOMBOX and cut it using the saw.

over all we need :
Bottom piece
upper piece
two sides
and one back piece

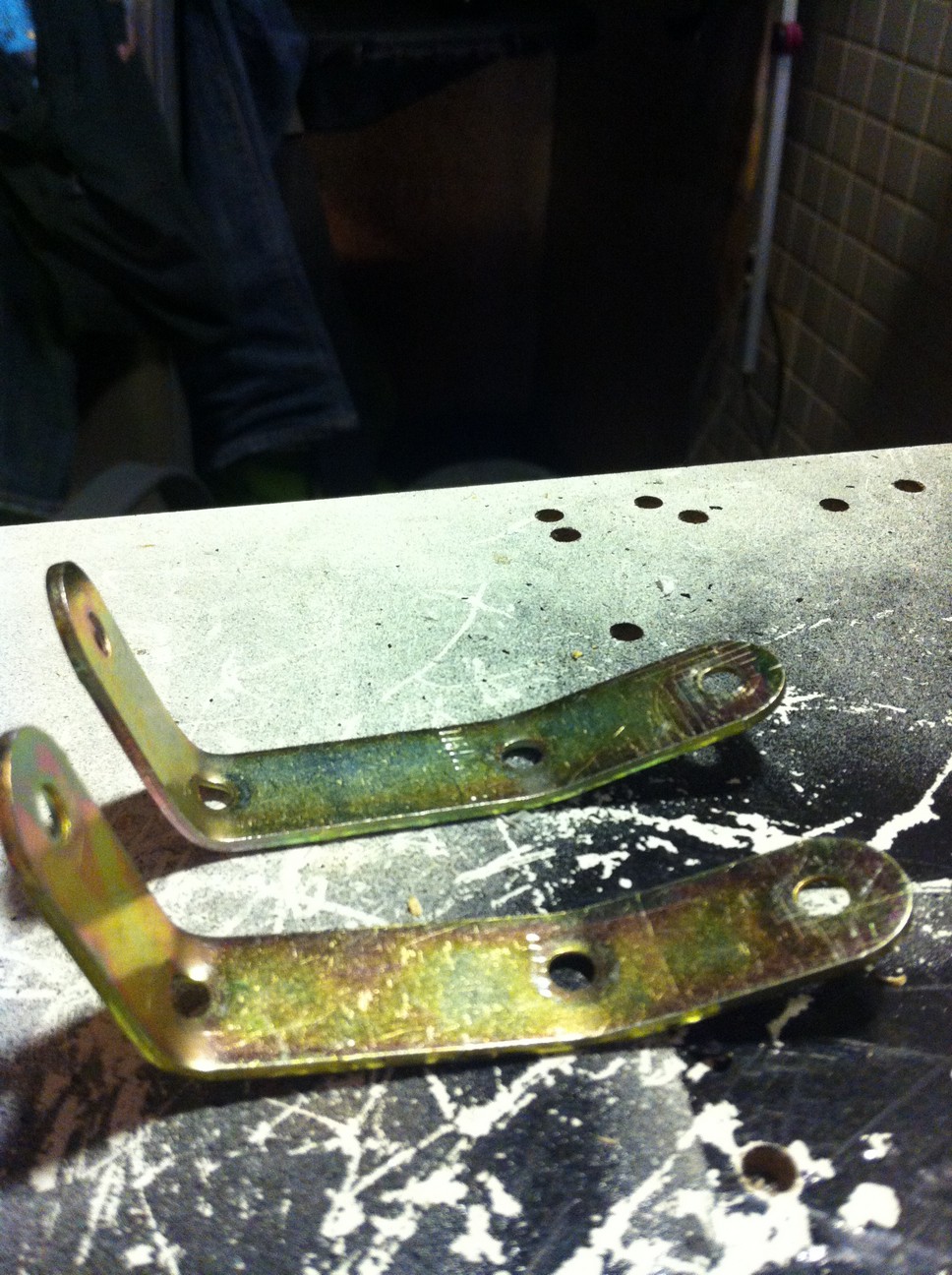

Found some old Angles on my warehouse

cut them with the  saw and assembled them to Plexiglas angles

Due to weight issue ( the Battery ) i had to use at the bottom a strong kinda heavy angle

from an old broom stick i cut a few pieces

In order for the Boombox to be stable and not shiver we need to strengthen it via Small angles

Solder a small Capacitor to split the Frequency between the Woofer and Tweeter

Drill inside the amplifier to attach it to the upper case

Comments are welcomed!
:)
