Mini-Beading Loom Travel-Size

by wicked jypsi in Craft > Jewelry

4339 Views, 25 Favorites, 0 Comments

Mini-Beading Loom Travel-Size

add hardware.jpg

Mini Beading Loom Tutorial...travel size!!

On my recent trip to Florida I wasn't able to bring all my craft supplies, but I knew I would want to do some beading during some down time between Disney park visits....

So I decided to make a mini travel-sized loom to take and I wanted to share the process with you:

Ingredients....

add hardware.jpg

Supplies:

Wood pieces 1" thick cut to desired size (I cut one piece 3" width by 6"length, and two smaller pieces each 3" width by 1.5"-approx.-in length)

2 Eye Screws, 4" bolts, two wing nuts to fit bolts

Wood Stain (if desired)

Wood Glue and 2 clamps to secure while drying

Drill, Sand paper or electric sander

Cut Your Wood Pieces...

cut wood.jpg

First, cut your wood to dimensions listed in "Ingredients" section in the last step:

Sand and Stain Wood (if Desired)...

sand wood to smooth.jpg
stain wood.jpg

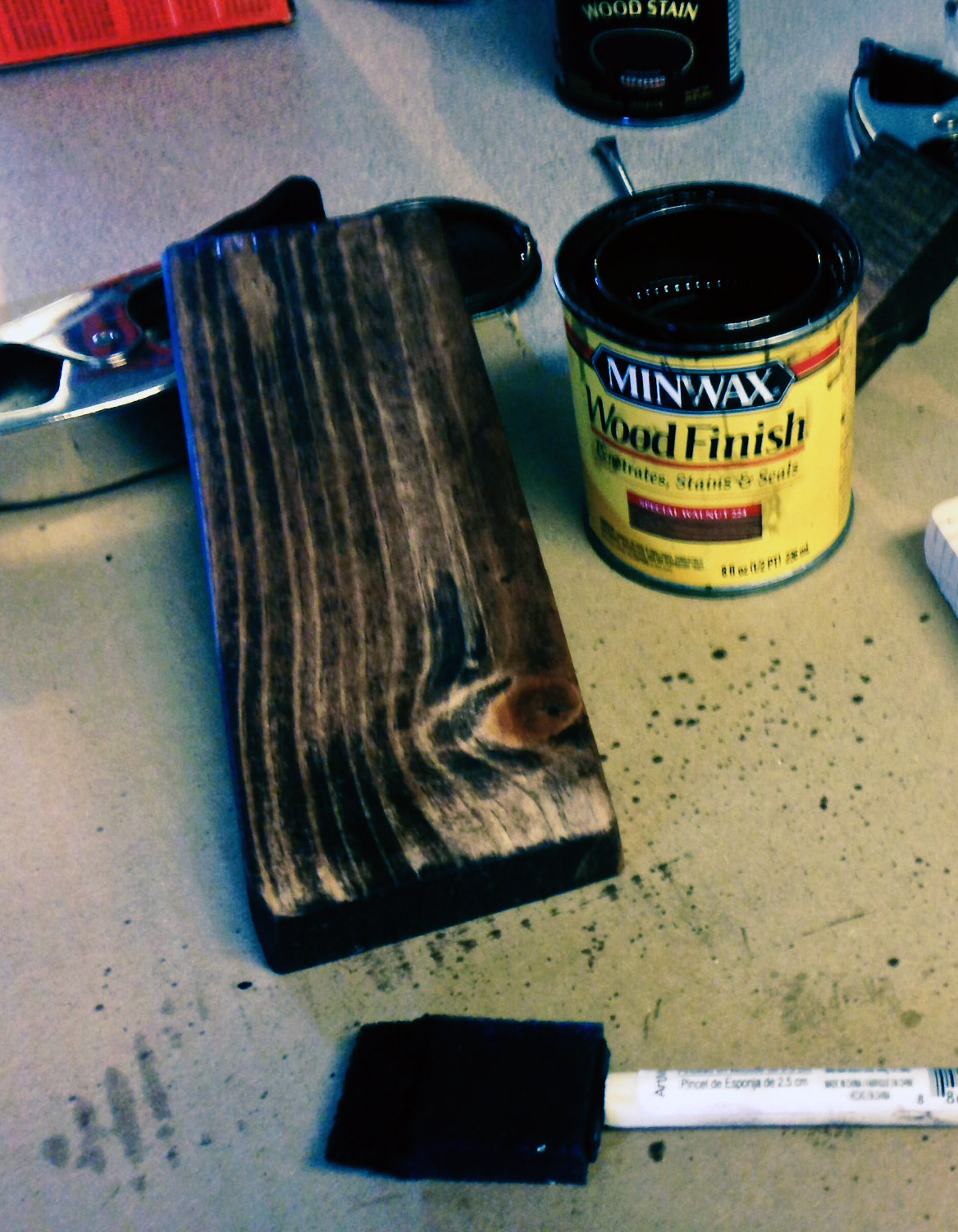

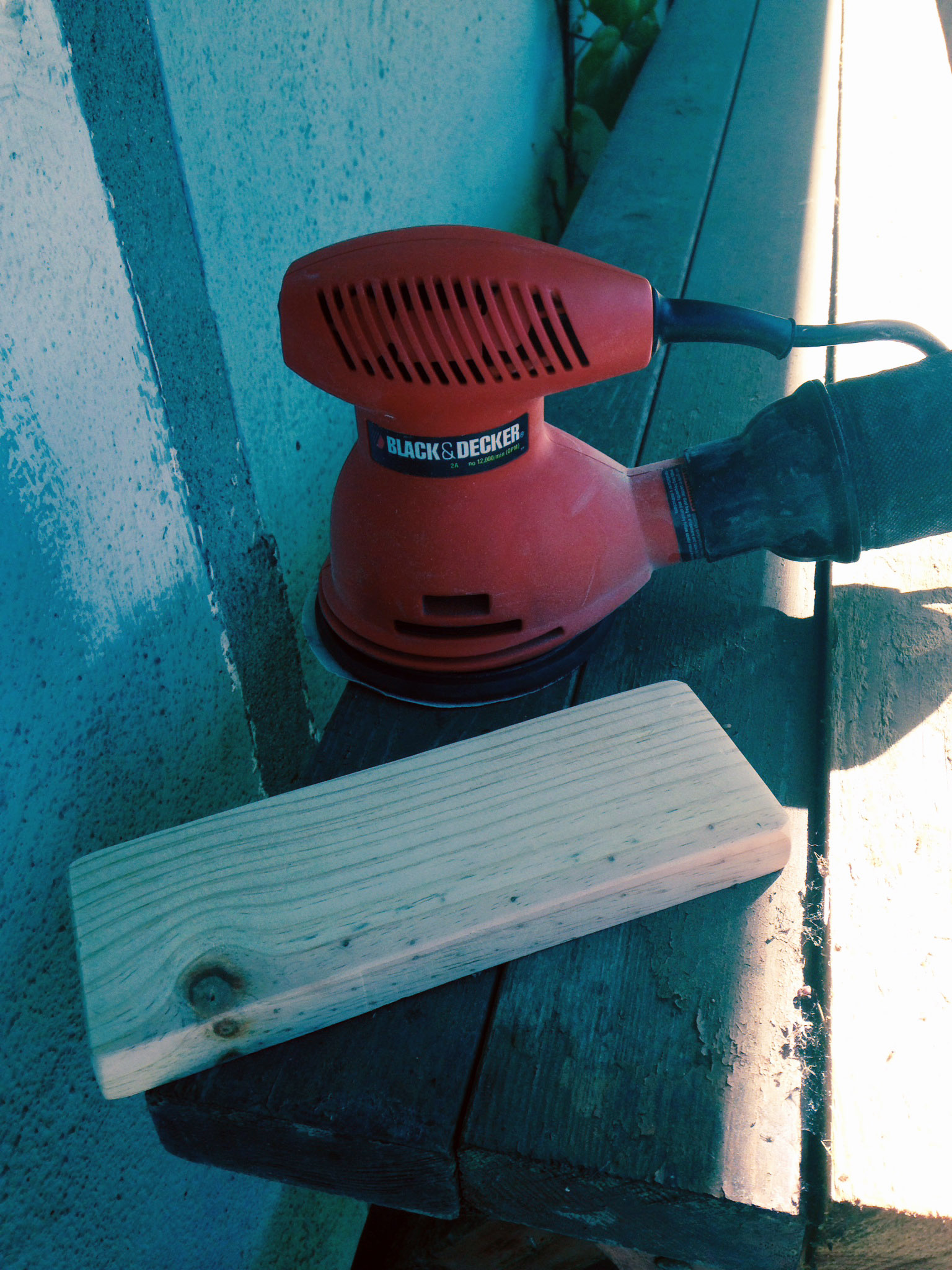

Next, if desired, sand edges and surface of wood till smooth and stain with wood stain in desired shade:

Glue Small Pieces to Large Piece of Wood....

glue wood and clamp.jpg

When the stain has dried, use wood glue to connect the 2 smaller pieces to the top side ends of larger wood piece and add clamps to hold in place while drying as shown:

Drill Holes....

drill holes.jpg

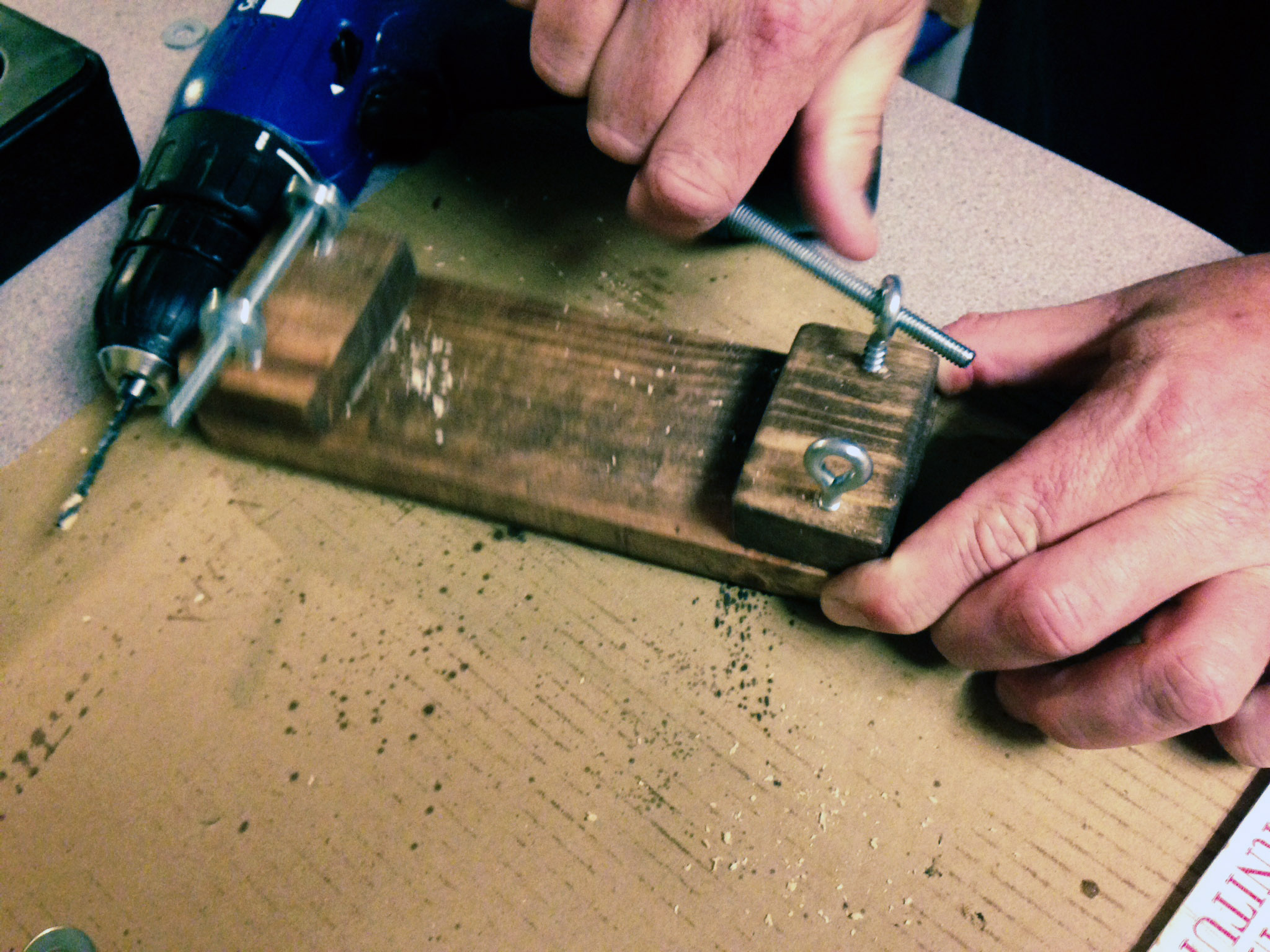

After the glue has dried, drill 4 holes...(2 holes in each small end piece) into the each end of the two smaller wood pieces- as shown:

Add Eye Screws....

add eye screw.jpg
screw in and add bolts and wing nuts.jpg

Add the eye screws--one to each of the 4 holes and use the bolts to screw them in tight (see 2nd picture):

Add the Bolts, Wing Nuts, Etc.....

add hardware.jpg

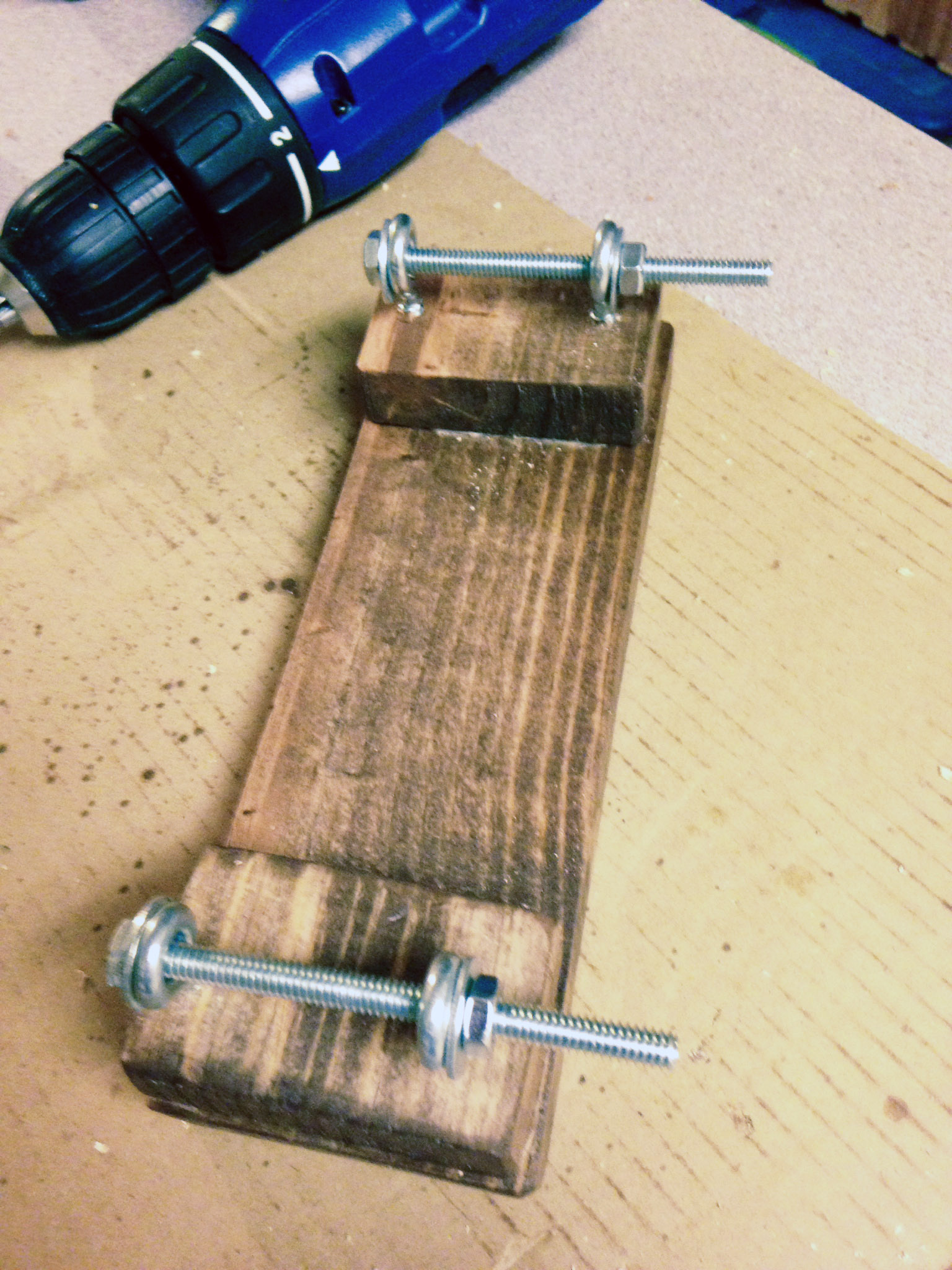

Add bolts through the eye screws and secure with wing nuts on both ends as shown in picture....

ALSO: Add two nails to each outer edge (if desired - not shown) to use to secure thread when threading the loom....

** There you have it. A mini bead loom to take along with you!

Let me know if anything is unclear in comment section and I will get right back to you. Also, if you want to make a larger loom, check out my other tutorial either here on Instructables or on my blog at:

wickedjypsi.blogspot.com (Link: HERE)
