Mini Barbecue - a Modest Option for Nature!

Mini barbecue - a modest option for nature!

Hello to all connoisseurs of juicy steaks and kebabs, I want to share with you my experience in building barbecues. I want to write four instructions, starting with this simple one as I would say, and ending with my pride "Big smokehouse-barbecue". All the models described below serve me for many years and are well tested by time and fire;) However, unfortunately I do not have any diagrams or photos in the process of creation, as I can only demonstrate all the details of their work with a detailed description. (Photos of all four ideas will be below for reference and interest). I hope someone will find it useful, and those who want to repeat will make their version even better. So go ahead. And so this is my first briefing, so do not judge harshly)

You will need:

1. Metal rods (diameter 5 mm) - you can have other sizes that you have fittings or the ideal option would be stainless steel rods with a diameter of 4mm to 8 mm.

2. Bulgarian - for cutting to size.

3. Welding machine - to connect "Y" similar elements.

4. Roulette.

5. And heat-resistant paint - black.

6. Tarpaulin - for sewing the cover.

Here everything is simple and quite clear. I think everything is clear from the photos. This is a very compact option that you can take with you on a hike and conveniently organize cooking on the fire. It consists of a canvas cover of own tailoring, six skewers and elements of a brazier. The set includes dashes of horizontal rods "I" - similar and six vertical rods "Y" similar which shake in the earth. Everything in the photo.

We have two elements:

1) "I" - similar in size 50 - 55 sm

2) "Y" - similar in size 50 sm ( 5 sm - 2 st and 45 sm - 1 st)

Pay attention to the sizes of branches in "Y" similar. We cut everything to size, do not forget to correctly calculate the number of cuts and elements, especially on the "Y" like. Next to the welding process, we need only three elements of the "Y" of such a rod at one point - it's simple. However I recommend to make certain fastening a sample that all components of welding were similar to each other. We grind and paint.

On "IY" similar elements in the course of grinding it is necessary to sharpen one end of a rod for the best zagraganija in the earth.

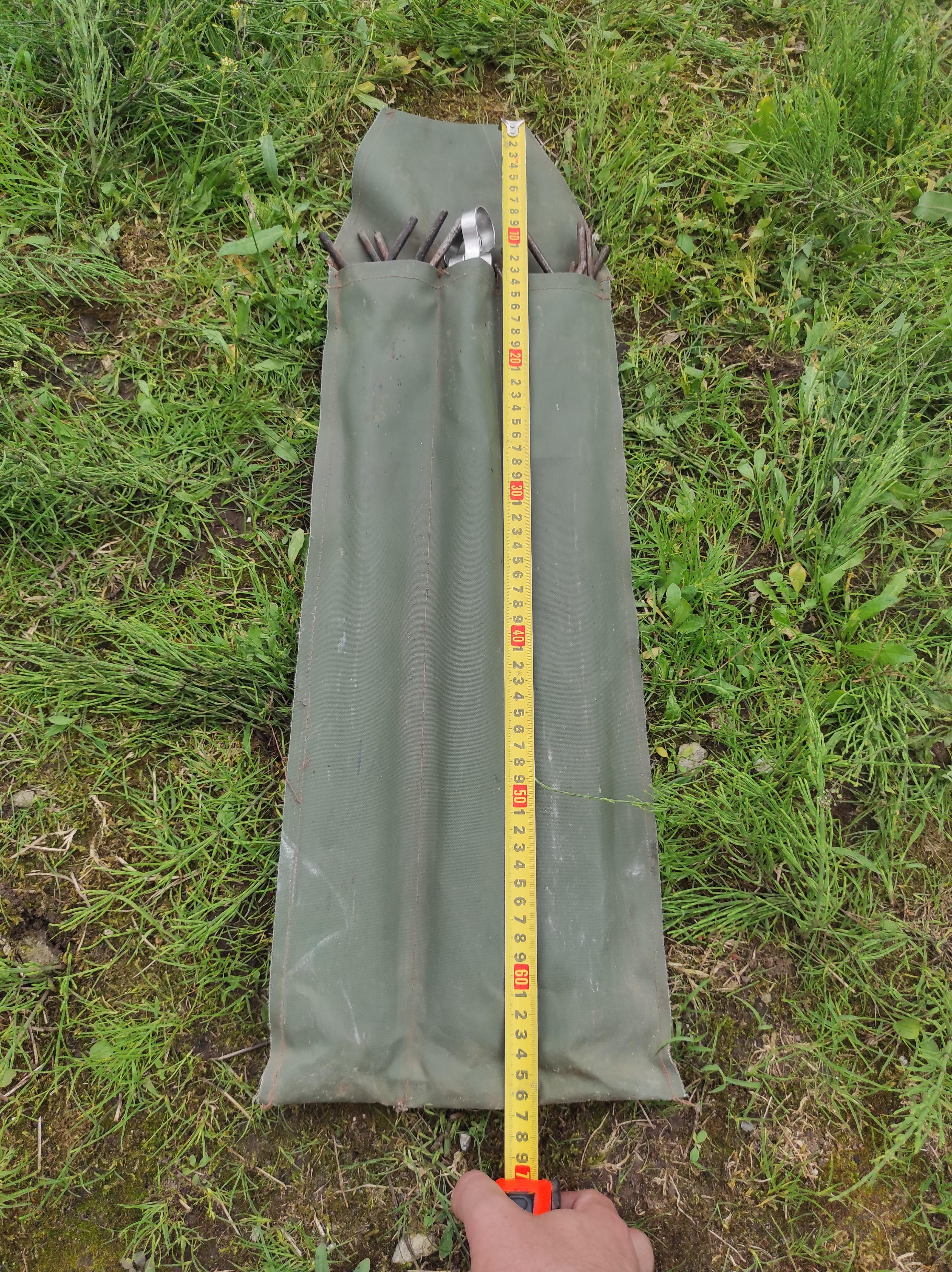

And a tarpaulin cover that has a division into three compartments and a convenient loop at the back for fastening to the belt. Compartments three one average for six skewers, the other two for other items.

With what set it is possible to organize a working surface over a hearth for preparation of meat or to cook soup in a bowl in derivative mustaches. The main design option is four rods "Y" similar to shove into the ground around the perimeter of the hearth and take two horizontal plans in the middle and have a mangalabo or if you cross the horizontal sticks at the end we have a point for hanging the pot. Yav also made two more "Y" and one "I" similar elements as a spare or for a separate cauldron.

This device has served me for many years and I always know that you do not need to invent anything, but there is always an easy option for trouble on a trip to nature. By the way, this is an ideal option for fishing, these elements can also be used as a stand for a fishing rod.

And remember to handle fire safely. Only light a fire in a designated and designated area. Save the nature !!!
