Mini Attiny Board *updated* With Programmation

Since several month i read forum about Attiny and Arduino .
It's a great platform for MAKER
So i decide to make my own board for Attiny85.
It's a low cost version of Arduino

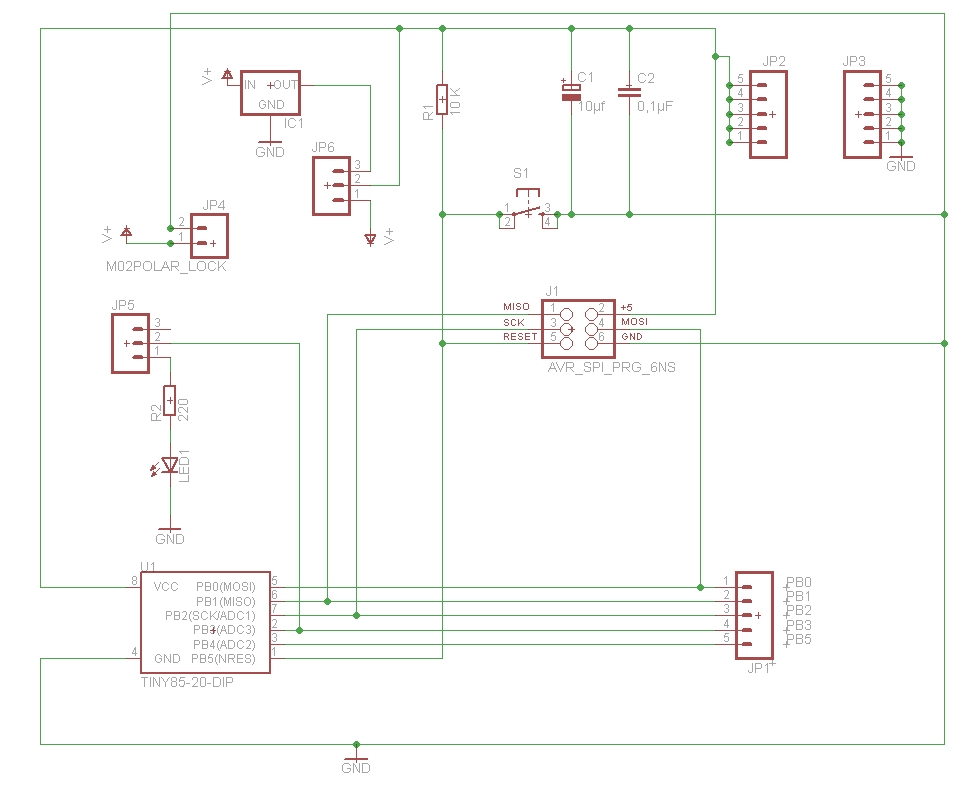

I made the shematic with Eagle

I ordered PCB with OSH Park

they make a good job

for less $9.00 you have 3 board with free shipping.

the direct link : http://oshpark.com/shared_projects/EbNiho3O

My experience:

to program the board you need an arduino uno R3

First Connect the attinyboard isp header on the Arduino board

• MISO on pin 12 arduino
• SCK on pin 13 arduino
• RESET on pin 10 arduino
• MOSI on pin 11 arduino
• Vcc on +5v
• Ground on ground (!!!)

upload the sketch " arduinoisp" on your arduino board

select the good board and port for that.

now your arduino is as ISP

Change the board to attiny

Upload your sketch or for example the Blink sketch

Enjoy !

A good tuto here :

http://highlowtech.org/?p=1695

New project : make an adapter to program the board with arduino

http://oshpark.com/shared_projects/7W9eZLfm

It's my first instructable

The next step :

make a Lipo charger with smd : The board is ordering:

http://oshpark.com/shared_projects/QC0IcBFP

perhaps with a solder stencil :

http://www.oshstencils.com/
