Micro:bit V2_Virtual Cat & Pal

micro:bit V2 Virtual Cat

The two micro:bits talk to each other through sounds and led displays. I decided to use the back micro:bit as the controller. This allows the front micro:bit to be the LED display for interacting with your Virtual Cat.

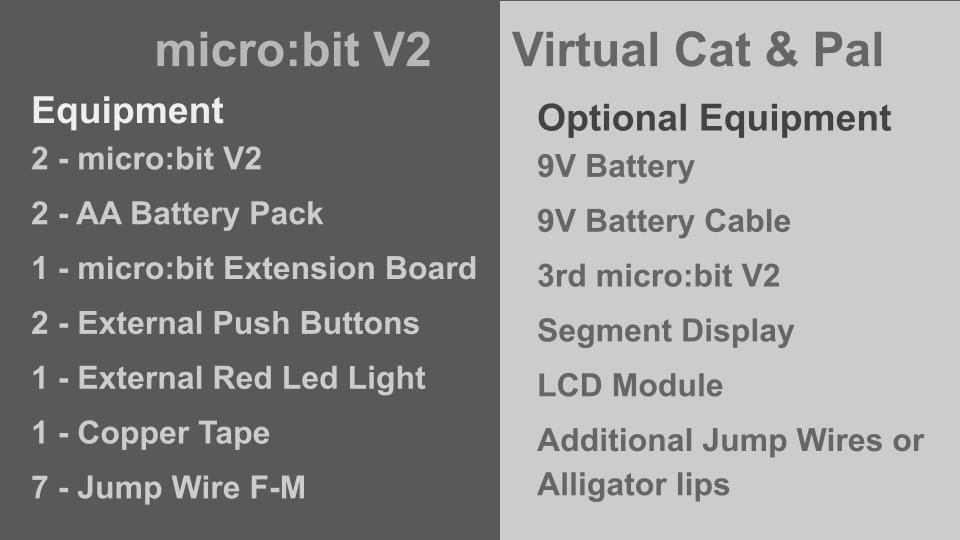

Equipment:

2 - micro:bit V2

2 - AA Battery Pack

1 - micro:bit Extension Board

2 - External Push Buttons

1 - External Red Led Light

1 - Copper Tape

7 - Jump Wire F-M

Optional Equipment:

9V Battery

9V Battery Cable

3rd micro:bit V2

Segment Display

LCD Module

Additional Jump Wires

Materials:

File Folder

Glue

Clear Tape

Painters Tape

Scissors

Pencil

Eraser

Ruler

Color Pencils

Black Marker

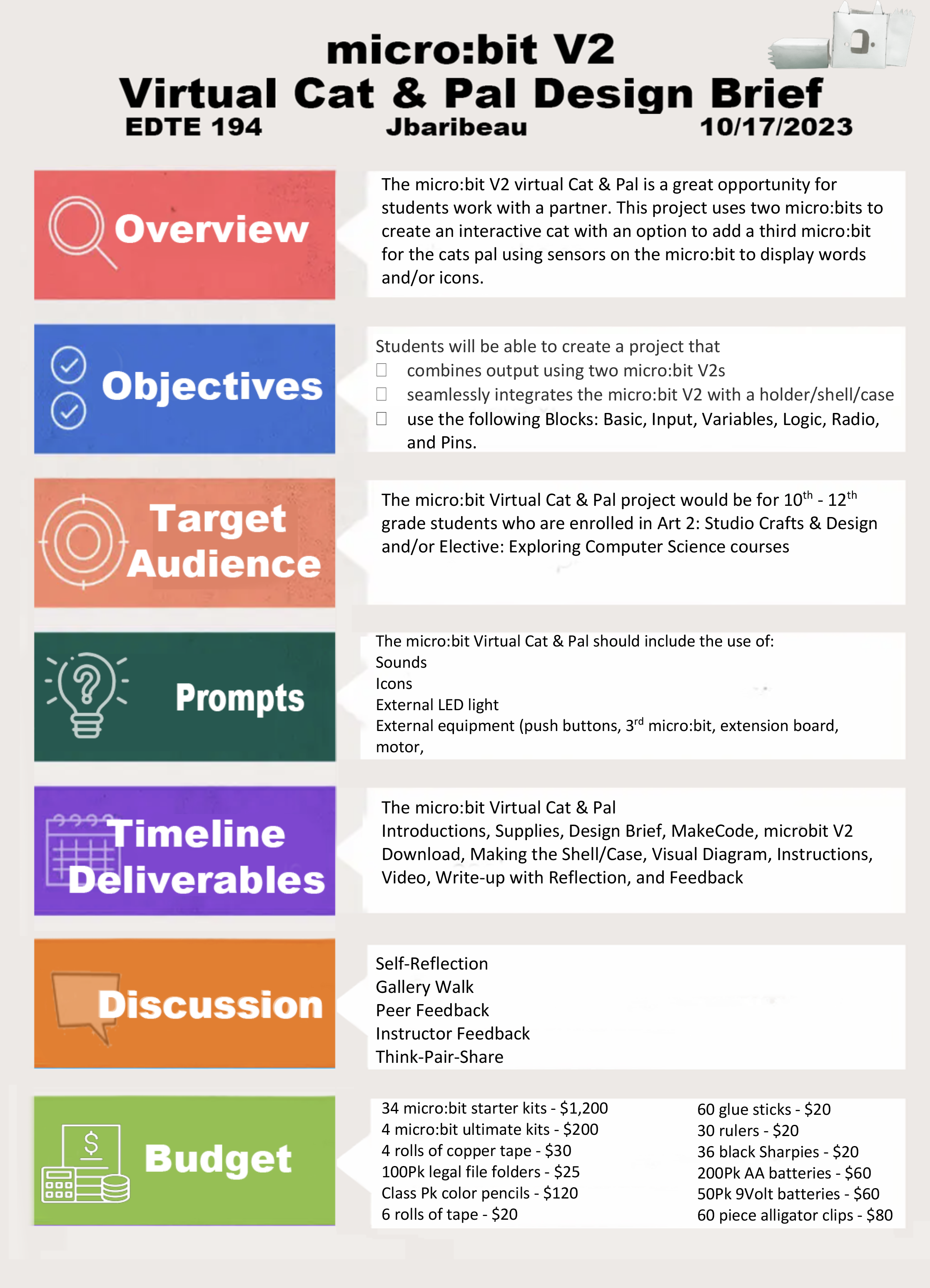

Micro:Bit V2_Virtual Cat & Pal Design Brief

Use MakeCode to download the code/programing to 2 micro:bit V2 for the Virtual Cat & Pal

Project Link: https://makecode.microbit.org/_MHidorTuLd1K

MakeCode Website: https://makecode.microbit.org/

Optional:

• You can add a 3rd micro:bit as a display
• You can add additional code/program for other micro:bit equipment/devices

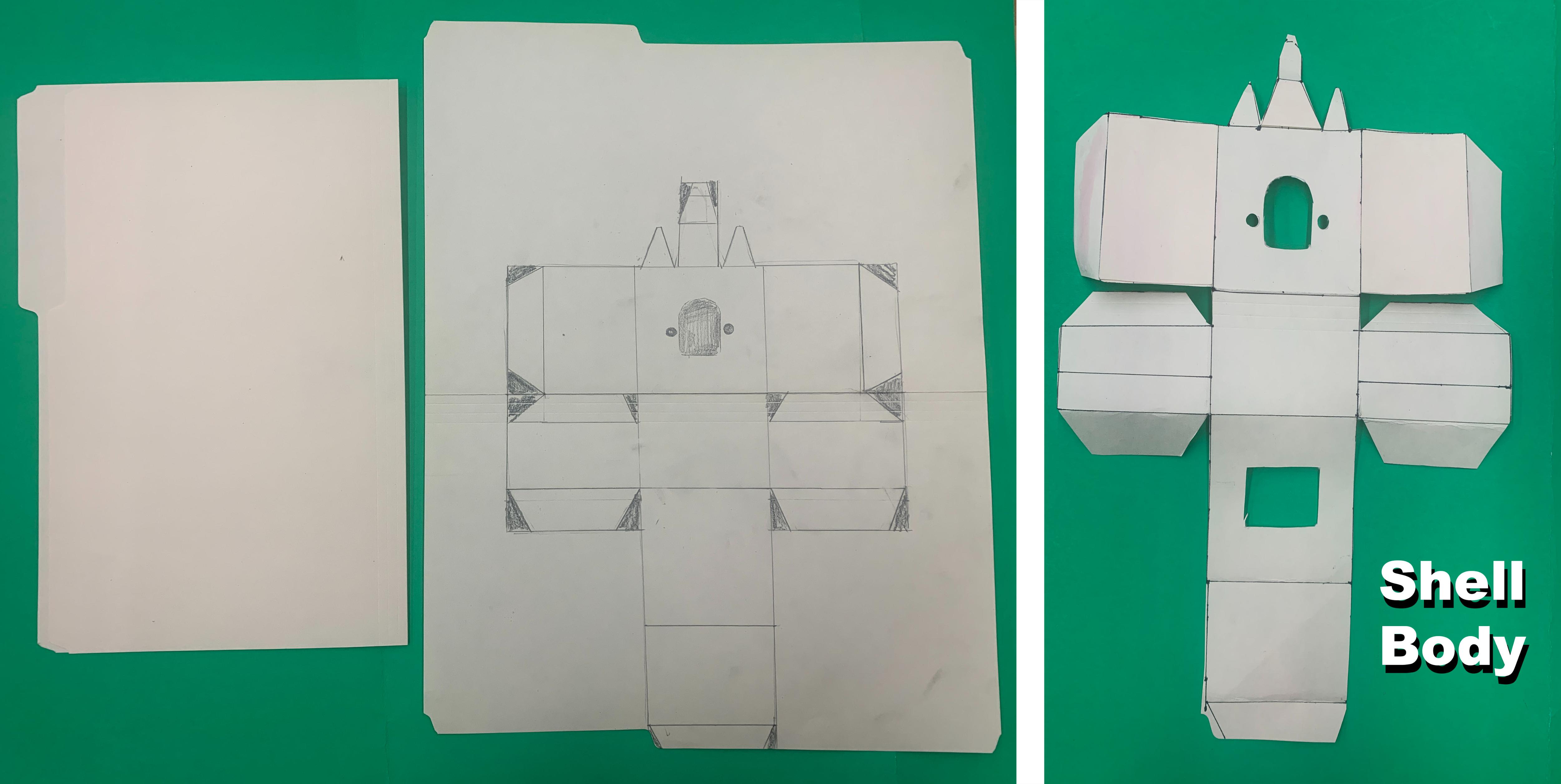

Materials: File Folder or Card Stock, Glue, Tape, Scissors, Pencil, Eraser, Ruler, Color Pencils or Markers, Black Marker, & Virtual Cat Dimension Plan

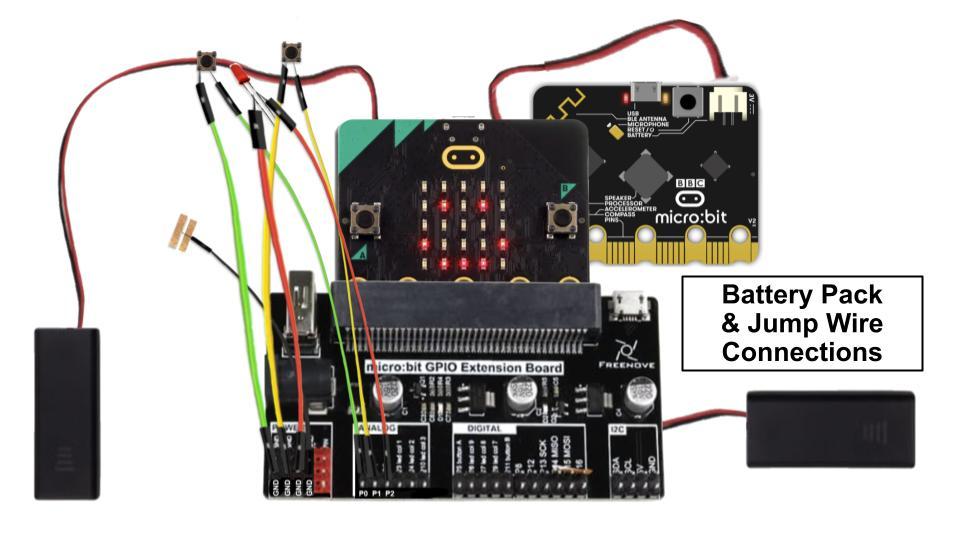

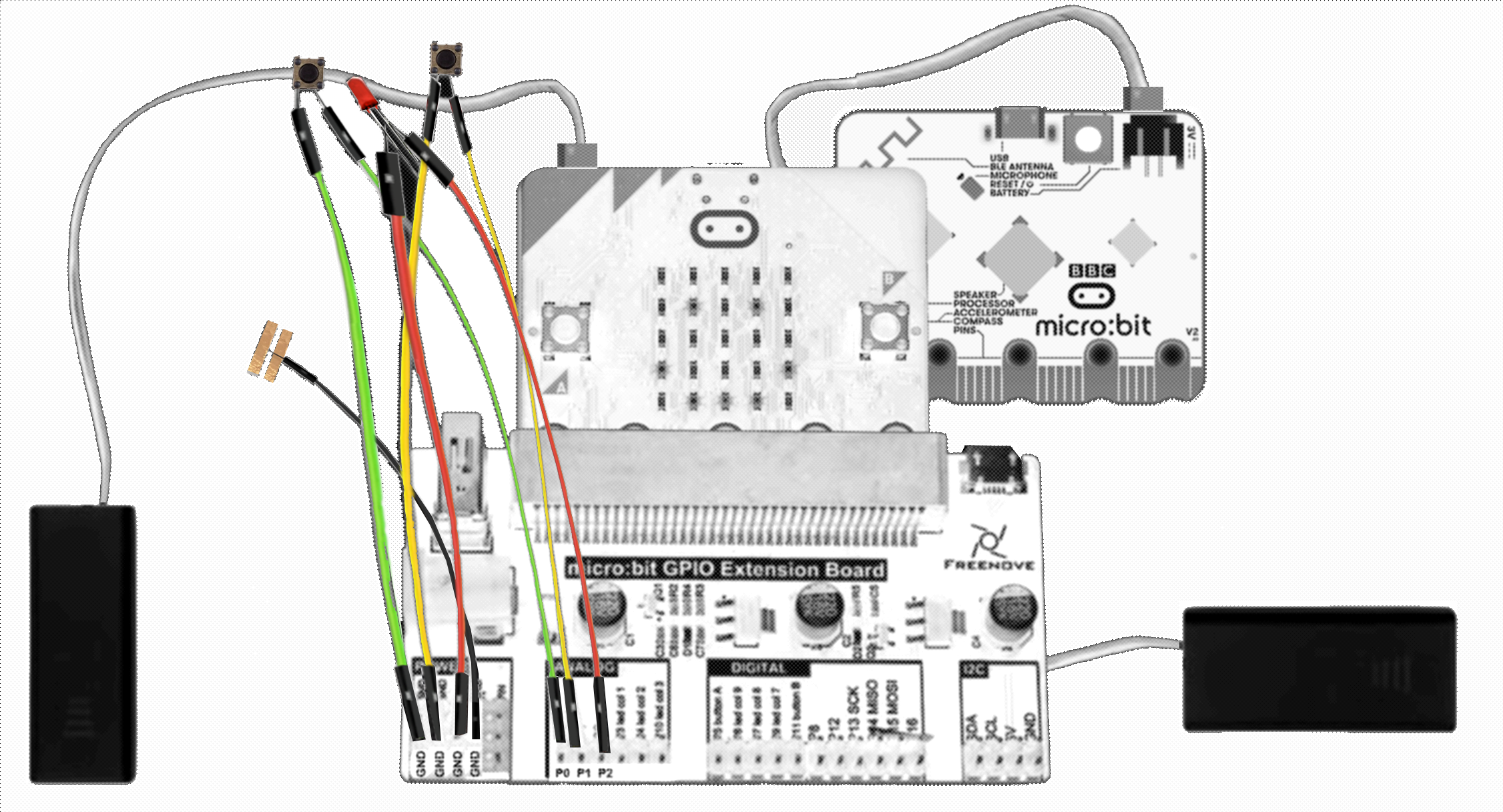

Use the Diagram to assist you in connecting your micro:bits to your Virtual Cat (*see equipment list)

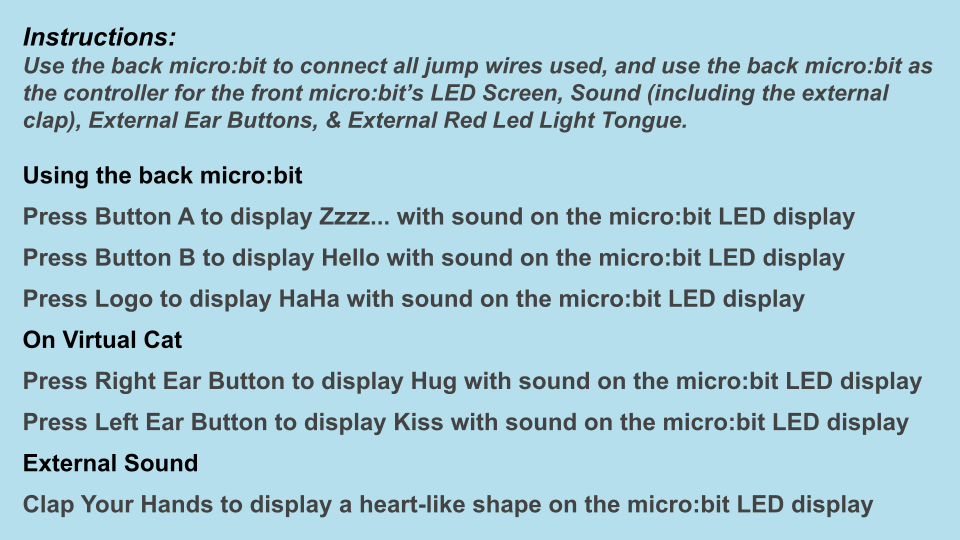

Instructions:

Use the back micro:bit to connect all jump wires used, and use the back micro:bit as the controller for the front micro:bit’s LED Screen, Sound (including the external clap), External Ear Buttons, & External Red Led Light Tongue.

Using the back micro:bit

Press Button A to display Zzzz... with sound on the micro:bit LED display

Press Button B to display Hello with sound on the micro:bit LED display

Press Logo to display HaHa with sound on the micro:bit LED display

On Virtual Cat

Press Right Ear Button to display Hug with sound on the micro:bit LED display

Press Left Ear Button to display Kiss with sound on the micro:bit LED display

External Sound

Clap Your Hands to display a heart-like shape on the micro:bit LED display

This is a short YouTube video on how the micro:bit Virtual Cat works.

How To Operate Your Virtual Cat & Pal

Unit Project Write-Up: Micro:Bit V2_Virtual Cat & Pal

The PDF talks about the micro:bit Unit Project.
