Micro:Bit Alarm System
by taylorry in Circuits > Microcontrollers
173 Views, 0 Favorites, 0 Comments
Micro:Bit Alarm System

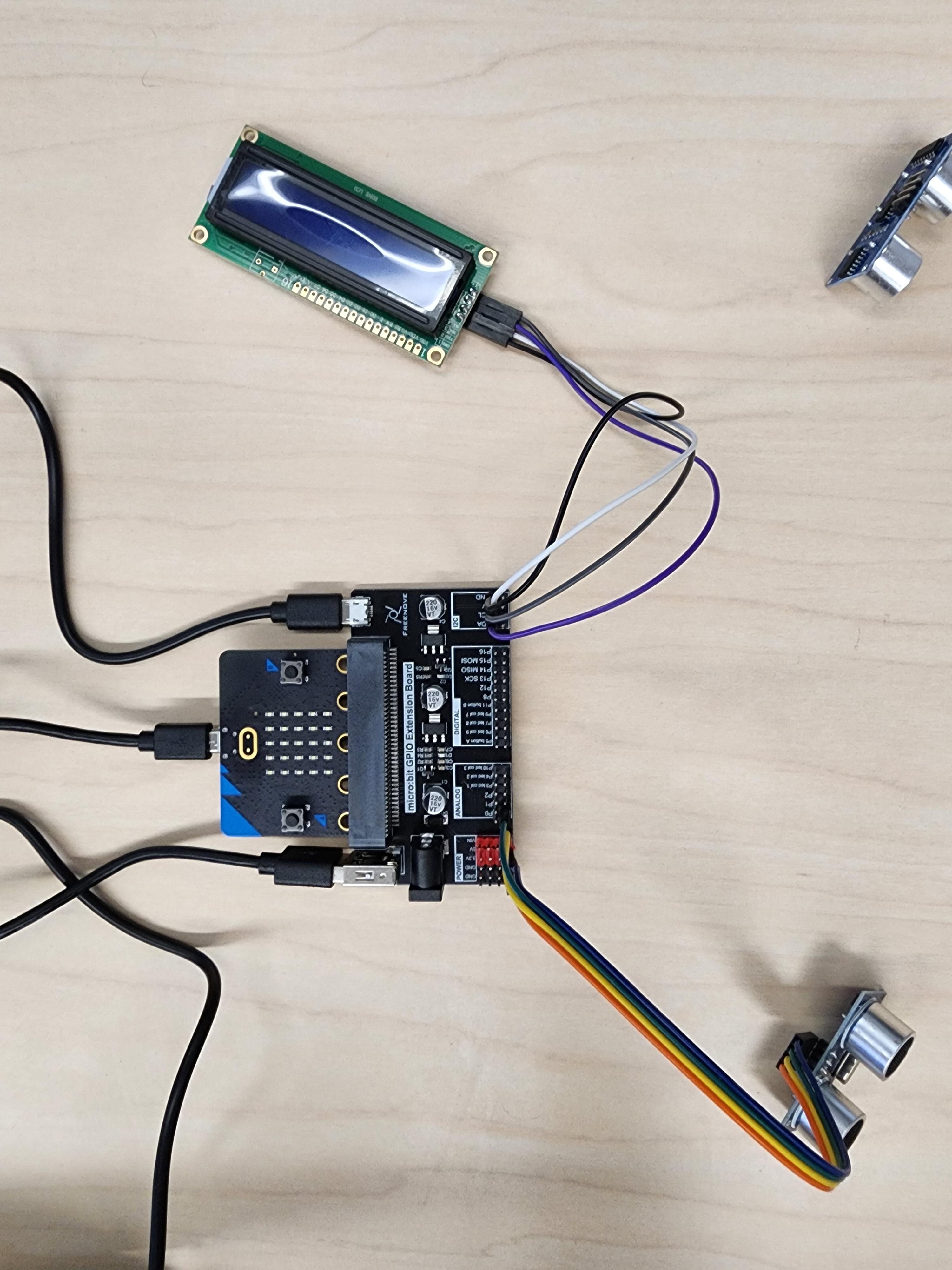

![20231017_171527.jpeg](/proxy/?url=https://content.instructables.com/FTM/O4TJ/LNUC4TB3/FTMO4TJLNUC4TB3.jpg&filename=20231017_171527.jpeg)
This ultrasonic ranger based alarm system is triggered by objects within 1m of the sensor.
Supplies
Micro:Bit controller
Breakout board for Micro:Bit
1602 LCD screen
Ultrasonic range finder
![20231017_171516.jpeg](/proxy/?url=https://content.instructables.com/FVR/8TQV/LNUC4TBS/FVR8TQVLNUC4TBS.jpg&filename=20231017_171516.jpeg)

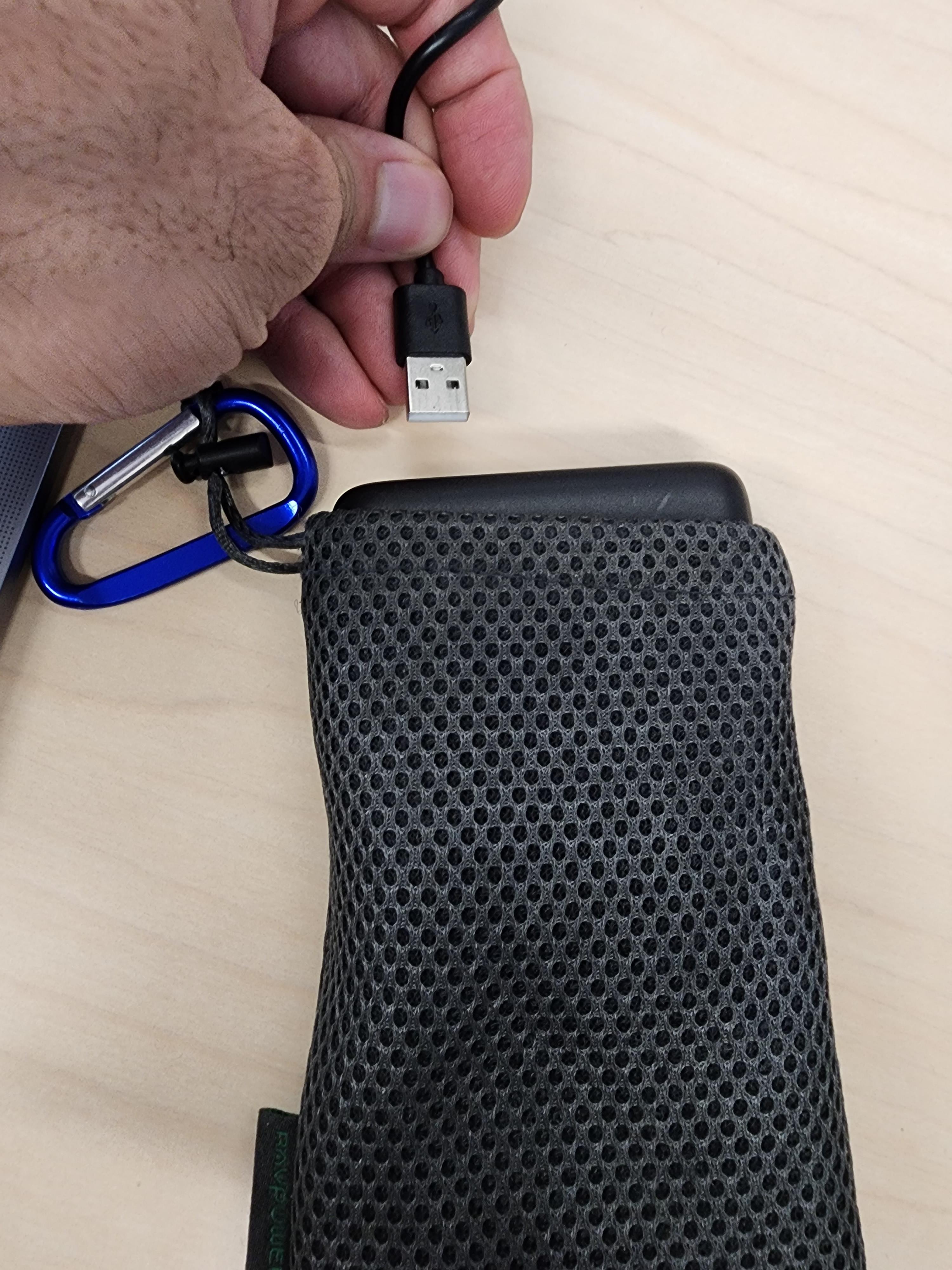

Connect to USB power into the breakout board. It will immediately start sounding, but don't mind that.
![20231017_171735.jpeg](/proxy/?url=https://content.instructables.com/F0G/OIKJ/LNUC4TCF/F0GOIKJLNUC4TCF.jpg&filename=20231017_171735.jpeg)
Press the logo on the microcontroller (it's capacitive - a tap will do) to set the alarm.
![20231017_171927.jpeg](/proxy/?url=https://content.instructables.com/FEU/TJP7/LNUC4TCV/FEUTJP7LNUC4TCV.jpg&filename=20231017_171927.jpeg)

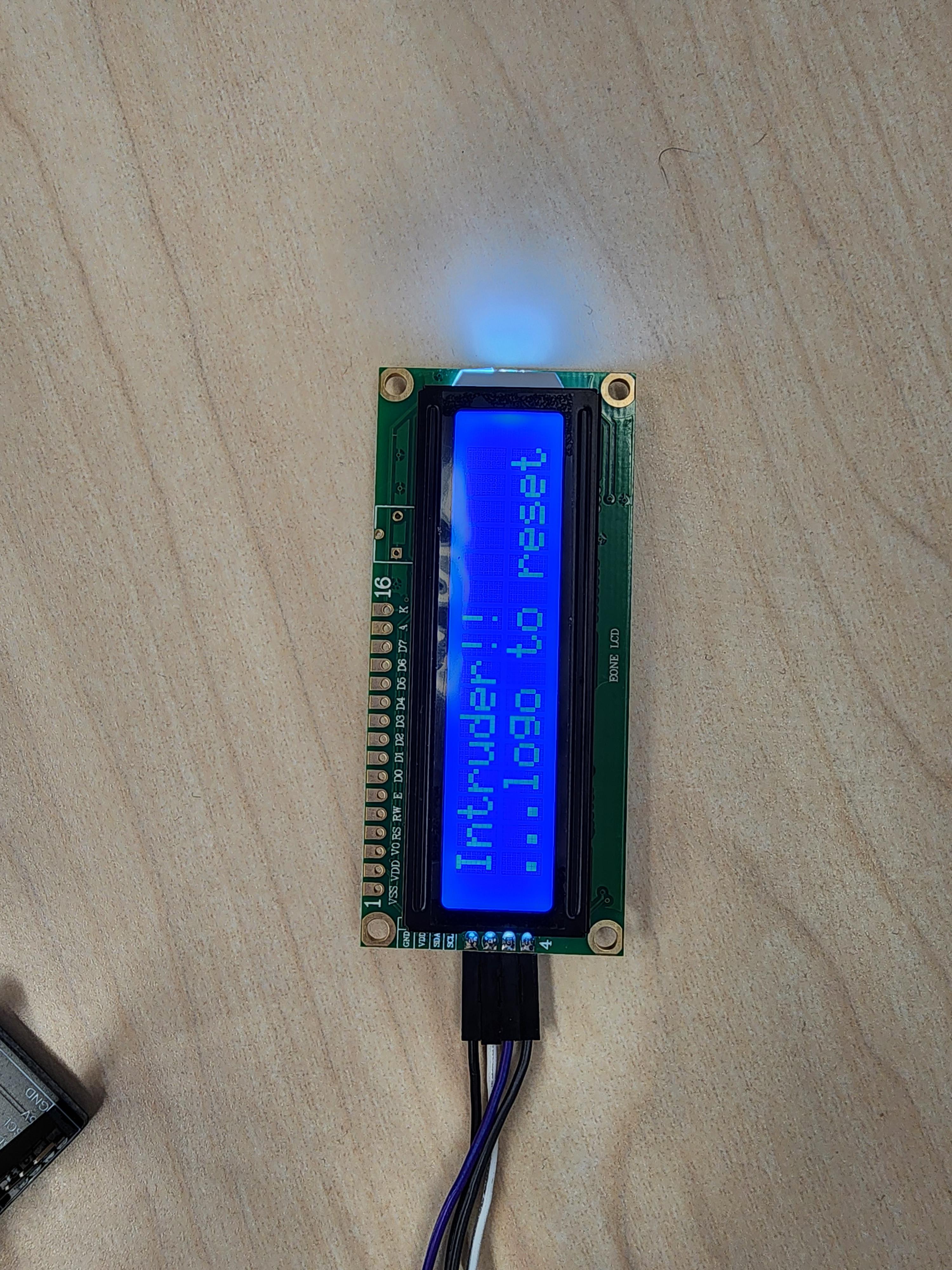

Try interrupting the path in front of the sensor within 1m! Sound will go off and the LCD will say "Intruder!!"
![20231017_172118.jpeg](/proxy/?url=https://content.instructables.com/FMV/9OJJ/LNUC4TD9/FMV9OJJLNUC4TD9.jpg&filename=20231017_172118.jpeg)
Press the logo on the microcontroller to turn off the alarm and reset to "All clear"
