MiG-29 Radio Control Foam Aircraft

Hi friends In this project I will show you how to easily build mig 29 Model aircraft and fly it . in this tutorial, you will learn how to build a model aircraft and the principles of its operation and flight.

By watching this video, you can find out what we are going to do next and get acquainted with what you are going to make. If you like the video, stay tuned so you can make it

Content for this step is taken from Wikipedia!

A model aircraft is a small unmanned aircraft or, in the case of a scale model, a replica of an existing or imaginary aircraft. Model aircraft are divided into two basic groups: flying and non-flying. Non-flying models are also termed static, display, or shelf models. Flying models range from simple toy gliders made of balsa wood, card stock or foam polystyrene to powered scale models made from materials such as balsa wood, bamboo, plastic, styrofoam, carbon fiber, or fiberglass and are sometimes skinned with tissue paper or mylar covering. Some can be very large, especially when used to research the flight properties of a proposed full scale design. Static models range from mass-produced toys in white metal or plastic to highly accurate and detailed models produced for museum display and requiring thousands of hours of work. Many models are available in kit form, typically made of injection-moulded polystyrene. Aircraft manufacturers and researchers also make wind tunnel models not capable of free flight, used for testing and development of new designs. Sometimes only part of the aircraft is modelled.

Static models for display

Static model aircraft (i.e. those not intended to fly) are scale models built using plastic, wood, metal, paper, fiberglass or any other suitable material. Some static models are scaled for use in wind tunnels, where the data acquired is used to aid the design of full scale aircraft.

Models are available that have already been built and painted; models that require construction, painting and gluing; or models that have been painted but need to be clipped together. They are sometimes used for commercial use such as displays in travel agencies, but might also be obtained by hobbyists as a collection.

Promotional use

Most of the world's airlines allow their fleet aircraft to be modelled as a form of publicity. These include Philippine Airlines, Delta Air Lines, Air France, British Airways, Aerolíneas Argentinas, Avianca, Aeroméxico, FedEx, Polar Air Cargo, Air New Zealand, Qantas, China Airlines, Singapore Airlines, South African Airways, Finnair, American Airlines, United Airlines, Lufthansa, Japan Airlines, Royal Jordanian, Korean Airlines, and Asiana Airlines. In the early days, airlines would order large models of their aircraft and supply them to travel agencies as a promotional item.

In addition, airlines and airplane makers hand out desktop model airplanes to airport, airline and government officials as a way of promoting their airline, celebrating a new route or an achievement. Former Puerto Rico governor Alejandro García Padilla, for example, has models of JetBlue, Lufthansa, Avianca, and Seaborne Airlines which were given to him by those airlines after starting or increasing flights to San Juan during his tenure.

Scale

Static model aircraft are primarily available commercially in a variety of scales from as large as 1:18 scale to as small as 1:1250 scale. Plastic model kits requiring assembly and painting are primarily available in 1:144, 1:72, 1:50, 1:48, 1:32, and 1:24 scale, often depending on the size of the original subject. Die-cast metal models (pre-assembled and factory painted) are primarily available in 1:400, 1:200, 1:72, 1:600, 1:500, 1:300, 1:250, and 1:48. A variety of odd scales (e.g. 1:239) are also available, but less common.

Scales are not usually random, but are based upon simple divisions of either the Imperial system, or the Metric system. For example, 1:48 scale is 1/4" to 1-foot (or 1" to 4 feet) and 1:72 is 1" to 6 feet, while metric scales are simpler, such as 1:100th, which equals 1 centimeter to 1 meter. 1:72 scale was first introduced in the Skybirds wood and metal model aircraft kits in 1932. Skybirds was followed closely by Frog which produced 1:72 scale aircraft in 1936 under the "Frog Penguin" name. According to Fine Scale Modeler magazine, 1:72 was also popularized by the US War Department during the Second World War when it requested models of single engine aircraft at that scale. The War Department also requested models of multi-engine aircraft at a scale of 1:144. The War Department was hoping to educate Americans in the identification of aircraft. These scales provided the best compromise between size and detail. After WWII, manufacturers continued to favor these scales, however kits are commonly available in 1:48, 1:35, 1:32, and 1:24 scales. The French firm Heller SA is one of the few manufacturer to offer models in the scale of 1:125, while 1:50th and 1:100th are more common in Japan and France which both use Metric. Herpa and others produce promotional models for airlines in scales including 1:200, 1:400, 1:500, 1:600, 1:1000 and more. A few First World War aircraft were offered at 1:28 by Revell, such as the Fokker Dr.I and Sopwith Camel. A number of manufacturers have made 1:18th scale aircraft to go with cars of the same scale. Aircraft scales have commonly been different from the scales used for military vehicles, figures, cars, and trains. For example, a common scale for early military models was 1:76, whereas companies such as Frog were producing aircraft with a scale of 1:72. Recently military vehicles have adapted to the aircraft standards of 1:72. This has resulted in a substantial amount of duplication of the more famous subjects in a large variety of sizes, which while useful for forced perspective box dioramas has limited the number of possible subjects to those that are more well known. Less produced scales include 1:64 (better known as S-Gauge or "American Flyer Scale"), 1:96, and 1:128. Many older plastic models do not conform to any established scale as they were sized to fit inside standard commercially available boxes, leading to the term "Box Scale" to describe them. When reissued, these kits retain their unusual scales.

Materials

The most common form of manufacture for kits is injection molded polystyrene plastic, using carbon steel molds. Today, this takes place mostly in China, Taiwan, the Philippines, South Korea, and Eastern Europe. Injection molding allows a high degree of precision and automation not available in the other manufacturing processes used for models but the molds are expensive and require large production runs to cover the cost of making them. Smaller and cheaper runs can be done with cast copper molds, and some companies do even smaller runs using cast resin or rubber molds, but the durability is of a lower standard than carbon steel and labour costs are higher.

Specialized kits cast in resin are available from companies such as Anigrand, Collect Aire, CMK, CMR, and Unicraft, made in molds similar to those used for limited run plastic kits, but usually not as durable, hence the much smaller numbers of each kit that are made, and their higher price. Vacuum forming is another common alternative to injection molded kits but require more skill to assemble, and usually lack detail parts that must be supplied by the modeller. There is a handful of photo etched metal kits which allow a high level of detail but can be laborious to assemble, and lack the ability to replicate certain shapes. Scale models can be made from paper (normal or heavy) or card stock. Commercial models are printed by publishers mainly based in Germany or Eastern Europe.Card models are also distributed through the internet, and several are offered this way for free. Card model kits are not limited to just aircraft, with kits being available for all types of vehicles, buildings, computers, firearms and animals.[citation needed] From World War I through the 1950s, flying model airplanes were built from light weight bamboo or balsa wood and covered with tissue paper. This was a difficult, time consuming process that mirrored the actual construction of airplanes through the beginning of World War II. The Cleveland Model and Supply Corporation made the most complex, challenging kits, while Guillow's made simpler, relatively easy kits. Many model makers became adept at creating models from drawings of the actual aircraft. Ready-made models (desk-top models) include those produced in fiberglass for travel agents and aircraft manufacturers, as well as collectors models made from die-cast metal, mahogany, resin and plastic.

Flying models for sport (Aeromodeling)

Generally known collectively in all its forms as the sport and pastime of aeromodelling, some flying models resemble scaled down versions of full scale aircraft, while others are built with no intention of looking like real aircraft. There are also models of birds, bats and pterosaurs (usually ornithopters). The reduced size affects the model's Reynolds number which determines how the air reacts when flowing past the model, and compared to a full sized aircraft the size of control surfaces needed, the stability and the effectiveness of specific airfoil sections may differ considerably requiring changes to the design.

Control

Flying model aircraft are generally controlled through one of three methods

Free flight (F/F) model aircraft fly without external control from the ground. The aircraft must be set up before flight so that its control surfaces, and weight allow stable flight. Most free flying models are either unpowered gliders or rubber powered. This type of model pre-dates manned flight.Control line (C/L) model aircraft use cables to tether a plane to a central point, either held by hand or to a pole. The aircraft is then flown around the point in circles. Usually two cables are used which tether the model and also, through a bellcrank connection to the aircraft's elevator, control it in pitch. Some u control planes use 3 cables. The third cable controls the throttle if the engine is so equipped. There are many different categories that u-control air planes may compete in. Speed flying is one category where planes are divided into classes based on the cu inch displacement of the engine. Class 'D' 60 size speed planes can easily reach speeds well in excess of 150 MPH. Legendary speed plane flyers of the 1940s-1950s include Carl 'Babe' Hall and Pat Massey both from Texas. Air Trials magazine April 1952 highlights these two gentlemen with their Golden Rod speed planes. John Ballard from Louisville Kentucky is another living legend in the speed flying arena. Ballard represented the USA in Speed flying. John Ashford (Dec) from Pampa Texas and Oklahoma was considered a Master 'Pattern' flyer and model plane designer/builder. Clearance Lee from California, who is now in his mid 90s, is considered by many as one of the most significant model engine designers and engine builders of the past 5 decades.Radio-controlled aircraft have a transmitter operated by the controller, sending signals to a receiver in the model which in turn actuates servos which manipulate the model's flight controls in a similar manner to a full sized aircraft. In traditional aircraft, the radio has directly controlled the servos. However, modern aircraft often use flight controlling computers to stabilize an aircraft or even to fly the aircraft autonomously. This is particularly the case with quadcopters.

Construction

The construction of flying models differs from that of most static models as both weight and strength (and the resultant strength-to-weight ratio) are major considerations.

Flying models borrow construction techniques from full-sized aircraft although the use of metal is limited. These might consist of forming a frame using thin planks of a light wood such as balsa to duplicate the formers, longerons, spars, and ribs of a vintage full-size aircraft, or, on larger (usually powered) models where weight is less of a factor, sheets of wood, expanded polystyrene, and wood veneers may be employed. Regardless of the underlying structure, it is then skinned and subsequently doped to provide a smooth sealed surface. For light models, tissue paper is used. After it is applied, the paper is sprayed with a mist of water, which causes the paper to shrink when it dries. For larger models (usually powered and radio controlled) heat-curing or heat shrink covering plastic films or heat-shrinkable synthetic fabrics are applied to the model then heated using a hand held hair dryer, laundry iron or heat gun to tighten the material and adhere to the frame. Microfilm covering is used for the very lightest models and is made by bringing a wire loop up through water to pick up a thin plastic film on the surface made from a few drops of lacquer spread out over several square feet.

For a more mass market approach, "foamies," or aircraft injection-molded from lightweight foam (sometimes reinforced) have made indoor flight more accessible to hobbyists. Many require little more than attachment of the wing and landing gear.

Flying models can be assembled from kits, built from plans or made completely from scratch. A kit contains the necessary raw material, typically die- or laser-cut wood parts, some molded parts, plans, assembly instructions and has usually been tested. Plans are intended for the more experienced modeller, since the builder must make or find all the parts themselves. Scratch builders may draw their own plans, and source all the materials themselves. Any method may be labour-intensive, depending on the model in question. To increase the hobby's accessibility to the inexperienced, vendors of model aircraft have introduced Almost Ready to Fly (ARF) designs which reduce the time and skills required. A typical ARF aircraft can be built in under 4 hours, versus 10–20 or more for a traditional kit. Ready To Fly (RTF) radio control aircraft are also available, however among traditionalists, RTF models are controversial as many consider model building integral to the hobby.

Gliders

Gliders do not have an attached powerplant. Larger outdoor model gliders are usually radio-controlled gliders and hand-winched against the wind by a line attached to a hook under the fuselage with a ring, so that the line will drop when the model is overhead. Other methods include catapult-launching, using an elastic bungee cord. The newer "discus" style of wingtip hand-launching has largely supplanted the earlier "javelin" type of launch. Also using ground-based power winches, hand-towing, and towing aloft using a second powered aircraft.

Gliders sustain flight through exploitation of the wind in the environment. A hill or slope will often produce updrafts of air which will sustain the flight of a glider. This is called slope soaring, and when piloted skillfully, radio controlled gliders can remain airborne for as long as the updraft remains. Another means of attaining height in a glider is exploitation of thermals, which are columns of warm rising air created by differences of temperature on the ground such as between an asphalt parking lot and a lake. Heated air rises, carrying the glider with it. As with a powered aircraft, lift is obtained by the action of the wings as the aircraft moves through the air, but in a glider, height is only gained by flying through air that is rising faster than the aircraft is sinking relative to the airflow. Sailplanes are flown using thermal lift. As thermals can only be indirectly observed through the reaction of the aircraft to the invisible rising air currents, skill is required to find and stay in the thermals. Hang gliders are composed of rigid frame from which the fabric skin is attached, much like a triangular sailboat sail. The payload (and crew) are suspended or hung from the frame, and control is exercised through the movement of the harness in opposition to a control frame, Paragliders use a special type of steerable parachute for a wing. Control is exercised through lines that deform the trailing edge of the airfoil or the wing's end regions. Walkalong gliders are lightweight model airplanes flown in the ridge lift produced by the pilot following in close proximity. In other words, the glider is slope soaring in the updraft of the moving pilot (see also Controllable slope soaring).

Power sources

Powered models contain an onboard powerplant, a mechanism powering propulsion of the aircraft through the air. Electric motors and internal combustion engines are the most common propulsion systems, but other types include rocket, small turbine, pulsejet, compressed gas, and tension-loaded (twisted) rubber band devices.

Rubber propulsion

An old method of powering free flight models is Alphonse Pénaud's elastic motor, essentially a long rubber band that is wound up prior to flight. It is the most widely used powerplant for model aircraft, found on everything from children's toys to serious competition models. The elastic motor offers extreme simplicity and survivability, but suffers from limited running time, and the fact that the initial high torque of a fully wound motor drops sharply before 'plateauing' to a more steady output, until finally declining as the final turns unwind. Using this torque curve efficiently is one of the challenges of competitive free-flight rubber flying, and variable-pitch propellers, differential wing and tailplane incidence and rudder settings, controlled by an on-board timeswitch, are among the means of managing this varying torque and there is usually a motor weight restriction in contest classes. Even so, a competitive model can achieve flights of nearly 1 hour.

Gas propulsion

Stored compressed gas, typically carbon dioxide (CO2), can also power simple models in a way similar to filling a balloon and then releasing it.

A more sophisticated use of compressed CO2 is to power a piston expansion engine, which can turn a large, high-pitch propeller. These engines can incorporate speed controls and multiple cylinders, and are capable of powering lightweight scale radio-controlled aircraft. Gasparin and Modela are two recent makers of CO2 engines. CO2, like rubber, is known as "cold" power because it becomes cooler when running, rather than hotter as combustion engines and batteries do. Steam, which is even older than rubber power, and like rubber, contributed much to aviation history, is now rarely used. In 1848, John Stringfellow flew a steam-powered model, in Chard, Somerset, England. Hiram Stevens Maxim later showed that steam can even lift a man into the air. Samuel Pierpont Langley built steam as well as internal combustion models that made long flights. Baronet Sir George Cayley built, and perhaps flew, internal and external combustion gunpowder-fueled model aircraft engines in 1807, 1819, and 1850. These had no crank, working ornithopter-like flappers instead of a propeller. He speculated that the fuel might be too dangerous for manned aircraft.

Internal combustion

All internal combustion engines generate substantial noise (and engine exhaust) and require routine maintenance. In the "scale-R/C" community, glow-engines have long been the mainstay until recently.

For larger and heavier models, the most popular powerplant is the glow engine. Glow engines are fueled by a mixture of slow burning methanol, nitromethane, and lubricant (castor oil or synthetic oil), which is sold pre-mixed as glow-fuel. Glow-engines require an external starting mechanism; the glow plug must be electrically heated until its temperature can trigger fuel-ignition, upon which the engine's combustion-cycle becomes self-sustaining. The reciprocating action of the cylinders applies torque to a rotating crankshaft, which is the engine's primary power-output. (Some power is lost in the form of waste-heat.)

Vendors of model engines rate size in terms of engine displacement. Common sizes range from as small as 0.01 cubic inch (in3) to over 1.0 in3 (0.16 cc–16 cc). Under ideal conditions, the smallest .01 engines can turn a 3.5 inches (8.9 cm) propeller at speeds over 30,000 rpm, while the typical larger (.40-.60 cubic inch) engine will turn at 10–14,000 rpm.

The simplest glow-engines operate on the two-stroke cycle. These engines are inexpensive, yet offer the highest power-to-weight ratio of all glow-engines, but can often generate a great deal of noise, requiring substantially-sized expansion chamber mufflers to reduce their noise output, of both tuned exhaust and non-tuned varieties. Glow engines which operate on the four-stroke cycle, whether using ordinary poppet valves or occasionally rotary valves offer superior fuel-efficiency (power-output per fuel-consumption), but deliver less power than two-stroke engines of the same displacement – yet, often because the power they deliver is more suited to turning somewhat larger diameter propellers for lighter weight, more drag-producing airframe designs such as biplanes and scale aircraft models of pre-World War II full-scale subjects, four-stroke model engines, fueled either with methanol or gasoline fuels are slowly increasing in popularity from their generally lower noise output when compared to similar displacement two-stroke engines, and are available (for larger displacement, multi-cylinder four-stroke engines) in opposed twin and radial engine layouts.

Internal combustion (IC) engines are also available in upscale (and up-price) configurations. Variations include engines with multiple-cylinders, spark-ignited gasoline operation, and carbureted diesel operation. The term "diesel" is in fact a misnomer, as such engines actually operate by compression-ignition. The compression-ratio is controlled by an adjustable threaded T screw on the cylinder head, bearing onto a contra piston within the cylinder bore. Diesels are preferred for endurance competition, because of their fuel's higher energy content, a mixture of ether and kerosene (with lubricating oil). They have higher torque, and for a given capacity, they can usually "swing" a larger propeller than a glow engine.

Home manufacture of model aircraft engines is an established hobby in its own right.

Ducted fans

Early "jet" style model aircraft utilized a multi-blade and high pitched propeller (fan) inside ductwork, usually in the fuselage of the aeroplane. The fans were generally powered by 2 stroke piston engines that were designed to operate at high RPM. Early brands of these units were the Kress, Scozzi, and Turbax, among others. They generally used 0.40 to 0.90 cubic inch displacement engines, but Kress made a model for engines as small as 0.049 (1/2cc). This basic fan-in-tube design has been adopted very successfully for modern electric powered "jet" aircraft and are now quite popular. Glow engine powered ducted-fan aircraft are now relatively uncommon.

Turbine engines

A major development is the use of small jet turbine engines in hobbyist models, both surface and air. Model-scale turbines resemble simplified versions of turbojet engines found on commercial aircraft, but are in fact new designs (not based upon scaled-down commercial jet engines.) The first hobbyist-developed turbine was developed and flown in the 1980s by Gerald Jackman in England, but only recently has commercial production (from companies such as Evojet in Germany) made turbines readily available for purchase. Turbines require specialized design and precision-manufacturing techniques (some designs for model aircraft have been built from recycled turbocharger units from car engines), and consume a mixture of A1 jet fuel and synthetic turbine engine or motorcycle-engine oil. These qualities, and the turbine's high-thrust output, makes owning and operating a turbine-powered aircraft prohibitively expensive for most hobbyists, as well as many nations' national aeromodeling clubs (as with the USA's AMA) requiring their users to be certified to know how to safely and properly operate the engines they intend to use for such a model. Jet-powered models attract large crowds at organized events; their authentic sound and high speed make for excellent crowd pleasers.

Pulse jet engines

Operating on the same principle as World War II V-1 flying bomb have also been used. The extremely noisy pulsejet offers more thrust in a smaller package than a traditional glow-engine, but is not widely used. A popular model was the "Dynajet". Due to the noise, the use of these is illegal in some countries.

Rocket engines

Rocket engines are sometimes used to boost gliders and sailplanes, the earliest being the 1950s model rocket motor called the Jetex engine. This uses solid fuel pellets, ignited by a wick fuse; the casing is reusable. These days, flyers can also mount single-use model rocket engines to provide a short (less than 10 second) burst of power. In some countries, government regulations and restrictions initially rendered rocket-propulsion unpopular, even for gliders; now, though, their use is expanding, particularly in scale model rocketry. Self-regulation of the sport and widespread European availability of single use 'cartridge' motors seemed to ensure a future, but in recent years the cartridges (known as "Rapier" units) have become difficult to obtain, due to a reclassification from "smoke producing devices" to "fireworks". They are still produced in the Czech Republic, but importing/exporting them is problematic at the present time (2014).

Electric power

In electric-powered models, the powerplant is a battery-powered electric motor. Throttle control is achieved through an electronic speed control (ESC), which regulates the motor's output. The first electric models were equipped with brushed DC motors and rechargeable packs of nickel cadmium cells (NiCad), giving modest flight times of 5–10 minutes. (A fully fueled glow-engine system of similar weight and power would likely provide double the flight-time.) Later electric systems used more-efficient brushless DC motors and higher-capacity nickel metal hydride (NiMh) batteries, yielding considerably improved flight times. The recent development of cobalt-content lithium polymer batteries (LiPoly or LiPo) now permits electric flight-times to approach, and in many cases[example needed] surpass that of glow-engines – however, the increasing popularity of the much more rugged and durable, cobalt-free lithium iron phosphate-celled batteries is increasingly attracting attention away from LiPo packs. There is also solar powered flight, which is becoming practical for R/C hobbyists. In June 2005 a record of 48 hours and 16 minutes was established in California for this class.

Electric-flight was tested on model aircraft in the 1970s, but its high cost prevented widespread adoption until the early 1990s, when falling costs of motors, control systems and, crucially, more practical battery and electric power technologies, with the increasing adoption of brushless motors powered with better battery chemistries and controlled with an electronic speed control in place of a throttle servo came on the market. Electric-power has made substantial inroads into the park-flyer and 3D-flyer markets. Both markets are characterized by small and lightweight models, where electric-power offers several key advantages over IC: greater efficiency, higher reliability, less maintenance, much less messy and quieter flight. The 3D-flyer especially benefits from the near-instantaneous response of an electric-motor. Starting around the year 2008 the entry of Chinese direct-to-consumer suppliers into the hobby market has dramatically decreased the cost of electric flight. It is now possible to power most models weighing less than 20 lb with electric power for a cost equivalent to or lower than traditional power sources. This is the most rapidly developing segment of the hobby as of end of year 2010, along with the increasing popularity of FPV radio control aeromodeling, most often with electric-powered model aircraft, especially multirotor designs.

Propulsion types

Most powered model-aircraft, including electric, internal-combustion, and rubber-band powered models, generate thrust by spinning an airscrew. The propeller is the most commonly used device. Propellers generate thrust due to the angle of attack of the blades, which forces air backwards. For every action there is an equal and opposite reaction, thus the plane moves forwards.

Propellers

As in full-size planes, the propeller's dimensions and placement (along the fuselage or wings) are factored into the design. In general, a large diameter and low-pitch offers greater thrust and acceleration at low airspeed, while a small diameter and higher-pitch sacrifices thrust for a higher maximum-airspeed. In model aircraft, the builder can choose from a wide selection of propellers, to tailor the model's airborne characteristics. A mismatched propeller will compromise the aircraft's airworthiness, and if too heavy, inflict undue mechanical wear on the powerplant. Model aircraft propellers are usually specified as diameter × pitch, both given in inches. For example, a 5x3 propeller has a diameter of 5 inches (130 mm), and a pitch of 3 inches (76 mm). The pitch is the distance that the propeller would advance if turned through one revolution in a solid medium. Additional parameters are the number of blades (2 and 3 are the most common).

There are two methods to transfer rotational-energy from the powerplant to the propellor: With the direct-drive method, the propeller is attached directly on the engine's spinning crankshaft (or motor shaft). This arrangement is optimum when the propellor and powerplant share overlapping regions of best efficiency (measured in RPM.) Direct-drive is by far the most common when using a fuel-powered engine (gas or glow). Some electric motors with high torque and (comparatively) low speed can utilize direct-drive as well. These motors are typically outrunners.With the reduction method, the crankshaft drives a simple transmission, which is usually a simple gearbox containing a pinion and spur gear. The propeller speed is inversely proportional to the gear ratio (thereby also increasing output torque by approximately the same ratio). Reduction-drive is common on larger aircraft and aircraft with disproportionately large propellers. On such powerplant arrangements, the transmission serves to match the powerplant's and propeller's optimum operating speed. Geared propellers are rarely used on internal combustion engines, but very commonly on electric motors. This is because most inrunner electric motors spin extremely fast, but have very little torque.A unique form of sleeve valved methanol-fueled four-stroke model engine from the RCV firm of the United Kingdom essentially possesses a built-in 2:1 gear reduction ratio, due to its unique "camshaft drive" method of using the spinning, closed-top cylinder liner (which forms a combustion chamber for the design) to both transmit the power to the propeller through an integral forward-projecting powershaft, while also simultaneously fulfilling the "camshaft" role of a four-stroke engine's valve timing element, achieving the 2:1 gear reduction.

Ducted fans

Ducted fans are propellors encased in a cylindrical housing or duct, designed to look like and fit in the same sort of space as a model jet engine but at a much lower cost. They are available for both electric and liquid-fuelled engines, although they have only become widely used with the recent improvements in electric-flight technology for model aircraft. It is possible to equip a model jet aircraft with two or four electric ducted fans for much less than the cost of a single jet turbine or large petrol or methanol engine, enabling affordable modeling of multi-engine planes, including military bombers and civilian airliners.

The fan-unit is an assembly of the spinning fan (a propellor with more blades), enclosed inside a shaped-duct. Compared to an open-air propellor, a ducted-fan generates more thrust per crossectional-area. The shaped-duct often limits installation to recessed areas of the fuselage or wings. Ducted fans are popular with scale-models of jet-aircraft, where they mimic the appearance and feel of jet engines, as well as increasing the model's maximum airspeed. Speeds of up to 200 mph have been recorded on electric-powered ducted fan airplanes, largely due to the high amount of RPMs produced by ducted fan propellors. But they are also found on non-scale and sport models, and even lightweight 3D-flyers. Like propellors, fan-units are modular components, and most fan-powered aircraft can accommodate a limited selection of different fan-units.

Models in manufacturing

Aircraft manufacturers and researchers make models for various purposes. Besides static display for marketing purposes these include models for aerodynamic research and engineering manufacture.

Aerodynamic research

Research models are made for wind-tunnel and free-flight testing. For wind tunnel research especially, it is often only necessary to make part of the proposed aircraft.

Engineering mock-ups

Full-scale static engineering models are constructed for production development, often made of different materials from the proposed design. Again, often only part of the aircraft is modeled.

Model aerodynamics

The flight behavior of an aircraft depends on the scale to which it is built, the density of the air and the speed of flight.At subsonic speeds the relationship between these is expressed by the Reynolds number. Where two models at different scales are flown with the same Reynolds number, the airflow will be similar. Where the Reynolds numbers differ, as for example a small-scale model flying at lower speed than the full-size craft, the airflow characteristics can differ significantly. This can make an exact scale model unflyable, and the model has to be modified in some way. For example, drag is generally greater in proportion at low Reynolds number so a flying scale model usually requires a larger-than-scale propeller. At higher speeds approaching or exceeding the speed of sound, the Mach number becomes important (the speed of sound is Mach 1). At these speeds the air becomes compressible and its characteristics change dramatically, with shock waves forming. Fast jets are often inefficient at low airspeeds, so a model designed to fly at the speed of sound will also be inefficient at lower speeds. In particular, the swept wings and pointed noses common on fast jets tend to increase drag or impair handling at lower speeds. Maneuverability also depends on scale, with stability also being more important. Control torque is proportional to lever arm length while angular inertia is proportional to the square of the lever arm, so the smaller the scale the more quickly an aircraft or other vehicle will turn in response to control or other forces. One consequence of this is that models in general require additional longitudinal and directional stability, resisting sudden changes in pitch and yaw. While it may be possible for a pilot to respond quickly enough to control an unstable aircraft (such as a Wright Flyer), a radio control scale model of the same aircraft would only be flyable with design adjustments such as increased tail surfaces and wing dihedral for stability, or with avionics providing artificial stability. Free flight models need to have both static and dynamic stability. Static stability is the resistance to sudden changes in pitch and yaw already described, and is typically provided by the horizontal and vertical tail surfaces respectively, and by a forward center of gravity. Dynamic stability is the ability to return to straight and level flight without any control input. The three dynamic instability modes are pitch (phugoid) oscillation, spiral and Dutch roll. An aircraft with too large a horizontal tail on a fuselage that is too short may have a phugoid instability with increasing climbs and dives. With free flight models, this usually results in a stall or loop at the end of the initial climb. Insufficient dihedral and sweep back will generally lead to increasing spiral turn. Too much dihedral or sweepback generally causes Dutch roll. These all depend on the scale, as well as details of the shape and weight distribution. For example, the paper glider shown here is a contest winner when made of a small sheet of paper but will go from side to side in Dutch roll when scaled up even slightly.

By reading the texts of step 2, you definitely got acquainted with the model airplane briefly. Now, at this stage, you will get acquainted with the necessary tools to build the MiG-29 foam fighter model.

Equipment needed for model aircraft:

1-Radio Control (Receiver and transmitter) 1x At least three channels without considering the rudder The use of ruddar channels and more channels is optional (I used FMS 6 Channels)

https://www.amazon.ae/RCmall-Precision-Controller-...

2-Brushless motor 1800 kv or 2000kv or 2200 kv or 2600 kv 1x (I used 2200 kv A2212)

https://www.amazon.ae/Brushless-Outrunner-Helicopt...

3-speed control According to the motor and propeller 1x (I used 30A )

https://www.amazon.ae/XUSUYUNCHUANG-Brushless-Cont...

4-Battery 2s or 3s According to the motor and propeller 1x (I used 2s 3300 mah Ace Gens 30C)

https://www.amazon.ae/Gens-ace-Battery-2200mAh-Air...

5-Propeller According to the motor 1x (I used 8060)

https://www.amazon.ae/Electronic-product-Propeller...

6-Servo SG-90 or HS-55 If you use four channels like me, 4x required If you want to use all the channels, you need 6x

https://www.amazon.ae/Product-Metal-Gearwheel-Digi...

7-Linkage stopper And Horn Depending on the number of servos

https://www.amazon.ae/Adjustable-Pushrod-Connector...

8-Foam Board 100*70 5mm 2x

https://www.amazon.ae/Clairefontaine-Foam-Backed-C...

9-charger 2s or 3s 1x

https://www.amazon.ae/SK-100081-Battery-Balance-Ch...

10- Y conection 2x

https://www.amazon.com/ZRM-Extension-Airplane-Acce...

Equipment required in the process of making a model aircraft:

1-wire clipper

2-Thermal glue

3-cutter

4-screw driver

In this step, you have to print the Plan that is placed as a file on paper or foam board so that you can prepare the fuselage of the model aircraft. Different files with different formats are placed accorded to your needs to print the appropriate file

Wing span

72 cm (28.3 inches)

Length 101 cm (39.7 inches)

Propeller slot Fits propellers with a maximum diameter of 6 inches ( I made an 8-inch cut Because my propller is 8 inches)

Do not cut movable joints(aileron and elevator an rudder)I will explain what to do with them

According to the pictures given in this step you have to assemble the cut pieces in the previous step. You must use hot glue.For more beauty, depending on your taste, you can use colored or colored glues. I used blue and red glue. Of course, a layer must be glued so that your structure does not become heavy.

Movable joints are rudder and elevator and ailerons that must move at an angle and also be attached to the air craft body. Movable joints should never be detached from the air craft body. The foam board consists of three layers that you have to cut the first two layers and leave the third layer. Now you have to make a sloping cut to two side. Now you have to stick a layer of glass glue to the cut side .Joints on both sides should be able to bend 30 degrees, so when applying glue to the cut pay attention. Your moving joints are ready

At this stage, you just need to assemble the parts on the fuselage of your model plane according to the picture. Connect the base of the Motor to the Motor with screws. Then connect the base of the Motor with a screw to a small piece of balsa board . Glue a small piece of balsa board to the body and work firmly. After installing the motor on the body, connect the propeller to the motor .Attach the servo motors to the body as well, there is no specific size and you connect them at your point according to the photo. Note that the servo motors must be glued in opposite to each other because the movement of the joints in Aloran is opposite to each other, so with 180 degrees of rotation, the servo motors should be compared and mirrored relative to each other. After installing the servo motors, connect the horns, but do not connect the stoppers and the servo heads .Finally, place the receiver and speed control and battery in the model airplane box, but do not tighten the battery connection. Electronic connections and remaining mechanical connections will be made in later stages

In the previous steps, you saw the photos of the parts. In this step, you will get acquainted with the parts and their performance.

brushless Motor

A brushless DC electric motor (BLDC motor or BL motor), also known as an electronically commutated motor (ECM or EC motor) or synchronous DC motor, is a synchronous motor using a direct current (DC) electric power supply. It uses an electronic closed loop controller to switch DC currents to the motor windings producing magnetic fields which effectively rotate in space and which the permanent magnet rotor follows. The controller adjusts the phase and amplitude of the dc current pulses to control the speed and torque of the motor. This control system is an alternative to the mechanical commutator (brushes) used in many conventional electric motors.

The construction of a brushless motor system is typically similar to a permanent magnet synchronous motor (PMSM), but can also be a switched reluctance motor, or an induction (asynchronous) motor. They may also use neodymium magnets and be outrunners (the stator is surrounded by the rotor), inrunners (the rotor is surrounded by the stator), or axial (the rotor and stator are flat and parallel). The advantages of a brushless motor over brushed motors are high power-to-weight ratio, high speed, nearly instantaneous control of speed (rpm) and torque, high efficiency, and low maintenance. Brushless motors find applications in such places as computer peripherals (disk drives, printers), hand-held power tools, and vehicles ranging from model aircraft to automobiles. In modern washing machines, brushless DC motors have allowed replacement of rubber belts and gearboxes by a direct-drive design.

servomotor

A servomotor is a rotary actuator or linear actuator that allows for precise control of angular or linear position, velocity and acceleration. It consists of a suitable motor coupled to a sensor for position feedback. It also requires a relatively sophisticated controller, often a dedicated module designed specifically for use with servomotors.

Servomotors are not a specific class of motor, although the term servomotor is often used to refer to a motor suitable for use in a closed-loop control system. Servomotors are used in applications such as robotics, CNC machinery or automated manufacturing.

Radio Control

Radio control (often abbreviated to R/C or simply RC) is the use of control signals transmitted by radio to remotely control a device. Examples of simple radio control systems are garage door openers and keyless entry systems for vehicles, in which a small handheld radio transmitter unlocks or opens doors. Radio control is also used for control of model vehicles from a hand-held radio transmitter. Industrial, military, and scientific research organizations make use of radio-controlled vehicles as well. A rapidly growing application is control of unmanned aerial vehicles (UAVs or drones) for both civilian and military uses, although these have more sophisticated control systems than traditional applications.

Battery

Lithium batteries are primary batteries that have metallic lithium as an anode. These types of batteries are also referred to as lithium-metal batteries. They stand apart from other batteries in their high charge density and high cost per unit. Depending on the design and chemical compounds used, lithium cells can produce voltages from 1.5 V (comparable to a zinc–carbon or alkaline battery) to about 3.7 V. Disposable primary lithium batteries must be distinguished from secondary lithium-ion or a lithium-polymer, which are rechargeable batteries. Lithium is especially useful, because its ions can be arranged to move between the anode and the cathode, using an intercalated lithium compound as the cathode material but without using lithium metal as the anode material. Pure lithium will instantly react with water, or even moisture in the air; the lithium in lithium ion batteries is in a less reactive compound. Lithium batteries are widely used in portable consumer electronic devices, and in electric vehicles ranging from full sized vehicles to radio controlled toys. The term "lithium battery" refers to a family of different lithium-metal chemistries, comprising many types of cathodes and electrolytes but all with metallic lithium as the anode. The battery requires from 0.15 to 0.3 kg of lithium per kWh. As designed these primary systems use a charged cathode, that being an electro-active material with crystallographic vacancies that are filled gradually during discharge.Diagram of lithium button cell battery with MnO2 (manganese dioxide) at cathode.The most common type of lithium cell used in consumer applications uses metallic lithium as the anode and manganese dioxide as the cathode, with a salt of lithium dissolved in an organic solvent as the electrolyte.

At this stage, we intend to make electronic connections of parts. Make connections according to the photo. Pay attention to the bases of the parts. In the motor and speed control, the Opposed wires are connected to each other.

In this step, we complete the remaining connections. Turn on the radio control transmitter, place the trim switches in the middle, connect the battery to the speed control, the receiver will turn on, at this point connect the servo heads and the stoppers as well, gently turn the throttle into Go up. It should to give wind to the back of the model airplane. If it does not, fix the middle wire of the speed control and the motor and reverse the other two wires. Test again, this time in the opposite direction of rotation. Watch the video and do the movements. If the direction of the joints is opposite to my Aircraft, you should use the reverse key on the radio control. Note that the channels must be combined and eloven. Then change the wing mode from fix in radio transmitter to delta.

The center of gravity (CG) of an aircraft is the point over which the aircraft would balance. Its position is calculated after supporting the aircraft on at least two sets of weighing scales or load cells and noting the weight shown on each set of scales or load cells. The center of gravity affects the stability of the aircraft. To ensure the aircraft is safe to fly, the center of gravity must fall within specified limits established by the aircraft manufacturer. Because most of the weight of the structure is the battery, so it affects the point of gravity, so in the previous steps we did not tighten the connection of the battery to the body. Now at this stage, you can tighten the battery connection by moving the battery and reaching Normal Center gravity.

If you have done the previous steps correctly, your job is done and your model plane is ready to fly! In the next step, you will get acquainted with the principles of model aircraft flight

Forces Acting on An AirplaneThere are four forces acting on the airplane all the time during airplane is flying.The four forces are

(1) Lift, (2) Gravity force or Weight, (3) Thrust, and (4) Drag. Lift and Drag are considered aerodynamics forces because they exist due to the movement of the Airplane through the Air.

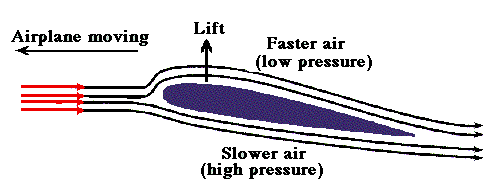

Lift: is produced by a lower pressure created on the upper surface of an airplane's wings compared to the pressure on the wing's lower surfaces,causing the wing to be LIFTED upward. The special shape of the airplane wing (airfoil) is designed so that air flowing over it will have to travel a greater distance and faster resulting in a lower pressure area (see illustration) thus lifting the wing upward. Lift is that force which opposes the force of gravity (or weight).

Lift depends upon (1) shape of the airfoil (2) the angle of attack (3) the area of the surface exposed to the airstream (4) the square of the air speed (5) the air density.

Weight: The weight acts vertically downward from the center of gravity (CG) of the airplane.Thrust: is defined as the forward direction pushing or pulling force developed by aircraft engine . This includes reciprocating engines , turbojet engines, turboprop engines.

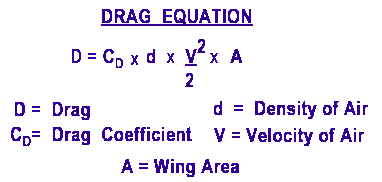

Drag: is the force which opposes the forward motion of airplane. specifically, drag is a retarding force acting upon a body in motion through a fluid, parallel to the direction of motion of a body. It is the friction of the air as it meets and passes over an airplane and its components. Drag is created by air impact force, skin friction, and displacement of the air.

Aircraft Flight ControlAn airplane is equipped with certain fixed and movable surfaces or airfoil which provide for stability and control during flight. These are illustrated in the picture.

Each of the named of the airfoil is designed to perform a specific function in the flight of the airplane. The fixed airfoils are the wings, the vertical stabilizer, and the horizontal stabilizer. The movable airfiols called control surfaces, are the ailerons, elevators, rudders and flaps.The ailerons, elevators, and rudders are used to "steer" the airplane in flight to make it go where the pilot wishes it to go. The flaps are normally used only during landings and extends some during takeoff.Aileron: may be defined as a movable control surface attached to the trailing edge of a wing to control an airplane in the roll, that is , rotation about the longitudinal axis.Elevator: is defined as a horizontal control surface, usually attached to the trailing edge of horizontal stabilizer of an airplane, designed to apply a pitching movement to the airplane. A pitching movement is a force tending to rotate the airplane about the lateral axis,that is nose up or nose down.Rudder: is a vertical control surface usually hinged to the tail post aft of the vertical stabilizer and designed to apply yawing movement to the airplane, that is to make it turn to the right or left about the vertical axis.

Wing Flaps: are hinged or sliding surfaces mounted at the trailing edge of wings and designed to increase the camber of the wings. The effect is to increase the lift of the wings.

THE AXES OF ROTATIONAn airplane has three axes of rotation, namely , the longitudinal axis, the vertical axis, and the lateral axis. see figure below and you will understand what we mean. The simplest way to understand the axes is to think of them as long rods passing through the aircraft where each will intersect the other two. At this point of intersection, called the center of gravity.

The Axis that extends lengthwise (nose through tail) is call the longitudinal axis, and the rotation about this axis is called "Roll" The axis that extends crosswise (wing tip through wing tip) is called the lateral axis, and rotation about this axis is called "Pitch" The axis that passes vertically through the center of gravity (when the aircraft is in level flight ) is called the vertical axis, and rotation about this axis is called "Yaw"

The Longitudinal Axis:

The Axis Running from the nose to the tail of an aircraft is the longitudinal axis (see picture above). The movement around the longitudinal axis is called roll. The cause of movement or roll about the axis is the action of the ailerons. Ailerons are attached to the wing and control through the control column in a manner that ensures one aileron will deflect downward when the other is deflected upward.

When an aileron is not in perfect alignment with the total wing, it changes the wing's lift characteristics.To make a wing move upward, the aileron on that wing must move downward. The wing that has aileron downward produce more lift on that wing. the wing that has the aileron upward will reduce lift on that wing . This cause the aircraft to roll.

The ailerons are attached to the cockpit control column by mechanical linkage. When the control wheel is turned to the right (or the stick is move to the right ), the aileron on the right wing is raised and the aileron on the left wing is lowered. This action increases the lift on the left wing and decreases the lift on the right wing, thus causing the aircraft to roll to the right. Moving the control wheel or stick to the left reverses this and causes the aircraft to roll to the left.

The lateral axis runs from wingtip to wingtip.The movement around the lateral axis is called pitch.What causes this pitching movement ?. It is the elevator which is attached to the horizontal stabilizer. The elevator can be deflected up or down as the pilot moves the control column (or stick) backward or foreward. Movement backward on the control column moves the elevator upward. (see picture above) The relative wind (RW) striking the top surface of the raised elevator pushes the tail downward. This motion is around the lateral axis, as the tail moves (pitches) downward, the nose moves (pitches) upward and the aircraft climbs. Movement forward on the control column moves the elevator downward . The relative wind (RW) striking the lower surface of the elevator causes the tail to pitch up and the nose of the aircraft downward causing the airplane to dives.

The third axis which passes through from the top of the aircraft to the bottom is called the vertical or yaw axis. The aircraft's nose moves about this axis in a side-to-side direction. The airplane's rudder, which is moved by pressing on the rudder pedals which are on the floor. The airplane's rudder is responsible for movement about this axis.The rudder is a movable control surface attached to the vertical fin of the tail assembly. By pressing the proper rudder pedal, right pedal moves the rudder to the right, and left pedal moves the rudder to the left, when pilot press the left rudder pedal, that mean the pilot sets the rudder so that it defects the relative wind to the left. This then creates a force on the tail, causing it to move to the right and the nose of the aircraft to yaw to the left

You can use the simulator to practice:

RealFlight® is the #1 RC flight simulator in the world! It's the absolute best tool new RC pilots can use when learning how to fly. It also makes it possible for experienced RC pilots to practice new maneuvers and to hone their skills so they can become even better pilots.

With more than 170 different aircraft to fly — including airplanes, helicopters, drones and more — at over 40 different flying sites, plus the ability to edit aircraft and sites, there's an almost infinite number of flying options available. Add in game-like challenges that make flight training fun, multiplayer options so you can fly and compete with other pilots online, compatibility with VR headsets, and many, many more features, and you have everything you need to succeed at the field — because you can "fly" on a desktop at home, or on a laptop just about anywhere else!

RealFlight 9.5 adds more of the most popular aircraft from the Best Brands in RC, along with the AMA Headquarters' International Aeromodeling Center (IAC) Flying Site 3 and additional Virtual Flight Instructor lessons, to deliver an experience you simply can't find anywhere else. It's also available with the Spektrum® InterLink® DX simulator controller modeled after Spektrum transmitters including all standard switch locations and functions so it works just like your favorite radio!

To develop this model aircraft, you can use the rudder channel, use flight development boards, use FPV cameras ,Sensors And ...

flight development boards(ardupilot):

ArduPilot is an open source, unmanned vehicle Autopilot Software Suite, capable of controlling autonomous:

Multirotor dronesFixed-wing and VTOL aircraftHelicoptersGround roversBoatsSubmarinesAntenna trackersArduPilot was originally developed by hobbyists to control model aircraft and rovers and has evolved into a full-featured and reliable autopilot used by industry, research organisations and amateurs.

FPV cameras:

The DJI Digital FPV System was designed for the drone racing industry. It consists of the DJI FPV Air Unit Module, DJI FPV Camera, DJI FPV Goggles, and DJI FPV Remote Controller, all of which are packed with powerful features and serve a significant role in the development of our HD Low Latency FPV system. We have redefined drone racing, delivering lower latency rates, stunning HD resolution, and, most importantly, an unforgettable FPV flying experience.

Sensors:

You can use accelerometer sensors, compass, gyroscope, ultrasonic, etc. to improve your system.
