Mi Band Detector Using ESP32 BLE

Hello Maker m(- -)m

I read this article form 陳亮 (moononournation github) about how to use esp32 ble for scan the device so i had to try this code on github Arduino_BLE_Scanner. now i want to use my Mi Band 3 to unlock the door when i come to my office, Let's see how it's work !!!

Things used in this project

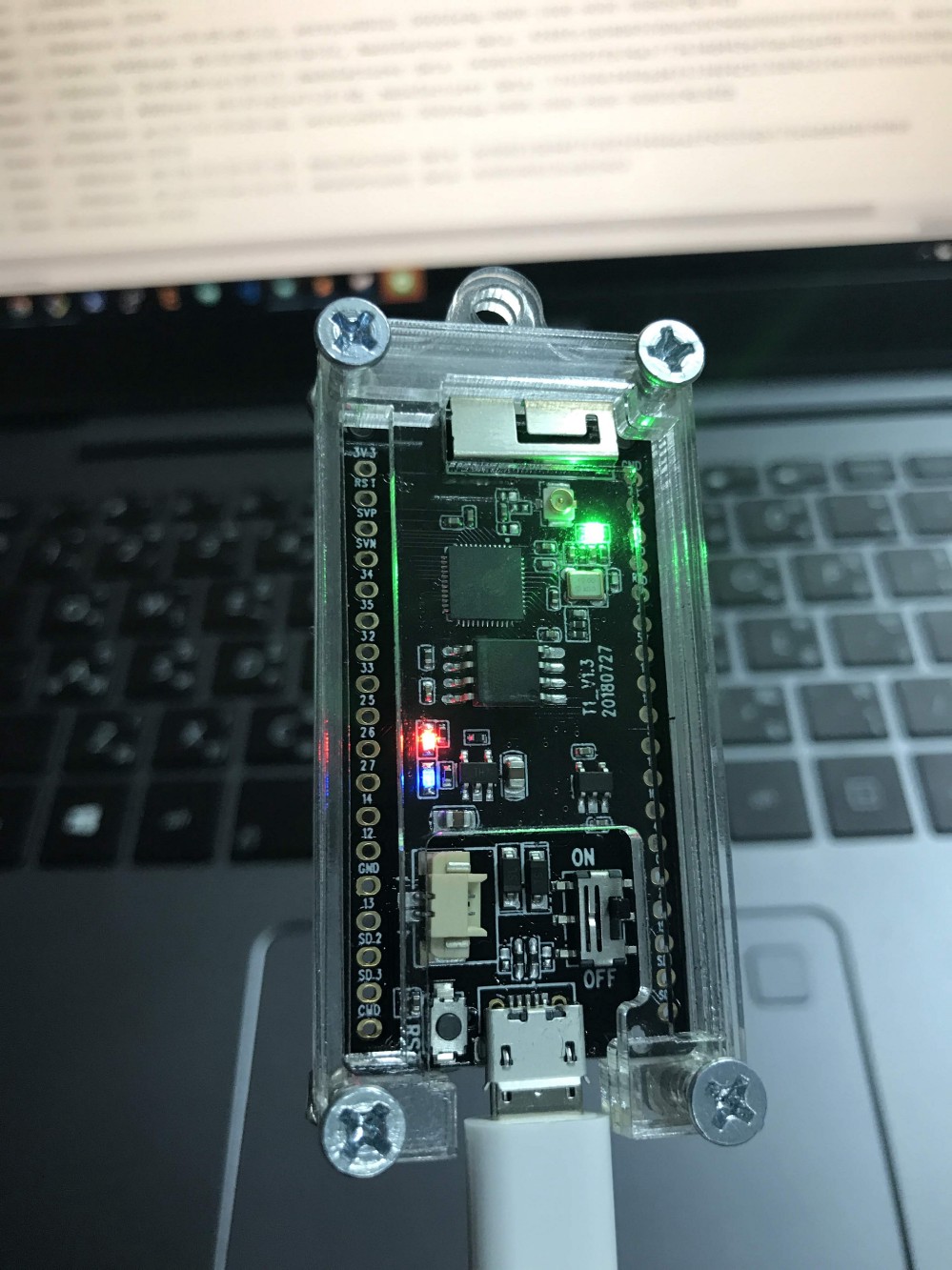

1. ESP32 TTGO T1
2. Mi Band 2 or 3
3. Computer with in Arduino IDE install already

Library & Service

1. ESP32_BLE_Arduino

1. Download and Install Library ESP32_BLE_Arduino
2. Download the example code

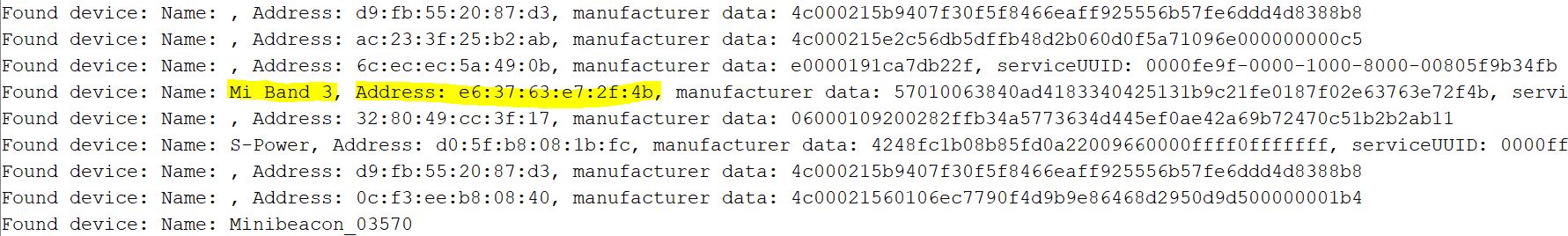

When your upload this code to your board, you can see the program work on Serial monitor in baud rate 115200. Now you have to find the name of your mi band.

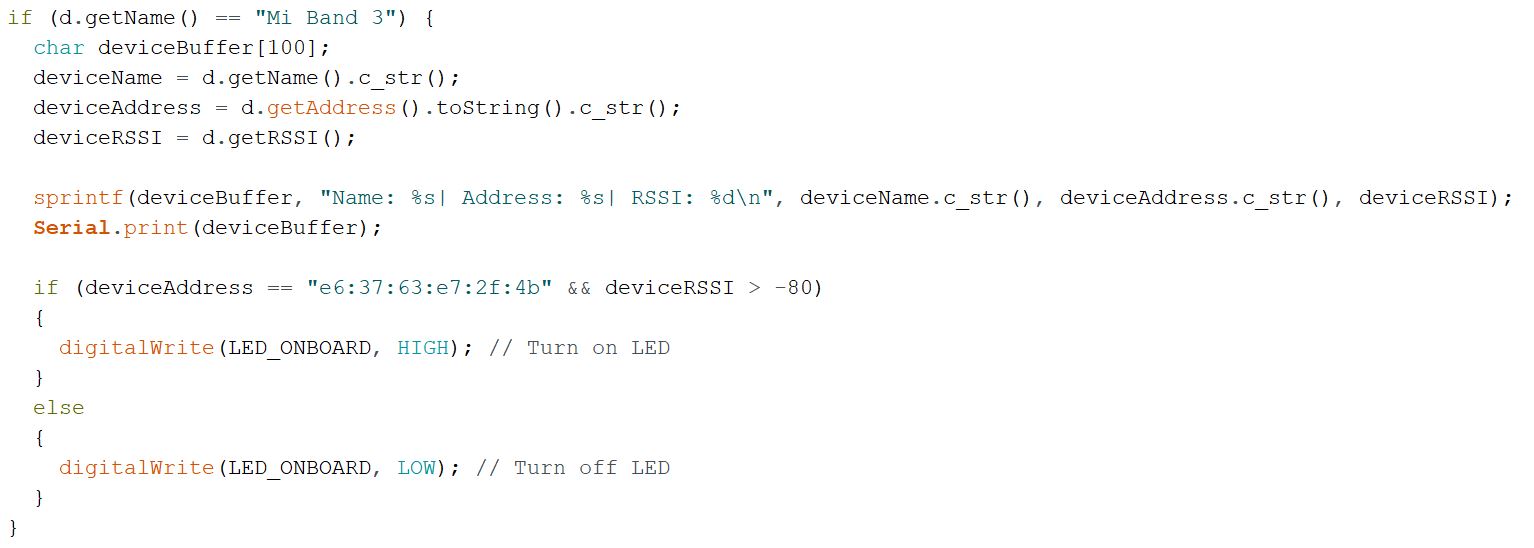

On Arduino IDE, in line 65 - 82 is compare data form ble when the device name "Mi Band 3" that is your device. Next step you have to fine deviceAddress for make sure it's your Mi Band.

In line 74, You can change RSSI for adjust detection distant.

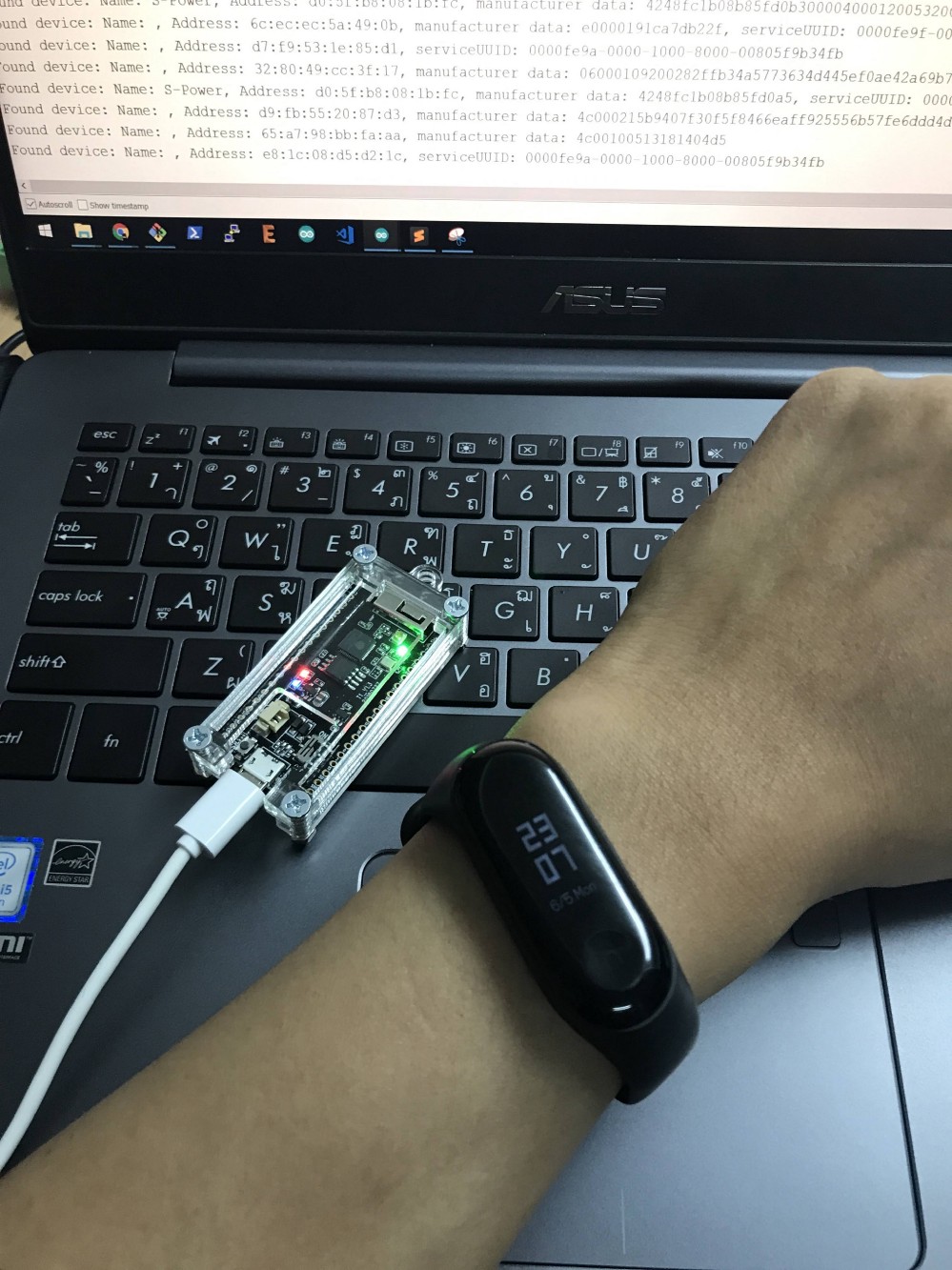

• When ESP32 detect your Mi Band the LED onboard will turn ON
• When ESP32 can not detect your Mi Band the LED onboard will turn OFF
