Metal Detector
![Screenshot_20231121-134443_Gallery.jpg](/proxy/?url=https://content.instructables.com/FUK/RFCB/LP6X6C9X/FUKRFCBLP6X6C9X.jpg&filename=Screenshot_20231121-134443_Gallery.jpg)
![04.11.2023_10.16.33_REC.png](/proxy/?url=https://content.instructables.com/F80/M1UM/LP6X68JN/F80M1UMLP6X68JN.png&filename=04.11.2023_10.16.33_REC.png)
![20231029_171018.jpg](/proxy/?url=https://content.instructables.com/FTZ/6Z99/LP6X68JO/FTZ6Z99LP6X68JO.jpg&filename=20231029_171018.jpg)
![20231121_130855.jpg](/proxy/?url=https://content.instructables.com/FC2/YFNE/LP6X6A5V/FC2YFNELP6X6A5V.jpg&filename=20231121_130855.jpg)
This is my metal detector, detect metal using Mosfet and opamps and pair of coil.
component
1) IRLZ44N
2)Opamp LM324
3)Resistor 10k, 1k , 6.2k
4) Bc557 pnp transistor
5)Bc546 npn transistor
6)100mh inductor
7)171uF capacitor
8)22pf capacitor
9)buzzer
10) copper coil of 38 turns.
11)50k pot
ZVS Circuit
![21.11.2023_08.33.32_REC.png](/proxy/?url=https://content.instructables.com/FKW/BH1Q/LP6X68X2/FKWBH1QLP6X68X2.png&filename=21.11.2023_08.33.32_REC.png)
![21.11.2023_08.45.17_REC.png](/proxy/?url=https://content.instructables.com/FSW/9GXZ/LP6X68X3/FSW9GXZLP6X68X3.png&filename=21.11.2023_08.45.17_REC.png)

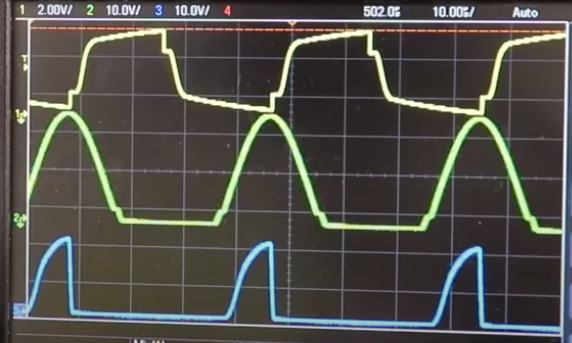

ZVS circuit .Basically it generates sine wave one the both side of the coil. When the metal comes around the coil the frequency of zvs gets effected . Here you can see three sine waves generated by the Zvs oscillator. We will take the right sided sine wave and will multiply with a Schmitt trigger square wave
Schmitt Trigger
![schmitt trigger.png](/proxy/?url=https://content.instructables.com/F1U/CCZT/LP6X6942/F1UCCZTLP6X6942.png&filename=schmitt trigger.png)
![schmitt osc.png](/proxy/?url=https://content.instructables.com/FRL/TD5P/LP6X6943/FRLTD5PLP6X6943.png&filename=schmitt osc.png)
Schmitt trigger made by op amp is creating square wave . At the place of 50k resistor we will use a 50k potentiometer to adjust the tuning . We will multiply the square wave with the sine wave of the zvs
Multiplying Sine Wave With Square Wave
![20231022_205657.jpg](/proxy/?url=https://content.instructables.com/FUR/7I7V/LP6X69H6/FUR7I7VLP6X69H6.jpg&filename=20231022_205657.jpg)
![20231121_130212.jpg](/proxy/?url=https://content.instructables.com/FBU/KJVW/LP6X69H7/FBUKJVWLP6X69H7.jpg&filename=20231121_130212.jpg)
![20231121_131238.jpg](/proxy/?url=https://content.instructables.com/FYC/EOJM/LP6X69JM/FYCEOJMLP6X69JM.jpg&filename=20231121_131238.jpg)
![multiplied.PNG](/proxy/?url=https://content.instructables.com/FOV/OC3G/LP6X6BNA/FOVOC3GLP6X6BNA.png&filename=multiplied.PNG)
After multiplying the waves we will cut the useless frequencies by the low pass filter . In that case we will cut down high
frequency which is 1/2 Sine (2 PI t(50.5Khz)) and then we can hear audible sound .
Resulting Signal
![resulting signal.PNG](/proxy/?url=https://content.instructables.com/F7C/M9KM/LP6X6BTC/F7CM9KMLP6X6BTC.png&filename=resulting signal.PNG)

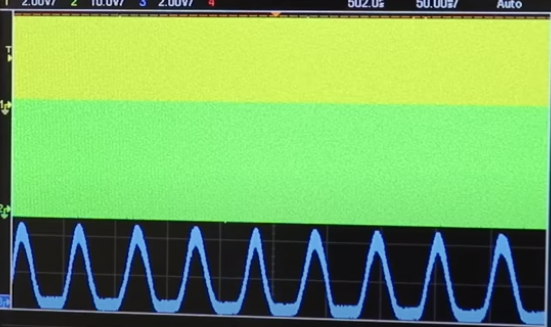

after filtering you can see the resulting signal is just few HZ .
Clean the Signal
![compera.PNG](/proxy/?url=https://content.instructables.com/FVN/LN7H/LP6X6AD9/FVNLN7HLP6X6AD9.png&filename=compera.PNG)
with the help of the schmitt comperator the signal gets inverted and cleaned up.
High Pass RC Filter
![HIGH PASS RC FILTER'.PNG](/proxy/?url=https://content.instructables.com/FQQ/CFIK/LP6X6AO2/FQQCFIKLP6X6AO2.png&filename=HIGH PASS RC FILTER'.PNG)

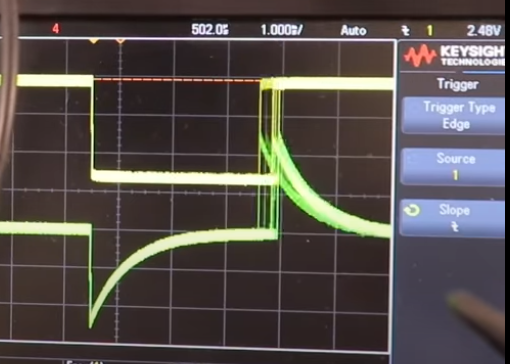

With the High Pass RC filter the inverted signal gets chopped of .So we can hard a sudden click . because one sudden click has multiple harmonics .
The Last Inverter
![las comp.PNG](/proxy/?url=https://content.instructables.com/FTT/UJO3/LP6X6B39/FTTUJO3LP6X6B39.png&filename=las comp.PNG)
for a sudden click we will use a comparator . the pulse width will remain same regarding the change of the input frequencies.
Buzzer
Fed the signal in to the buzzer and enjoy your circuit
https://youtube.com/shorts/SnaiSga-t00?si=SqZ5jsqi09lrI0ma
