Metal Casting With SUGRU

YOU CAN CAST ACCURATE TIN REPLICAS OF OBJECTS USING SUGRU

Please vote! vote! vote! vote! vote! Do it! :) (This is in a contest, you know! :D)

Make sure to check out my blog!

Not to long ago, I started my ventures into metal casting. My early molds were made of plaster, but I quickly learned that silicone epoxy makes GREAT metal casting molds. Unfortunately, the silicone epoxy I was using was not designed for casting metal, and was too soft and flexible. My early silicone molds were not tough enough for lots of repeated use.

But Sugru, on the other hand, is a very durable silicone mold making material. It makes molds just as good as the silicone epoxy I used previously, except Sugru is WAY more durable, and will make molds that will last dozens of casts.

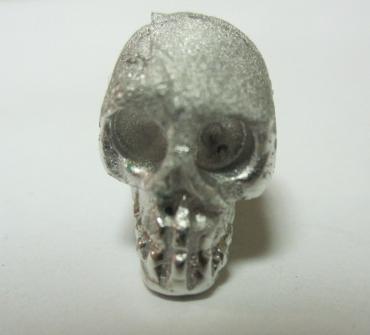

The cast quality of this skull isn't quite exactly what I'm after, but I was in a hurry. Molds need to be broken in before they with make great casts, so the first, second, or even third castings may have bubbles or vacancies. The skull in the main picture is the second cast. You shoulda seen the first one ;)

Ok, this goes without saying (but I'll say it anyway)...
Casting metal involves the use of butane torches. Butane torches have fire. Fire can burn you. So can hot metal. Got it?

If you want to cast high temp metals, just use the sugru molds for wax, then use the lost wax casting process.

There are several people in the comments arguing about fumes. They have not actually done this instructable, so they wouldn't know. Anyway, if you use solid lead free solder, there will not be any fumes. I know this from experience. Please, though, trust your own judgement and use common sense!

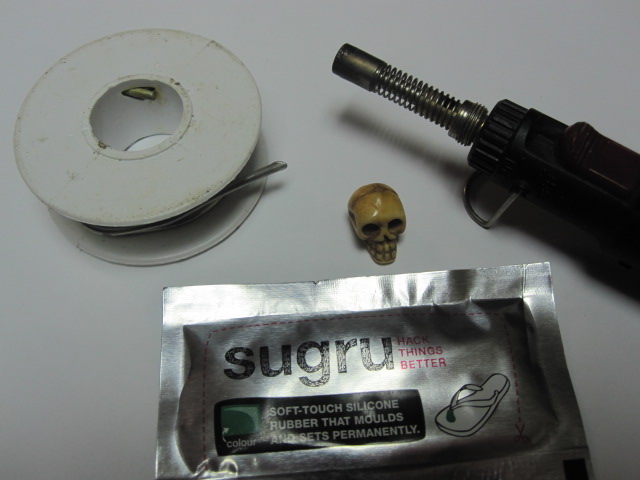

You will need:

-Sugru!

-Object to make a mold of

-Mineral Oil

-Tin Solder (or lead*) Make sure it's not acid core. If you use acid core, you will generate      hazardous fumes.

-Butane Torch

-Something to melt the metal in. I use a piece are firebrick carved into a bowl shape. You  could make your own out of Plaster of Paris, or a copper pipe endcap. Do not use clay or  ceramic.

-Mad Skillz

That's it!

*If you use lead, please make sure you are aware of the hazards. The MSDS for lead can be found here.

Sugru is very sticky. You need it to release from the object you are molding, so oil the object in question. You'll only need a little bit of oil on the object, don't over do it and make it all drippy.

Gently mold the Sugru around the object; in this case, a small skull bead. Leave a little opening to poor the metal through (see picture two)

Put the new mold on a flat surface and let the it dry for 24 hours.

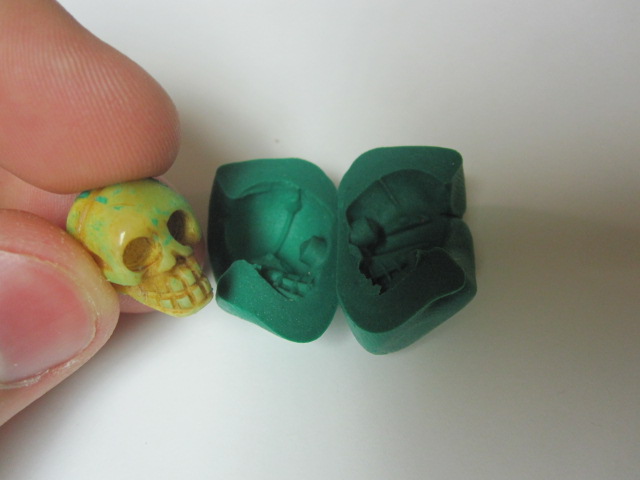

Make an incision around the perimeter of the mold with an Xacto knife. Gently pull out the object, the Sugru could tear if you're rough... and that's something to avoid.

Once the object is released, piece the mold back together and hold it that way with a clamp (picture two)

In my experience with casting metal in silicone, molds need to be broken in. Your first few casts will probably be failures, but the more you cast the better the mold gets.

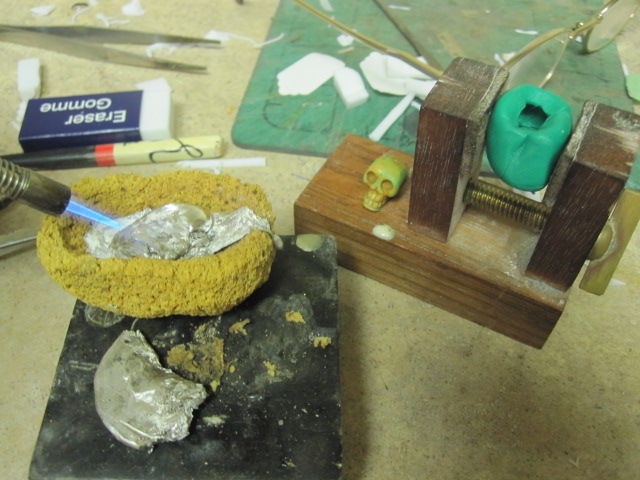

Casting is pretty straightforward: Melt the solder with the butane torch in a crucible of some kind, and poor the molten metal into your mold.

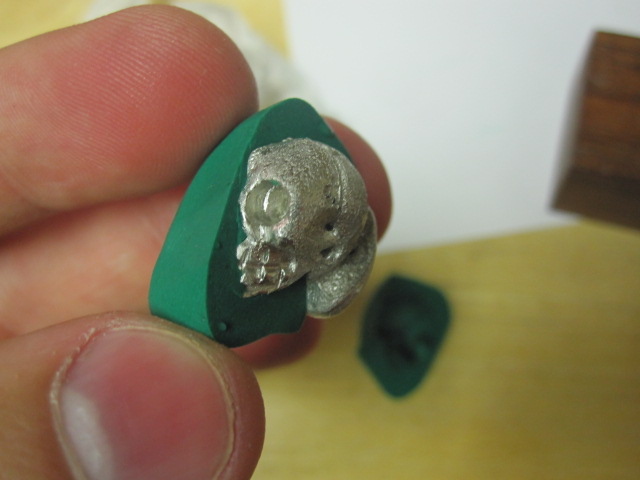

After the metal is cool, you can unclamp and pull the cast of of the mold

Now I did this because I wanted to show you that metal casting in Sugru CAN be done. If I spent more time use the mold, then my results would have been even more accurate.

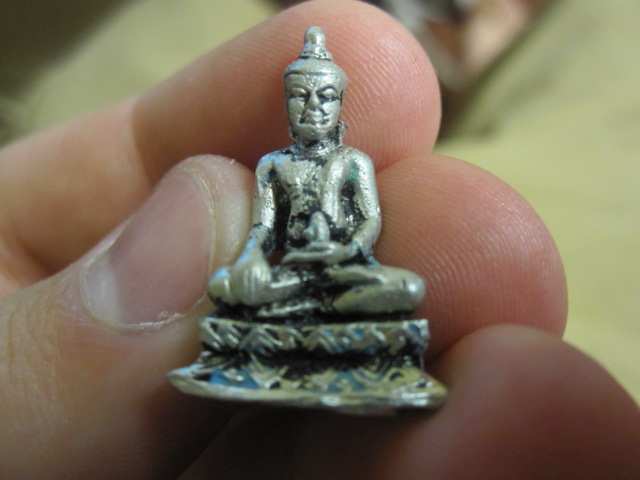

Take a look at the Buddha on the intro. I Cast that using this same method. The mold I used was just more used and very well broken in.

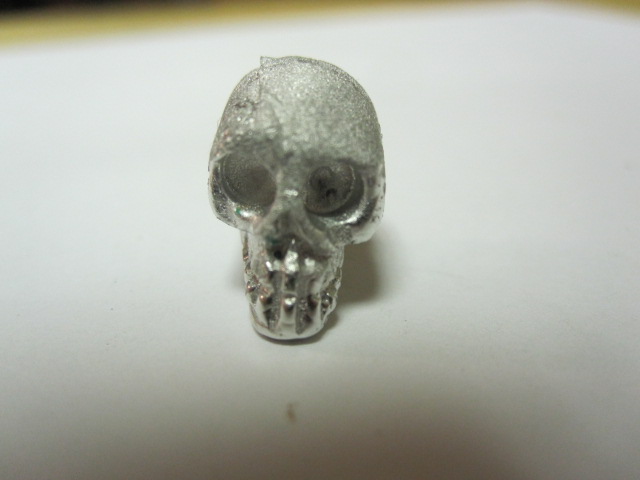

Here are the pictures of my results:
