Meshmixer: Dog Monk

by ks5378 in Workshop > 3D Printing

408 Views, 0 Favorites, 0 Comments

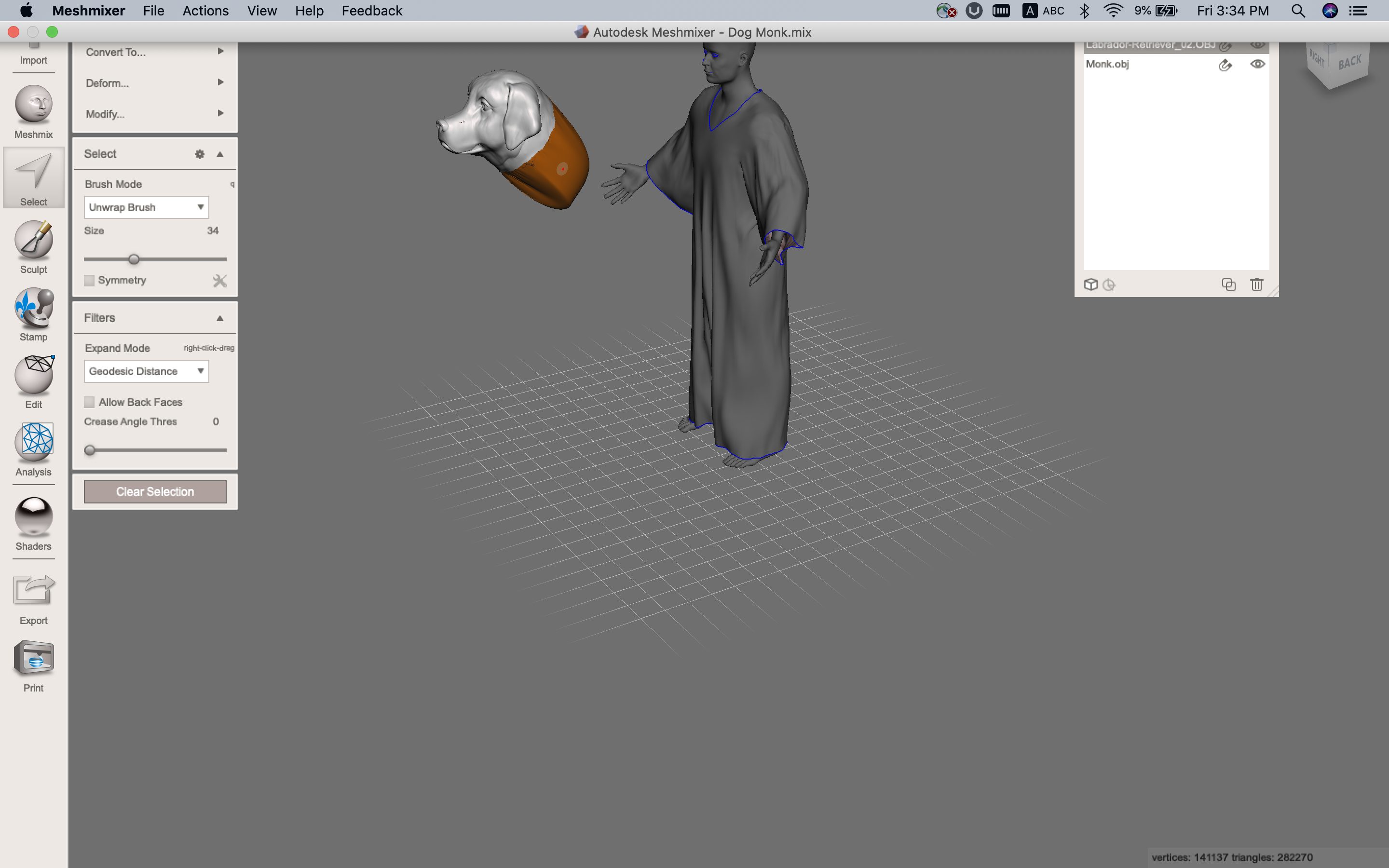

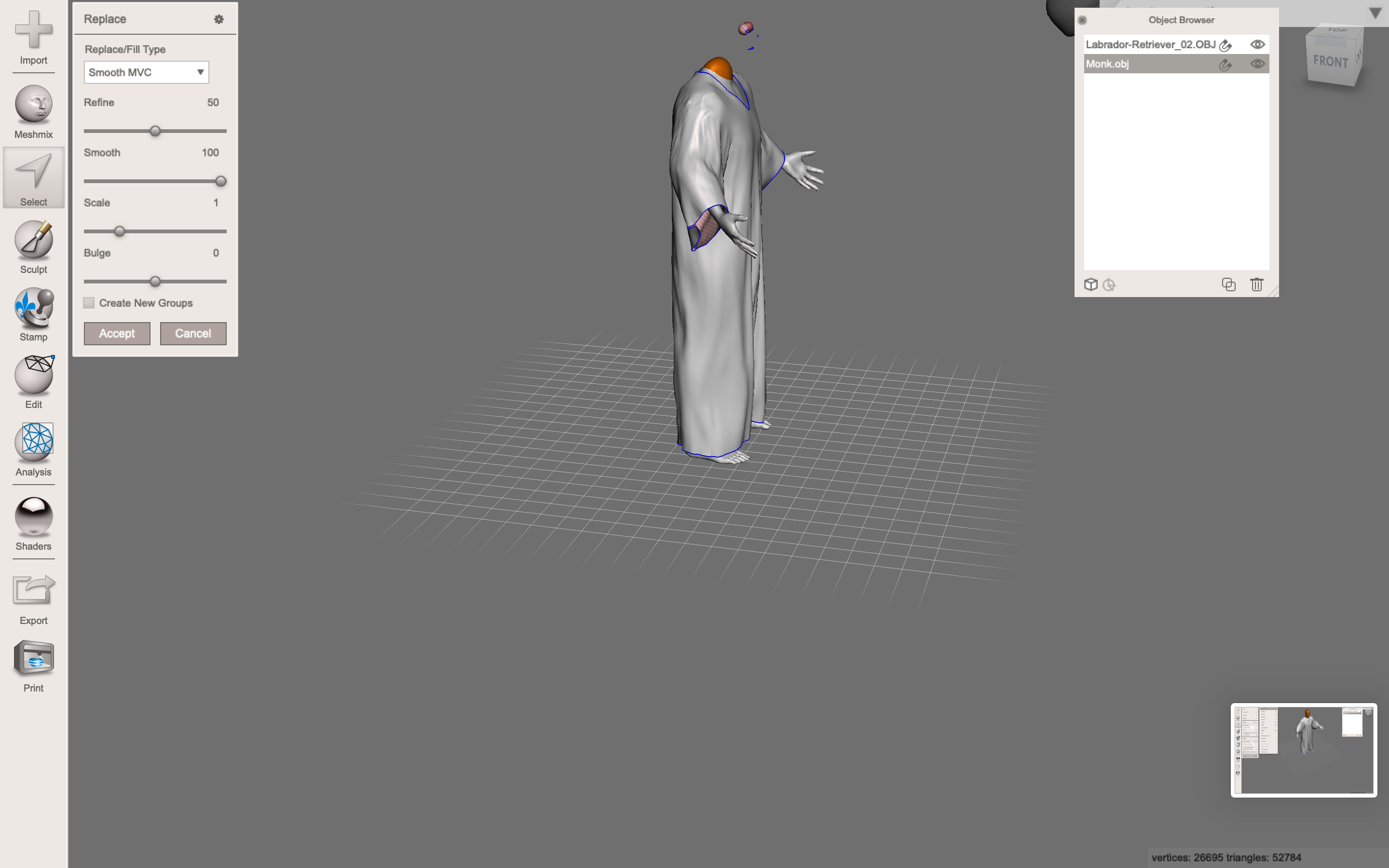

Meshmixer: Dog Monk

Screen Shot 2021-10-08 at 4.17.54 PM.png
Screen Shot 2021-10-08 at 4.16.39 PM.png

As I was browsing TurboSquid, I wasn't sure which two objects I wanted to use. I decided to go with the flow, and I eventually ended up with a dog model and a monk model.

Link to Dog Model: https://www.turbosquid.com/3d-models/labrador-ret.... Author- mayurarora5523.

Link to Monk Model: https://www.turbosquid.com/3d-models/monk-obj-fre... Author- DDbiology2010.

Editing the Models

Screen Shot 2021-10-08 at 3.13.47 PM.png

Honestly speaking, I was first going to combine a Mandalorian helmet with the dog model, but I couldn't make the helmet solid. The problem was it was made to be hollow, and there are too many holes in it. I tried to combine a plane with the helmet, but it doesn't look so neat. If I want to make solid to the helmet, I will also lose many details of it, and it looks weird.

So, I decided to find the right model.

Find the Right Model

Screen Shot 2021-10-08 at 3.24.48 PM.png

This Monk Model is perfect.

Get the Dog Head

Screen Shot 2021-10-08 at 3.28.22 PM.png
Screen Shot 2021-10-08 at 3.28.48 PM.png

Select the dog body, Erase&Fill, and fix the bulge to the right amount. But, I wasn't satisfied with the accuracy of the neck. I guess it was because the selection wasn't accurate enough.

Redo the Selection

Screen Shot 2021-10-08 at 3.32.28 PM.png
Screen Shot 2021-10-08 at 3.34.15 PM.png

This time, after I did a rough selection, I also manually selected the area which wasn't included. Now the head part looks much better. I can use it.

Get the Monk Body

Screen Shot 2021-10-08 at 3.35.08 PM.png
Screen Shot 2021-10-08 at 3.36.40 PM.png
Screen Shot 2021-10-08 at 3.36.46 PM.png
Screen Shot 2021-10-08 at 3.36.52 PM.png

After I got the head, I need to have the body as well. Same steps, make a rough selection, then manually fix the selected area to be more accurate. At the end of this step, I also need to set the bulge to the proper amount. After all of that, they are ready to combine.

Combine the Head and the Body

Screen Shot 2021-10-08 at 3.38.23 PM.png
Screen Shot 2021-10-08 at 3.41.11 PM.png

To make the final model looks reasonable, I also had to set the scales of the body and the head to the proper amount. Then, Put them together --> Boolean Union --> Finished.

Final Look

Screen Shot 2021-10-08 at 3.44.46 PM.png

Done, fell the holiness.
