Mechanical CPU Clock

The Mechanical CPU Clock shows the basic building blocks of a CPU (ALU, buses,RAM,registers, and a Control Unit). It executes a set of instructions which will emulate a simple wall clock.
The inspiration for this project came from trying to teach my son and daughter about how a computer works (in reality, I was always fascinated with mechanical computers and clocks, but I had to give a better excuse to my wife for buying a laser cutter specifically for this project). After looking around the web at various mechanical computers, I could not find something that represented all the components of  CPU. However, I draw my inspiration from the following projects (and their derivatives):
Marble adding machine: www.youtube.com/watch?v=GcDshWmhF4A
DigicompII: http://digi-compii.com/
Ball Logic: http://brain.wireos.com/?p=2207

In the following sections I will attempt to explain how everything works as it is being built. I am not going to go deep into the subject of computer science and will purposely try to avoid some terms, so to not confuse the novice reader. If I do use any terms, I will try to explain them simply. However, there might be some needed background information that I will miss, so please do not hesitate to contact me about trying to explain the concepts in more details (I don't promise anything, but I will do my best). Even if you are not going to build the clock, going through the sections will help in the understanding of how the clock/CPU works (the build sections will go over the concepts of ALU,RAM,register,control unit and buses). Again, one of the motivations for this project was to get people to understand how a CPU (the heart of a computer) works.
More details about the clock can be found here: http://www.liorelazary.com/index.php?option=com_content&view=article&id=46:mechanical-cpu-clock&catid=10:clocks&Itemid=15

123D: http://www.123dapp.com/idw-3D-Model/Mechanical-CPU-Clock/604647

For a CPU to do any meaningful work, it needs to be told what to do. This comes in the form of instructions. For this wall clock I will only concentrate on the hours to make things simple. That is, we will increment a variable named Hours and check to see if its equal to 11 (we will use 0 base indexing for the hours, so 12 is represented as a 0). If the check is true, then we will reset the variable back to 0.  We do not want to code the above statement directly into the CPU, since we want it to be general purpose CPU (otherwise we are just making a clock). Therefore, we will implement a basic instruction set and write the clock code around these primitive instructions (the set of instructions to execute are known as an assembly language). Lastly, we will keep the hour variable in a Register, which is a term given for a special memory component used to hold data and operate on it.  We will also use a simple 1 unit (1 bit) memory address to act as a flag for the control unit, and name it DTD for personal reasons (stands for dedicated to Dani. A long personal story). Note that this CPU will be programed with the clock instructions, but it could be programed with any other code to do a number of other things.

Here are the basic instructions (assembly language) that we will use:
INCRMENT: Increment register A by adding 1 to it.
EQUAL: If register A is equal to a specific number, then skip the next instruction.
CLEAR:  set register A to 0, set DTD to false
JUMP: jump to a specific instruction at a given line number
SET_DTD: set DTD to true
CHECK_DTD: if DTD is true, then skip the next instruction.



Here is the assembly language code for the clock (register A will hold the hours).

1: CHECK_DTD
2: JUMP 5
3: CLEAR
4: JUMP 1
5: INCREMENT
6: EQUAL 11
7: JUMP 1
8: SET_DTD
9: JUMP 1

Line 1 checks to see if DTD is set to true (this is used to indicate if we need to reset the hour). If its true the we jump to line 3 and set the hour to 0 and the DTD to false. If DTD is false then we continue with the next instruction and jump to line 5. Line 5 increments the hour (register A), while line 6 check to see if it equal to 11. If register A is equal to 11, then we jump to line 8 and set the DTD to true and jump back to the beginning (line 1). Otherwise, we go to the beginning. If we run though this code once an hour, then by reading register A, we can tell what is the current hour.

We will now implement the primitive CPU instructions in hardware and program the CPU. I will use Autodesk Inventor for this mainly because of its great dynamic simulation (www.autodesk.com/Inventor). It also allows for parametric design, which makes modeling a lot simpler.


We start by implementing register A and the ALU (Arithmetic/Logic unit). The ALU is a CPU component that performs all the mathematical operations. In our CPU, the ALU will simply perform a simple operation of adding a 1 to register A. This is also known as an adder (http://en.wikipedia.org/wiki/Adder_%28electronics%29)

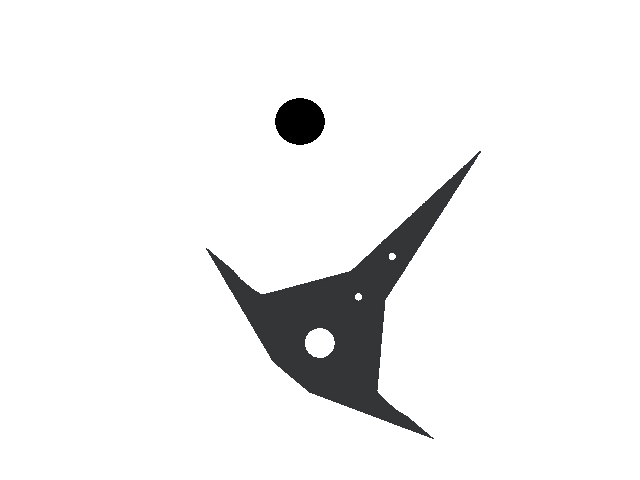

Start by creating a 12” diameter disc and attach a Flip-Flop (http://en.wikipedia.org/wiki/Flip-flop_%28electronics%29) to it. A Flip-Flop is a device that alternates its state with a given input. For example, a politician might change his stance on a specific issue based on some event, and then will change it back based on another event. In that case, we say he is a flip-flop, and we might be able to build a computer out of him:) Modern CPUs utilize transistors for their flip-flops, however we will build a mechanical flip-flop that will change its state based on a ball drop.

Next, create a cut in the 12” disk encasing the envelope of the flip-flop, so that the flip-flop can move freely (parametric design makes this process very easy).

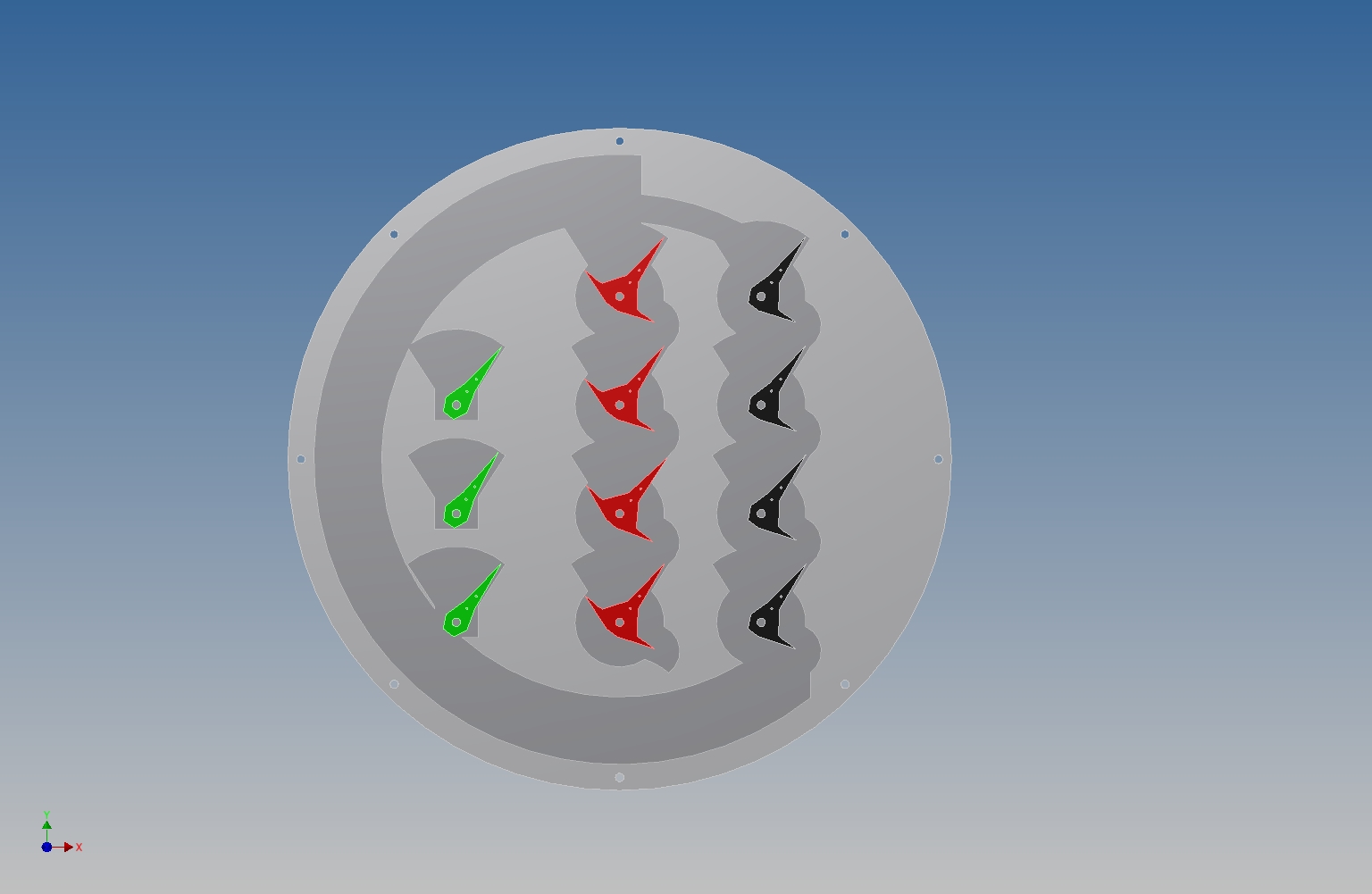

Since we want our clock to count up to 12, we will need to represent 11 (0,1,...,11) in our register. Our flip-flop can only have two states, so we can use a binary representation of 11 using 4 flip-flops (1011). We will place the least significant bit (LSB) on top, and the most significant bit at the bottom. We will also create another register (register B) which will hold a copy of register A, and will be used to reset register A to a given number (the CLEAR statement). This will be done by resetting register B and copying the data back to A. Register B will also be 4 bits wide. We can simply do this by making an array of the flip-flop cut.

Next we will add another register (register C), which will also contain a copy of A. This register will be used for the EQUAL statement to check if register A is equal to 11. We will want to increment and check register A in the same clock cycle (the same ball drop) so we can keep the timing correct. One way to achieve this mechanically will be to place register C under register A, but this will make the clock very long. By examining how the ALU (adder) will work on register A, we can see that the when we change the least significant bit (LSB) to 1, we can escape the register and use the ball to perform the check in register C. Since we are only doing this on the LSB, we can just check the 3 most significant bits (MSB), since we already know that the LSB will be 1. Therefore, we can place register C under and to the left of register A. This can be thought of as code optimization.

Next we will implement the DTD bit flag (the control unit) in the form of  two tracks. If the ball goes on track A, then DTD is false. If its on track B, then DTD is true.

Programming the clock is achieved by routing the ball to specific locations. That is, we will “hard code” the program into the CPU. The ALU is going to be programmed as an adder, by allowing the ball to continue down register A whenever the flip-flops are at 0, and escaping register A whenever they are 1 (overflow condition). Lastly, we will program the CHECK statement to check for the number 11. As mention before, we are only going to check the 3 MSB (101) so the ball will end up on track B every time this is true, and on track A every time this is false.

Lastly we will add the bus on our CPU, to connect our registers together. As one of the registers changes, it will copy the data to the rest of the registers.

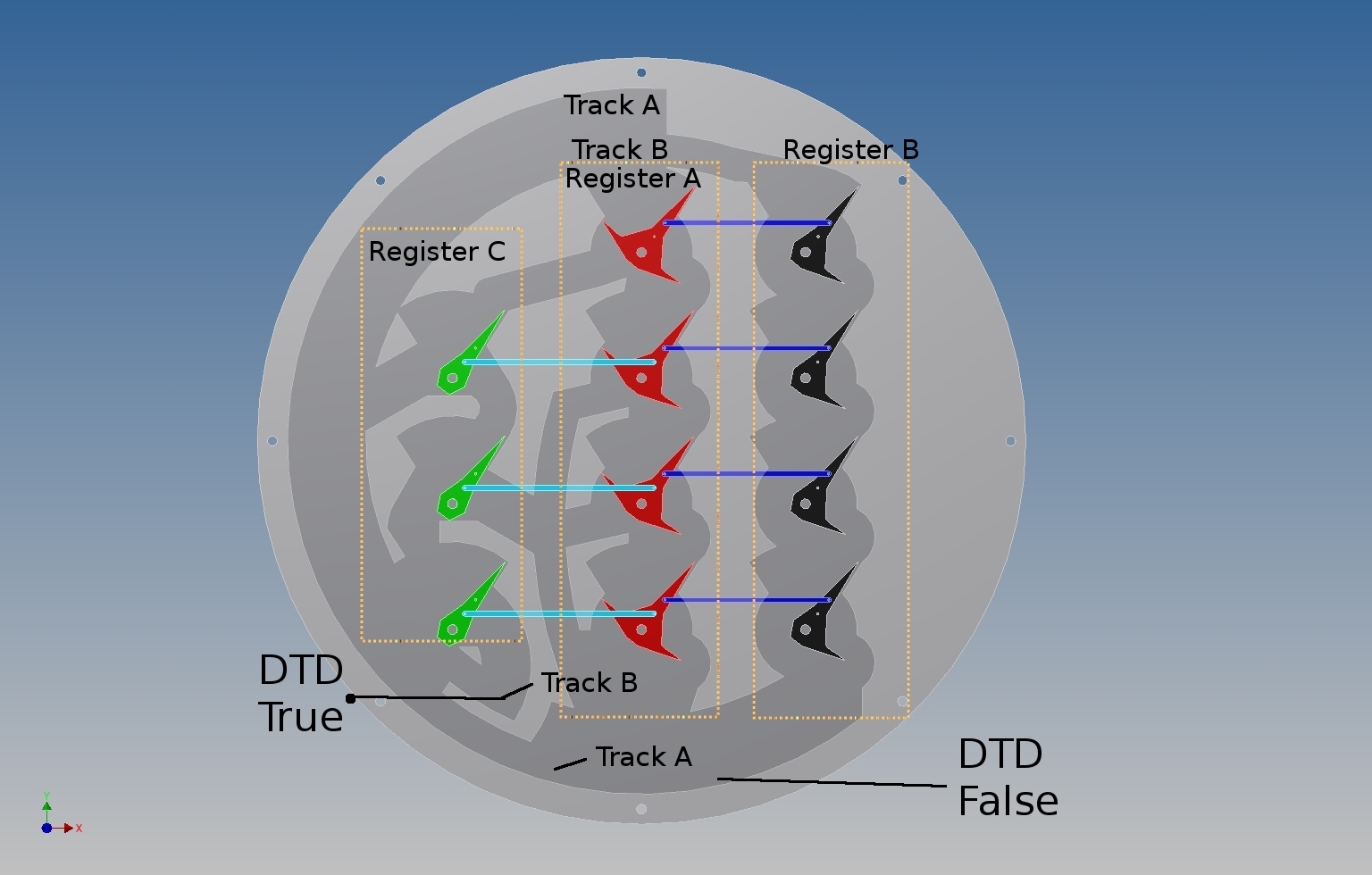

Here is the final clock with all the appropriate labels. It works by executing the flowing code.

1: CHECK_DTD
2: JUMP 5
3: CLEAR
4: JUMP 1
5: INCREMENT
6: EQUAL 11
7: JUMP 1
8: SET_DTD
9: JUMP 1


Line 1 is at the top of the clock, implemented as a wall. When the ball is on track A, it will hit the wall and drop to register A (line 2). In register A, it will increment the register (line 5) and check to see if register A is equal to 11 (line 6). If the check is false (DTD false) then the ball will end up on track A and the ball gets lifted to the top again (line 7). However, if register A is equal to 11, then the ball will end up on track B (DTD true) and will be lifted up to the top again (line 9). Since the DTD is true this time, the ball will be on track B and pass the CHECK_DTD by moving over to register B. Register B will clear itself to 0 and copy the data via the bus to register A. If will then end up at the bottom on track A (DTD false) and move back up to the top (line 4).

Before building the clock, we can simulate the ball drop using the dynamic simulator in Inventor. Due to the complexity on the simulation (and my lack of a server farm), we can just simulate it step by step, using some known constraints to help things out. Here is a simulation of the final stage (when the hour turns 11 and the DTD flag is set and the ball goes on track B).

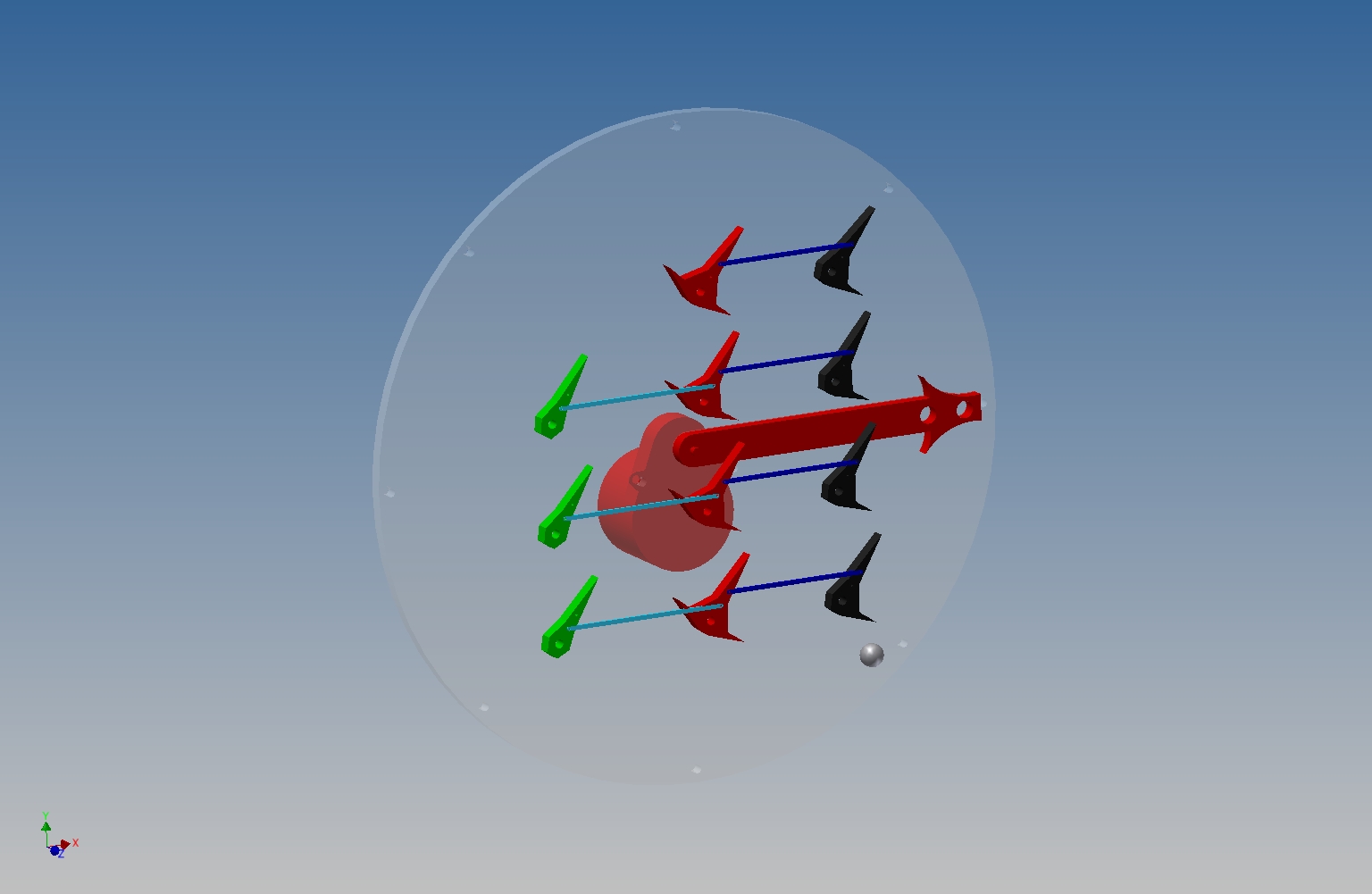

To lift the ball on track A or B we will use a lever with two magnets and a motor to rotate the lever once an hour. This will allow the ball to drop once every hour and increment register A (which will hold the current hour).

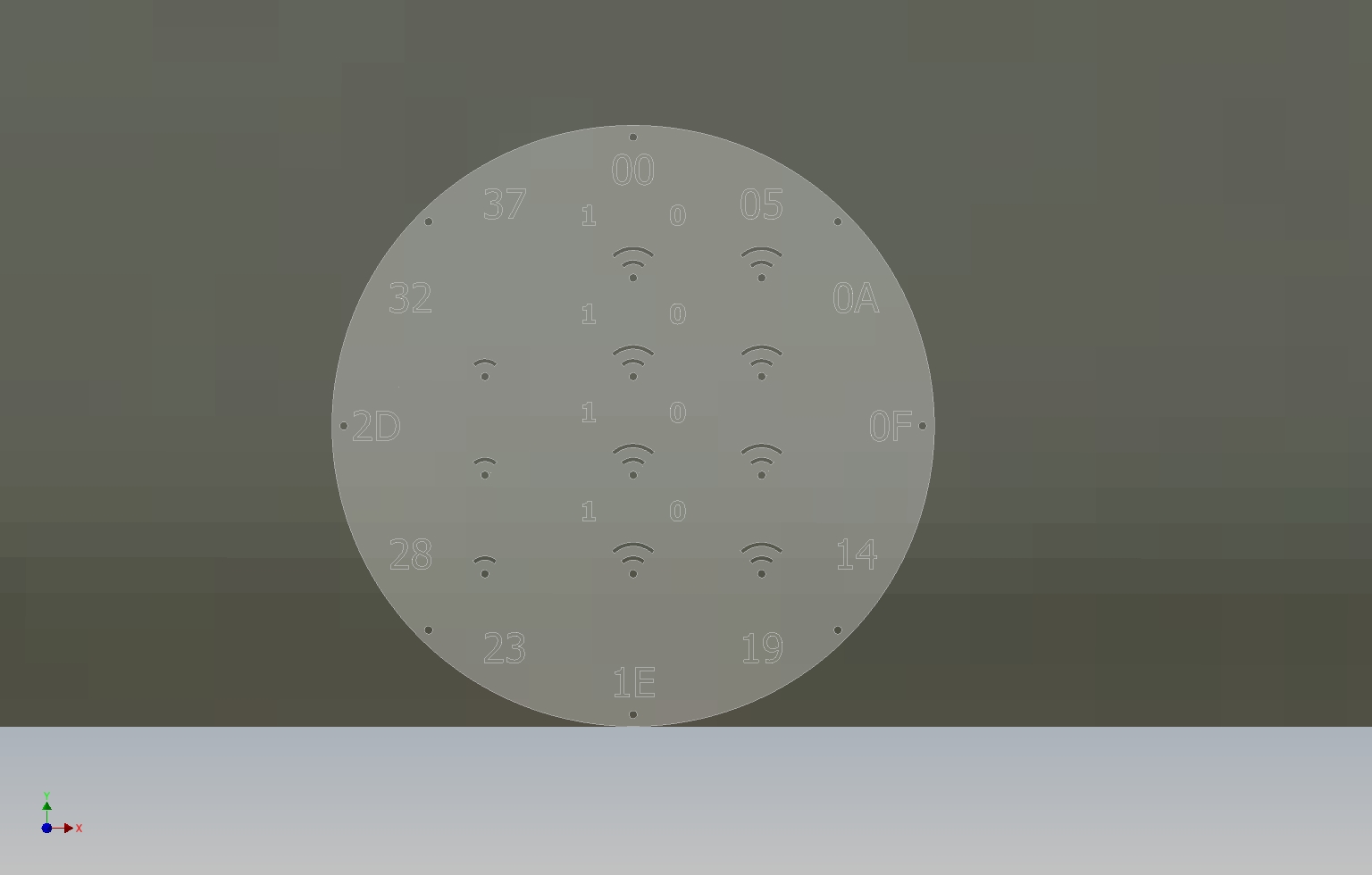

Since we can also read out the current minutes by the position of the lever, we can place the minutes numbers on the clock face just like in a real clock. However, just for fun we will place the minutes in Hex representation instead of decimal.

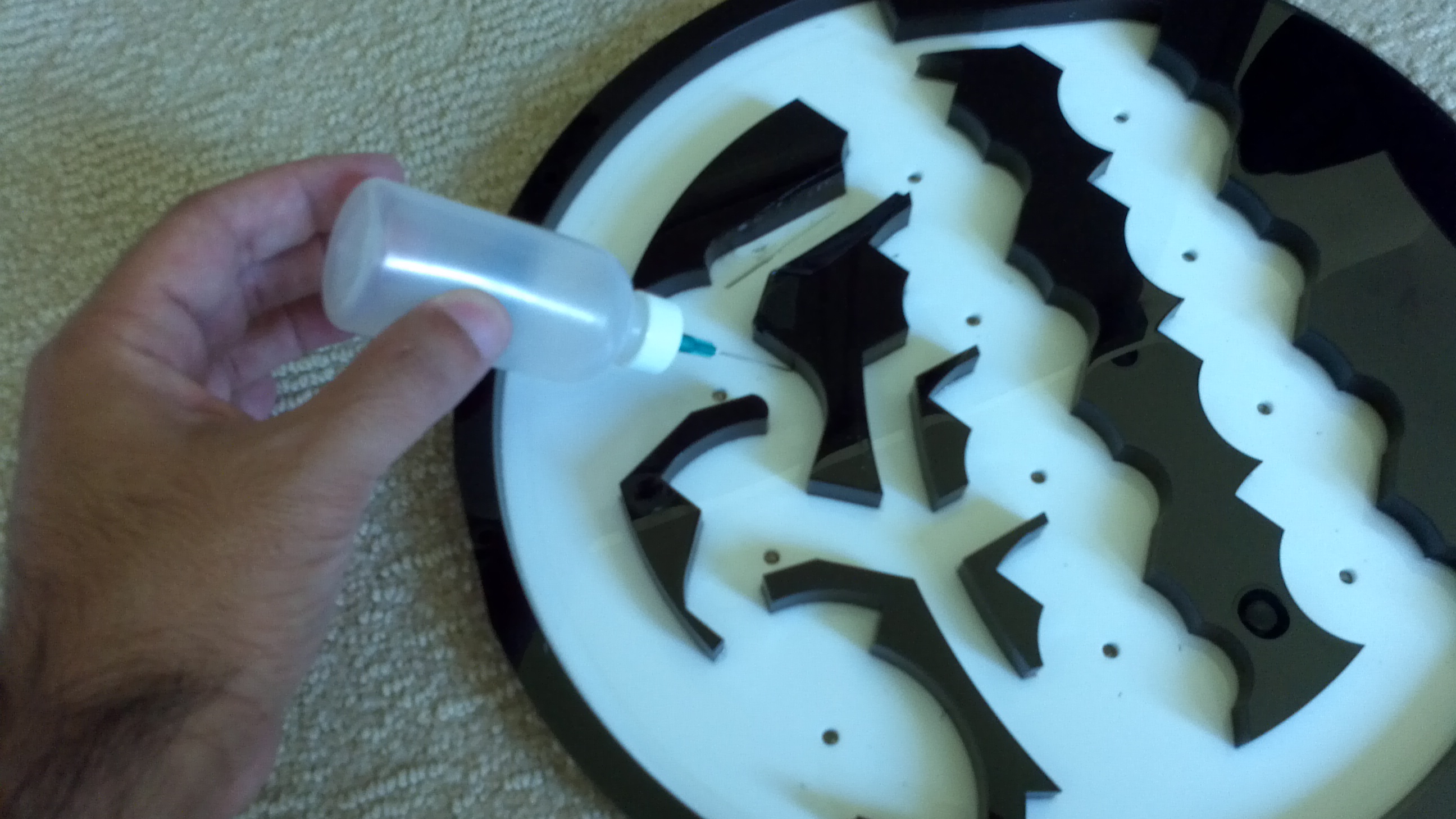

We start building the clock by laser cutting the parts out of acrylic.  You can use what ever color you like, but some colors show up better then others, so you should experiment.
The piano wire used is 0.5mm which I got from do-it-center as well as the screws (6-32). I got 2.5 inch screws and cut them to length as needed. Other then that, you only need the acrylic. I used 1/2" for the tracks, and 1/8" for the rest (12x12 sheets).

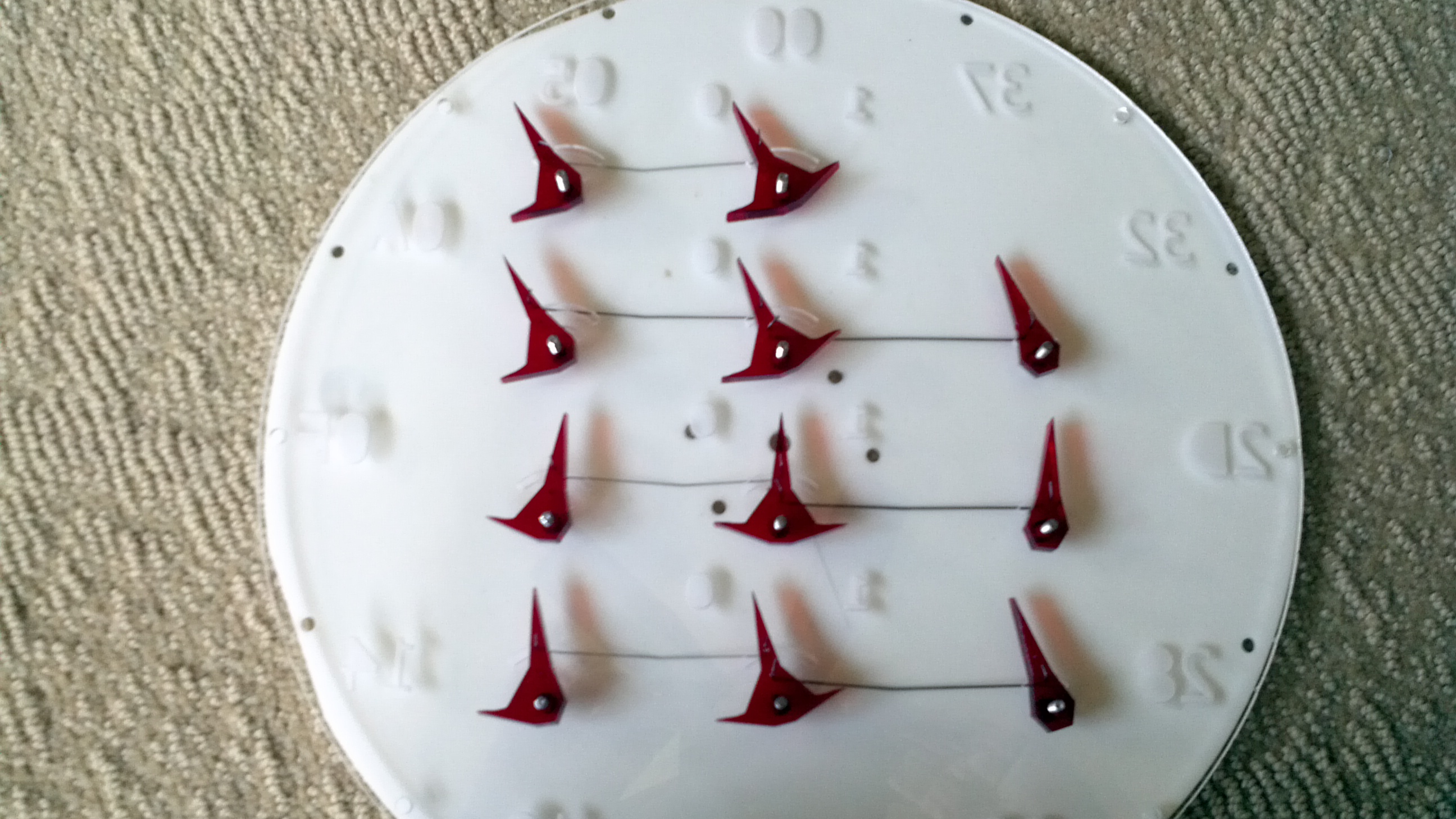

The buses are made out of piano wire. Note the angle band at the top, which will be used to adjust the final length.

Attach the buss wire to the flip-flops by forming an L band at the bottom.

Place the ball inside and attach the face to the backplate and tracks with screws.

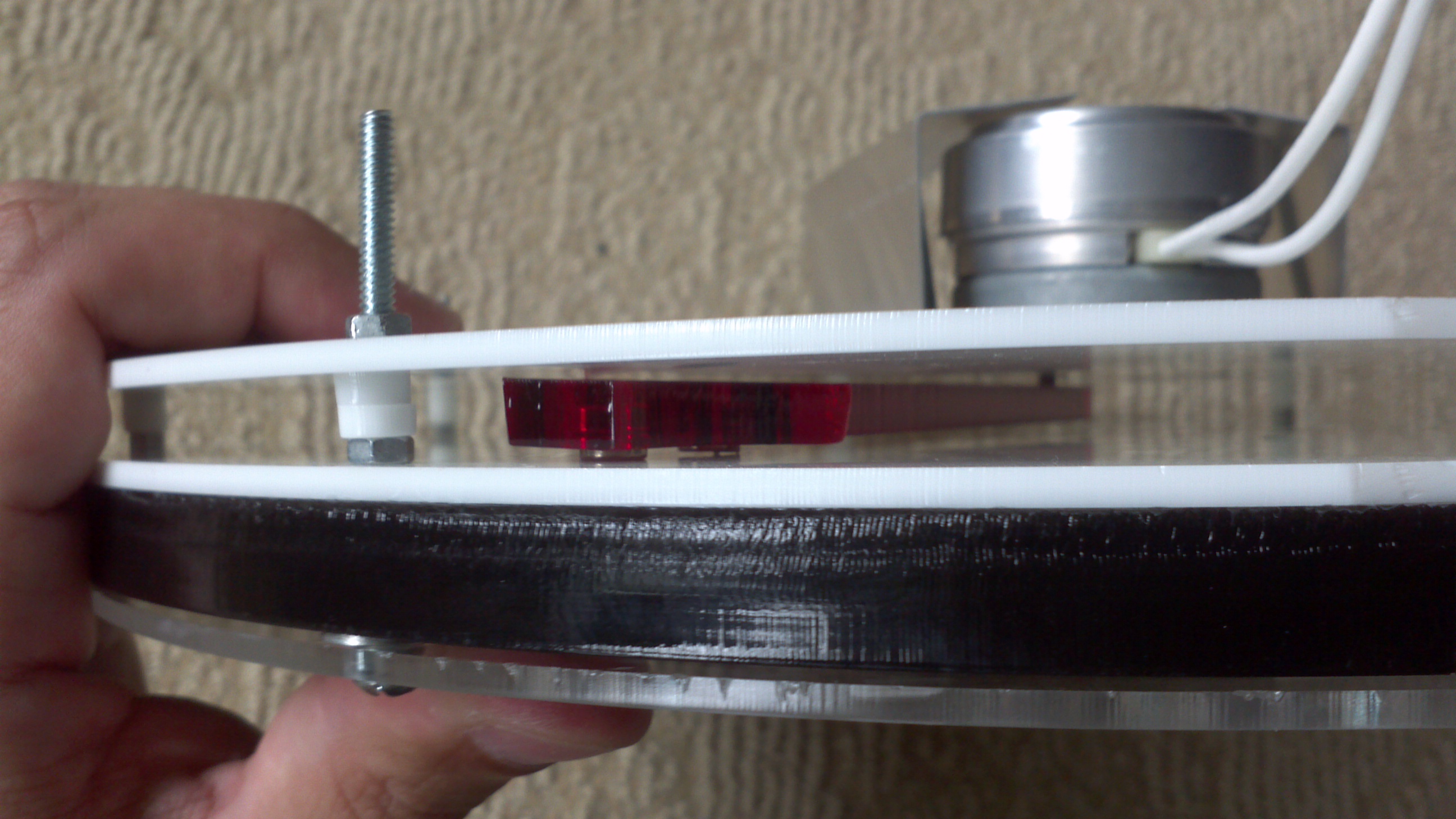

The motor used for this clock is a 1 RPH (1 revolution per hour) timing motor, which gets very hot. To dissipate some of the heat, we will base a case for it out of aluminum sheet. Another, more complicated solution, will be top use a stepper motor.

Here is the final clock mounted on a wall.
