MeArm With Electromagnet

by ted99tw in Circuits > Arduino

2000 Views, 16 Favorites, 0 Comments

MeArm With Electromagnet

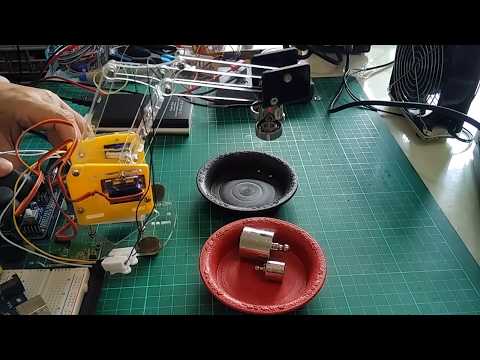

MeArm.Joystick with electromagnet
MeArm.Joystick 機械手臂改裝

We will do an ElectroMagnet extension to existing MeArm.Joystick.

materials: 1. MeArm.Joystick

2. blank pcbs board

3. some M3 screws and nuts

4. an electromagnet

5. 3mm acrylic

6. 2.54mm female header

7. switch 8. usb power source

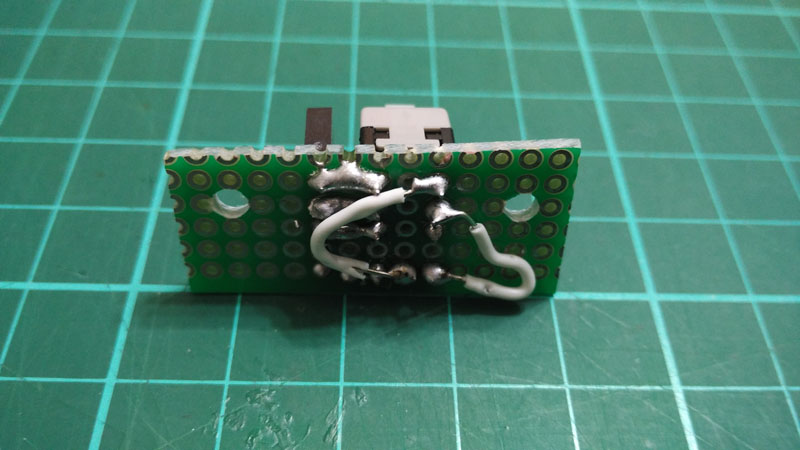

Power Switch


user 2p2t switch to toggle on/off of the power

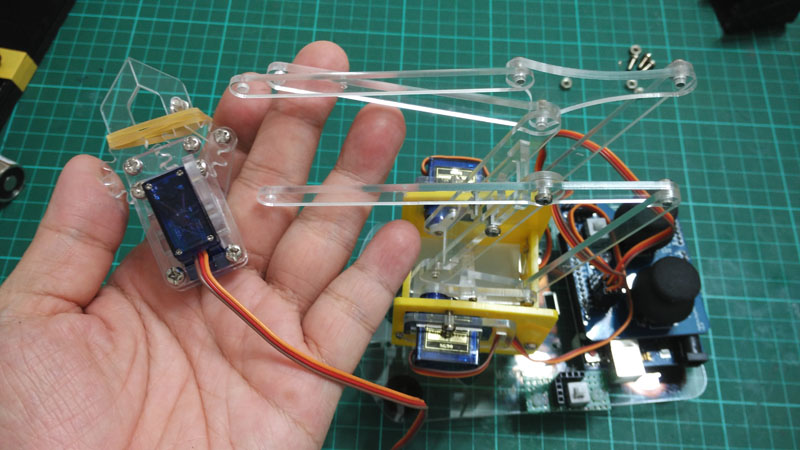

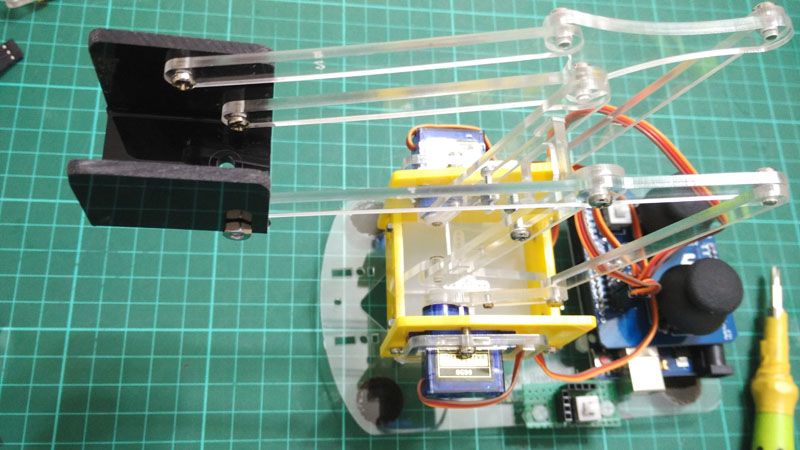

Replace Gripper With Electromagnet

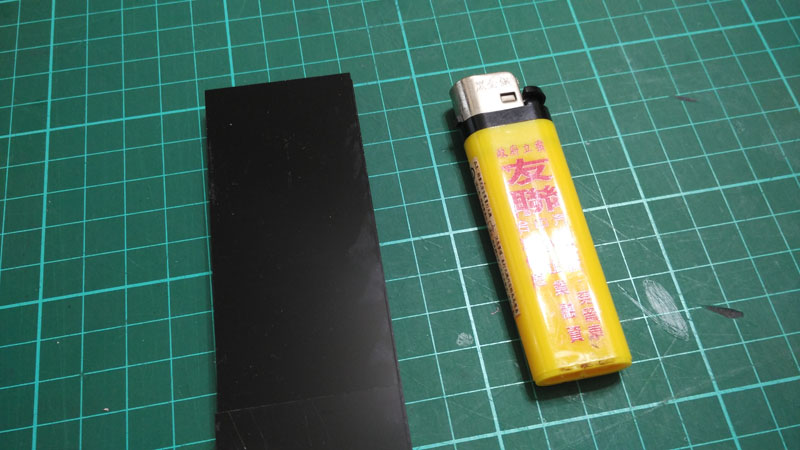

user lighter or acrylic bender to make the electromagnet stand and replace the gripper

Plug in the Power Line


After plugging the power line, you are good to go. (My electromagnet accepts 3V~6V. So a usb power source is good enough) Good luck!
