Matchbox Microphone

by Dave Hax in Workshop > Science

125737 Views, 515 Favorites, 0 Comments

Matchbox Microphone

Matchbox Mic Thumb 3.jpg
Matchbox Mic Thumb.JPG

How to make a really basic microphone out of a matchbox and pencil graphite. This simple electronics experiment demonstrates how a microphone works and the science behind it. We'll explore the fundamental principles of a microphone and build our own working model.

Background

1 Mic.jpg

A microphone is a device which converts acoustical energy known as sound waves, into an electrical energy know as audio signal. Inside the head of a microphone you will find a diaphragm, this is a thin piece of material which converts sound waves into an audio signal. When the diaphragm is hit by sound waves it vibrates, and its these vibrations which are converted into electrical energy known as audio signal.

Microphones are used in a wide range of applications including telephones, computers, hearing aids, megaphones, music recording and surveillance.

Getting Started

How to Make a Matchbox Microphone

What you need:

  • A Matchbox
  • A Pencil
  • Scissors
  • Crocodile Clips
  • Leads
  • A 9v Battery
  • Some Old Earphones
  • A Sharp Knife
  • A Cutting Board
  • Speaker Wire

When you have everything you need, go ahead and follow the instructions or watch the video for a visual demonstration and full instructions.

Building Our Microphone

2 Match Box.jpg
3 Match Box Open.jpg
4 Match Drawer.jpg
5 Drawer Pencil.jpg
6 4 Holes.jpg

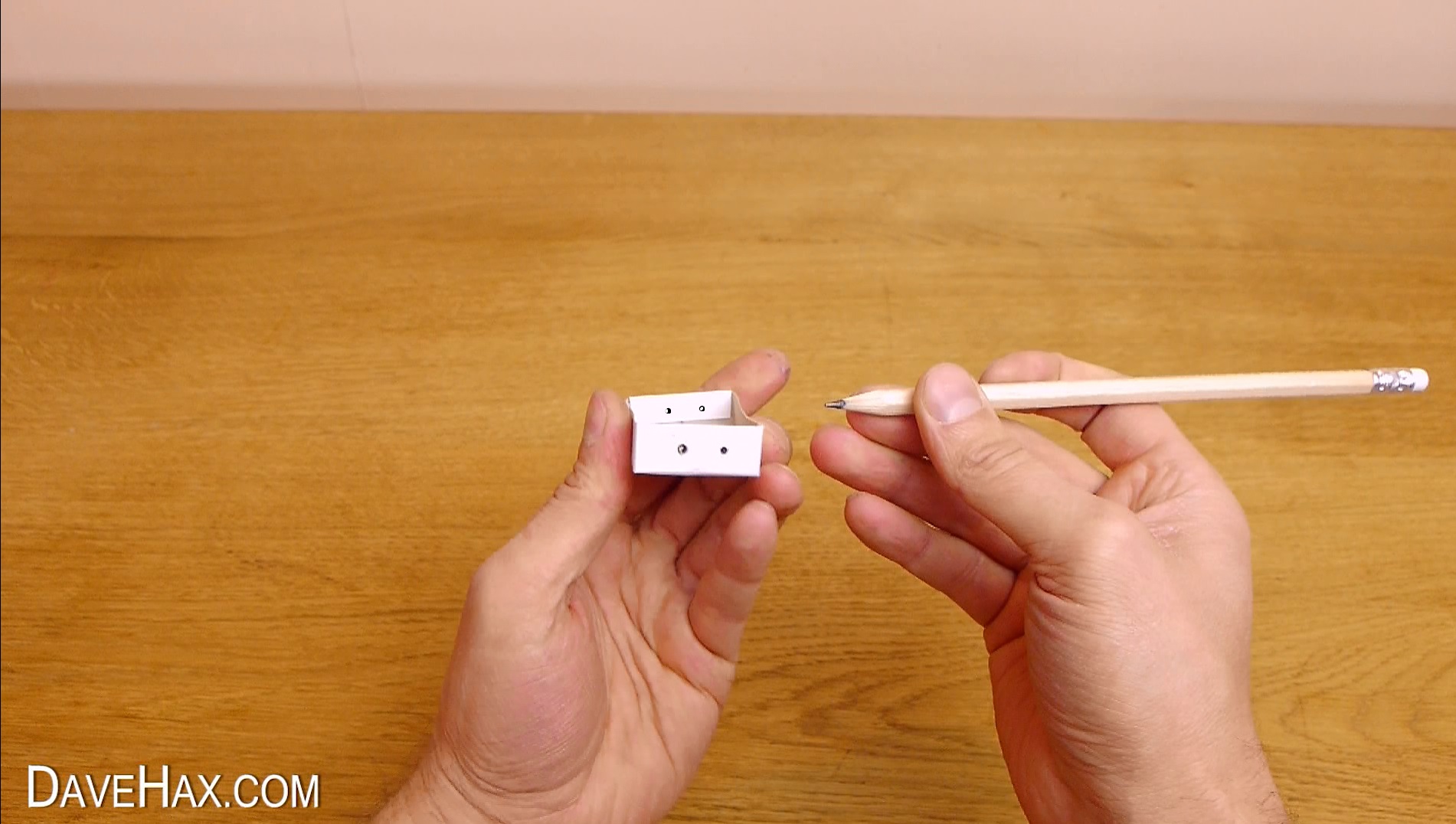

Take an empty matchbox and remove the drawer. Then using a sharp pencil poke two holes through each end of the drawer, as shown in the pictures.

Remove the Pencil Graphite

7 Knife & Pencil.jpg
8 Cut Pencil.jpg
9 Cut Pencil 2.jpg
10 Split Pencil.jpg
11 Pencil Lead.jpg

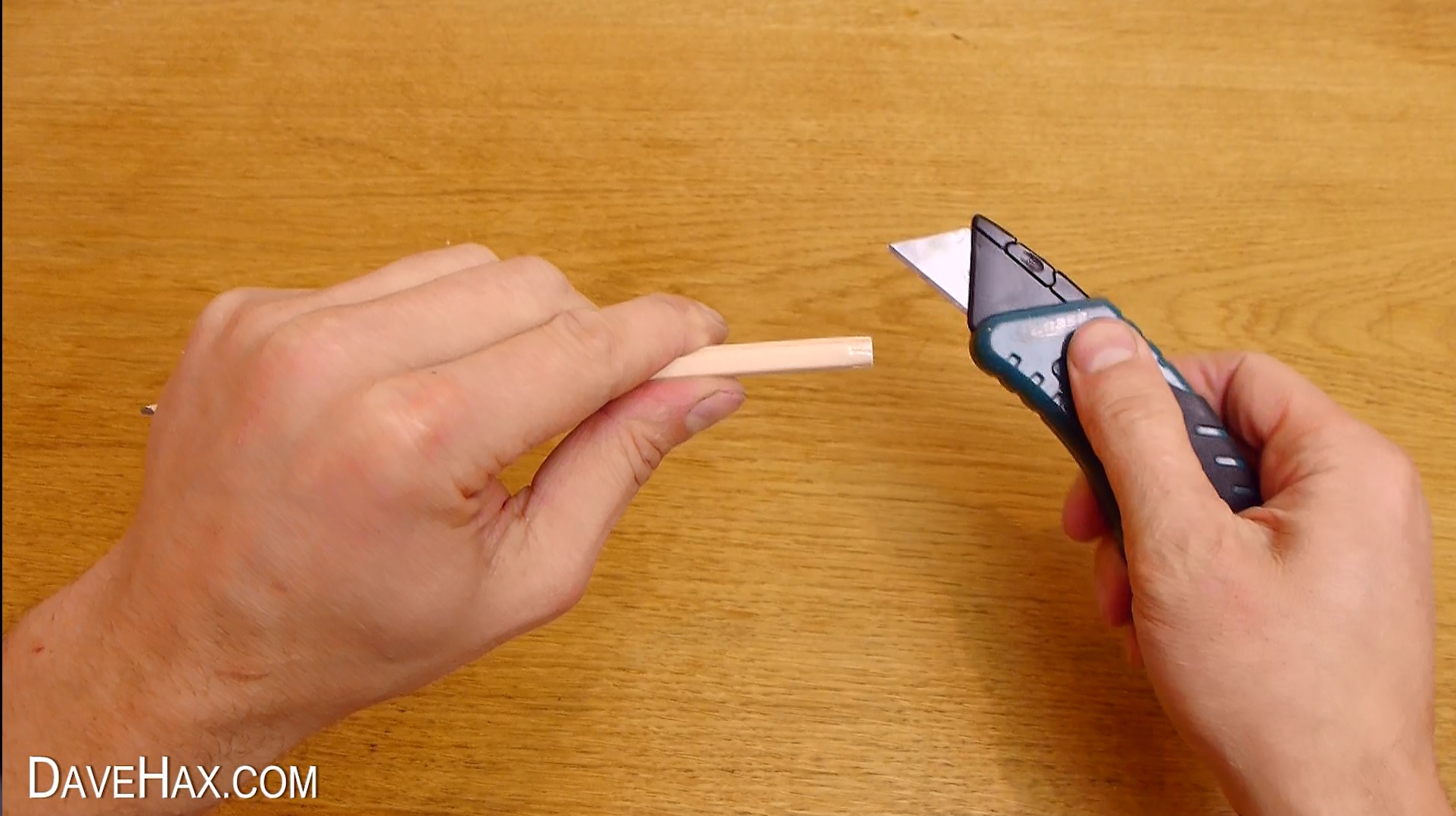

Use a sharp knife and a cutting board, to carefully split your pencil in half and remove the graphite.

Grinding a Flat Surface

12 Lead & Scissors.jpg
13 Lead Scissors Scrape.jpg
14 Lead Flat Spot.jpg

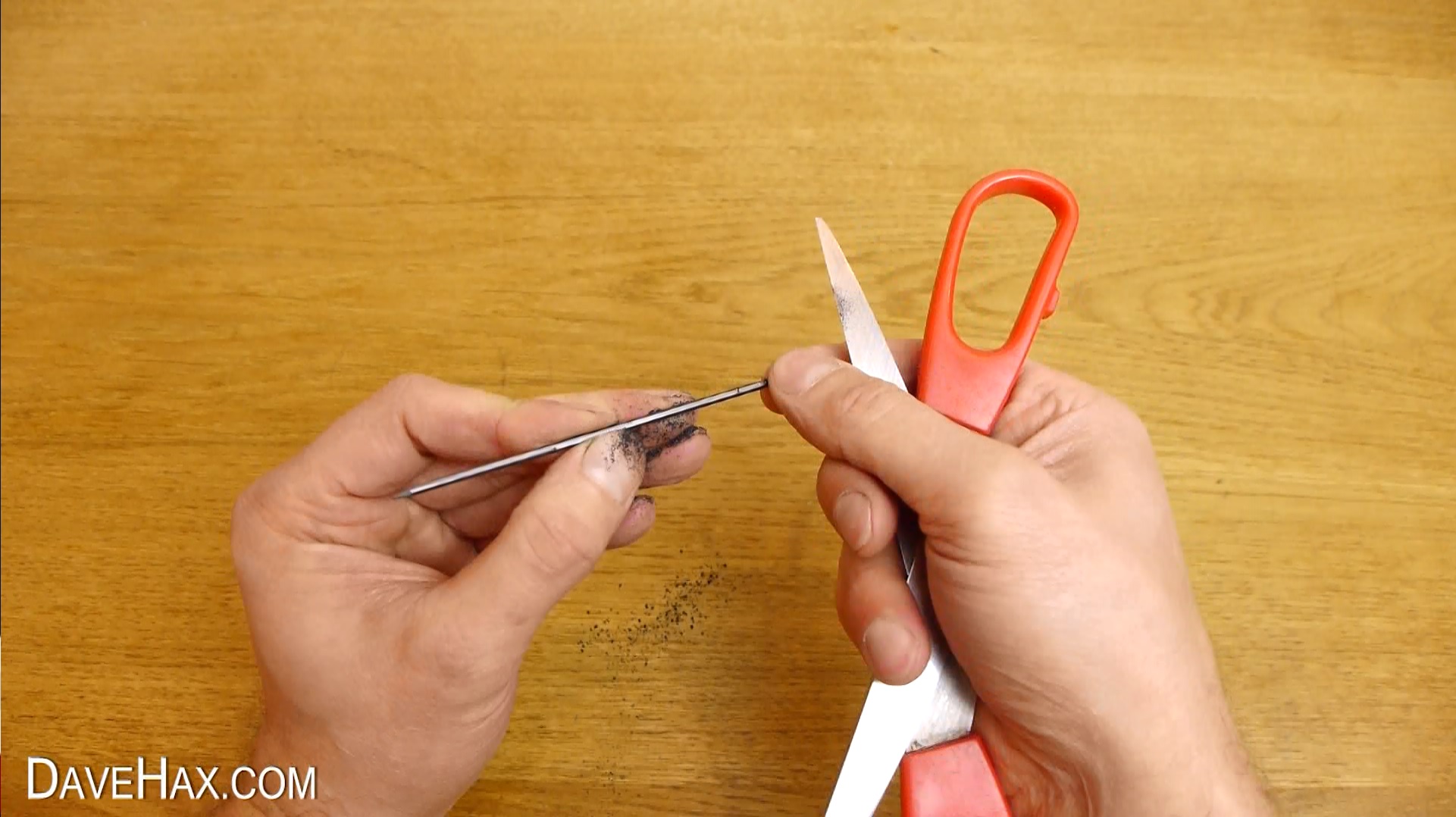

Take a pair of scissors and carefully run the blade up and down the length of the graphite to create a flat surface on one side.

Assembling the Microphone

15 Lead In Drawer.jpg
16 Lead In Drawer 2.jpg
17 Lead Snap.jpg
18 Lead On Lead.jpg
19 Lead On Lead 2.jpg

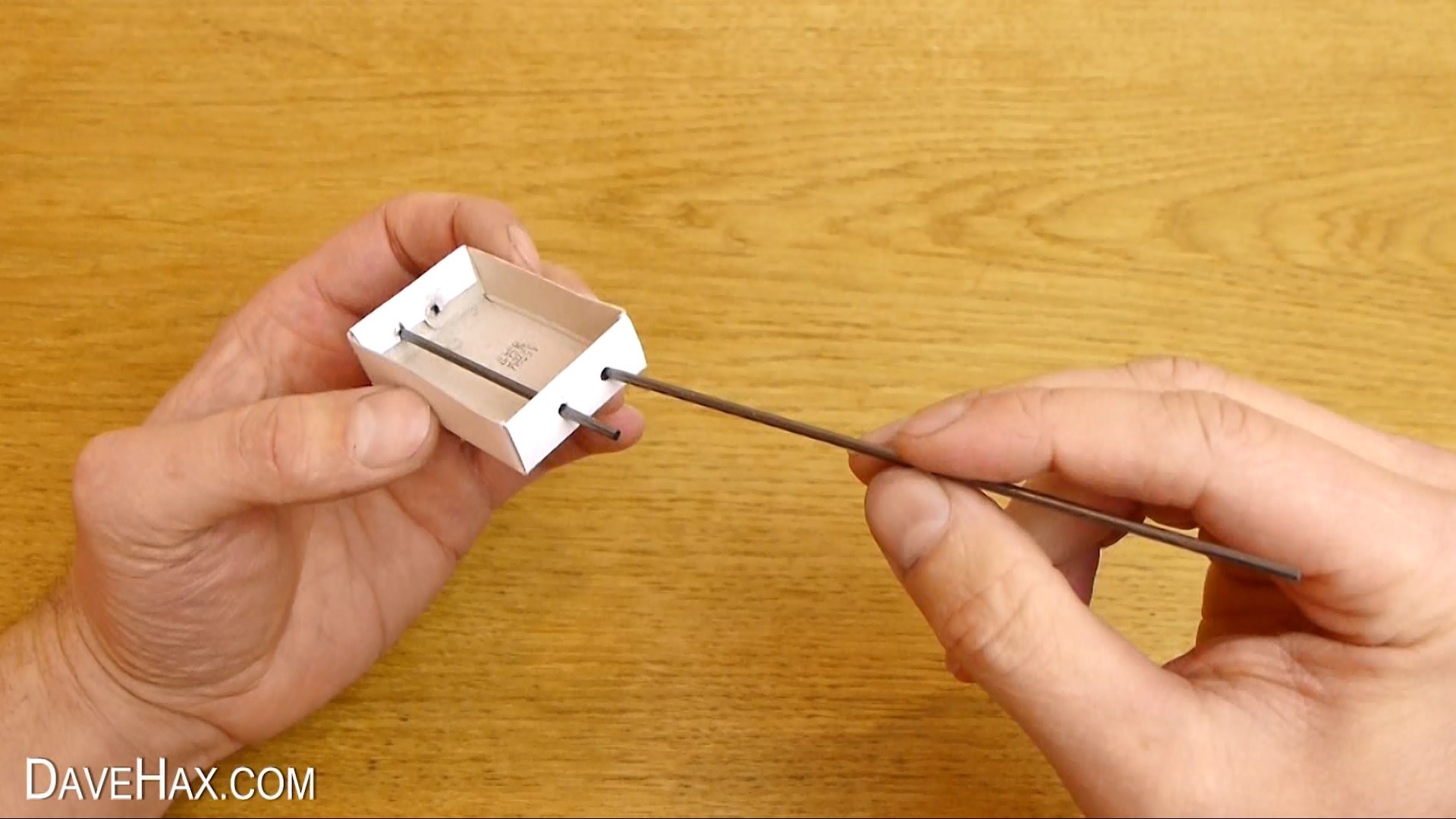

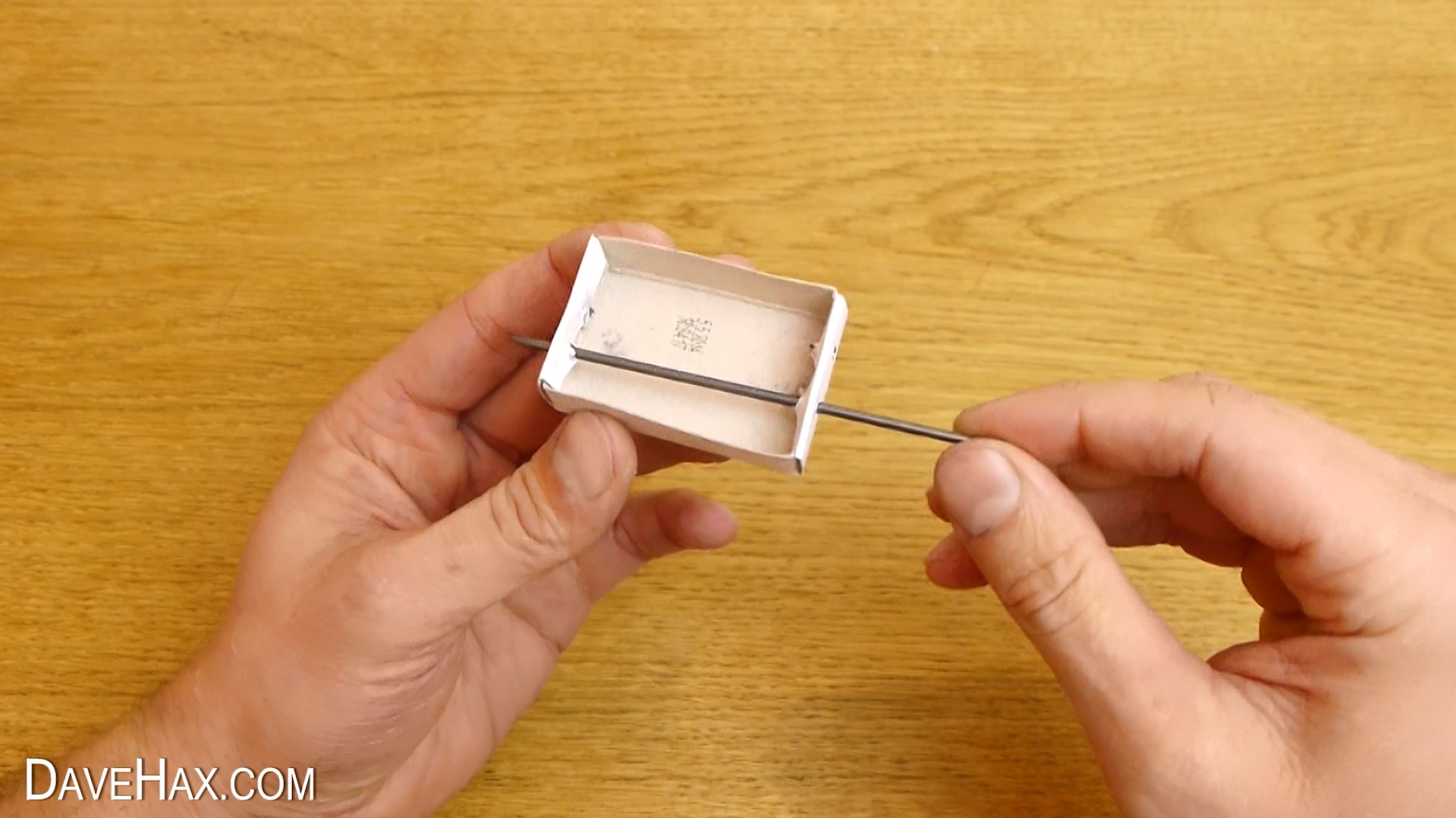

Insert the graphite into one of the holes in the matchbox drawer, and out through the hole opposite, as shown in the picture. Snap the graphite off so it sticks out roughly 1cm each side of the matchbox.

Put the remaining graphite through the holes in the other side of the matchbox. If you haven't got enough graphite, extract some more from another pencil in the same way we did earlier.

Twist the graphite so the flat surface we made is facing upwards.

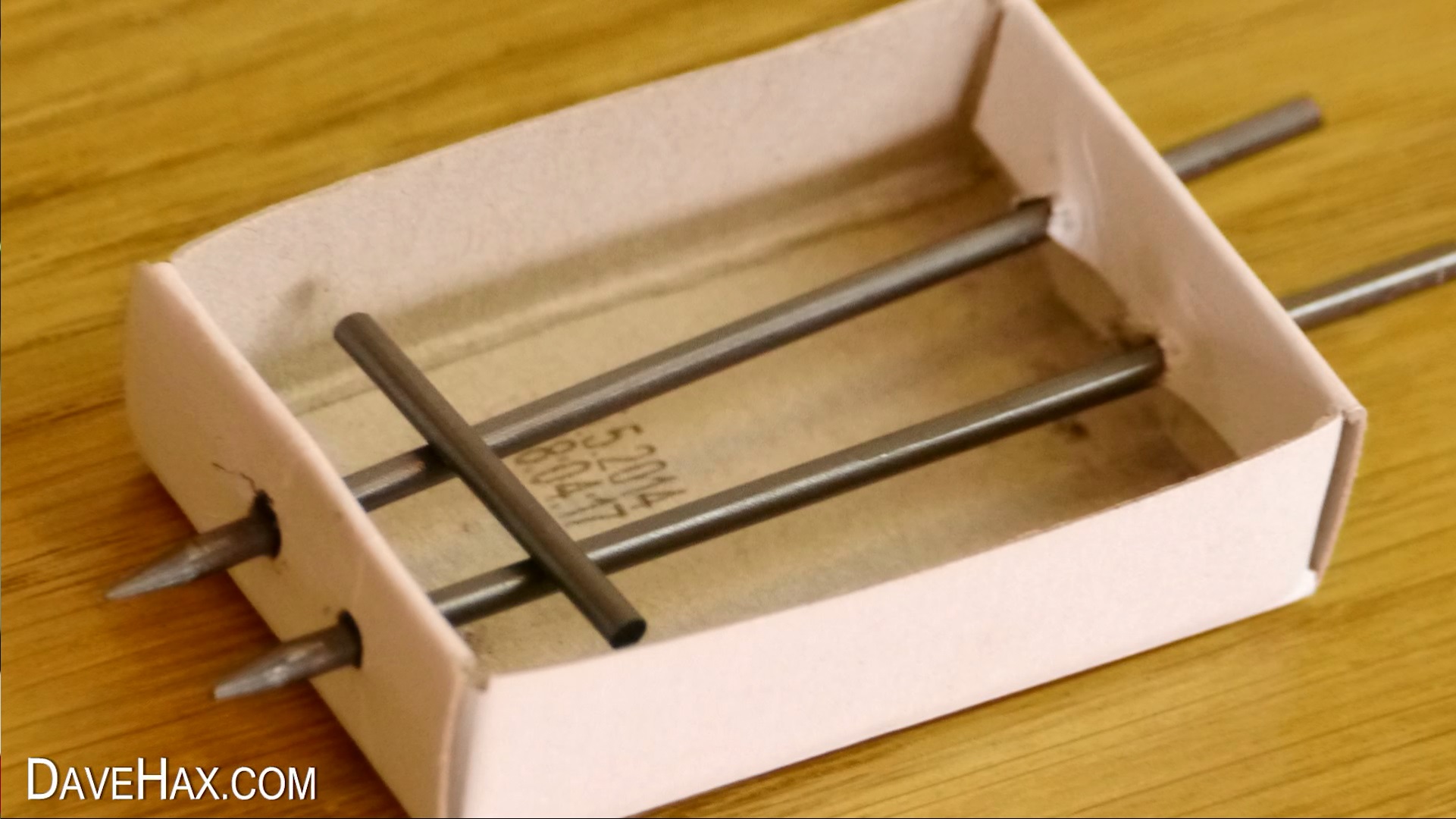

Snap off another short piece of graphite, and place this flat-side-down on top of the two pieces in the matchbox as shown in the pictures. This piece will act as our microphone diaphragm, and the reason we made the flat surface on the graphite, is to stop it rolling around.

That's our microphone completed.

Wiring the Circuit

20 Battery.jpg
23 Headphones.jpg
21 Battery Clip.jpg
24 Headphone Wires.jpg
25 Circuit.jpg

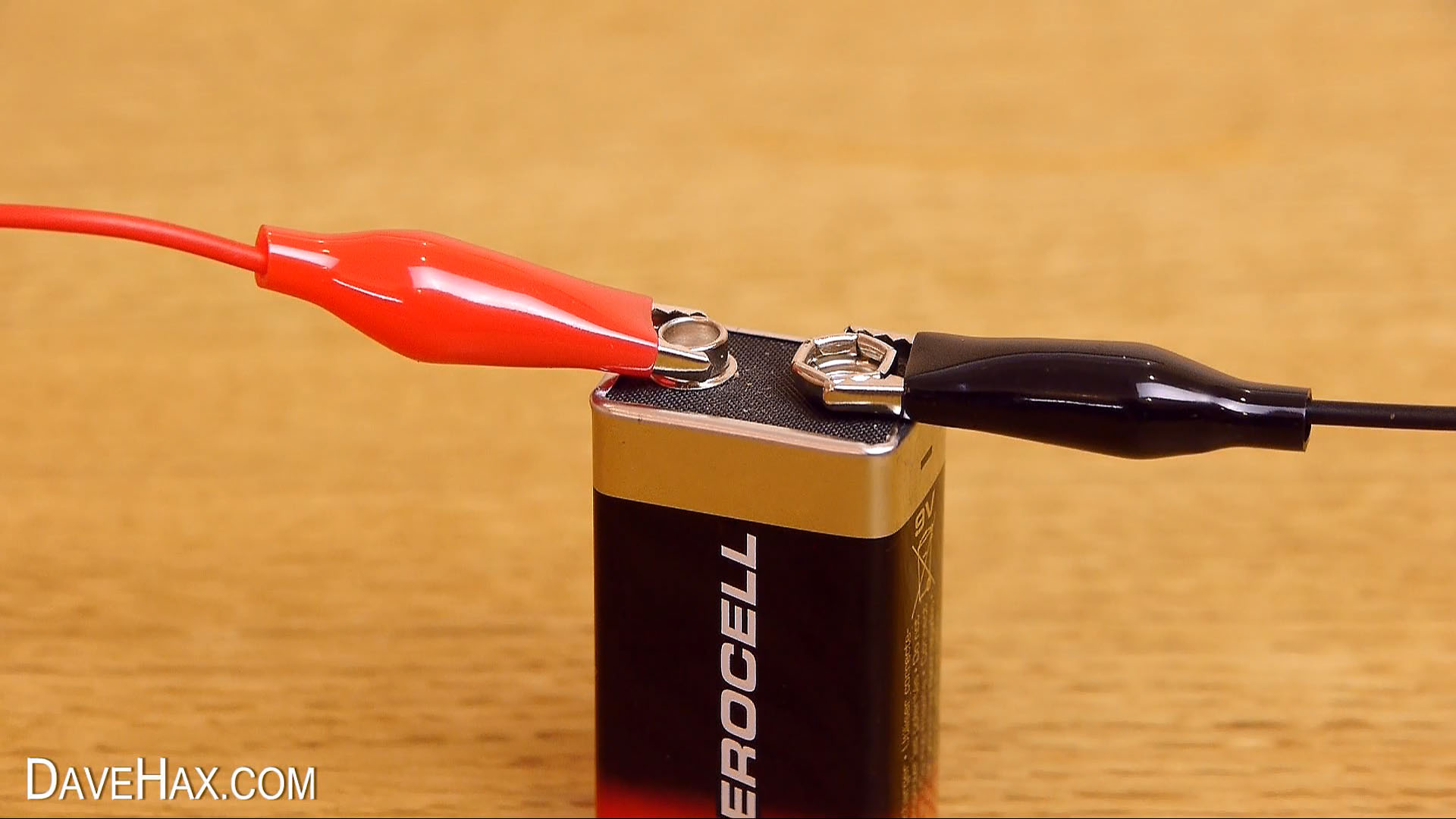

We're going to power the circuit using a 9v battery, and we'll monitor what sounds the microphone captures through a pair of old earphones. The battery will create a current around the circuit and the microphone will capture sound waves and convert them to an audio signal, which we should then be able to hear through our earphones.

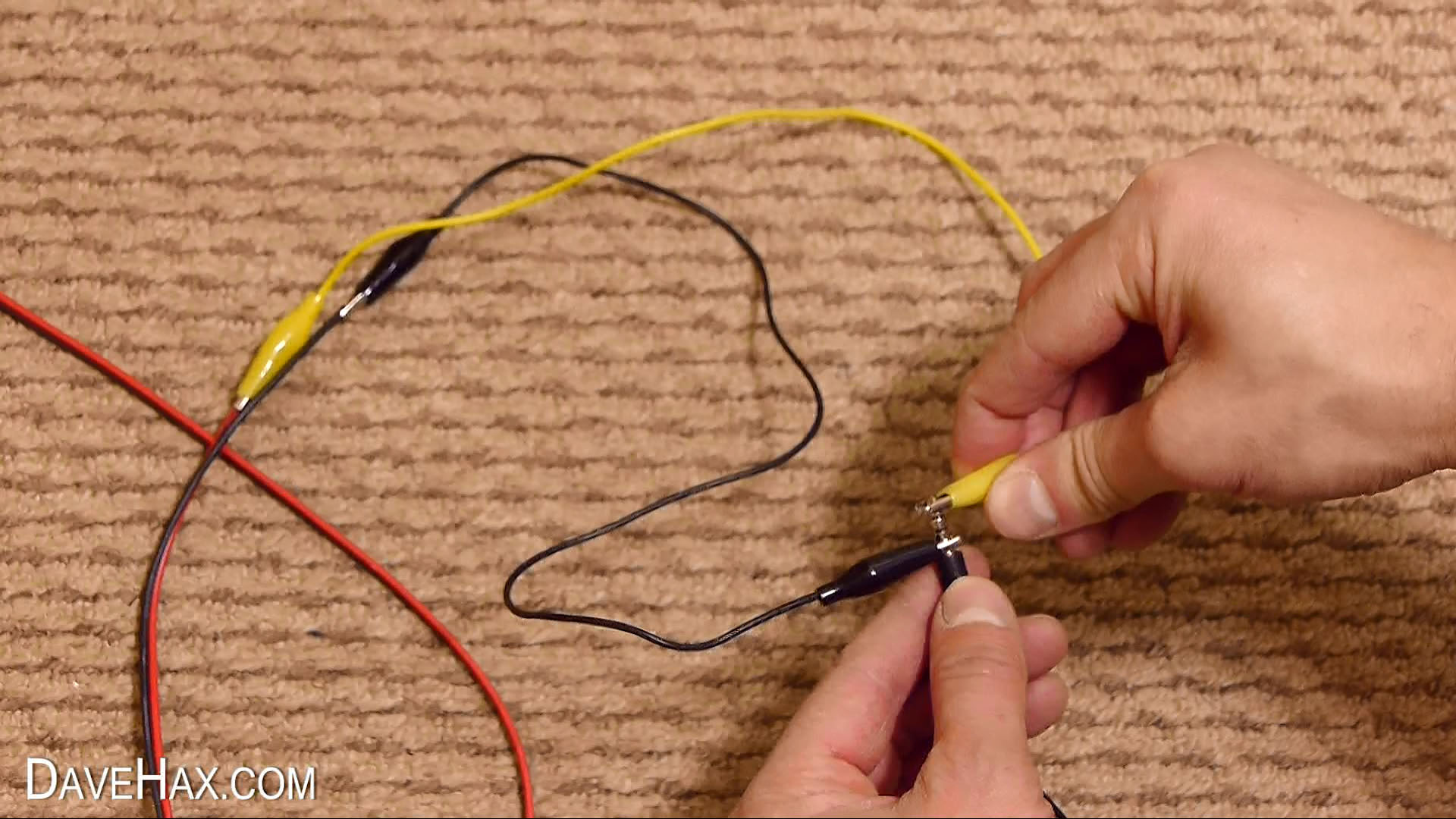

Take your 9v battery and an old pair of earphones that don't matter if they get damaged, (mine came free with an old mobile phone) you could use an old speaker instead. Then using a selection of leads and clips, connect one battery terminal to one side of the microphone (the red lead in my pics), and the other battery terminal to one channel of the earphone jack (the black lead in my pics). Connect a third lead (the yellow one in my pictures) between the other side of the microphone, and the tip of the earphone jack.

If you're using stereo earphones like me, you'll only get sound out of one side, connect the leads to the earphone jack as shown in my pictures.

Testing the Microphone

22 Mic Wires.jpg
26 Tap Mic.jpg

To see if the microphone is working properly put your earphones in, and try gently tapping the matchbox. You should be able to hear it through the earphones.

Extend the Range

27 Speaker Wire.jpg
28 Wire Clips.jpg
29 WireWalk 1.jpg
30 WireWalk 2.jpg
31 Wire to Headpones.jpg

To really test out how well it works you need to be in a different room, so you can only hear the sound captured by the microphone and not what your own ears are hearing at the same time. To do this take a roll of speaker wire and extend the circuit. Disconnect the earphones from the circuit and attach the clips to the speaker wire instead as shown in my pics. Then run the wire through to a different room, you can even go upstairs to the other side of the house if your wire is long enough, then use another couple of leads to reconnect the earphones again as show in the pics.

Now get an assistant to talk into the microphone, it will be a little crackly but you should be able to hear exactly what they're saying.

If you build two of these the same you can make your own two way communication system and chat to each other.

This is a great fun science experiment to do with children learning about electronics. It helps develop a good understanding of a simple electrical circuit and demonstrates the basic principles of a microphone. Being able to build your own microphone which works out of household items is fun, educational and rewarding.
