Match & Learn
.jpg)
We've made an interactive game for kids destinated to improve their english skills. The game consist about matching the silouette of the animal with it's corresponding name. There are 8 options to choose, a bunch of matches to make and infinity of possibilities!
Supplies

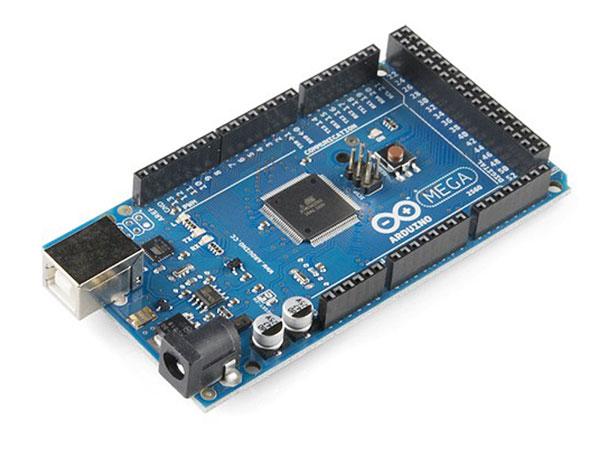

- Arduino Mega
- Cables
- Led's (x16)

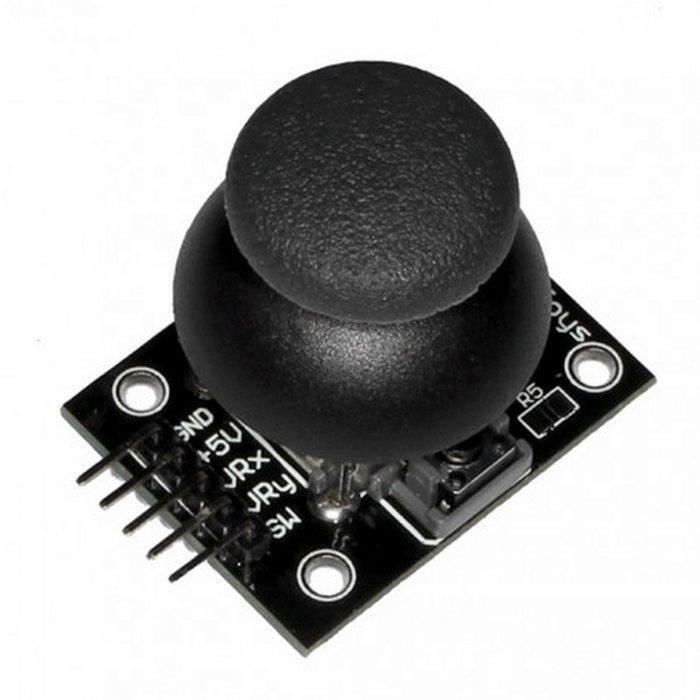

- Joystick device
- Resistors

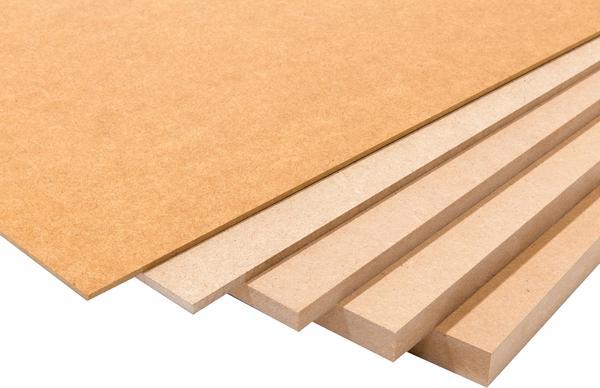

- DM wood
- White Glue
- Welder
- Tin
- Welding plate
- 5V Battery
- Baking paper

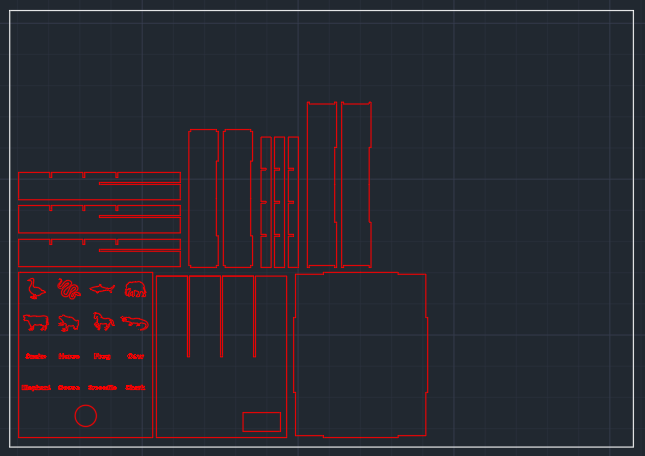

Cut the DM Wood in a Laser Machine
We recommend you to cut it in a wood table of 610x450mm and 3mm width.
Paint the Outer Pieces
You can use spray and the colour that you prefer!
Prepare the Arduino in the Protoboard
Copy Your Code Here!
Downloads

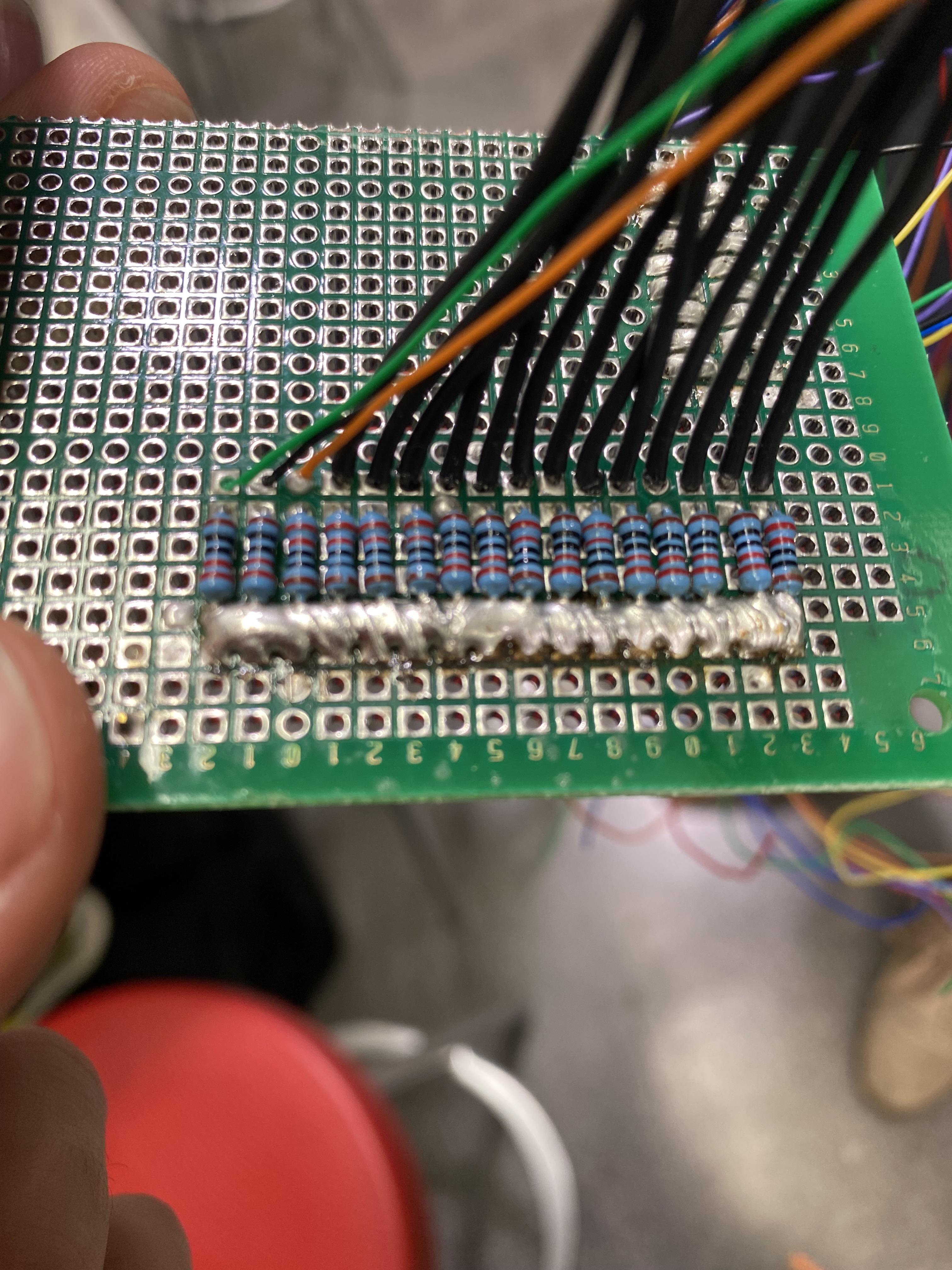

Weld the Resistors and the Cables in the Welding Plate
Add the Heat Shrink in the Cables
For a cleaner finish.
Mount the Pieces; Glue All the Borders With the Inferior Base
The pieces are made to fit the same way as the photo.
Glue the Baking Paper Behind the Superior Case
Glue the baking paper with the shape to fit behind the superior case. This gives a translucid layer behind the silouettes.

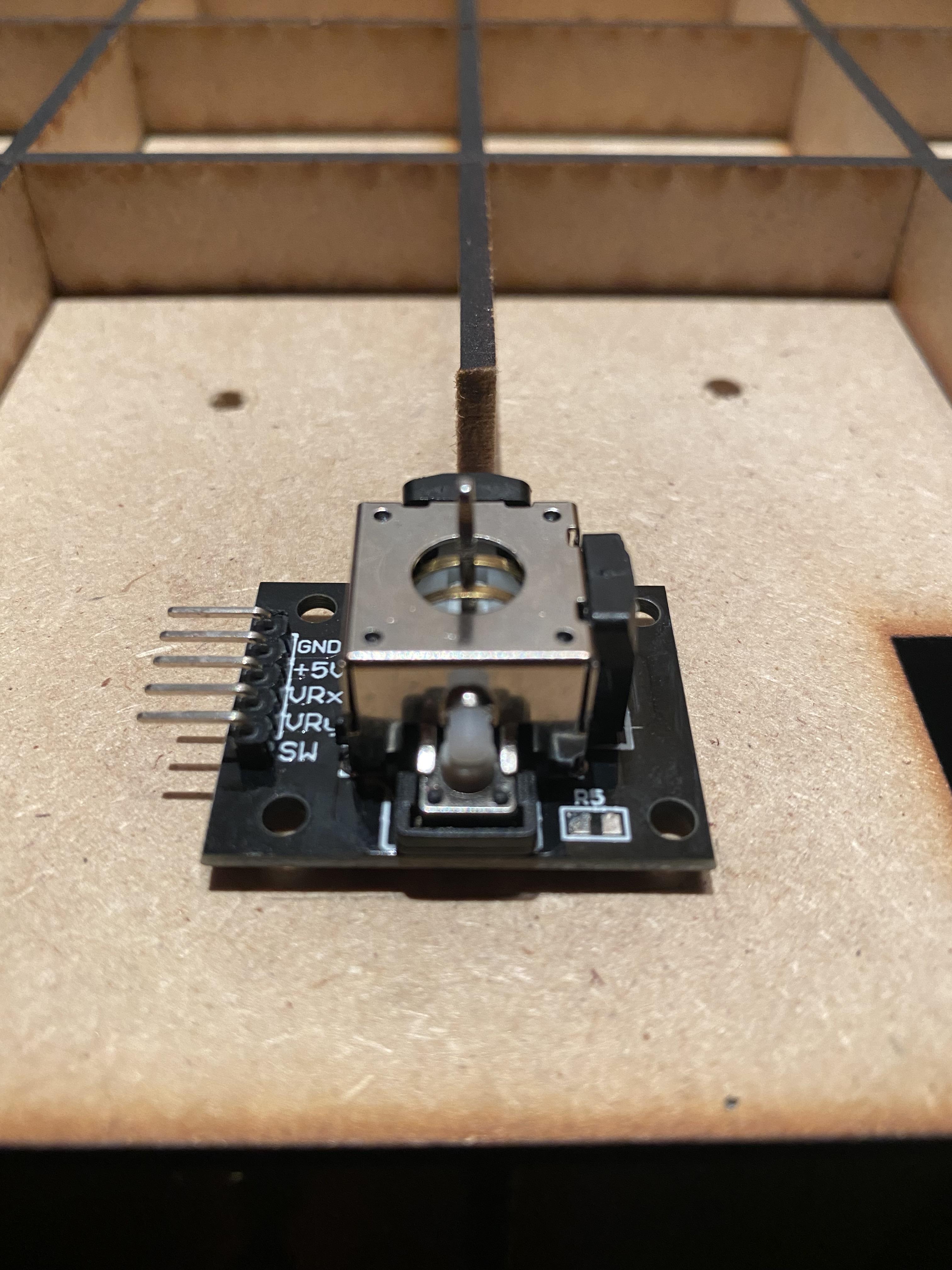

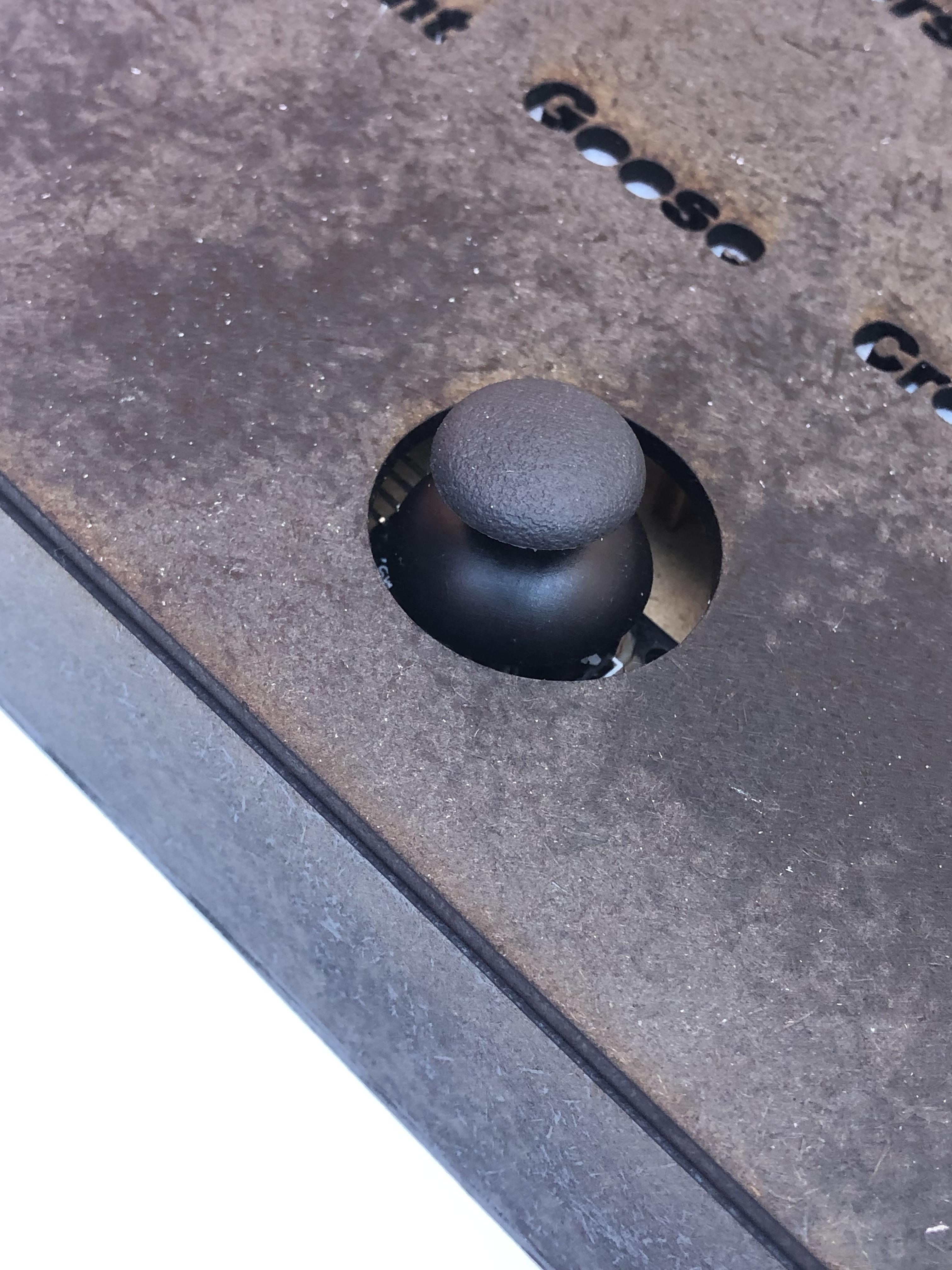

Fix the Joystick Device in the Inner Base
You can glue it or fix it with some screws.
Fix the Led's in the Inner Base
Connect De Cables From the Mega to the Joystick
