Martian Manhunter Superhero Emblem - Wood and Resin

Make A Martian Manhunter Symbol | Superhero Emblem #7

The Martian Manhunter emblem / logo is the last emblem we will be making for the Justice League / DC wall we've been working on for the past few months. Much like the Aquaman emblem we made a few weeks ago, this one is also very simple, at least as far as shape is concerned. Just like every other emblem we've made so far, this one too, is made of wood and resin.

Make sure you watch the video, as it shows a bit more of each of the steps.

Applying the Pattern and Prepping for Cutting

martian manhunter final0439.jpg
martian manhunter final0479.jpg
martian manhunter final0539.jpg
martian manhunter final0559.jpg
martian manhunter final0659.jpg

We started off with a short piece of oak that we had. Then we put down a layer of blue painter's tape. This will allow for easy removal of the pattern once we are done cutting. Next, we sprayed an adhesive onto the tape and then applied the pattern. The only thing left to do was drill holes in each of the four areas that were to be cut out.

Cut #1

martian manhunter final0839.jpg
martian manhunter final1099.jpg
martian manhunter final1219.jpg

The first cut is to remove the pie shaped pieces. To do this we just inserted the blade into the holes we had drilled and cut out the shape. We did use a bit thicker of a blade for this cut since the shape was pretty basic and didn't take a lot of tight turns.

Prepping for the First Resin Pour

martian manhunter final1379.jpg
martian manhunter final1459.jpg
martian manhunter final1499.jpg
martian manhunter final1539.jpg

We always add a vinyl sheet (contact paper) to the back of the piece before we pour to create a seal so it will not leak. Then we mixed up the resin (look here for details on that) and added some green acrylic paint into the mix.

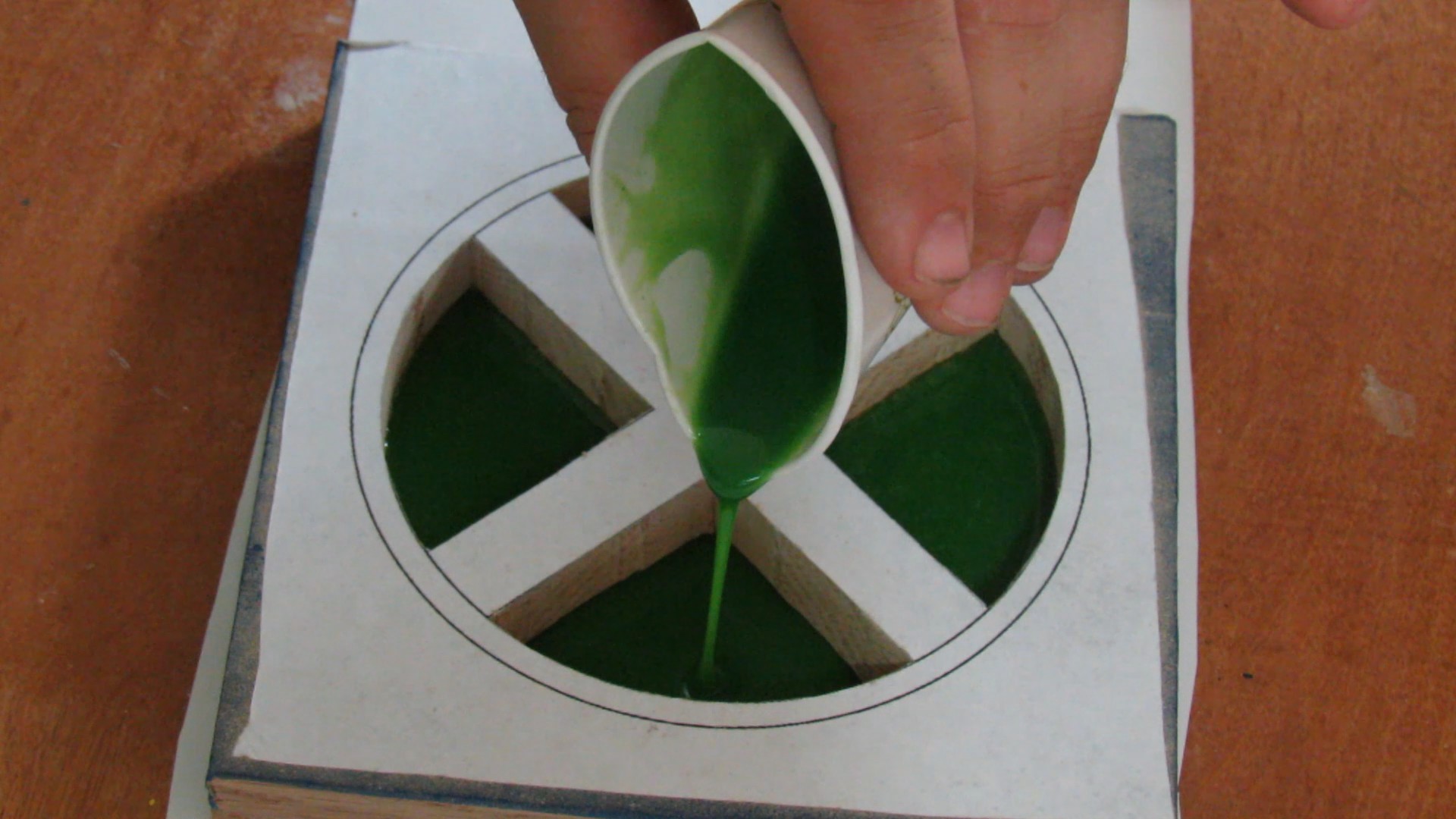

Pouring the Resin

martian manhunter final1639.jpg
martian manhunter final1799.jpg

It's simple enough. We poured slowly, trying to get each section even and then we popped any air bubbles that rose to the surface with a lighter. Then we let it cure for 12 hours before moving on.

Cut #2

martian manhunter final2019.jpg
martian manhunter final2259.jpg
martian manhunter final2399.jpg

After the resin was cured we drilled another hole smack in the middle. Then we cut just a bit over from the edge of each of the previous cuts to create a hollow "x" shape.

Final Resin Pour

martian manhunter final2639.jpg
martian manhunter final2739.jpg

We did the same thing as the other step, but instead mixed up a little more and added red. Again, we let it cure for 12 hours before moving on.

Final Cut

martian manhunter final2979.jpg
martian manhunter final3059.jpg
martian manhunter final3499.jpg

That last thing to do was get the round outer shape. We did this by cutting a little bit away from the line on the band saw and then fine tuned it on the disc sander; sanding right up to the line. Then we peeled off the template and added a few coats of tung oil to all of the exposed wood.

All Done!

martian manhunter final3939.jpg

That's it. To hang it on the wall we just use two of the 3M poster tabs, since the emblem isn't very heavy. If you've seen our other symbols, then you know this one was pretty similar to the rest. If not, we welcome you to check out the rest of them. It's a pretty neat process and could be applied to just about any design.

We hope you enjoyed this DIY project and the video that goes along with it. If you have any questions or comments please let us know, we'd be more than happy to help you out. Thanks for checking out this Instructable.
